SPECIFICATIONS

Brand Name: OMDAZZ

Condition: New

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: 5V

Type: Logic ICs

is_customized: Yes

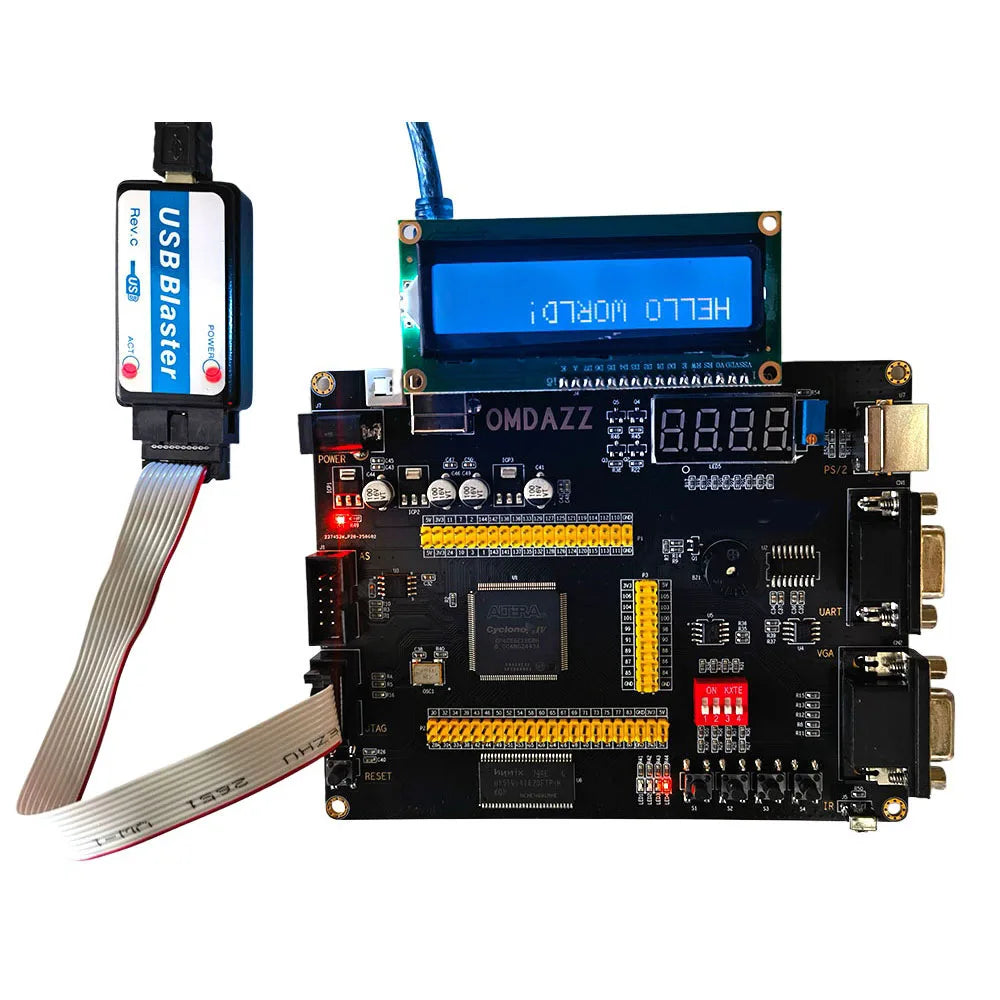

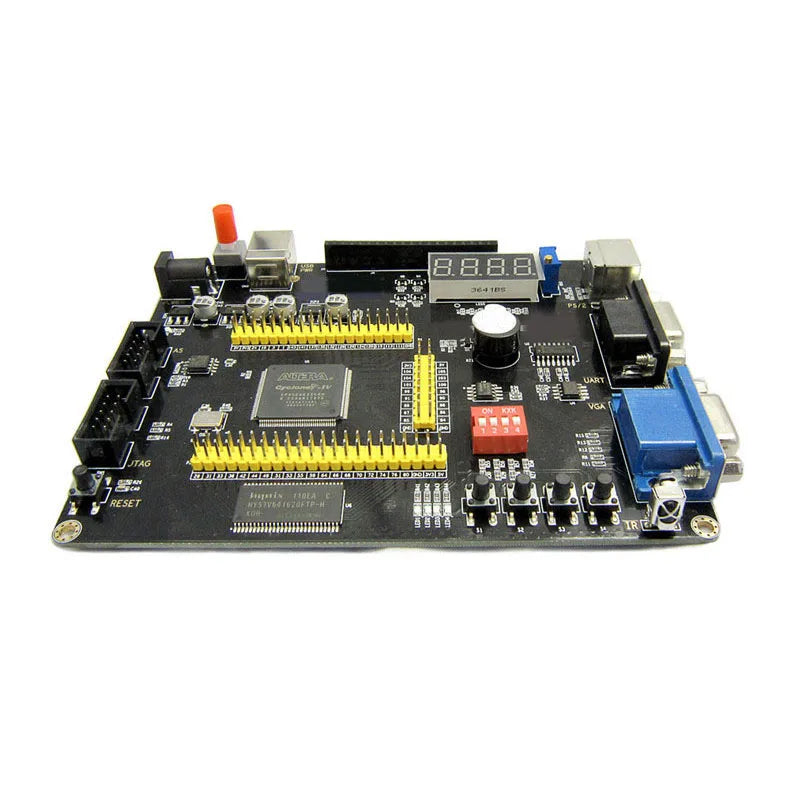

Intel Cyclone IV EP4CE6 FPGA Development Board Kit | LQFP Easy Debug for Student Learning & NIOS II SOPC Prototyping

🔥Why Choose Our EP4CE6 FPGA Board?

Perfect entry-level FPGA platform for university students, electronics hobbyists & embedded engineers. Solve your learning & prototyping pain points at low cost:

1. LQFP 144 Package, Beginner-Friendly Debug

Unlike hard-to-test BGA chips, the EP4CE6E22C8N LQFP chip allows easy multimeter probing, manual soldering & fault troubleshooting, ideal for new FPGA learners.

1. Full IO Pin Expansion, Strong Scalability

All FPGA core IO pins led out via standard 2.54mm pitch pin headers, freely connect sensors, display modules & expansion boards for custom projects.

1. Built-in Anti-Static Transparent Protective Cover

Prevent ESD damage to the FPGA chip during daily operation & experiments, extend board service life.

1. Complete Onboard Peripherals, All-in-One Experiment Platform

Integrate LED, 4-digit tube, buzzer, VGA, RS232, PS2, temperature sensor, I2C EEPROM & infrared receiver, support digital logic, communication & display experiments without extra purchase.

1. Dual Download Modes, Flexible Program Storage

JTAG for fast online debugging (.SOF file, real-time running); AS for permanent program burning (.POF file, data reserved after power off).

1. Full Supporting Documents & Ready-to-Use Demo Codes

Free full resource package via OneDrive link: complete schematic, chip datasheet, Quartus engineering files, Verilog sample programs.

1. 100% Full Function Testing Before Shipment

Each FPGA main board & USB Blaster downloader undergoes strict power-on, communication &
interface testing to avoid defective products.

1. All-in-One Bundle Options, Flexible Matching

7 optional kits from basic board to full image/ethernet suite, select according to your project demands to save extra module costs.

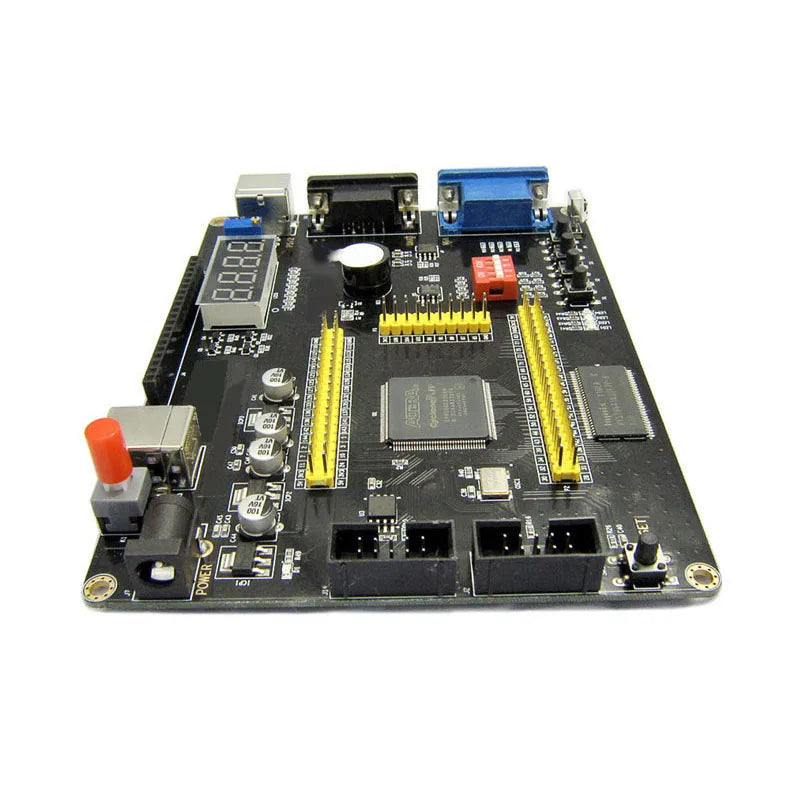

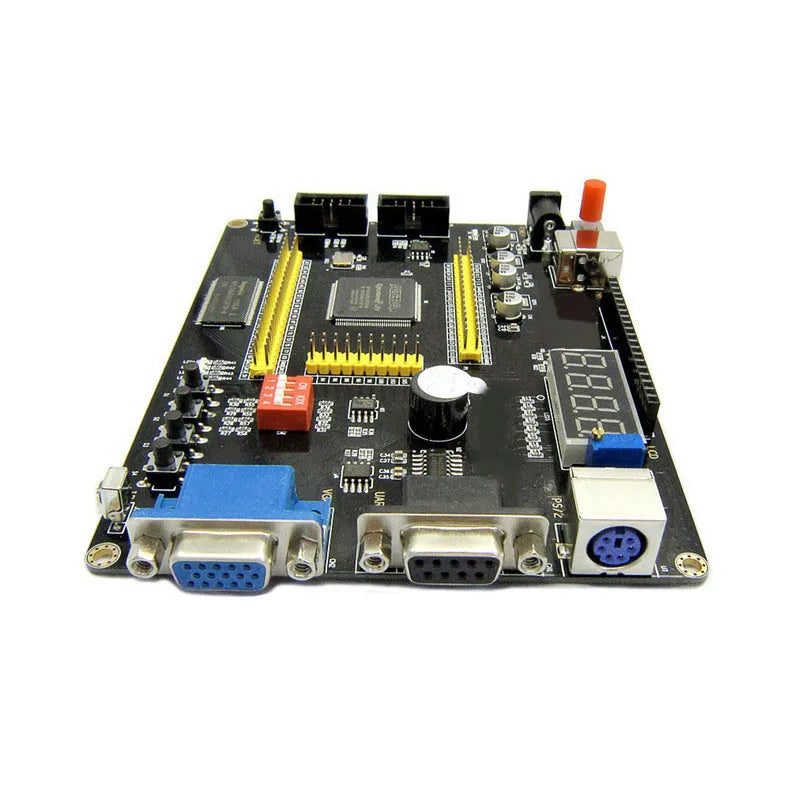

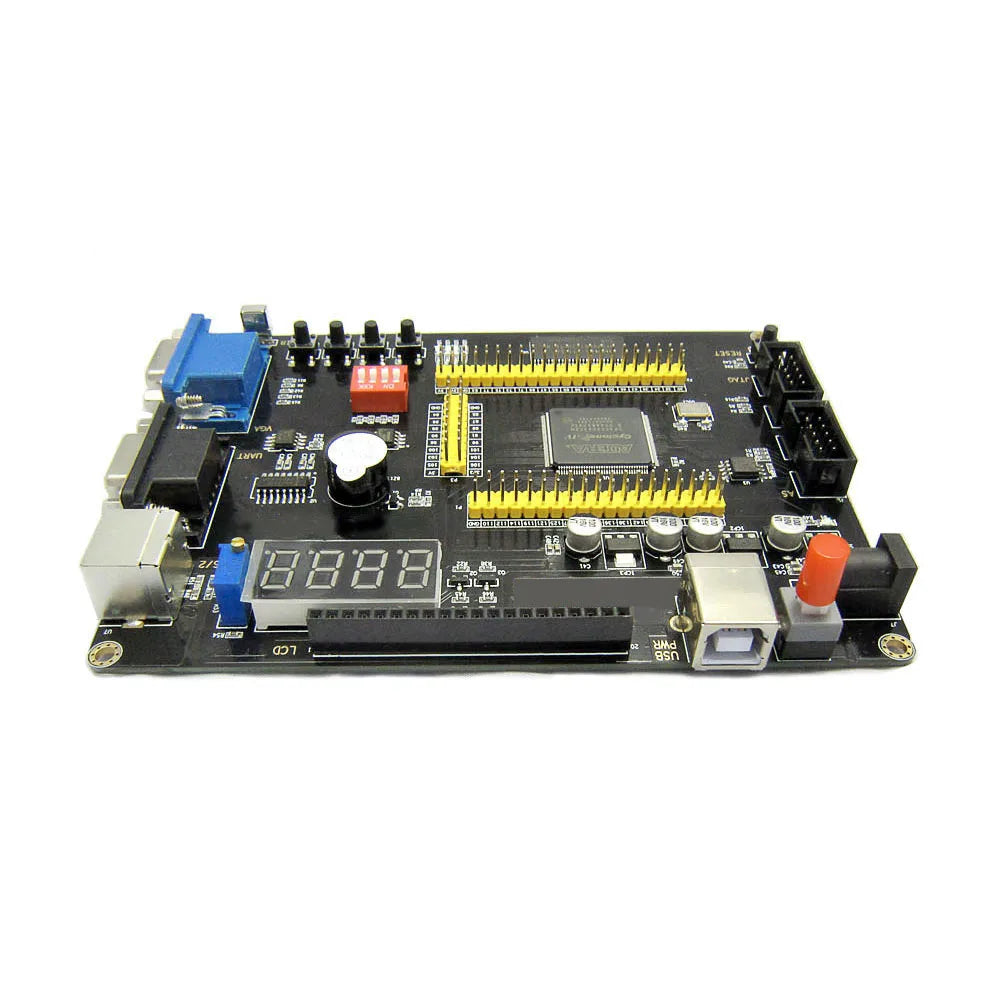

📌 Core Hardware Specifications

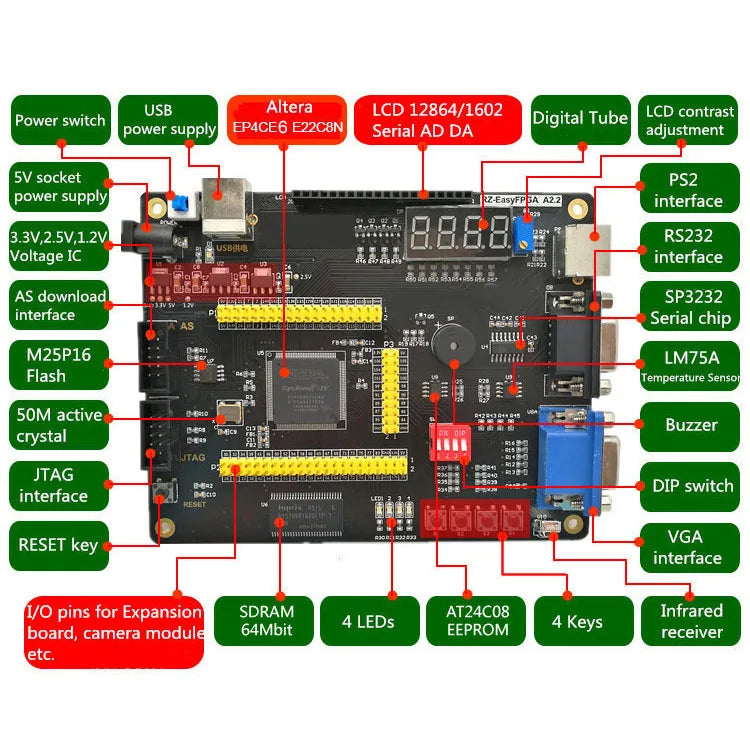

🖥️ On-Board Peripheral Interfaces & Resources

• Power & Control: Self-locking power switch ×1, global reset key ×1, user functional buttons ×4

• Indicator: 4× LED status lights, 4-digit common anode digital tube

• Analog & Sound: 4-position DIP switch, active buzzer ×1

• Communication Interfaces: PS2 keyboard/mouse port, RS232 serial port, I2C AT24C08 EEPROM chip

• Display: 20Pin LCD socket (support LCD1602 / LCD12864 / TFT screen), adjustable precision resistor for LCD backlight brightness

• Image & Video: 8-color VGA output interface

• Sensors & Infrared: LM75A digital temperature sensor, infrared receiving module for remote control experiment

🧩 Optional Expansion Modules

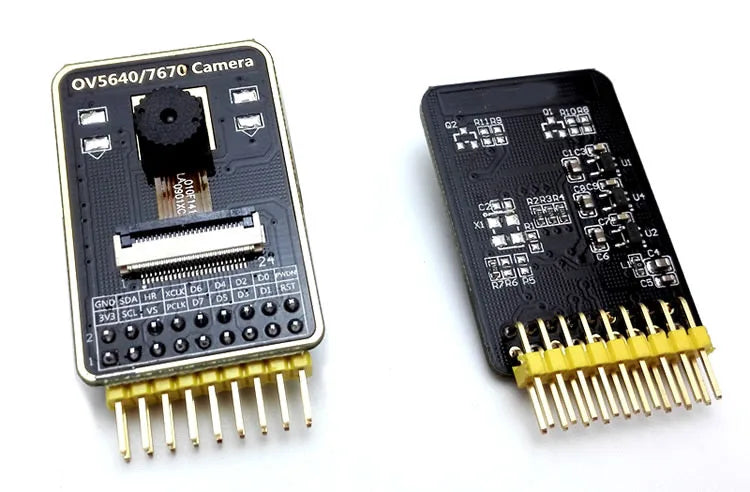

1. OV7670 Camera Module: Real-time image acquisition & FPGA video processing

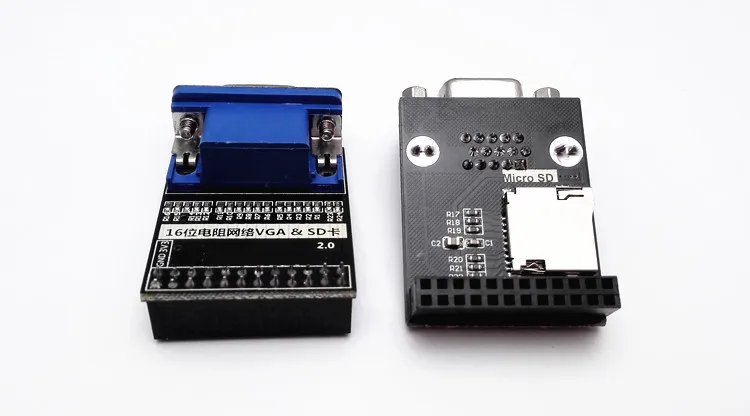

2. 16-bit True Color VGA Module: Support 65536 rich colors, built-in SD card slot for image storage

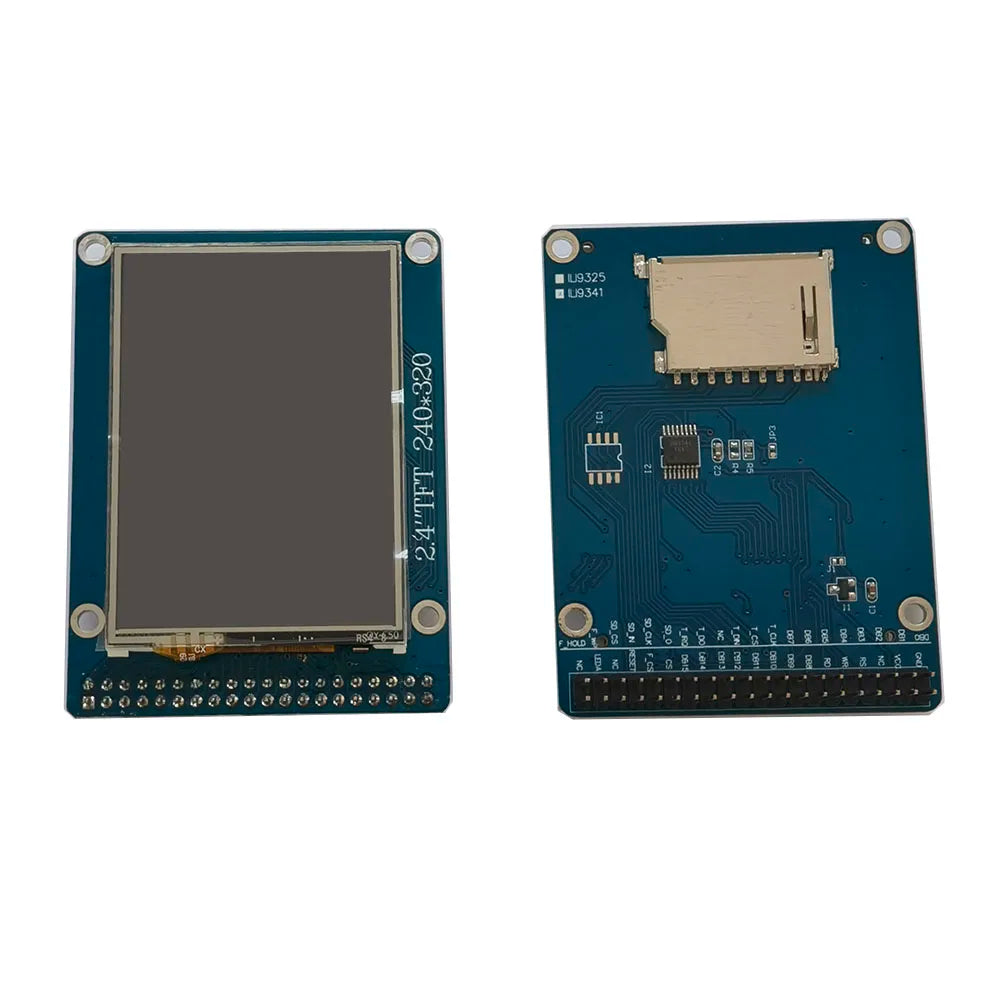

3. 2.4-inch TFT Touch Screen: Onboard touch IC + SD card socket for touch UI design

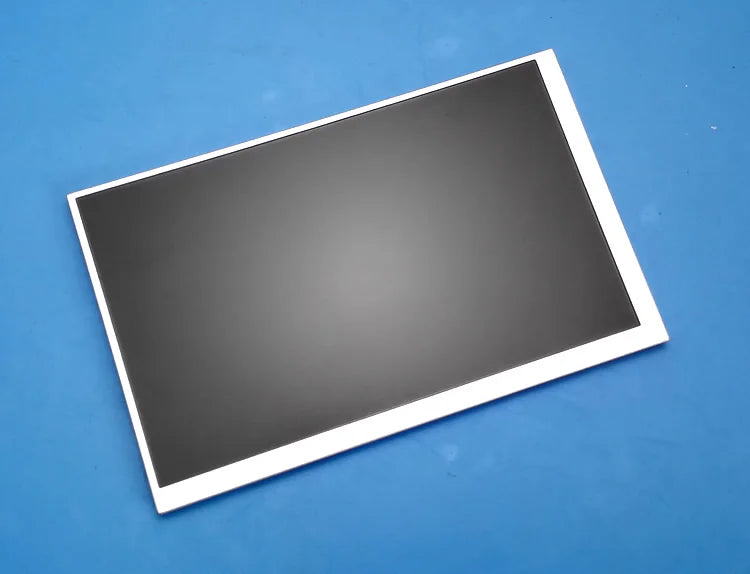

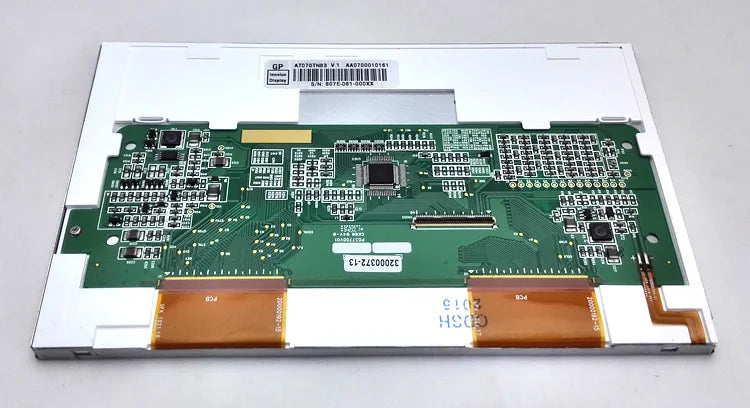

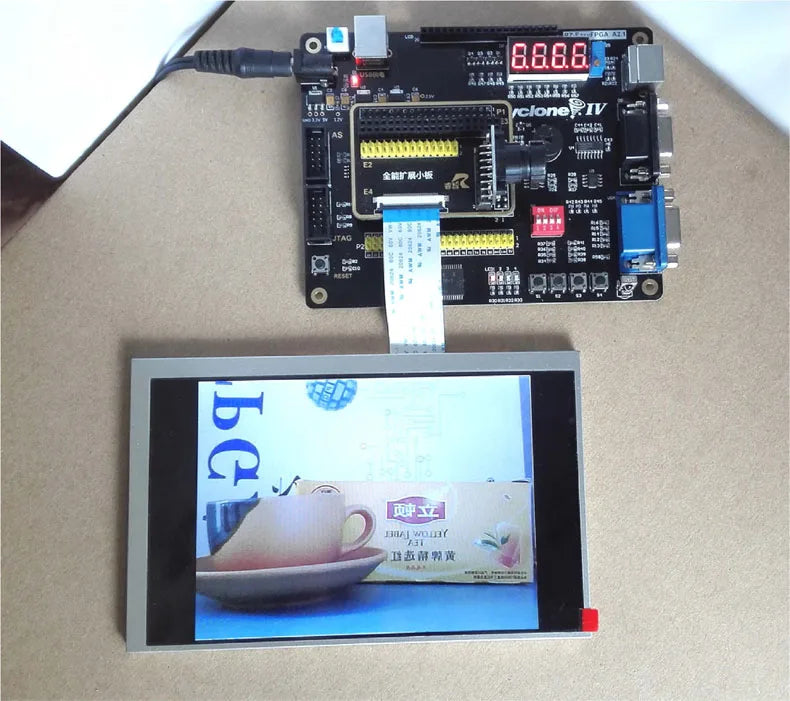

4. 7.0-inch TFT LCD Module: Compatible with EP4CE6 FPGA board via matching connecting board, ideal for high-resolution GUI, image/video display and HMI control experiments.

LCD Size: 7.0 inch (Diagonal)

Driver: a-Si TFT active matrix

Resolution: 800×3(RGB)×480

Display Mode: Normally white, Transmissive

Dot pitch: 0.0635(W) × 0.1905(H) mm

Active Area: 152.4(W) × 91.44(H) mm

Module Dimension: 165(W) × 104(H) × 5.5(D) mm

Surface Treatment: Anti-Glare

Color Arrangement: RGB-stripe

Interface: Digital TTL

Typical Backlight Power Consumption: 2.500W

Typical Panel Power Consumption: 0.825W

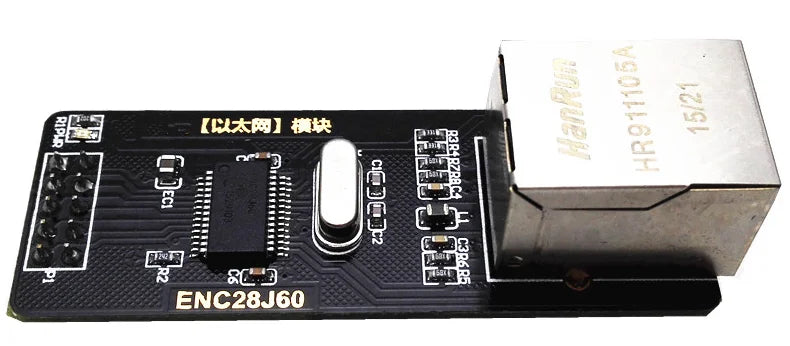

5. Ethernet Module: TCP/IP network communication experiment, data transmission CH376S

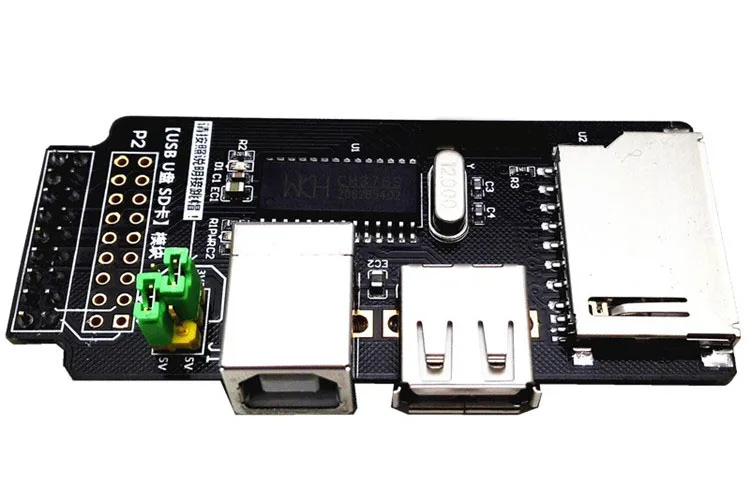

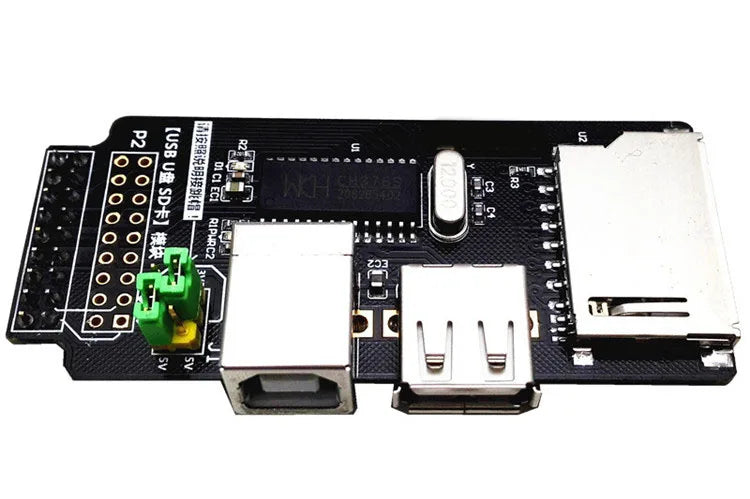

6. USB Module: PC USB communication, U-disk & SD card read/write test General

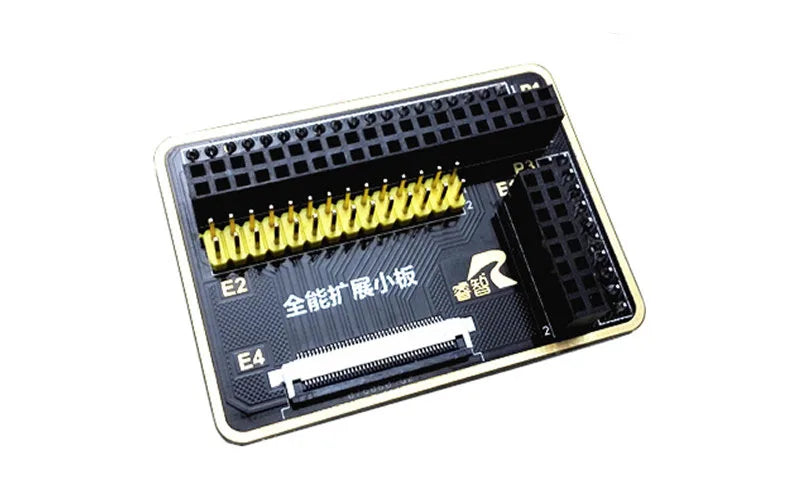

7. Connection Board: Stable wiring bridge between main board & all expansion modules

📦 6 Bundles Package List (Quick Selection Guide)

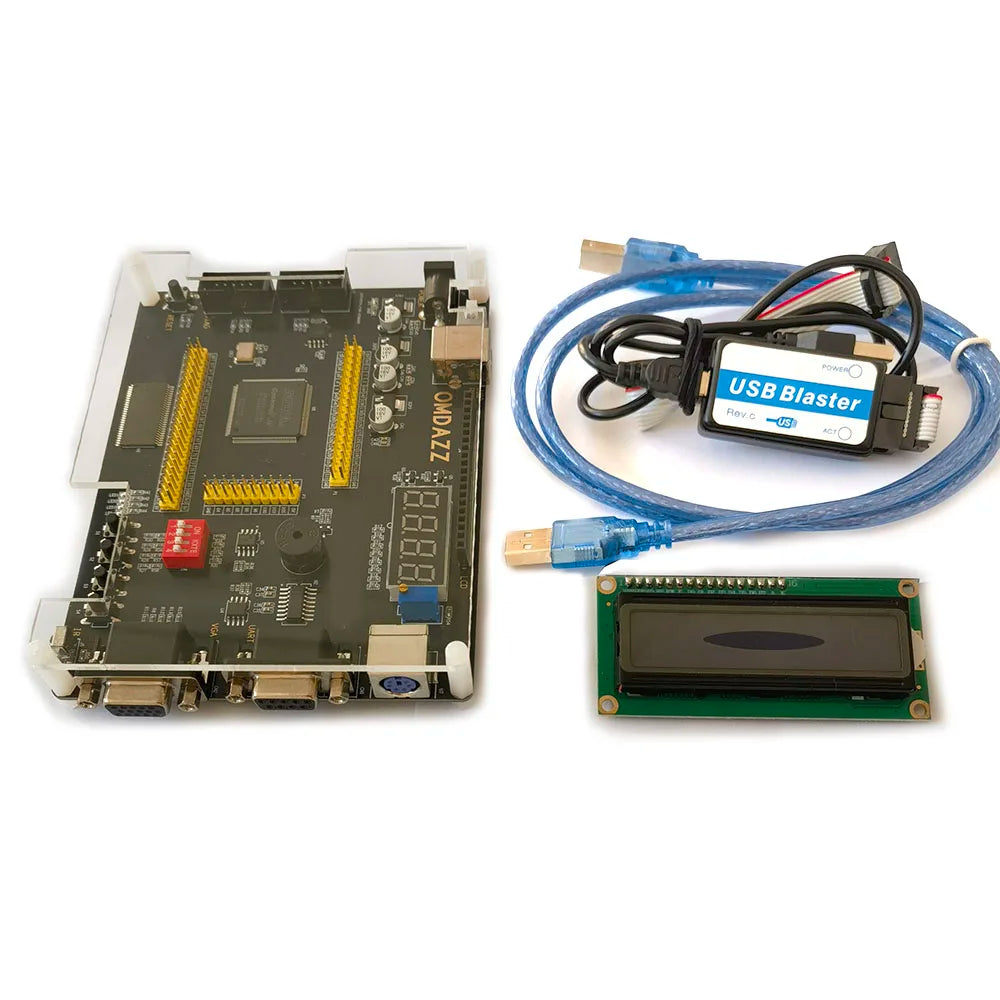

Bundle 1 (Basic Learning Kit – For Beginners / Course Basic Experiment)

• EP4CE6 FPGA Main Board ×1

• USB Blaster Programmer ×1

• USB Power Cable ×1

• LCD1602module x1

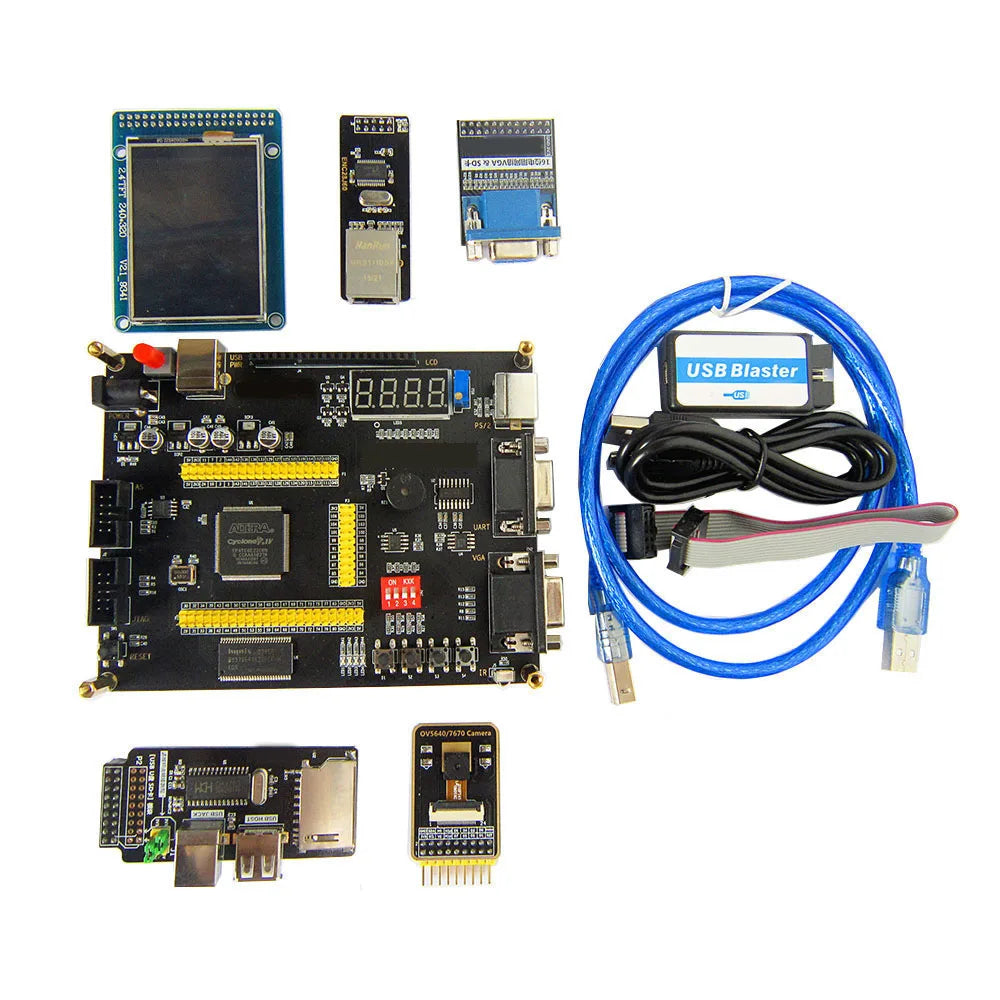

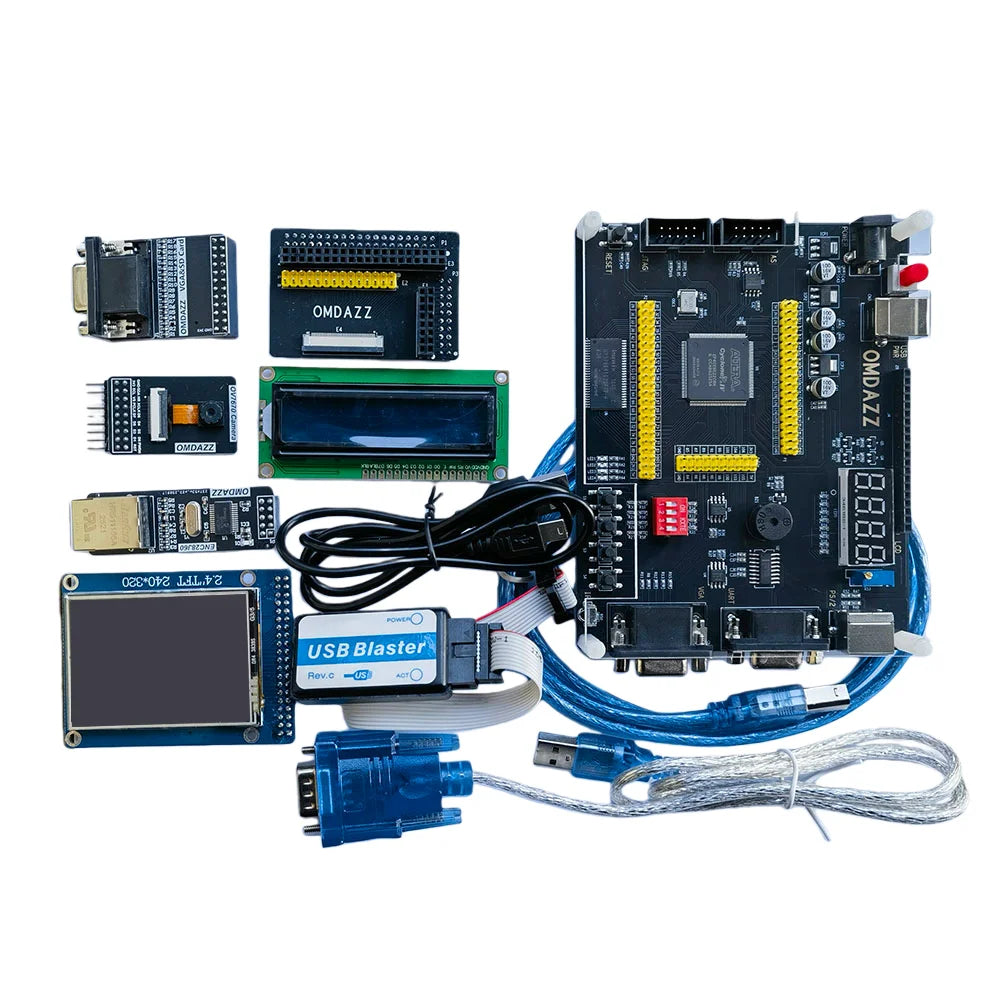

Bundle 2 (Full Function All-in-One Kit – University Lab / Comprehensive Graduation Project)

All contents of Bundle1 + Connection Board + 16-bit 65536-color VGA Module + OV7670 Camera + 2.4" TFT Touch Module +
Ethernet Module + USB to RS232 cable

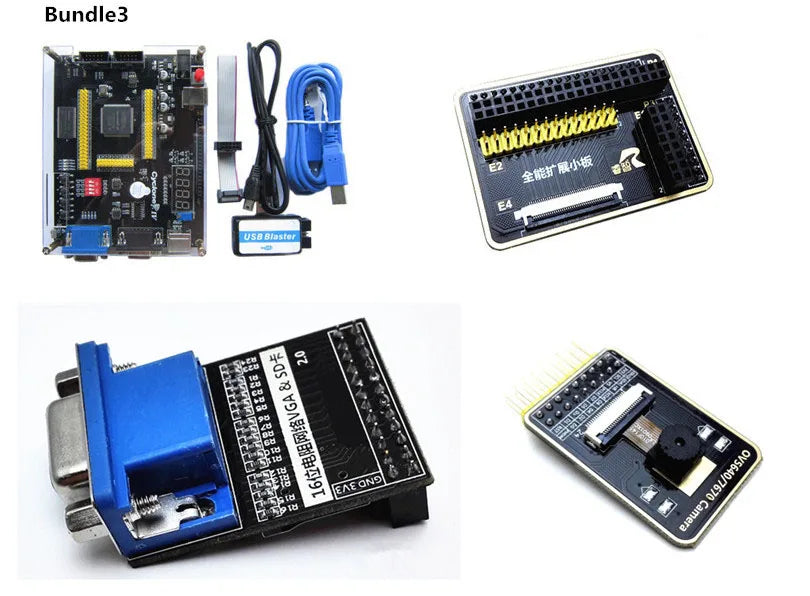

Bundle 3 (Image Processing Kit – VGA Display + Camera Vision Project)

All contents of Bundle1 + Connection Board + 16-bit 65536-color VGA Module + OV7670 Camera

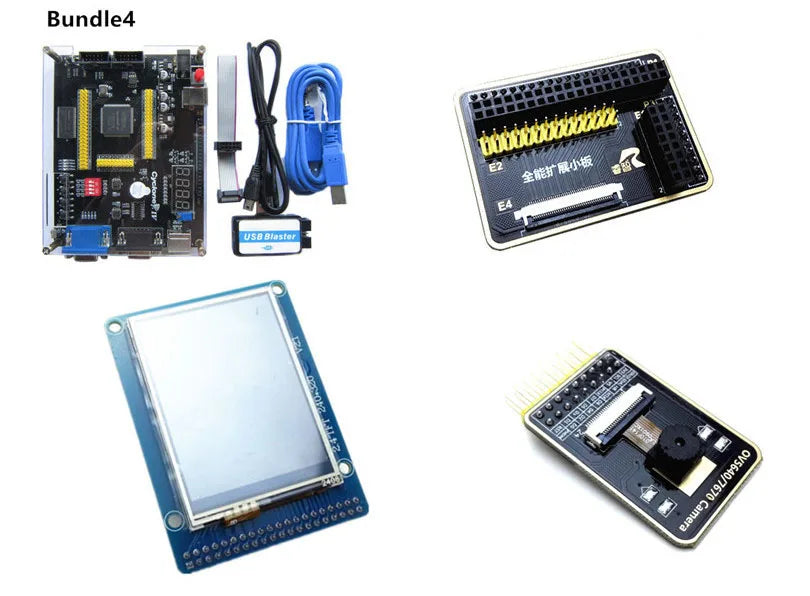

Bundle 4 (Touch Screen Vision Kit – TFT Display + Camera Design)

All contents of Bundle1 + Connection Board + 2.4" TFT Touch Module + OV7670 Camera

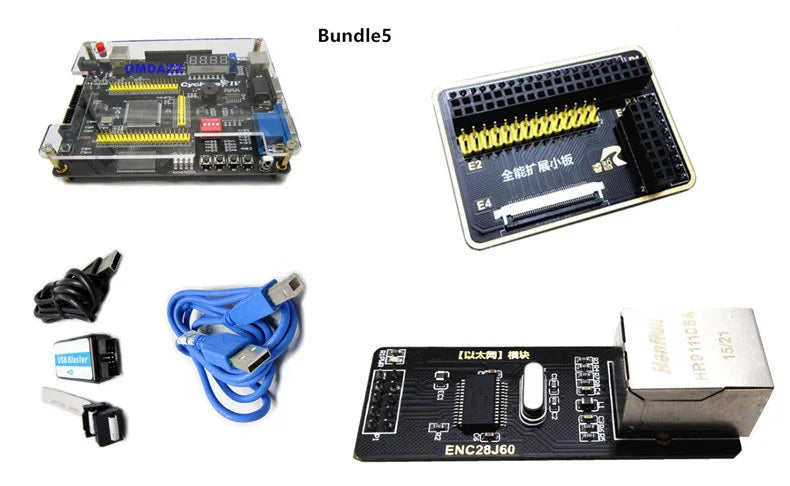

Bundle 5 (Ethernet Communication Kit – Network Transmission Experiment)

All contents of Bundle1 + Connection Board + Ethernet Module

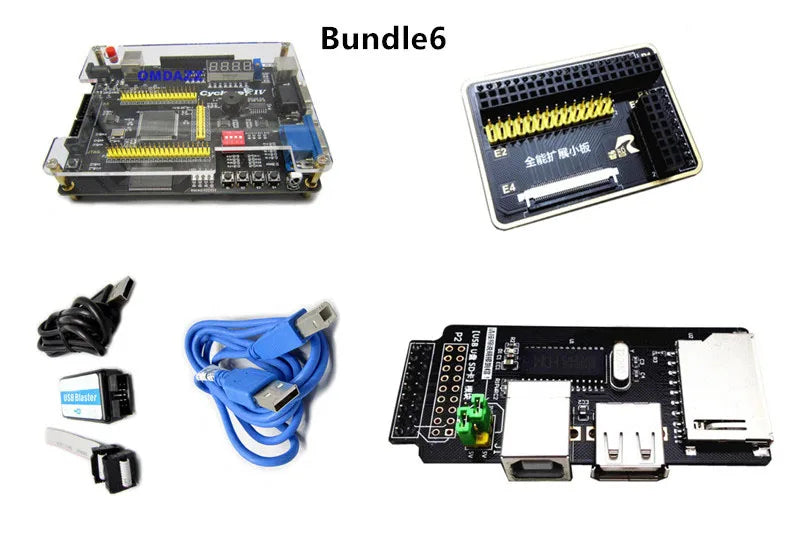

Bundle 6 (USB Communication Kit – U-Disk & SD Card Storage Test)

All contents of Bundle1 + Connection Board + CH376S USB Module

Bundle 7 (7-inch Large TFT HMI Display + Camera Design Kit – For High Resolution GUI & Image Experiment)

All contents of Bundle1 + Connecting Board + 7.0-inch 800×480 TFT LCD Module + OV7670 Camera

🛡️ Packaging & After-Sales Support

1. Safe Packaging: Anti-static bag + bubble wrap + thick hard carton, prevent collision & static damage during international shipping

2. Free Full Technical Resources: After order, we will send OneDrive download link including schematic, datasheet, Quartus software guide & mass demo codes

3. Global Technical Support: Our engineer team answers hardware & programming questions within 24 hours

4. Quality Guarantee: free replacement for factory defective goods

🎯 Main Application Scenarios

• University digital logic, FPGA & embedded system teaching

• NIOS II SOPC embedded system development

• VGA image display, OV7670 camera video processing

• 7-inch large screen industrial control GUI, high-definition image/video playback experiment

• I2C/UART serial communication, infrared remote control experiment

• Ethernet network transmission, USB storage read-write project

• Electronic competition, graduation design & DIY hardware prototype
