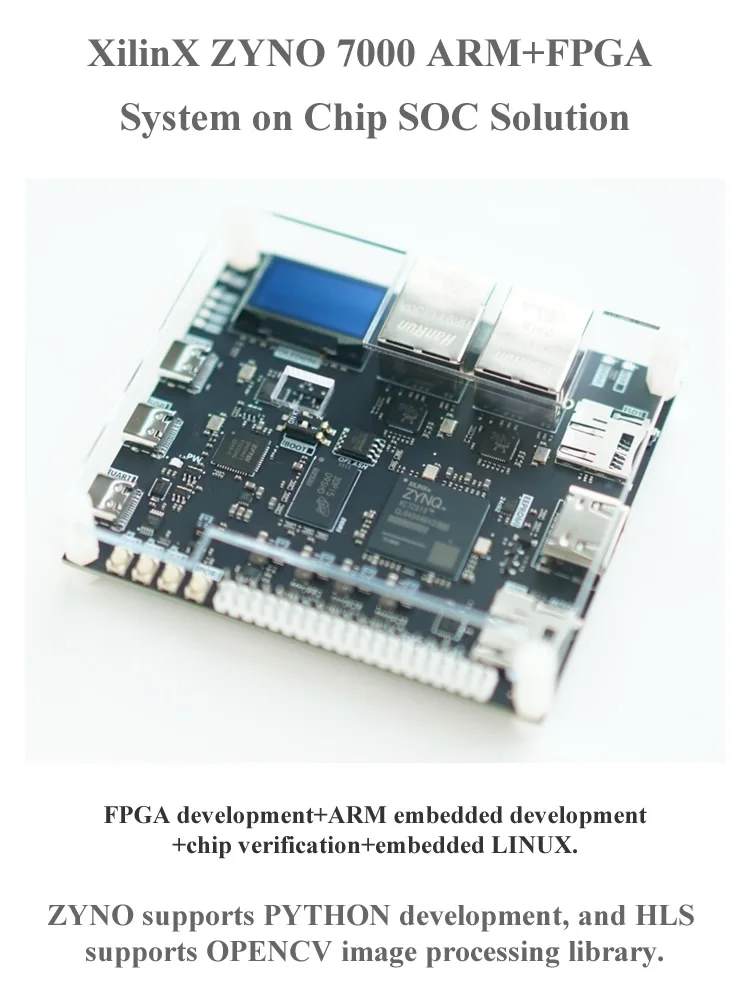

The FPGA and ARM architecture of the Xilinx ZYNO7000 on-chip system.

• FPGA development+ARM embedded development+chip verification+embedded LINUX.

• ZYNO supports PYTHON development, and HLS supports OPENCV image processing library.

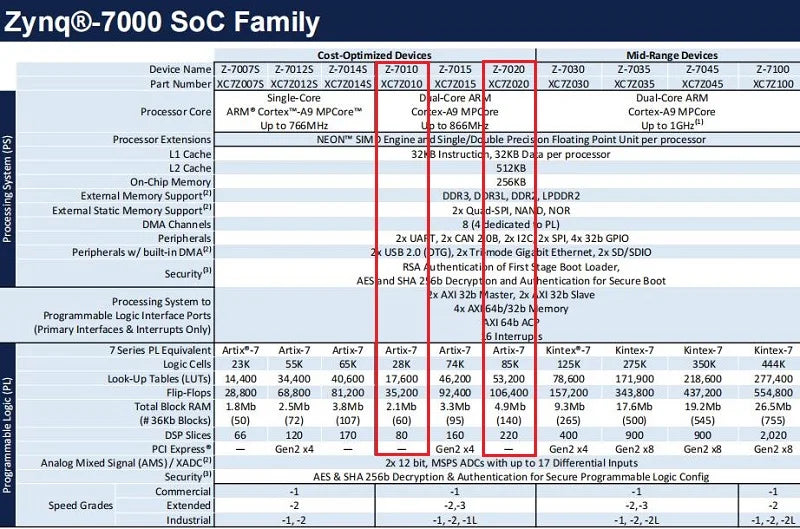

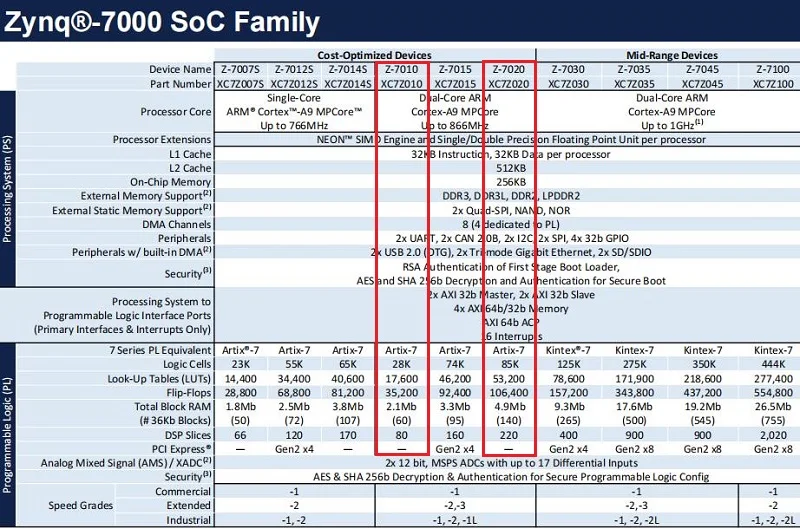

7Z020 main chip parameter resources

• Main chip model: XC7Z020-2CLG4001

• Processor model: ZYNQ on-chip hardcore processor, dual core Cortex-A9

• Processor clock speed: 766MHz

• DDR3 (PS): 512MByte, 16 bits wide, 1066M data rate

• Logic Unit (LC): 85K

• Look up table (LUT): 53200

• DSP unit multiplier: 220

• Trigger: 106400

• RAM: 4.9 MBit (bits)

• Speed level:- 2

• Device grade: Industrial grade -40~+85 ℃

7Z010 main chip parameter resources

• Main chip model: XC7Z010-1CLG4001

• Processor model: ZYNQ on-chip hardcore processor, dual core Cortex-A9

• Processor frequency: 666MHz

• DDR3 (PS): 512MByte, 16 bits wide, 1066M data rate

• Logical Unit (LC): 28K

• Look up table (LUT): 17600

• DSP unit multiplier: 80

• Trigger: 35200

• RAM: 2.1 MBit (bits)

• Speed level:- 1

• Device grade: Industrial grade -40~+85 ℃

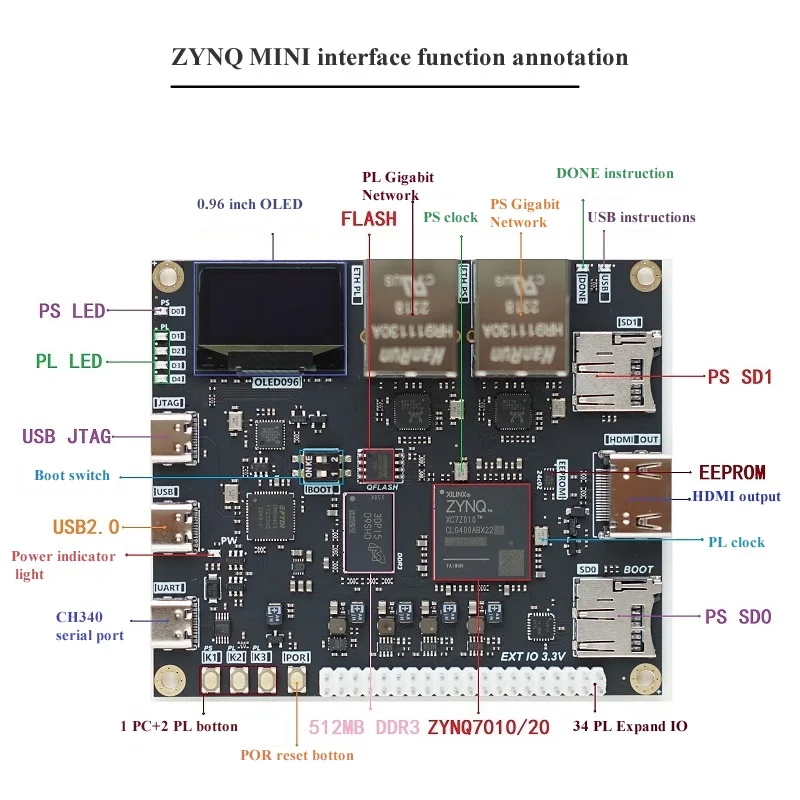

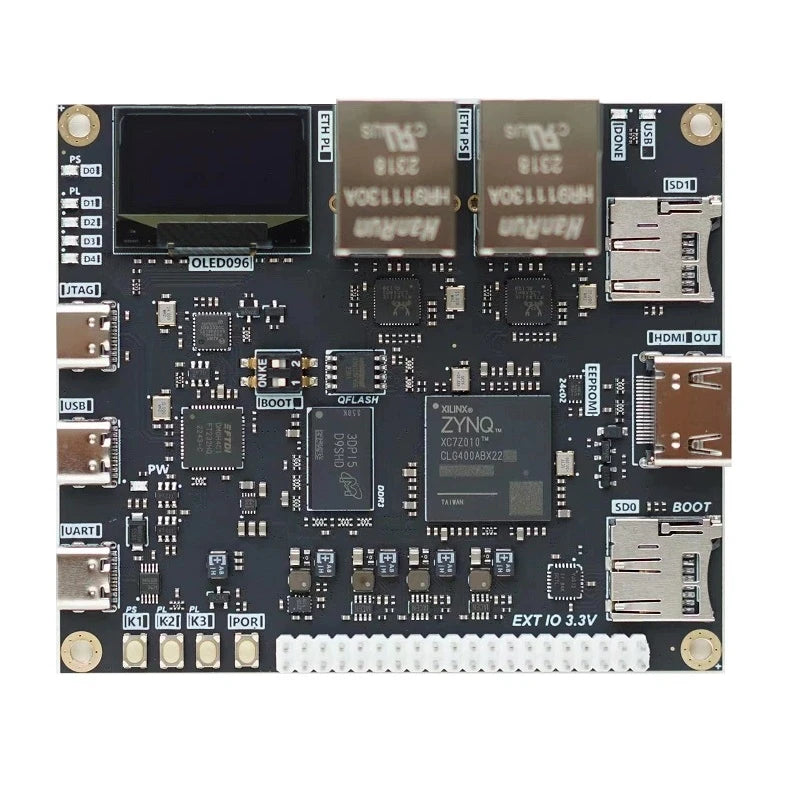

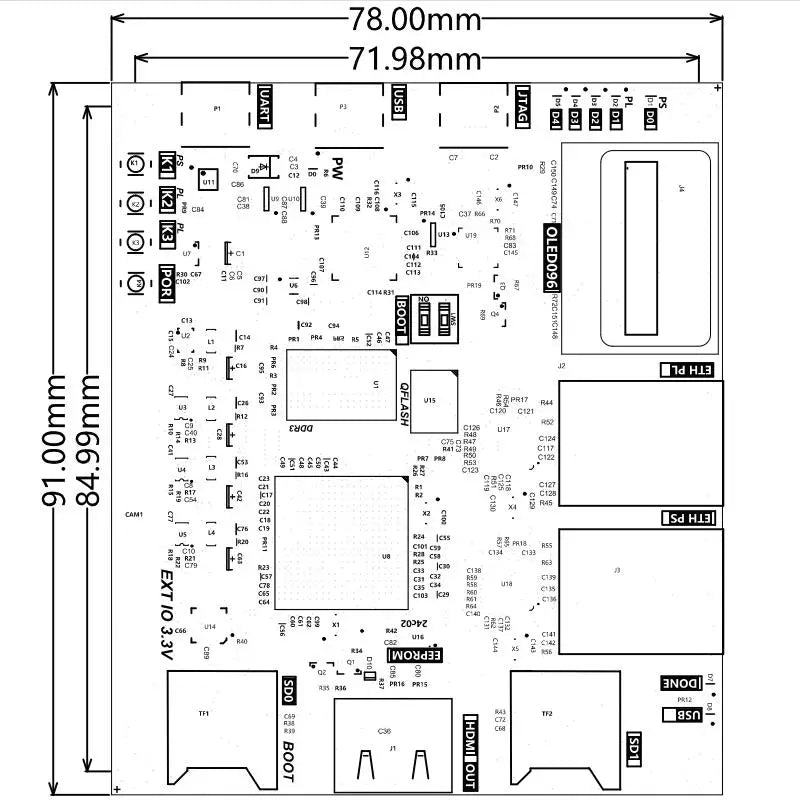

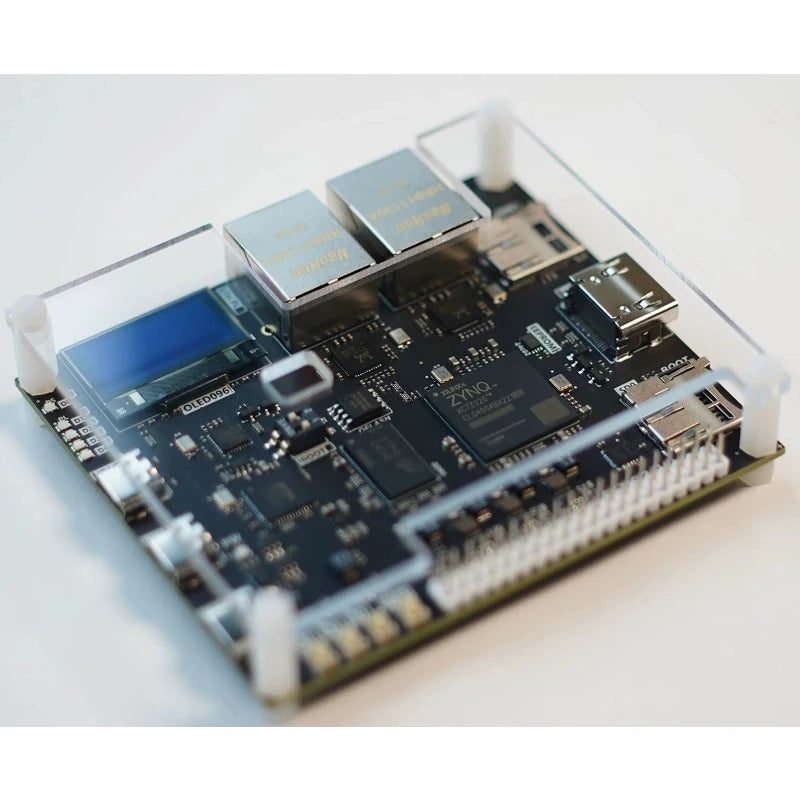

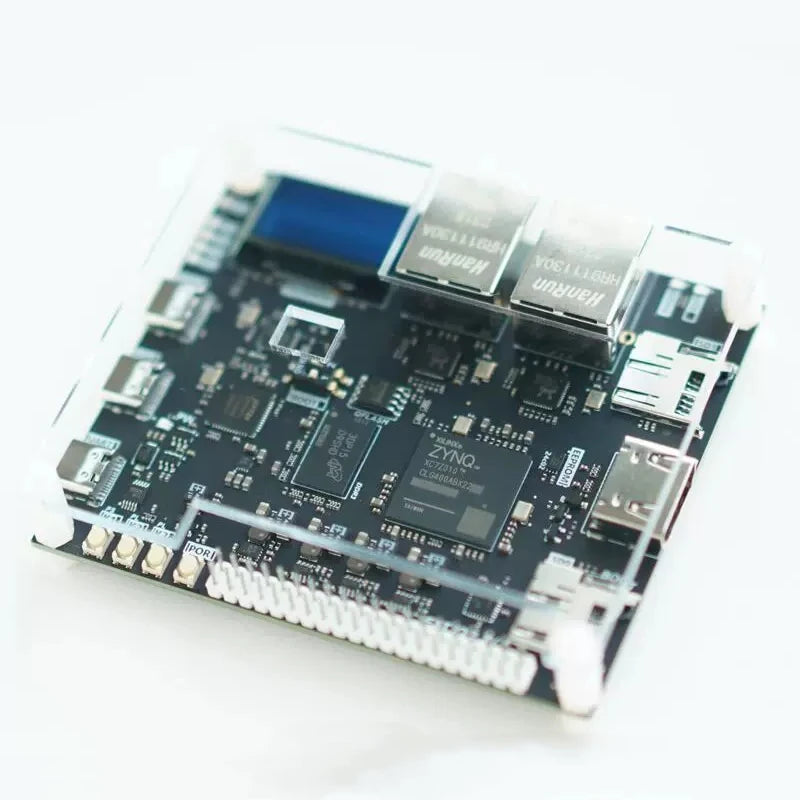

Development board functional interface description

• Development board power supply: powered through TYPE-C interface. All USB ports on the development board can be powered

• Development board clock: 33.33M (PS), 50M (PL)

• Ethernet: Gigabit RTL8211E, RGMII interface, 1 ETHO and 1 PL for PS

• USB interface: PS USBO,USB2.0， Supports HOST and can be extended with TYPE-C HUB

• Debugger: Download the onboard Xilinx debugger, supporting ARM and FPGA development

• Serial port and power port: 1 PS UART1 CH340 serial port, TYPE-C

• SD card: PS SD0 and SD1, SD0 can boot (SD supports up to 32GB)

• HDMI interface: 1 PL HDMI output interface, maximum support 1080@60HZ

• User LED and buttons: 2 PS pin buttons, 2 PL pin buttons; 1 PS LED, 4 PL LEDs

• Startup setting switch: a BOOT dip switch used for startup settings

• Onboard OLED module: 0.96-inch 128 * 64 monochrome OLED, SPI interface, located in PL

• Onboard FLASH: PS FLASH, W25Q128FVSG, 128Mbit (16MB)

• 40 pin expansion with 10 ports: including 34 single ended IO ports, on PL BANK34, 3.3V standard; The pin provides external power supply of 5V and 3.3V, with 10 signals of equal length

• System reset: a system reset (POR) button

• Development board indicator light: DONE，USBCPEN， Power insertion indicator light

• Development board power system: onboard core power supply: 1.0V/6A; Other channels: 1.8V/3A, 1.5V/3A, 3.3V/3A; BANK34 VCCO voltage for expanding IO port 40P: 3.3V

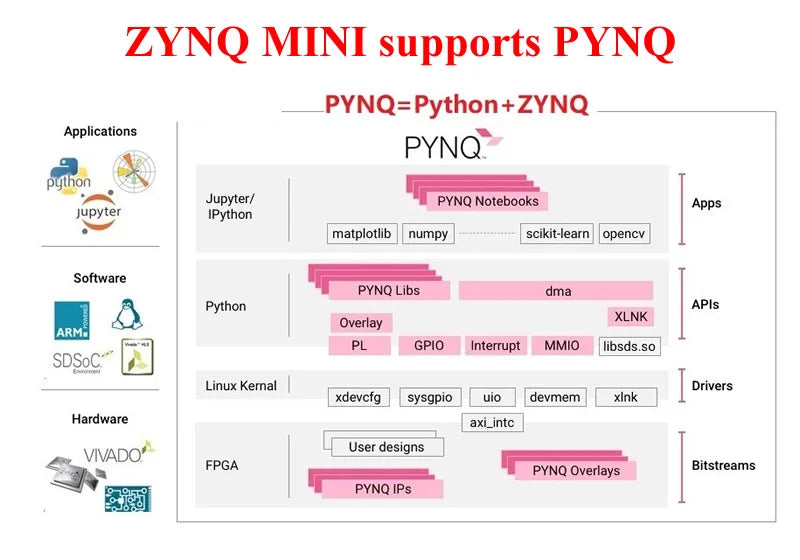

PYNQ is an open-source framework developed using Python and running on the ZYNQ System on Chip (SOC) platform.

Based on PYNQ, development can be simplified by importing hardware FPGA logic as a library and programming through its API interface. This approach greatly reduces development difficulty and is more convenient than SDK for embedded code development.

Using the PYNQ framework can accelerate product development and shorten verification cycles, especially in the field of artificial intelligence, which has great advantages.

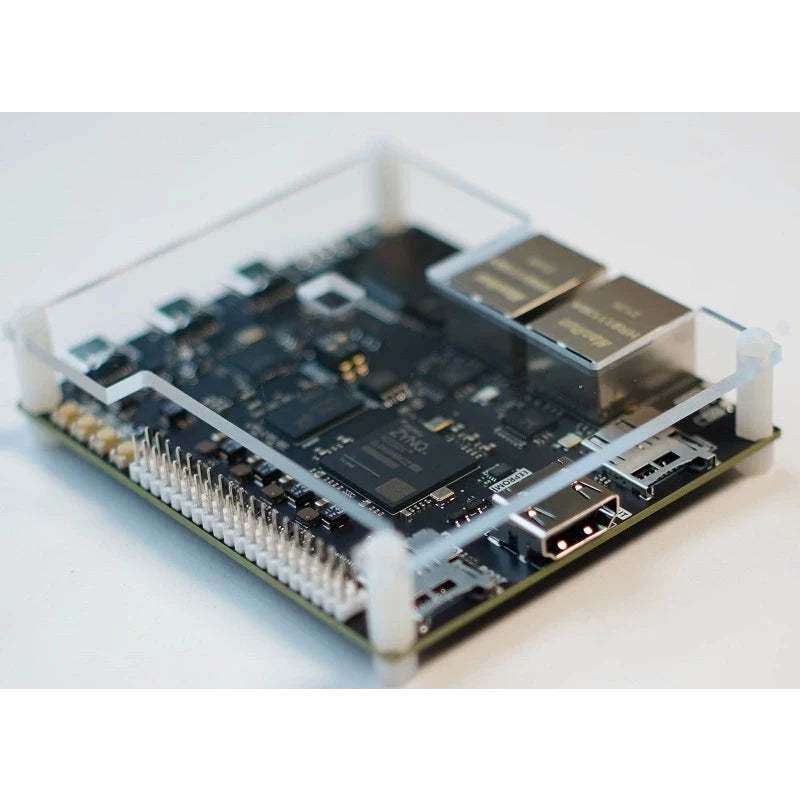

Delivery List

1. ZYNQ MINI development board * 1 piece;

2. TYPE-C data cable * 1 piece

3. Nylon screw studs * 4 pairs

4. Acrylic organic glass * 1 piece:
