Model Number
Description

SPECIFICATIONS

Brand Name: OMDAZZ

Condition: New

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: 5V

Type: Logic ICs

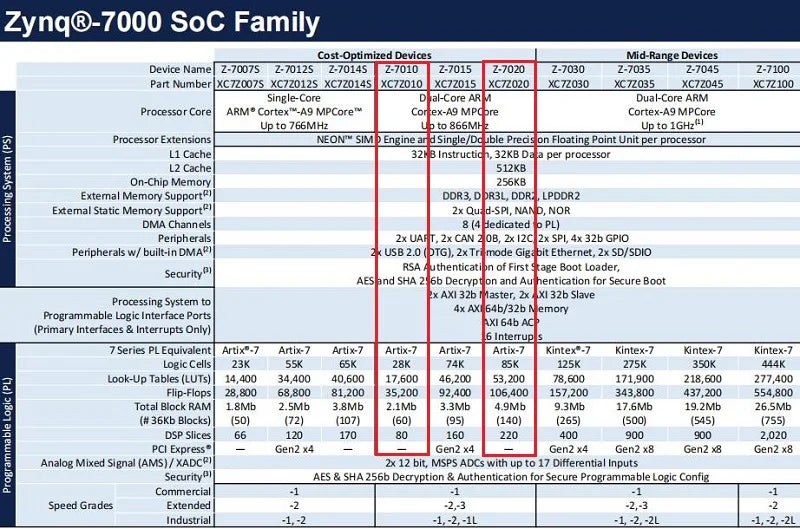

Chip parameters:

  1. FPGA chip model: Xilinx ZYNQ7000 XC7Z010-CLG400-1 or XC7Z020-CLG400-2.

  2. Processor model: dual core Cortex-A9.

  3. Processor frequency: 666MHZ (XC7Z010), 766MHZ (XC7Z020).

  4. DDR3(PS): 512MByte, 16-bit wide, 1066M data rate.

  5. Logical unit(LC): 28K (XC7Z010), 85K (XC7Z020).

  6. Lookup table(LUT): 17600 (XC7Z010), 53200(XC7Z020).

  7. DSP unit multiplier: 80(XC7Z010), 220(XC7Z020).

  8. Trigger: 35200(XC7Z010), 106400(XC7Z020).

  9. RAM: 2.1MBit(XC7Z010), 4.9MBit(XC7Z020).

  10. Speed class: -1(XC7Z010), -2(XC7Z020).

  11. Temperature grade: Consumer grade(XC7Z010), industrial grade(XC7Z020).

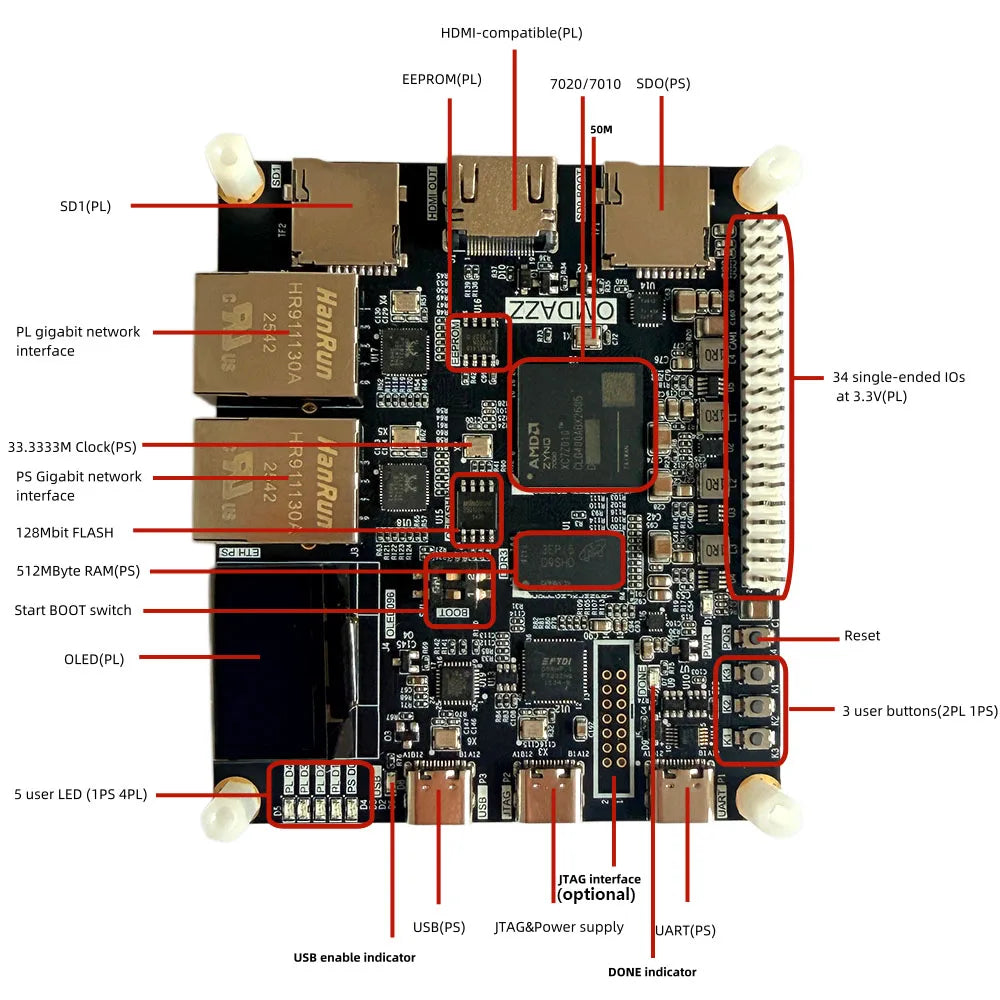

Development Board Parameters:

  1. Power supply mode: all TYPE-C ports can supply power. When running Linux alone, please use the DEBUG port for power supply to ensure the stability of the USB.

  2. Development board clock resources: 33.33M (PS), 50M (PL)

  3. Ethernet: Gigabit RTL8211E, one PS ETH0, one PL.

  4. Debugger: Onboard SMT2 programmer debugger, supporting all development of ARM and FPGA.

  5. Serial port: One PS CH340 serial port.

  6. SD card: Two PS TF card holders, SD0 support for boot.

  7. HDMI interface: one HDMI-compatible output, maximum support 1080@60HZ.

  8. LED: 3 dual-color LEDs, a DONE signal indicator, a USB PHY power enable indicator.

  9. Buttons: two PS buttons and one PL button, one reset button.

  10. Start setting switch: a BOOT dial switch used to start setting.

  11. FLASH: 128Mbit.

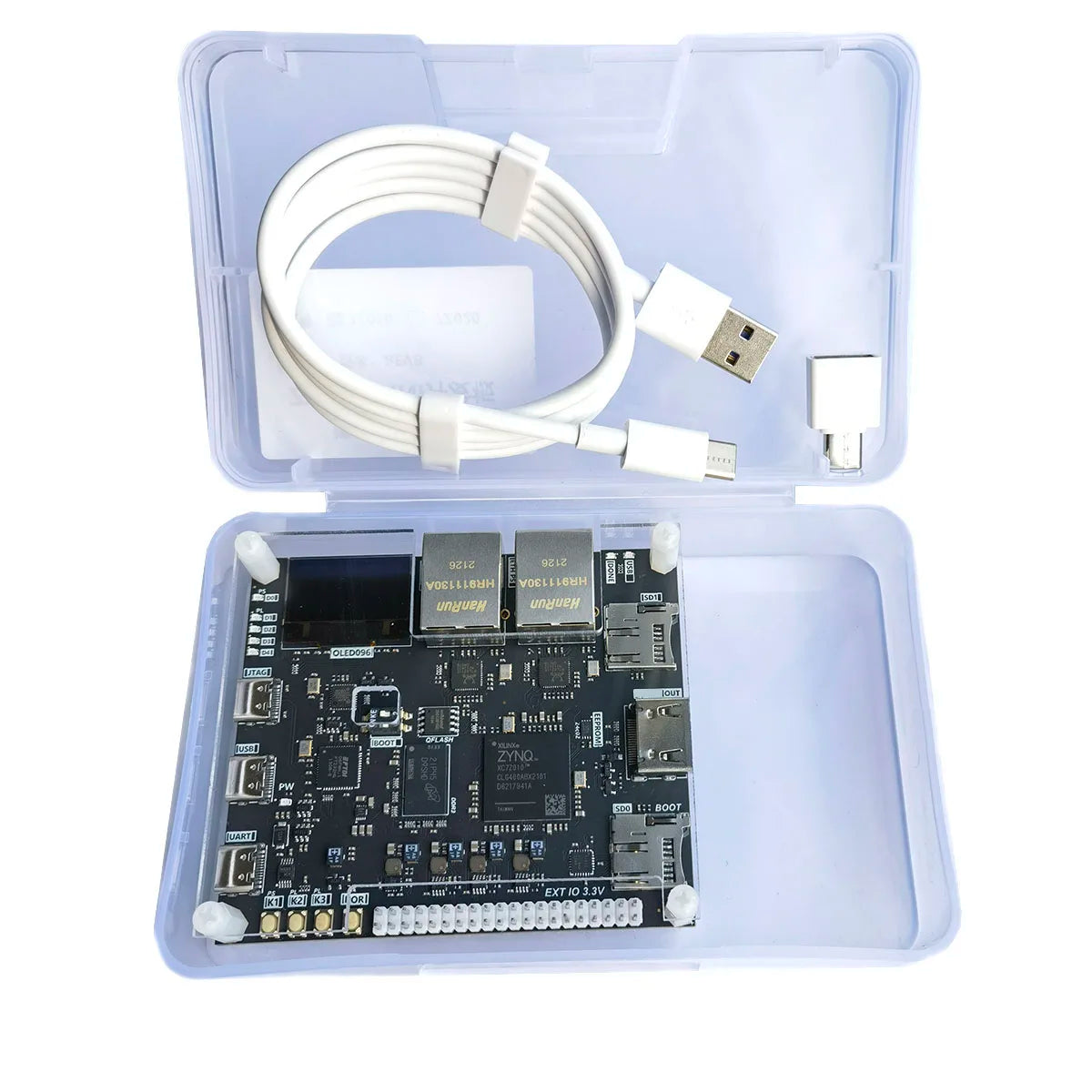

The Shipping List:

  • 1 X XC7Z010 or XC7Z020 Development Board

  • We provide schematic and samples code
