Free Ship 2pcs GY-33 TCS34725 Color Sensing Identifying Sensor Module Replacement TCS230 TCS3200
$126.59
Sale price
$126.59
Regular price
$0.00
Description

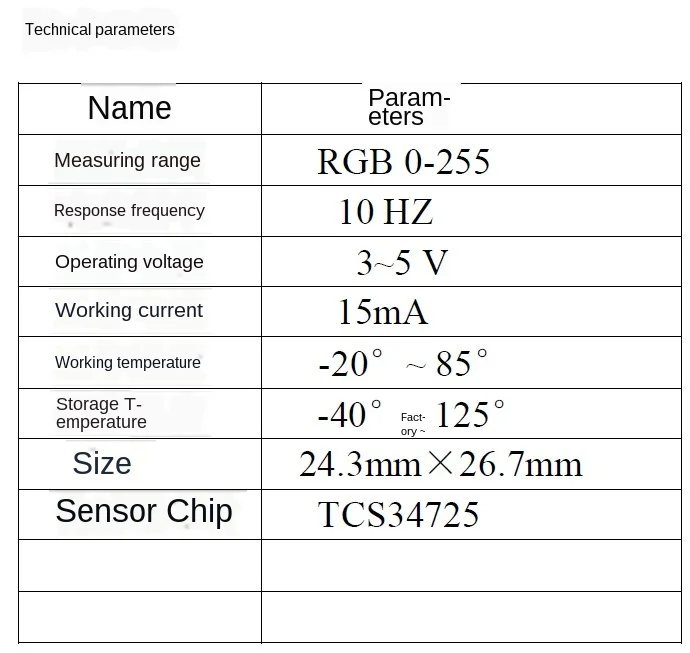

SPECIFICATIONS
Application: datasheet
Brand: datasheet
Brand Name: YUFO-IC
Condition: New
Dissipation Power: datasheet
High-concerned chemical: none
Operating Temperature: datasheet
Origin: Mainland China
Package: datasheet
Supply Voltage: datasheet
Type: other
is_customized: Yes
product type: hot sale
GY-33 TCS34725 alternative TCS230 TCS3200 color sensing identifying sensor module
data Link:https://pan.baidu.com/s/17Bo1k4GaOg782fTHgNFKTA extraction code: wqbp
youku video (to copy the command to the browser):
http://v.youku.com/v_show/id_XMTU2MzQ4NDgxMg==.html
TCS34725 chip + mcu color recognition sensor module IIC or serial communication, direct output RGB values
1, can be used as a simple simple TCS34725 module uses.
2, can use internal MCU read TCS34725 data MCU calculation directly output RGB, internal White balance program supports serial port/IIC reads.
Overview
GY-33 is a low-cost color recognition sensor module.
Work voltage 3-5v, low power consumption, small size, easy to install.
Its working principle is the lighting LED lighting, is irradiated with the pulse laser beam test
the object after the return light passes through the filter detection RGB ratio value
according to the RGB Ratio Value of identified color.
This module, the following two methods are provided to read data from the table, that is
serial UART(TTL level) or IIC(2).
The baud rate of the serial port has 9600bps and 115200bps, configurable,
there is a continuous asks output in two ways can be down save settings.
There is a simple 7 kinds of color recognition, there is no need to calculate a RGB value.
Can adapt to different working environment, with single-chip microcomputer and computer connection.
Module additionally can be set individually sensor chip operating mode,
as a simple sensor module, MCU does not participate in the work of data processing.
To provide An Ar.dui.no,51 stm32 single chip microcomputer communication program,
does not provide schematic diagram and the internal microcontroller source code.
Product Features
(1), high performance-to-price ratio
(2), built-in MCU calculates the color
(3) IIC serial communication format
(4), adjustable LED brightness
(5), with the corresponding of the PC software
product Application
(1), intelligent robot
(2) teaching laboratory
(3) production line, product testing
(4), a colorimeter
(5), led color detection

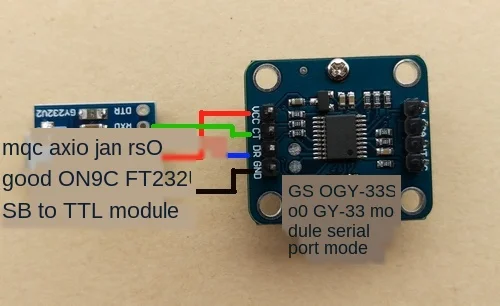

with USB TTL wiring diagram:

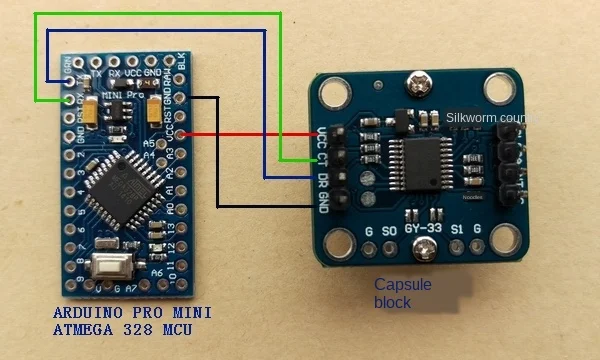

the MCU serial wiring diagram:

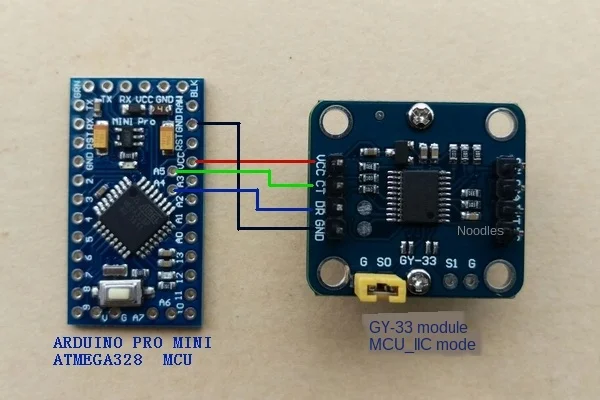

with MCU_IIC wiring diagram:

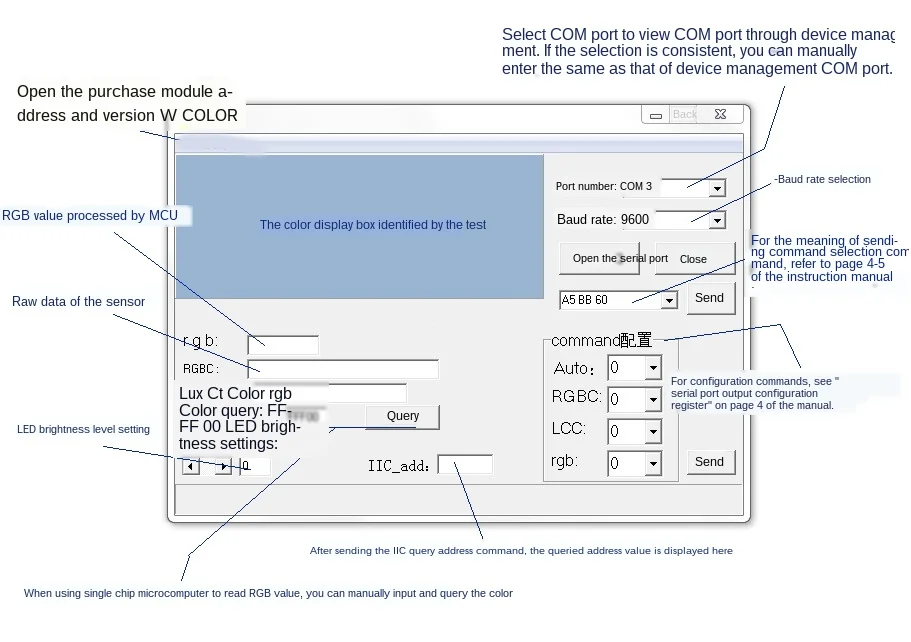

the host computer use the screenshot:

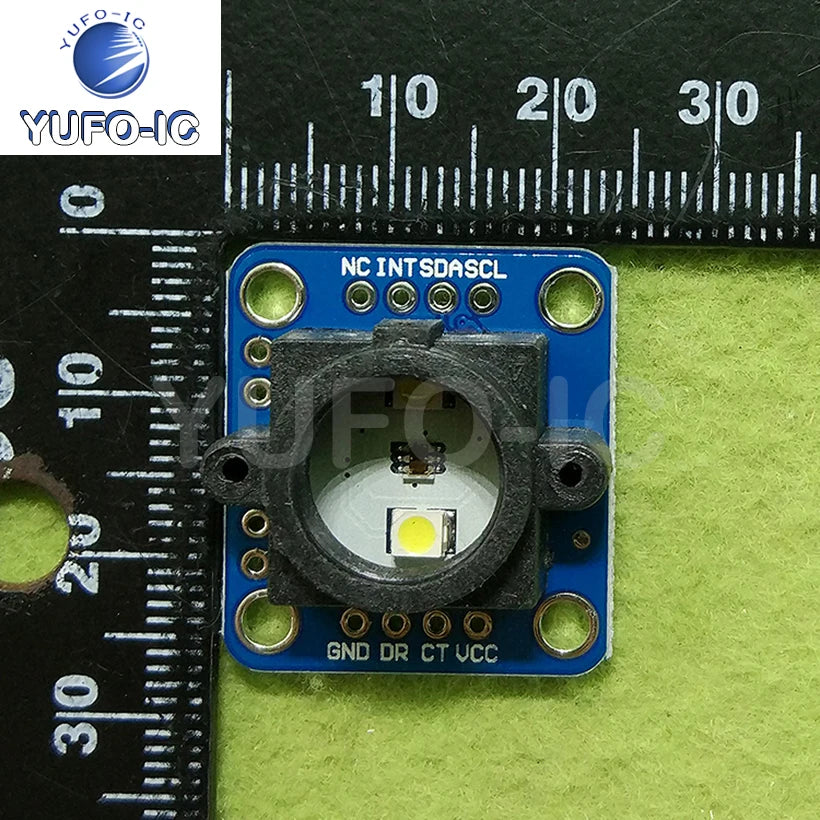

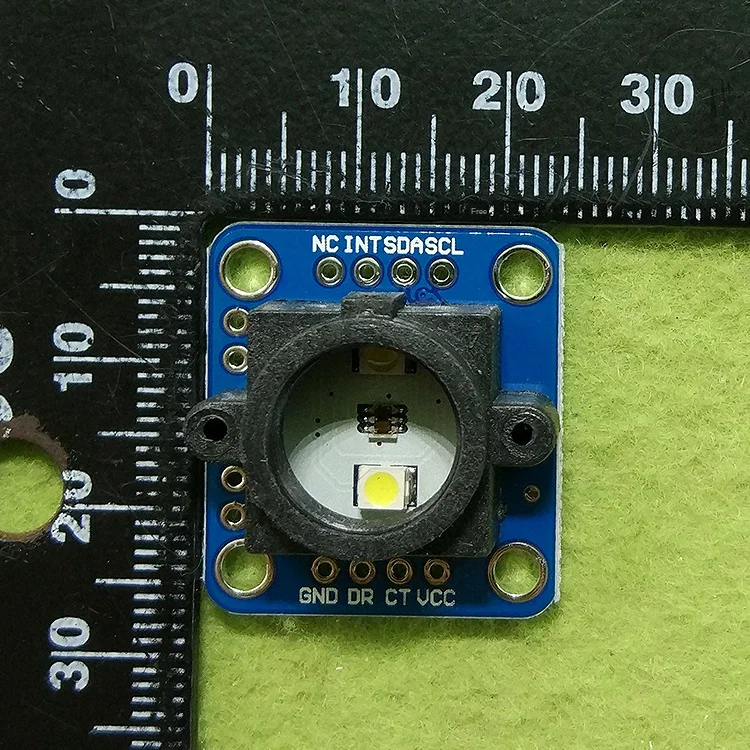

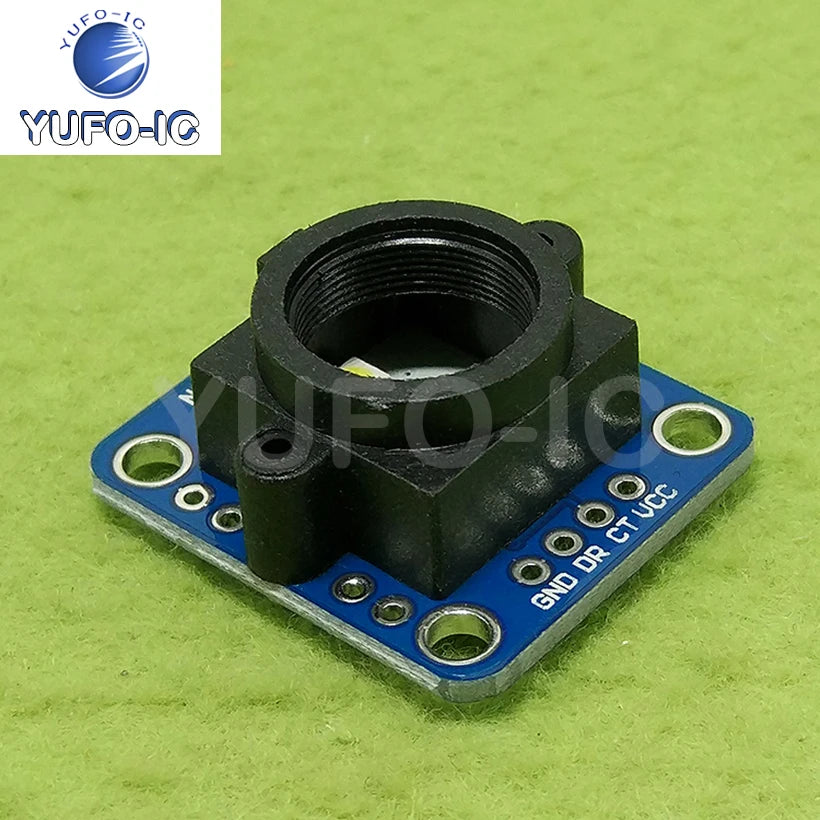

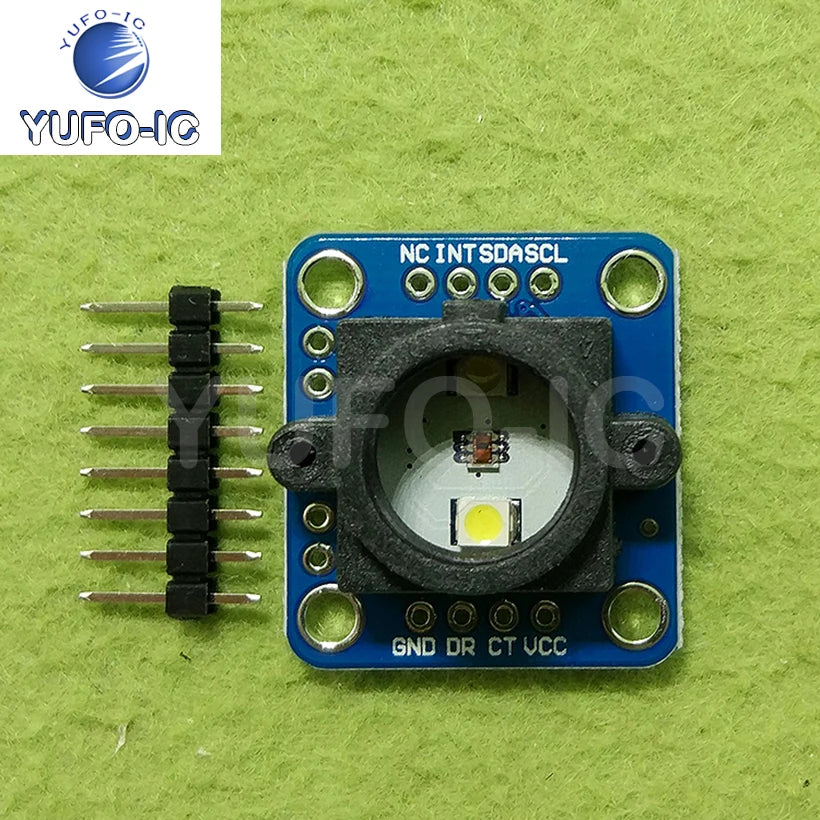

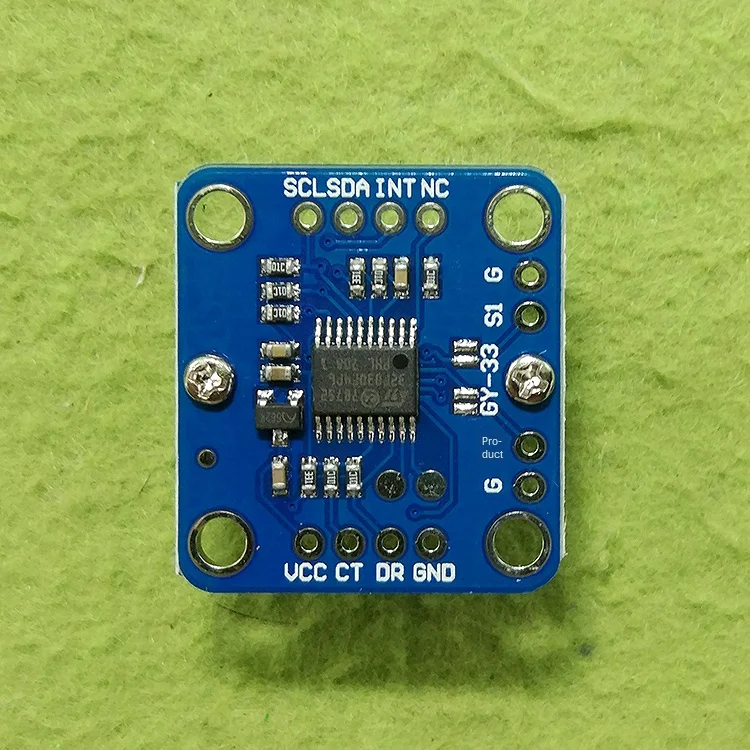

taken in kind:
