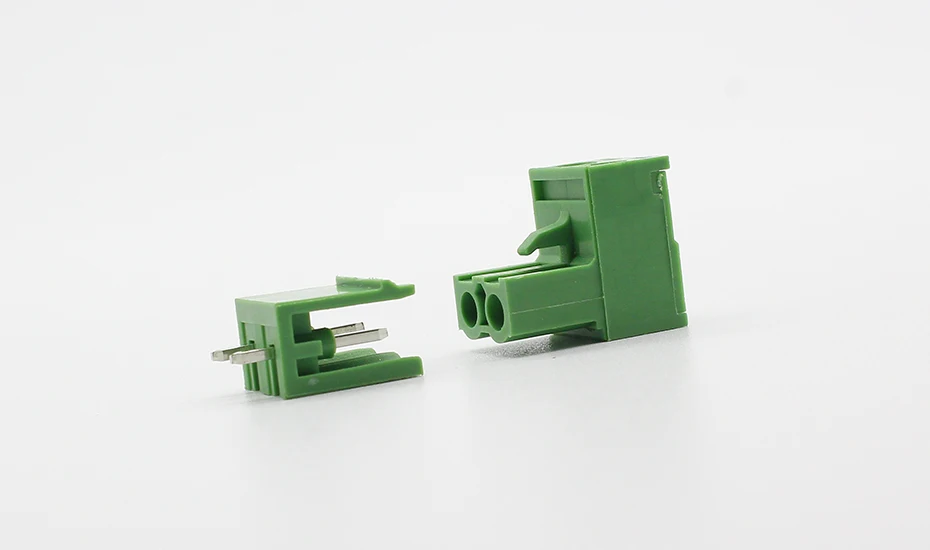

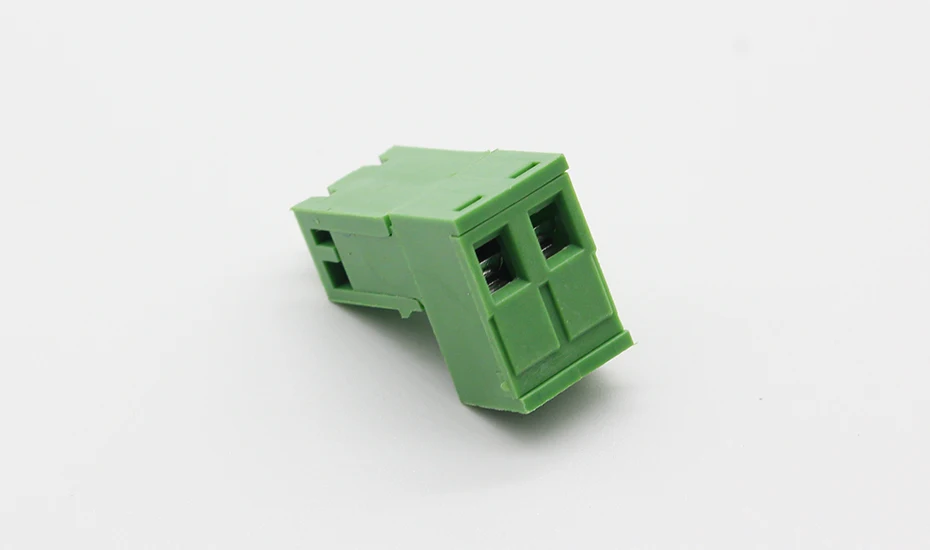

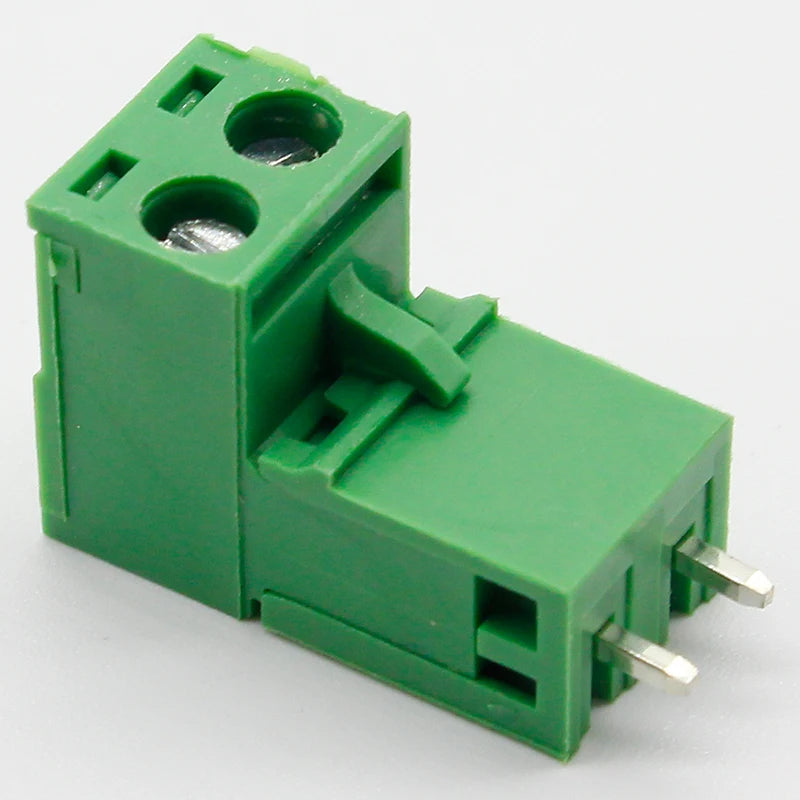

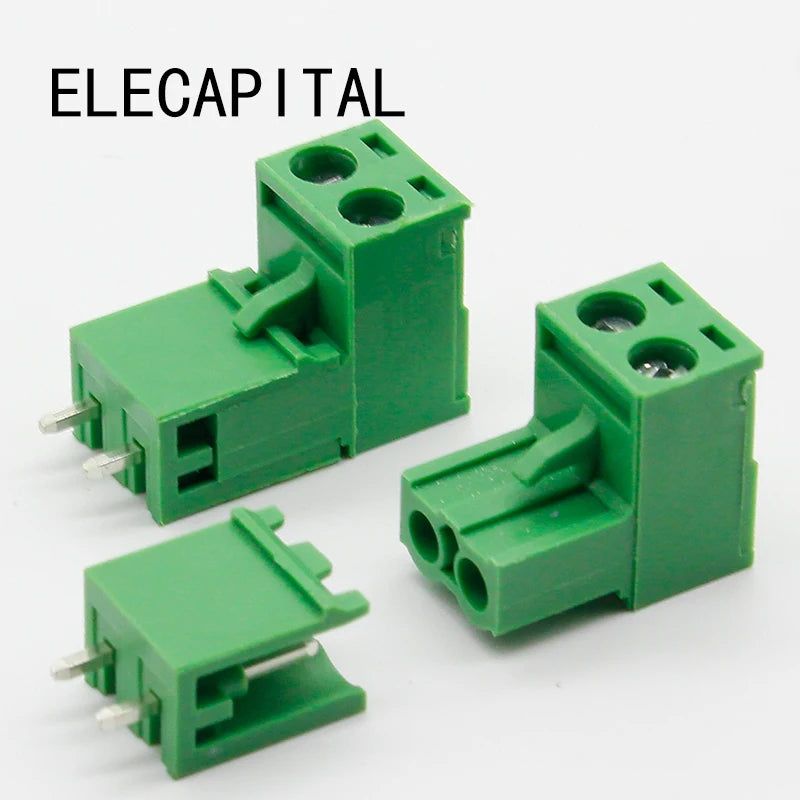

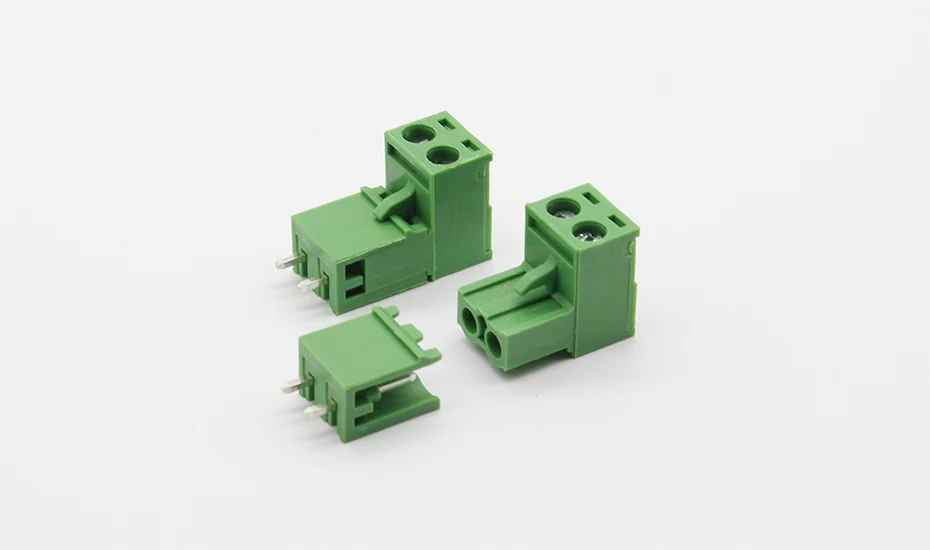

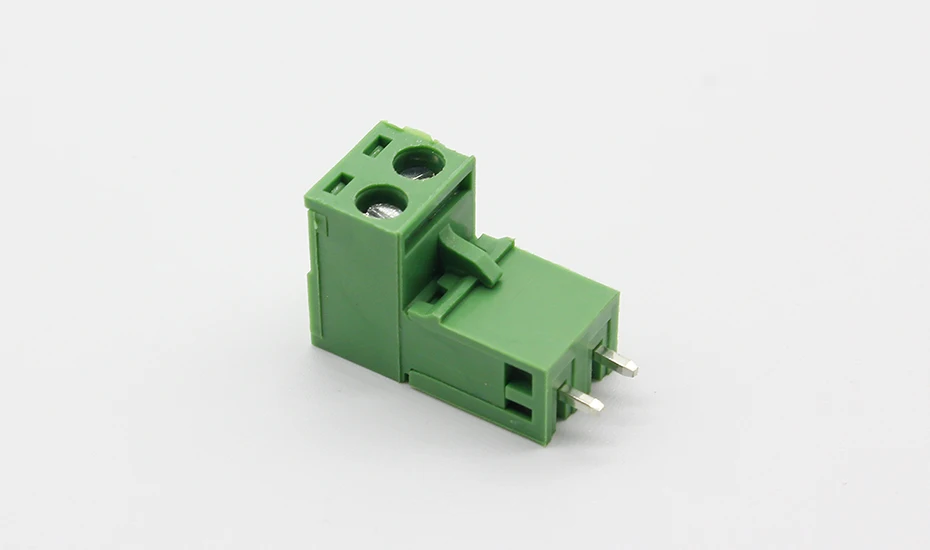

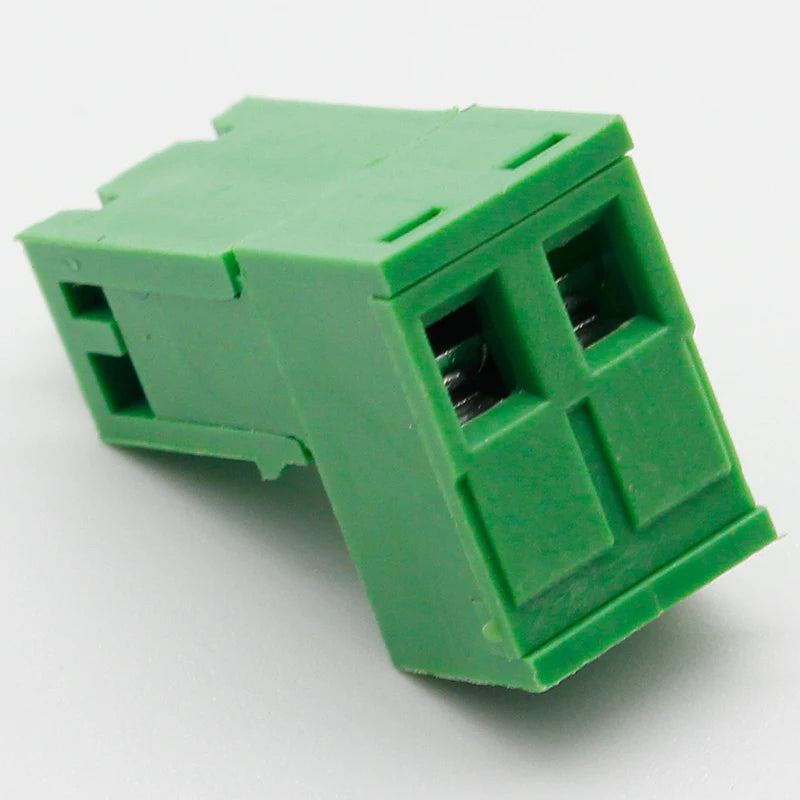

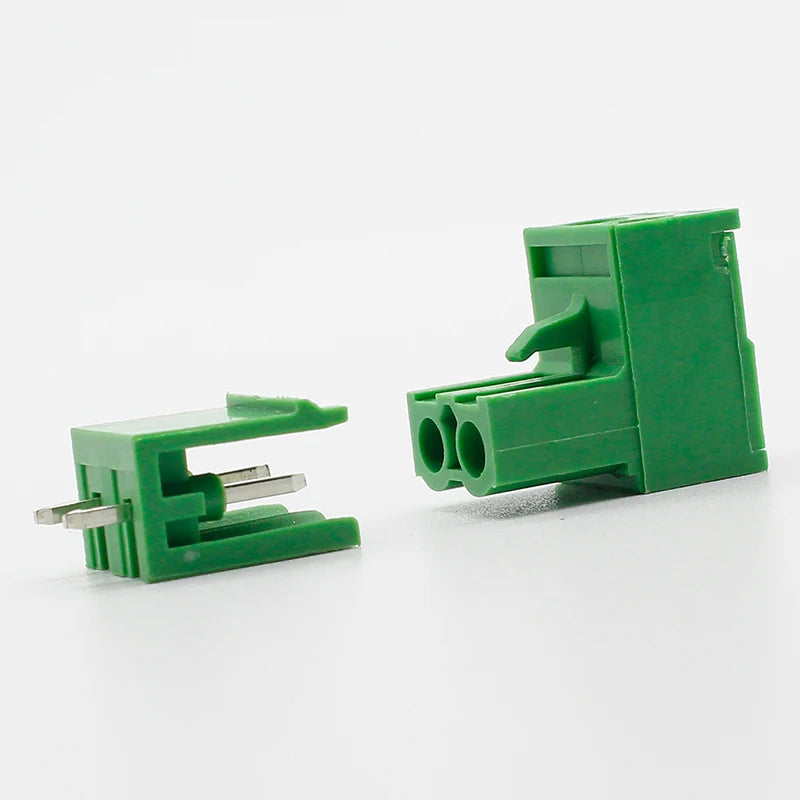

Free shipping 10 sets ht5.08 2pin Terminal plug type 300V 10A 5.08mm pitch connector pcb screw terminal block
Default Title
$8.32
Sale price
$8.32
Regular price
$0.00
Skip to product information
Free shipping 10 sets ht5.08 2pin Terminal plug type 300V 10A 5.08mm pitch connector pcb screw terminal block
$8.32
Sale price
$8.32
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: ELECAPITAL
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: 2P
Origin: Mainland China
Voltage: 220 V
semi_Choice: yes
Packet:10 Sets 2P 5.08mm PCB Terminals
(includes 10 Pcs Plugs + 10 Pcs Sockets)
Pitch:5.08mm
Poles: 2P
Screw: M2.5 Steel Zinc plated
Wire guard: phosphor bronze, Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
ELECTRICAL
Rated current: 10A
Withstanding voltage: AC1500V/1Min
MECHANICAL
Temp range: -40~+105 Celsius
MAX Soldering: +150 Celsius for 5sec
Torque: 0.4 Nm (3.5lb.in)
Strip length: 7-8mm
For AWG 22-14
MAX 2.5MM2
