SPECIFICATIONS

Brand Name: Hi-Link

Certification: CE,RoHS

Compatible Brand/Model: None

D/C: 5W 5V

High-concerned chemical: none

Inbox adaptor: No

Input Voltage: 220V

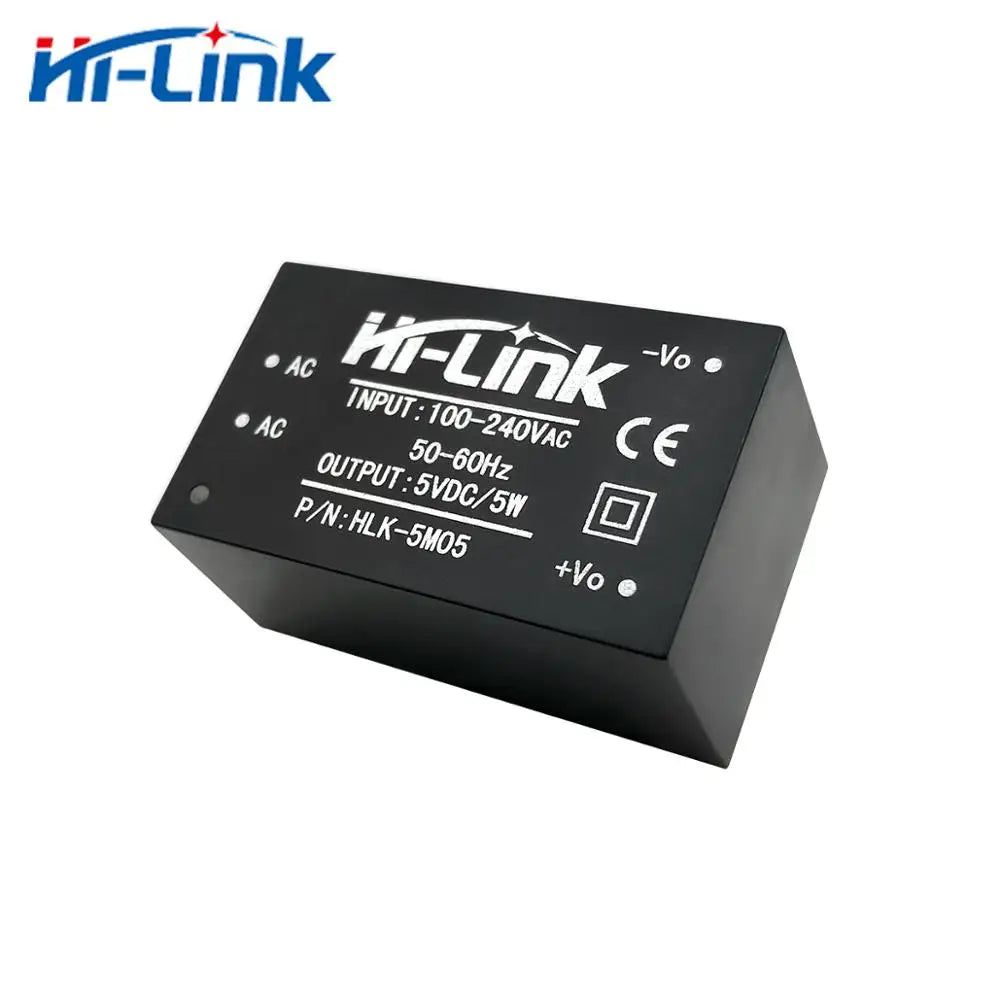

Model Number: HLK-5M05,AC DC Power Module

Origin: Mainland China

Output Frequency: 50/60Hz

Output Power: 1 - 50W

Output Type: Single

Plug Type: EU Plug

Power Source: AC&DC,AC&DC

Protection: OCP OVP SCP

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

Warranty: 1 Year

Working time: >100000 hours

Product features:

1. Meet UL, CE requirements,

2. Ultra-thin, ultra-small, 5v power supply

2. All voltage input (AC: 90 ~ 265V)

3. Low ripple and low noise

4. Output overload and short circuit protection

5. High efficiency, high power density

6. The product is designed to meet the requirements of EMC and Safety Test

7. Low power consumption, environmental protection, no-load loss <0.1W

8.100% load aging and testing

9.1 year warranty

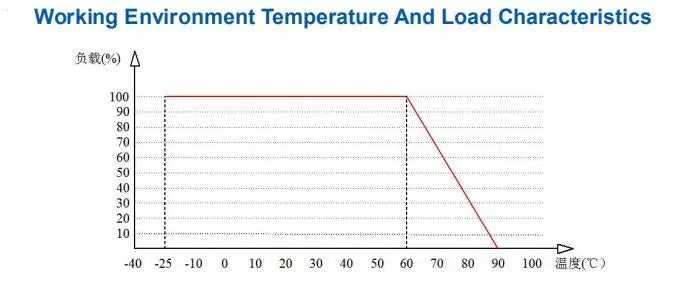

Environment Condition

Electrical Characteristic

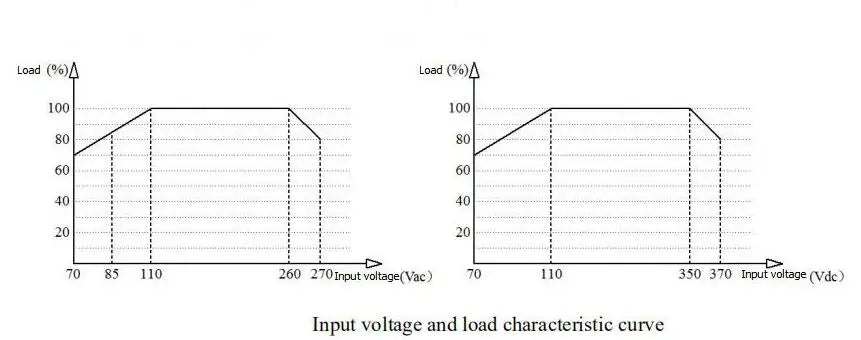

Input characteristics (test at room temperature 20 C).

Safety Characteristics:

4.1Products designed to meet UL, CE safety certification requirements.

4.2Safety and electromagnetic compatibility

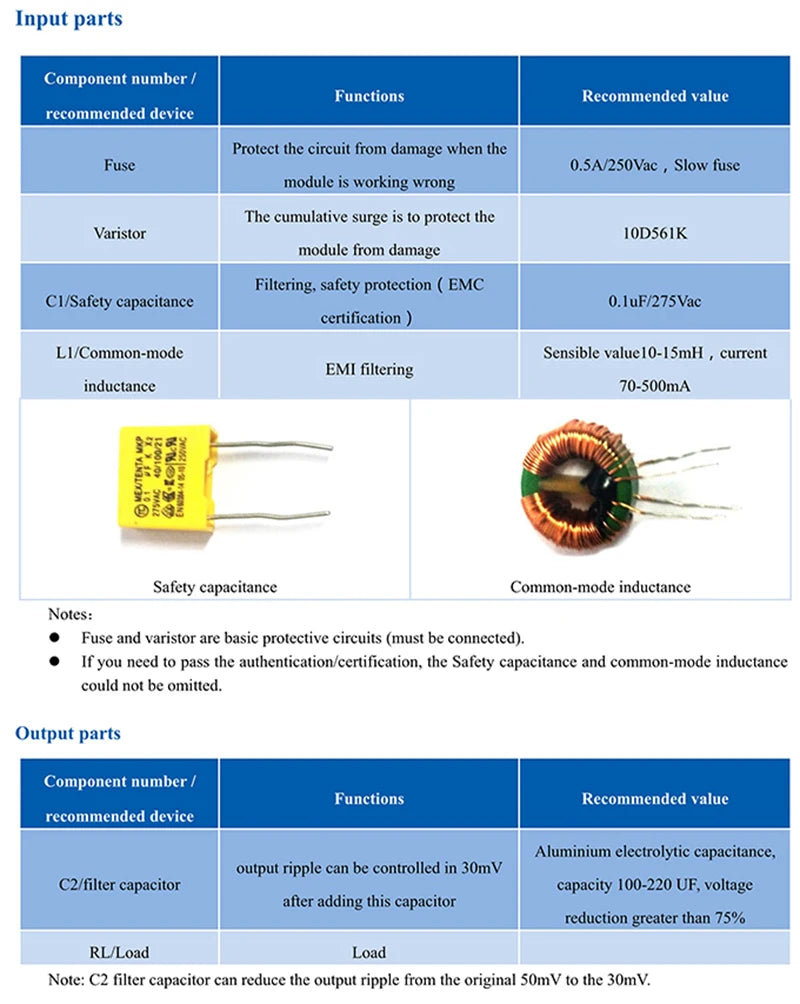

Designed with the input of 0.5A UL certified insurance;

PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;

Safety standards: Compliance with UL1012, EN60950, UL60950

Insulation voltage: I / P-O / P: 2500VAC

Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 C  70% RH

Conduction and radiation :comply with EN55011, EN55022 (CISPR22)

Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV

RF radiation Immunity: IEC / EN 61000-4-3 See Application Note

4.3 Temperature safety design

At room temperature,the capacitors of this power , the inner surface of the main converter maximum temperature does not exceed 90 C;

Shell maximum surface temperature does not exceed 60 C

Logo, packaging, transportation, storage

5.1 Logo

5.1.1 Product logo

In place of products labeled with signs, its content in line with national standards, industry standards.

5.1.2 Packaging logo

Products marked with the manufacturer's name, address, zip code, product type, manufactured year, month, day on the box ;

Marked "up", "moisture" "Handle with care" and other transportation signs, all signs are in line with the provisions of GB 191.

5.2 Packaging

Products are separated using special plastic box packaging, with anti-vibration function, and in accordance with the provisions of GB 3873.

5.3 Transport

packaged products can be shipped by any transportation service, there should be awnings in transport and no excessive vibration, impact, etc.

5.4 Storage

Products should be stored in compliance with GB 3873

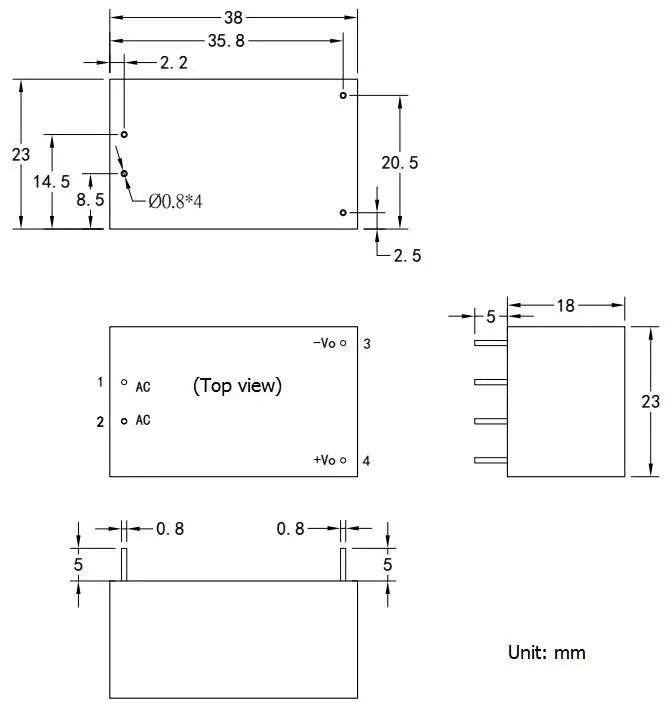

Weight and Dimensions:

Weight:32g

Size:38*23*18mm

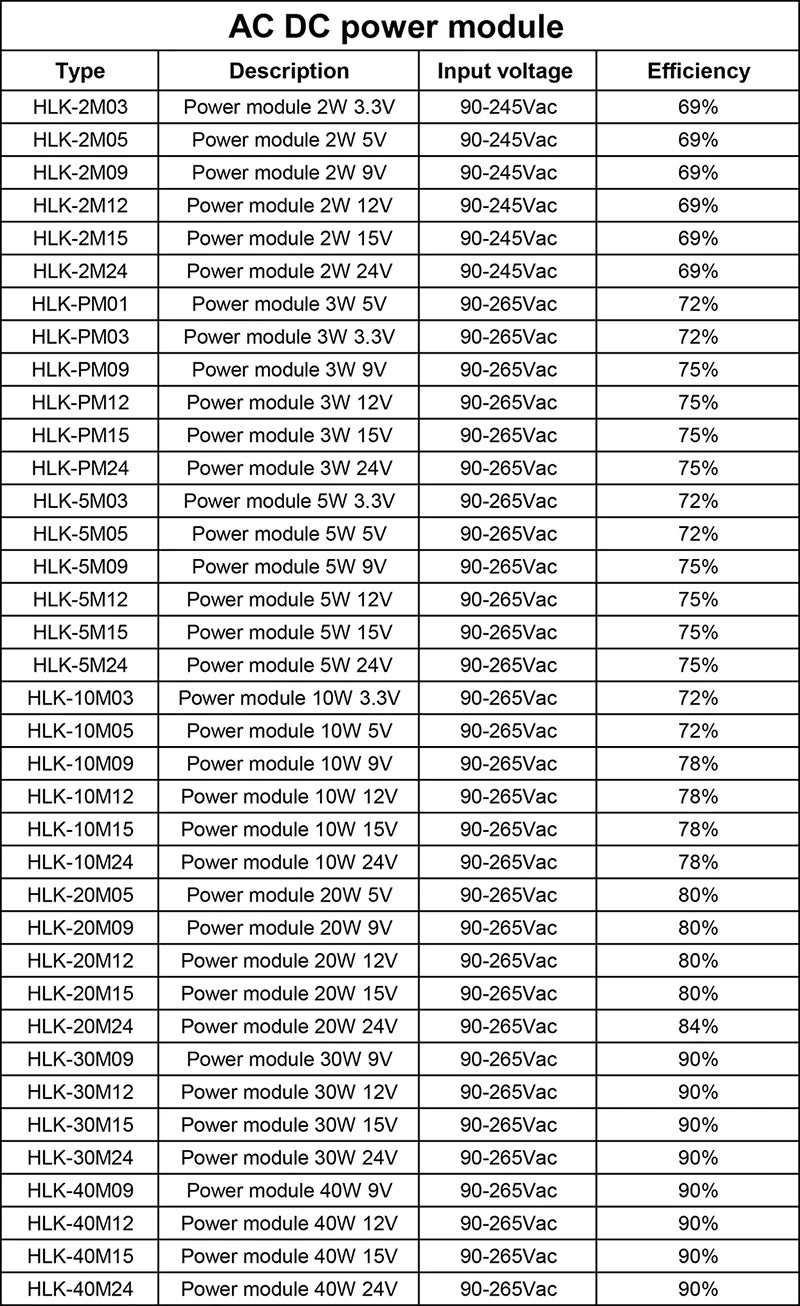

Please notice, for this power module 5v series, we also have 3.3V 9V 12V 15v 24V output for standard,

OEM/ODM is available.
