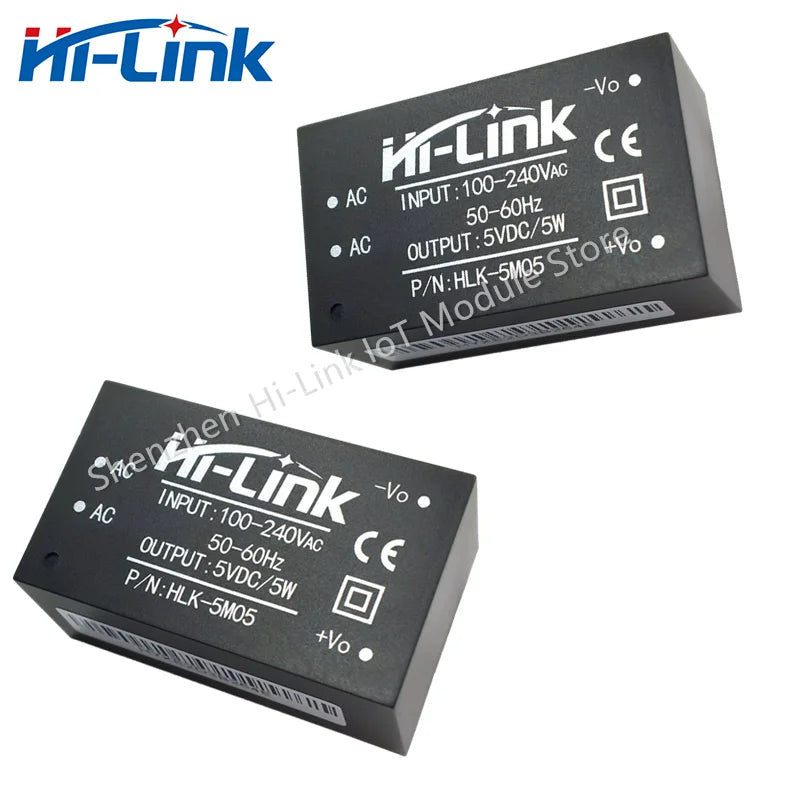

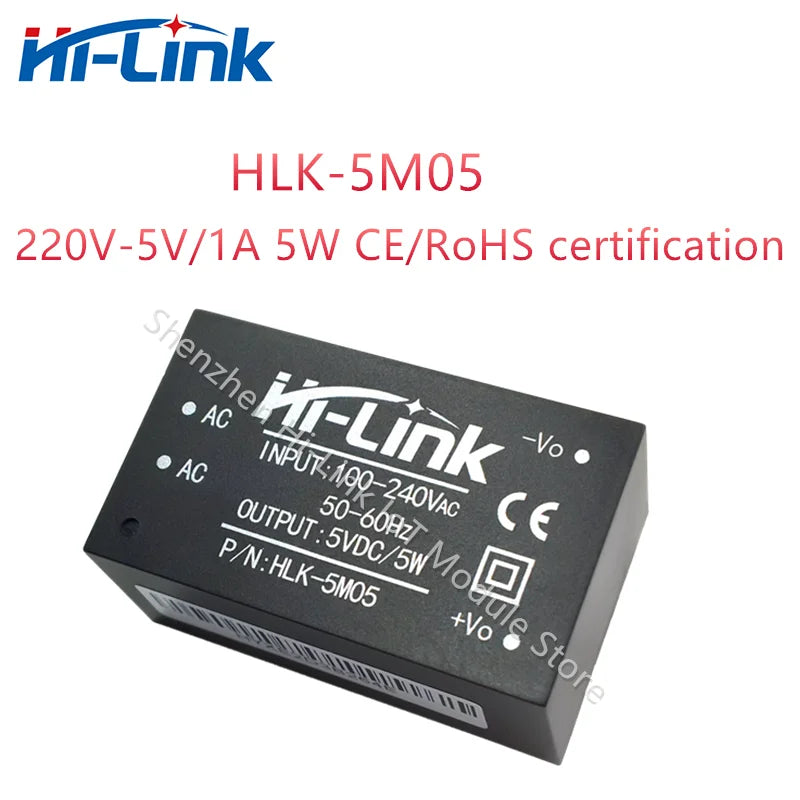

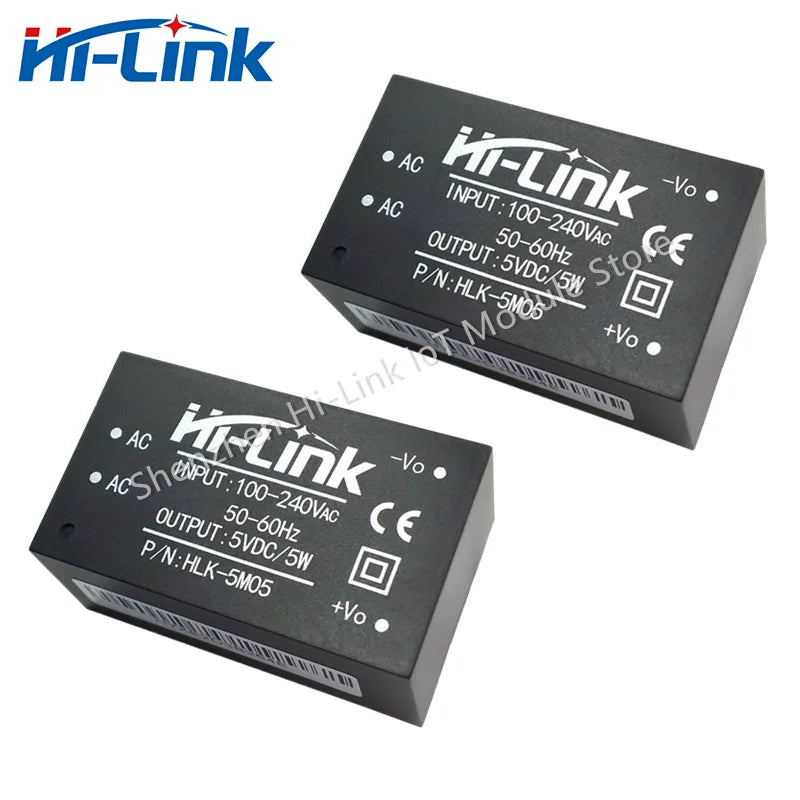

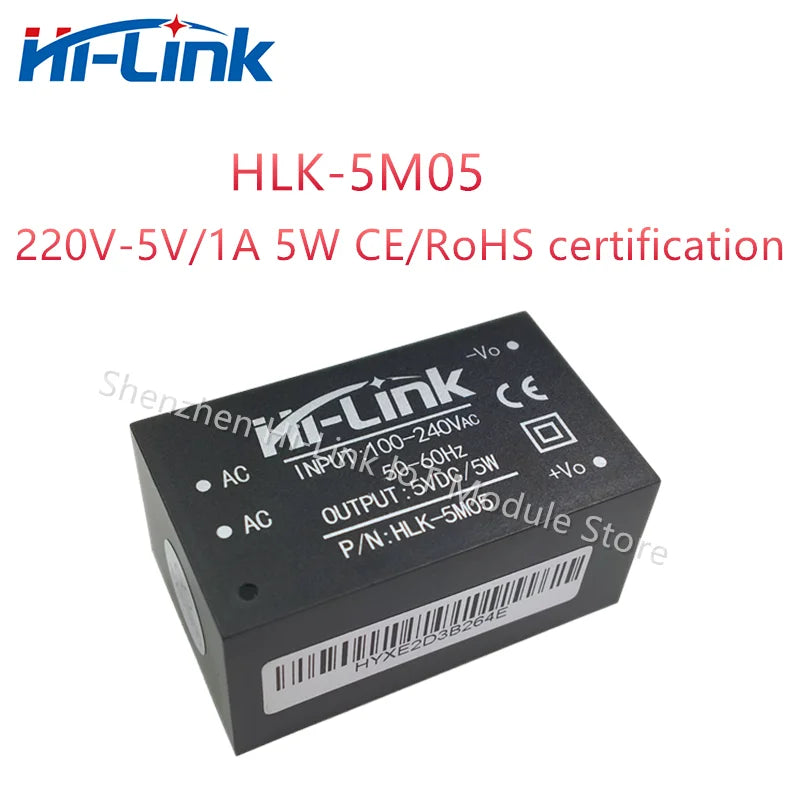

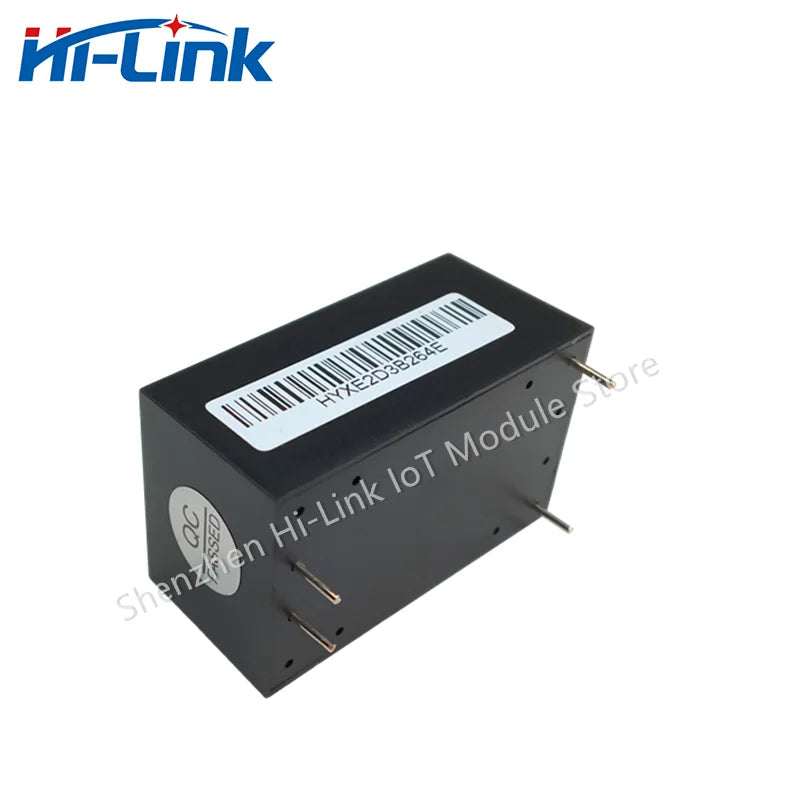

Free Shipping HLK-5M05 10pcs/lot AC DC 220V to 5V Power Supply Module Adjustable High Efficiency Step Down Converter

Free Shipping HLK-5M05 10pcs/lot AC DC 220V to 5V Power Supply Module Adjustable High Efficiency Step Down Converter

$100.72

$100.72 $0.00

Description

SPECIFICATIONS

Brand Name: bibikoo

Certification: CE,RoHS

Compatible Brand/Model: None

Cooling way: Cooling by radiation

High-concerned chemical: none

Inbox adaptor: No

Input voltage range: 90-264VAc

Model Number: HLK-5M05

Origin: Mainland China

Power Source: AC&DC,AC&DC

Rated input voltage: 100-240VAc

Sea level elevation: ≤2000m

Store Temperature: -40-80 ℃

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

color: Black

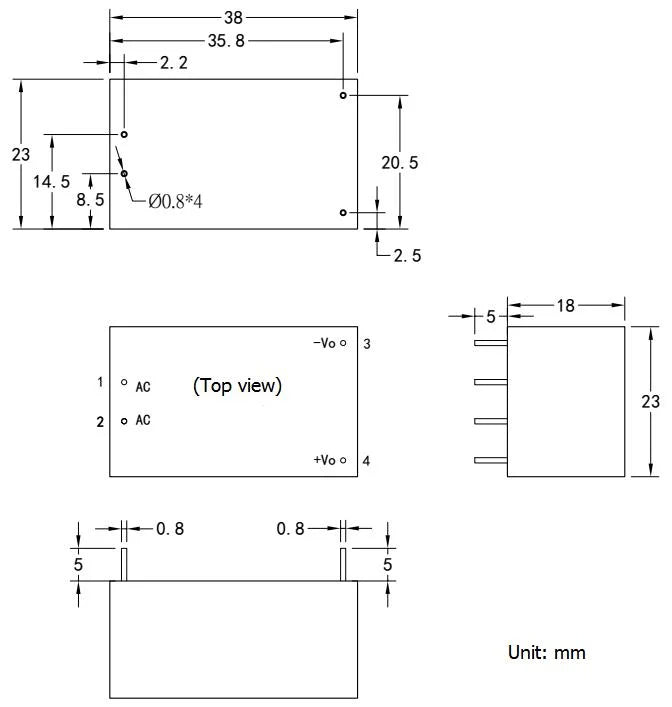

demension: 39*23.5*18mm

WE ARE HI-LINK MODULE MANUFACTURER, WELCOME TO PLACE ORDER HERE!

Hi-Link latest power supply module, suitable for smart home switch control device, small volume, low current, input voltage range, is the best choice of smart home and IOT. If you need more quantity, welcome to contact us directly, we will provide you best price and best shipping method to you. If you need samples, please place order here, we will ship to you soon.

Email：annie@hlktech.com

whatsapp:+86 18797402505

Choose us with high quality and favourable prices.

Ultra-small Series Power Module

The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

Product features

1. Ultra-thin, ultra-small, smallest volume

2. Global universal input voltage (90~265Vac)

3. Low power consumption, green environmental protection, no-load loss<0.1W

4. Low ripple, low noise

5. High output short circuit and over-current protection and self recovery

6. High efficiency, high power density

7. Input and output isolation voltage 3000Vac

8. 100% full load aging and testing

9. High reliability, long life design, continuous working time is greater than 100,000 hours

10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement

11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards

12. Economic solutions, cost-effective

13. Work without external circuit

14. 1 year quality guarantee period

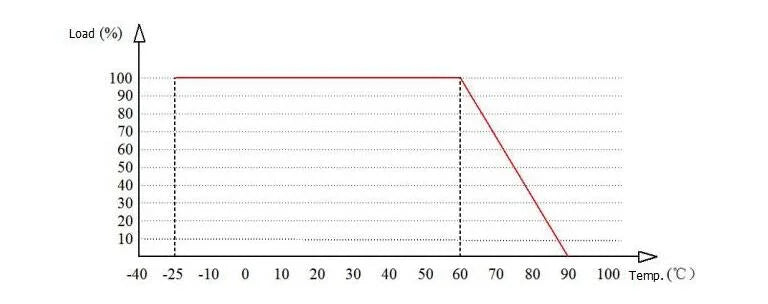

Environmental conditions

Items	TechnicalParameters	Units	Notes
Working temperature	-25—+60	℃
Storage temperature	-40—+80	℃
Relative humidity	5—95	%
Thermal methods	Natural cooling
Atmospheric pressure	80—106	Kpa
Altitude	≤2000	m
Vibration	Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes		Meets requirements for secondary road transportation

Electrical characteristics

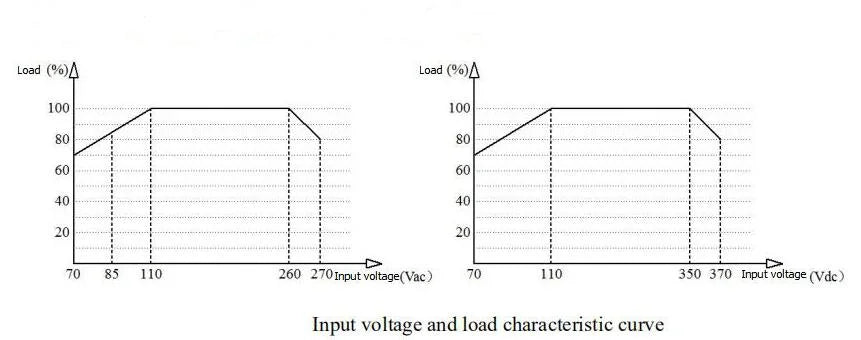

Input features

Items	Technical Parameters	Units	Notes
Rated input voltage	100~240	Vac
Input voltage range	85-265	Vac	Or 120-350Vdc
The maximum input current	≤0.2	A
Input inrush current	≤10	A
Input low start	≤50	mS
Long-term reliability	MTBF≥100，000	h

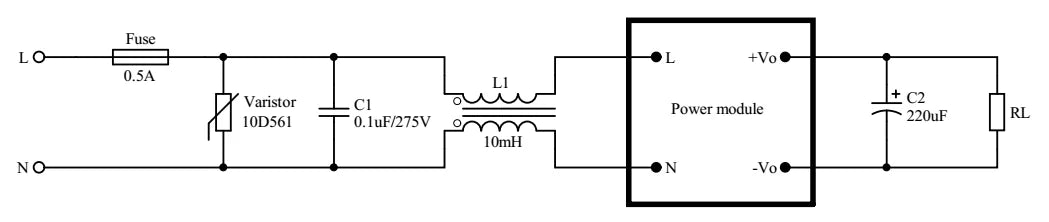

External fuse recommended	1A / 250Vac or 10Ω wire wound resistance		Slow blow

Note: Tested at room temperature

Output features (5V/1000mA)

Items	Technical Parameters	Units	Notes
No-load rated output voltage	5.0±0.1	Vdc
Full load rated output voltage	5.0±0.2	Vdc
Short-time maximum output current	≥1200	mA
Long time maximum output current	1000	mA
Voltage regulation	±0.2	%
Load regulation	±0.5	%
Input low voltage efficiency	Vin=115Vac，Output full load≥69	%
Input high voltage efficiency	Vin=230Vac，Output full load≥70	%
Output ripple and noise(mVp-p)	≤100 Rated input voltage, full output load. Using 20MHz bandwidth oscilloscope, Load side test with 10uF and 0.1uF capacitors	mV
Switching on/off overshoot amplitude	（Rated input voltage, output plus 10% load）≤5	%VO
Output over-current protection	Output maximum load110-150%	A
Output short circuit protection	Direct short circuit in normal output and automatic return to normal operation after removal of short circuit		No damage to the whole device
