SPECIFICATIONS

Battery Included: no

Brand Name: cbhioarpd

Certification: CE

Cooling way: Cooling by radiation

Demo Board Type: ARM

High-concerned chemical: none

Input voltage range: 90-264VAc

Model Number: HLK-5M05

Origin: Mainland China

Rated input voltage: 100-240VAc

Sea level elevation: ≤2000m

Store Temperature: -40-80 ℃

Typical Application Fields: Education and Learning

color: Black

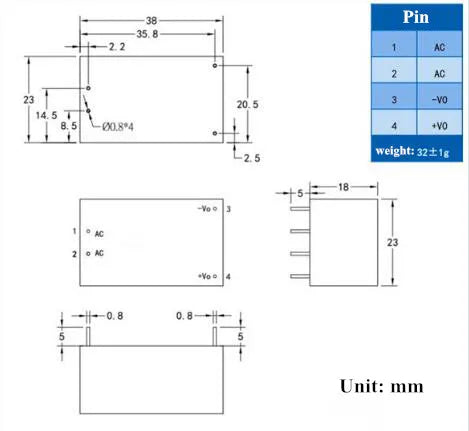

demension: 38*23*18

1.Product Features

1). The ultra-thin, subminiature

2). The full voltage input (90 ~ 264 Vac)

3). Low ripple and low noise

4). Output overload short circuit protection function

5). High efficiency and power density

6). Product design to meet the EMC and safety testing requirements

7). Low power consumption, green environmental protection, no-load loss < 0.1 W

8). 100% load test

9). Meet the requirements of UL, CE,



2. Environmental Conditions

1). Working temperature: -20- + 60 Celsius

2). Storage temperature: -40- + 80 Celsius

3). Relative Humidity: 5-95%

4). Cooling: natural cooling

5). Atmospheric pressure: 80-106 Kpa

6). Altitude: ≤2000m

7). Vibration: Vibration coefficient 10 ~ 500Hz, 2G10min / 1cycle, 60min.each along X, Y, Z axes

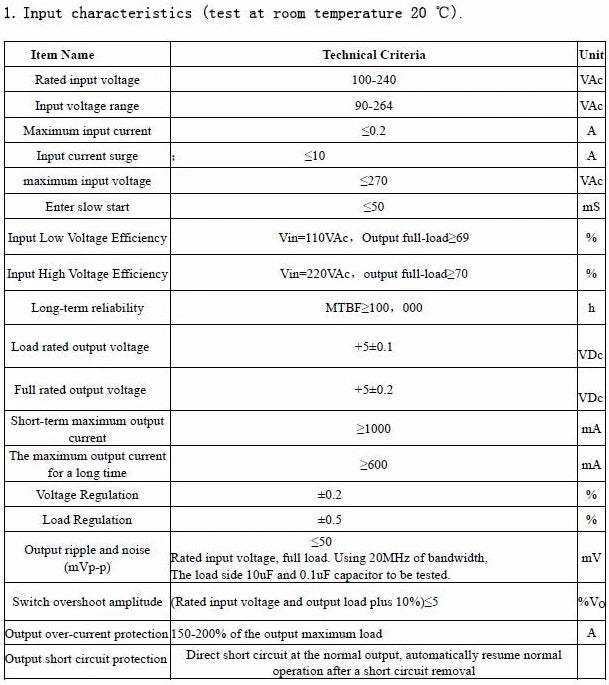

3.Electrical Characteristics (at ambient temperature test)
