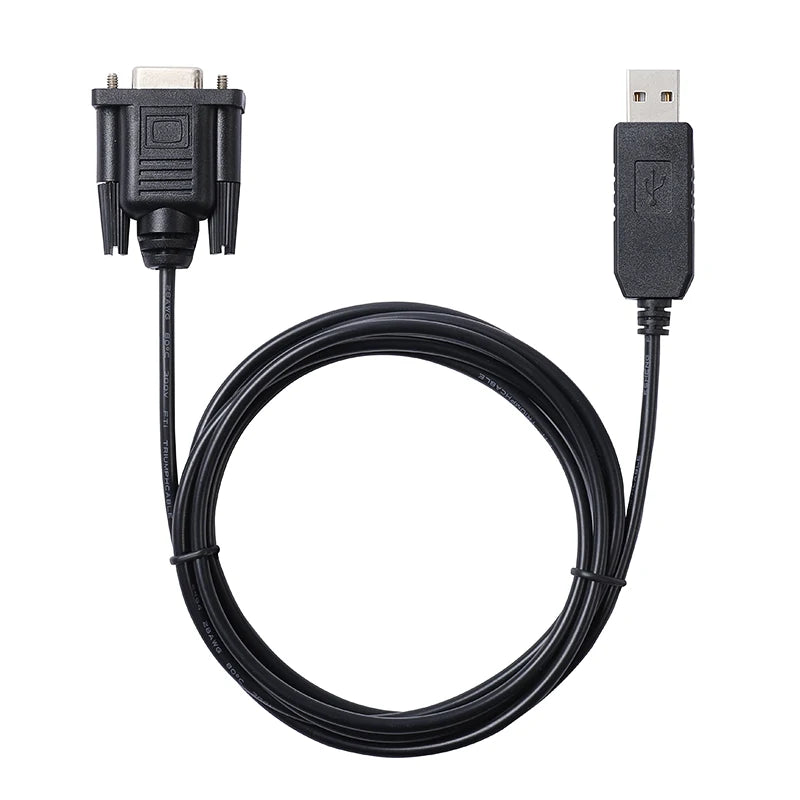

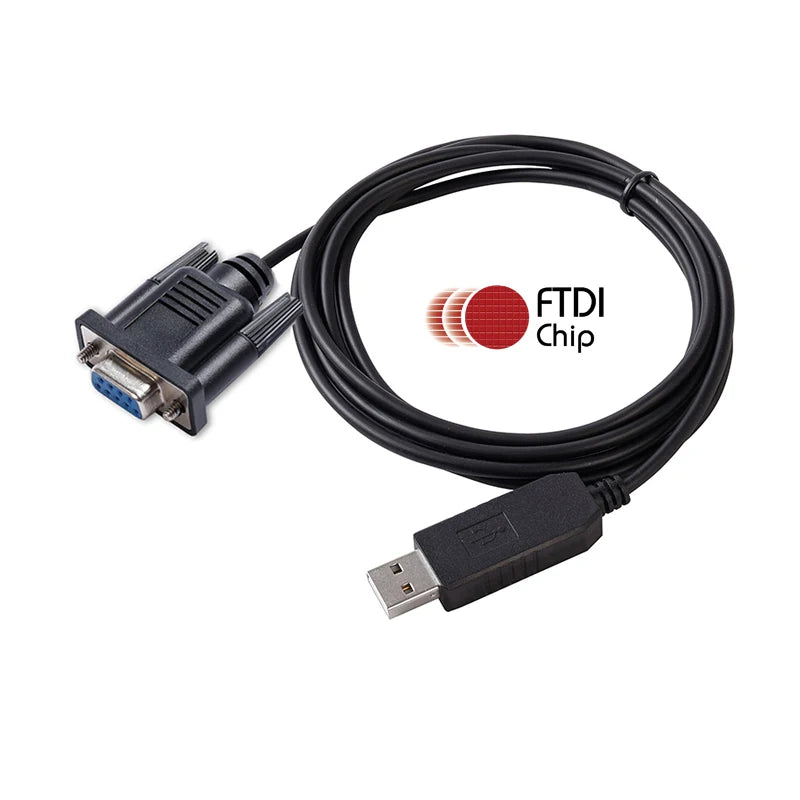

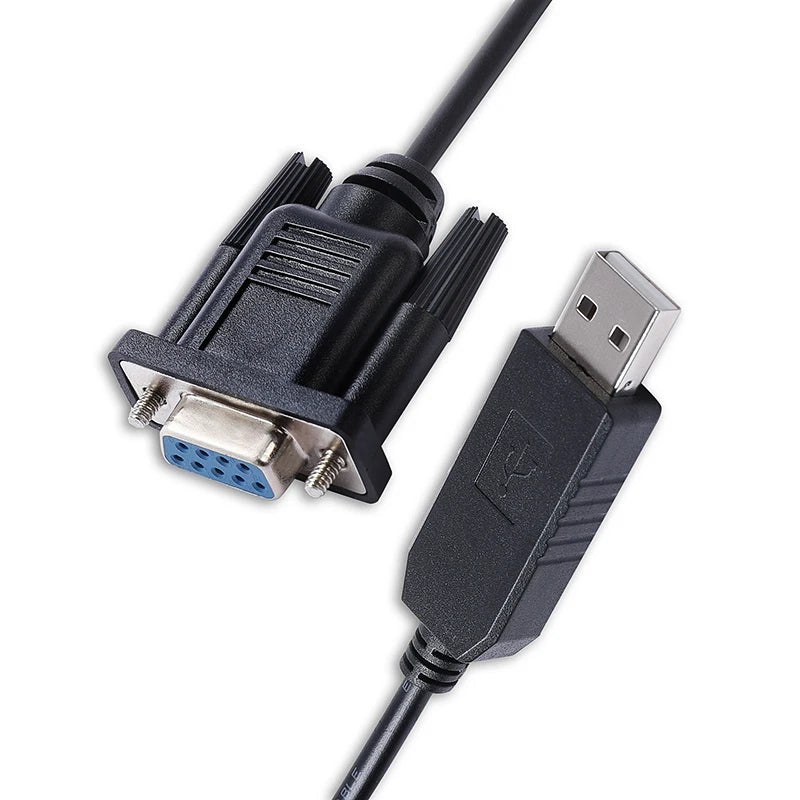

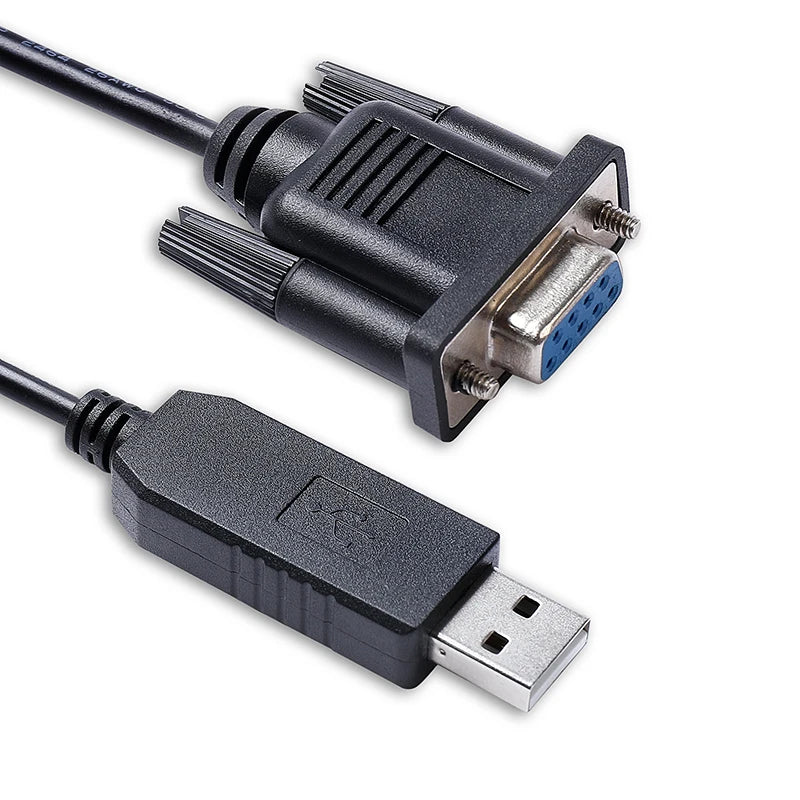

FTDI FT232RL USB to RS232 Serial Converter DB9 Female Cable Standard Pinout/Null Modem for Windows 7/8/8.1/10 Mac Android Linux

FTDI FT232RL USB to RS232 Serial Converter DB9 Female Cable Standard Pinout/Null Modem for Windows 7/8/8.1/10 Mac Android Linux

$77.48

$77.48 $0.00

Description

SPECIFICATIONS

Assembly Required: no

Brand Name: BETTCONN

Cable Length: 6FT/1.8M

Certification: CE,RoHS,UL

Chipset: Original FTDI FT232RL

Choice: yes

Color: Black

Connector A: USB 2.0 Type A Male

Connector B: DB9 Female

High-concerned chemical: none

Level: RS232

Model Number: BE-FT232R-RS232-DB9F

Origin: Mainland China

Package: Yes

Type: Serial Cable

Warranty: One Year

semi_Choice: yes

High-Quality Material

Crafted from premium materials, this PC hardware cable ensures durability and longevity, providing reliable performance over time.

Efficient Data Transfer

Boasting fast data transfer speeds, this cable allows for quick and efficient data exchange, saving you time.

Compact Design

Its compact design makes it easy to store and transport, perfect for on-the-go users.

Enhanced Performance

This cable offers enhanced performance, ensuring smooth operation and optimal functionality for your devices.

Versatile Compatibility

Designed for broad compatibility, this adapter seamlessly connects various devices, enhancing user convenience.

FTDI FT232RL USB to RS232 Serial Converter DB9 Female Cable Standard Pinout/Null Modem for Windows 7/8/8.1/10 Mac Android Linuxd

This cable is a USB to RS232 serial converter cables incorporating FTDI FT232RL USB to Serial UART interface IC device which handles all the USB signalling and protocols.

Material: PVC

Cable: 26AWG*5C, OD4.0mm

Conductor Wire: Oxygen-free copper

Color: Black

Chipset: Original FTDI FT232RL

Level: RS232

Length: 180cm optional, other length can be customized

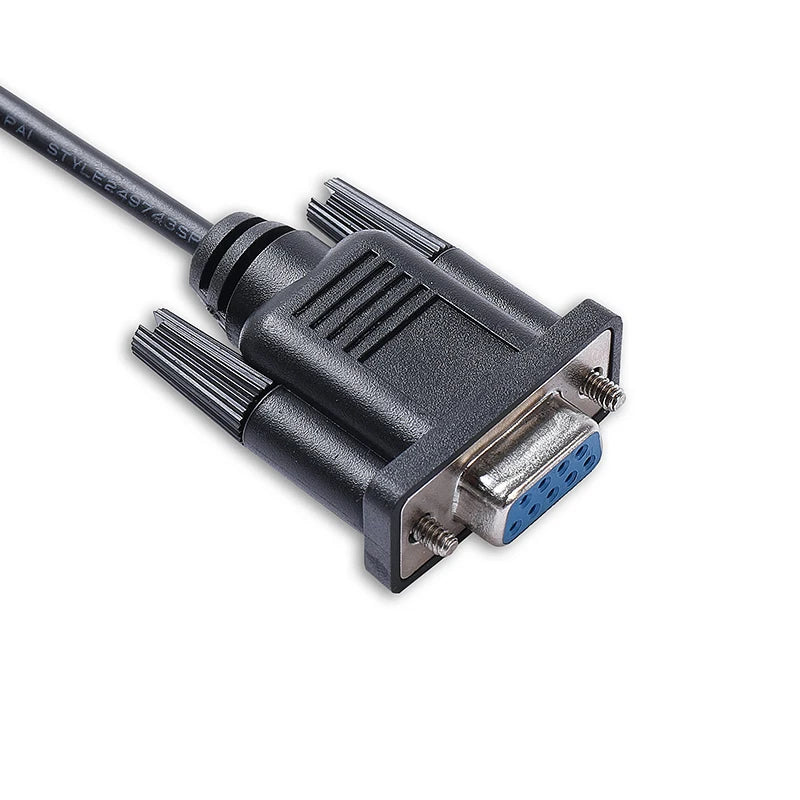

Connector: Nickel plated shell, gold plated contacts

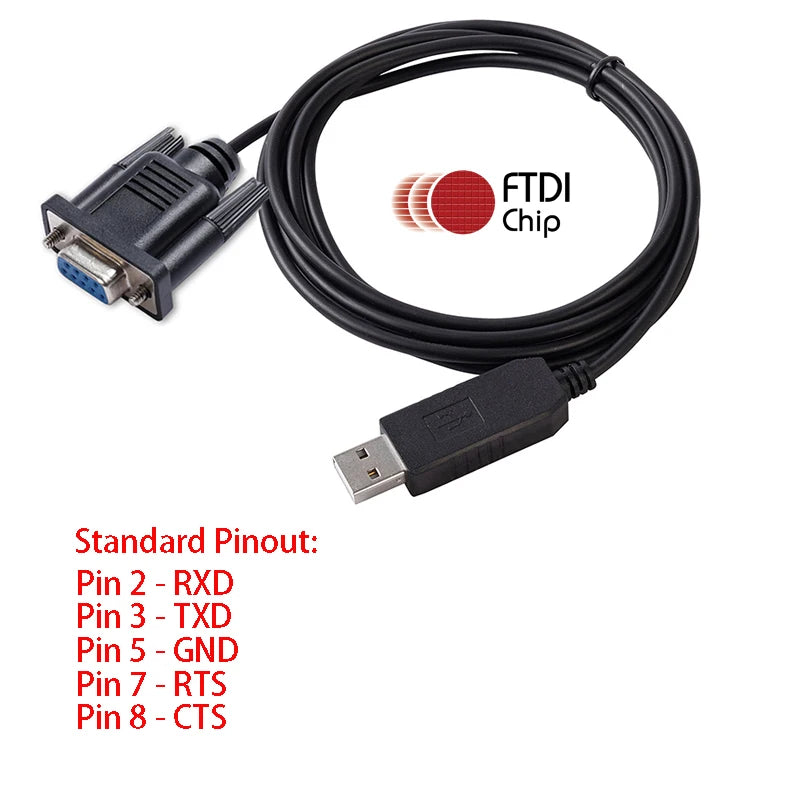

Standard Pinout: 2-RXD, 3-TXD, 5-GND, 7-RTS, 8-CTS, 1/4/6/9-NC

Null Modem Pinout : 2-TXD, 3-RXD, 5-GND, 7-CTS, 8-RTS, 1/4/6/9-NC

Molding: PVC material, RoHS complaint

Testing: 3 times electrical inspection, appearance inspection

Package: PE Bag

About FTDI FT232RL

FT232RL – Full Speed USB to Full Handshake UART

Key Hardware Features

This USB2.0 Full Speed IC offers a compact bridge to full handshake UART interfaces. The device is a UART, capable of operating up to 3MBaud, with low power consumption (8mA).

Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud.
512 byte receive buffer and 512 byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.
FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
Configurable CBUS I/O pins.
Transmit and receive LED drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
Battery Charger Detection. May be used by mobile devices to detect the presence of a charger on the USB port to enable higher current / faster charging of batteries.
Device supplied pre-programmed with unique USB serial number.
Supports bus powered, self powered and high-power bus powered USB configurations.
Integrated +3.3V level converter for USB I/O.
True 3.3V CMOS drive output and TTL input.
- (operates down to 1V8 with external pull ups and is also 5V tolerant)
Configurable I/O pin output drive strength.
Integrated power-on-reset circuit.
UART signal inversion option.
Internal 3.3V/1.8V LDO regulators
Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current.
Low USB bandwidth consumption.
UHCI/OHCI/EHCI host controller compatible.
USB 2.0 Full Speed compatible.
Extended operating temperature range: -40°C to 85°C
Available in compact Pb-free 20 Pin SSOP and QFN packages (both RoHS compliant).

Typical Applications

USB to RS232/RS422/RS485 Converters
Upgrading Legacy Peripherals to USB
Cellular and Cordless Phone USB data transfer cables and interfaces
Interfacing MCU/PLD/FPGA based designs to USB
USB Audio and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Smart Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader and Writers
Set Top Box PC – USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
Dedicated Charger Port (DCP) detection enabling battery charging at higher current for faster charge times.
