SPECIFICATIONS

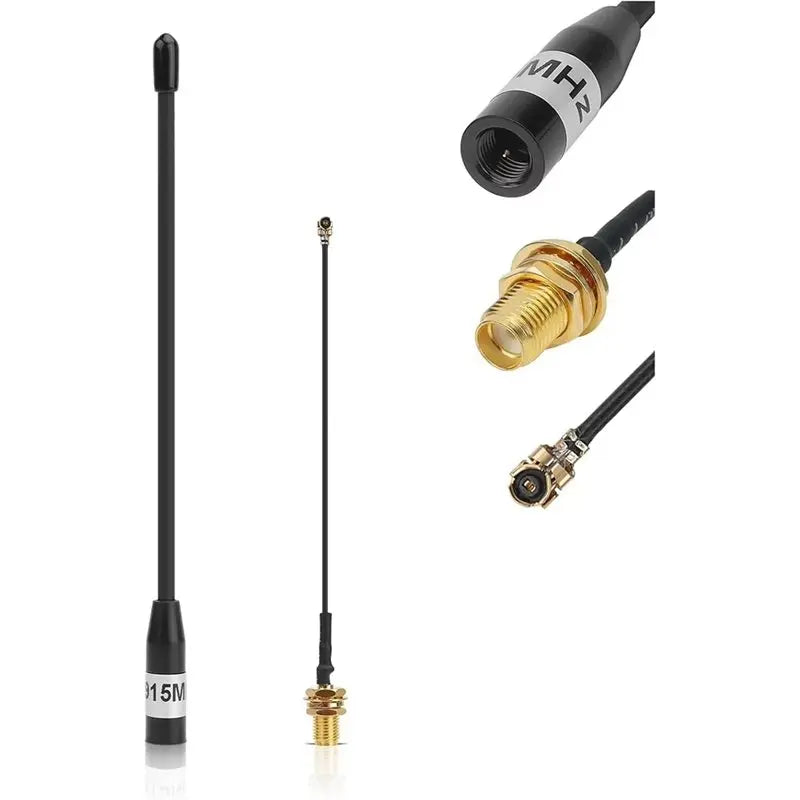

SMA Omni Whip Antenna for LoRa: This high-performance Meshnology SMA 10 dbi omni whip antenna is designed to significantly improve signal strength and stability for Meshtastic, LoRa, and wireless IoT systems.
Operating in the 902-928MHz band, it delivers extended range, stronger penetration, and more reliable connectivity compared to compact stub antennas.
Omnidirectional Signal Coverage: A 915 mhz antenna diy provides stable 360° radiation pattern for consistent communication in Meshtastic and IoT mesh networks.
Higher Gain vs Stub Antennas: Long whip design delivers better efficiency and significantly improved performance compared to compact antennas.

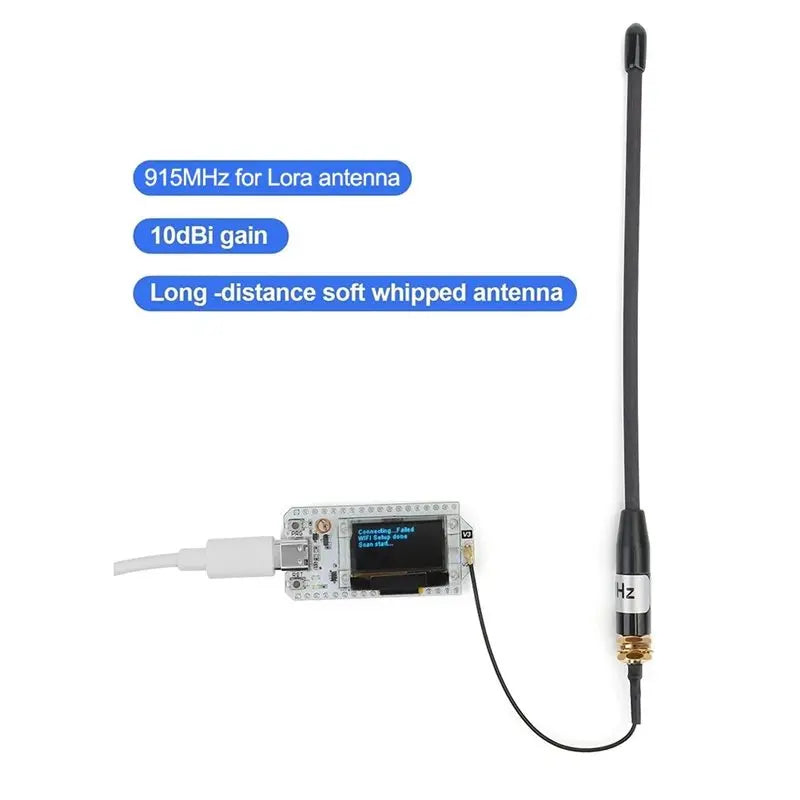

SMA Male Connector Compatibility: Directly compatible with most LoRa and WiFi development boards, such as for Heltec V3 for Heltec V4 for Wio Tracker L1 for Meshnology N37.

Comes with flexible extension cable for compact board integration and internal antenna routing (U.FL / support).
Durable Outdoor Construction: Built for indoor and outdoor deployment with stable performance in varied environmental conditions.
Wide Application Support: Ideal for Meshtastic networks, LoRa nodes, IoT telemetry, wireless sensor systems, and RF communication setups.

Specifications:
Part Name: Antenna
Frequency Range: 902-928MHz
Gain: 10dBi
Horizontal Beamwidth: 360°
Vertical Beamwidth: 43±3°
SWR: ≤1.5
Ellipticity: ≤2dB
Impedance: 50Ω
Polarization: Vertical
Maximum Power: 10W
Protection: DC Grounding
Connector: for SMA Male

Mechanical Specifications
Operating Humidity: <95%
Rated : 28.7m/s
Operating Temperature: -40°C to 55°C
Color: Black
Material: Plastic+Metal

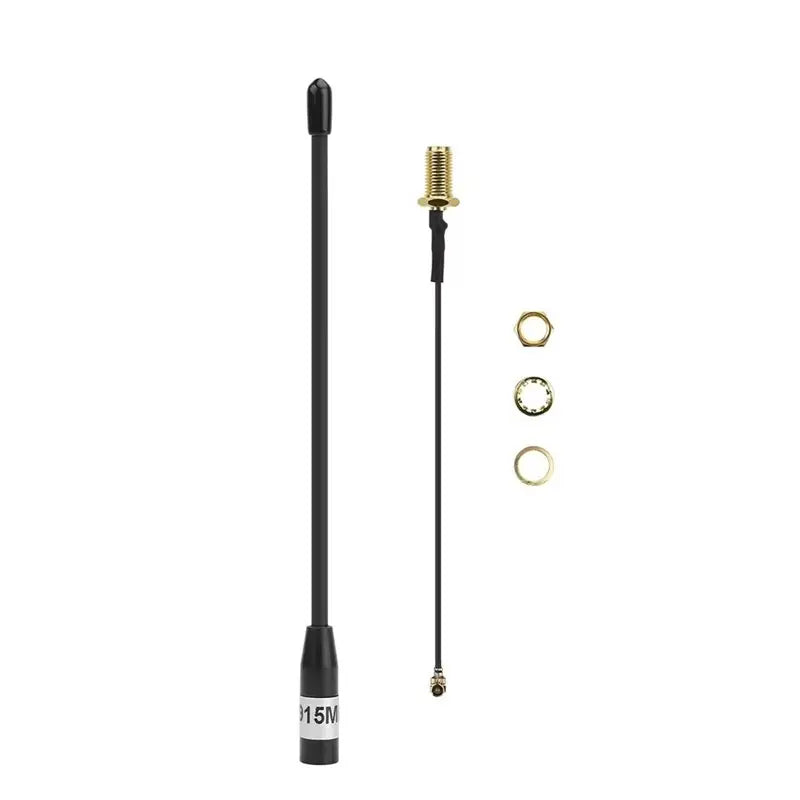

Package Contents:
1 x SMA Whip Antenna
1 x SMA to U.FL / Cable

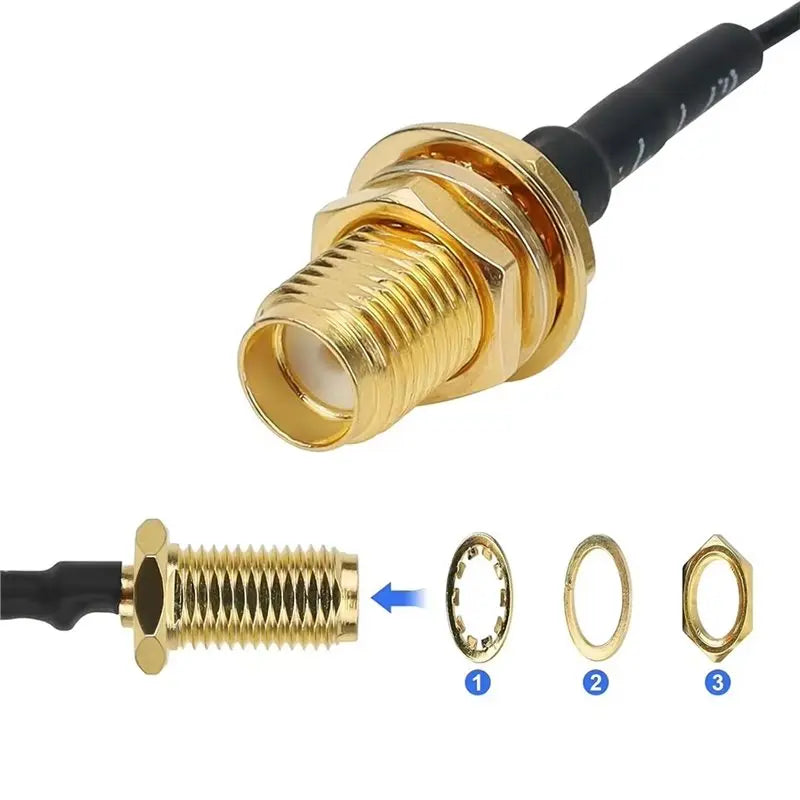

1 x Mounting Nut & Washer Set

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
