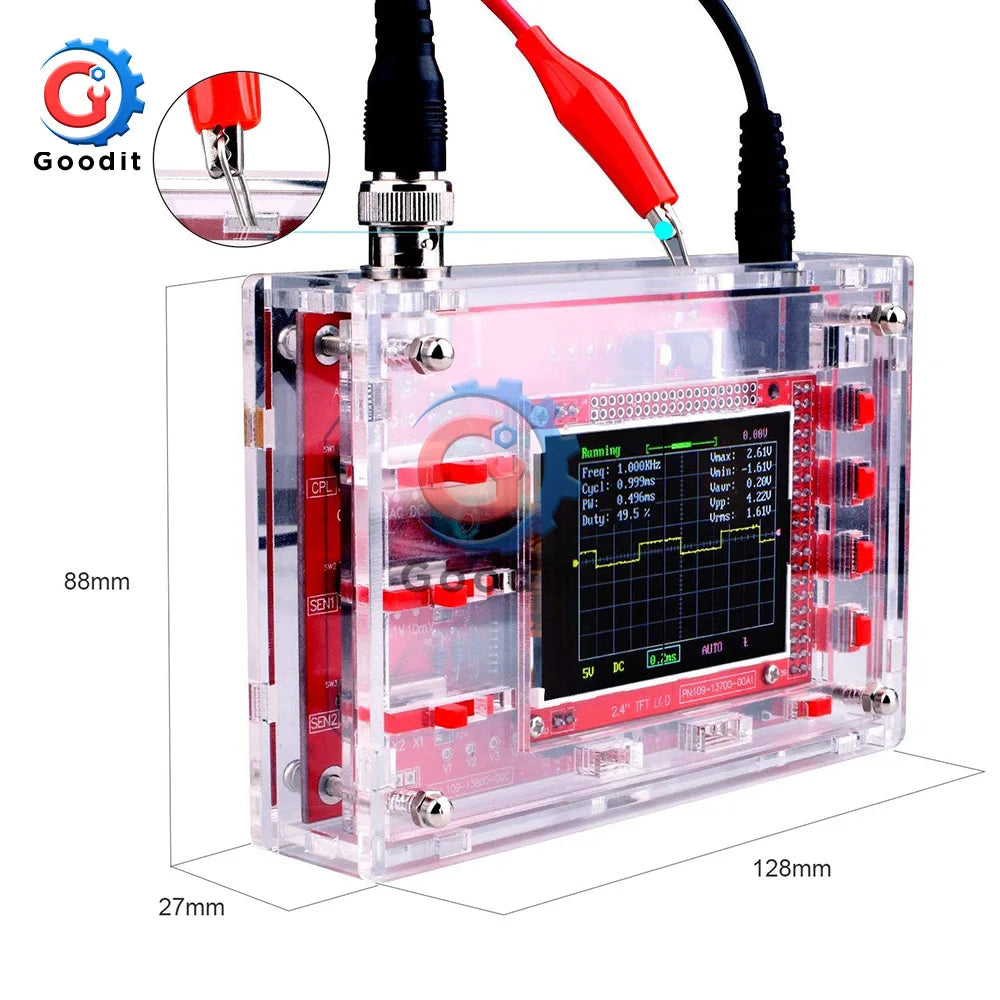

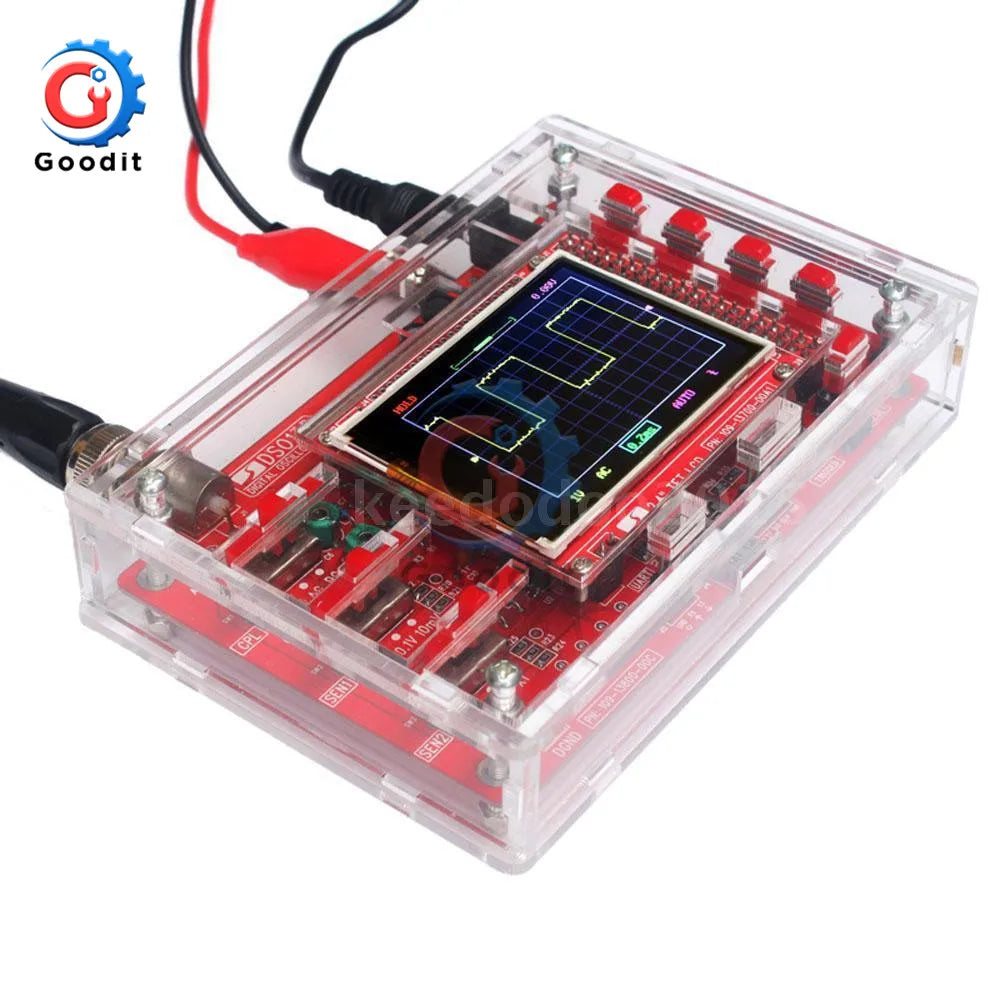

Fully Assembled Digital Oscilloscope 2.4" TFT LCD Display with Alligator Probe Test Clip Transparent Acrylic Case
shell / Russian Federation
$4.68
Sale price
$4.68
Regular price
$0.00
Skip to product information
Fully Assembled Digital Oscilloscope 2.4" TFT LCD Display with Alligator Probe Test Clip Transparent Acrylic Case
$4.68
Sale price
$4.68
Regular price
$0.00
Description
SPECIFICATIONS
Band Width: Less than 60MHz
Battery Included: no
Brand Name: Aideepen
Certification: CE
DIY Supplies: Electrical
Digital Channels: 1
Display Resolution: 320*240 Pixels
Display Size: None
Feature: 2.4" TFT Handheld Pocket-size Digital Oscilloscope Kit
High-concerned chemical: none
IS Battery Demountable: No
Max Waveform Capture Rate: 30,000wfm/s
Model Number: DSO138 Oscilloscopes
Origin: Mainland China
Real Time Sampling Rate: 1MSa/s
Record Length: Pls check description
Recommend
|
|
|
|
|
|
|
|
Fully Assembled Digital Oscilloscope 2.4" TFT LCD Display with Alligator Probe Test Clip Transparent Acrylic Case
[Note]
The product box needs to be assembled manually! !
[Acrylic Case]
Material: Acrylic
Product weight: 156 g / 5.52 oz
Packing size: 16* 10 *4 cm / 6.3*3.94*1.57in
[Oscilloscpoe]
Feature:
Training for electronic production, complete detailed descriptive information, including schematics, production guidance, instructions, troubleshooting methods, etc., making a high success rate.
Component species diversity for students to identify elements, inline elements welding, soldering SMD components training.
Students can get in at the same time making a practical tool for audio, video synchronization, low-frequency switching power supply, infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured, increased interest in learning, improve learning outcomes.
Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4 -inch color TFT display can be used as test ARM development board.
Available source, the ability of a friend can be secondary development kit based on, for example, it can be changed to Millivoltmeter, data loggers, and so on.
Circuit is simple, reliable.
Specification:
Maximum real-time sampling rate: 1Msps
Accuracy: 12Bit
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0 - 200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div ( 1-2-5 progressive manner )
Adjustable vertical displacement, and with instructions
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )
Coupling modes include DC / AC / GND
The horizontal time base range: 10μs / Div - 50s / Div ( 1-2-5 progressive manner )
With automatic, regular and one-shot mode, easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position, and with instructions
Observable trigger waveform before ( negative delay )
Can freeze at any time waveform display (HOLD function )
Comes 1Hz /3.3V square wave test signal source
[Package Included]
1.1pcs * Fully Assembled Digital Oscilloscope 2.4" TFT LCD Display with Alligator Probe Test Clip Transparent Acrylic Case
2.1*DSO138 Oscilloscope Acrylic Case
3.*Without shell DSO138 oscilloscope（Optional）
