SPECIFICATIONS

Brand Name: fulree

Certification: CE,FCC,RoHS

High-concerned chemical: none

Model Number: F60J12V*A1S

Origin: Mainland China

Output Current: 1A / 2A / 3A Max

Output Frequency: 200hz

Output Power: 1 - 50W

Output Type: SINGLE

Size: 46*27*14mm

Type: DC/DC Converters

Weight: 45g

is_customized: Yes

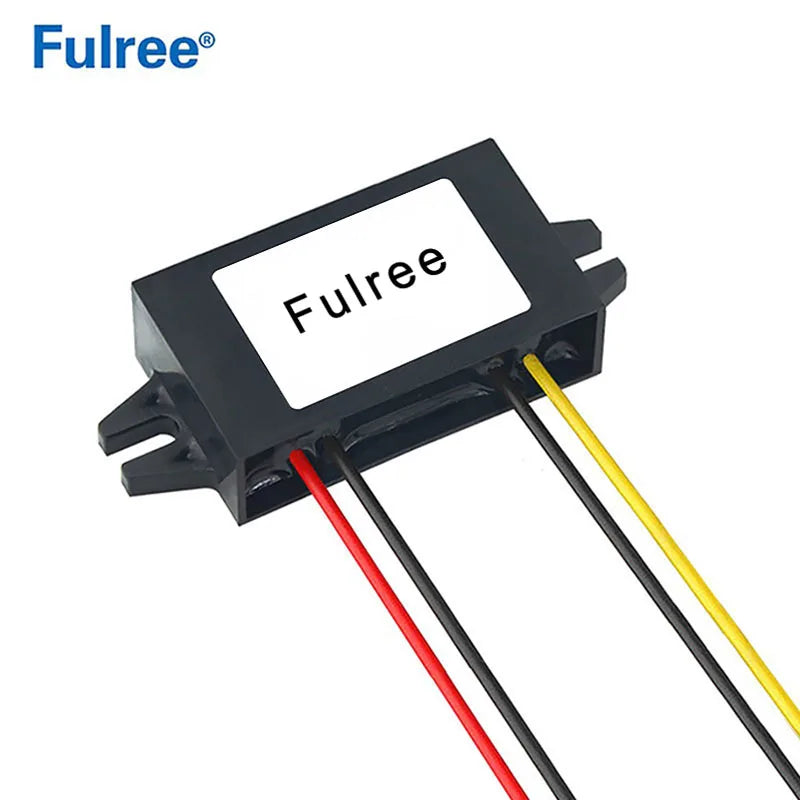

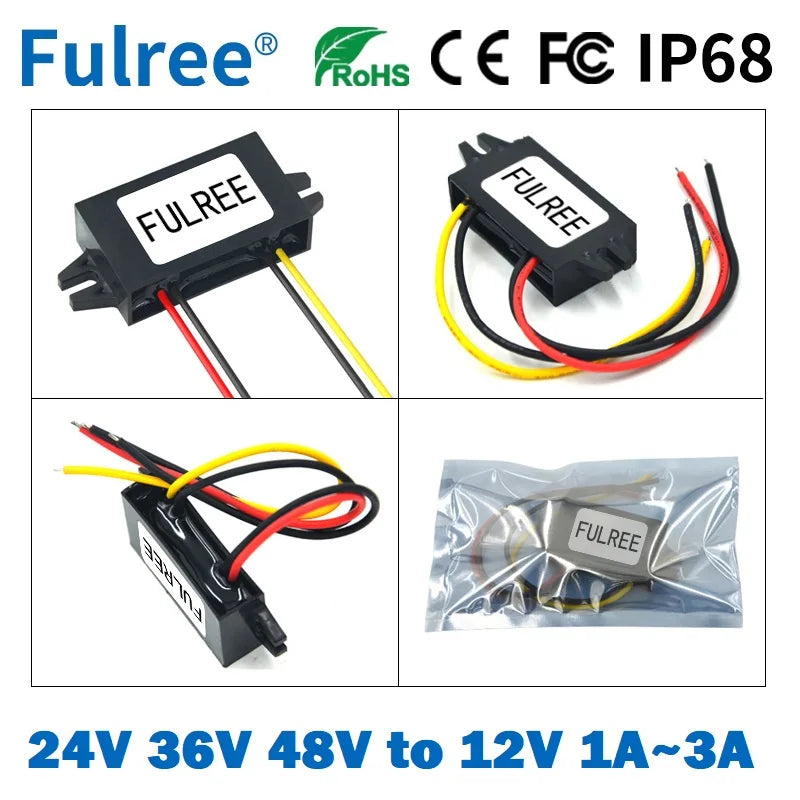

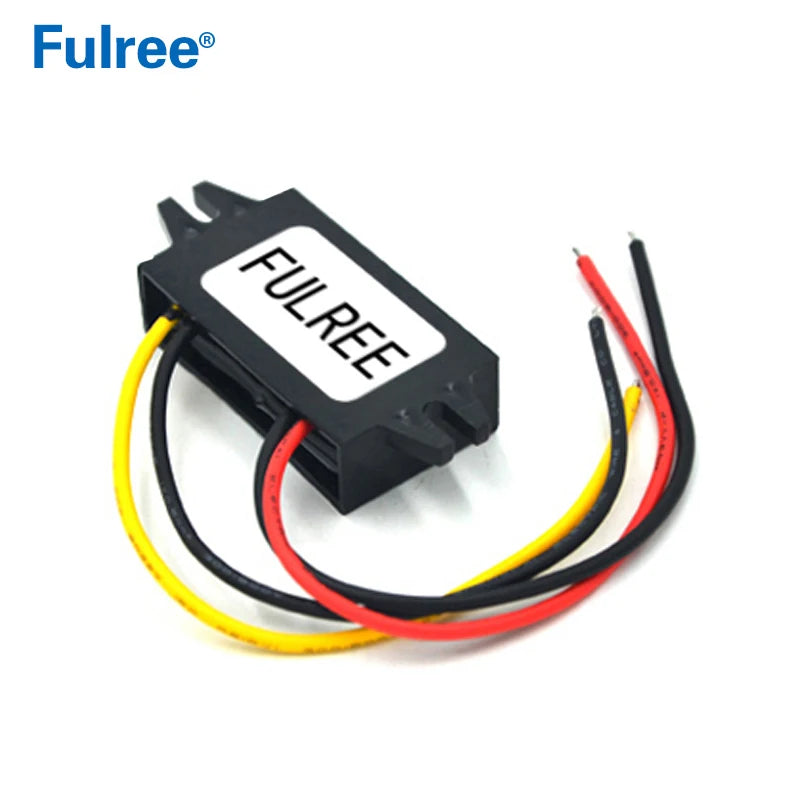

Fulree® 48V 36V 24V to 12V 1A 2A 3A DC DC Voltage Step Down Buck Converter 48 36 24 Volt to 12 Volt Car CCTV Power Supply

Product Name	20-60V / 20-55V to 12V DC Converter
Brand Name	Fulree
Model No.	F60J12VA1S / F55J12VA1S
Module Properties	non-isolated buck module
Rectification	synchronous rectification
Input (cable length: 12cm)
Input Voltage	DC 24V 36V 48V
Input Voltage Range	DC 20-60V / 20-55V
Output(cable length: 12cm)
Output Voltage	DC 12V
Output Current	1A / 2A / 3A Max
Output Power	12W / 24W / 36W Max
Conversion Efficiency	>93%
Voltage regulation	±1%
Load regulation	± 2%
Ripple (Full load test)	< 150mV
No-load current	<100mA
Working Temperature	-40~80℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Waterproof Rating	IP68
Protection	Over-current protection / Over heat protection / Short circuit protection / Waterproof IP68 design, Anti-shock protection
Application	mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on.
Case Material	ABS Plastic

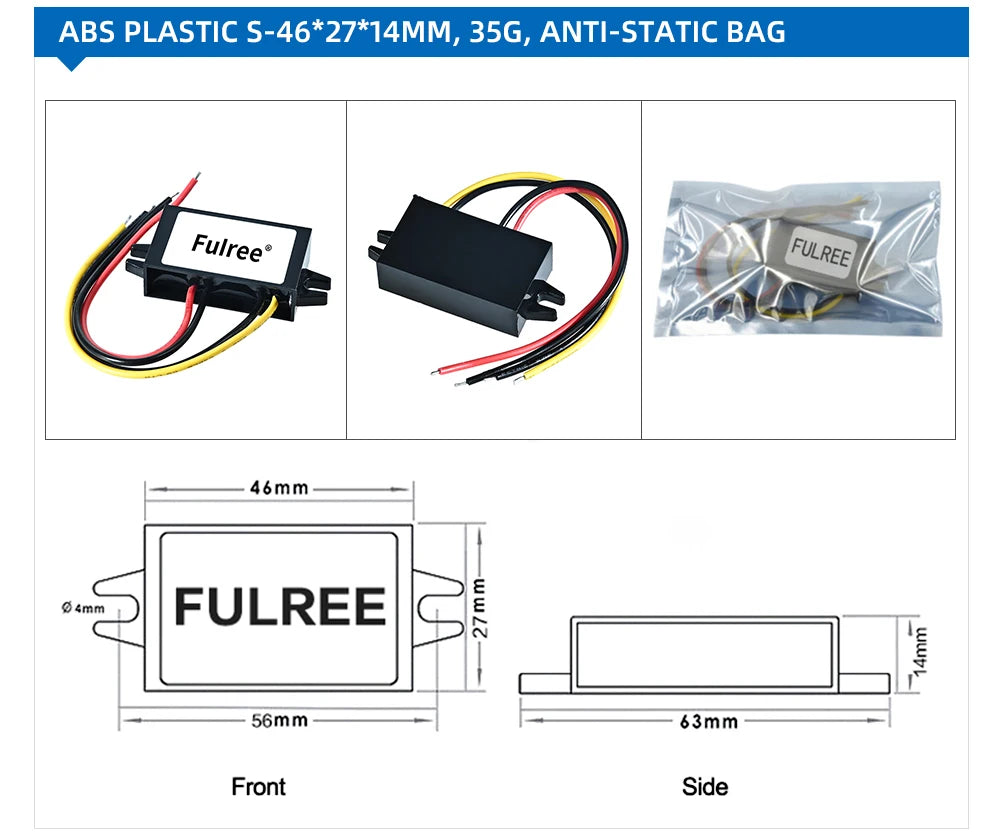

Product Size (L x W x H)	462714mm
Product Weight	45g
Warranty	12 months
Cooling Way	Free air convection
OEM&ODM Service	Acceptable
