SPECIFICATIONS

Brand Name: G-NiceRF

Certification: CE,FCC,Dual Certification by CE & FCC

Data Transfer Rate: 0.476-202 Kbps@LoRa

Frequency: 2400-2500 MHz

High Precision Crystal Oscillator: 0.5 ppm TCXO

High-concerned chemical: none

Item Type: 2.4GHz RF Module

Maximum Output Power: 12.5 dBm

Model Number: LoRa1280-TCXO

Modulation: LoRa FLRC FSK

Operating Temperature: -40~+85 °C

Operating Voltage: 1.8-3.7 V

Origin: Mainland China

Packet Communication Mode (receiving FiFo256 bytes): YES

Sensitivity: -132 dBm@LoRa

Sleep Current: < 1 uA

Wireless Function: Yes

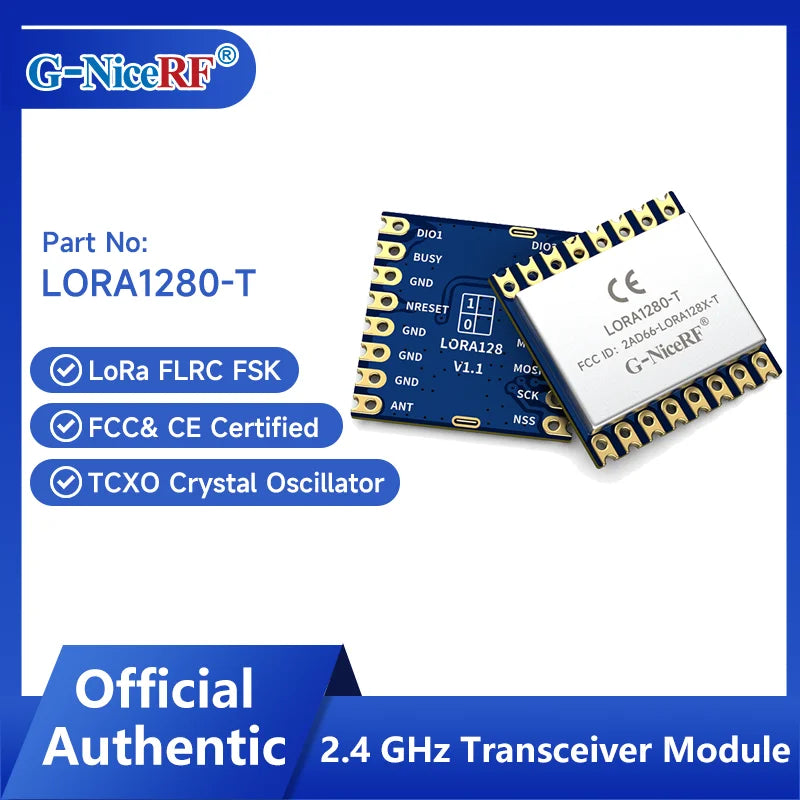

2PCS LRoa1280-TCXO 2.4GHz Lora Modules

•

  •



• • Overview

  •

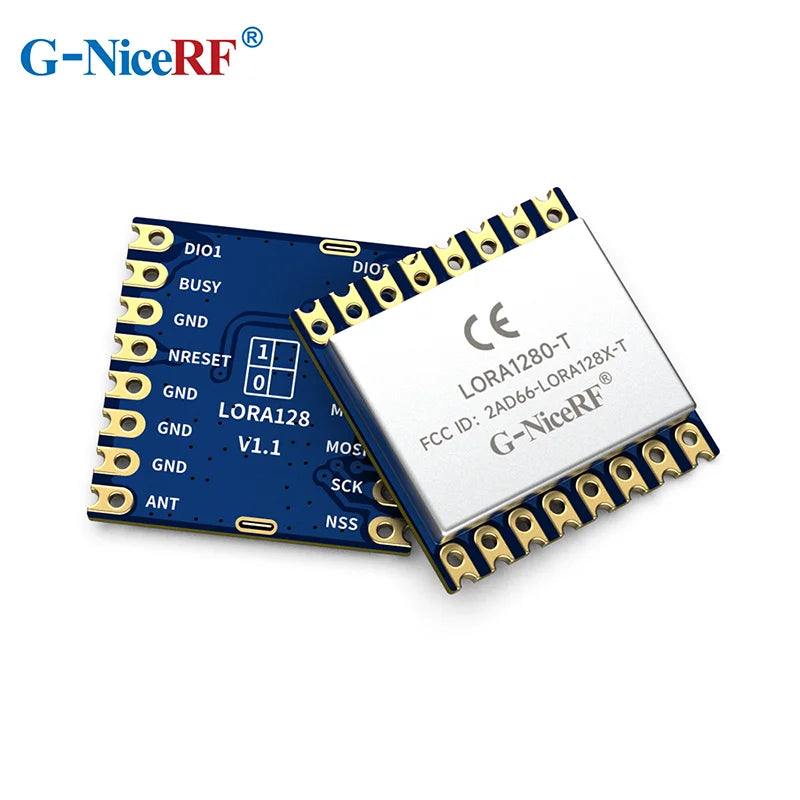

  LoRa1280-TCXO 2.4 GHz transmitter and receiver module is designed based on the originalSX1280/SX1281

• radio frequency chip of Semtech in the United States. It uses LoRa's modulation mode, which improves the

• short communication distance of ordinary 2.4GHz modules. The high penetration performance of the 2.4GHz

• frequency band combined with the LoRa modulation enables the module to have high receiving sensitivity

• and environmental anti-interference ability. The whole series of modules are widely used in applications

• requiring long-distance 2.4GHz transmission. The whole series of modules use a 10ppm industrial-grade

• crystal oscillator, and theLoRa1280/LoRa1281-TCXO module is also specially equipped with a higher-precision

• industrial-grade 0.5ppm TCXO temperature-compensated crystal oscillator, which guarantees stable frequency

• output under harsh environments such as high and low temperature. It also has the "time of flight" function,

• which can realize RF ranging applications.

•
  LoRa1281-TCXO strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.


  •


  •


  • Features

• Operating Frequency Range: 2400-2500MHz

• Operating Temperature Range: -40~+85°C

• Data Transfer Rate: @LoRa=0.476-202 Kbps

• Maximum Output Power: 12.5dBm

• Packet Communication Mode (receiving FiFo 256 bytes)

• High precision Crystal Oscillator（0.5ppm TCXO/10ppm）

• Operating Voltage Range: 1.8-3.7 V

• Sensitivity up to-132 dBm @LoRa

• LoRa FLRC FSK Modulation

Applications

• Wireless Remote

• Smart Home

• Tag Reader

• Toy Control

• Tire Pressure Monitoring

• Health Monitoring

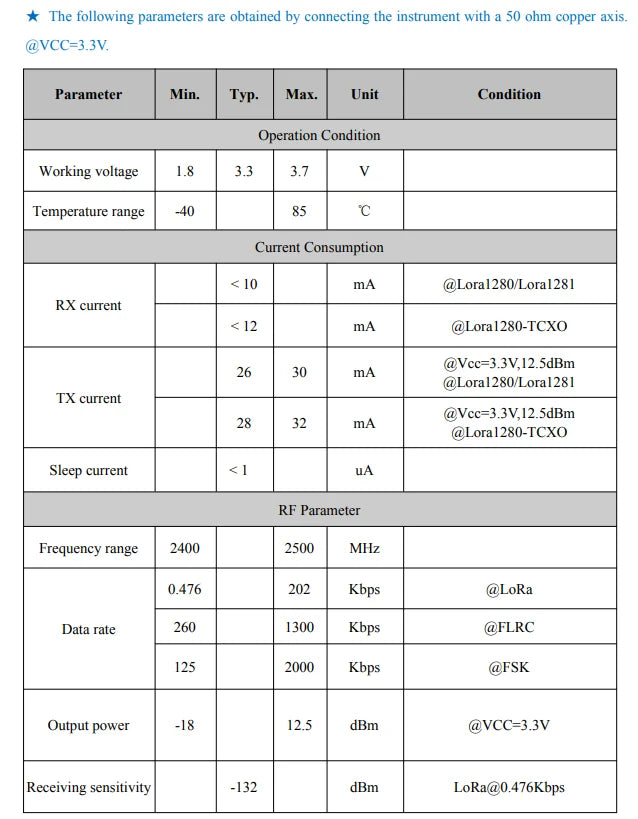

Electrical Characteristics

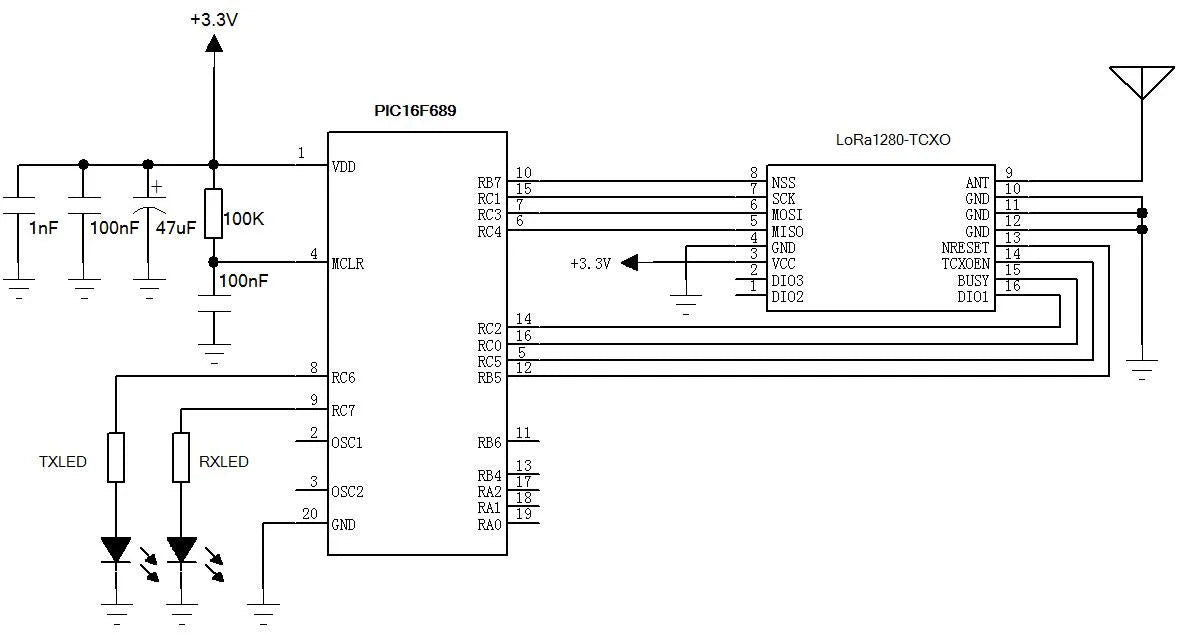

• Typical Application Circuits

•

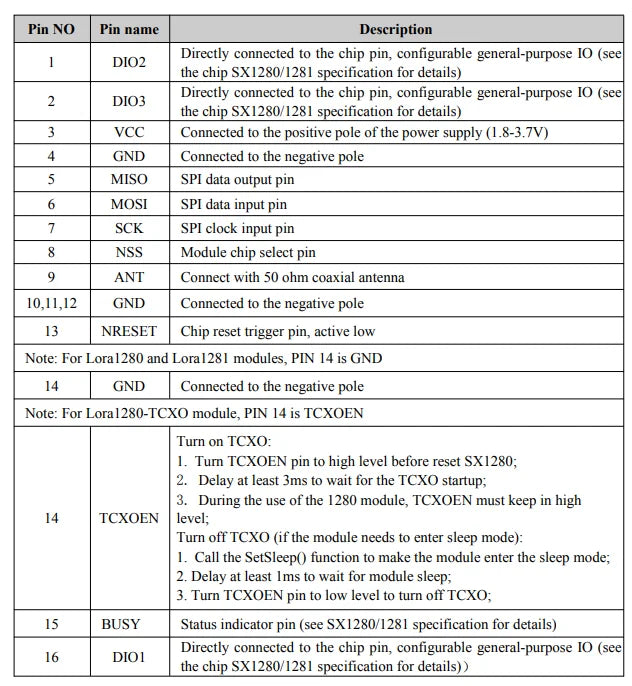

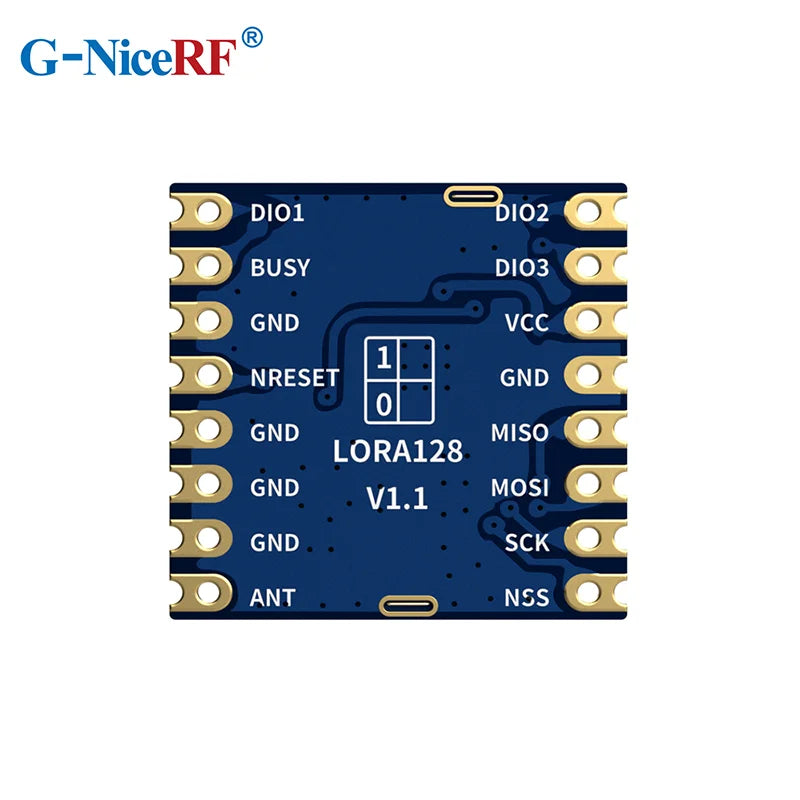

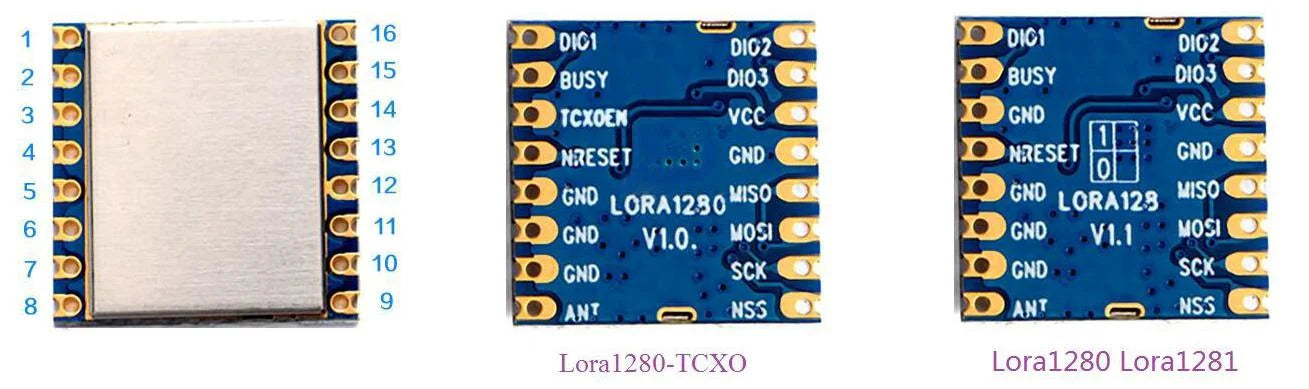

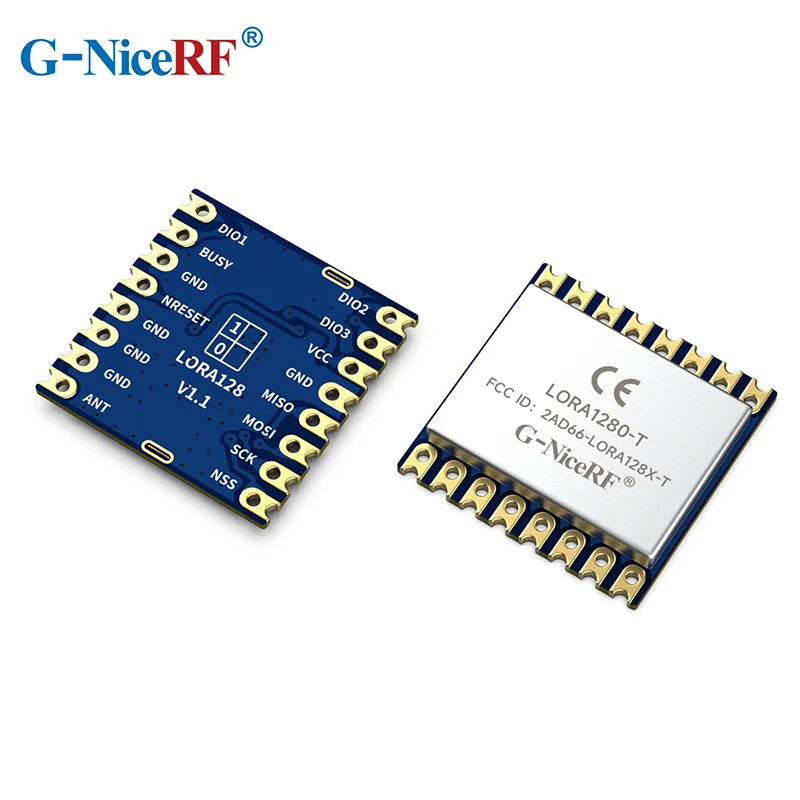

Pin Definition

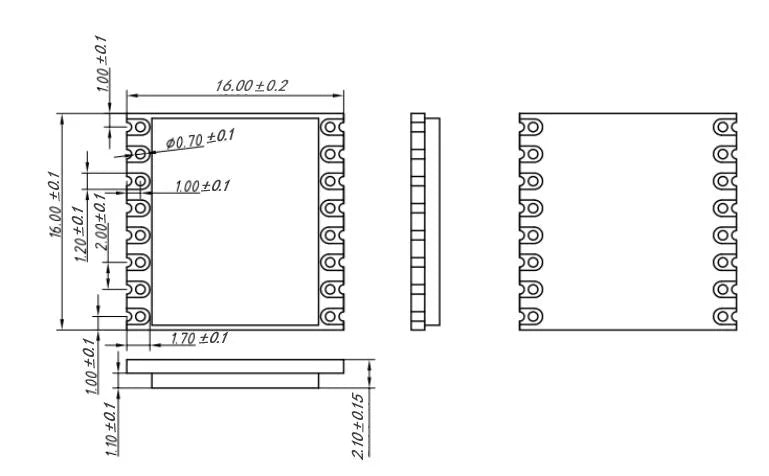

Dimensions (Unit: mm)
