SPECIFICATIONS

2.4 G Bands: 2400MHz~2500MHz 1W

2.4 GHz sensitivity: up to -129 dBm@ BW=406 KHz, SF=7

Brand Name: G-NiceRF

Electrostatic Protection (ESD): YES

Frequency Band: Sub-GHz Bands (Customizable: 150~960 MHz) 2.4 G Bands: 2400MHz~2500MHz

High-concerned chemical: none

Origin: Mainland China

Sleep current: < 20uA

Small size, stamp hole design: YES

Sub-GHz Bands: 433/470/MHz 2W,868/915MHz 1W

Sub-GHz sensitivity: up to -144dBm@BW=62.5KHz,SF=12

Sub-GHz transmission exceeds 10 km inopen areas: YES

Supports AES-128 encryption and decryption: YES

Supports LR-FHSS: YES

Supports LoRaWAN and Sigfox protocol: YES

Type: Lora Module

Voltage: 3.0-5.5V

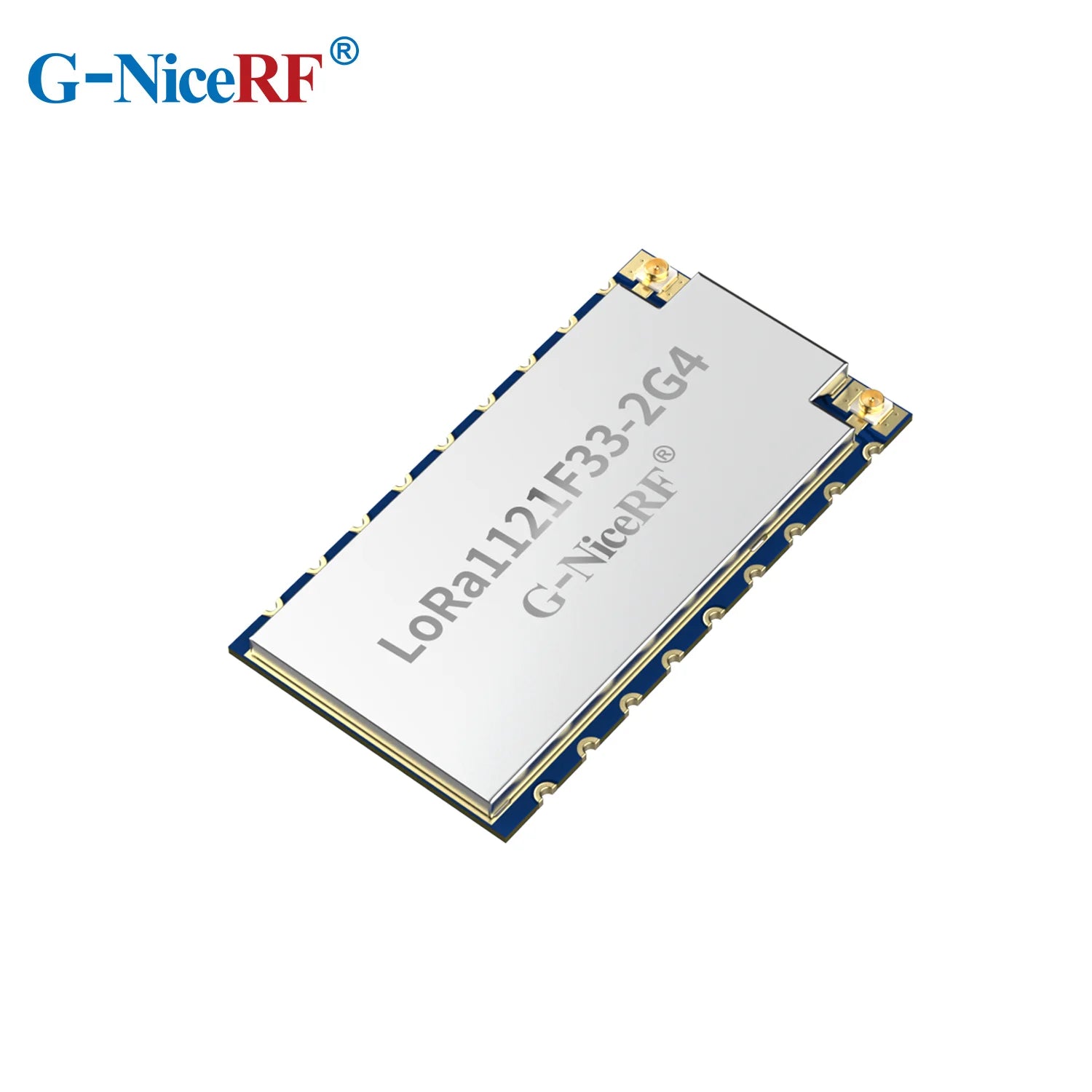

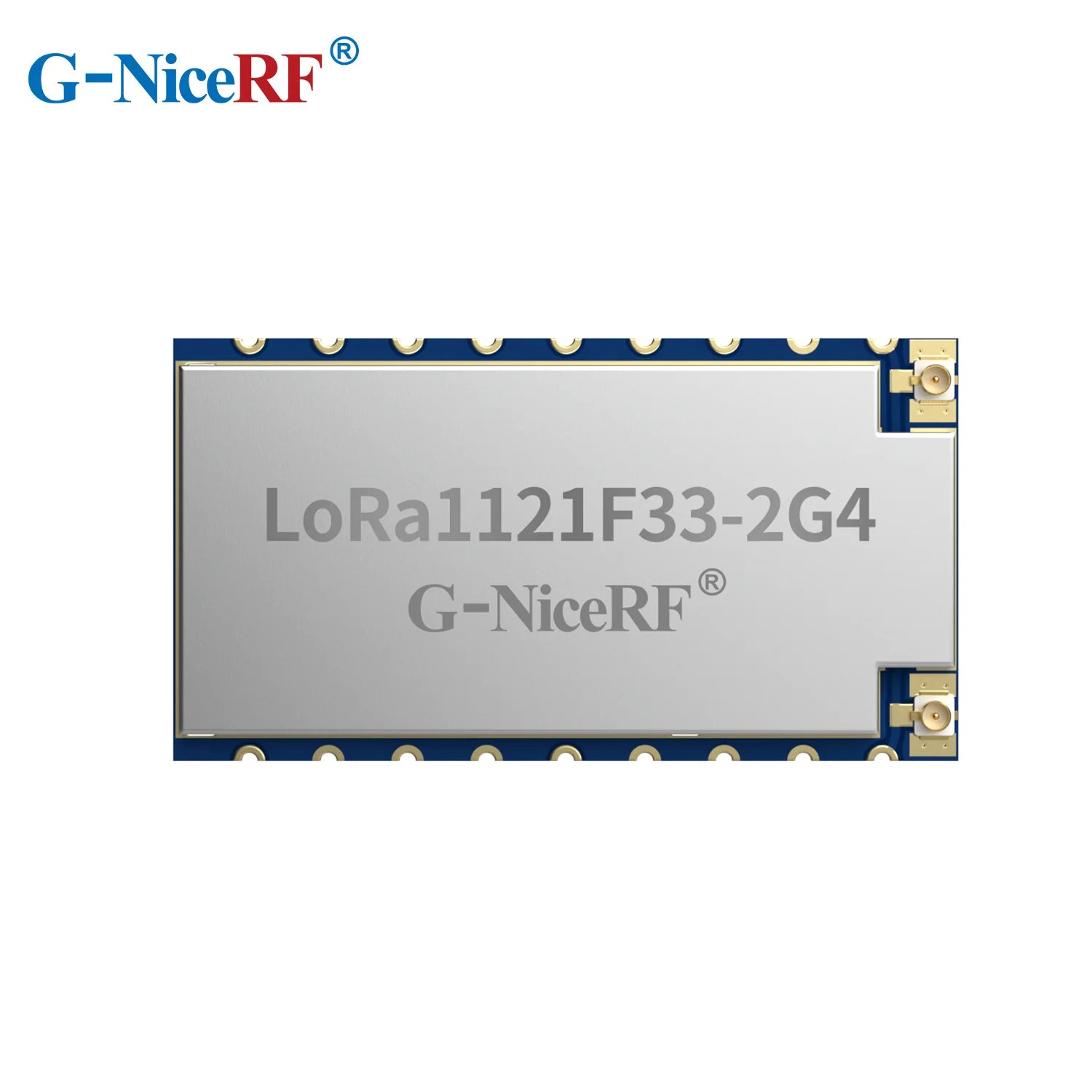

2PCS LoRa1121F33-2G4 Modules

Please Note: If you need other frequency, feel free to contact us to confirm before placing order.

•





• Overview

•


• LoRa1121F33-2G4 module is built on SEMTECH's LR1121 chip, an ultra-low power, long-range LoRa

• transceiver supporting Sub-GHz and 2.4G band. supports LoRa, (G)FSK modulation, Sigfox protocol, and

• LR-FHSS. It is compatible with the LoRaWAN communication protocol and can function as a LoRaWAN node.

•


• Additionally, it offers flexible configuration options to meet the requirements of various applications and

• proprietary protocols.

Features

• Sub-GHz Bands: 433/470/MHz 2W

• Sub-GHz Bands: 868/915MHz 1W (Customizable : 150~960 MHz)

• 2.4 G Bands : 2400MHz～2500MHz 1W

• 2.4 GHz sensitivity : up to -129 dBm @ BW=406 KHz, SF=7

• Sub-GHz sensitivity : up to -144dBm @BW=62.5KHz,SF=12

• Electrostatic Protection (ESD)

• Supports LR-FHSS

• Supports LoRaWAN and Sigfox protocol

• Supports AES-128 encryption and decryption

• Sub-GHz transmission exceeds 10 km in open areas

• Sleep current < 20µA

• Small size, stamp hole design

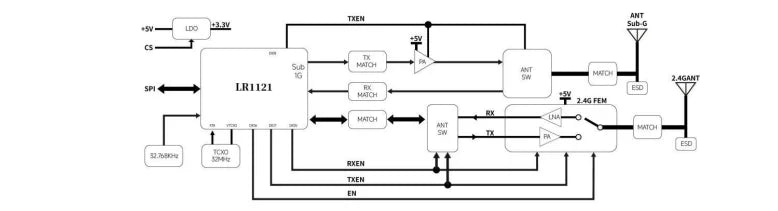

Block Diagram

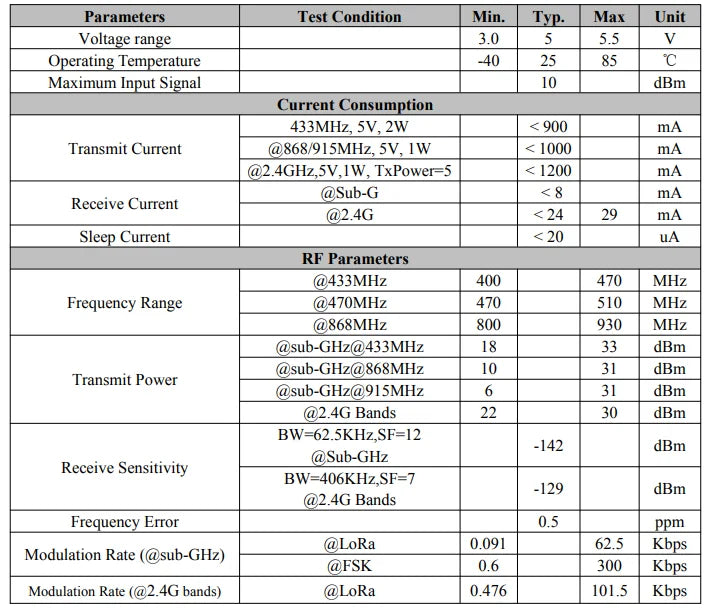

Electrical Characteristics

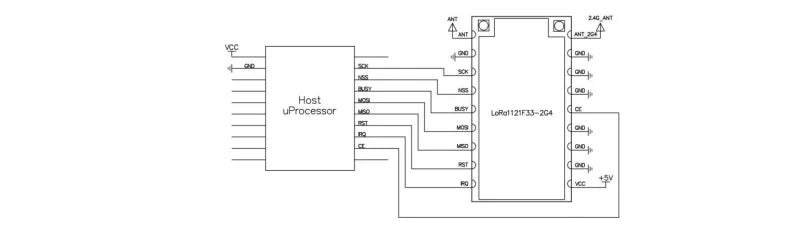

• Typical Application Circuits

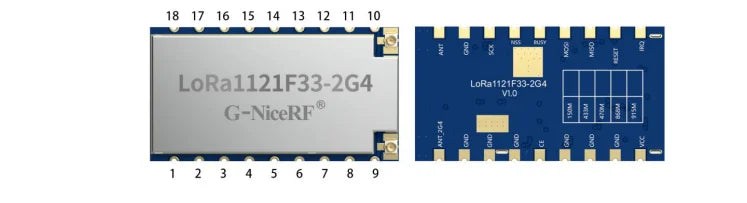

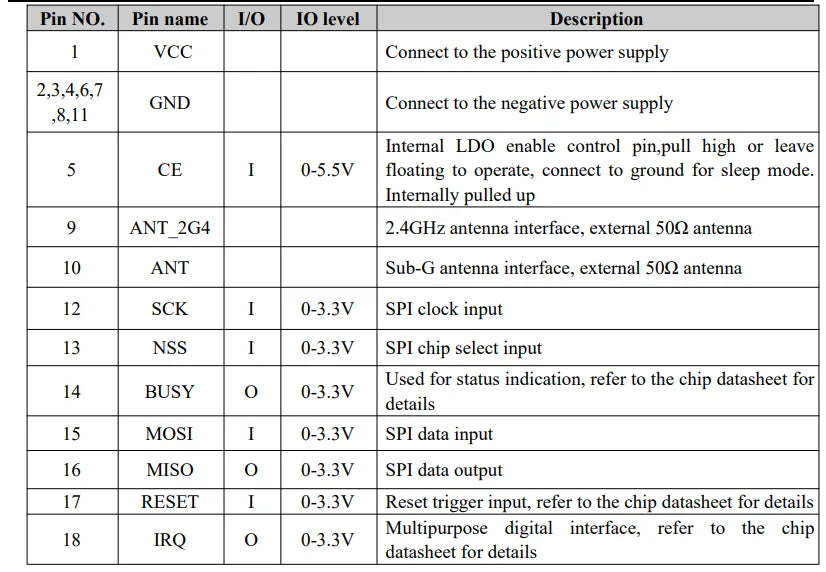

Pin Definition

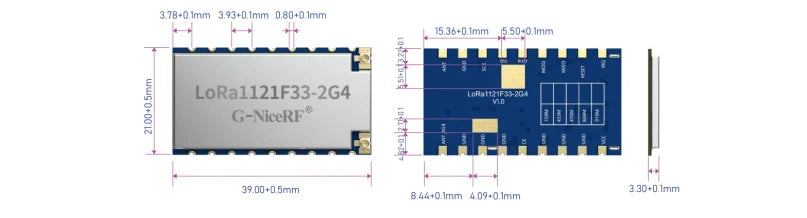

Dimensions (Unit: mm)
