SPECIFICATIONS

18mA@Receiving Status: YES

Brand Name: G-NiceRF

Data Transfer Rate: 0.6-500 kbps

Frequency: 315/433/868/915 MHz

Frequency Hopping Function: YES

High-concerned chemical: none

Item Type: RF1101

Low Power Detection: YES

Maximum Output Power: 11 dBm

Model Number: RF1101

Operating Temperature: -40 -- +85°C

Origin: Mainland China

Support Multiple Modulation modes: OOK, ASK, GFSK,2-FSK, 4-FSK and MSK

Support RSSI (Received Signal Strength Indicator) and LQI (link qualityindicator): YES

Ultra Low Power Shutdown mode: YES

Wireless Function: Yes

Working Voltage: 1.8--3.6V

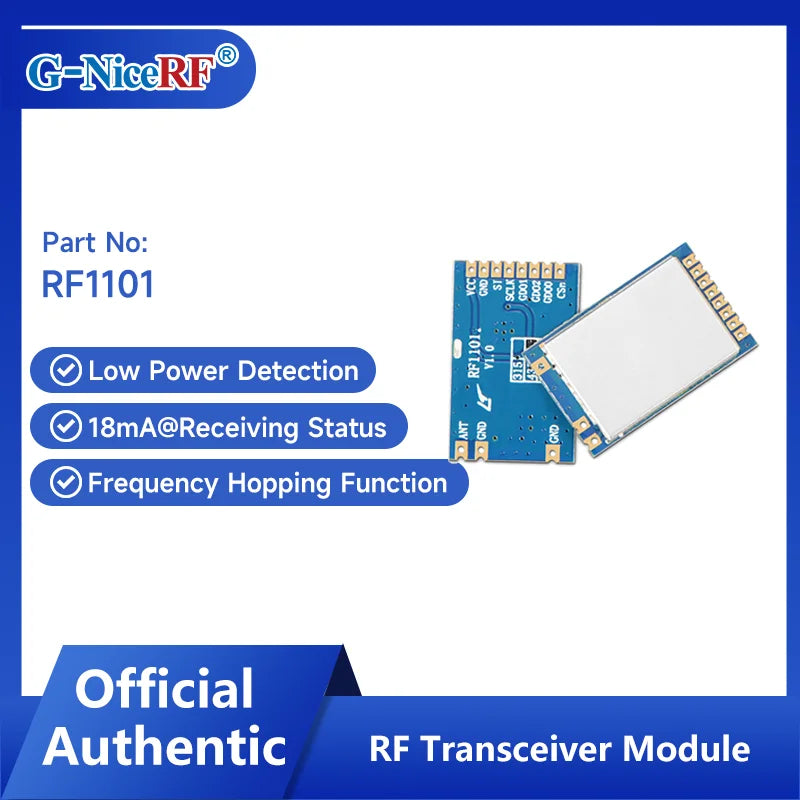

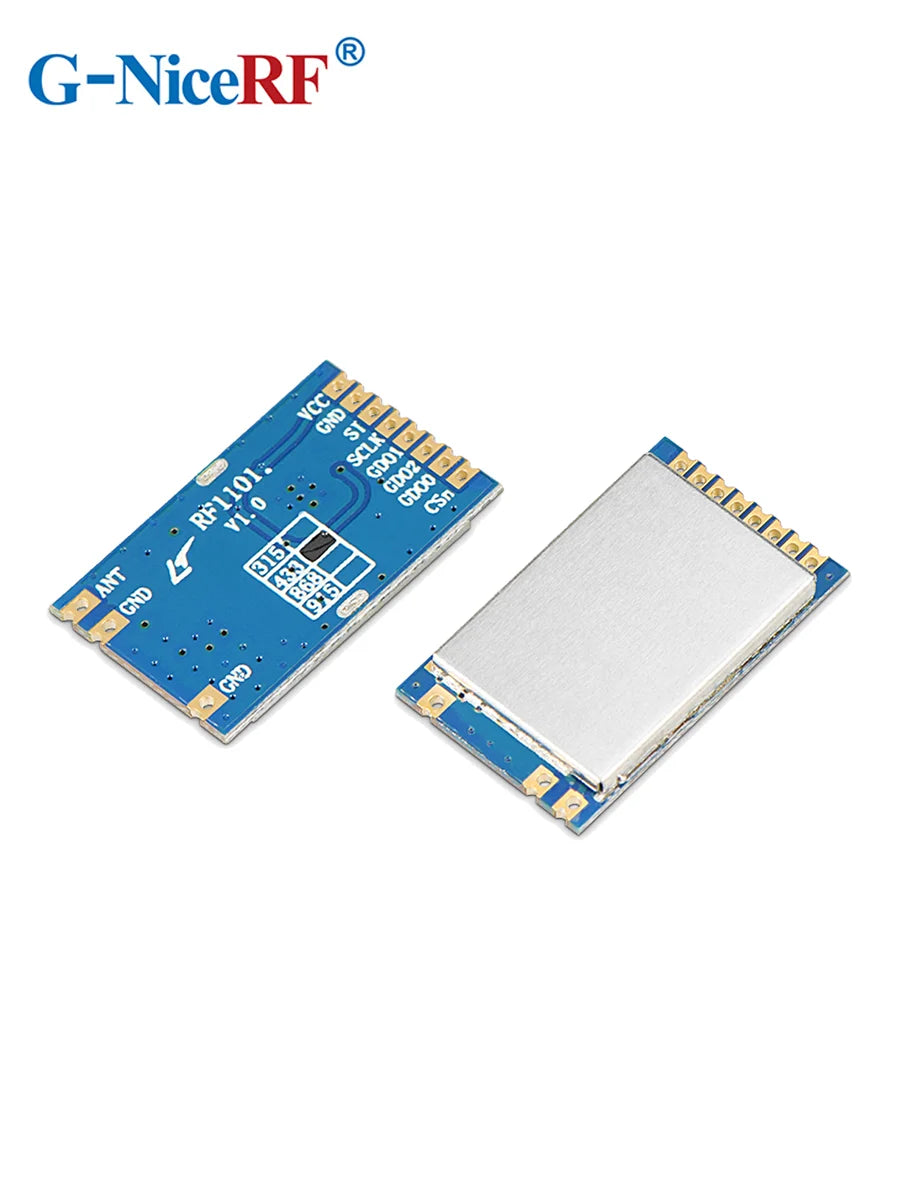

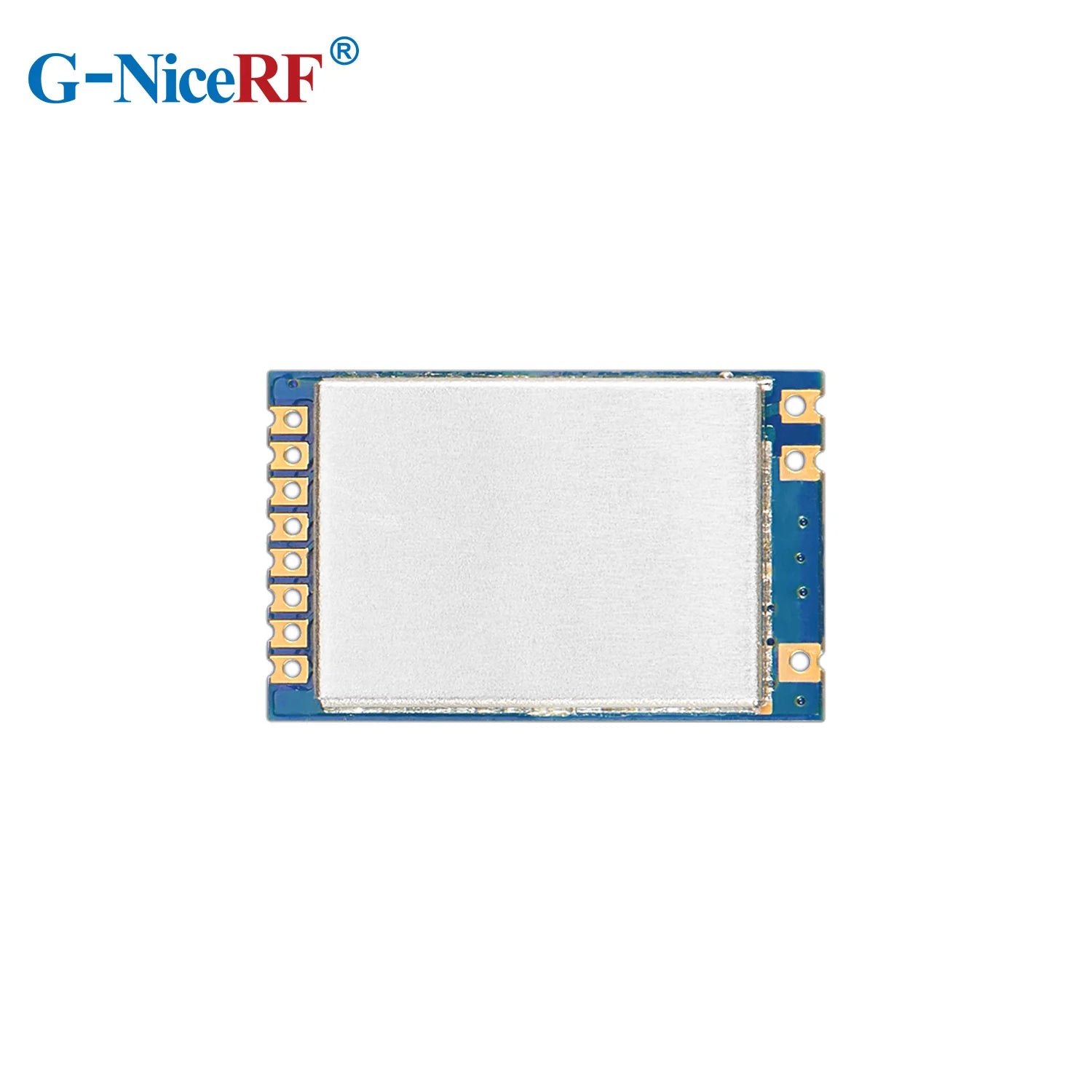

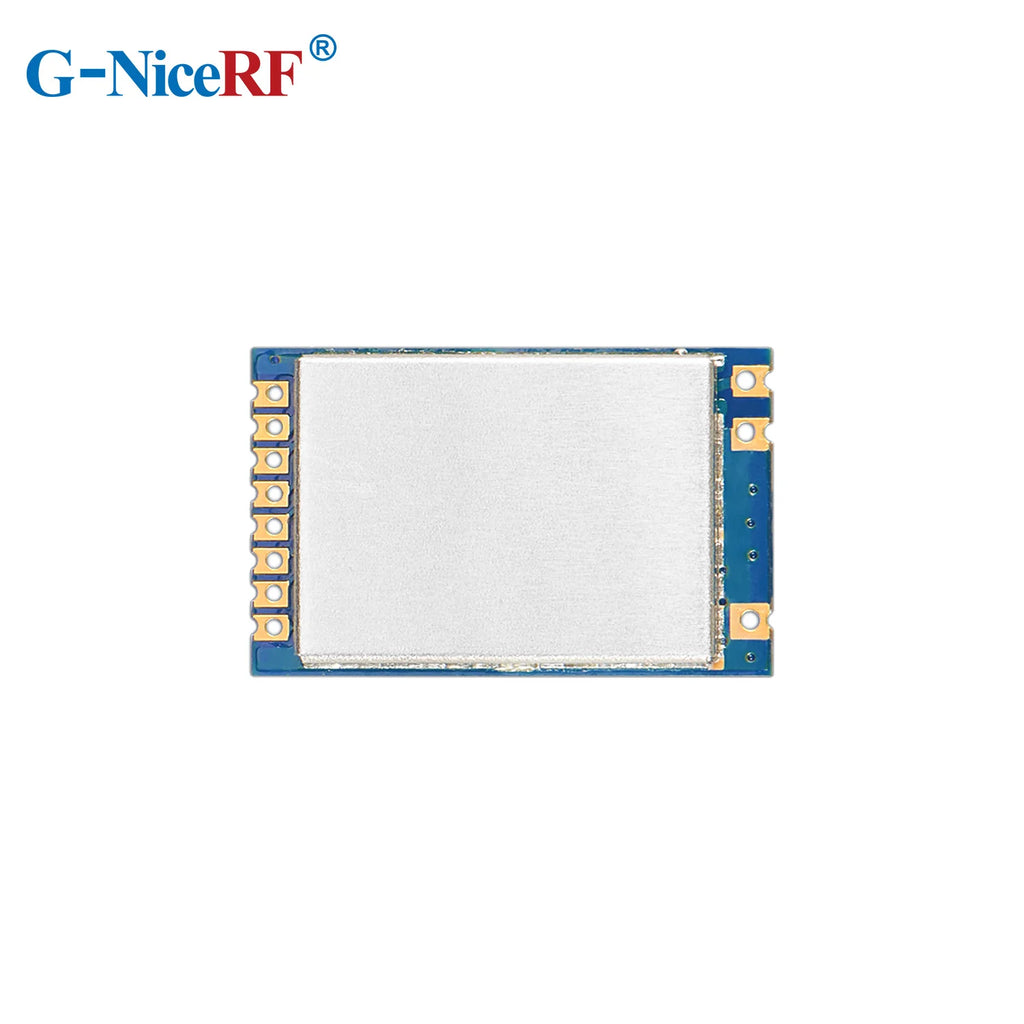

2PCS RF1101 Wireless Transceiver Modules

2PCS Spring Antennas

Please Note: If you need other frequency, feel free to contact us to confirm before placing order.

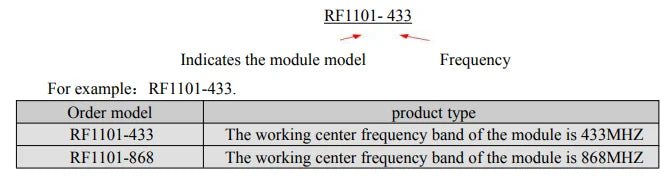

e.g. If you need 433MHz Frequency, the PN shall be RF1101-433

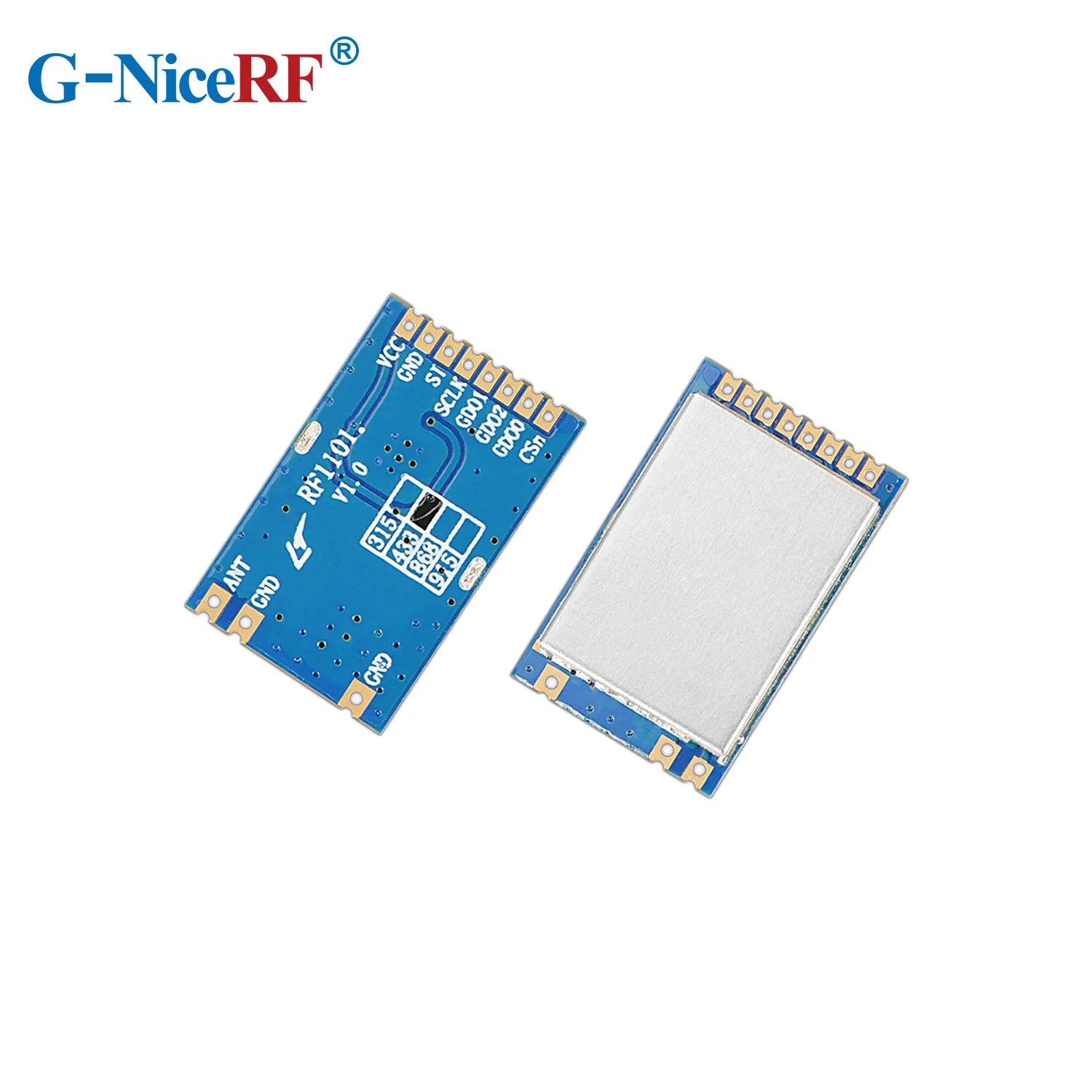

Overview

• The company's RF1101 module uses TI's CC1101 device, which is a highly integrated wireless ISM
  band transceiver chip. This module is mainly aimed at smart home, industry, scientific research and
  medical, and short-range wireless communication equipment.

•


• RF1101 uses lead-free process for production and testing strictly, and meets RoHS and Reach standards.

Features

• Frequency Range: 315/433/868/915 MHz

• Maximum output power: 11dBm

• 18mA@Receiving status

• Data transfer rate: 0.6-500kbps

• Support multiple modulation modes (OOK, ASK, GFSK, 2-FSK, 4-FSK and MSK)

• Ultra low power shutdown mode

• Support RSSI (Received Signal strength indicator) and LQI (link quality indicator)

• Low power detection

• Operating temperature range: -40 ~ +85°C

• Frequency hopping function

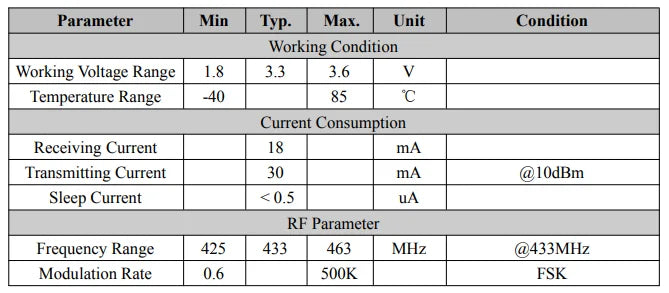

• Electrical Characteristics

•

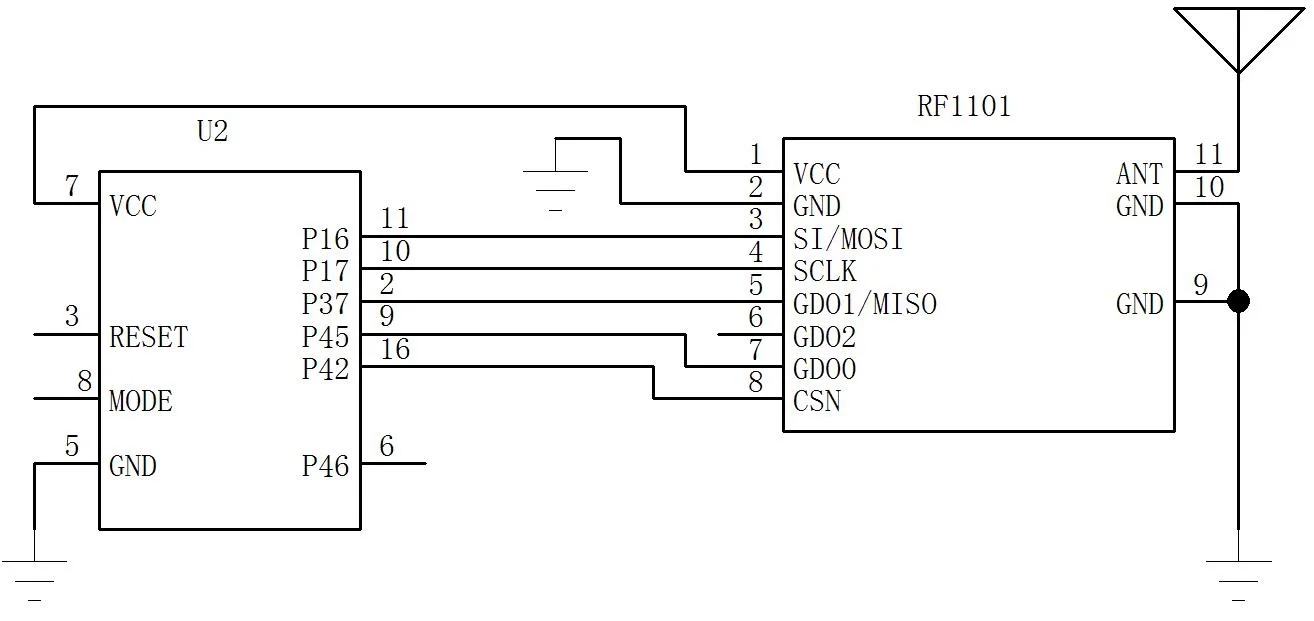

  Typical Application Circuits

•

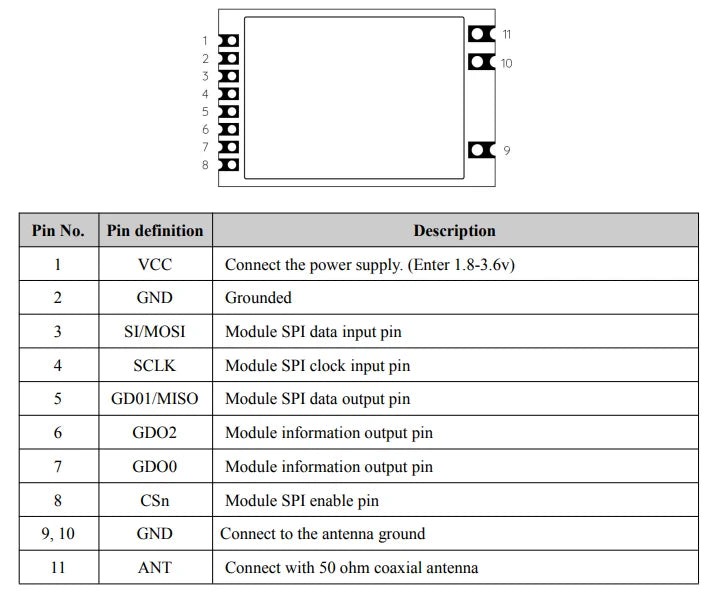

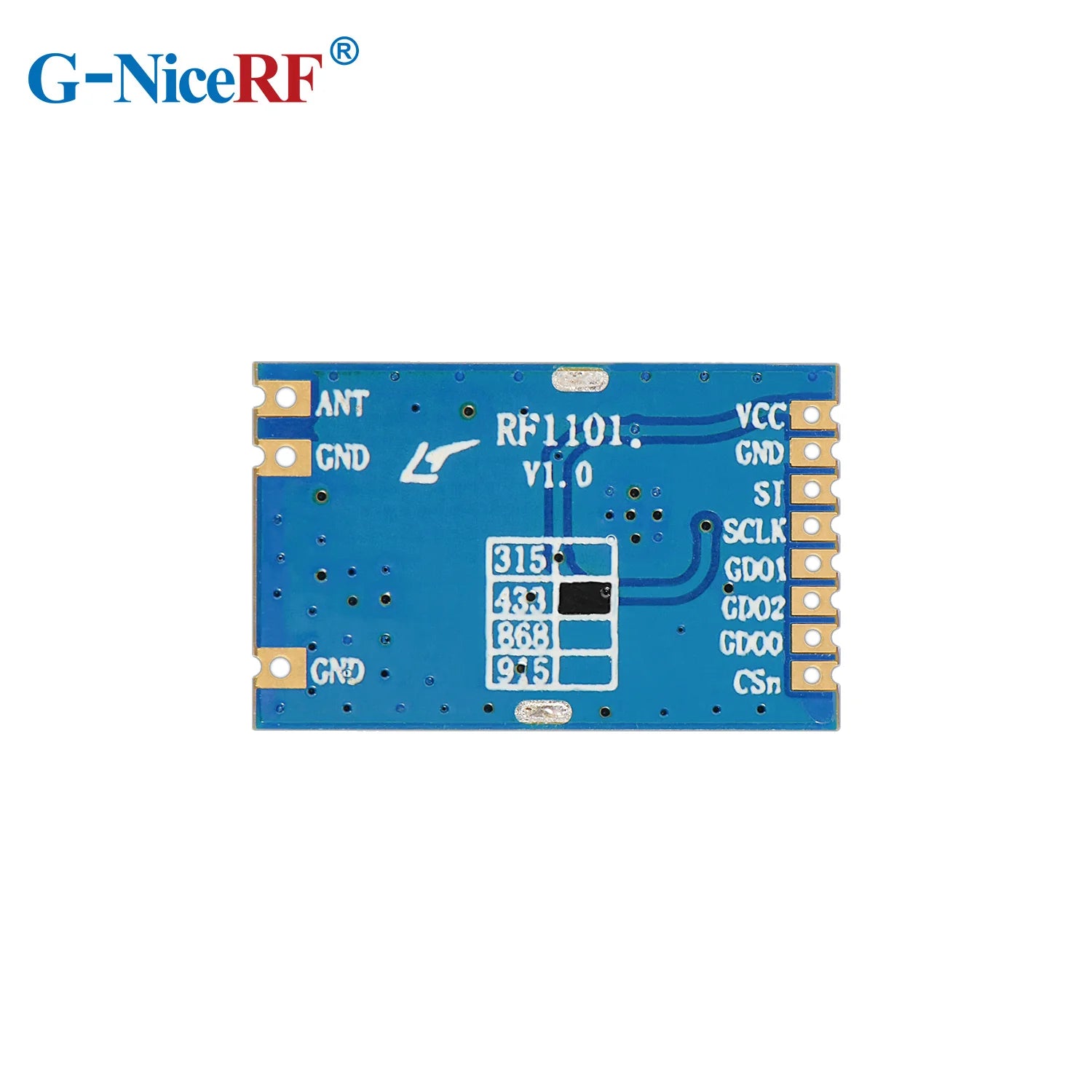

Pin Definition

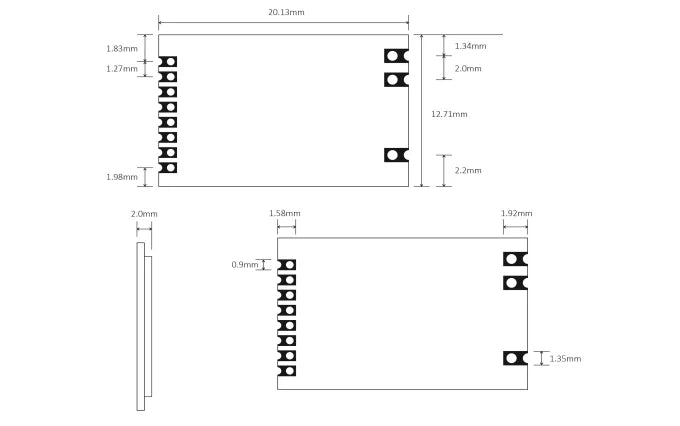

Dimensions (Unit: mm)
