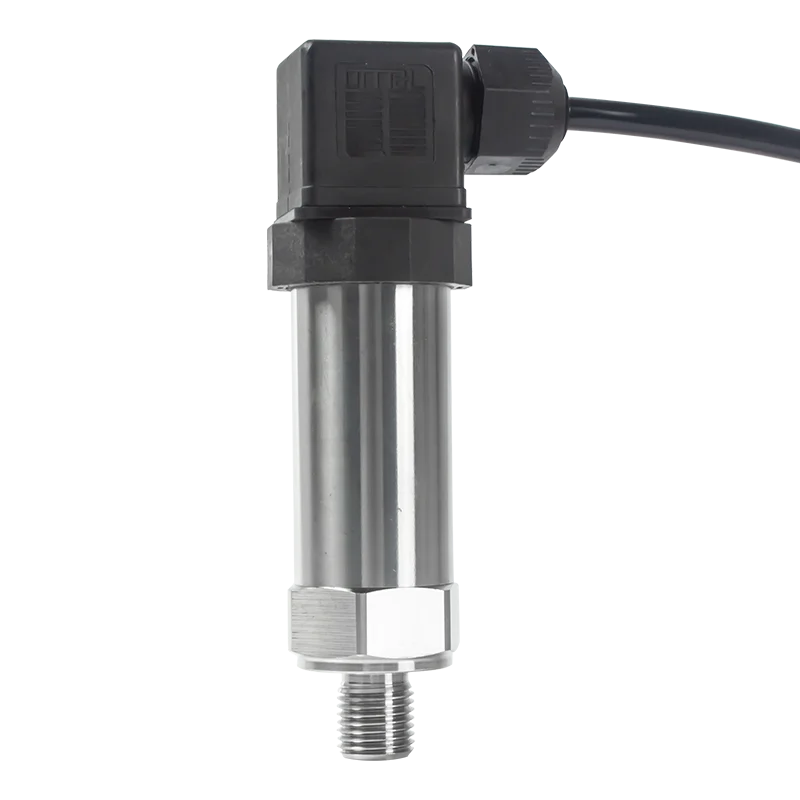

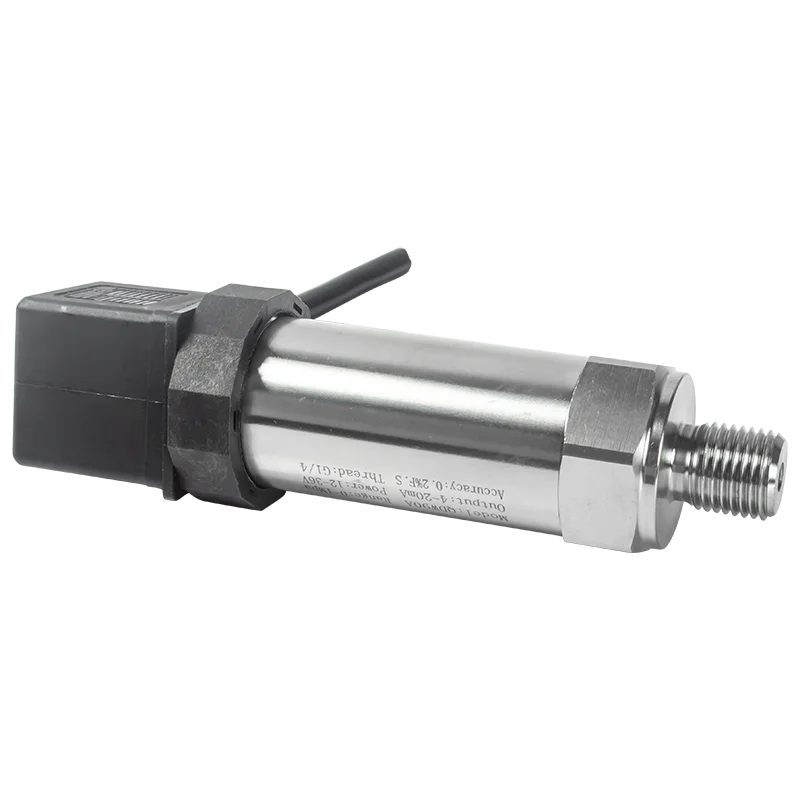

G1/4' 4-20mA 0-10V Pressure Sensor 1.6Mpa 10Bar 24V Supply 0.2Bar 60 Bar 50 Bar 100Bar OIL Water Gas Pressure Transmitter
0-5V output 24V / 0-200bar
$138.29
Sale price
$138.29
Regular price
$0.00
Skip to product information
G1/4' 4-20mA 0-10V Pressure Sensor 1.6Mpa 10Bar 24V Supply 0.2Bar 60 Bar 50 Bar 100Bar OIL Water Gas Pressure Transmitter
$138.29
Sale price
$138.29
Regular price
$0.00
Description
SPECIFICATIONS
Accuracy: 0.2%FS,0.5% FS
Battery Included: no
Brand Name: NONE
Certification: CE,FCC,RoHS
High-concerned chemical: none
Max Measuring Range: 400 Bar & Above
Measuring range: -0.1-0-60Mpa
Model Number: QDX50A
Origin: Mainland China
Output signal: 4~20mA 1-5V 0-10V 0.5-4.5V RS485
Power supply: DC12-36V (DC24V),DC5V
Pressure connection: M20 X 1.5,G1/4,G1/2 customized
Pressure type: Gauge pressure, Absolute pressure
Response time: < 3ms
Semi-finishedproduct: No
NOTES:
We can make -1bar~0~1000bar.If you need other special parameters,please contact me sales009@qd-zdk.com
Our Default:
Output Signal: 0~10V ,4-20mA,0-5V ,rs485 power supply is DC24V (other output pls contact us )
Output Signal: 0.5~4.5V ,0-3.3v, power supply is DC5V
Connection: Thread G1/4'' (if you need M20*1.5,G1/2,G3/8,NPT1/4" thread size, pls leave us a messagr or note it on your order)
Descriptions

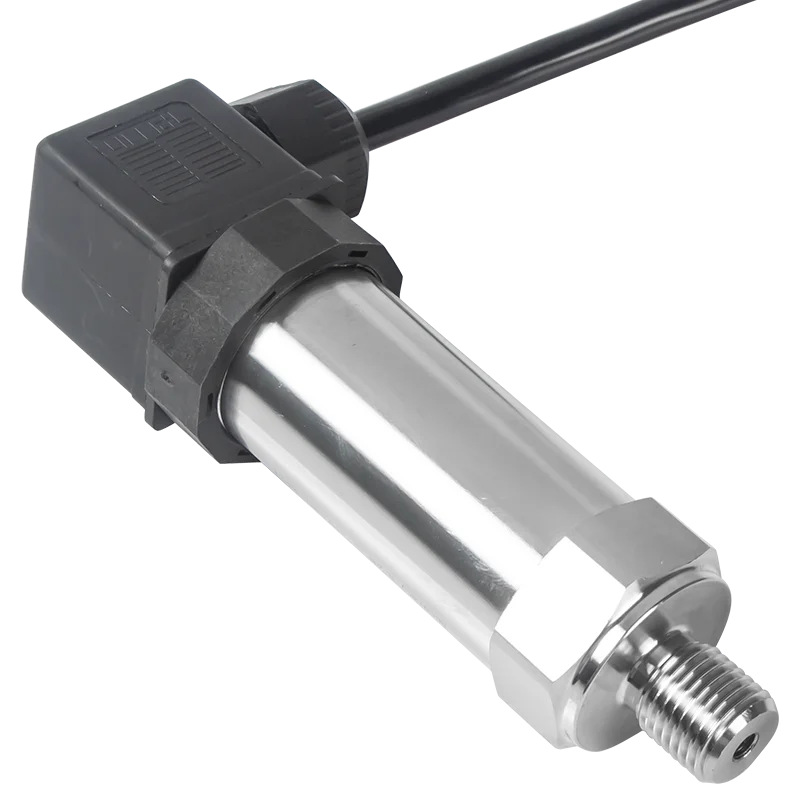

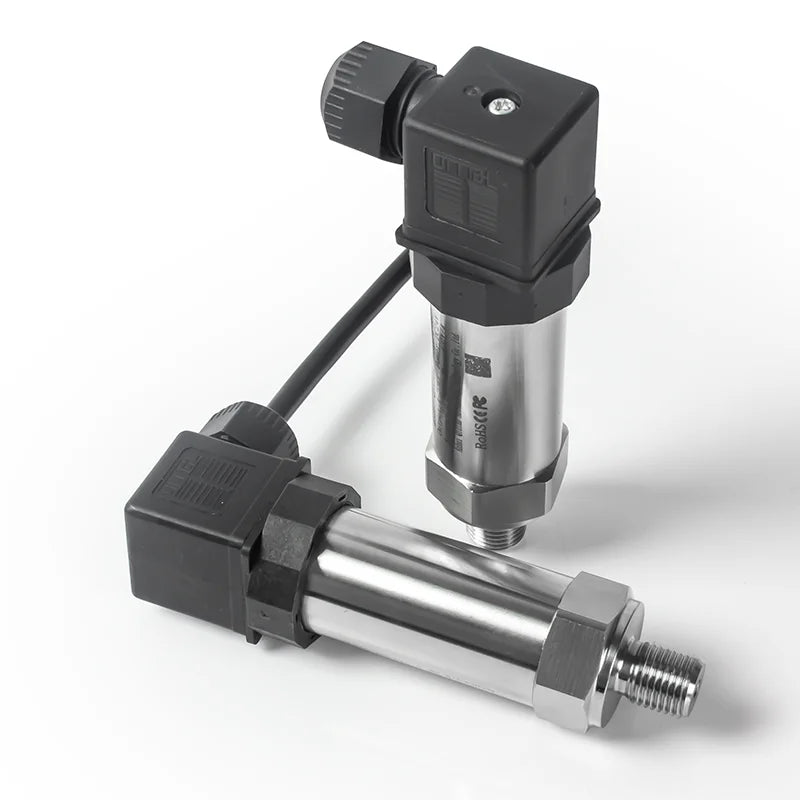

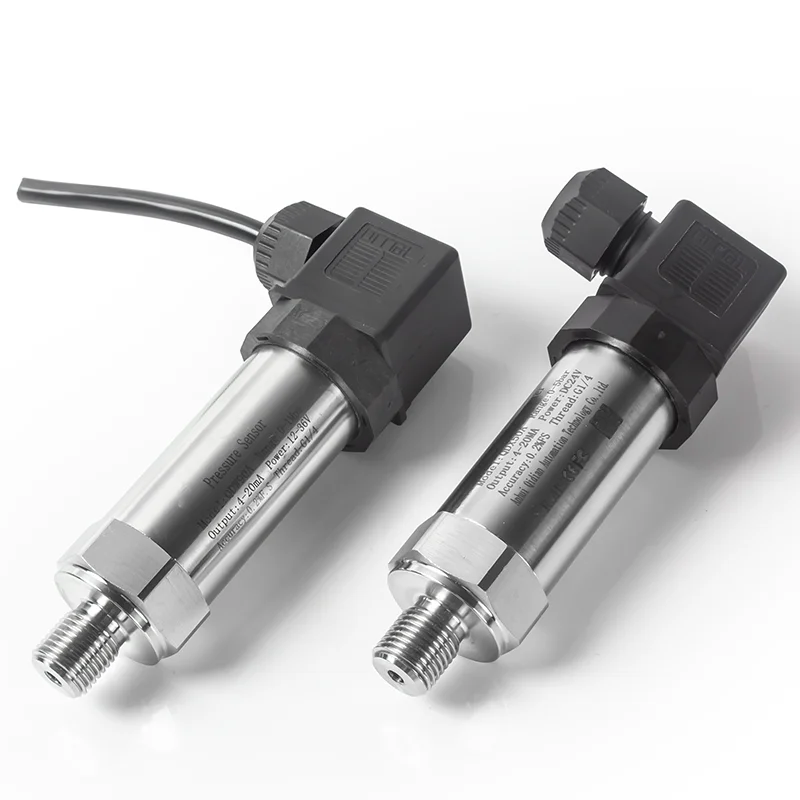

<1>. QDX50A pressure sensor has been specially designed to cover the majority of industrial applications which need high accuracy measurement.

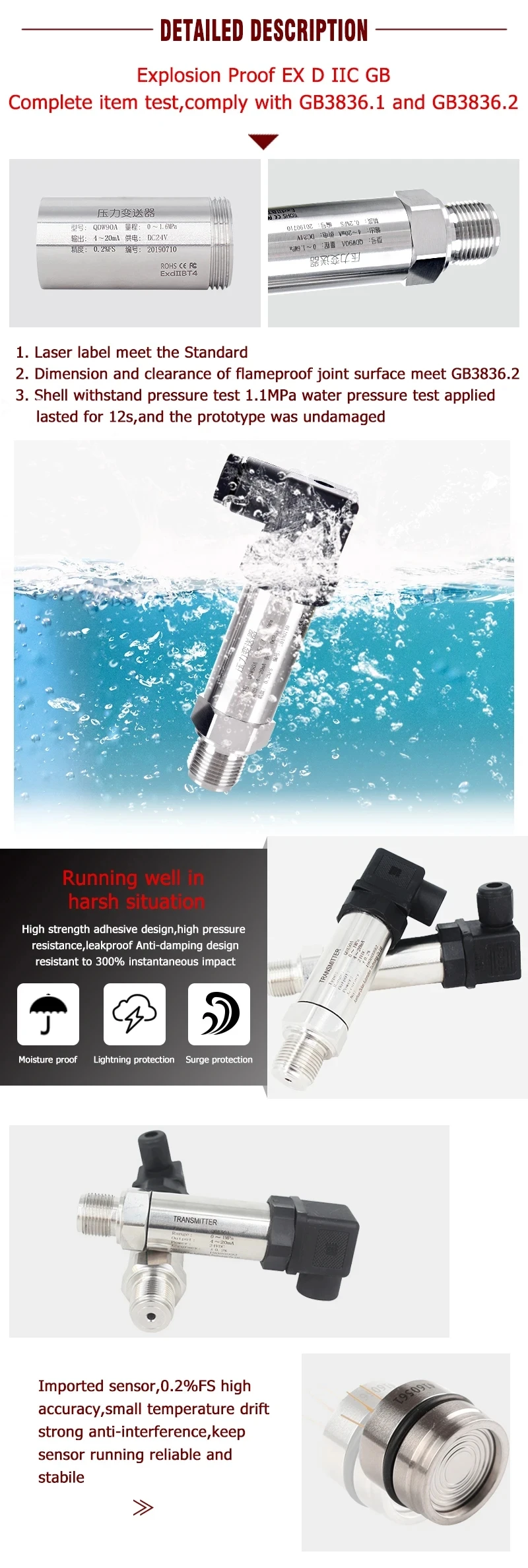

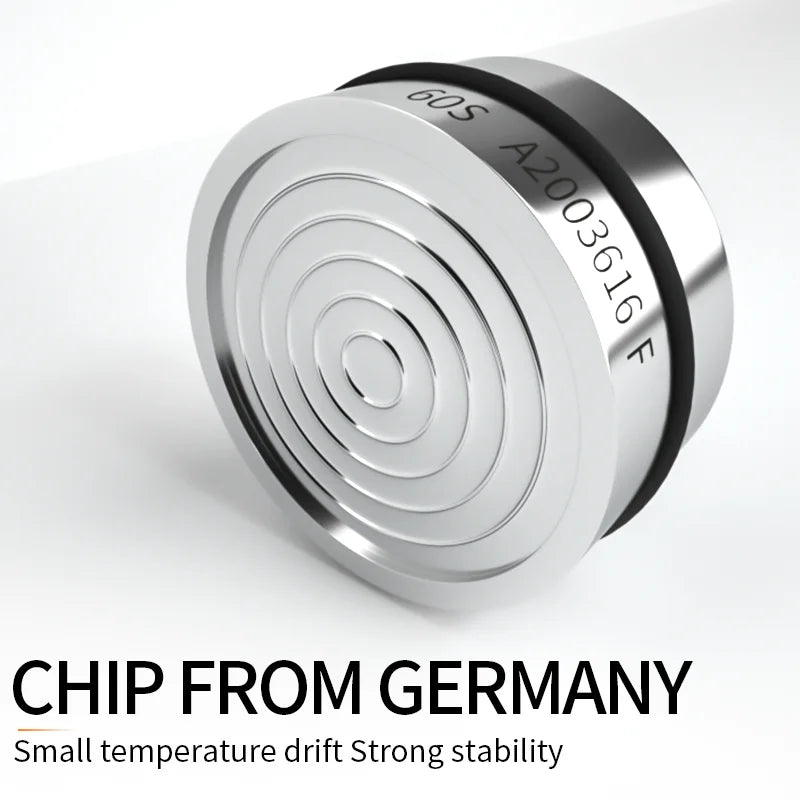

<2>. QDX50A pressure sensoris made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to adjust zero and full range conveniently. Thispressure transducerhas been approved with CE,FCC,ROHS,ISO certificates and explosion-proof certificates.
<3>. QDX50A pressure transmitteris suitable for all applications in process control, laboratory and materials testing equipments.
<4>.Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.
Parameters
Measuring range: -1～1000Bar /100Mpa can be customized
Accuracy: 0.2%FS,0.5%FS
Output signal: 4-20mA (2 wires),0-10V (3 wires),RS485 (4 wires) ,others can be customized
Supply voltage: DC24V,DC5V
Compensation temperature: -20～80℃
Pressure medium: Non-corrosive liquid or gas
Electrical connection: Hirschman
Housing material: 304 Stainless Steel
Protection class: IP65
Model |
QDX50A |
Measuring range |
0~100MPa; -1~0~1 Bar.....1000 Bar |
Pressure type |
Gauge pressure, Absolute pressure |
Overload |
150%F.S. |
Output signal |
4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V,RS485 |
Power supply |
12~36VDC (Default: DC24V),DC5V (0.5-4.5V) |
Response time |
<3ms |
Accuracy |
0.2%FS; 0.5%FS(Default) |
Long-term stability |
±0.1%F.S/year; ±0.2%F.S/year |
Load resistance |
RL=(U-12V)/0.02A (4~20mA current output) U—loop voltage(V) |
Operating temperature |
-30~80℃ |
Sorage temperature |
-40~120℃ |
Zero Tempe Drift |
0.2%FS/10℃ |
Pressure connection |
M20×1.5,G1/2,G1/4,1/2NPT etc |
Material |
Stainless steel shell; internal sensor 316L |
Protection grade |
IP65 |

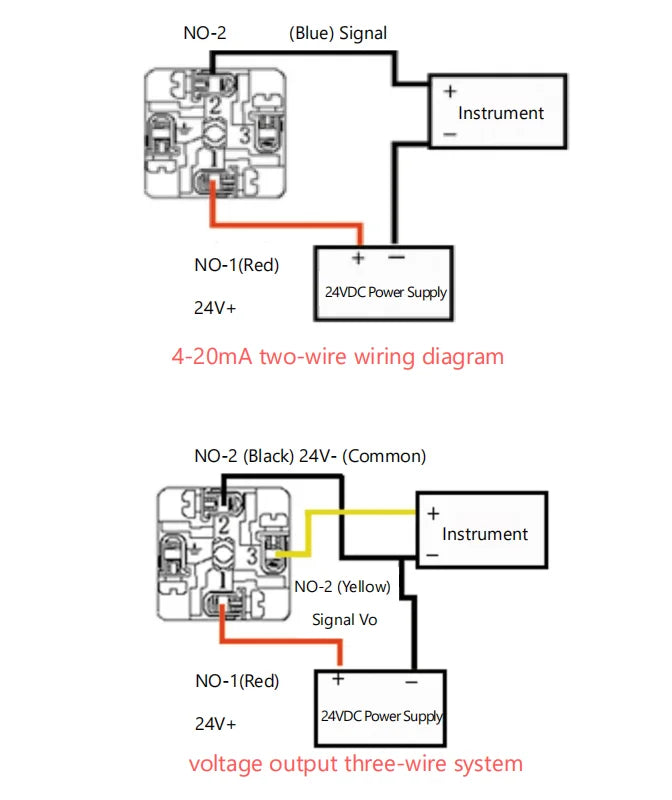

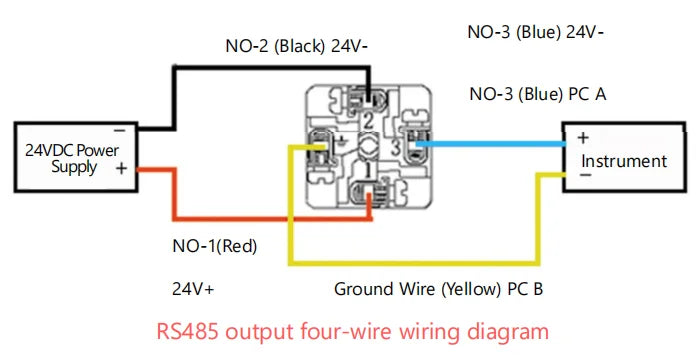

Wiring diagram
