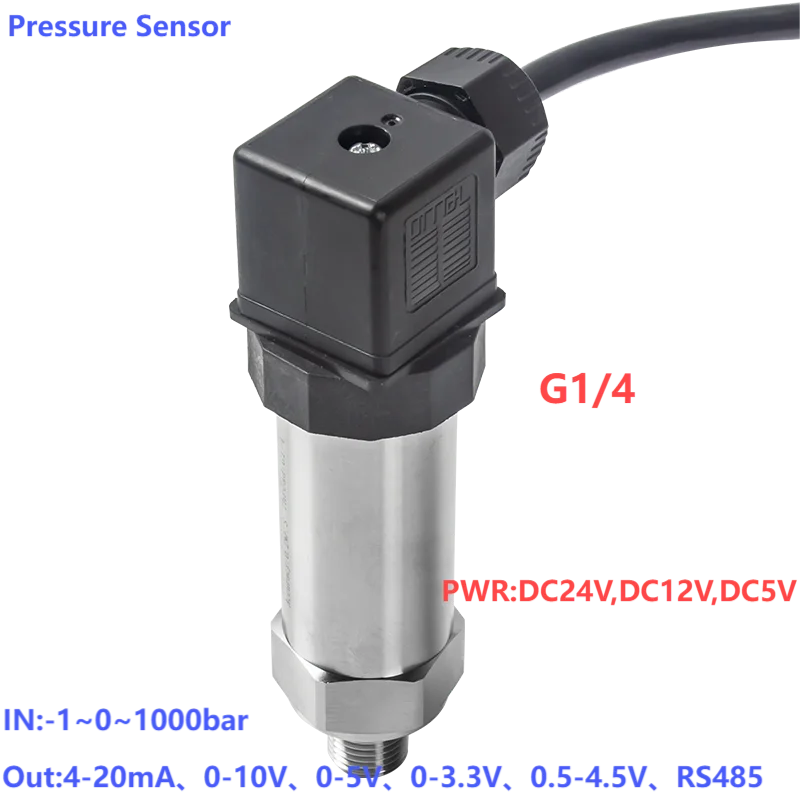

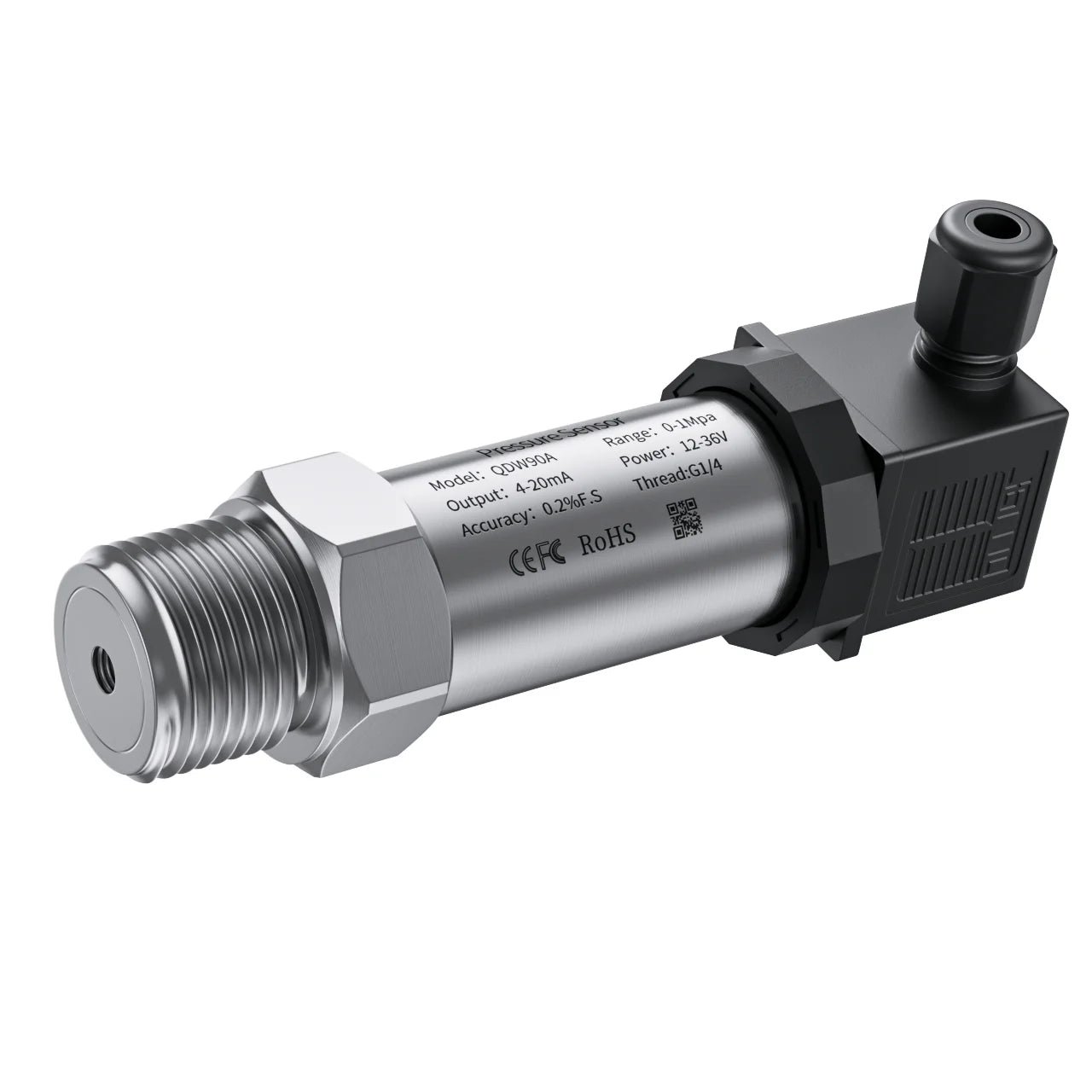

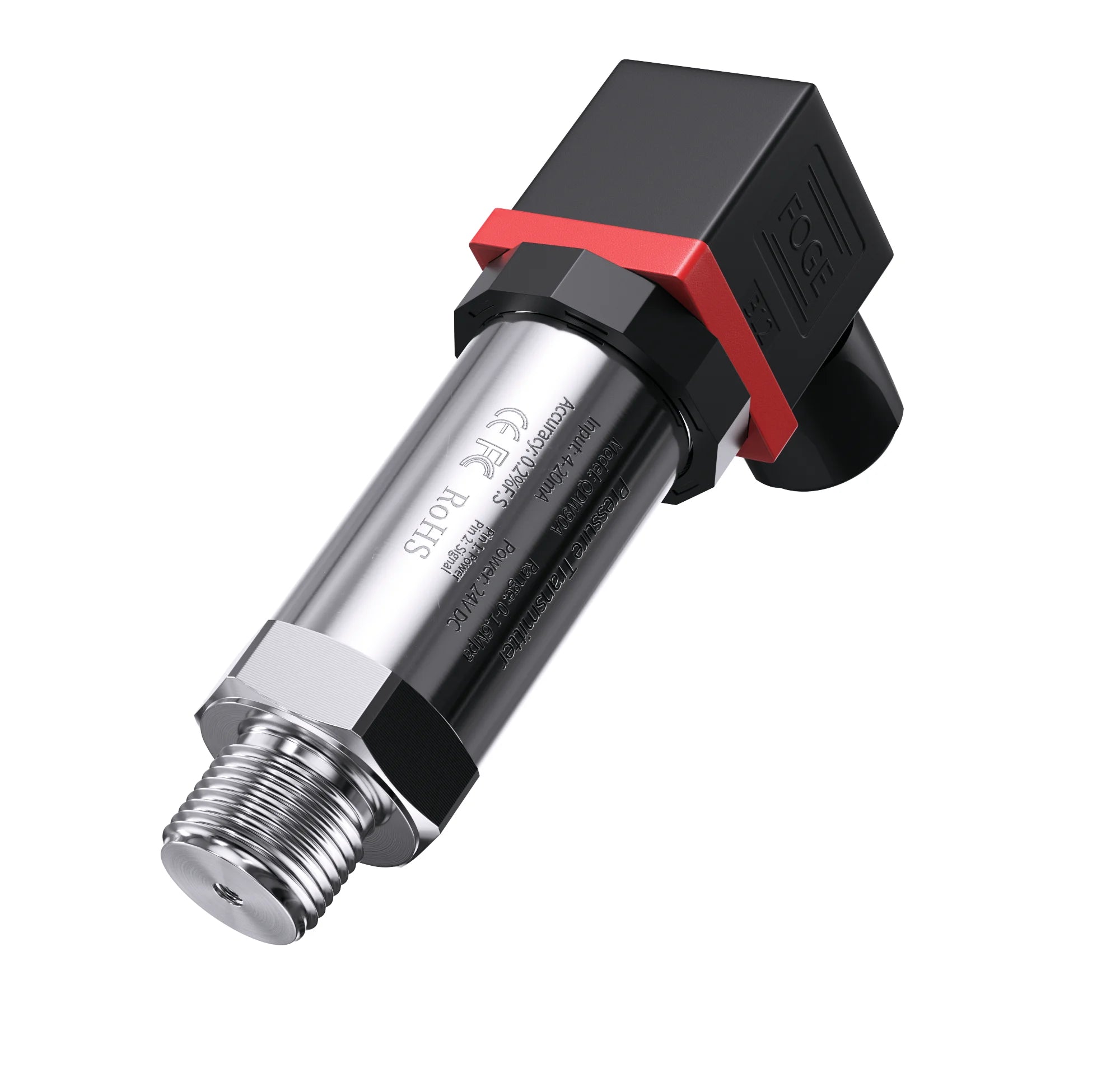

G1/4 Pressure Sensor Transmitter 0-0.1bar 0.3bar 5bar 10bar 100bar Pressure Sensor 4-20mA 0-3.3V 0-10V Pressure Transducer

RS485 dc24v / 0-50bar

$267.17

Sale price $267.17 Regular price $0.00

Skip to product information

G1/4 Pressure Sensor Transmitter 0-0.1bar 0.3bar 5bar 10bar 100bar Pressure Sensor 4-20mA 0-3.3V 0-10V Pressure Transducer

G1/4 Pressure Sensor Transmitter 0-0.1bar 0.3bar 5bar 10bar 100bar Pressure Sensor 4-20mA 0-3.3V 0-10V Pressure Transducer

$267.17

Sale price $267.17 Regular price $0.00

Color RS485 dc24v 0.5-4.5V dc5v 0-3.3V dc5v 0-5V dc24v 4-20mA dc24v 0-10V dc24v

Measuring Range 0-50bar 0-100bar 0-150bar 0-200bar 0-10bar 0-16bar 0-20bar 0-30bar 0-300bar 0-500bar 0-600bar 0-400bar -50mbar-50mbar 0-0.1bar 0-0.2bar 0-0.3bar 0-0.5bar -1bar-0 -1bar-1bar 0-5bar

Description

SPECIFICATIONS

Accuracy: 0.5%FS,0.2%FS

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE

Choice: yes

Feature 1: 0-5bar to 0.5-4.5V Hersman Pressure Transmitter

Feature 10: 0-300bar to 4-20mA Pressure Sensor Transmitter

Feature 2: -50-50mbar to 4-20mA Hersman Pressure Transmitter DC24V

Feature 3: 0-10bar to 4-20mA Pressure Sensor DC5V

Feature 4: 0-0.3bar to 4-20mA Pressure Sensor factory sale

Feature 5: -1-1bar to 0-3.3V Pressure Sensor for Air

Feature 6: 0-30bar to 4-20mA Pressure Sensor factory sale

Feature 7: 0-400bar to 0-10V Pressure Sensor factory sale

Feature 8: 0-200bar to RS485 Pressure Sensor Transmitter

Feature 9: 0-16bar to 4-20mA Pressure Transmitter Sensor

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above

Measuring Range: -1bar~0~1000bar

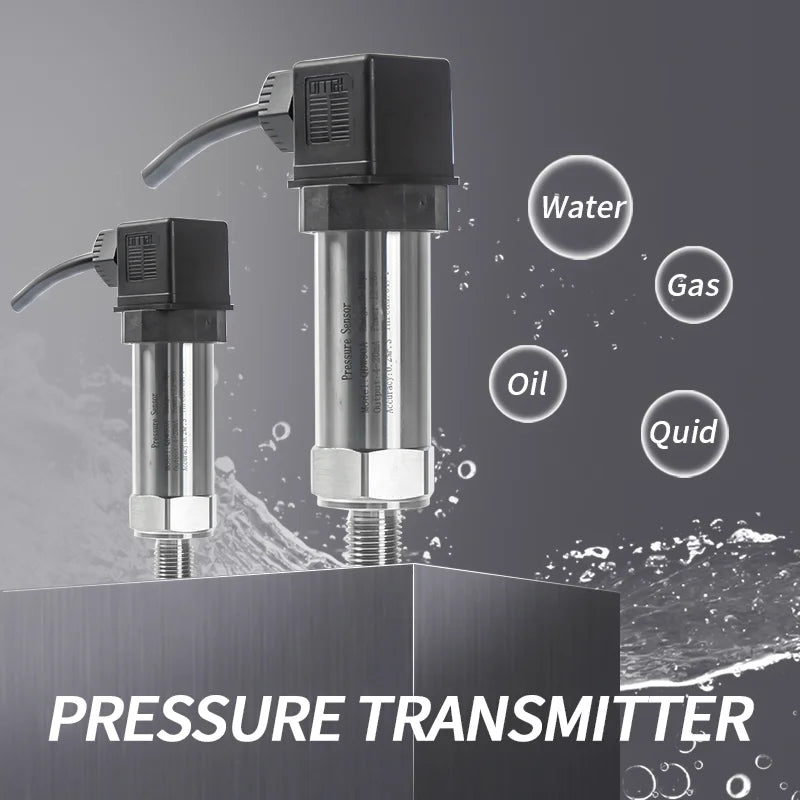

Medium: Oil, Gas, Water, Air

Model Number: QDW90A Hersman Pressure Transmitter

Origin: Mainland China

Output Signal: 4-20mA, 0-10V, 0-5V, 0-3.3V,0.5-4.5V,RS485

Power Supply: DC24V, DC12V, DC5V,

Product Name: Hersman Pressure Sensor

Semi-finishedproduct: No

Shell Protection: IP65

Thread Size: M20*1.5, G1/2, G1/4,NPT1/2,NPT1/4customization

semi_Choice: yes

For bulk orders, OEM/ODM customization, or technical support, please send us a message via AliExpress Chat.

Our sales team will reply to you within 24 hours with detailed quotations and support.

Thank you for your inquiry!

Notes:

Default Power Supply:DC24V .

Output Signal: 0.5~4.5V ,0-4.5V,0-3.3V, power supply is DC5V

Default Connection: G1/4 (other sizes M20*1.5,M14*1.5,G1/2,NPT1/8,NPT1/4,NPT1/2,can be customized)

Pressure Range we can make :-0.1bar~0~1000bar. (-0.1Mpa-0-100Mpa)

If you need other special parameters,please contact me.

Our packages will include a QR code for the product manual. If you cannot obtain the manual/RS485 protocol by the code, please contact me and I will send the manual to you directly.

Introduction:
<1>. This series precision pressure transducer has been specially designed to cover the majority of industrial applications which need high accuracy measurement.

<2>.The pressure transducer are made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to adjust zero and full range conveniently.

<3>.This pressure transmitter is suitable for all applications in process control, laboratory and materials testing equipments.

<4>.Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

Features:
◆ CE conformity
◆ Low cost and high quality

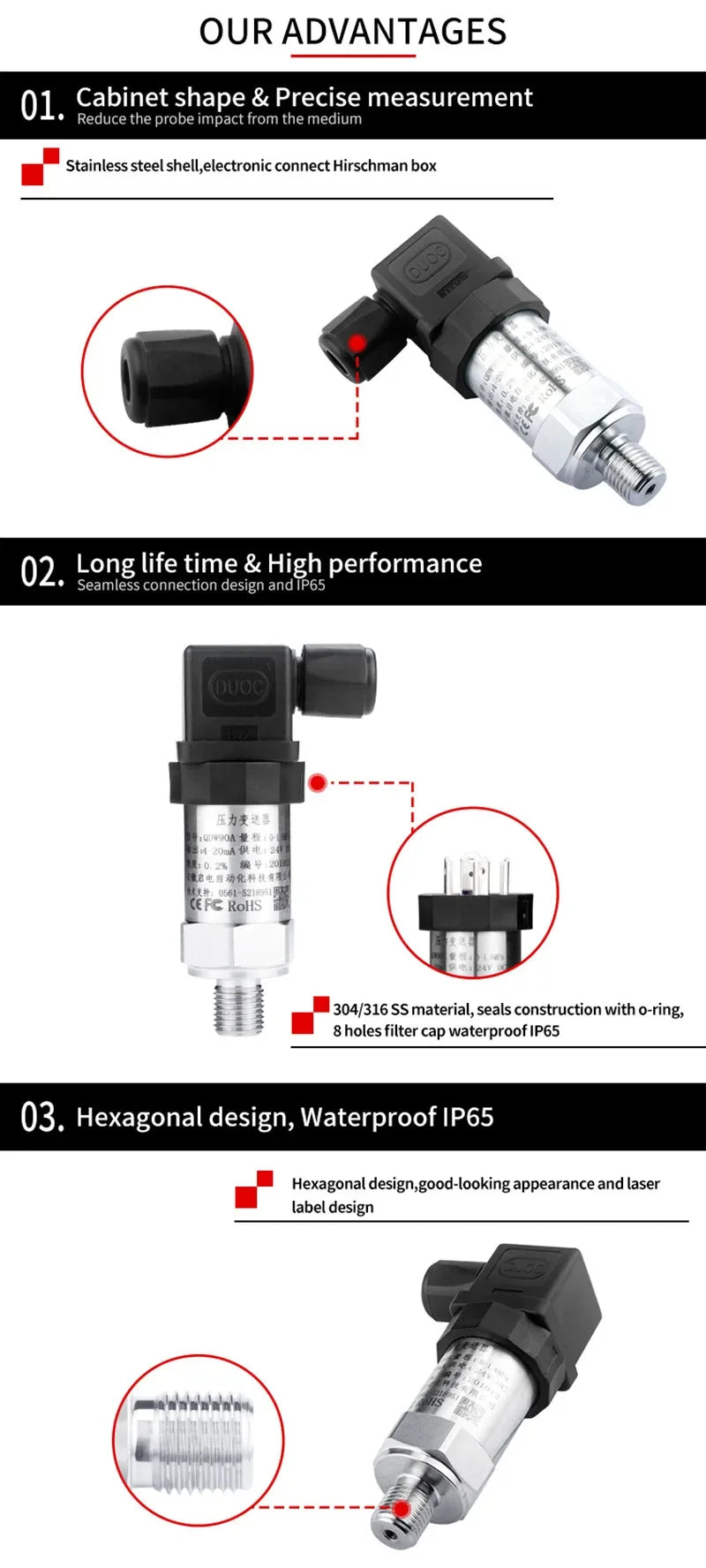

◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ 4-20mA, 1-5V, 0-5V, 0-10V, various voltage output
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization

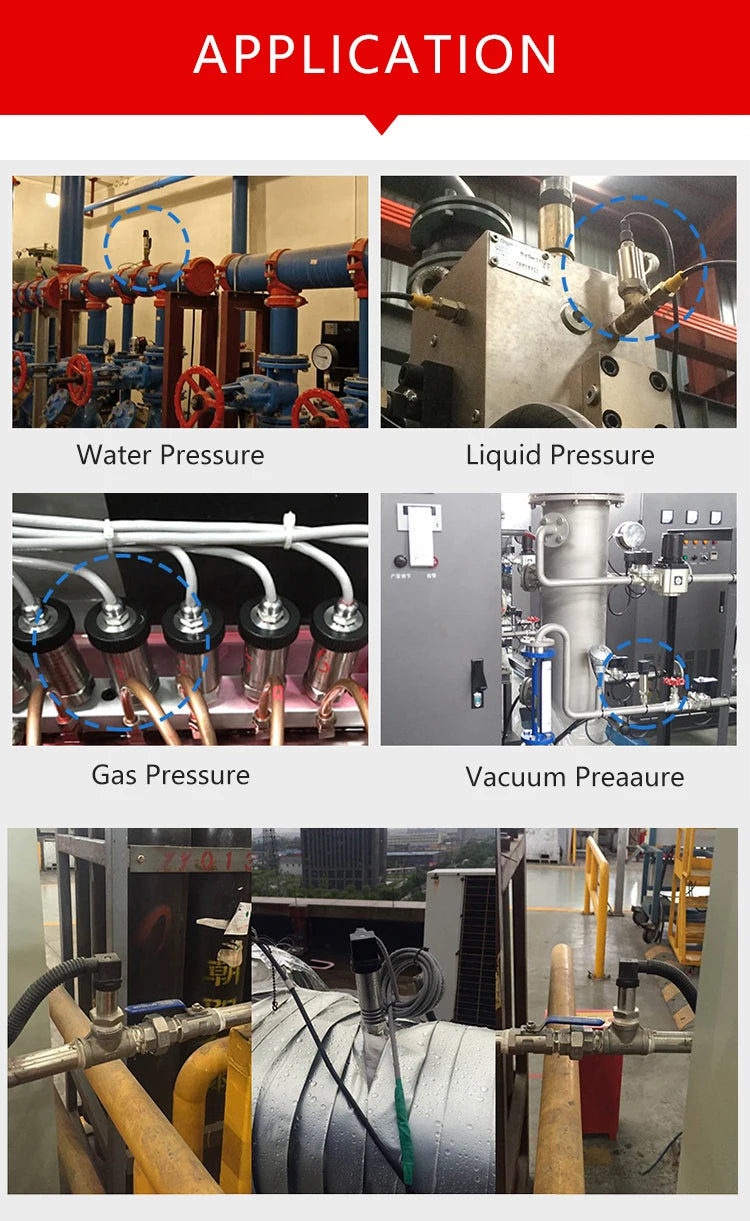

Application:
◆ Intelligent IoT constant pressure water supply
◆ Engineering machinery, industrial process control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration equipment
◆ Water pump, air compressor pressure monitoring

Technical parameters:

Model	QDX50A
Measuring range	0~100MPa; -1~0~1 Bar.....600 Bar
Pressure type	Gauge pressure, Absolute pressure
Overload	150%F.S.

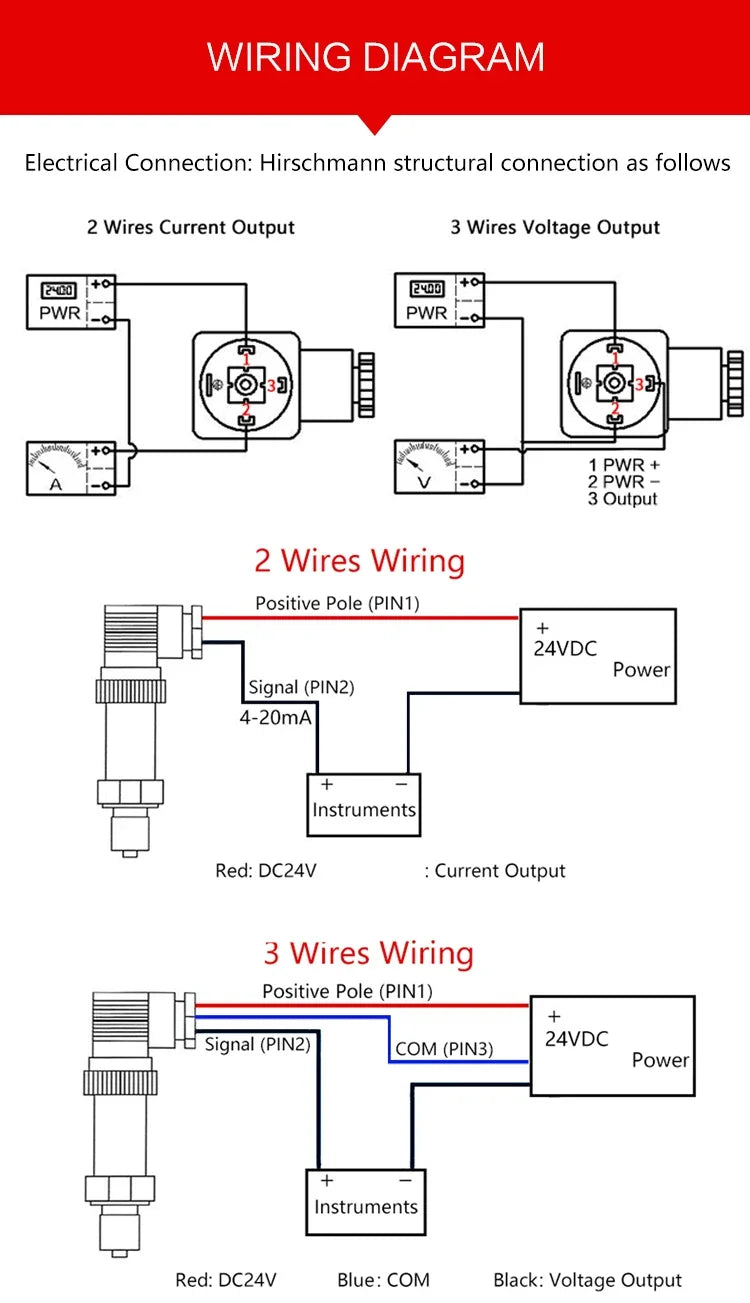

Output signal	4~20mA, 0~5V, 0~10V, 1~5V,RS485
Power supply	12~36VDC (Default: DC24V)
Response time	<3ms

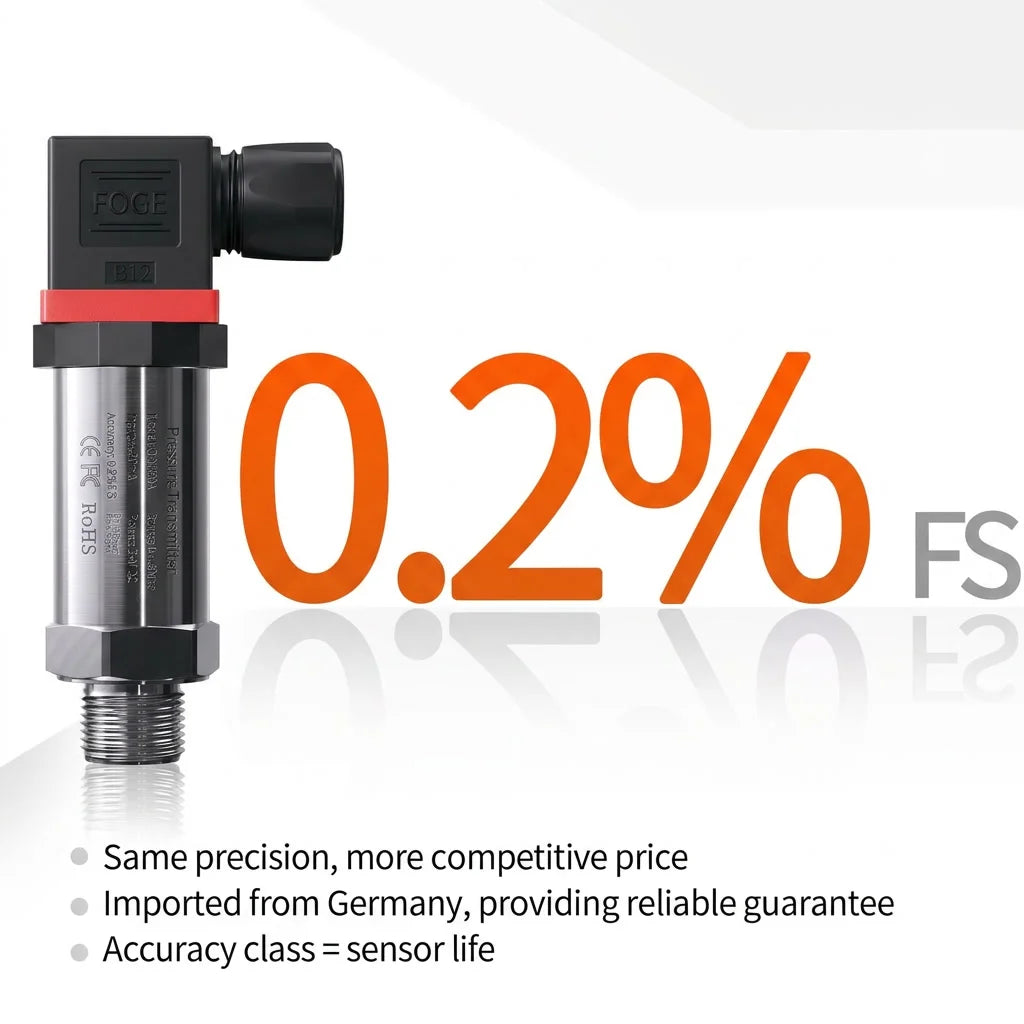

Accuracy	0.2%FS; 0.5%FS
Long-term stability	±0.1%F.S/year; ±0.2%F.S/year
Load resistance	RL=(U-12V)/0.02A (4~20mA current output) U—loop voltage(V)
Operating temperature	-30~80℃
Sorage temperature	-40~120℃
Zero Tempe Drift	0.2%FS/10℃

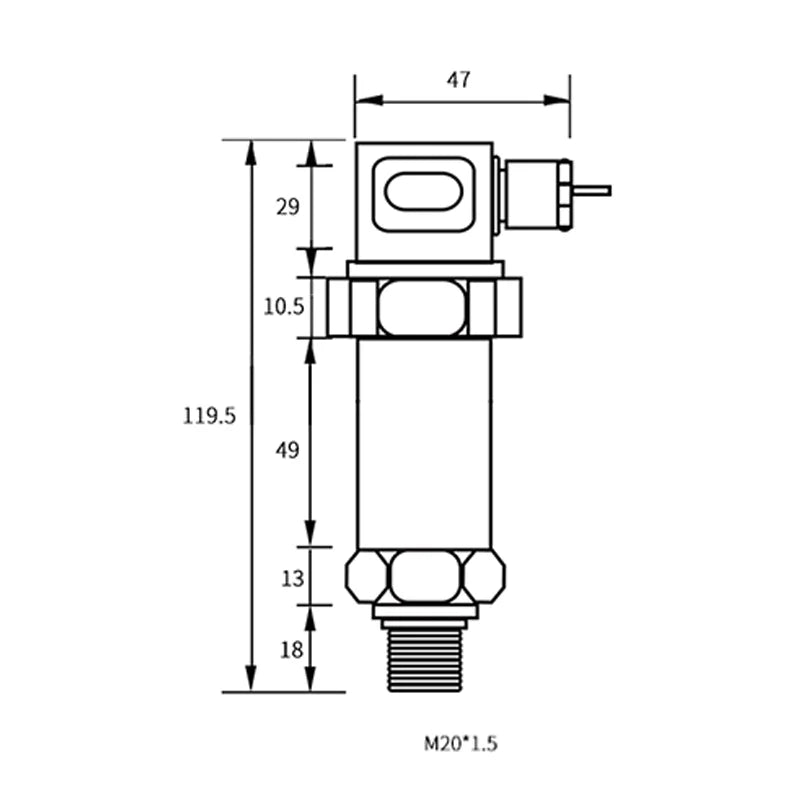

Pressure connection	G1/4 (Default),M20*1.5,G1/2,1/2NPT (Customized)
Material	304 Stainless steel shell; internal sensor chip 316L
Protection grade	IP65
