SPECIFICATIONS

G100/G120F USB High Speed Programmer for BIOS SPI FLASH 24/25/95 Chip 512MB/1GB Memory USB2.0 Writing Programmer

Description:
- High end 32-bit CPU, 72Hz speed core.
- The system integrates USB2.0 data transmission interface, ensuring fast programming.
- Supports a wide range of chips, including commonly used 25 SPI FLASH, 24 EEPROM, 25 EEPROM, 95 EEPROM, and 45 EEPROM (45 EEPROM chips need to be paired with dedicated base for programming).
- A fully functional upper computer programming software with a user-friendly Chinese operating interface.
- Support chip erase, write, and verify fully automatic programming.
- The chip automatically removes the protection function.
- Automatically identify SPI FLASH chip model.
- Automatic switching of programming voltage, supporting 3.3V 5V chip programming voltage
- Press the operation button to automatically detect the chip.
- A comprehensive hardware system and firmware protocol, with dual upgrades for software and firmware.
- Supports for Windows 2000, XP, Vista, Win7, Win8, Win10, and Win11 operating systems, with no installation of drivers for Win8, Win10, and Win11. Note: for XP and Win7 systems require manual installation of drivers.
- Support data modification.
- Support batch programming mode, batch is more worry free (Click the batch button, program one, put another on and program immediately without clicking the programming button halfway).
- The upper and lower card slots can be placed freely, and the chip placement position can be automatically recognized.
- Supports Simplified Chinese, Traditional Chinese, and English interfaces.
- The only independent serial number in the world.
- Massive chip support.
- Support one to two, burning two pieces at once.
- Free driver version, free installation driver for Win8, Win10, and Win11. Note: for XP and Win7 systems require manual installation of
drivers.
- Support data modification.
- Infinite uninterrupted cyclic batch programming.

Specification:
- Model: G100
- CPU: RISC-V core 32-bit CPU
- Supported chip: support 24/25/95 series chip
- 1.8V chip direct programming: some of them support (need external 1.8V adapter base)
- CAP file: support
- Hardware acceleration: without
- Language: Simplified Chinese, Traditional Chinese, and English
- Programming speed regulation: without
- Driving mode: MSC drive-free
- Driving characteristics: poor compatibility for Win10 system
- Programming speed: W25Q80 erasing/writing/validation about 11s
- Firmware update: stopped
- Software update: stopped
- Batch programming: circular batch programming of up and down programming positions
- Supported chip maximum capacity: 512MB

Package Included:
Specification:

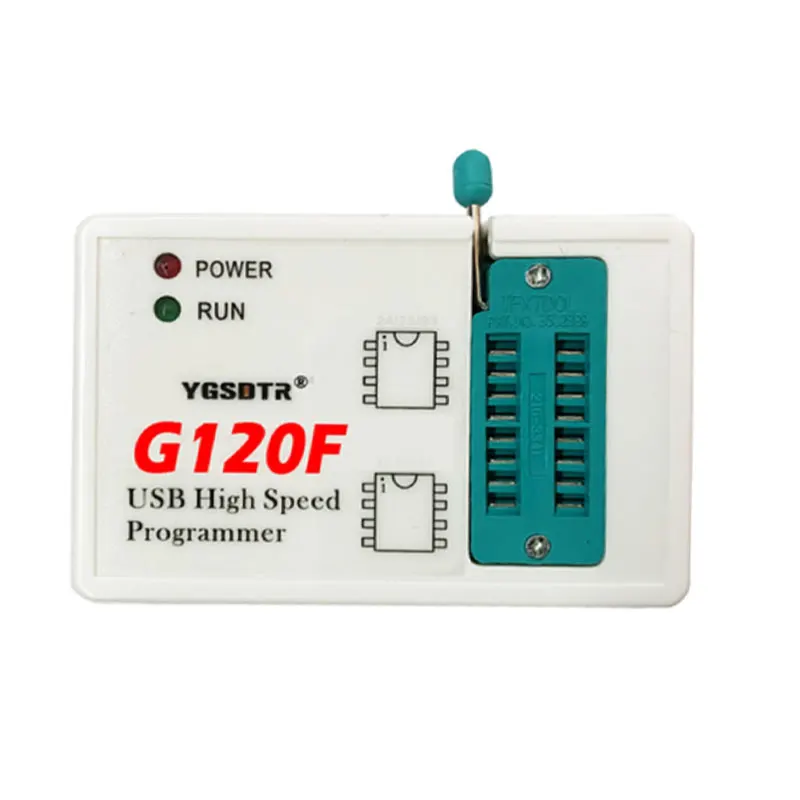

- Model: G120F
- CPU: ARM core 32-bit CPU
- Supported chip: support 24/25/95/45 series chip
- 1.8V chip direct programming: support (need external 1.8V adapter base)
- CAP file: support
- Hardware acceleration: support
- Language: Simplified Chinese, Traditional Chinese, and English
- Programming speed regulation: adjustable
- Driving mode: Winusb drive-free
- Driving characteristics: drive-free for WIN8/10/WIN11
- Programming speed: W25Q80 erasing/writing/validation about 7s
- Firmware update: support
- Software update: continuous updating
- Batch programming: circular batch programming of up and down programming positions
- Supported chip maximum capacity: 1GB

Package Included:
- 1 x Programmer

Note:
- Driving software need to be installed for driver version (G100); The drive-free version (G120F) does not require installation of driving software and is fully supported by the entire computer system. It is plug and play. It is strongly recommended to choose the drive-free version.
