SPECIFICATIONS

Product Summary

Along with the NDIR measurement technology for detecting CO2 comes a best-

in-class Sensirion humidity and temperature sensor integrated on the very same

sensor module. Ambient humidity and temperature can be measured by

algorithm expertise through modelling and compensating of external heat

sources without the need of any additional components. The very small module

height allows easy integration into different applications.

Carbon Dioxide is a key indicator for indoor air quality. Thanks to new energy

standards and better insulation,
houses have become increasingly energy-

efficient, but the air quality can  deteriorate rapidly.   Active ventilation is needed

to maintain a comfortable and  healthy indoor environment and improve the

well-being and productivity of the  inhabitants.   sensor solutions offer an

accurate and stable monitoring of CO2 in  the air, as well as temperature and

humidity.  This enables our customers to  develop new solutions that increase

energy efficiency and simultaneously support  the well-being of everyone

Product category: Multifunctional sensor module

Product: Sensor Modules

Type: CO2, Humidity, and Temperature Sensor

Interface type: I2C, UART

Working power supply voltage: 3.3V to 5.5V

Maximum operating temperature: + 50 C

Dimensions: 35 mm x 23 mm x 7 mm

Minimum operating temperature: 0 C

Working power supply current: 19 mA

Package: Tray

Product type: Multiple Function Sensor Modules

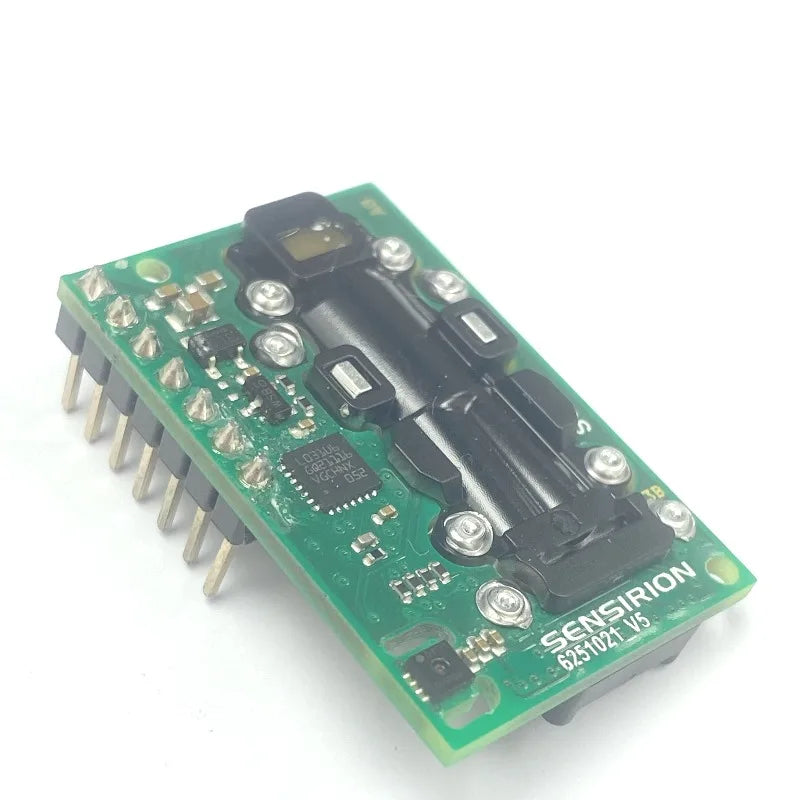

Product picture
