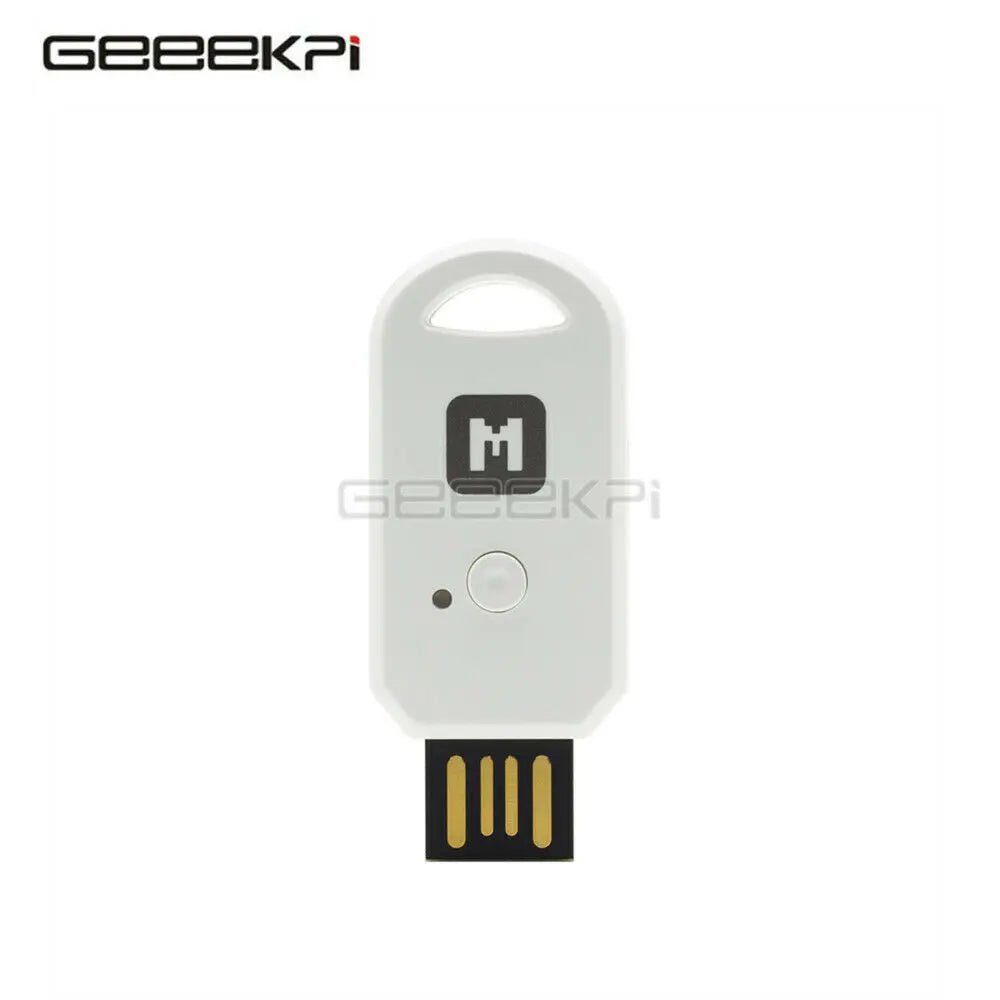

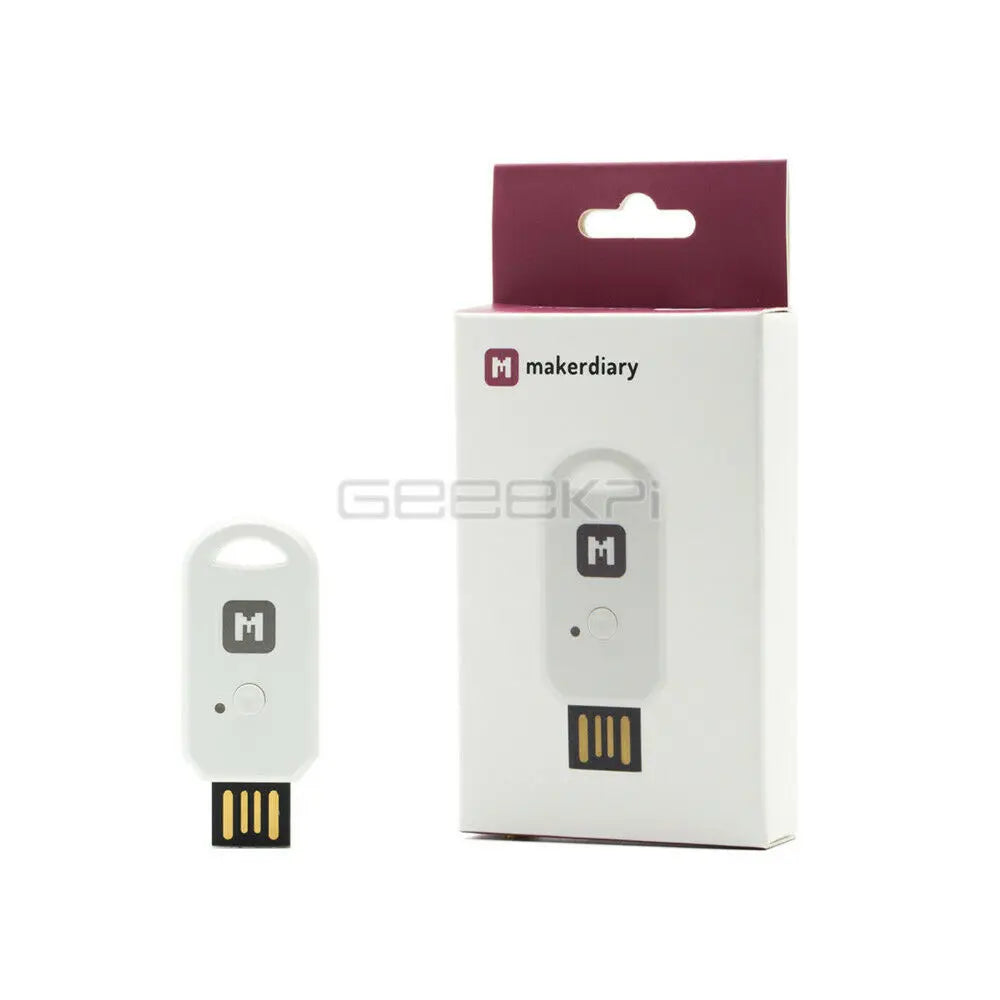

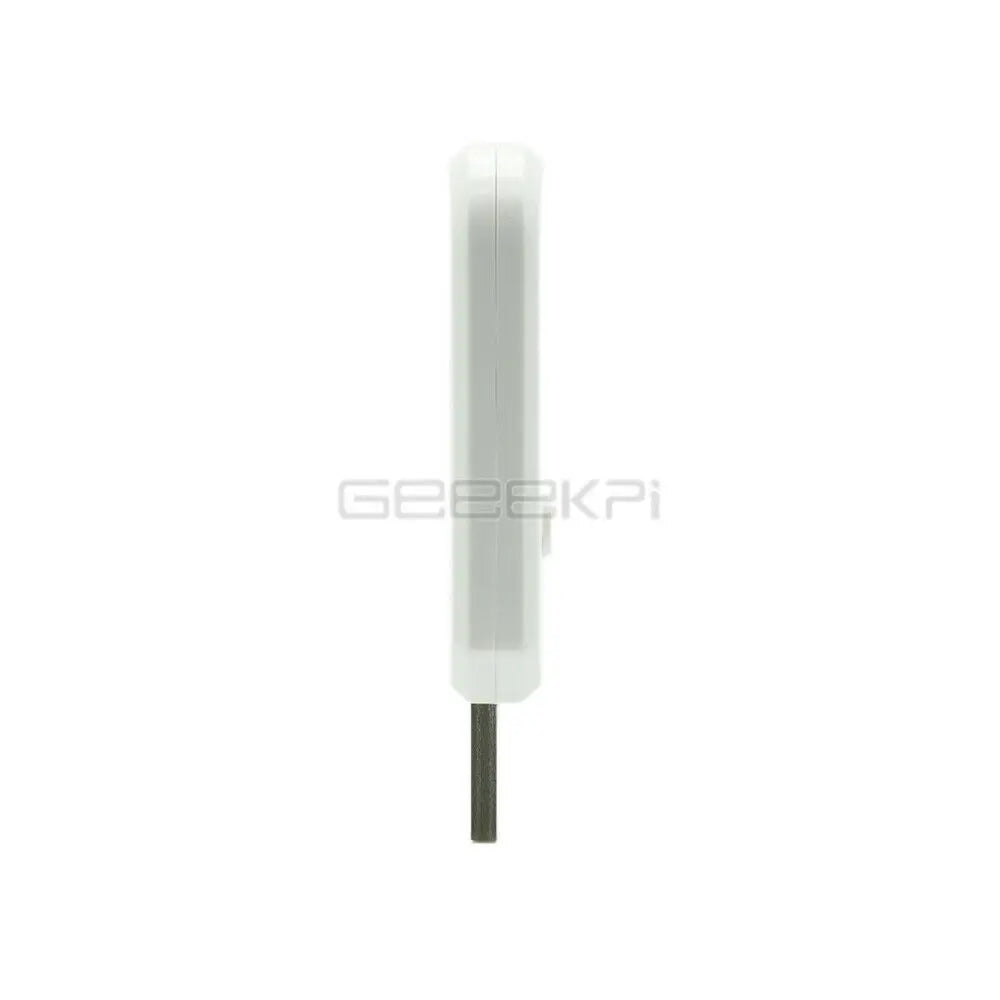

GeeekPi New! nRF52840 Micro Dev Kit USB Dongle with Case

GeeekPi New! nRF52840 Micro Dev Kit USB Dongle with Case

$132.92

$132.92 $0.00

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: geeekpi

Compatible With: Micro Dev Kit USB Dongle

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

nRF52840 Micro Dev Kit USB Dongle

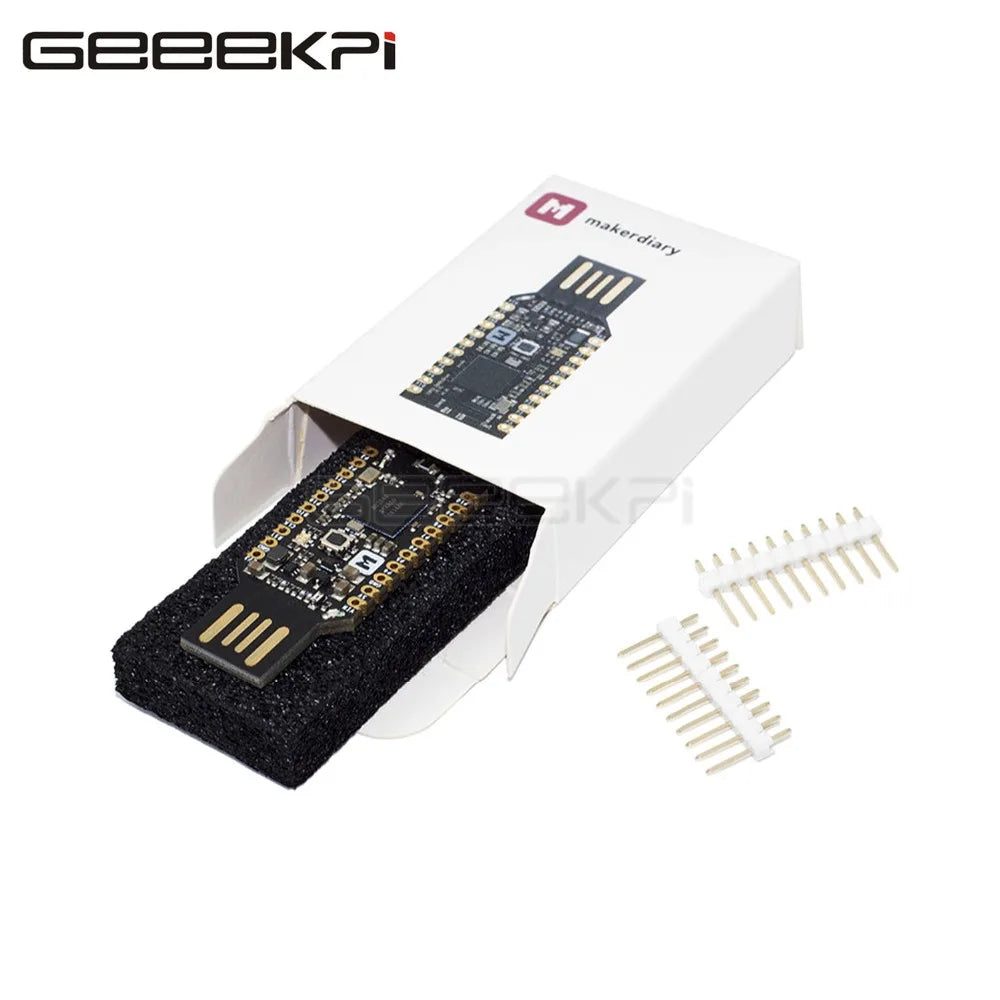

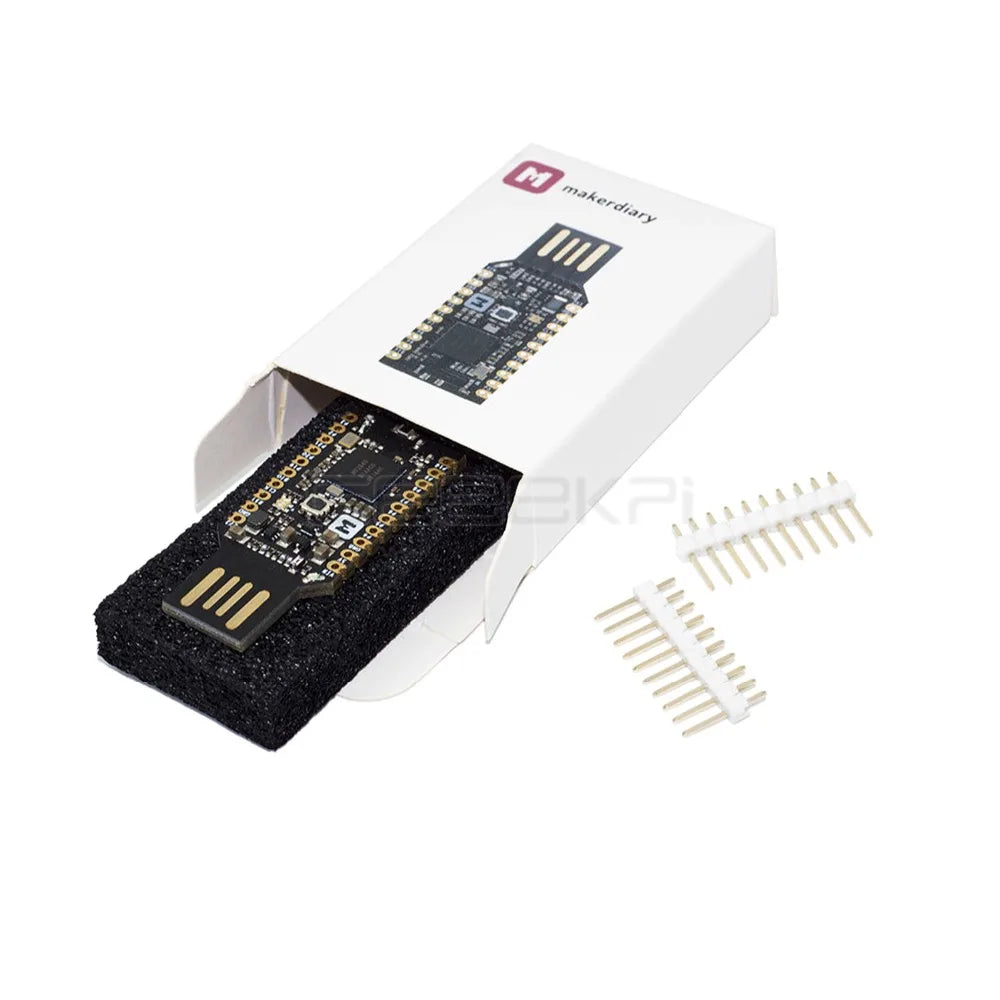

Package Includes:

1x nRF52840 Micro Dev Kit USB Dongle

Features:

Low cost USB dongle supporting Bluetooth LE, Thread, Zigbee, 802.15.4, ANT and 2.4GHz
Pre-built OpenThread NCP Firmware support
OpenThread Border Router support
Thread Network Sniffer with Wireshark

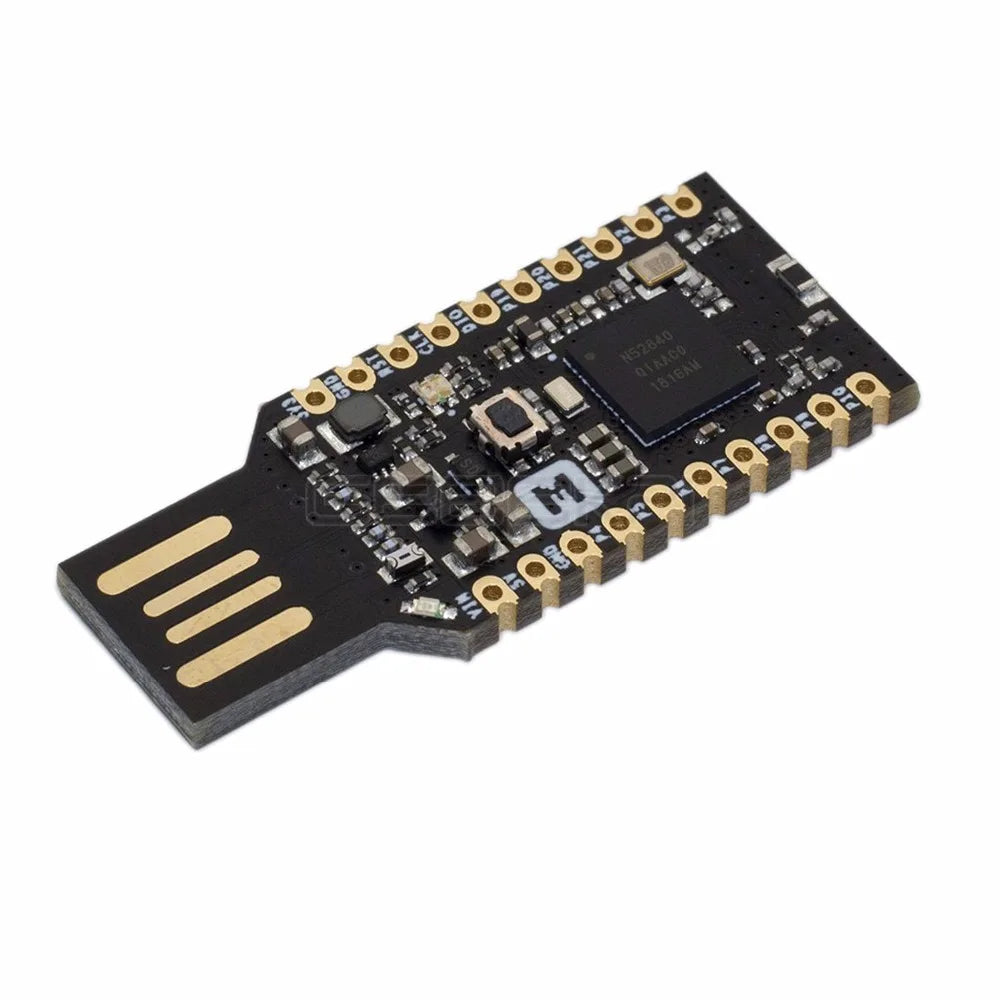

Hardware Specification

Nordic nRF52840 System-on-Chip

ARM Cortex-M4F processor optimized for ultra-low power operation
Combining Bluetooth 5, Bluetooth Mesh, Thread, IEEE 802.15.4, ANT and 2.4GHz proprietary
On-chip NFC-A tag
On-chip USB 2.0 (Full speed) controller
ARM TrustZone Cryptocell 310 security subsystem
1 MB FLASH and 256 kB RAM

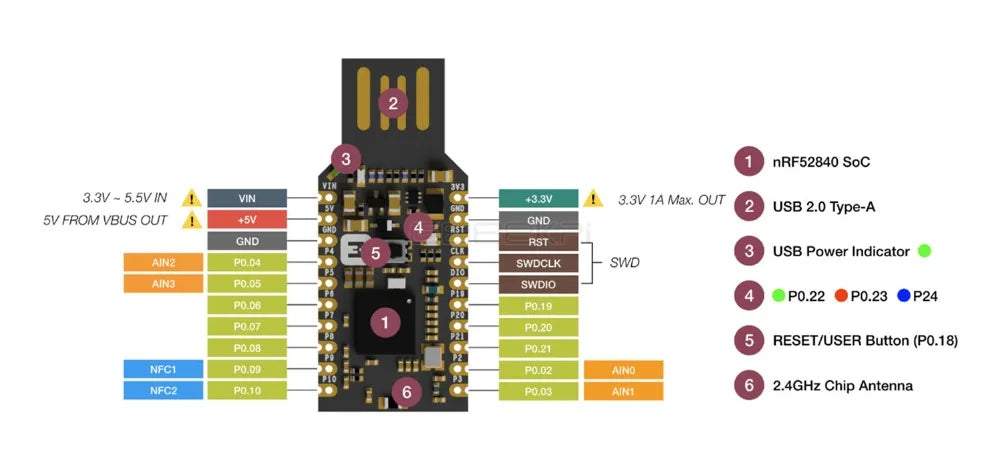

Up to 12 GPIOs available via headers
User programmable Button and RGB LED
On-board 2.4G chip antenna
3.3V regulator with 1A peak current output
VBUS & VIN Power-Path Management
Convenient USB dongle form factor

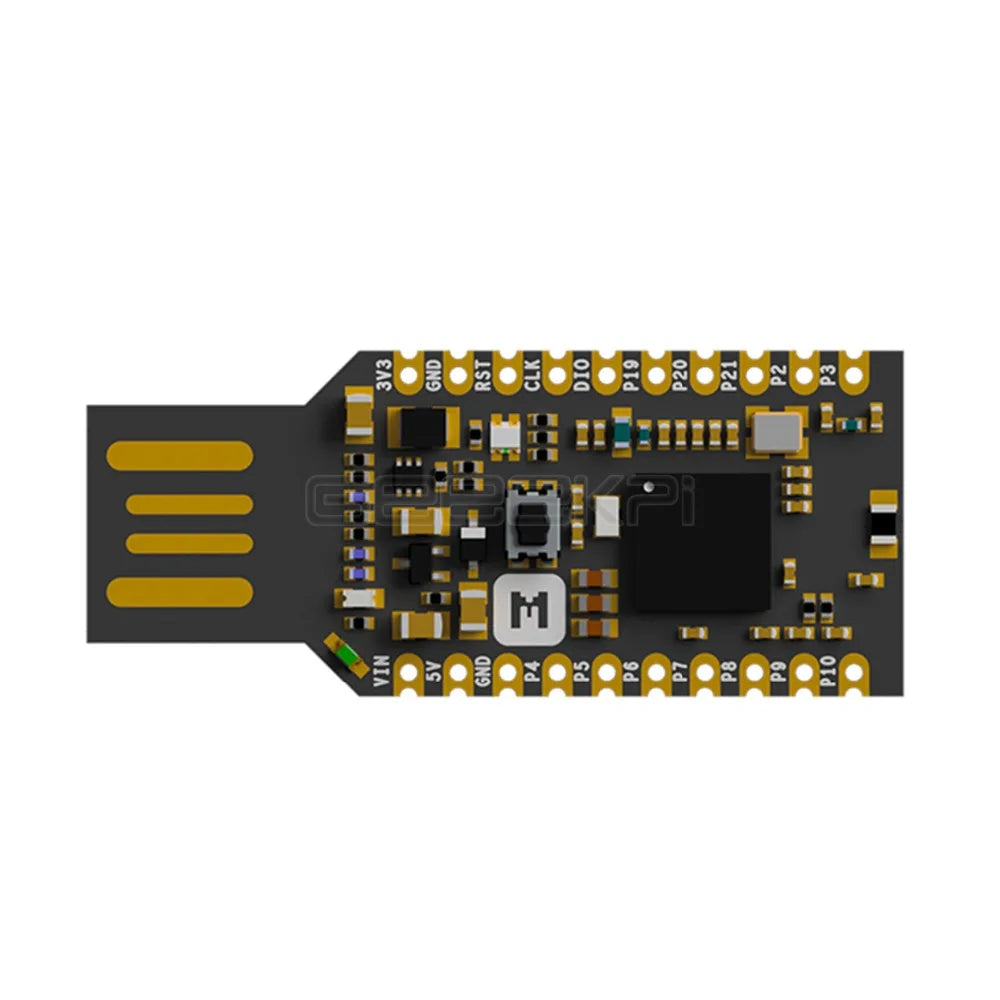

Breadboard-friendly with dual 10-Pin headers
Measures 1.65" x 0.7" x 0.16" (42mm x 18mm x 4mm) without headers soldered in
