SPECIFICATIONS

Accessory Type: Cases

Battery Included: no

Brand Name: geeekpi

Choice: yes

Compatible With: Raspberry Pi 4 Model B

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

Raspberry Pi 4B Metal Case Supports PoE Hat With 5V Cooling Fan

This is metal case for Raspberry Pi 4B SBC, it contains aluminum brick case and heatsinks, normal 5V fan, it is easy For beginners. The delicate aluminum shell and acrylic cover provide good protection and do not interfere with Wi-Fi signal. The aluminum alloy heat sink provides very good heat dissipation effect, and there is no noise when the fan is running, which is a super silent state. It is a great choice to start with Raspberry Pi 4B, and the installation of the shell is also very simple and easy to use, which can quickly complete the assembly and start the exploration journey.

NOTE:Raspberry Pi 4B does not include in the package, additional purchase required.

• Volume is more than other case.

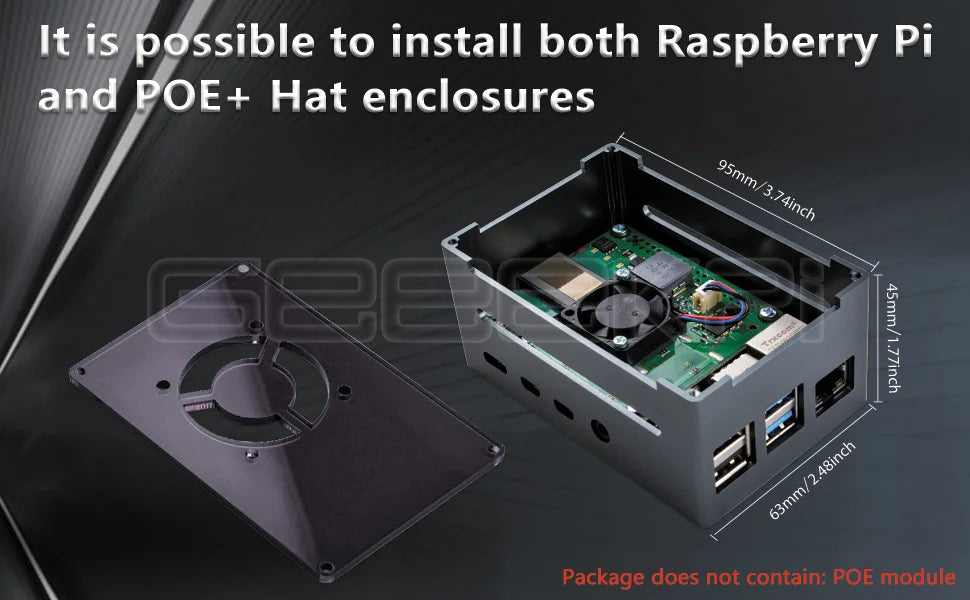

• Support PoE hat (official /52Pi)

• 5V None adjustable speed Fan

• Acrylic cover

• No Interfere with Wi-Fi signal

• Easy to assemble

NOTE: Compatible PoE hat

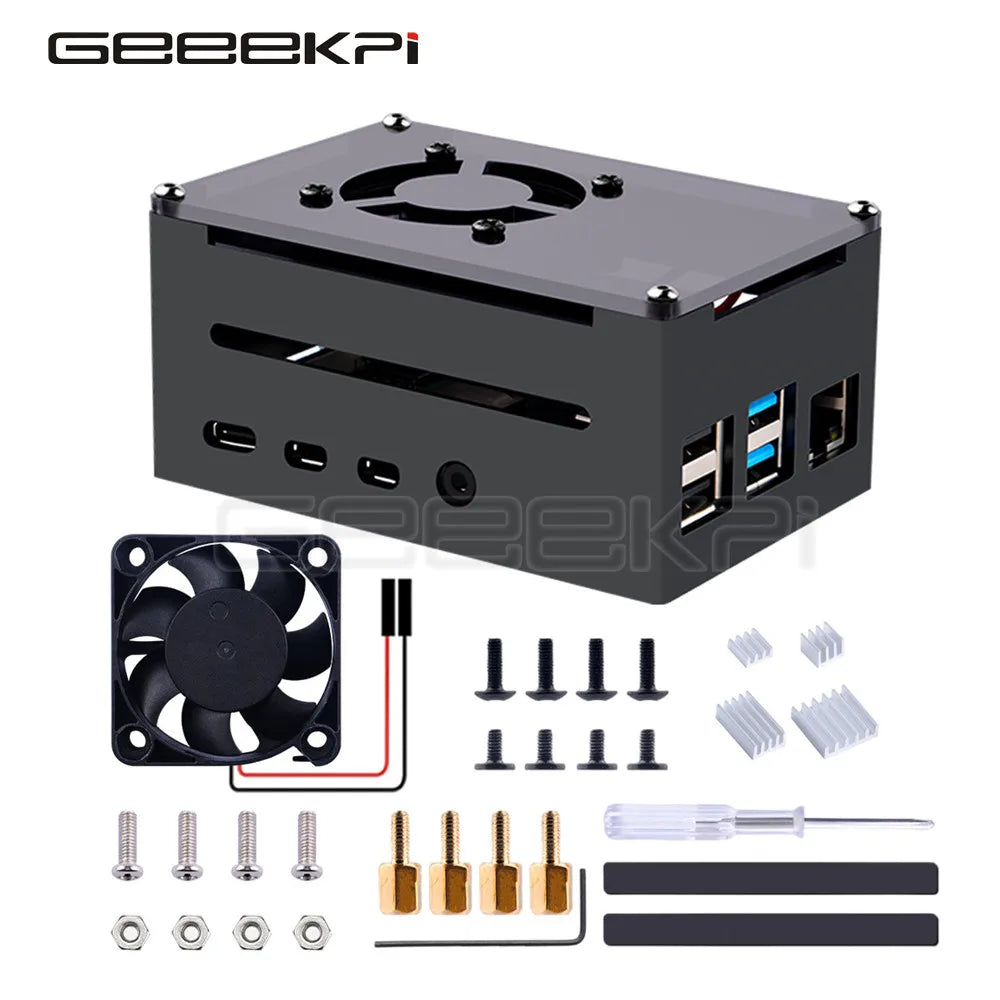

Package Includes:

• 1 x 52Pi Raspberry Pi 4 Case

• 1 x 5V Fan

• 4 x Aluminum Heat sinks

• 4 x Long screws

• 4 x short screws

• 4 x ball head screw

• 4 x nuts

• 4 x copper pillar

• 1 x screw driver

• 1 x Allen wrench

• 2 x Robber feets



More Options:

With Adjustable Speed 3510 Cooling Fan:

https://www.aliexpress.us/item/3256804894826295.html

With Adjustable Speed 3510 Cooling Fan & M.2 SATA SSD Adjustable Speed 3510 Cooling Fan:

https://www.aliexpress.us/item/3256804960863501.html

With Mini Low- Profile Tower Cooling Fan:

https://www.aliexpress.us/item/3256804960757414.html

With Mini Low- Profile Tower Cooling Fan & M.2 SATA SSD Adjustable Speed 3510 Cooling Fan:

https://www.aliexpress.us/item/3256804960958699.html

Gallery:

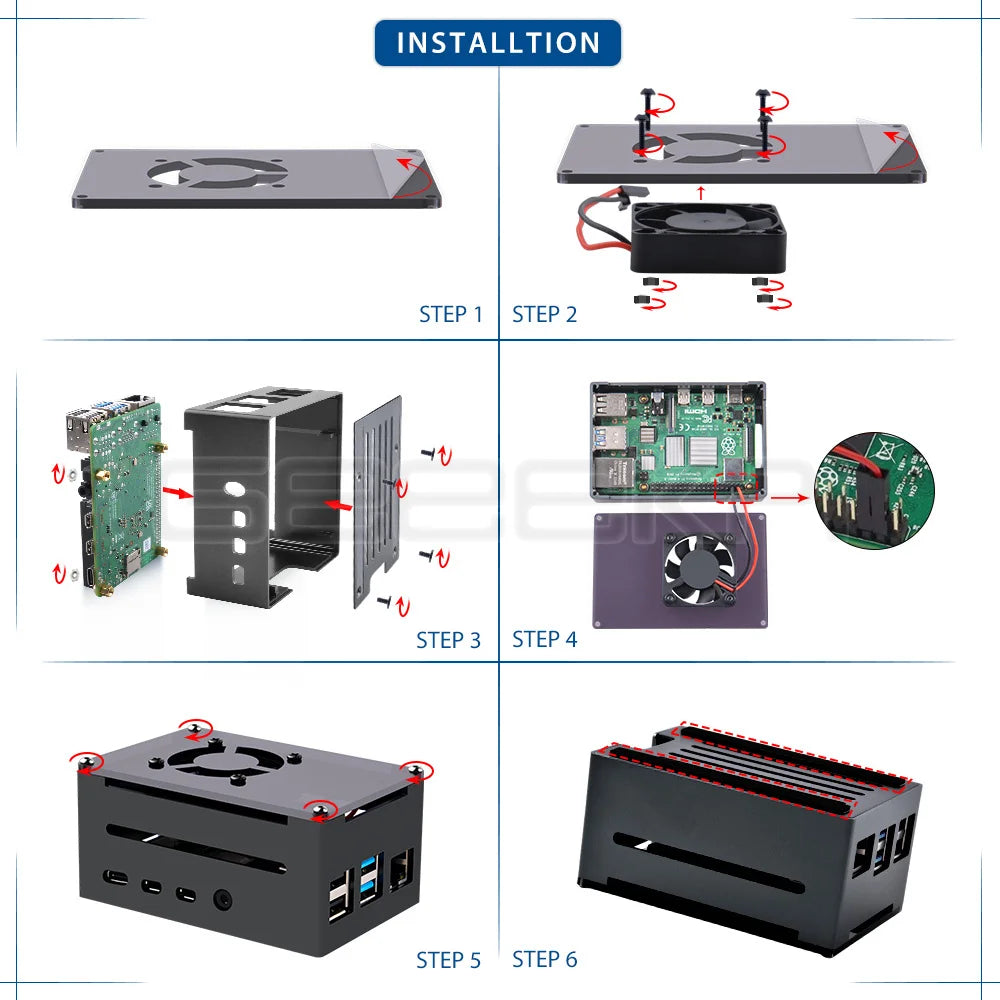

How to assemble it

• Step 1. Deassemble the case with Allen wrench, and then peel off the protection film from arcylic panel on both sides.

• Step 2. Fix 5V Fan with long screws and nuts, paste aluminum heat sinks on top of CPU,memory chip and USB controller chip on Raspberry Pi 4B.

• Step 3. Fix Raspberry Pi 4B to copper pillar and bottom case with screws

• Step 4. Connect the fan cable to Raspberry Pi 4B on GPIO pin, red one connect to 5V pin, black one connect to GND pin.

• Step 5. Fix the acrylic panel with screws

• Step 6. Paste robber feets on the bottom case after peeling off the protection film.
