SPECIFICATIONS

Boost your Raspberry Pi 5's reliability and performance

The X1205 is a reliable and intelligent power solution designed to provide uninterrupted performance for Raspberry Pi users, especially those working on demanding tasks or using multiple peripherals. Whether you're handling resource-intensive projects, need reliable power backups, or require seamless data protection, the X1205 ensures that your system remains operational without disruptions.

Our Design Intent:Our goal in designing the X1205 is to cater to Raspberry Pi users who need stable, efficient, and secure power management for their critical applications. It is perfect for enthusiasts, makers, educators, and professionals working on projects that require high availability and data integrity.

Core Features

🔋 Reliable Power Backup:

Delivering a stable 5.1V 6000mA power output, the X1205 ensures uninterrupted performance for resource-heavy tasks

and multiple peripherals, providing a dependable power source at all times.

📊Smart Power Management:

The X1205 intelligently monitors the Raspberry Pi's power status,

automatically cutting off power when Pi 5 is shut down to conserve battery life.

Its ultra-low standby mode optimizes energy usage and extends battery lifespan.

🛡️ Seamless Power Switching and Data Protection:

Equipped with AC power loss and adapter failure detection, the X1205 instantly switches to backup power during outages, protecting your Raspberry Pi from unexpected disruptions. It also supports seamless data backup by integrating with storage devices, safeguarding valuable data even during power failures.

🖥️ Convenient Automation:

The X1205 supports auto power-on, enabling automatic boot-up when power is restored. It also allows full software-controlled power-off for safe and hassle-free shutdowns.

⚡ Fast Charging Support:

With up to 3000mA fast charging, the X1205 quickly recharges to maintain readiness for backup power needs.

🏗️Stackable Design:

Designed to mount underneath without using the 40-pin header, the X1205 supports easy stacking with other Raspberry Pi accessory boards, offering versatile expansion options.

Product Features

Compatibility:

• Supports Raspberry Pi 5 Model B.


UPS Output:

• Delivers reliable, long-lasting power for continuous use.

• Delivers 5.1V 5000mA max output, ideal for most applications.

• Low-power MOSFET (7mΩ RDS(ON)) reduces energy loss.

• Pogo pin connection eliminates cables and soldering.

• Equipped with XH2.54 connectors for 5V power output (Share 6000mA current output).

Battery Charging:

• 3000mA fast charging

• Battery charging control via GPIO.

• Overcurrent, overvoltage, and reverse connection protection.

• Maxim fuel-gauge system monitors voltage and battery percentage via I2C.

• LED indicators for 25%, 50%, 75%, and 100% charge levels.

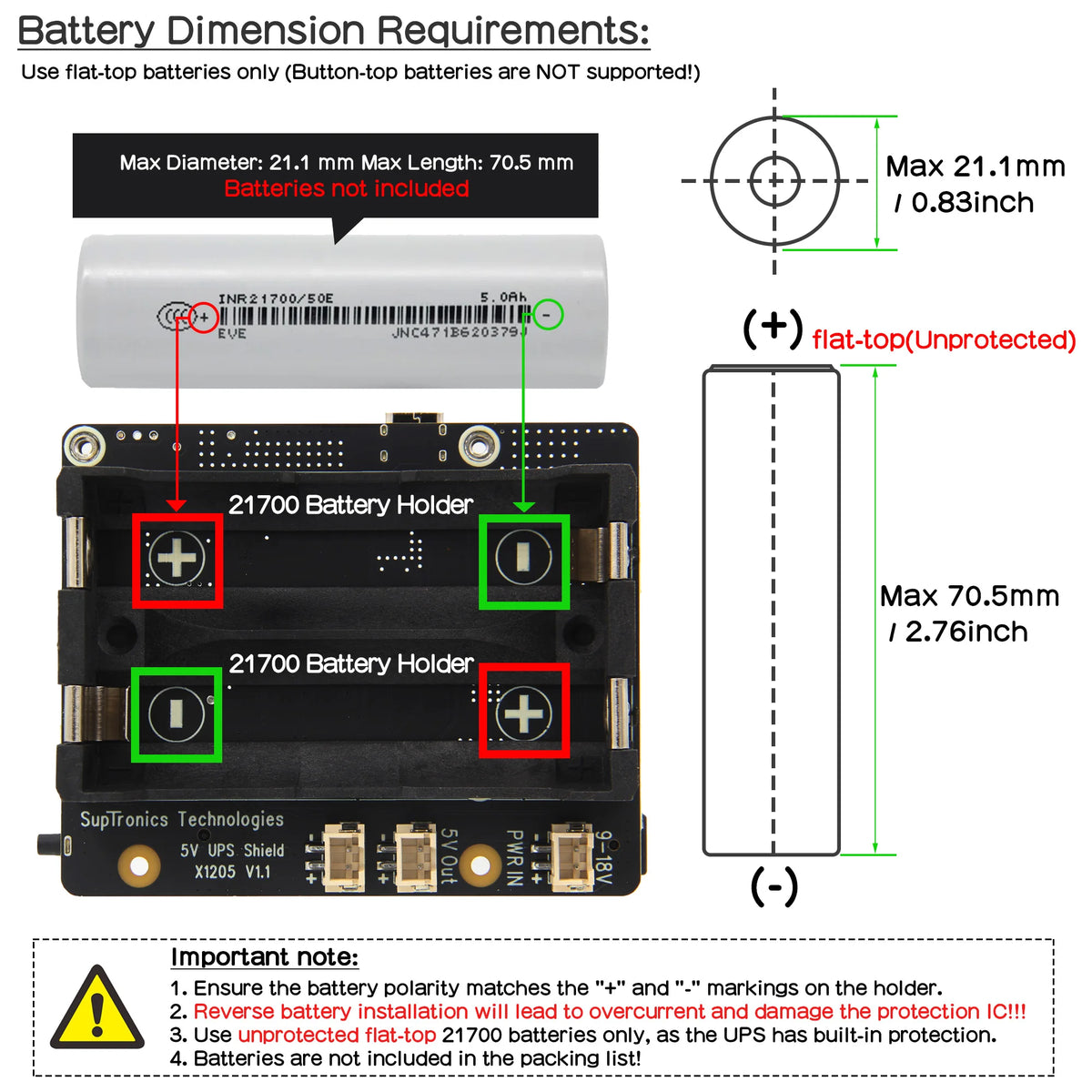

• Supports up to 10,000mAh with two 21700 batteries.

Power Input:

• High-efficiency step-down converter (Wide input 9V-18V input, up to 95% efficiency).

• Provides 10A output, enabling 3A fast charging.

• Accepts power from car adapters, solar panels, etc.

• 5.5x2.1mm jack and USB-C compatible.


Power Management:

• Seamless switching between backup and adapter power.

• Push button mimics Pi's power button.

• Auto power cut-off when Pi shuts down.

• LED status indicators and GPIO monitoring for power failures.

• Auto power-on when power is restored.

• Programmable low-battery safe shutdown.

• Low standby power consumption to save battery.


Miscellaneous:

• Connects via pogo pins for cable-free setup.

• Mounts underneath, leaving space for HATs.

• XH2.54 connector supports external power button.

Safety Instructions & Warnings

It is essential to read and understand these safety instructions and warnings before charging your batteries.

• Lithium Polymer and Li-ion batteries are volatile. Failure to read and follow the instructions below may result in fire, personal
  injury, and damage to property if charged or used improperly.

• Never make a wrong polarity connection when charging or discharging battery packs. Always double-check the polarity of the
  battery's connector to ensure that "+" is connected to "+" and "-" is connected to "-".

• Do not mix and use old batteries with new batteries, or batteries with different brand names.

• Lithium batteries have a limited cycle life. Please replace old batteries with new ones when they reach their service life or when
  they are two years old, whichever comes first.

• When charging the Battery Pack, please place the battery in a fireproof container. Do not leave the UPS shield on wood material
  or carpet unattended.

• Keep the UPS shield away from children to ensure their safety.

• Do not apply power to your Raspberry Pi via the Type-C USB socket.

• Do not use 21700 battery with built-in protection circuit.


How to Power

• Power X1205 via DC power jack 5.5x2.1mm of X1205

• Power X1205 with 5V DC 5A via USB Type-C of X1205

• Power X1205 with 9-18Vdc ≥3A via XH2.54 connecotr of X1205

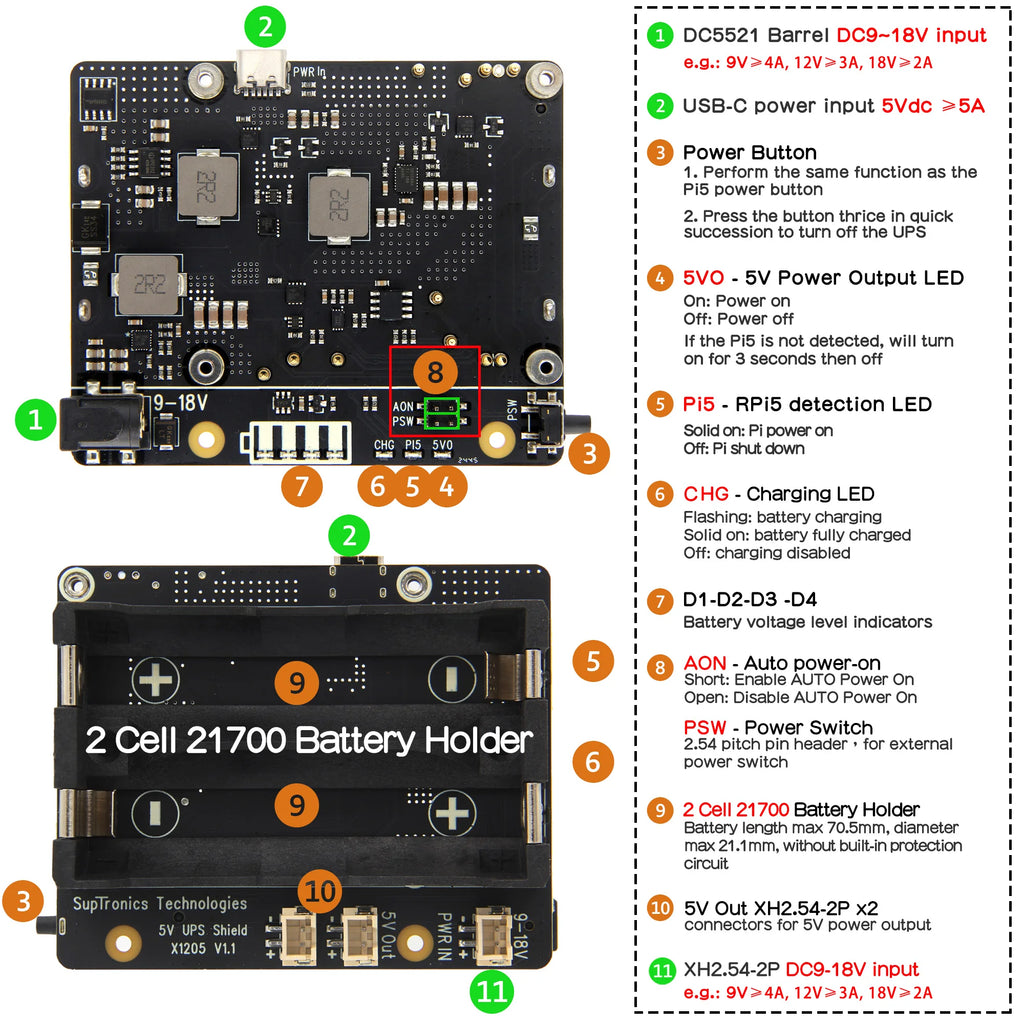

Tech Specification

Power input:                        9-18Vdc ≥3A, (12Vdc 3A power adapter recommended)

UPS output:                        5.1V ±5% Max 6A

Battery charging current :       Max 2.3-3.2A

Terminal Battery Voltage:       4.23V

Battery Recharge Threshold:  4.1V

Ports & Connectors:               DC power jack - 5.5x2.1mm

                                              2-cell 21700 battery socket x1

                                              5.1V Power output connector x2 - XH2.54 2-pin

                                              USB2.0 type-A power output socket x2

                                              External power button connector x1 - XH2.54-2P

PCB Size :                             69.5mm x 85mm

Packing List

• 1x X1205 UPS

• 1x Screw pack
