SPECIFICATIONS

Accessory Type: Power Adapter

Battery Included: no

Brand Name: Geekworm

Compatible With: Raspberry Pi 5 and X1011 board

Connection: DC55*21 (5.5x2.1mm, inner diameter 2.1mm, outer diameter 5.5mm)

High-concerned chemical: none

Input: 100-240V 50/60Hz 1.5A Max.

Origin: Mainland China

Output: 5V Max.10A

Typical Application Fields: Education and Learning

[Safety Instructions]

This product should be operated in a well ventilated environment.
The connection of incompatible devices to this power supply may affect compliance, result in damage to the unit, and invalidate the warranty.
DO NOT expose to water or moisture, or place on a conductive surface while in operation.
DO NOT expose to heat from any source; this power supply is designed for reliable operation at normal ambient temperatures.
DO NOT attempt to open or remove the power supply case.

[Overview]

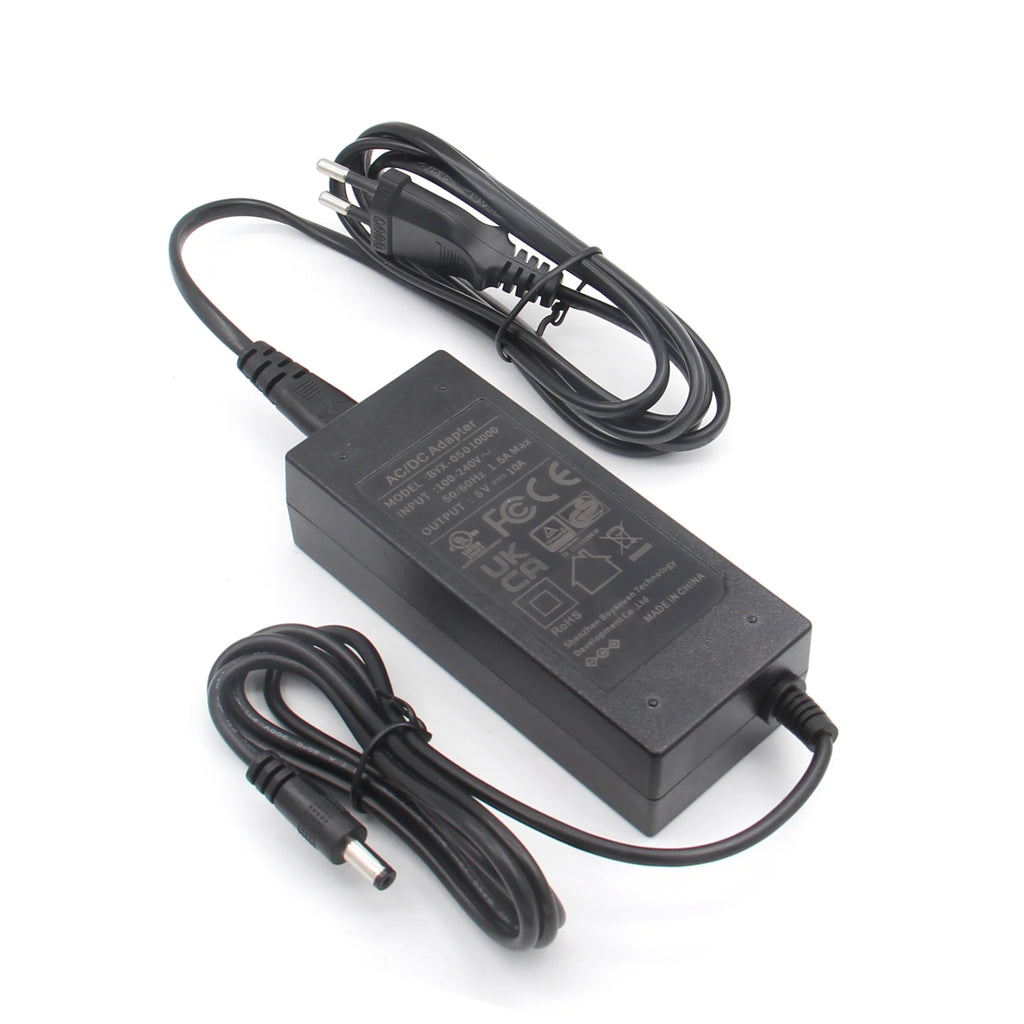

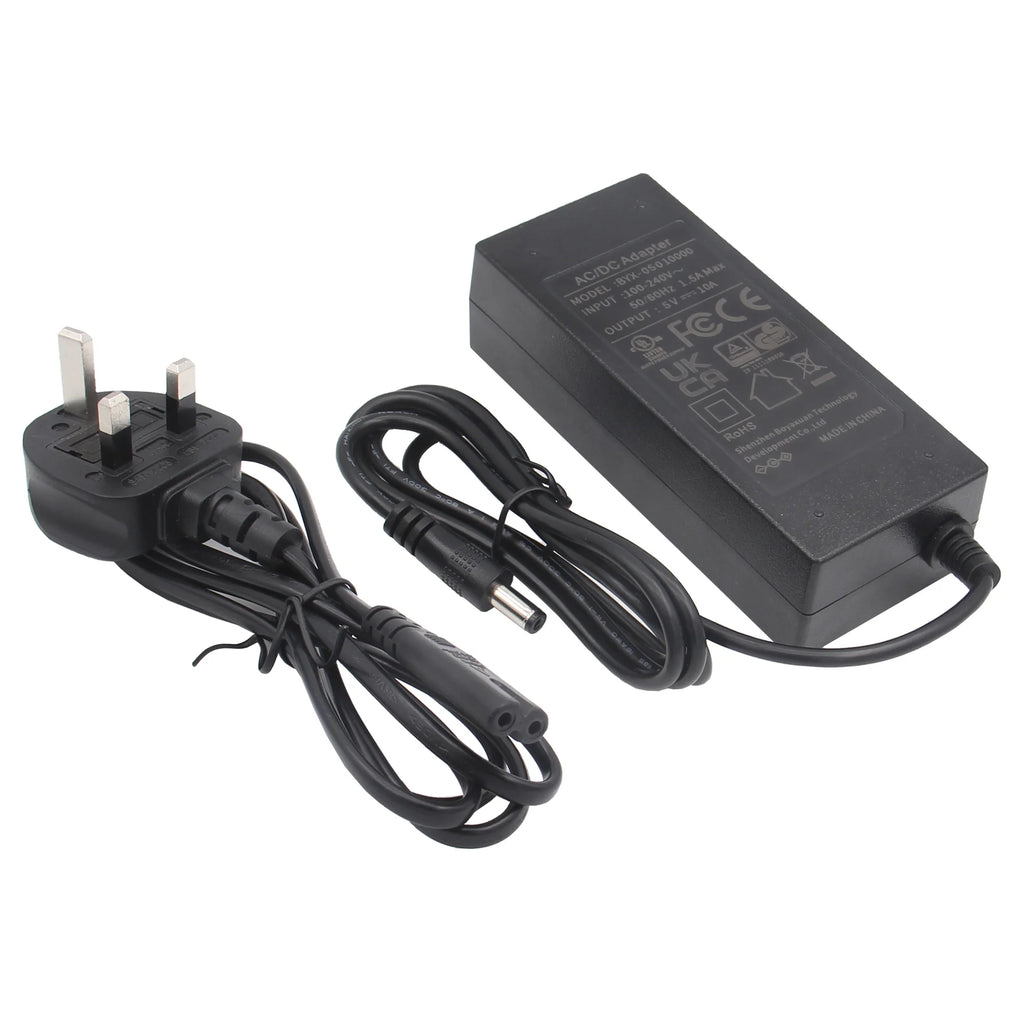

This product is a high-power adapter specifically designed for the Raspberry Pi 5 and its X1011 expansion board. It addresses the stringent power demands of the Raspberry Pi 5 under high-performance operation, delivering stable and reliable 5V 10A (50W) output. This ensures the system remains stable without crashing or throttling, even when powering four NVMe SSDs or other high-power peripherals. The adapter features a detachable design (power brick with interchangeable plugs) and comes standard with EU, US, and UK plugs (please select the correct plug according to your needs).

Important Note for the Geekworm X1011 Expansion Board:

The X1011 includes an onboard DC power jack (5.5×2.1 mm) and explicitly requires a 5V ≥5A power supply.Using this power supply’s 10A output directly into the X1011 DC jack is the most stable and recommended configuration. In this setup, the X1011 will supply power to the Raspberry Pi 5 via its onboard circuitry.

Do NOT power the X1011 DC jack and the Raspberry Pi 5 USB‑C port at the same time.

[Specifications]

* Product Name: 5V 10A Power Adapter
* Compatible Devices: Raspberry Pi 5 & X1011 Expansion Board
* Input: AC 100-240V, 50/60Hz, 1.5A Max
* Output: 5V DC, 10A Max (50W)
* Connector Type: DC5521 (5.5x2.1mm, inner diameter 2.1mm, outer diameter 5.5mm)
* Polarity: Center Positive (center pin = positive, outer sleeve = negative)
* Cable Specifications: Input Cable (plug to power brick): Approx. 95 cm; Output Cable (brick to DC5521 connector): Approx. 120 cm

[Packing List]

Bundle1

1x 5V 10A Power Supply(EU Plug)
