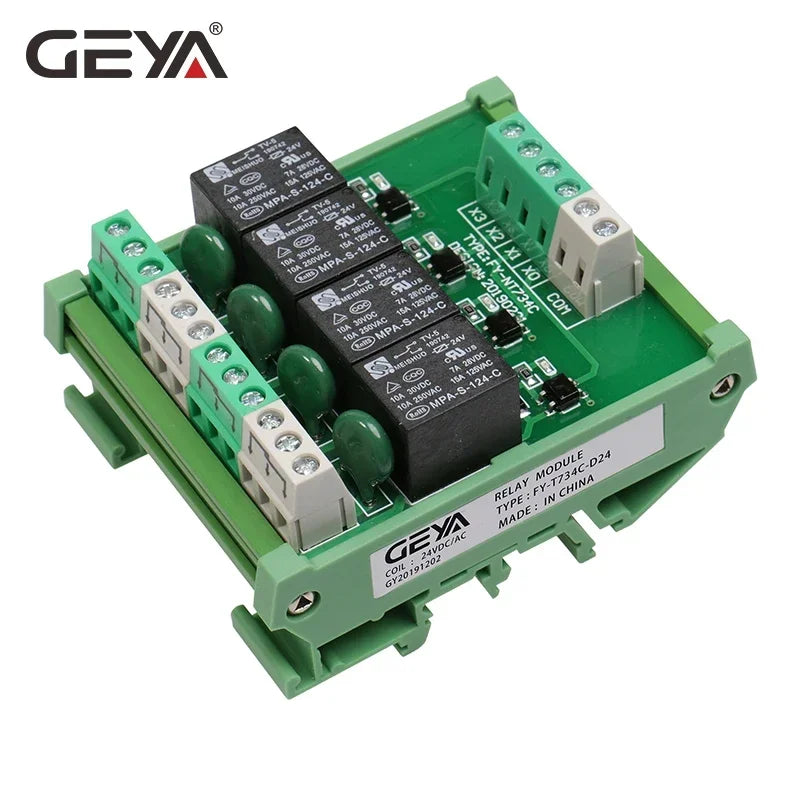

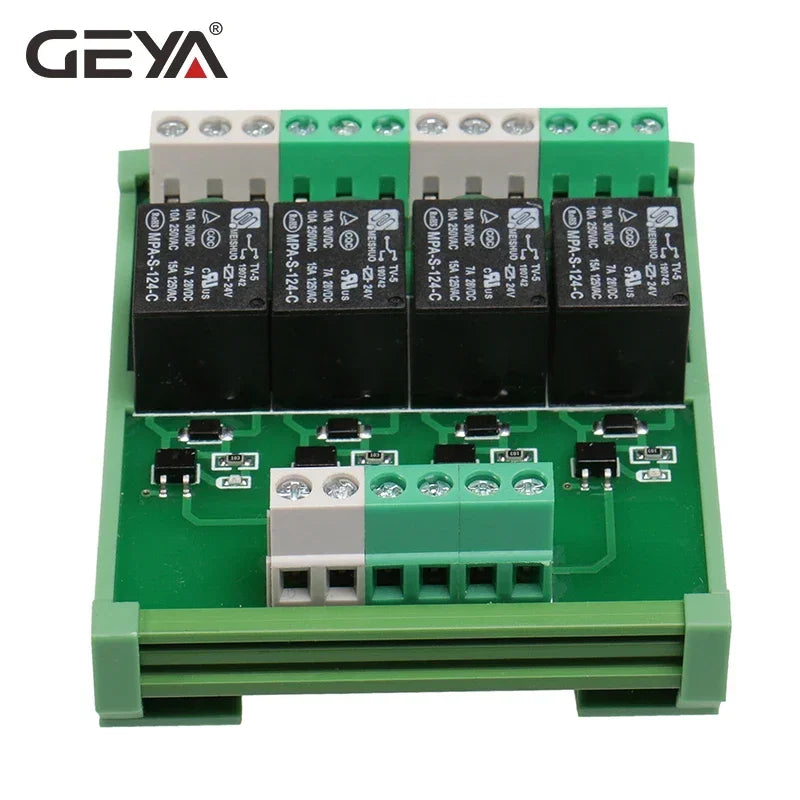

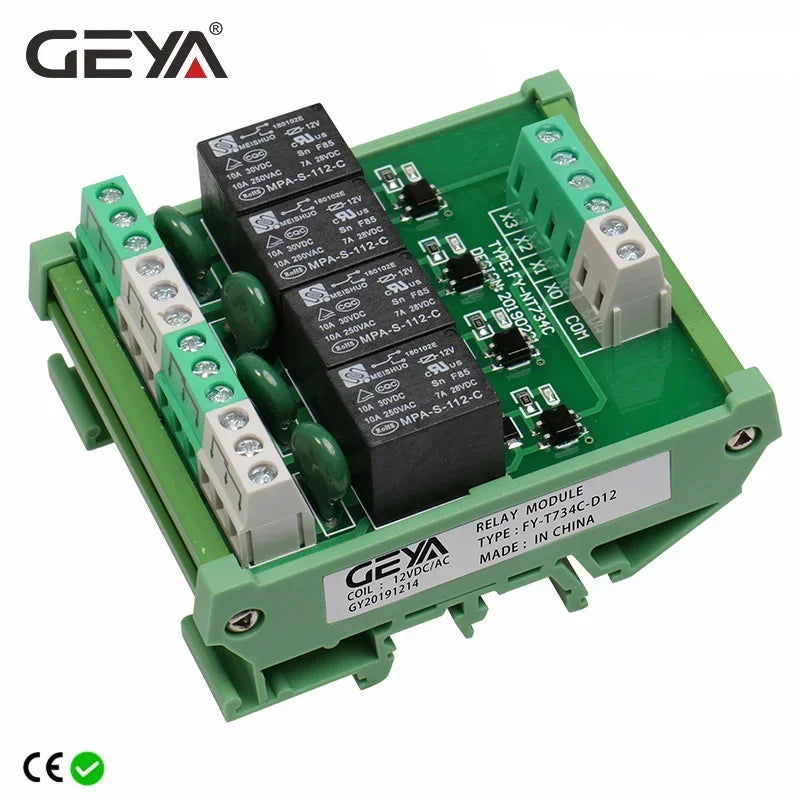

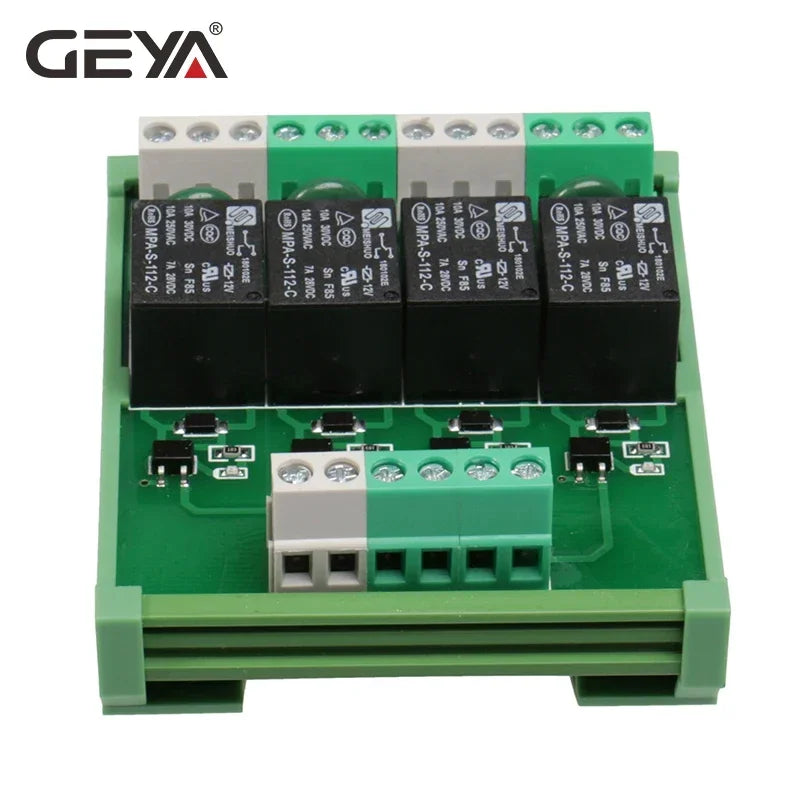

GEYA 4 Channel Relay Module 1 SPDT DIN Rail Mount 12V 24V DC/AC Interface Relay Module 220V 230V 5VDC
FY-T734-230VAC
$68.72
Sale price
$68.72
Regular price
$0.00
Skip to product information
GEYA 4 Channel Relay Module 1 SPDT DIN Rail Mount 12V 24V DC/AC Interface Relay Module 220V 230V 5VDC
$68.72
Sale price
$68.72
Regular price
$0.00
Description
SPECIFICATIONS
Applicable Object: Other
Brand Name: GEYA
Certification: CE
Coil Resistence: 1A 6VDC
Contact Arrange: SPDT
Contact Load: Low Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Max voltage: 110% rated value
Model Number: FY-T734 Relay Module
Origin: Mainland China
Output contact: 4 groups, 1NO1NC
Power Source: DC,DC
Product Name: Relay Module
Protect Feature: Sealed
Rated Load Current: 10A 250VAC/30VDC
Rated current: 21.8mA
Rated voltage: 5VDC,12VAC/DC, 24VAC/DC,230V
Relay Mounting: Soldered on PCB
Theory: Electromagnetic Relay
Use: General Purpose
Voltage: 12V
is_customized: Yes
GEYA 4 Channel Relay Module 1 SPDT DIN Rail Mount 12V 24V DC/AC220V Interface Relay Module 5VDC
General
Relay Modulesis used for PLC output load current amplification and isolation protection,and installed in the digital output terminal of PLC,MCU industrial control board, time relay, buttons and other controllers. It amplifies the output current of the output terminalfor high-power equipment and weak current control, to protect the control system not being damaged.
Features:

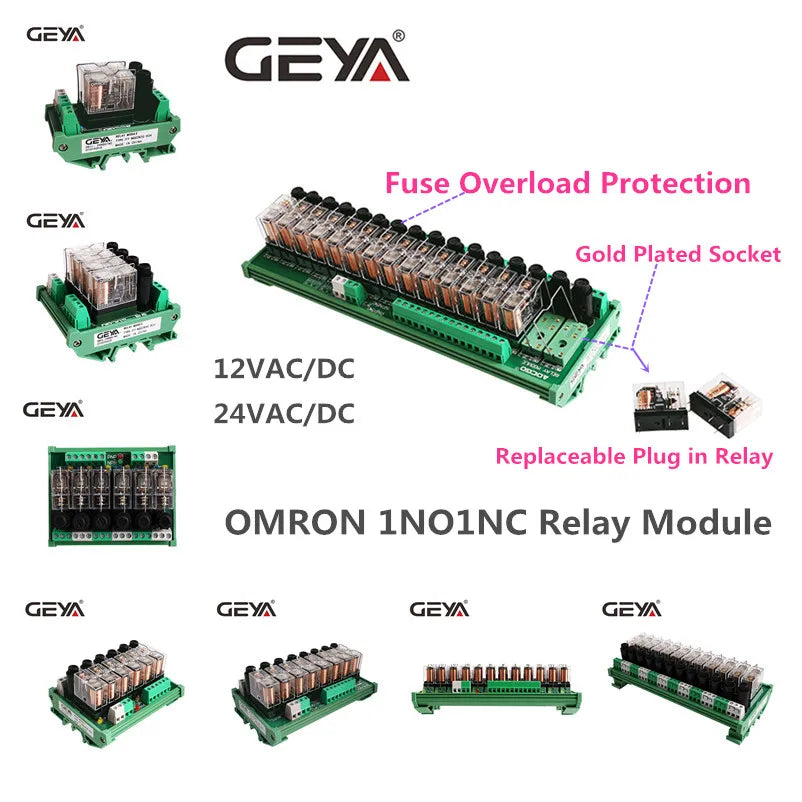

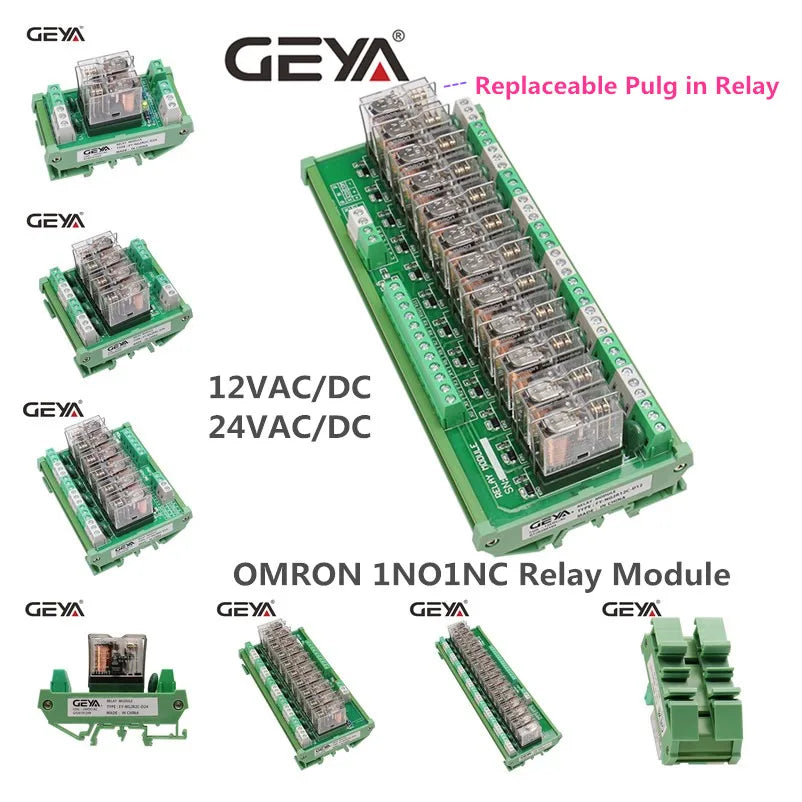

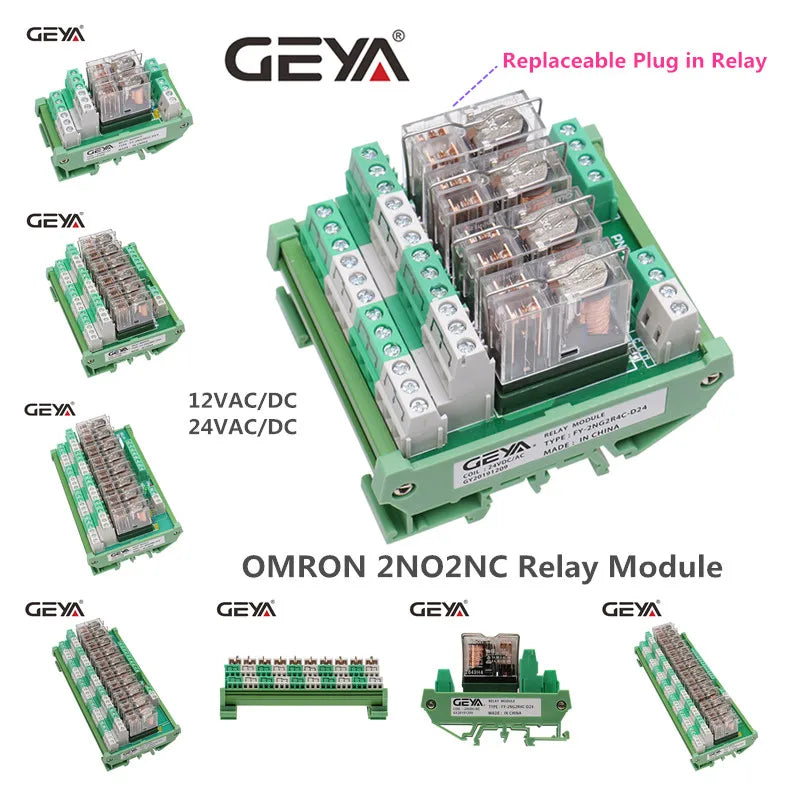

1. DIN Rail optional 1/2/4/8/16 channels relay interface modules
2. 1 NO&NC independent relay module;
3. Buit-in MPA Electromagnetic relay certified with CCC,CE
4. Switching current upto 10A at 250VAC or 30VDC
5. Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use
6. Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel

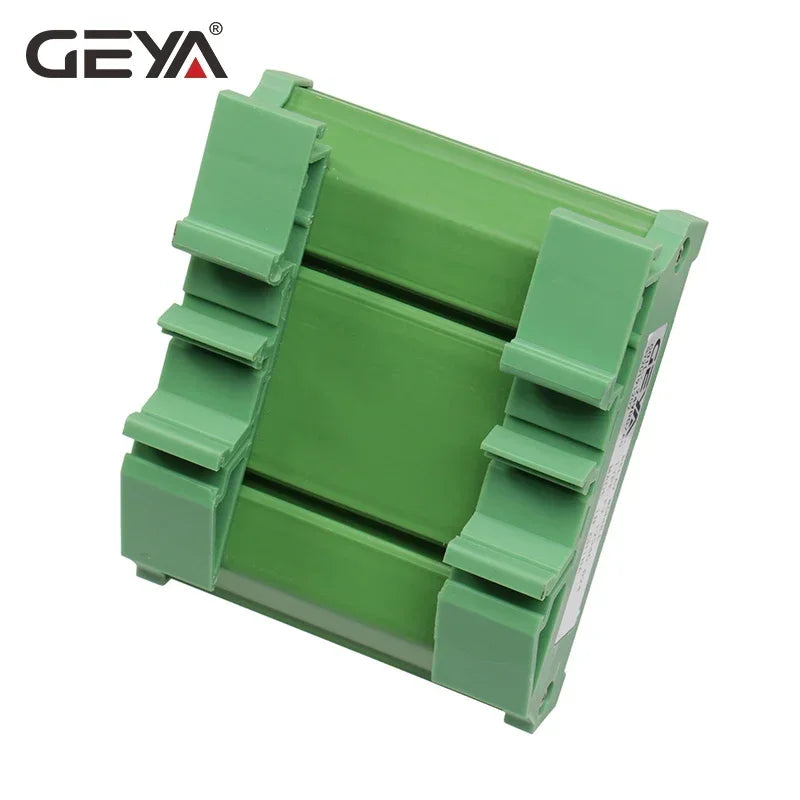

7. DIN Rail mountable for width TS15/28/35

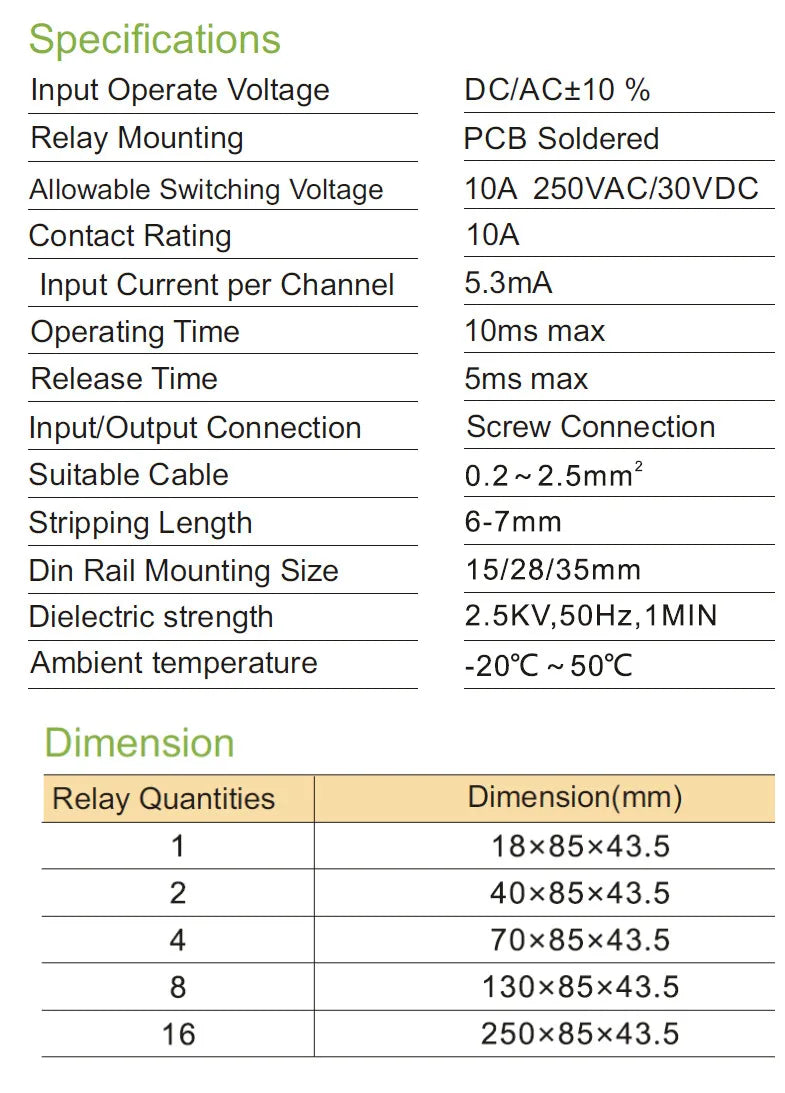

Technical Data
Relay Module Dimension:

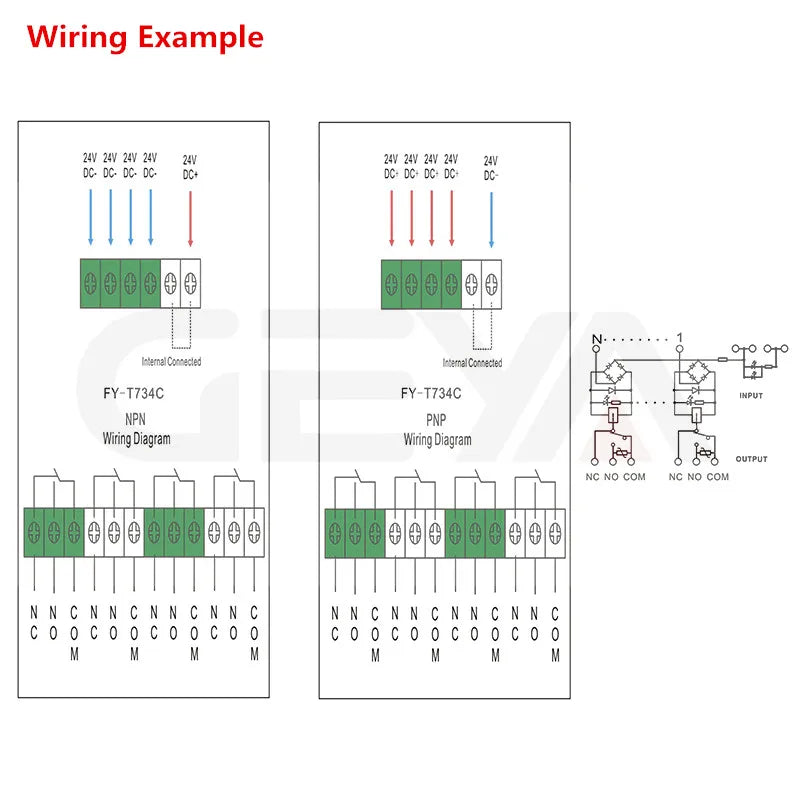

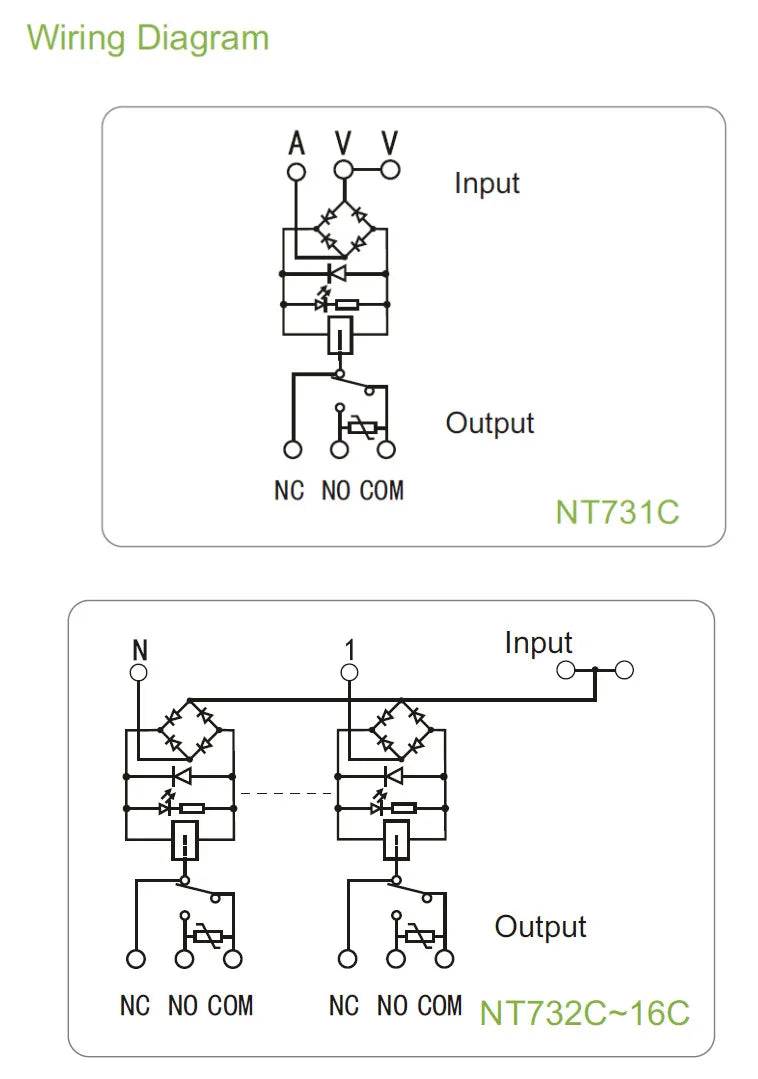

Wiring diagram:
