SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS,weee

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Delay off Delay on Time Relay

GRT6-A: ON Delay TIME RELAY

GRT6-B: OFF Delay TIME RELAY

High-concerned chemical: none

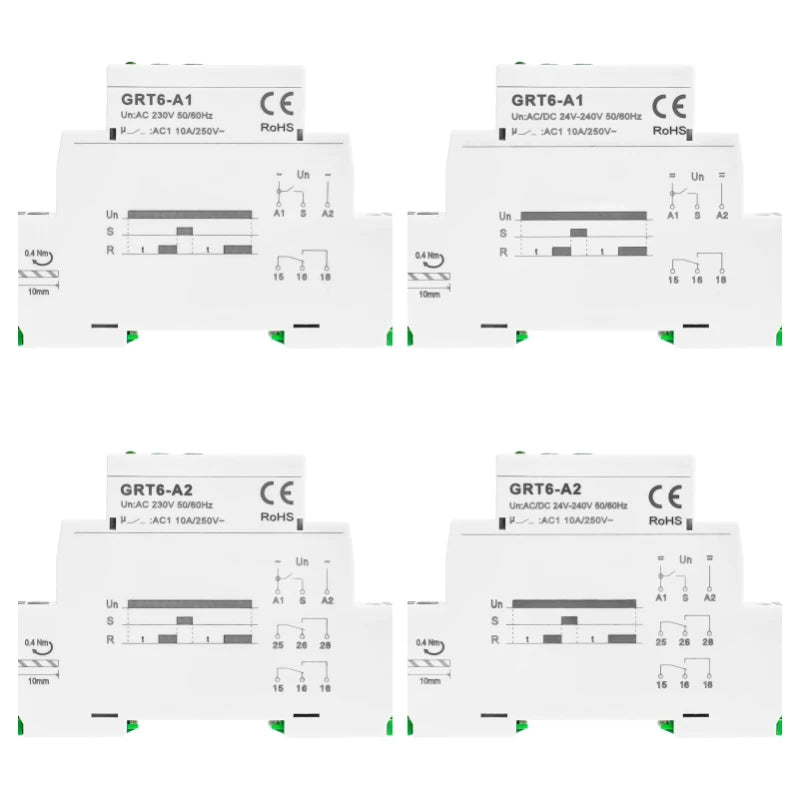

Model Number: GRT6-A/B ON/OFF DELAY TIME RELAY

Origin: Mainland China

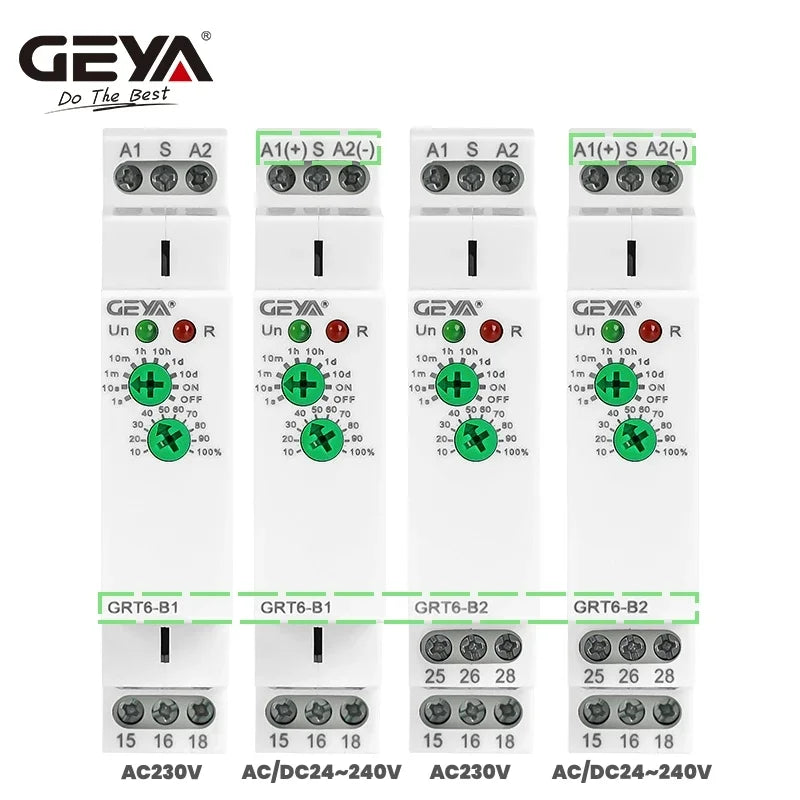

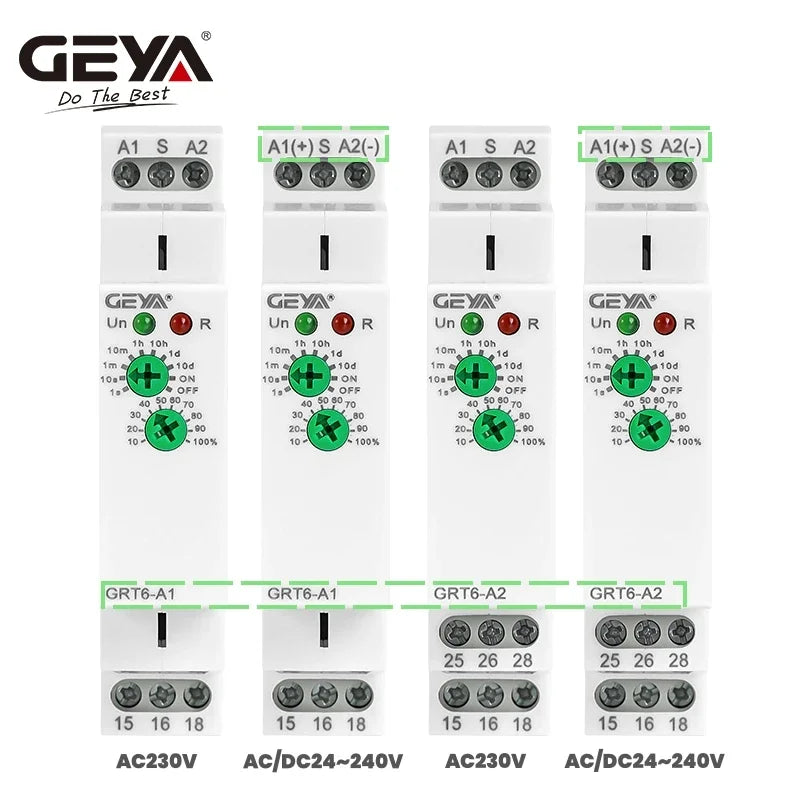

Output Contact: 1SPDT OR 2SPDT

Power Source: Ac,Ac

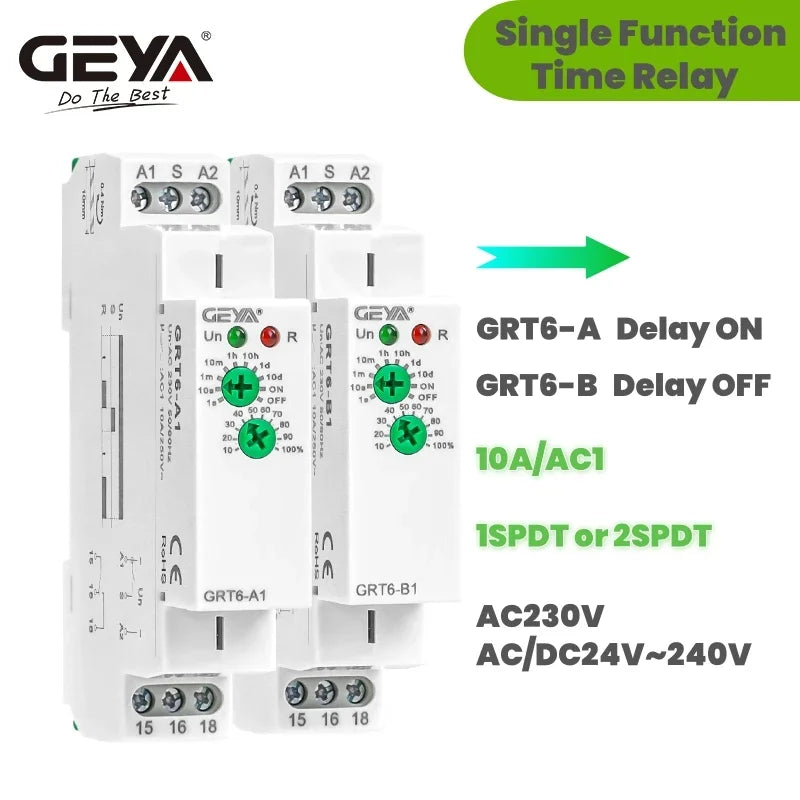

Product Name: Single Function Time Relay

Protect Feature: Sealed

Rated Current: 10A/AC1

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-10days, ON, OFF (in 10 alternate)

Use: Timer Switch

Voltage: 220V,AC230V OR AC/DC24-240V

is_customized: Yes

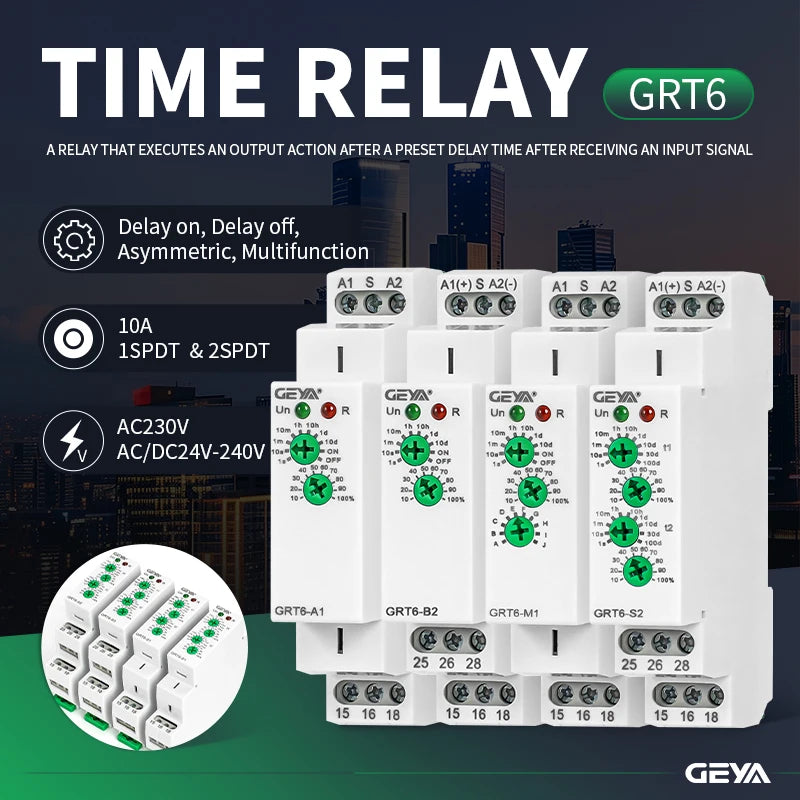

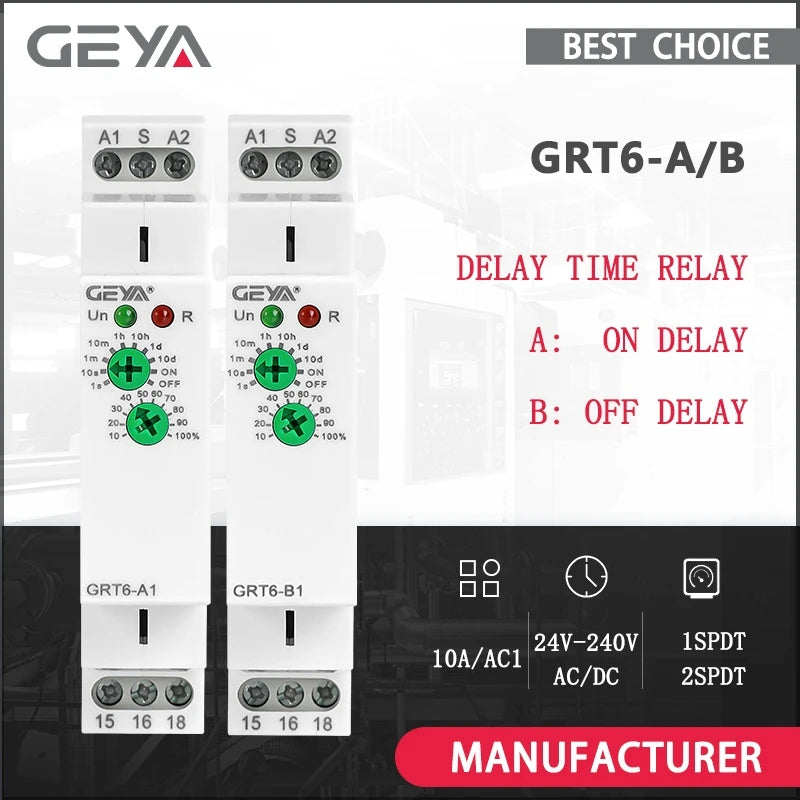

GEYA GRT6-A/B SERIES Delay on Delay off Time Relay Electronic Type 10A AC230V OR AC/DC24V-240V Time Relay 24V 220V

General

- GRT6-A Delay on Function
- GRT6-B Delay off Function

Applications
-Suitable for applications where function and time requirements are known.
-Time switch, possible to be used for pump decay time after switching heating off, switching of fans.

Function Features
- Support Wide Range Voltage: AC/DC24~240V or AC230V
- Current Rating: 10A/AC1
- Output Contact: 1SPDT or 2SPDT

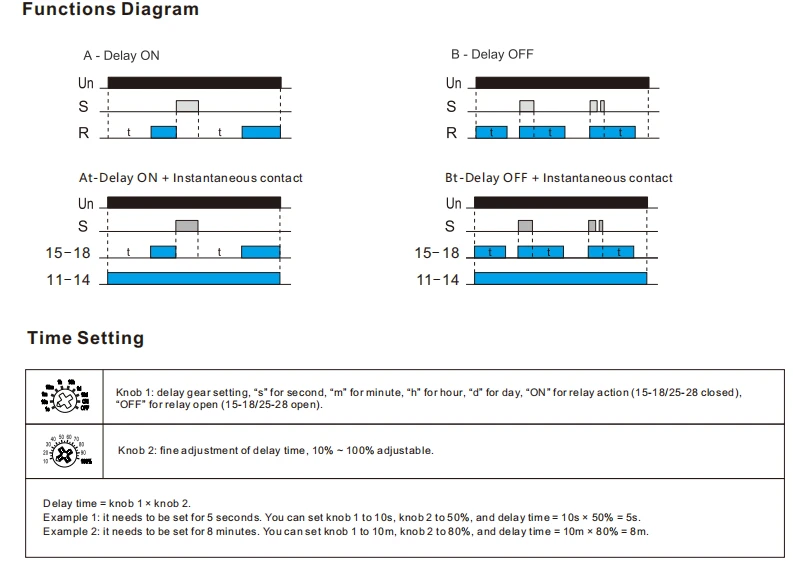

- Time scale 0.1 s - 10 days divided into 10 ranges,time setting by a potentiometer.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day,1-10day, only ON, only OFF
- Relay status is indicated by LED.

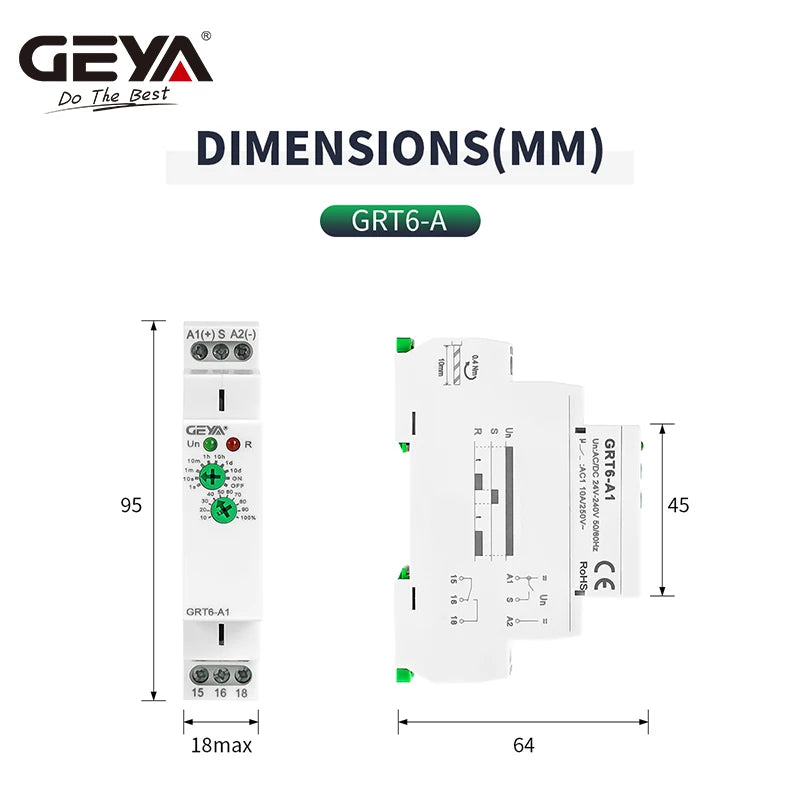

-1 MODULE 18mm,DIN rail mounting.

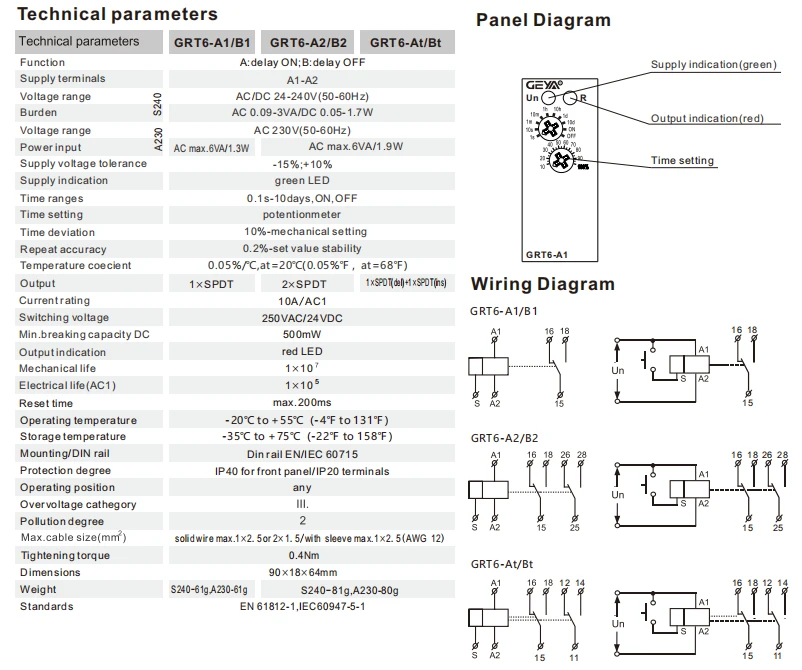

Technical Data
