GEYA Din Rail 3 Phase Failure Phase Sequence Voltage Monitoring Relay Voltage Protection Relay 220V~460V 10A
GRV8-04-M460
$74.66
Sale price
$74.66
Regular price
$0.00
Skip to product information
M460 : 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)
M265: 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)
GEYA Din Rail 3 Phase Failure Phase Sequence Voltage Monitoring Relay Voltage Protection Relay 220V~460V 10A
$74.66
Sale price
$74.66
Regular price
$0.00
Description
SPECIFICATIONS
Applicable Object: Other
Brand Name: GEYA
Certificate: CE CB ROHS
Certification: CE,RoHS
Choice: yes
Contact Arrange: SPDT
Contact Load: Low Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Function: Voltage, Delay time, Asymmetry, Phase Sequence Phase Failure
High-concerned chemical: none

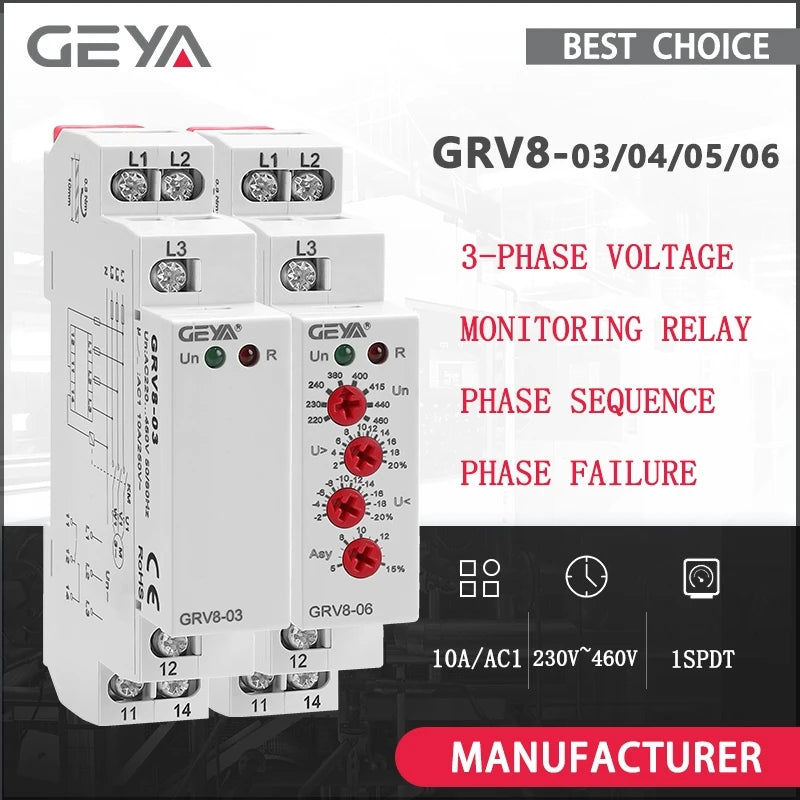

Model No.: GRV8-03, GRV8-04, GRV8-05, GRV8-06
Model Number: GRV8-06 Voltage Relay
Origin: Mainland China
Output Contact: 1SPDT
Power Source: Ac,Ac
Product Name: Three Phase Voltage Relay
Protect Feature: Sealed
Rated Current: 10A/AC1
Rated Frequency: 50/60Hz
Theory: Voltage relay
Use: Protective
Voltage: 220V,220-230-240-380-400 -415-440-460(P-P)
is_customized: Yes
Tips: This link is for 3phase monitoring relay M460, if you need M265 Voltage, please click here, thanks!

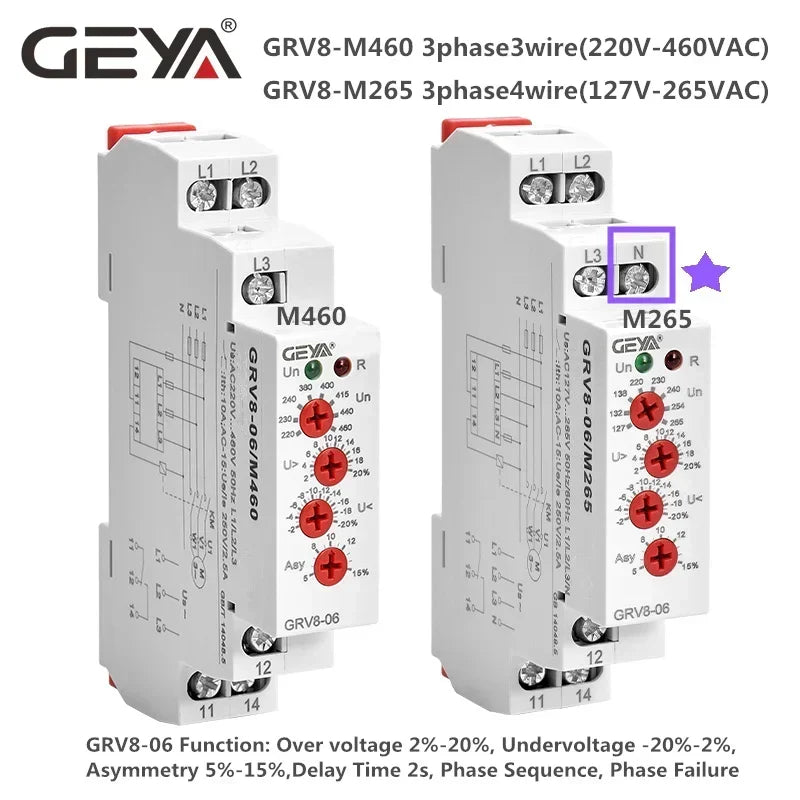

M460 : 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)
M265: 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)
General
Applications
-Control for connection of moving equipment(site equipment,agricultural equipent,refrigerated trucks).
-Control for protection of persons and equipment against the consequences of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure).

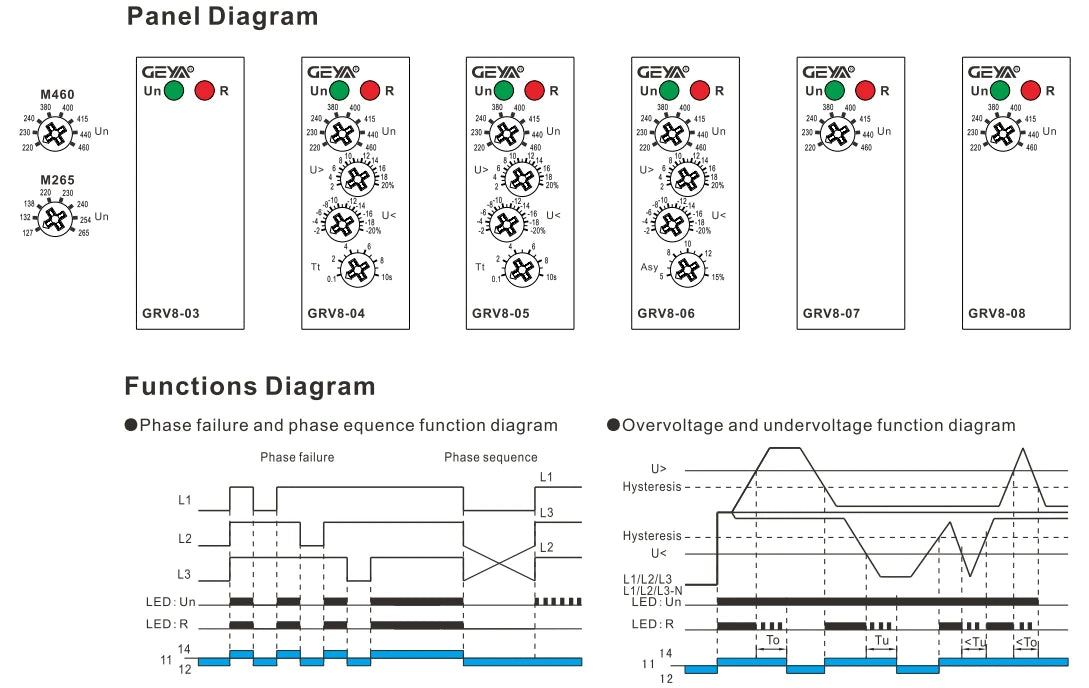

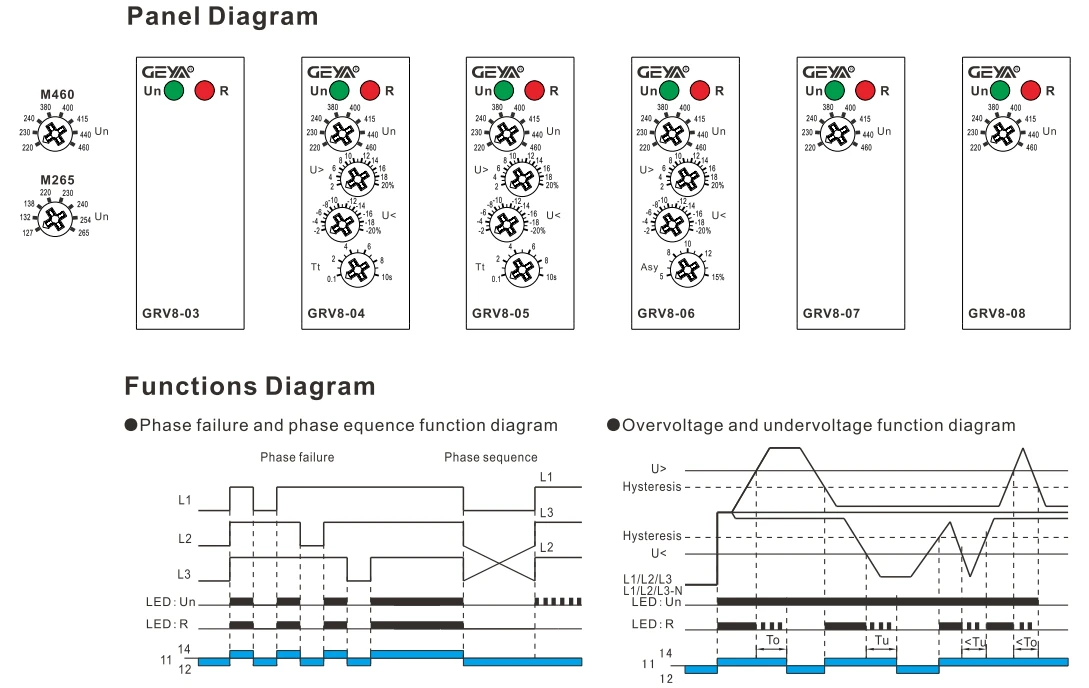

Function Features
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
- Measuring frequency range:45Hz-65Hz.
- Voltage measurement accuracy<1%.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

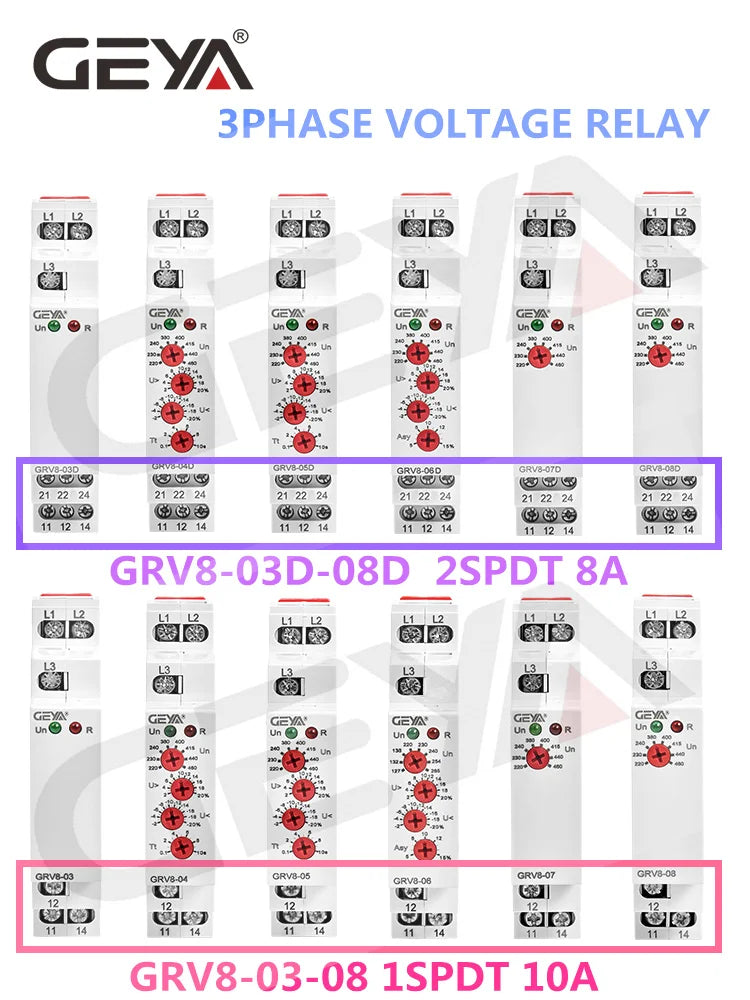

HOW TO CHOOSE THE MODEL
Product Code |
Over Voltage |
Under Voltage |
Asymmetry |
Delay Time |
Phase Sequence |
Phase Failure |
GRV8-03 |
/ |
/ |
/ |
/ |
YES |
YES |
GRV8-04 |
2%~20% |
-20%~2% |
/ |
0.1s~10s |
YES |
YES |

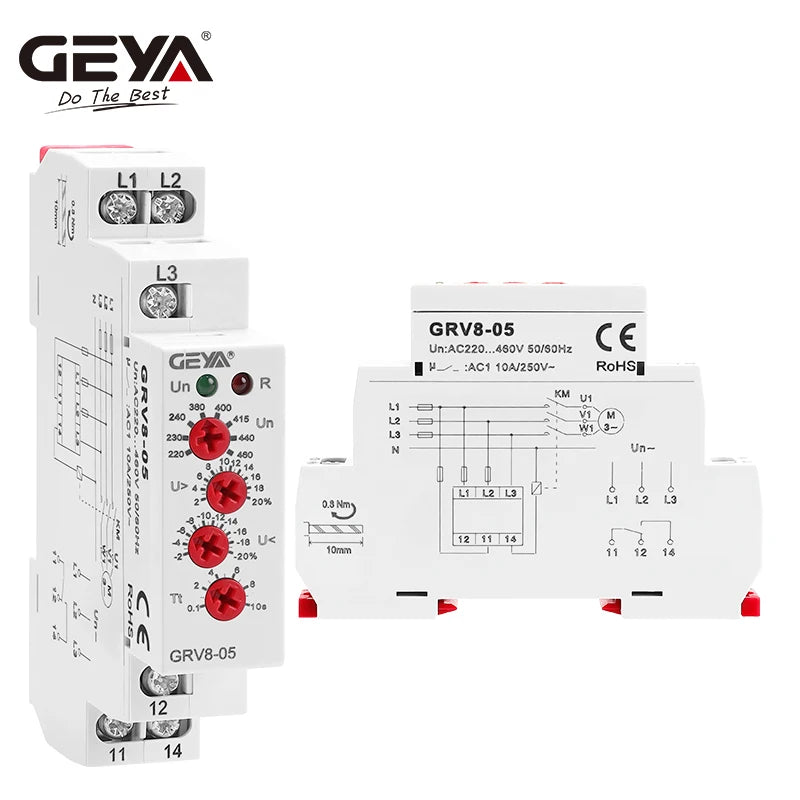

GRV8-05 |
2%~20% |
-20%~2% |
8% |
0.1s~10s |
YES |
YES |

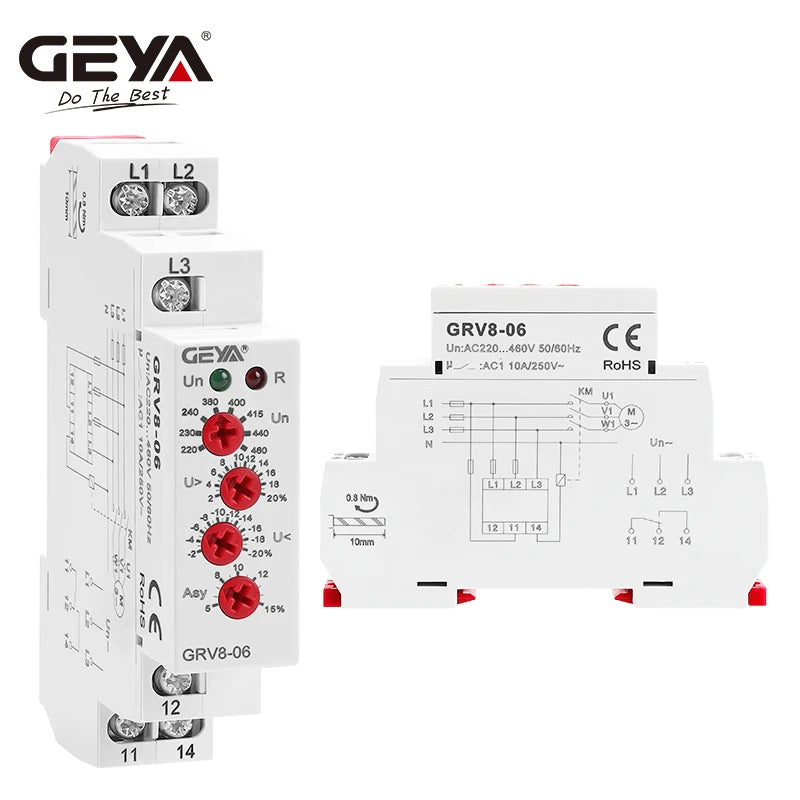

GRV8-06 |
2%~20% |
-20%~2% |
5%~15% |
2s |
YES |
YES |
YES Means The Function is Available

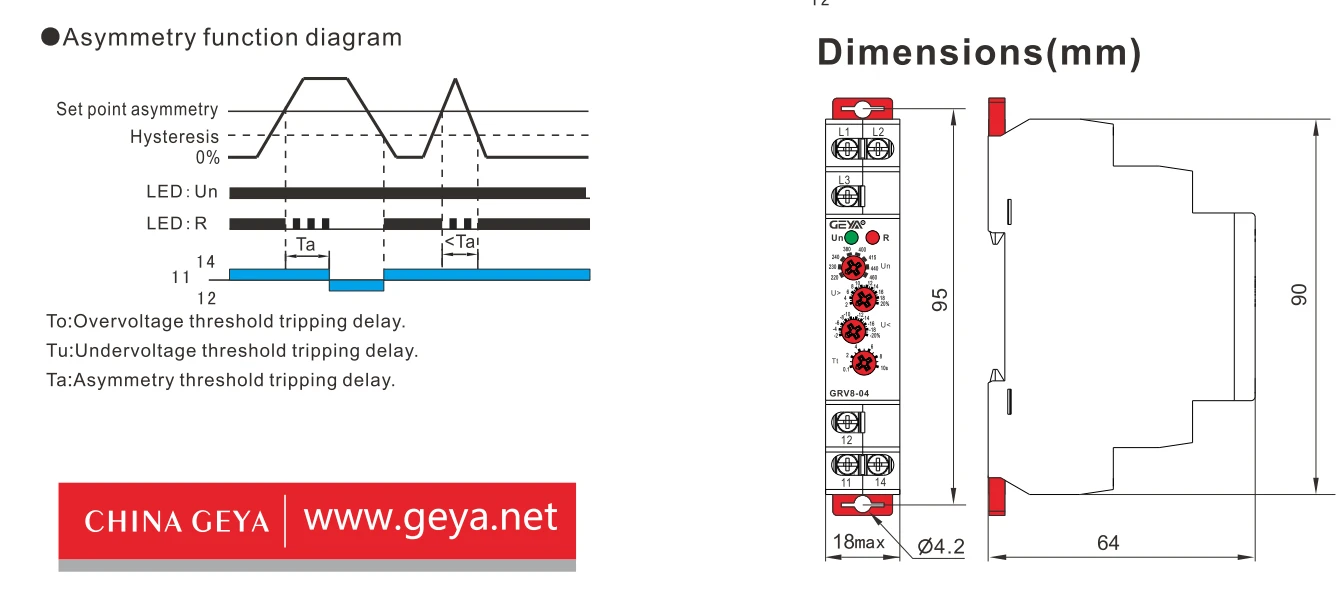

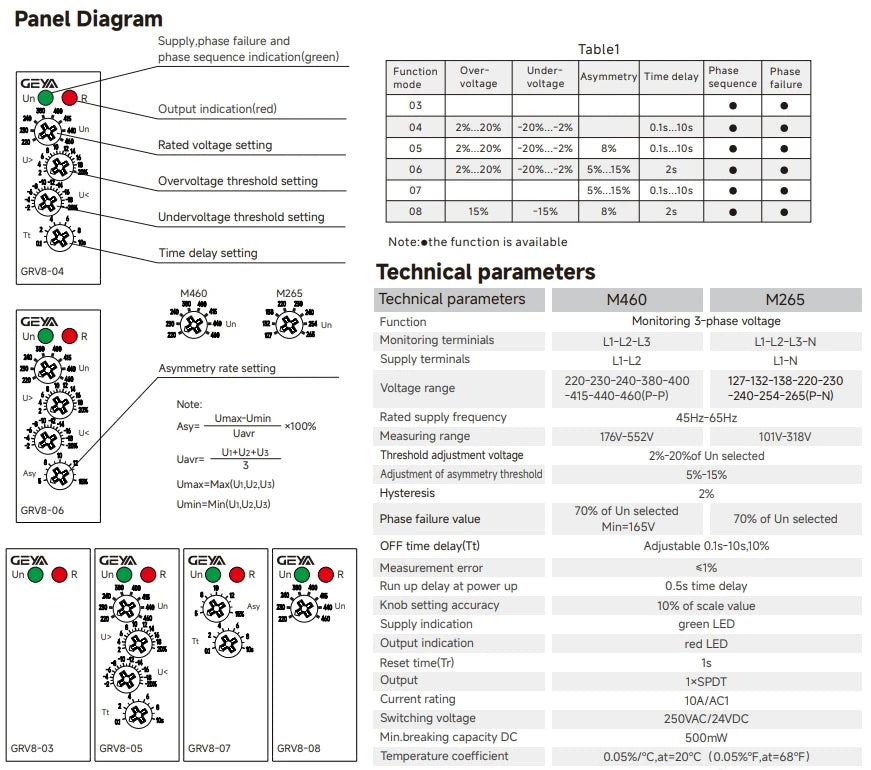

Technical Data
If you need other model function of voltage relay, pls click below!
