SPECIFICATIONS

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Switching larger load output

High-concerned chemical: none

Model Number: GR8 Intermediate Relay

Origin: Mainland China

Output Contact: 1SPDT,

Power Source: DC

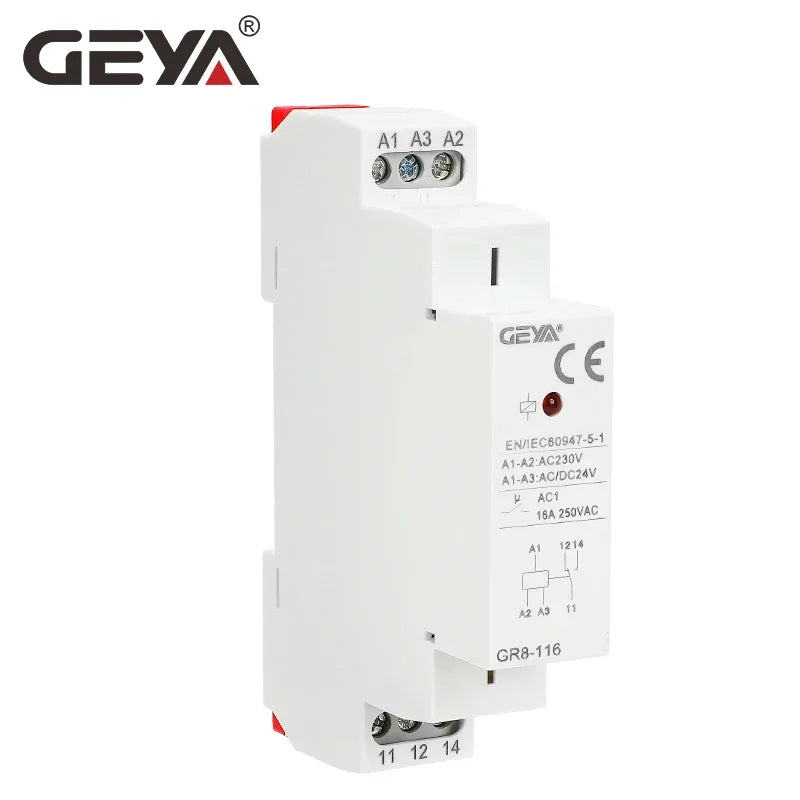

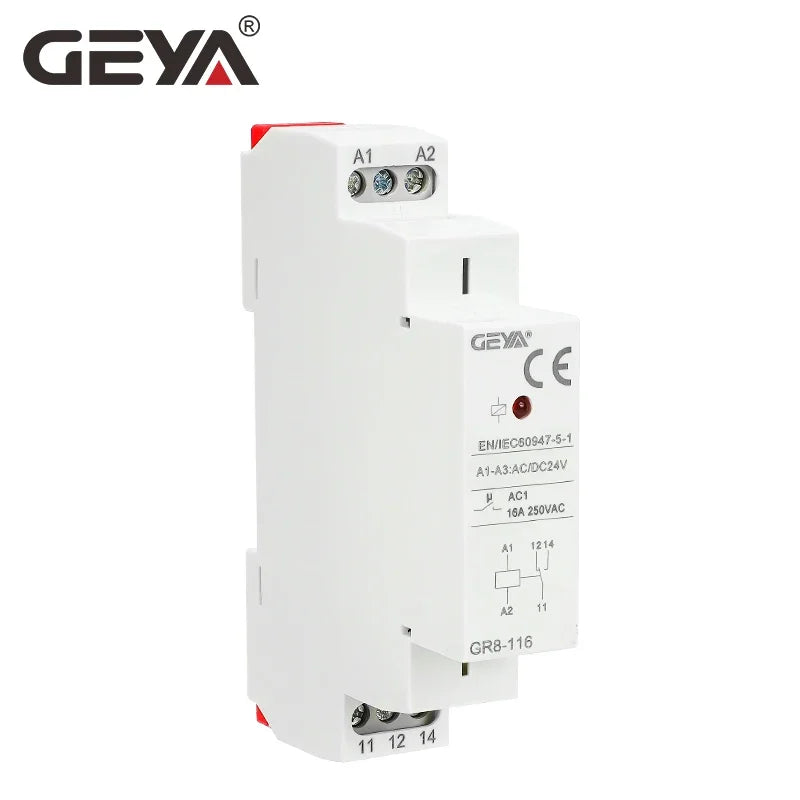

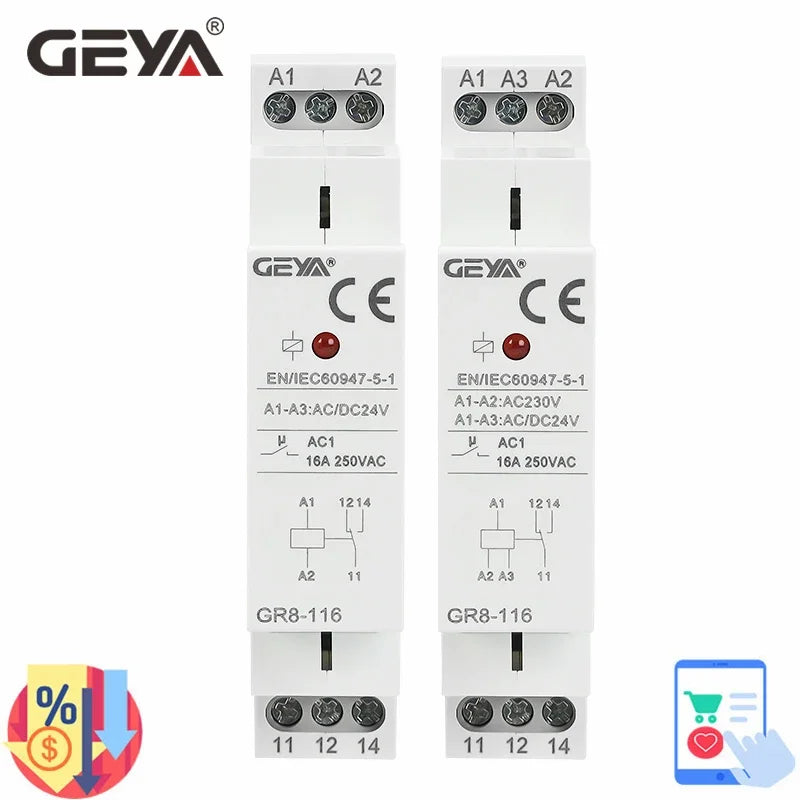

Product Name: GR8-116 Intermediate Relay

Protect Feature: Sealed

Rated Current: 16A

Rated Frequency: 50/60Hz

Theory: Voltage relay

Use: Protective

Voltage: 12V,AC/DC12V,24V,48V,110V,230V

is_customized: Yes

semi_Choice: yes

Tips: This link is for GR8-116-16A 1SPDT Intermediate Relay Auxiliary Relay, if you need others, please click here, thanks!

General

Applications
-intermediate relay used for switching larger load output, strengthen or multiplying contacts of the existing device.
Function Features

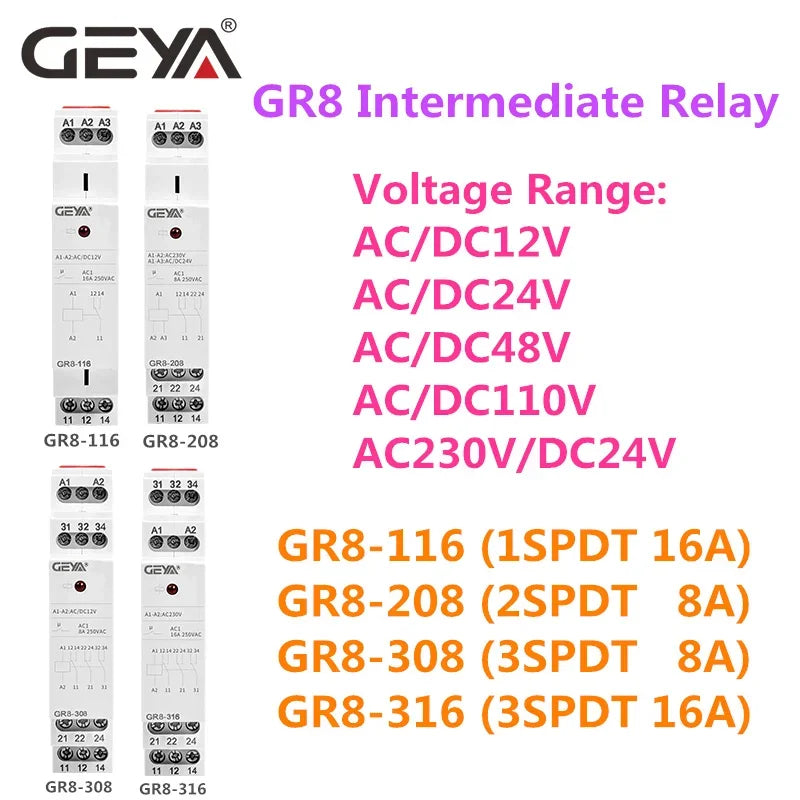

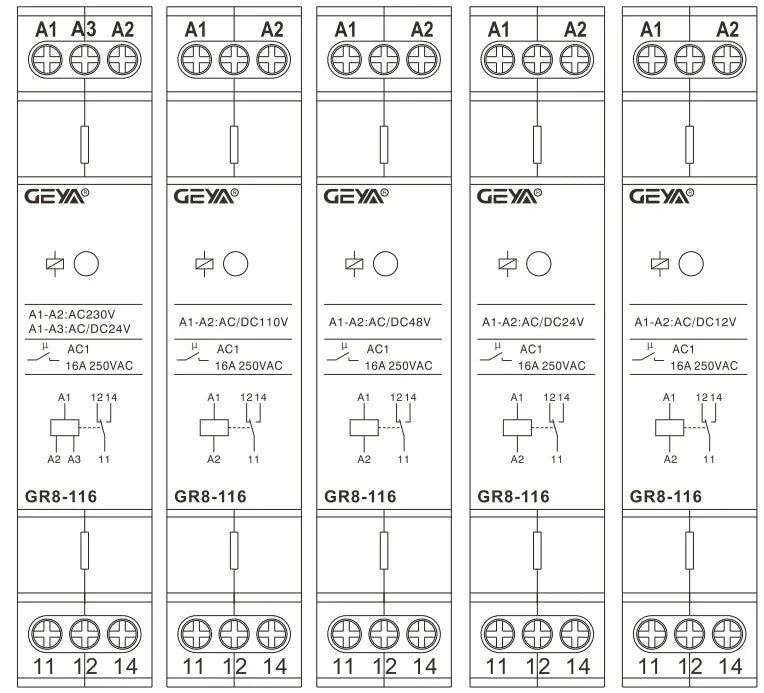

-Voltage range: AC/DC12V,24V,48V,110V,AC230V.
-relays GR8-316 enable connection to a 3-phase circuit.
- Relay status is indicated by LED.

- 1-MODULE,DIN rail mounting.

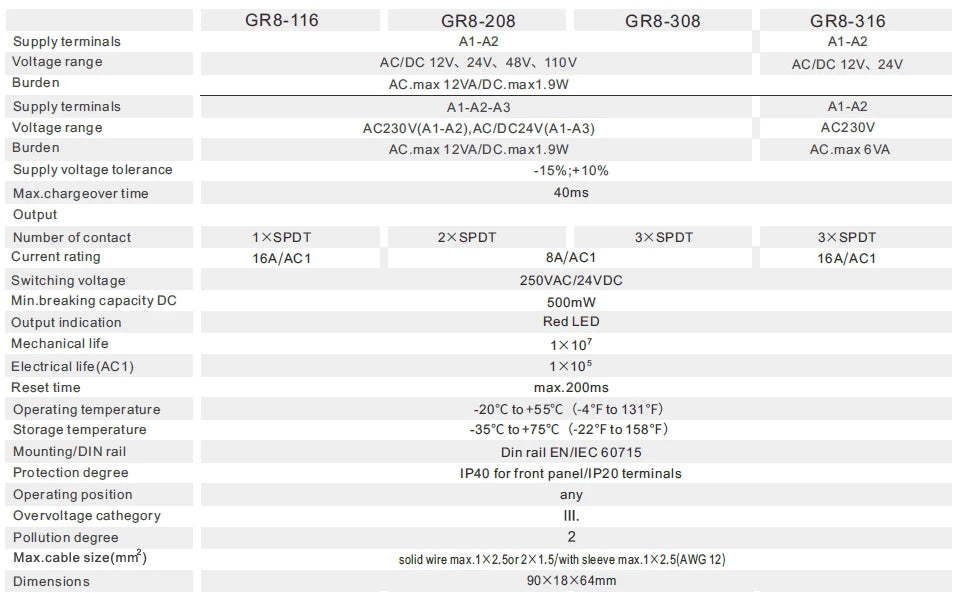

Technical Data
