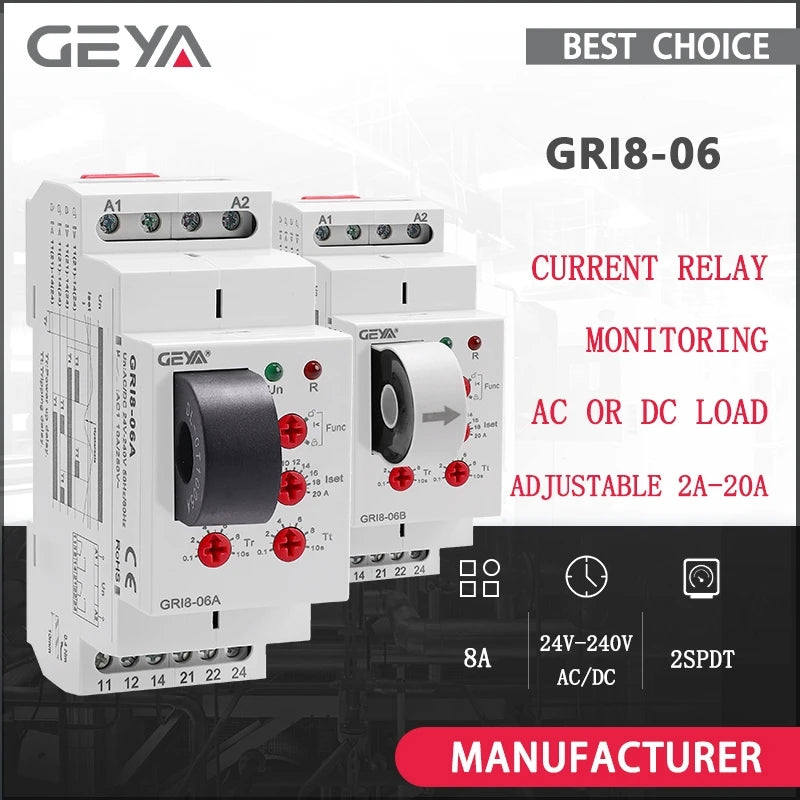

GEYA GRI8-06 DC Current Sensor Relay 18mm Width 2CO 8A AC/DC Current Testing Relay 24V-240V Wide Range

GEYA GRI8-06 DC Current Sensor Relay 18mm Width 2CO 8A AC/DC Current Testing Relay 24V-240V Wide Range

$96.84

$96.84 $0.00

Description

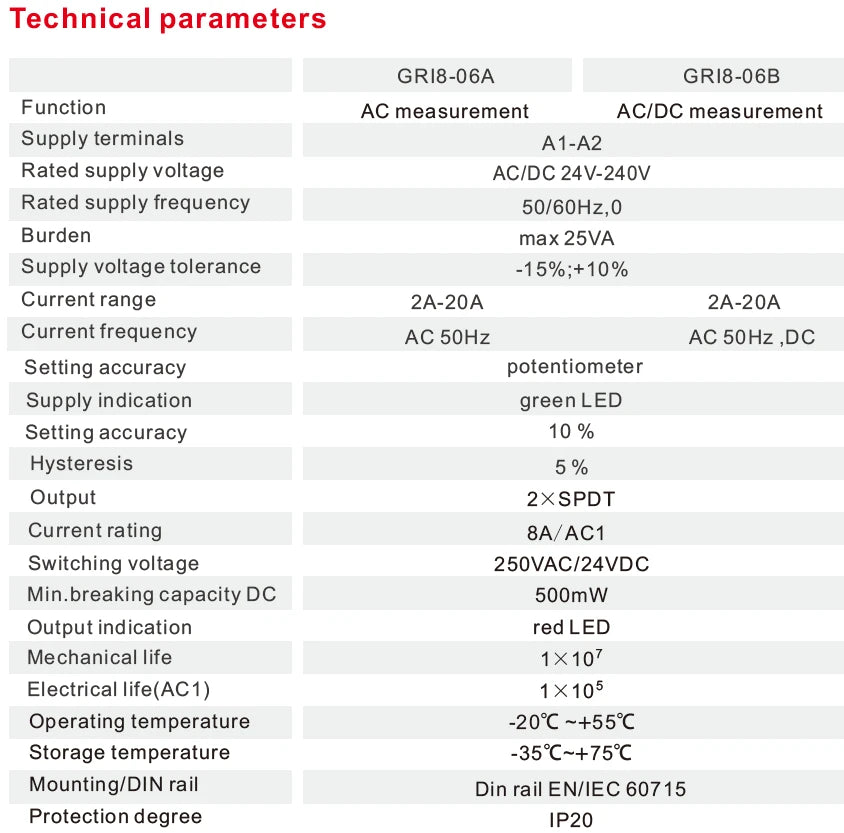

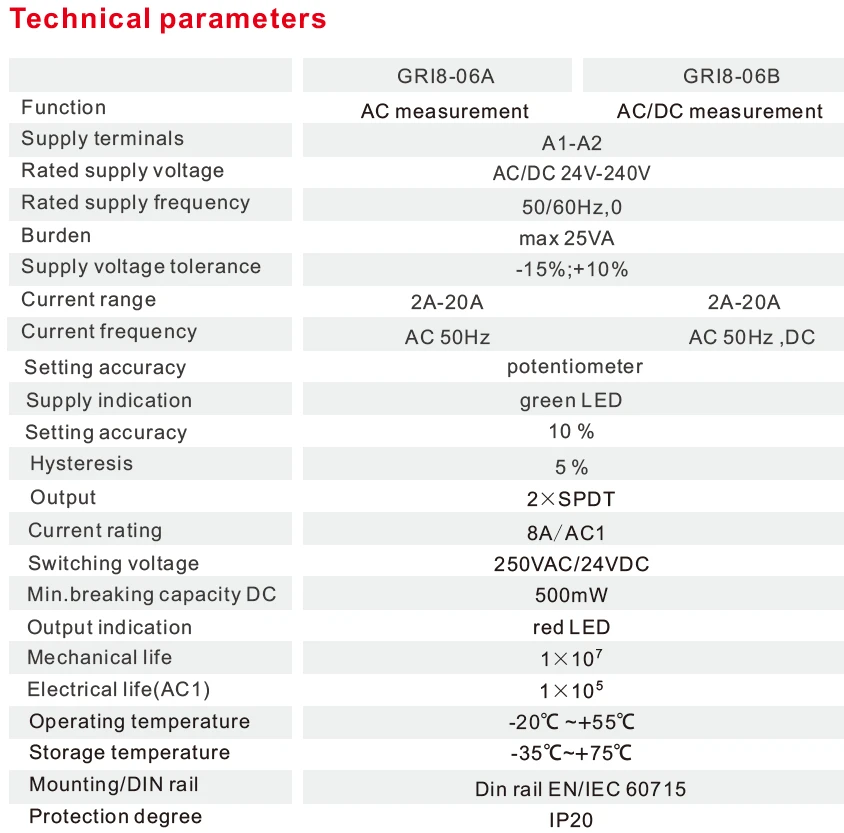

SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

Current Monirting Range: 2A-20A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Over current & under current

GRI8-06A: AC Current Measurement

GRI8-06B: AC/DC Current Measurement

High-concerned chemical: none

Model Number: GRI8-06 Current Monitoring Relay

Origin: Mainland China

Output Contact: 2SPDT

Power Source: Ac,DC

Product Name: GRI8-06 Current Monitoring Relay

Protect Feature: Sealed

Rated Current: 8A/AC1

Rated Frequency: 50/60Hz

Rated Voltage: AC/DC24-240V

Theory: Time Relay

Use: General Purpose

Voltage: 220V

is_customized: Yes

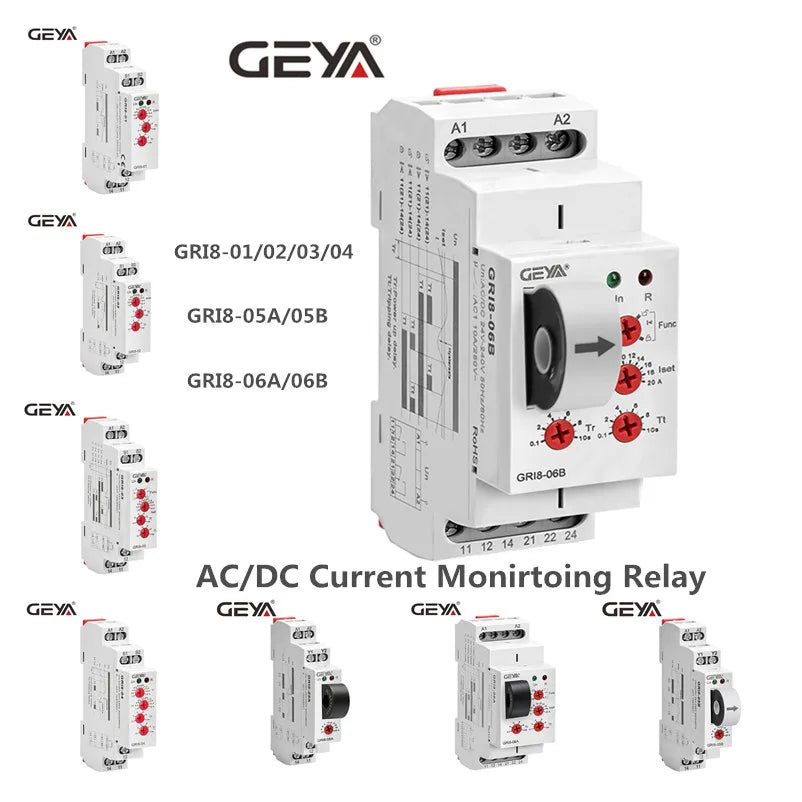

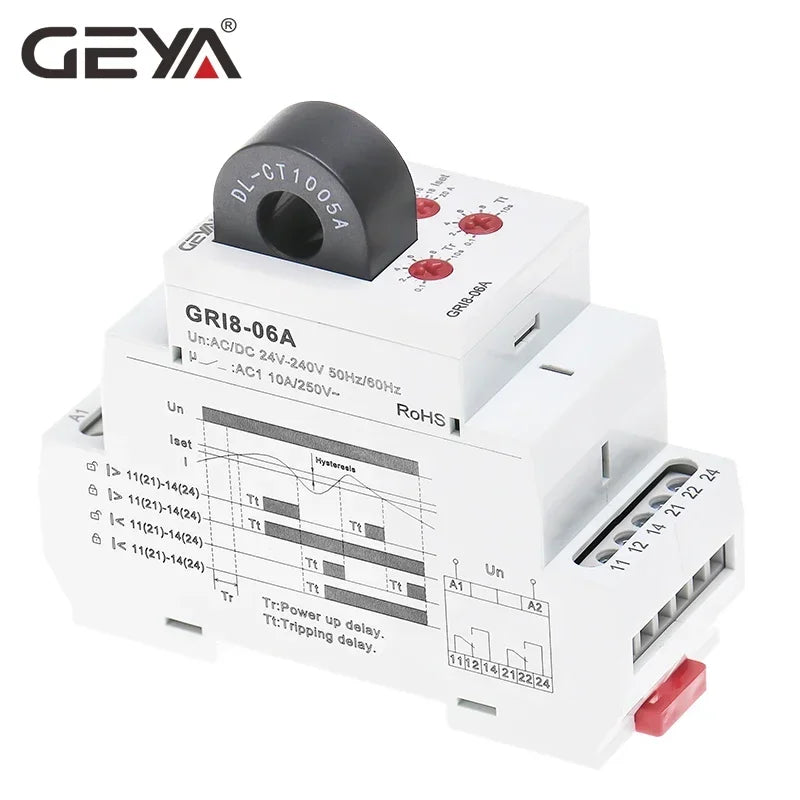

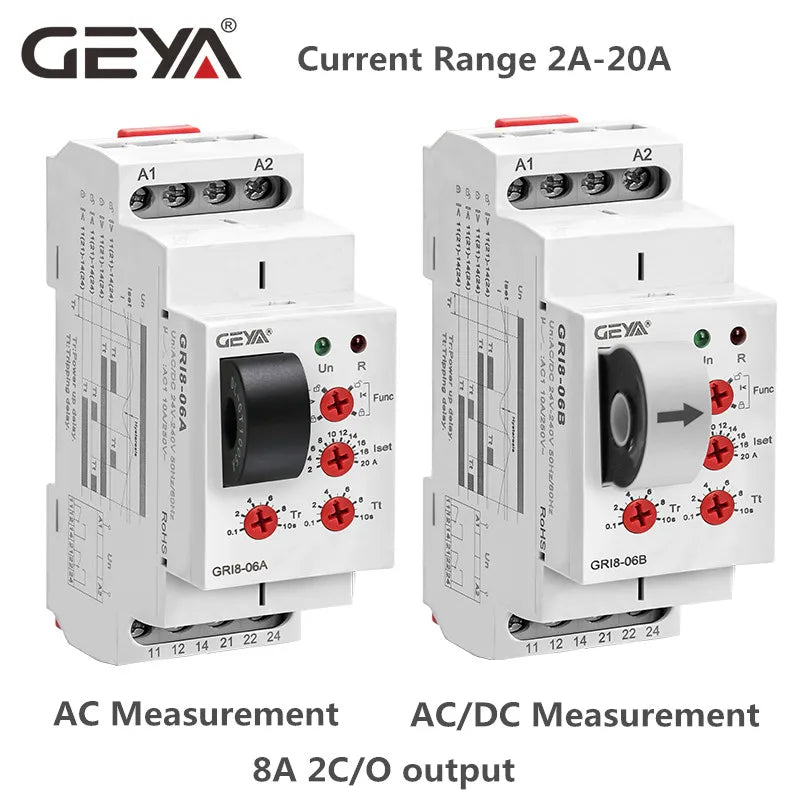

GEYA GRI8-06 Current Sensor Relay 18mm width 2CO 8A AC/DC Current Testing Relay 24V-240V Wide Range

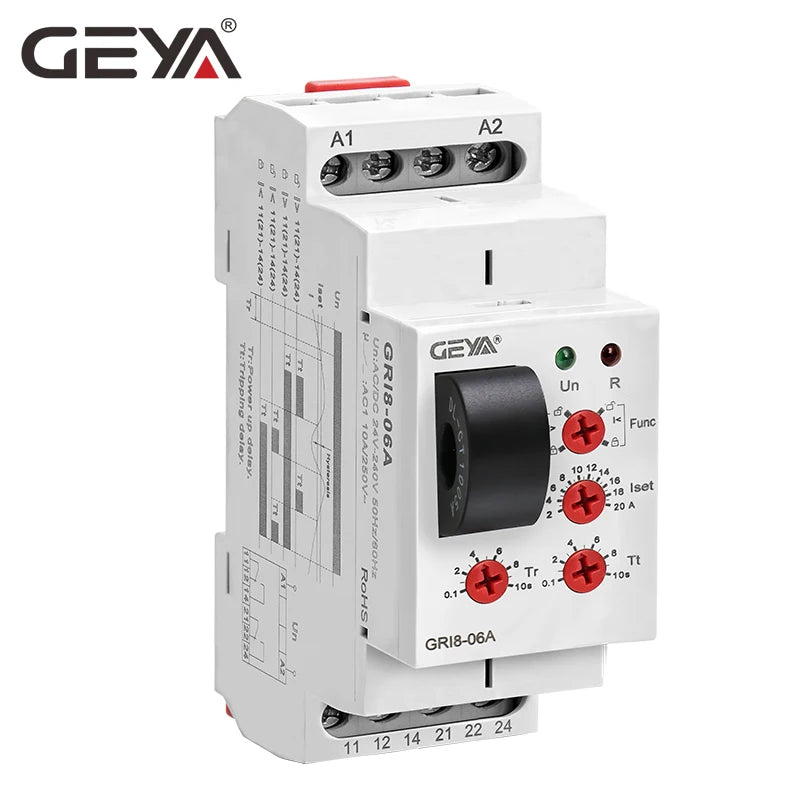

GRI8-06A AC Current Measurement 2-20A

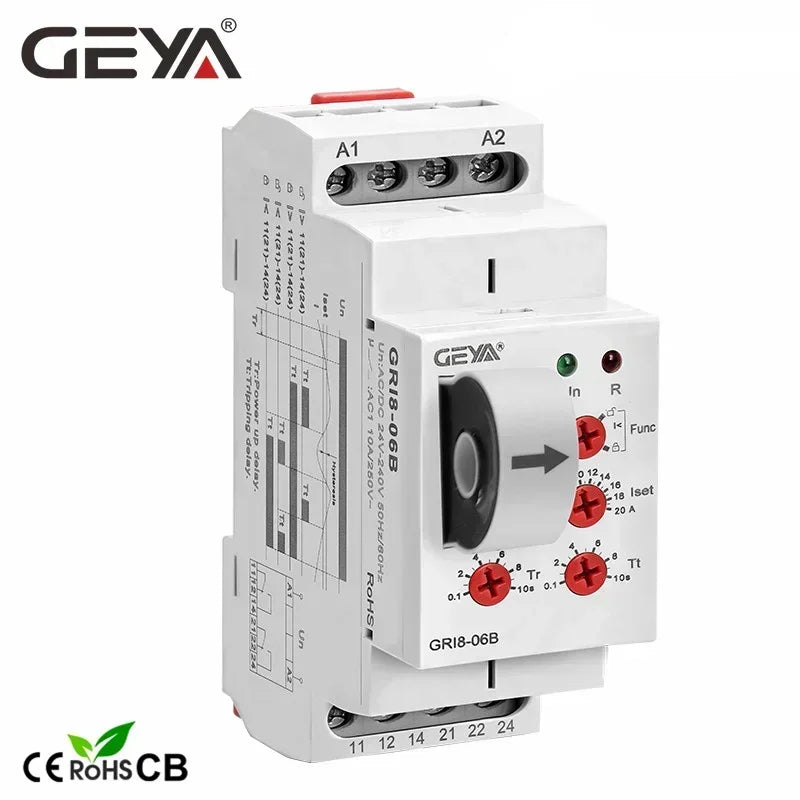

GRI8-06B AC/DC Current Measurement 2-20A

If you need other products, please visit GEYA Official Store, we are manufacturer!

General

Applications
-Serves for monitoring of heating in rail-switches, heating cables, consumption of one-phase motors, indicates current flow.

Function Features

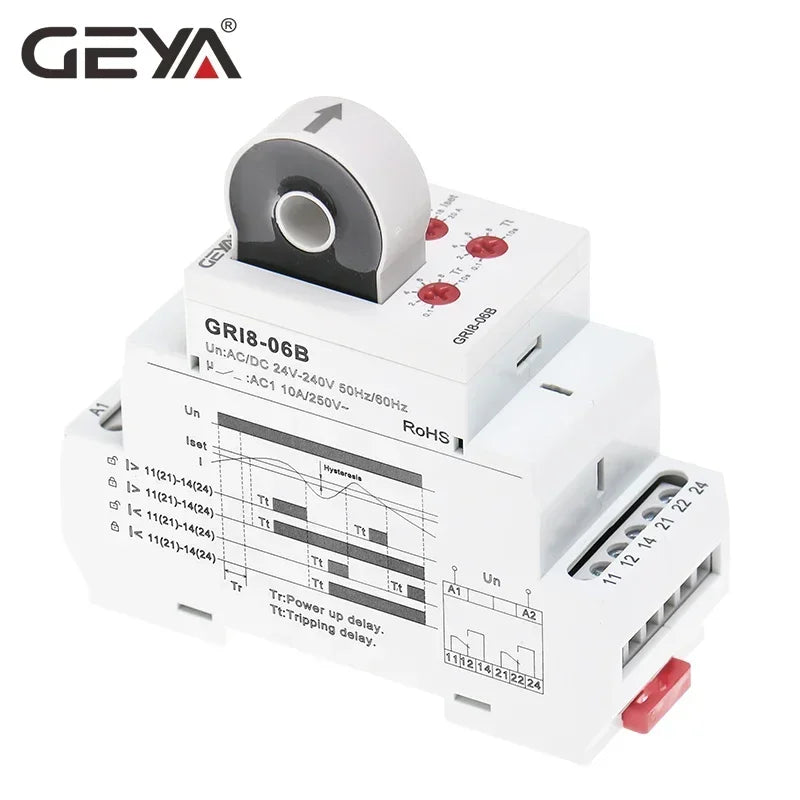

- Through center design, no need to disconnect the current circuit, through center installation is convenient to use.
-  Over / under current monitoring mode can be set by knob.
-  With AC and DC universal testing specifications optional.
-  Isolation current transformer is adopted, and external current transformer can be connected to expand the monitoring current range.
-  2 C/O output .
-  Universal supply AC/DC 24 - 240 V.
-  Relay status is indicated by LED.
-  1-MODULE,DIN rail mounting.
