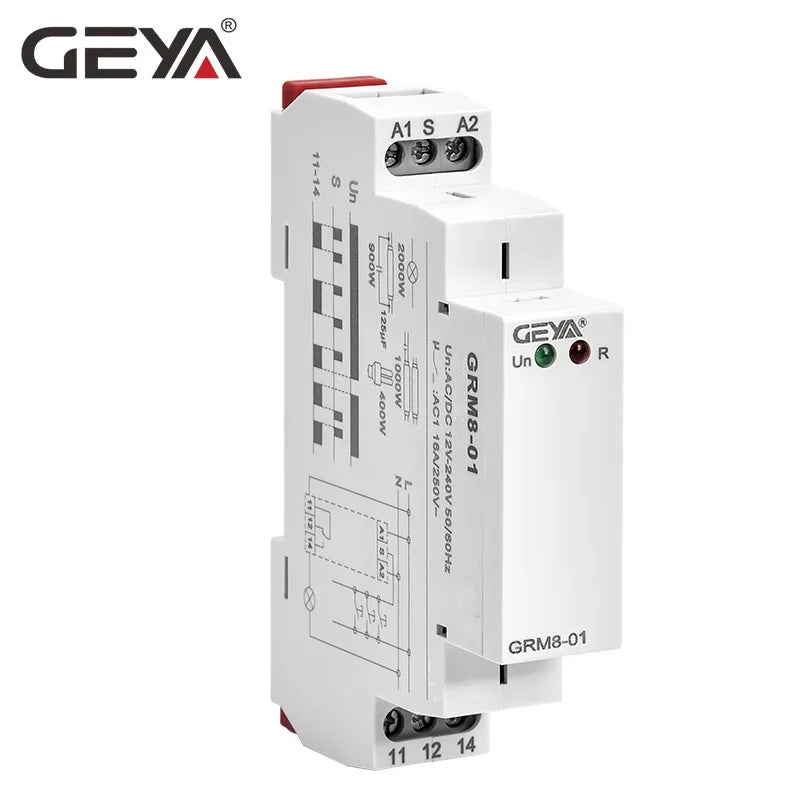

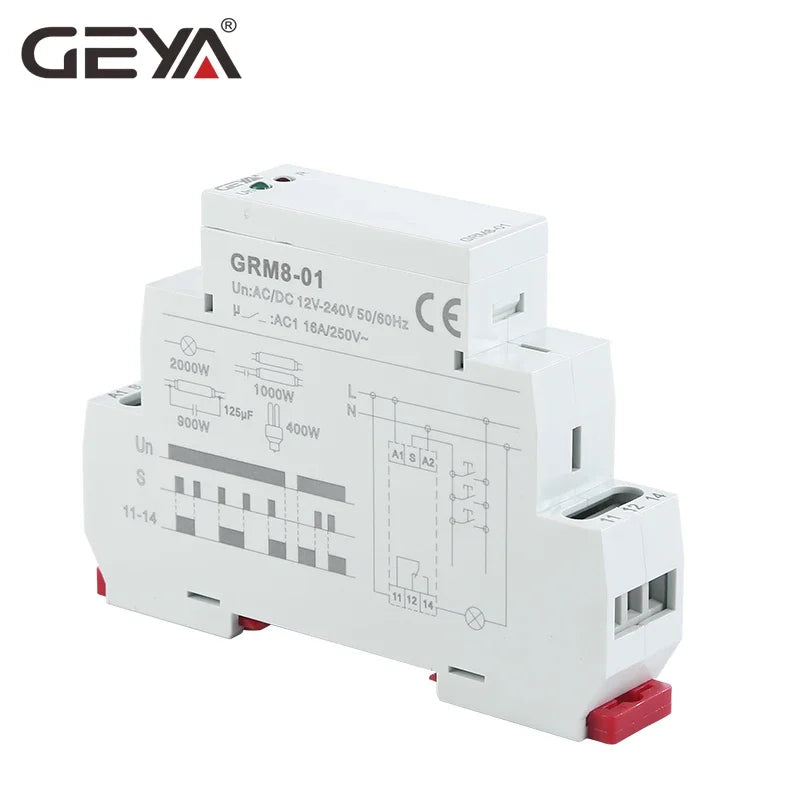

GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V

GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V

GRM8-01 ACDC12V-240V / China Mainland
$84.78
$84.78 $0.00
Skip to product information
GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
  • GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V
$84.78
$84.78 $0.00
Size
Ships FromChina Mainland
Description

SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Contact Arrange: SPDT

Contact Load: Low Power

Control Terminal: A1-S

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Latching Relay Memory Relay Impulse Relay

High-concerned chemical: none

Model Number: GRM8 Latching Relay

Origin: Mainland China

Output Contact: 1SPDT OR 2SPDT

Power Source: Ac,Ac

Product Name: GRM8-01 OR GRM8-02 Latching Relay

Protect Feature: Sealed

Rated Current: 16A

Rated Frequency: 50/60Hz

Theory: Time Relay

Use: General Purpose

Voltage: 220V,AC230V OR AC/DC12-240V

is_customized: Yes

GEYA GRM8 Din Rail Electronic Latching Relay Memory Relay Impulse Relay SPDT 16A Step Relay AC230V OR AC/DC12-240V

General

Applications

   -latching relay, controlled by buttons from several loacations can replace three way switches or cross bar switchs thanks to control by buttons(un-limited number,connected inparallel by 2 wires),installation gets more transparent and faster for mounting.

Function Features

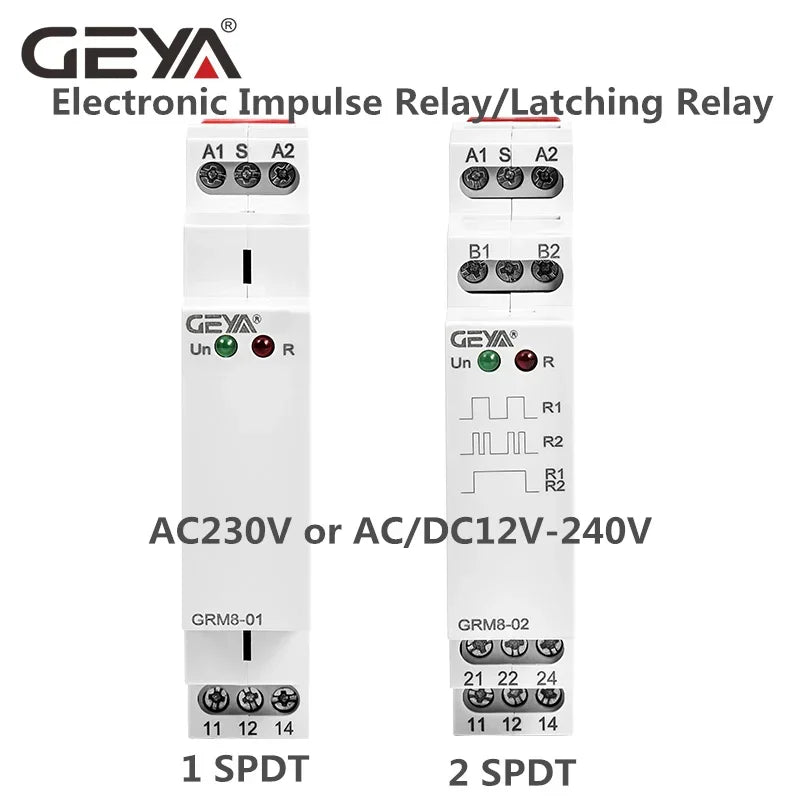

   - Voltage range: AC230V OR AC/DC12V-240V clamp terminals.

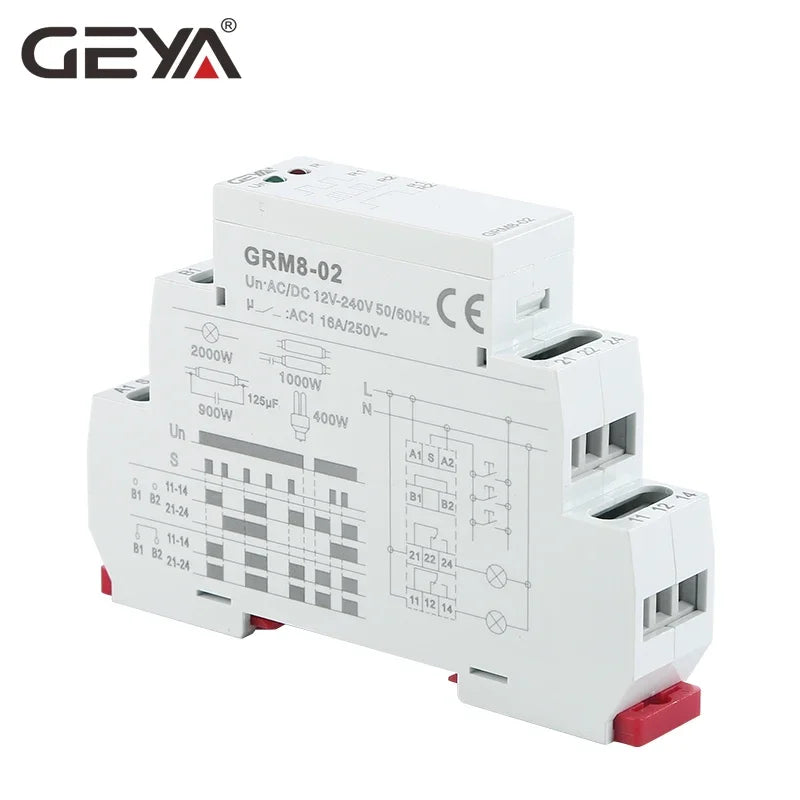

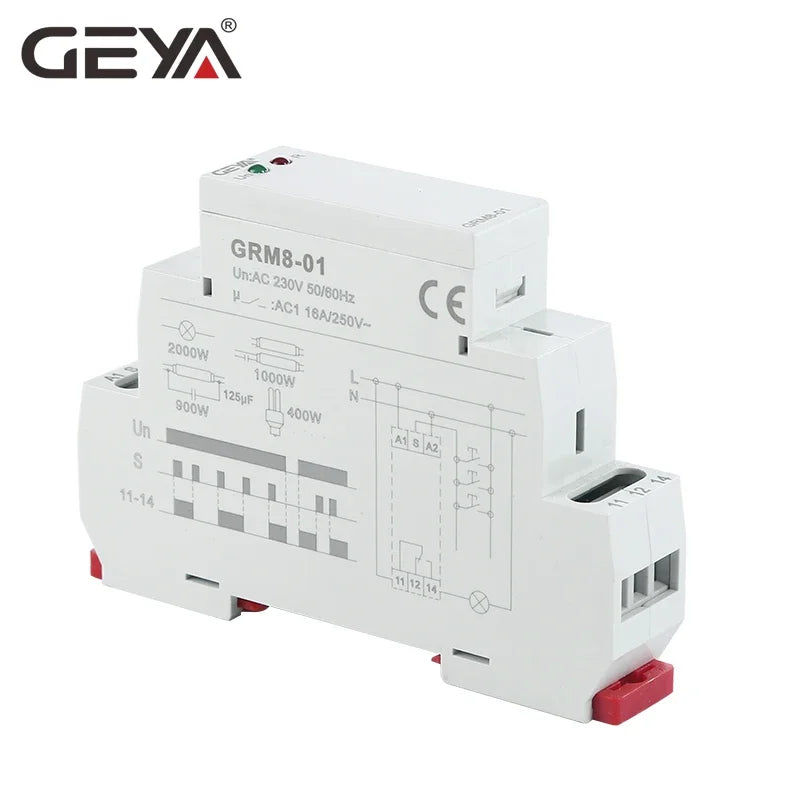

- Output: GRM8-01= 1SPDT or GRM8-02 = 2SPDT 16A/AC1

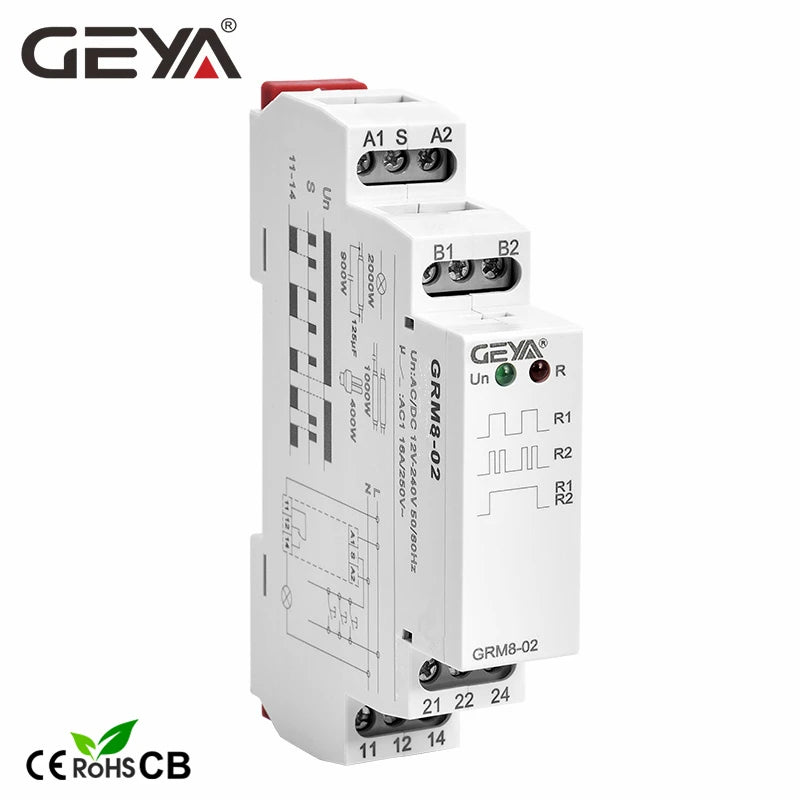

   - Relay status is indicated by LED.
   - 1-MODULE,DIN rail mounting.

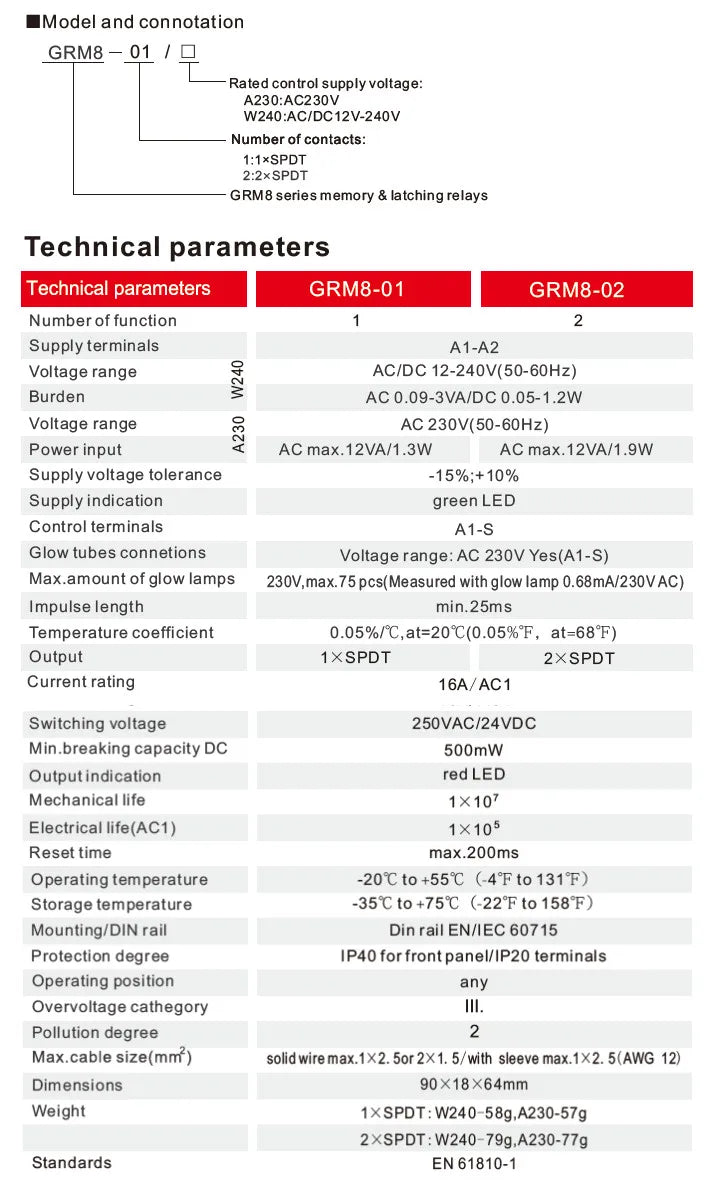

Technical Data
