SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Cycler beginning with Pulse & Pause

High-concerned chemical: none

Model Number: GRT6-S Asymmetric Cycler Relay

Origin: Mainland China

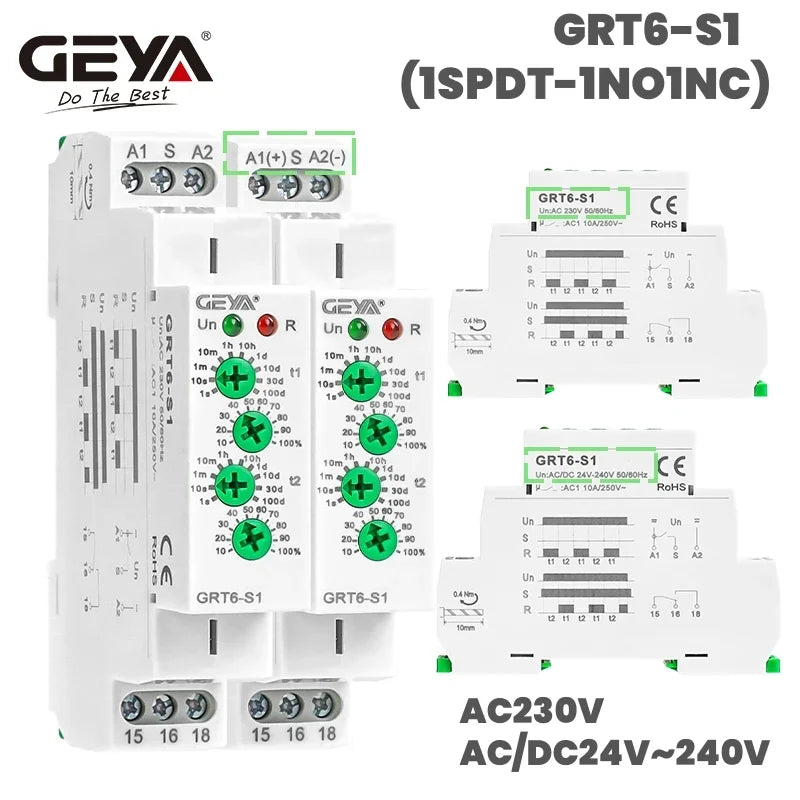

Output Contact: 1SPDT OR 2SPDT

Power Source: Ac,DC

Product Name: GRT6-S Asymmetric Cycler Relay

Protect Feature: Sealed

Rated Current: 10A

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-100days (in 10 alternate)

Use: General Purpose

Voltage: 24V,AC230V OR AC/DC24-240V

is_customized: Yes

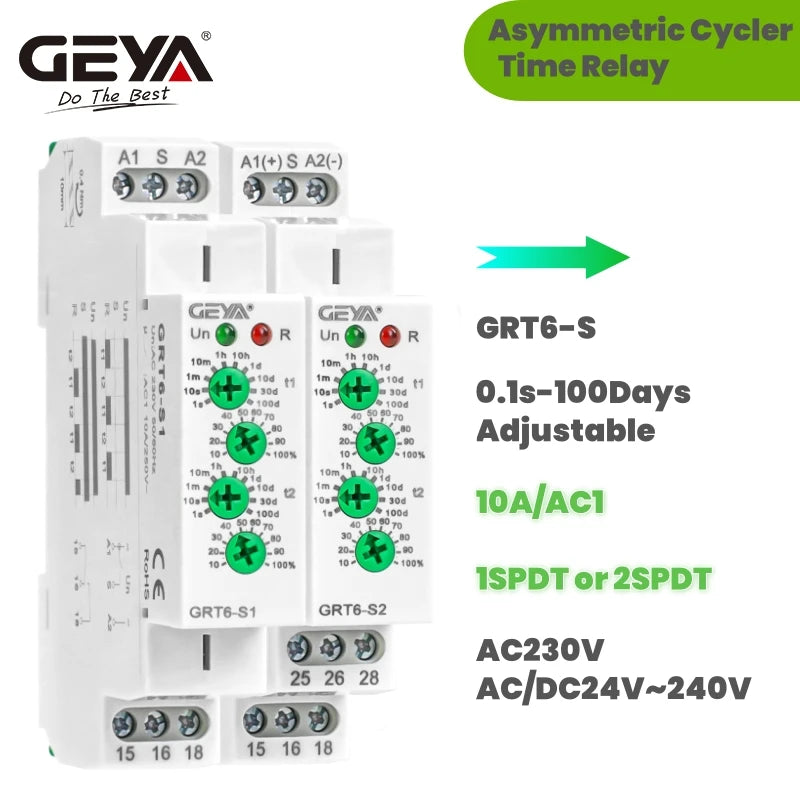

GEYA GRT6-S Cycle Time Delay Relay AC/DC24V-240V Asymmetric Relay SPDT 220V 10A Electronic Repeat Relay

General

Applications
-It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc.
GRT6-S: one group or two groups of contacts working in a cycle at the same time"

Function Features
-Voltage AC230V or AC/DC24V-240V

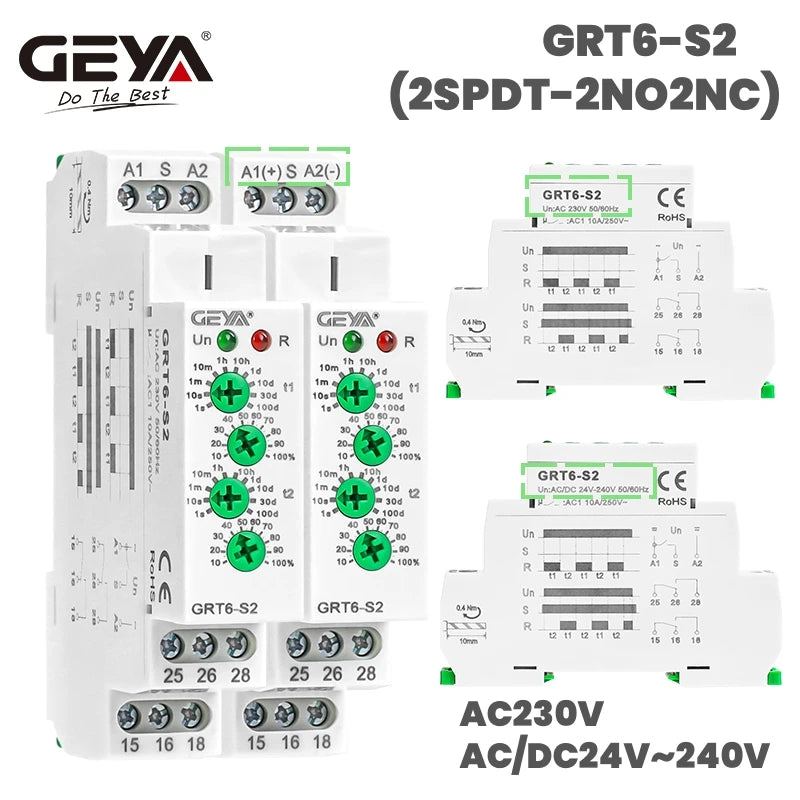

-Output 1SPDT or 2SPDT  (10A/AC1)

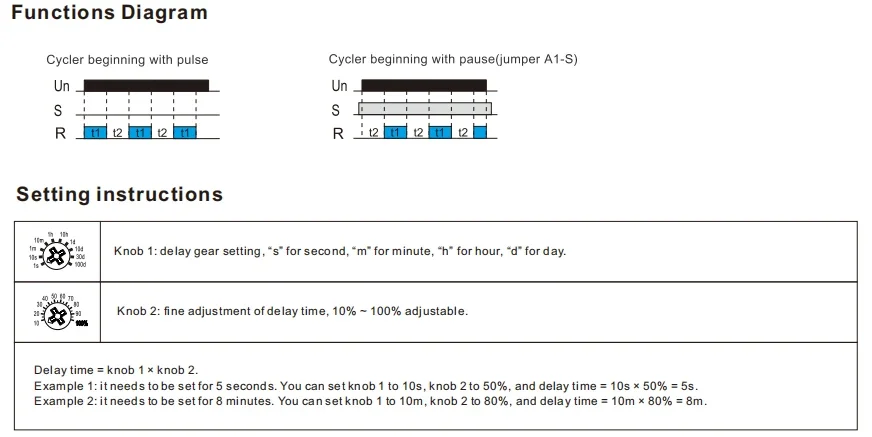

-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause
-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1 s - 100 days devided into 10 time ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h/ 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /10 days - 100 days).
-Relay status is indicated by LED.

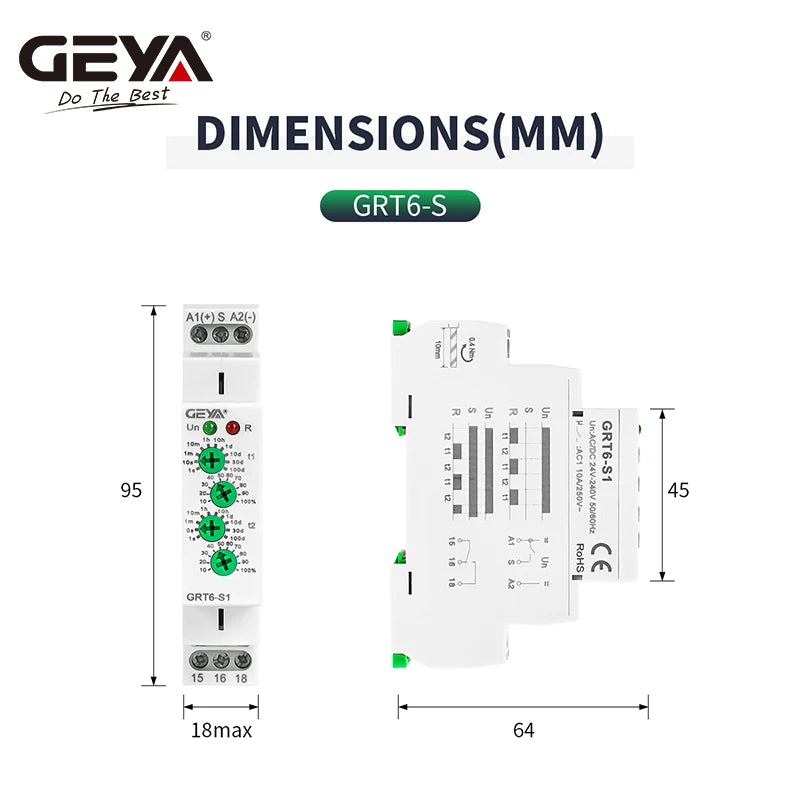

-1-MODULE,DIN rail mounting.

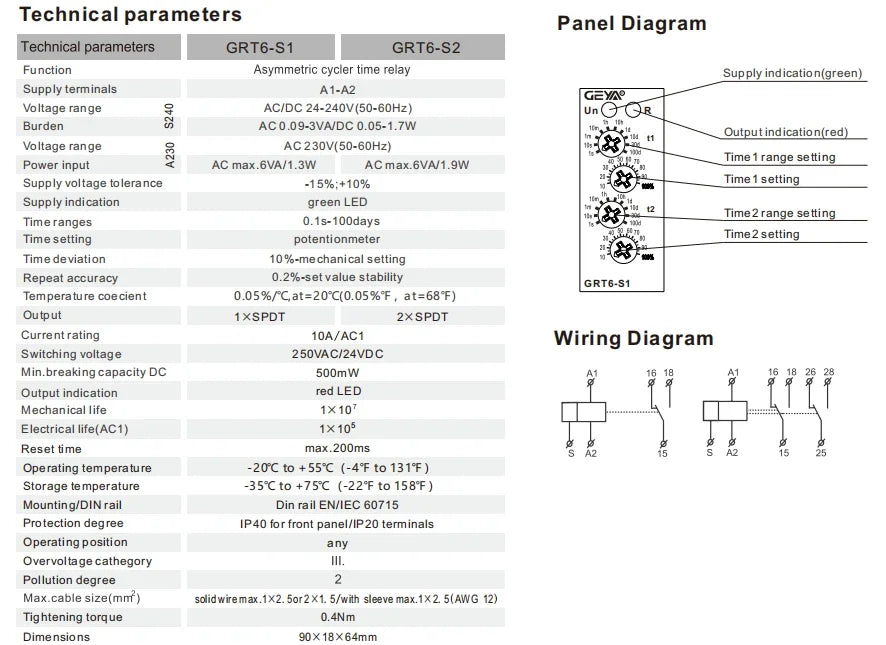

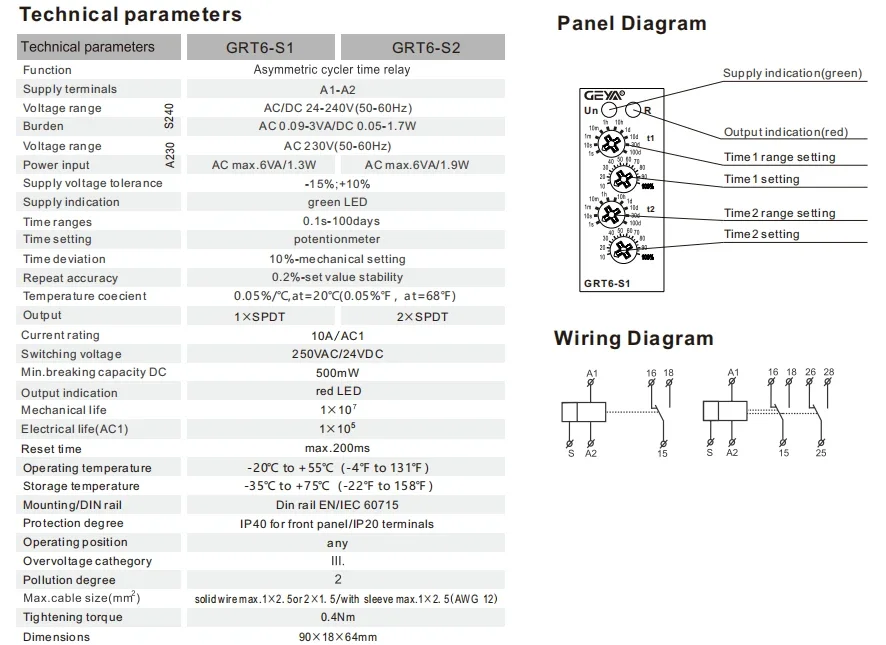

Technical Data
