SPECIFICATIONS

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Delay on Time Relay

High-concerned chemical: none

Model Number: GRT8-A on Delay Timer Relay

Origin: Mainland China

Output Contact: 1SPDT OR 2SPDT

Power Source: DC

Product Name: GRT8-A Single Function Time Relay

Protect Feature: Sealed

Rated Current: 16A/AC1

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-10days, ON, OFF (in 10 alternate)

Use: General Purpose

Voltage: 220V,AC230V OR AC/DC12-240V

is_customized: Yes

semi_Choice: yes

General
GEYA GRT8-A Electronic 16A SPDT ON Delay Timer Relay Time Relay 12V 24V 220V DIN Rail Type AC230V OR AC/DC12-240V

TIPS: This page is for ON DELAY Function GRT8-A, If you need delay off function time relay GRT8-B Model, please Click Here!

Applications
-Suitable for applications where function and time requirements are known.
-Time switch , possible to be used for pump decay time after switching  heating off , switching of fans.

Function Features

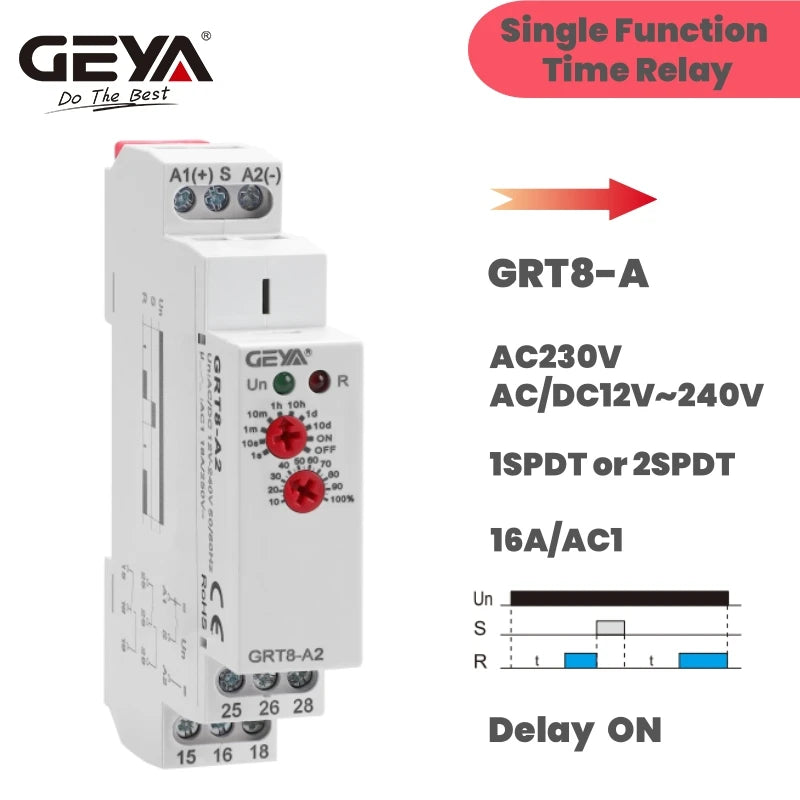

- GRT8-A Delay on Function
- Support Wide Range Voltage: AC/DC12-240V or AC230V

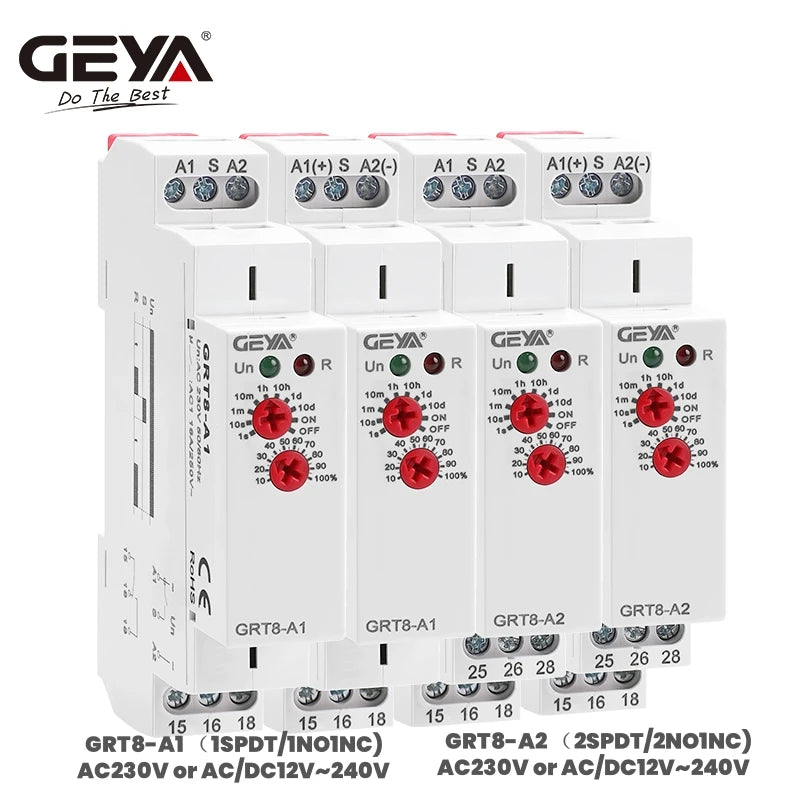

- Output Contact: 1SPDT(1NO1NC) or 2SPDT(2NO2NC)
- Time scale 0.1 s - 10 days divided into 10 ranges, time setting by a potentiometer.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day,1-10day, only ON, only OFF
- Relay status is indicated by LED.
-1 MODULE 18mm,DIN rail mounting.

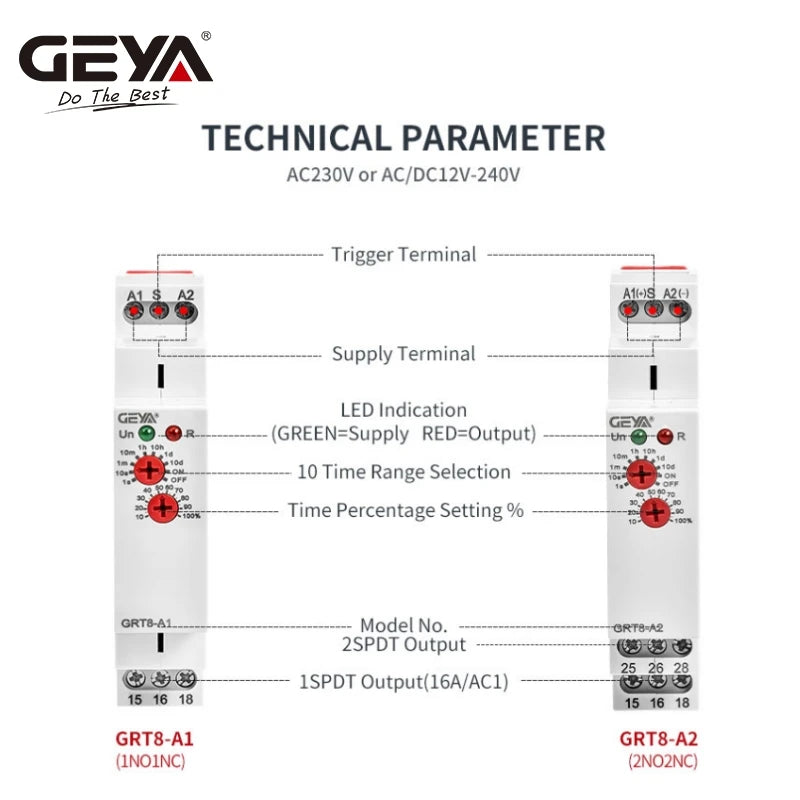

Technical Data

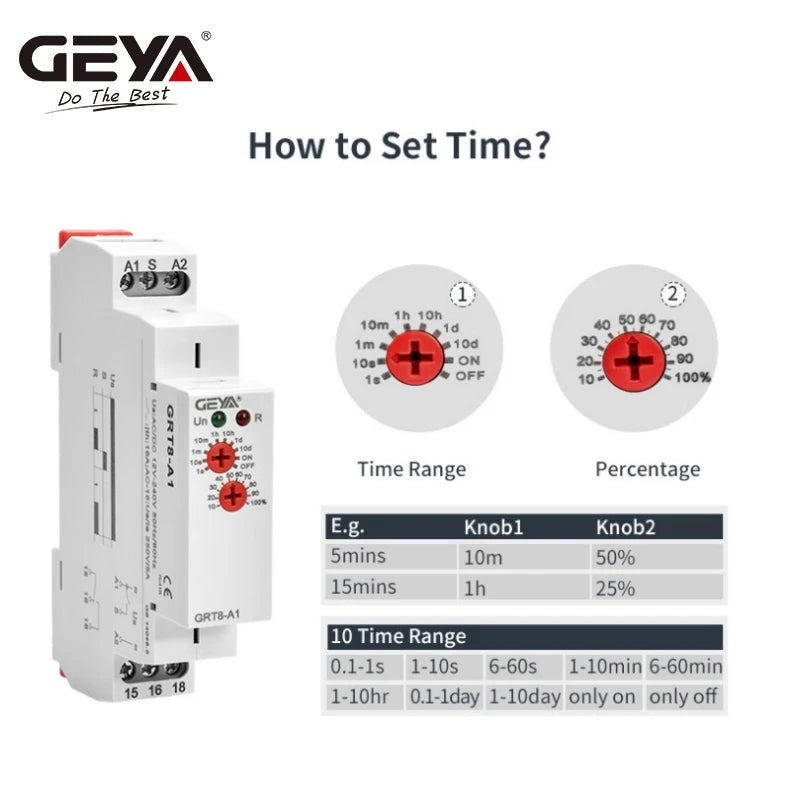

How to Set Time?
