SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Delay off Time Relay

High-concerned chemical: none

Model Number: GRT8-B OFF DELAY TIME RELAY

Origin: Mainland China

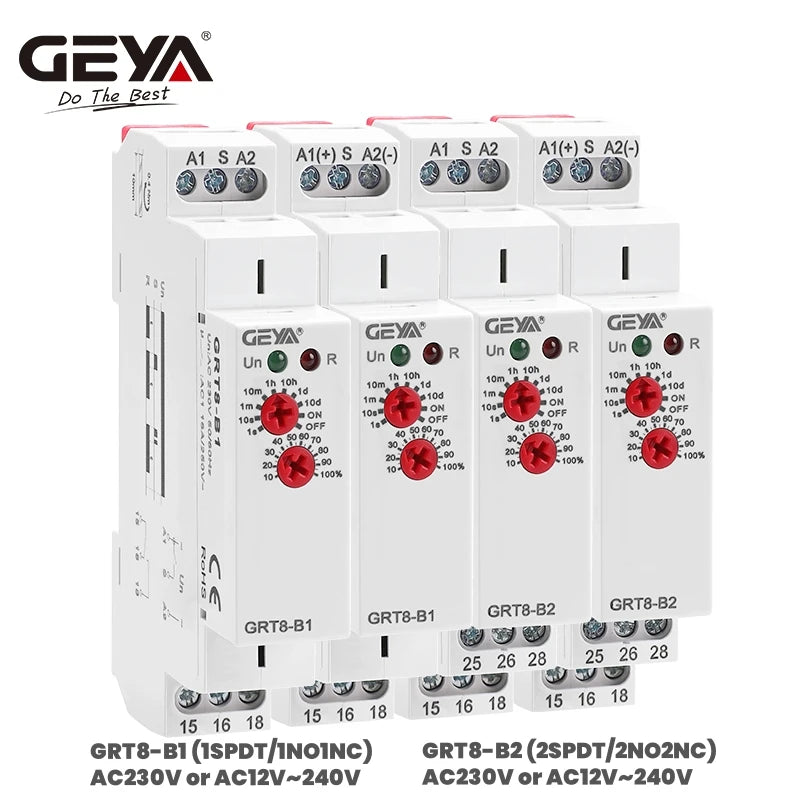

Output Contact: 1SPDT OR 2SPDT

Power Source: Ac,Ac

Product Name: GRT8-B Single Phase Time Relay

Protect Feature: Sealed

Rated Current: 16A/AC1

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-10days, ON, OFF (in 10 alternate)

Use: General Purpose

Voltage: 220V,AC230V OR AC/DC12-240V

is_customized: Yes

semi_Choice: yes

GEYA GRT8-B Off Delay Time Relay Electronic 16A AC230V OR AC/DC12-240V with CE CB Certificate

General



TIPS: This page is for Off DELAY Function GRT8-B,If you need delay on function time relay GRT8-A Model, please Click Here!



Applications
-Suitable for applications where function and time requirements are known.

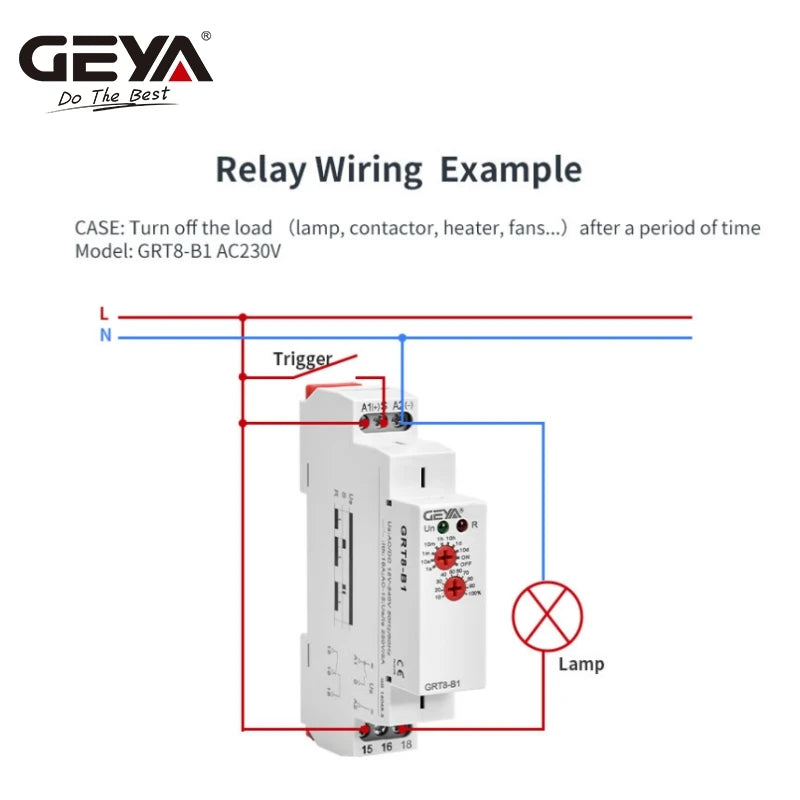

-Time switch , possible to be used for pump decay time after switching  heating off , switching of fans.

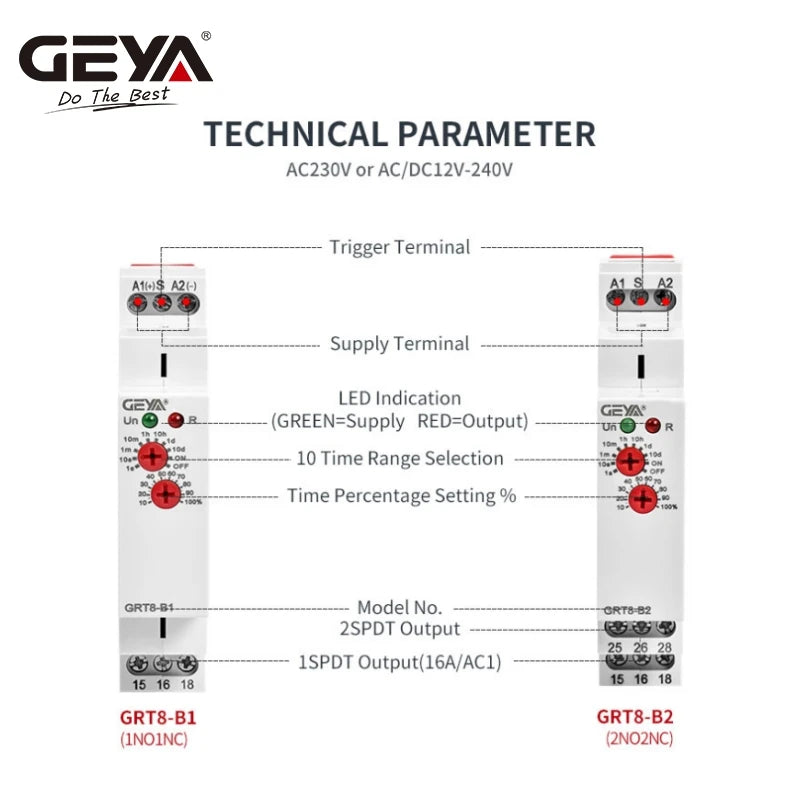

Function Features

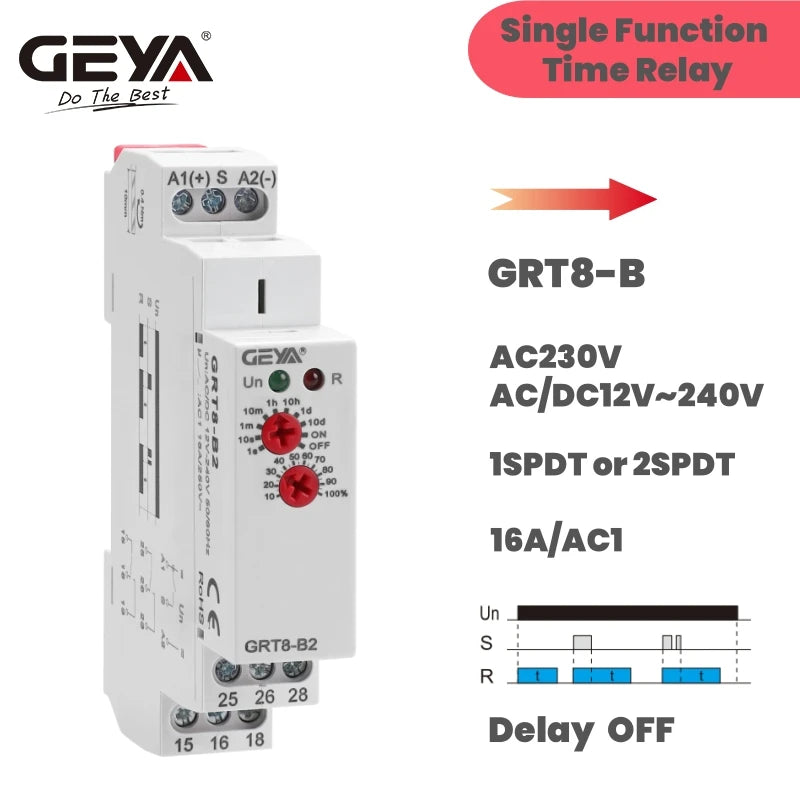

- GRT8-B Delay off Function
- Support Wide Range Voltage: AC/DC12-240V or AC230V
- Output Contact: 1SPDT(1NO1NC) or 2SPDT(2NO2NC)

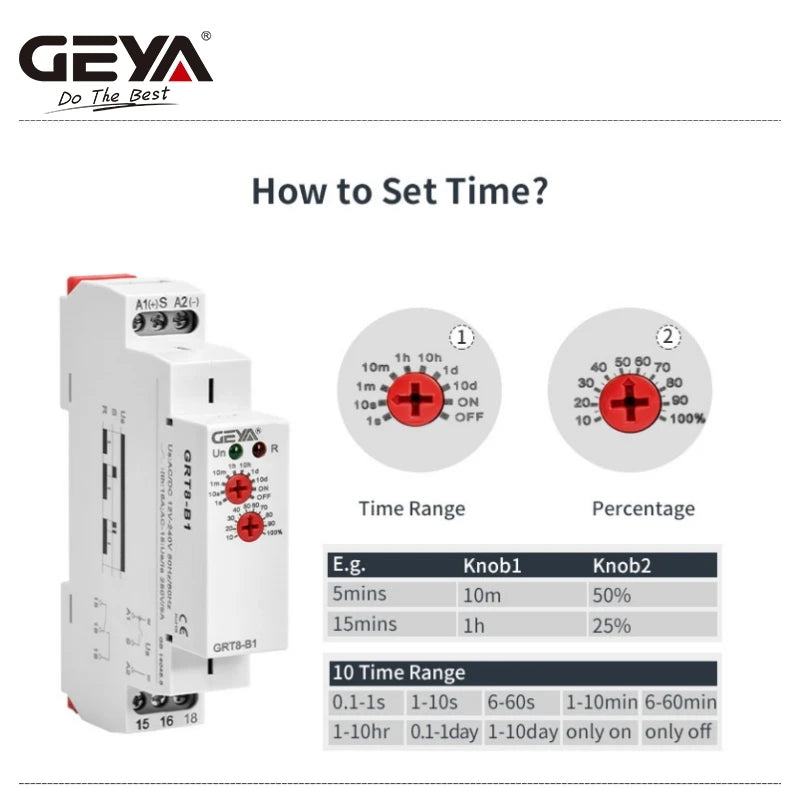

- Time scale 0.1 s - 10 days divided into 10 ranges,time setting by a potentiometer.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day,1-10day, only ON, only OFF
- Relay status is indicated by LED.
-1 MODULE 18mm,DIN rail mounting.
