SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Delay on, Delay off, Interval, Cycle, Single Shot, Latching, Pulse

High-concerned chemical: none

Model Number: GRT8-M Multifunction Time Relay

Origin: Mainland China

Output Contact: 1SPDT OR 2SPDT

Power Source: Ac,Ac

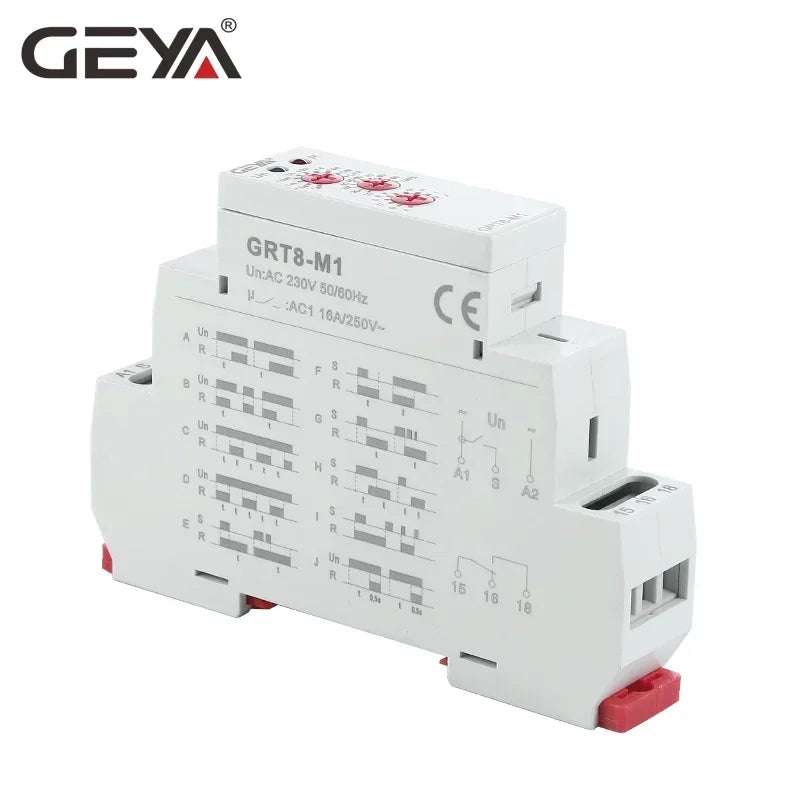

Product Name: GRT8-M1 Multifunction Time Relay

Protect Feature: Sealed

Rated Current: 16A

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-10days (10ranges)

Use: General Purpose

Voltage: 220V,AC230V OR AC/DC12-240V

is_customized: Yes

semi_Choice: yes

GEYA GRT8-M  Din Rail Type Multifunction Time Relay AC220V OR DC12V DC24V DC240V with 10 Functions Timer 16A SPDT

TIPS: This page is for Multi Function Time Relay GRT8-M,If you only need single function time relay GRT8-A/B, delay on or delay off function, please Click Here!

General
Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).

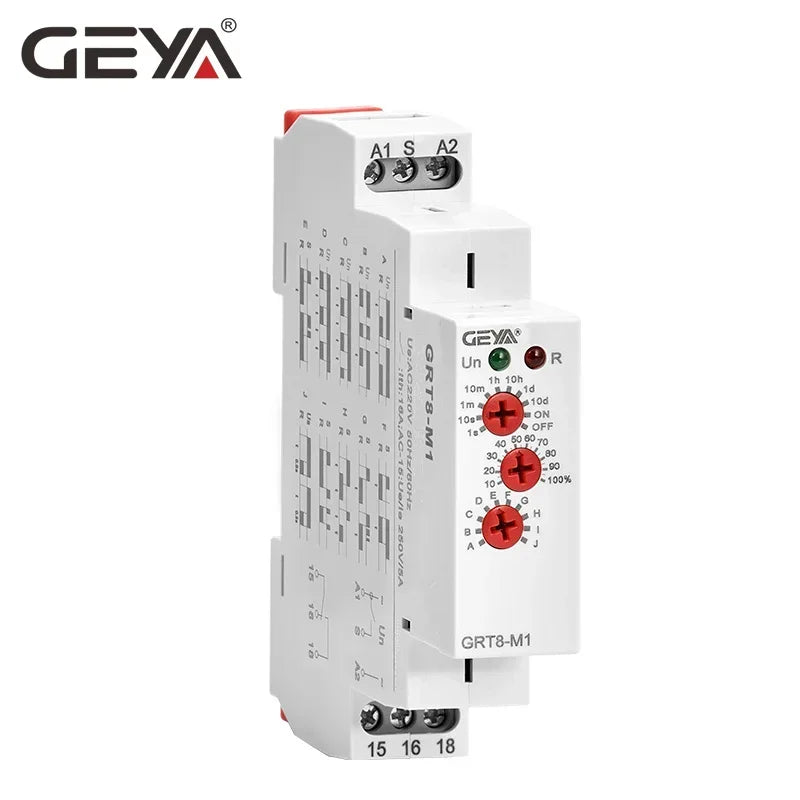

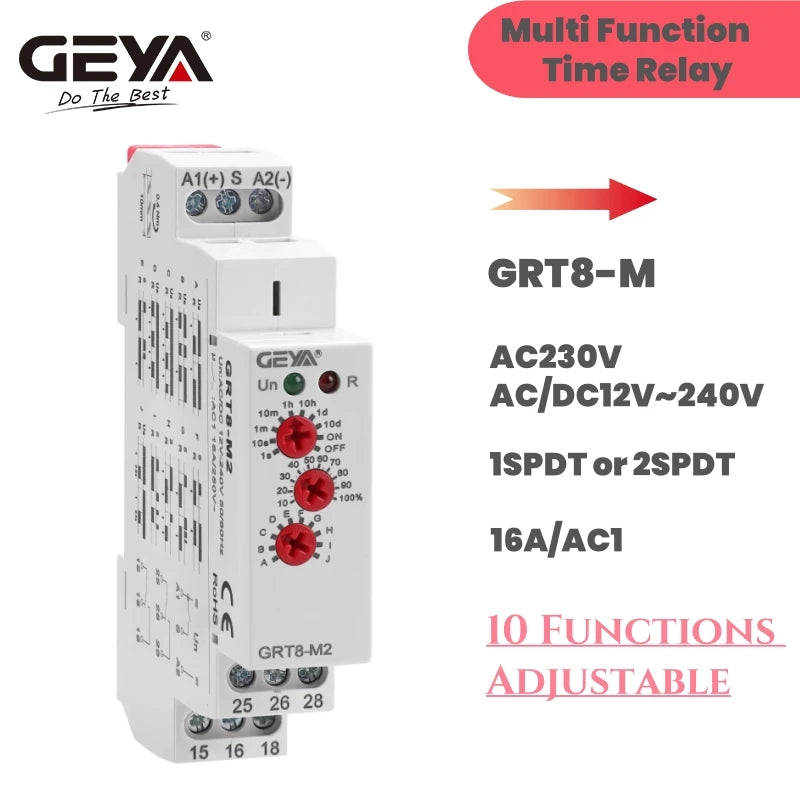

- GRT8-M Multifunction Time Relay
- Voltage Range: AC230V or AC/DC12-240V

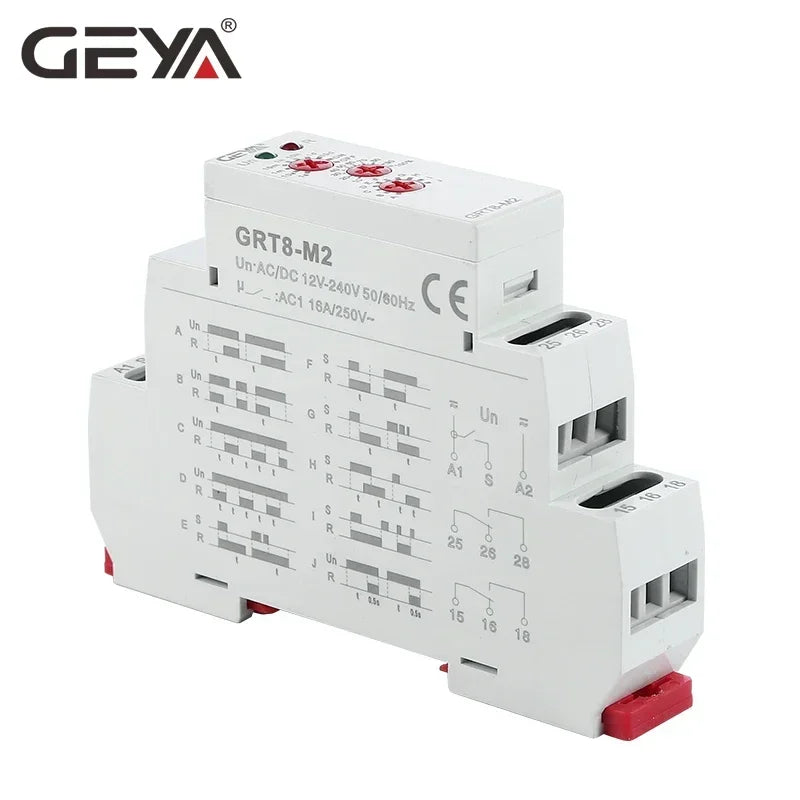

- Output: 16A 1SPDT (GRT8-M1) or 2SPDT (GRT8-M2)

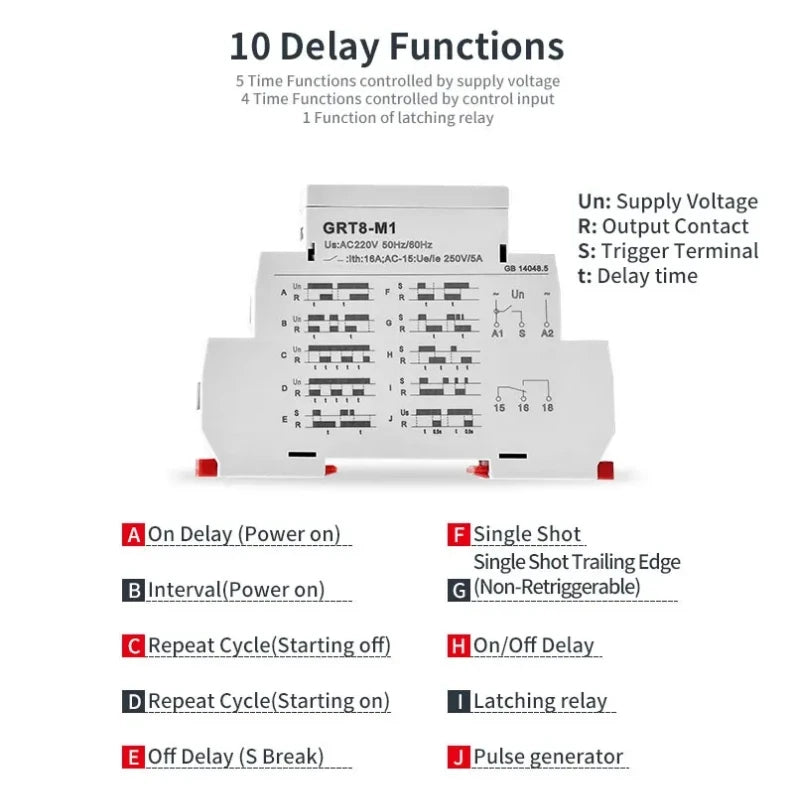

-10 Functions:

  5 time functions controlled by supply voltage  ( A B C D J )

  4 time functions controlled by control input ( E F G H )

  1 function of latching relay  ( I )

-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.

0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off

- 1-MODULE 18mm, DIN rail mounting, convenient install.


How to Set Time?

GRT8-M Time Relay 10 Functions

Wiring Diagram

Wiring Example

Standard Din Rail Size

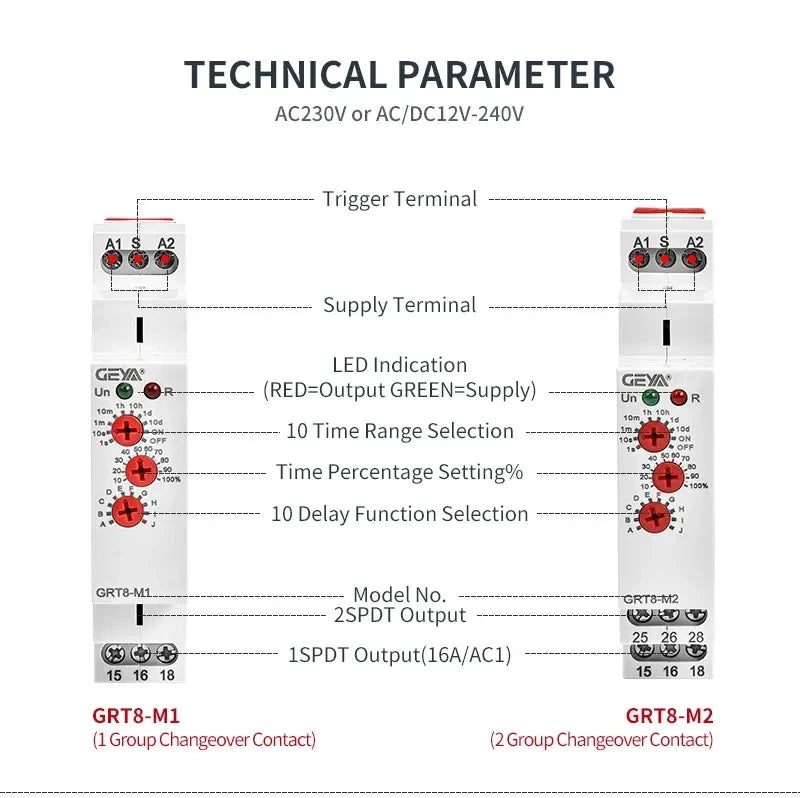

Technical Data
