SPECIFICATIONS

Brand Name: GEYA

Certificate: CE CB

Certification: CE,RoHS

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Cycler beginning with Pulse & Pause

High-concerned chemical: none

Model Number: GRT8-S Asymmetric Cycler Relay

Origin: Mainland China

Output Contact: 1SPDT OR 2SPDT

Power Source: DC

Product Name: GRT8-S Asymmetric Cycler Relay

Protect Feature: Sealed

Rated Current: 16A

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-100days (in 10 alternate)

Use: General Purpose

Voltage: 12V,AC230V OR AC/DC12-240V

is_customized: Yes

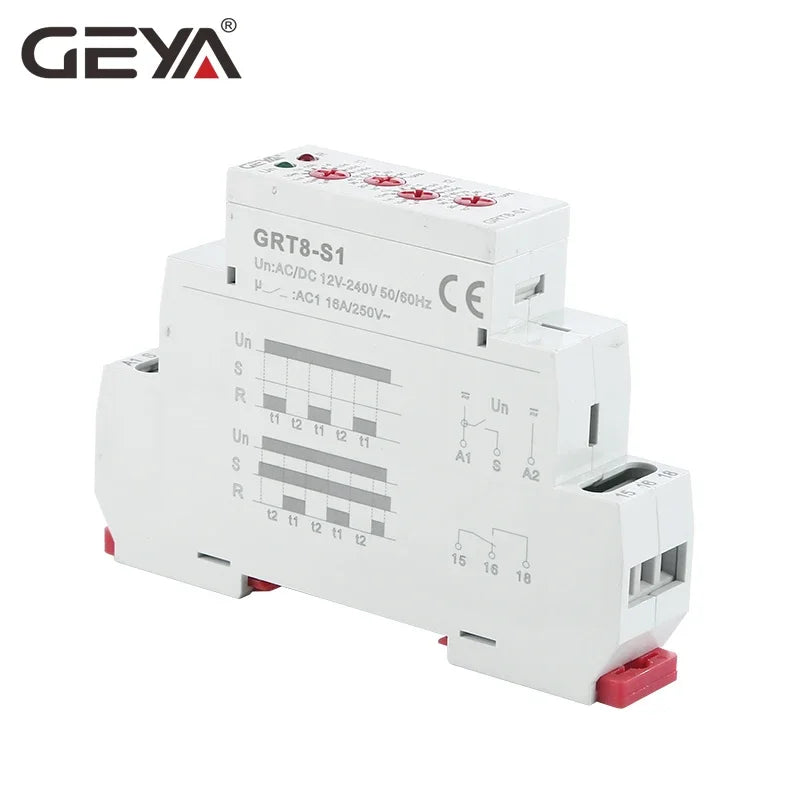

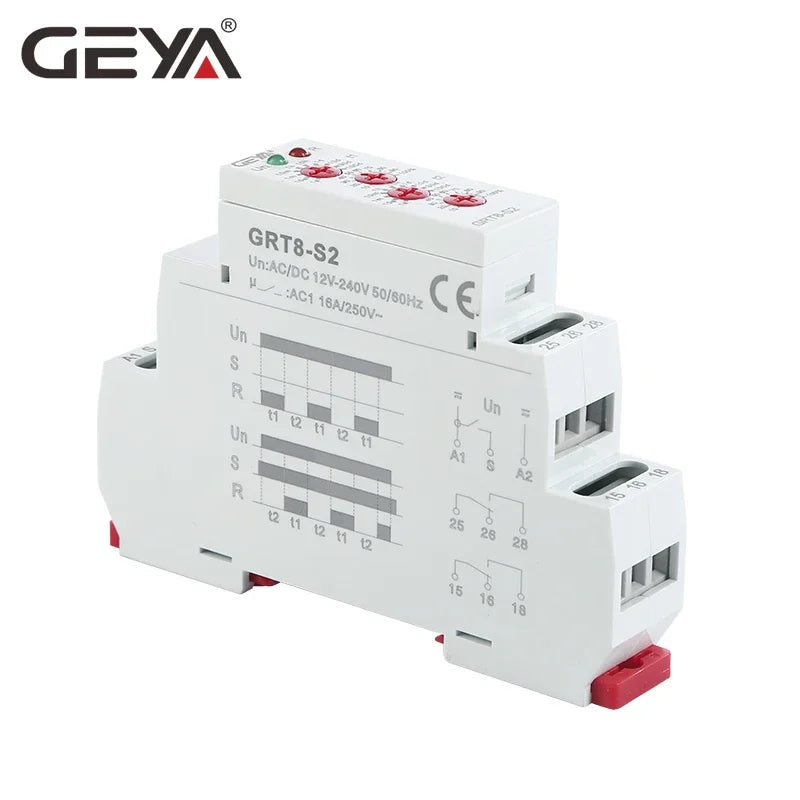

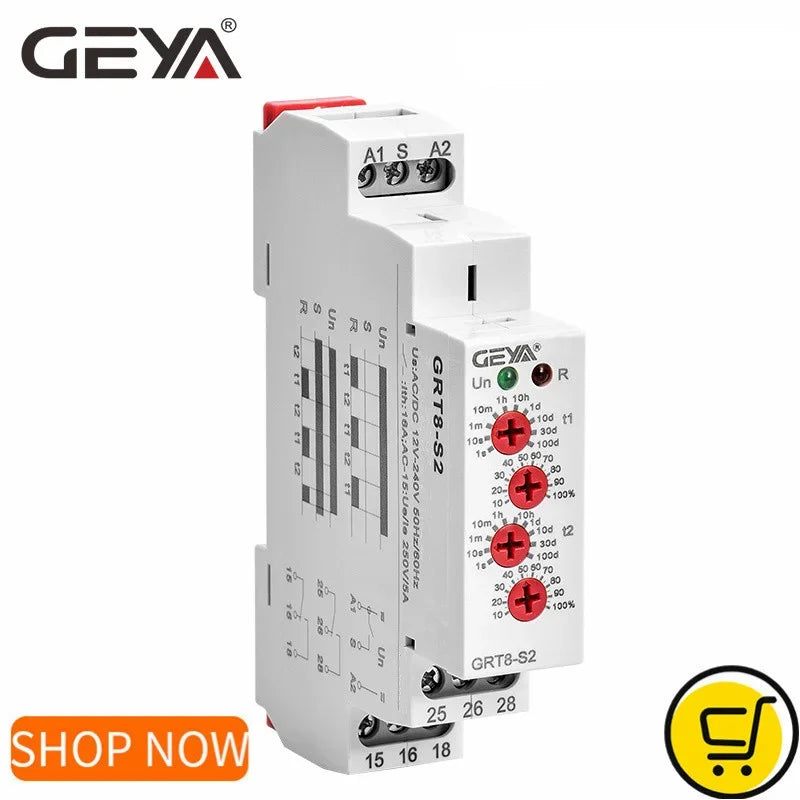

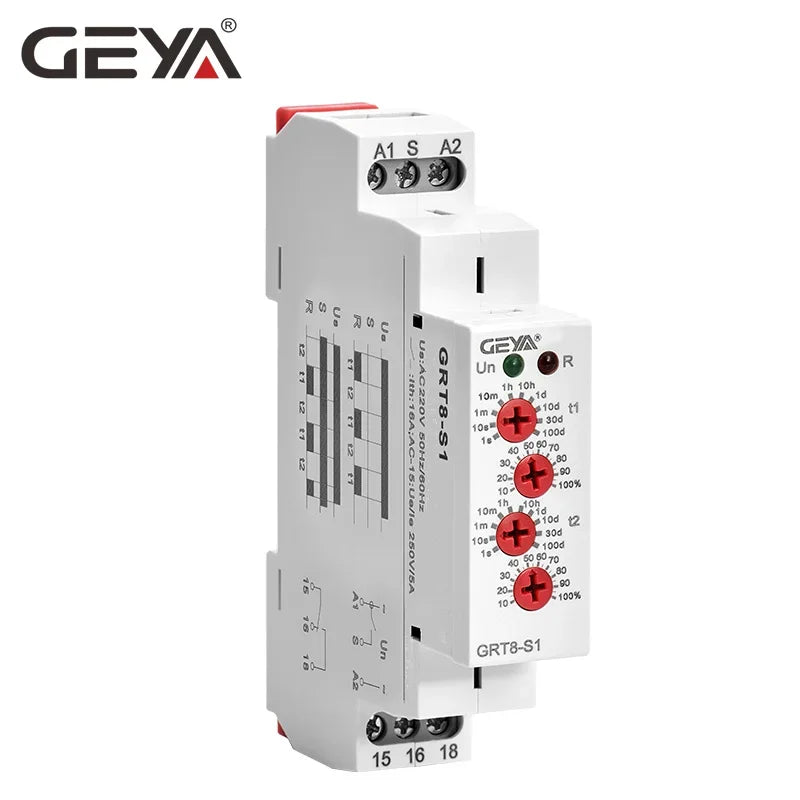

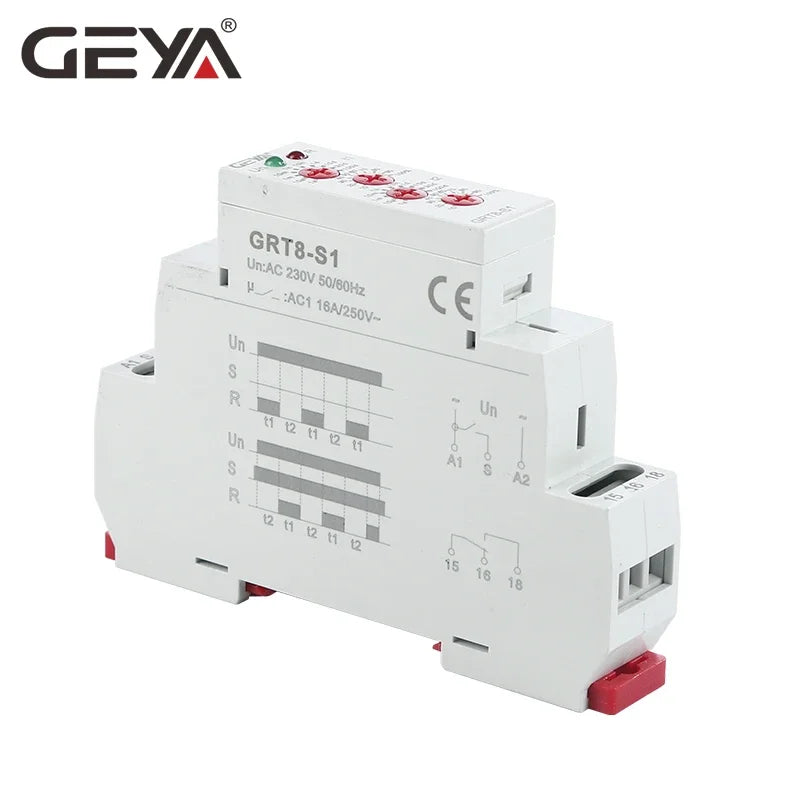

GEYA GRT8-S Asymmetric Cycle Timer Relay SPDT 220V 16A  AC/DC12V-240V Electronic Repeat Relay

General

Applications
-It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc.

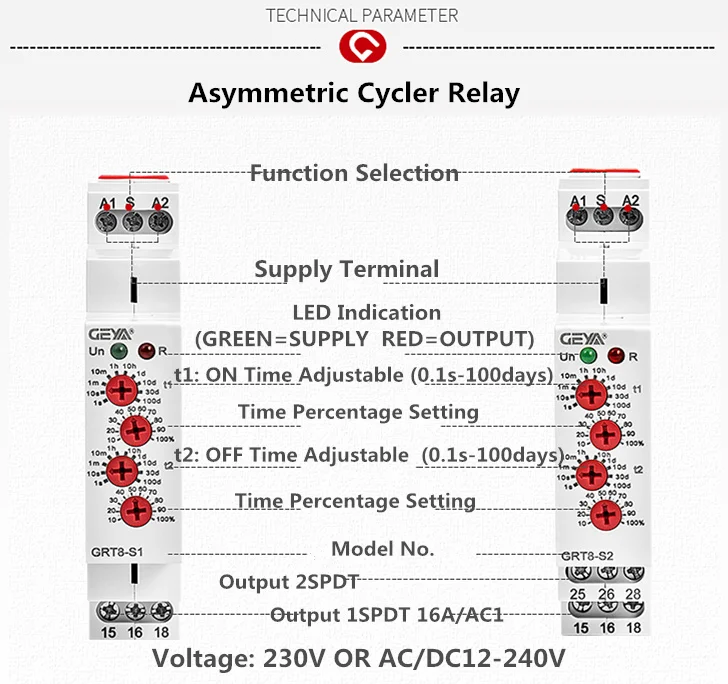

Function Features
-Voltage AC230V or AC/DC12V-240V
-Output 1SPDT or 2SPDT  (16A/AC1)

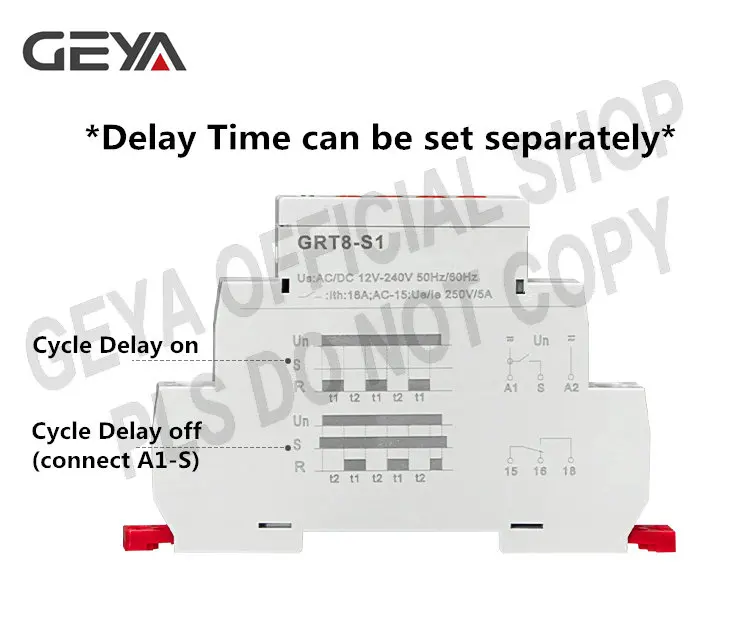

-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause

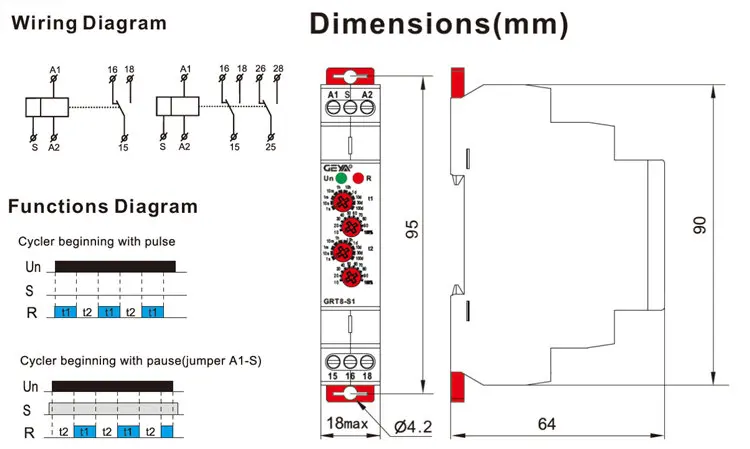

-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1 s - 100 days devided into 10 time ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h/ 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /10 days - 100 days).
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

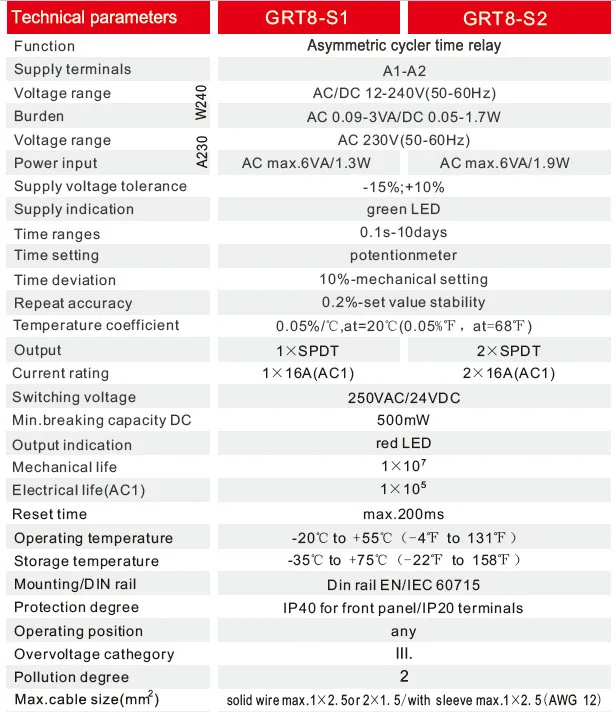

Technical Data
