SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Over-voltage & Under-voltage Protection

High-concerned chemical: none

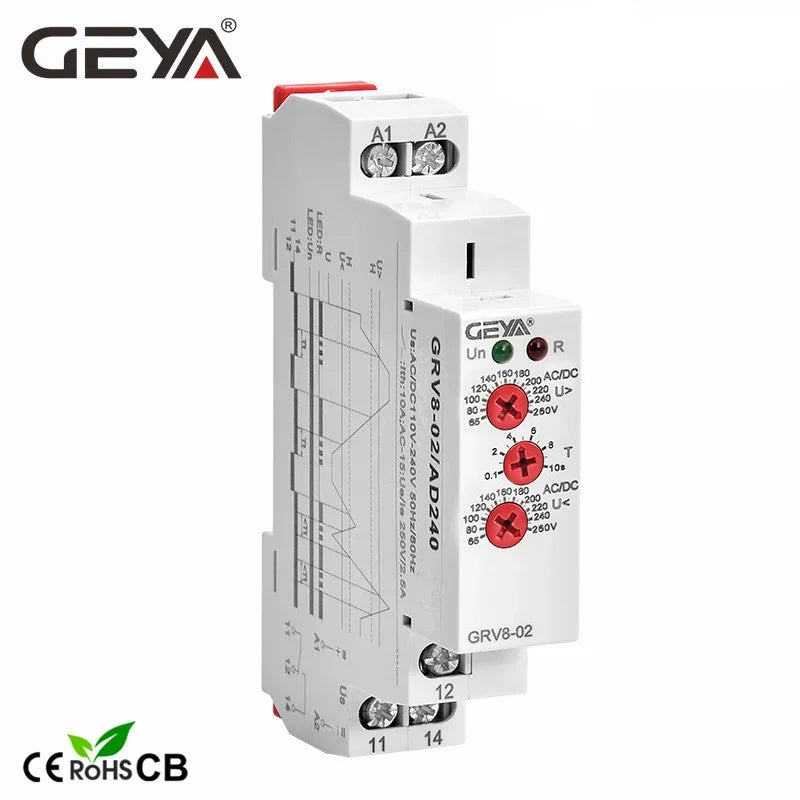

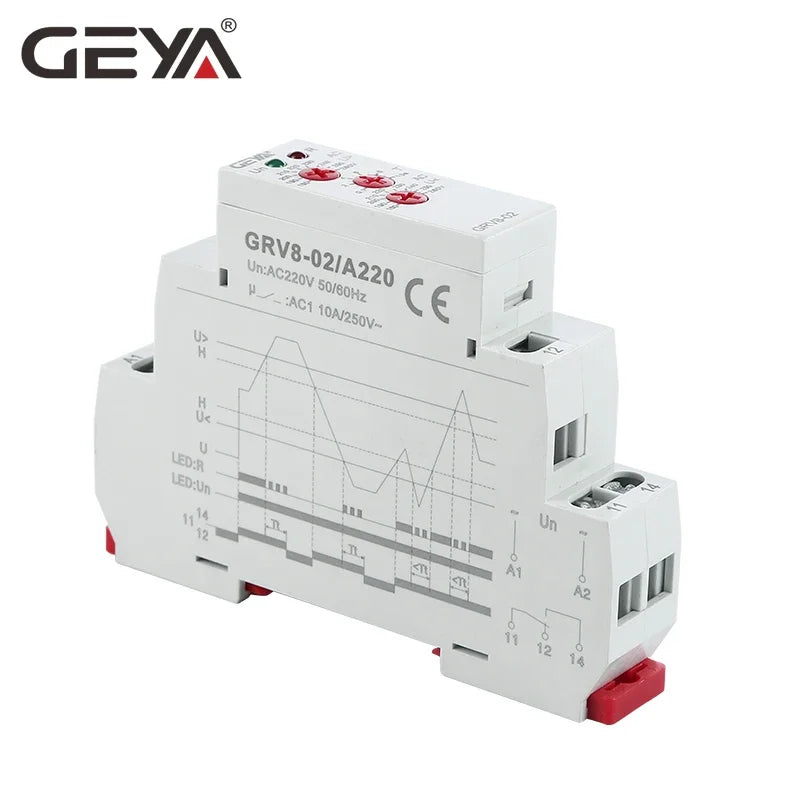

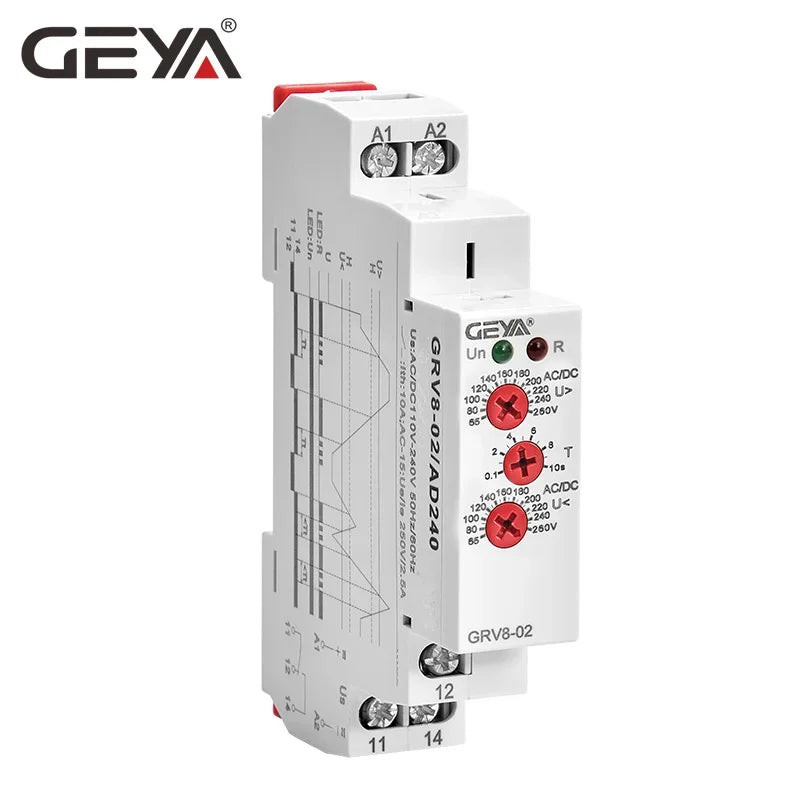

Model Number: GRV8-02 Voltage Relay

Origin: Mainland China

Output Contact: 1SPDT

Power Source: Ac,DC

Product Name: GRV8-02 Single Phase Voltage Relay

Protect Feature: Sealed

Rated Current: 10A

Rated Frequency: 50/60Hz

Theory: Voltage relay

Time Delay: Adjustable 0.1s-10s, 10%

Use: Protective

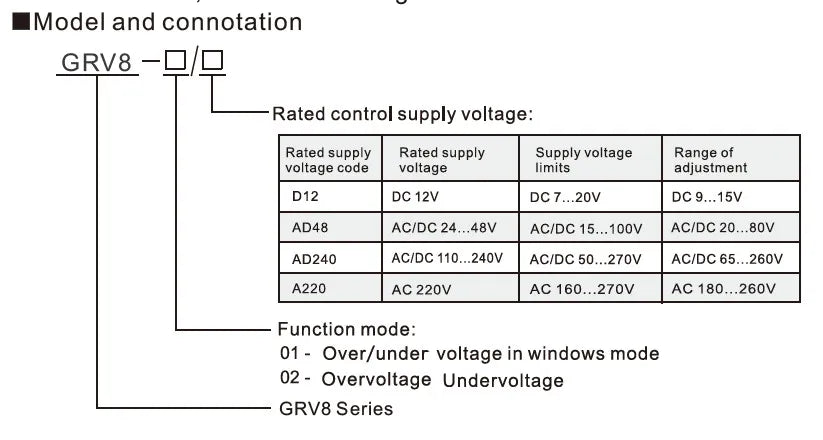

Voltage: 48V,DC12V OR AC/DC24-28V, AC/DC110V-240V, AC220V

is_customized: Yes

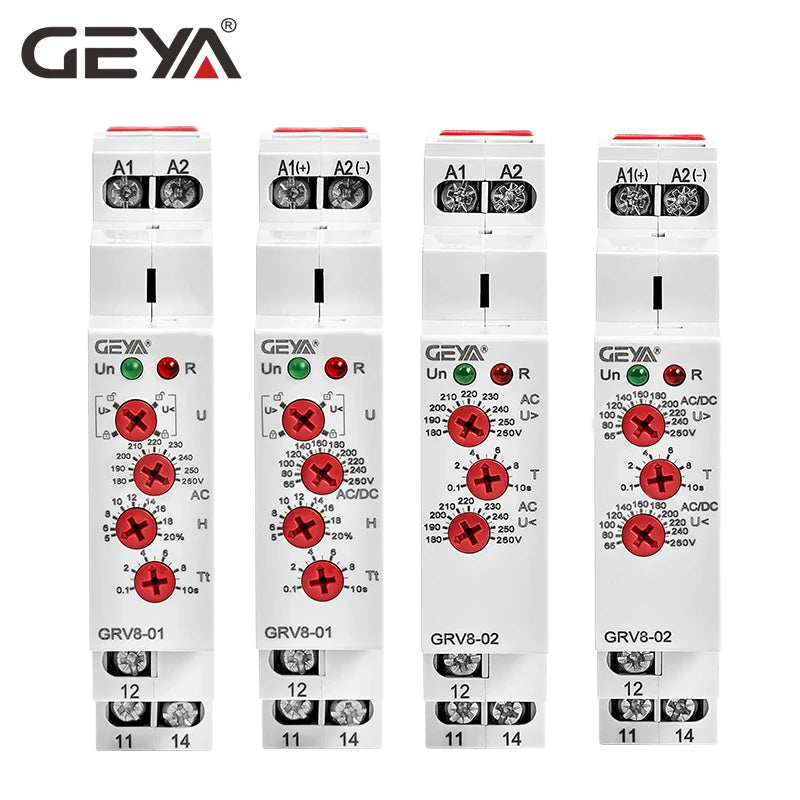

TIPS: This link is forGRV8-02 protect Overvoltage and  Undervoltage Together Relay, If you need moitoring overvoltage or undervoltage separately, please buy the GRV8-01 model, click here thanks!

General

Applications
-Protect electrical equipment and motors from over-voltage or under-voltage.
-Normal/emergency power supply switching.

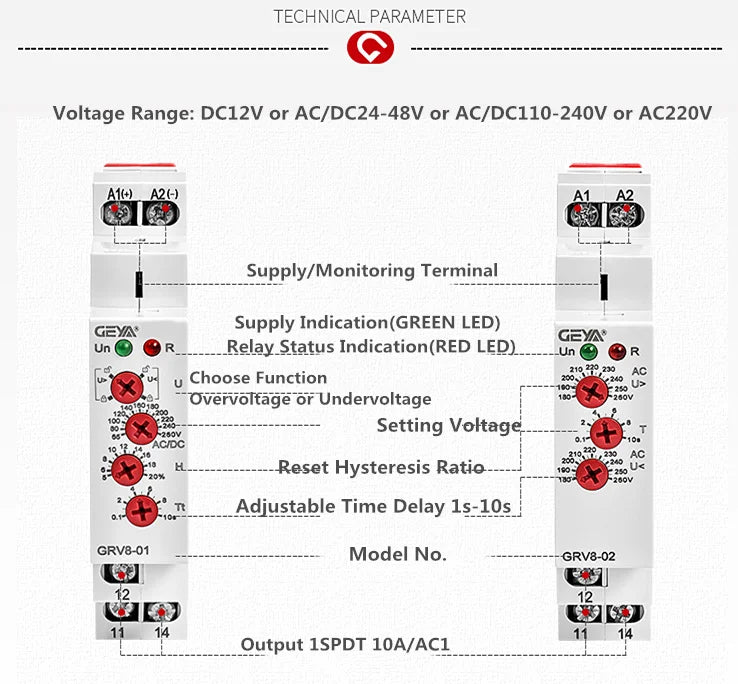

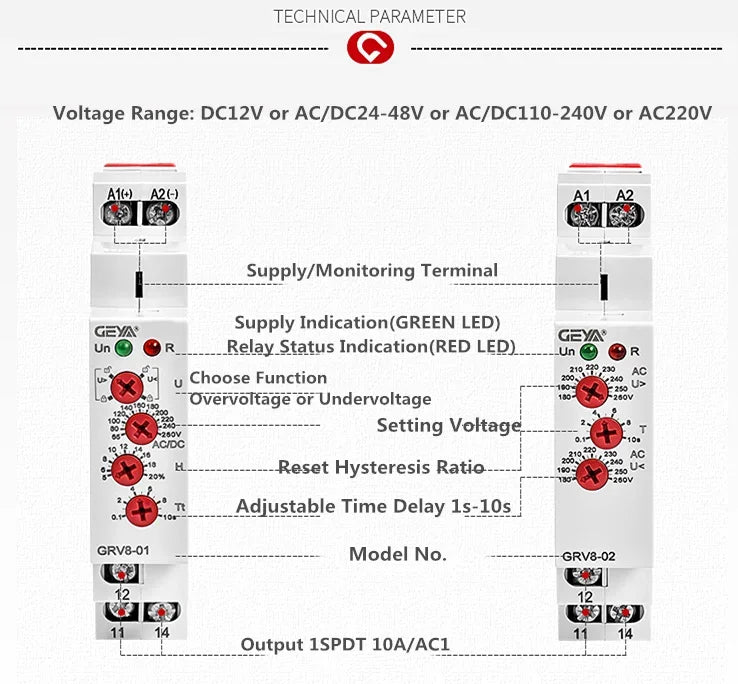

Function Features
- Controls its own supply voltage(True RMS measurement)
-.User may select operation mode through knob.
- Voltage measurement accuracy<1%.
-Voltage Range AC/DC12-240V or  DC12V or AC/DC24-48V or AC220V
-Rated Current 10A/AC1 &1SPDT
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

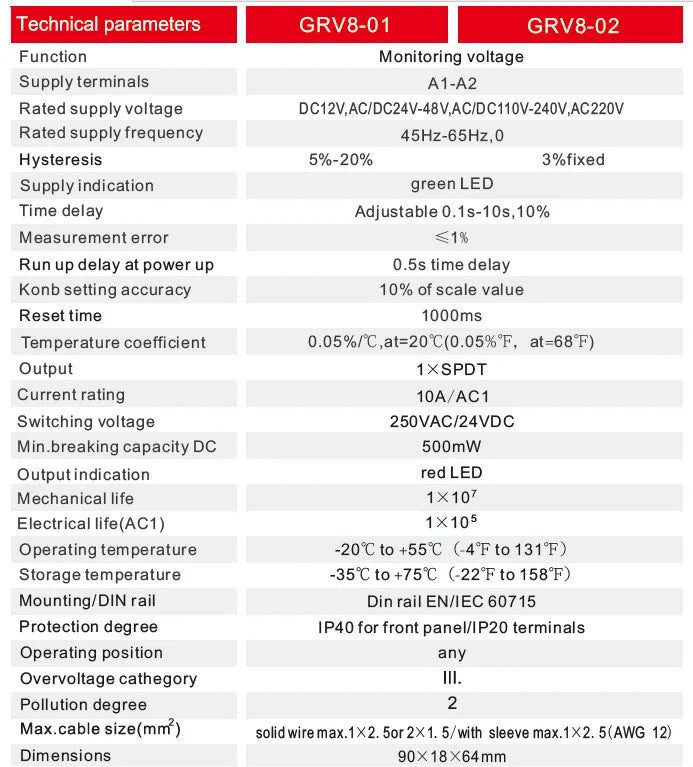

Technical Data
