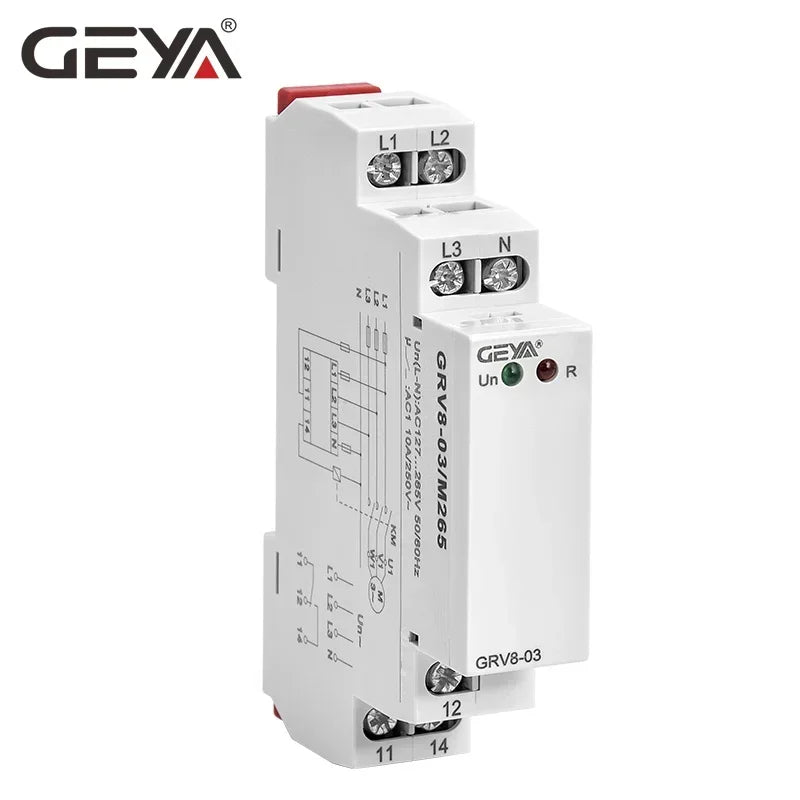

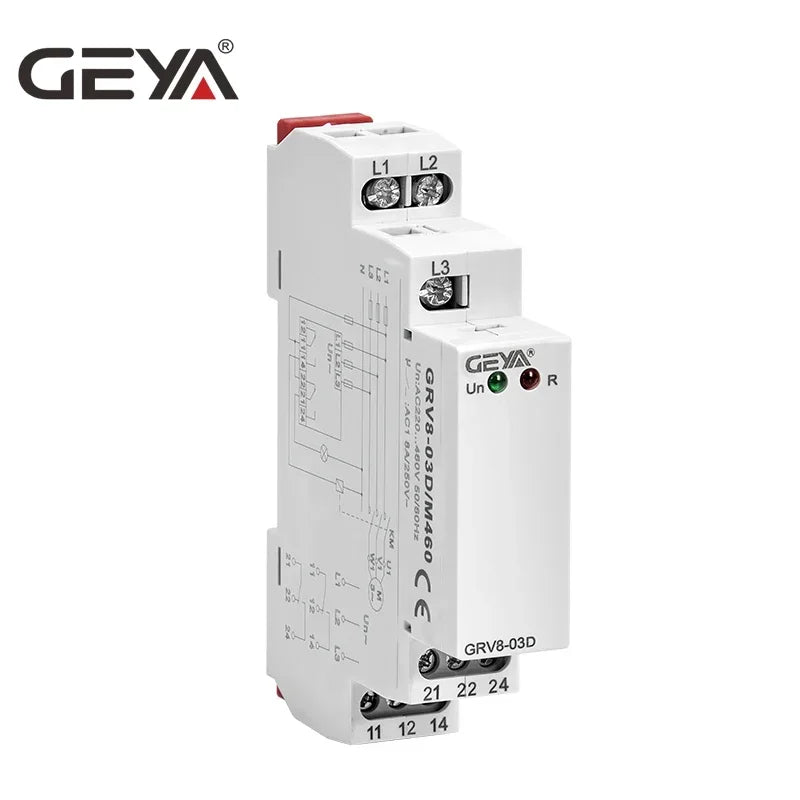

GEYA GRV8-03 Voltage Monitoring Relay Phase Sequence and Phase Failure Protection Relay 8A 10A 1SPDT 2SPDT
GRV8-03D M265 / China Mainland
$86.54
Sale price
$86.54
Regular price
$0.00
Skip to product information
GEYA GRV8-03 Voltage Monitoring Relay Phase Sequence and Phase Failure Protection Relay 8A 10A 1SPDT 2SPDT
$86.54
Sale price
$86.54
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: GEYA
Certificate: CE CB ROHS
Certification: CE,RoHS
Contact Arrange: SPDT
Contact Load: Low Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Function: Phase Sequence & Phase Failure Protection
High-concerned chemical: none
Model Number: GRV8-03 Voltage Relay
Origin: Mainland China
Output Contact: 1SPDT
Power Source: Ac,Ac
Product Name: GRV8-03 Three Phase Voltage Relay
Protect Feature: Sealed
Rated Current: 10A
Rated Frequency: 50/60Hz
Theory: Voltage relay
Use: General Purpose
Voltage: 240V,M460 OR M265
is_customized: Yes
Tips: This link is for GRV8-03 (1SPDT) or GRV8-03D (2SPDT) phase sequence and phase failure protection relay, if you need other function, please click here, thanks!

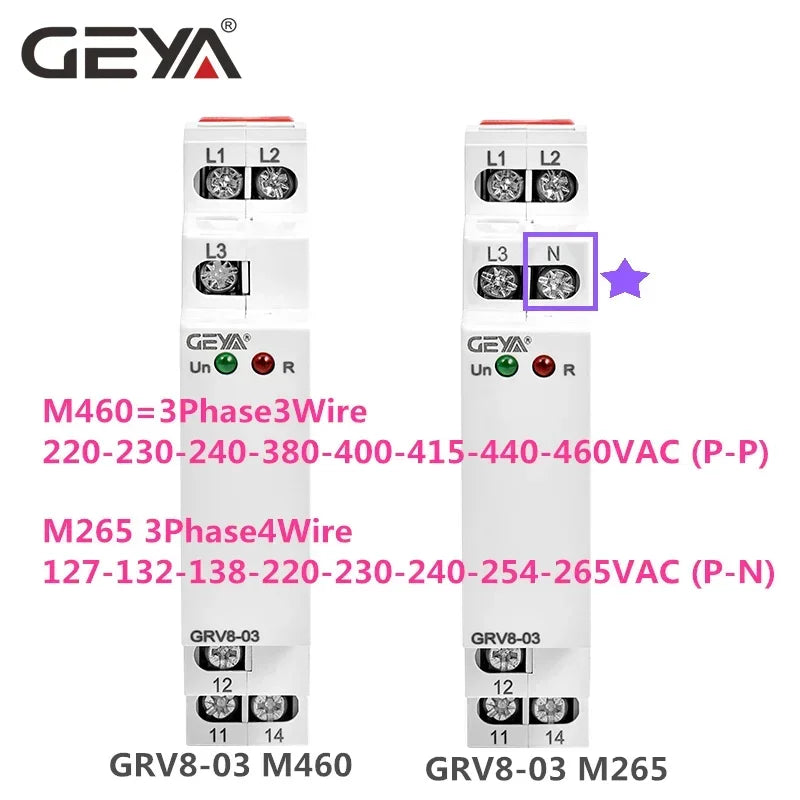

GRV8-03 M460 : 10A, 1SPDT, 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)
GRV8-03 M265 : 10A, 1SPDT, 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)

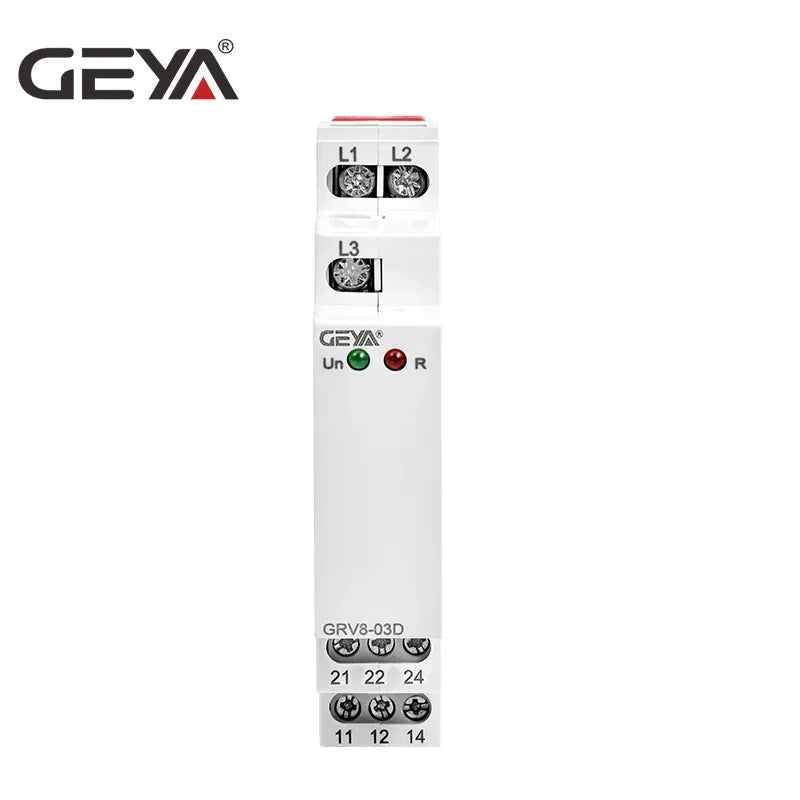

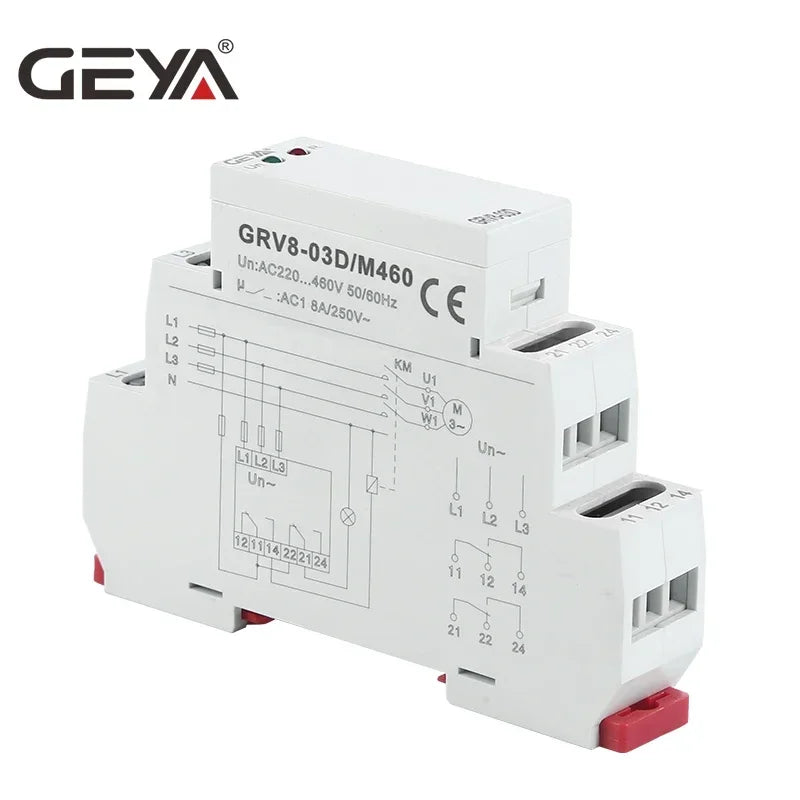

GRV8-03D M460 : 8A, 2SPDT, 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)
GRV8-03D M265 : 8A, 2SPDT, 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)
General
HOW TO CHOOSE THE GRV8 MODEL
Product Code |
Over Voltage |
Under Voltage |
Asymmetry |
Delay Time |
Phase Sequence |
Phase Failure |
03/03D |
/ |
/ |
/ |
/ |
YES |
YES |
04/04D |
2%~20% |
-20%~2% |
/ |
0.1s~10s |
YES |
YES |
05/05D |
2%~20% |
-20%~2% |
8% |
0.1s~10s |
YES |
YES |
06/06D |
2%~20% |
-20%~2% |
5%~15% |
2s |
YES |
YES |
07/07D |
/ |
/ |
8% |
2s |
YES |
YES |
08/08D |
15% |
-15% |
8% |
2s |
YES |
YES |
Note: YES Means The Function is Available

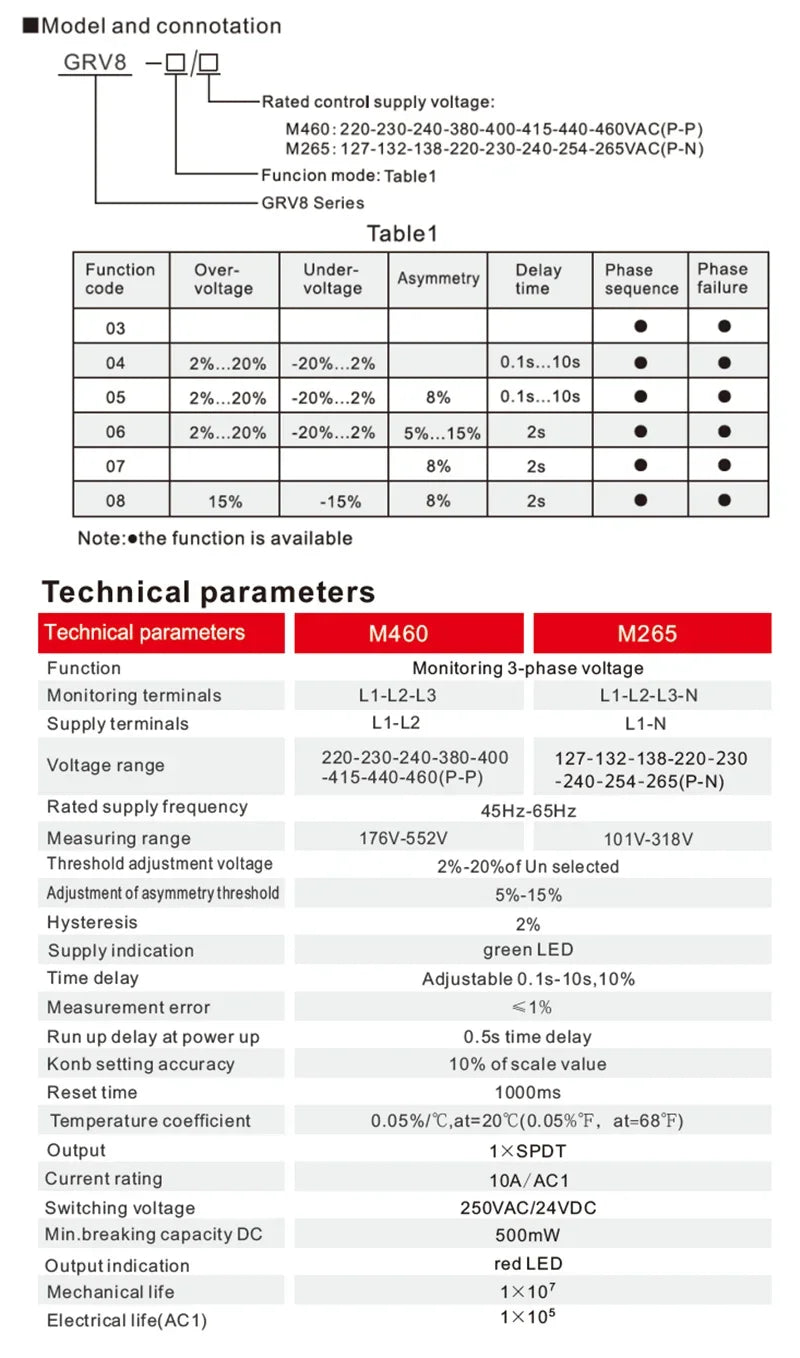

Technical Data
If you need other model function of voltage relay, pls click below!
