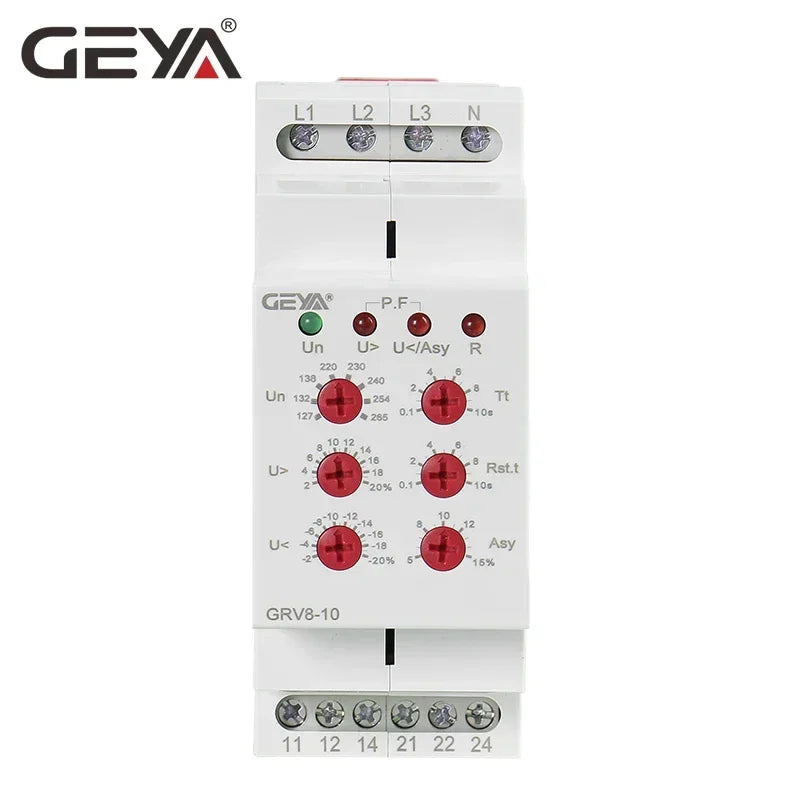

GEYA GRV8-10 NEW 36mm Width 3 Phase Voltage Monitoring Relay with Reset Time 0.1s-10s

GEYA GRV8-10 NEW 36mm Width 3 Phase Voltage Monitoring Relay with Reset Time 0.1s-10s

$126.36

$126.36 $0.00

Description

SPECIFICATIONS

Brand Name: GEYA

Certificate: CE ROHS

Certification: CE,RoHS

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

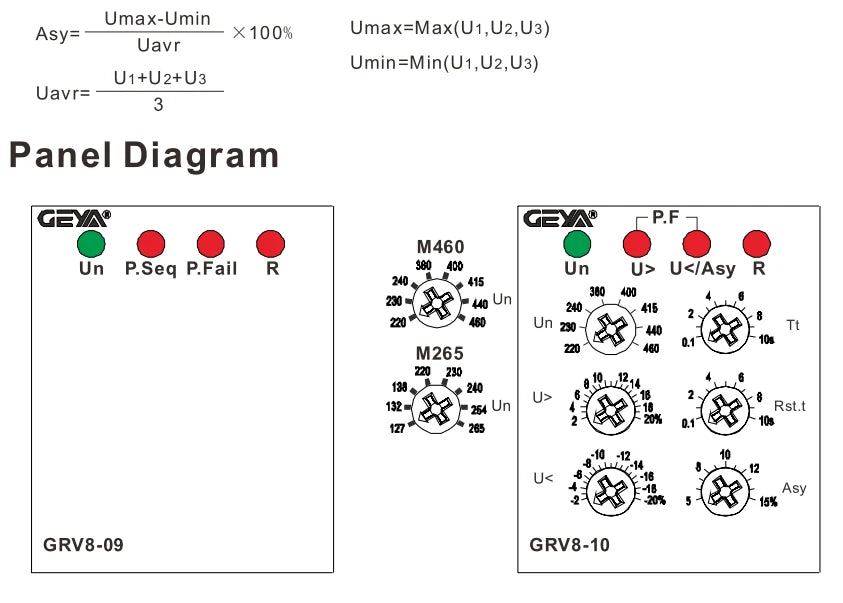

Function: Over UnderVoltage,Asymmetry, Phase Sequence & Phase Failure Protection

High-concerned chemical: none

Model Number: GRV8-09 Voltage Relay

Origin: Mainland China

Output Contact: 2SPDT

Power Source: Ac

Product Name: GRV8-10

Protect Feature: Sealed

Rated Current: 8A

Rated Frequency: 50/60Hz

Theory: Voltage relay

Use: Protective

Voltage: 220V,M460 OR M265

is_customized: Yes

Tips: This link is for 3phase monitoring relay GRV8-10 M265 OR M460, if you need other function, please click here, thanks!

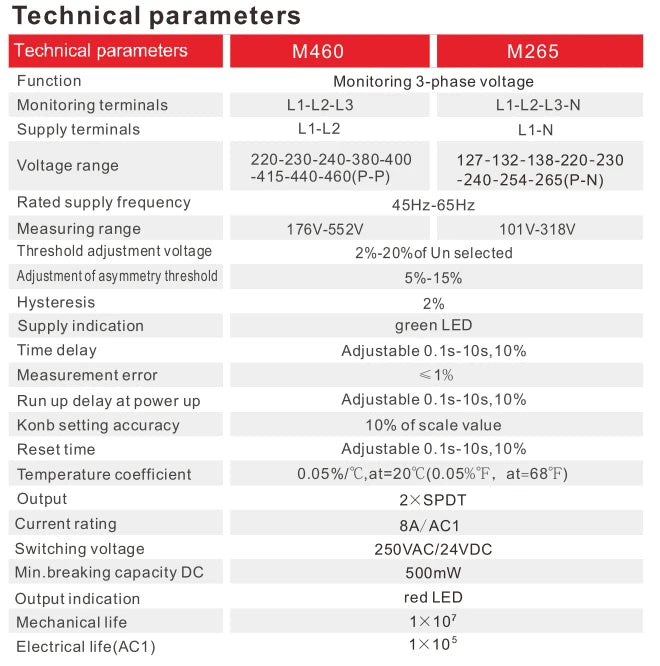

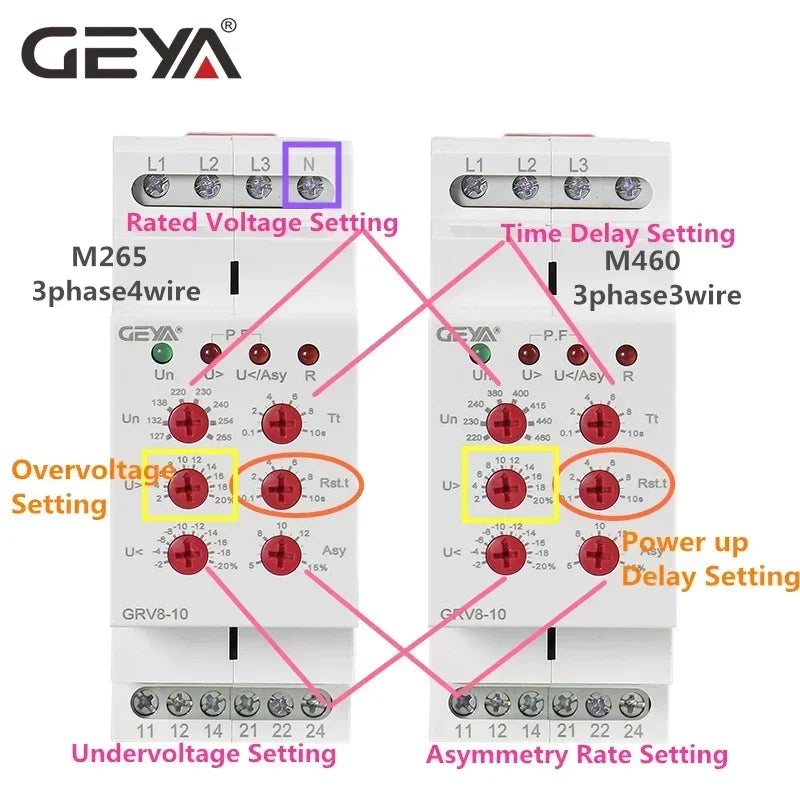

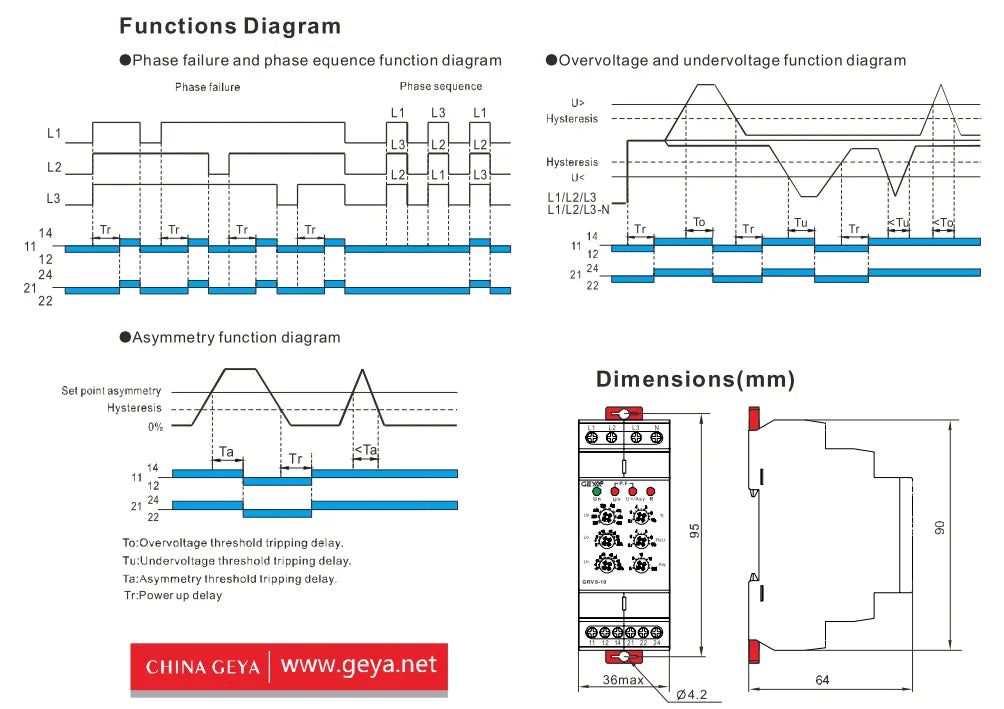

GRV8-10 Function: Overvoltage 2%-20%, Undervoltage -20%-2%, Asymmetry 5%-15%, Delay time 0.1s-10s, Phase Sequence, Phase Failure, Reset time 0.1s-10s

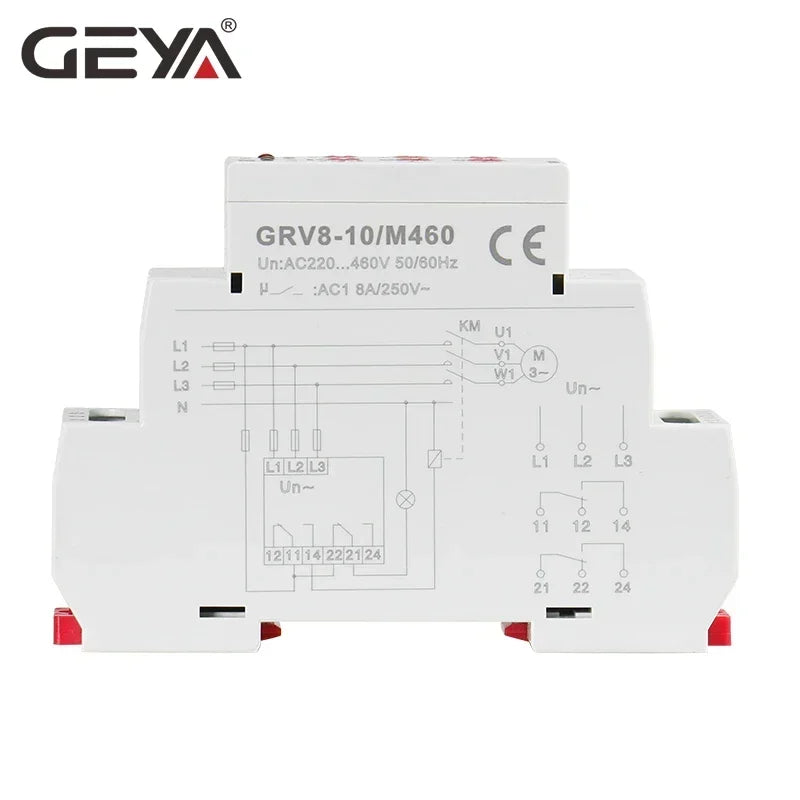

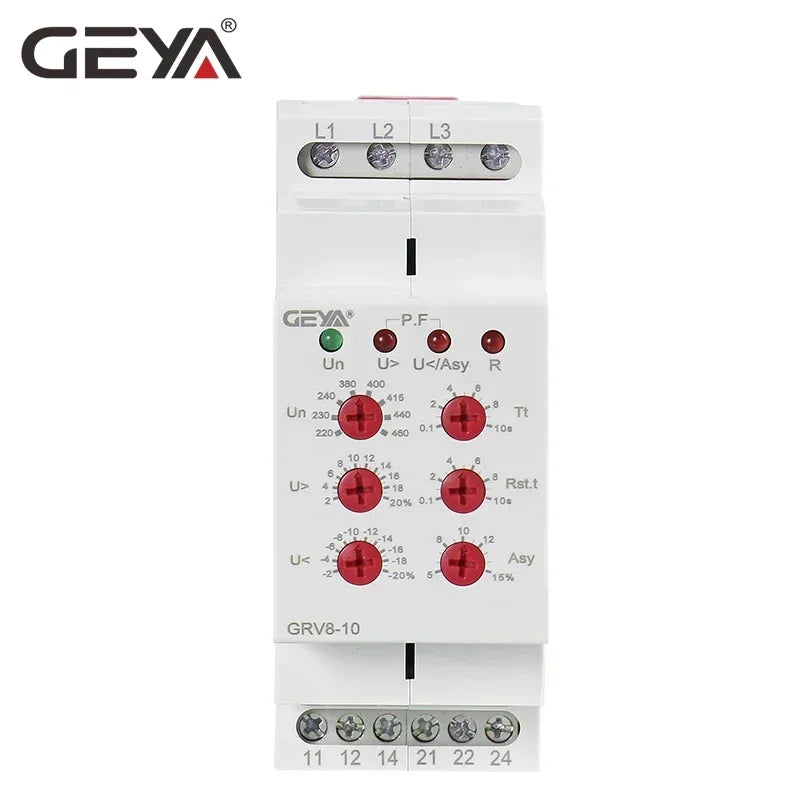

GRV8-10 M460 : 8A, 2SPDT, 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)

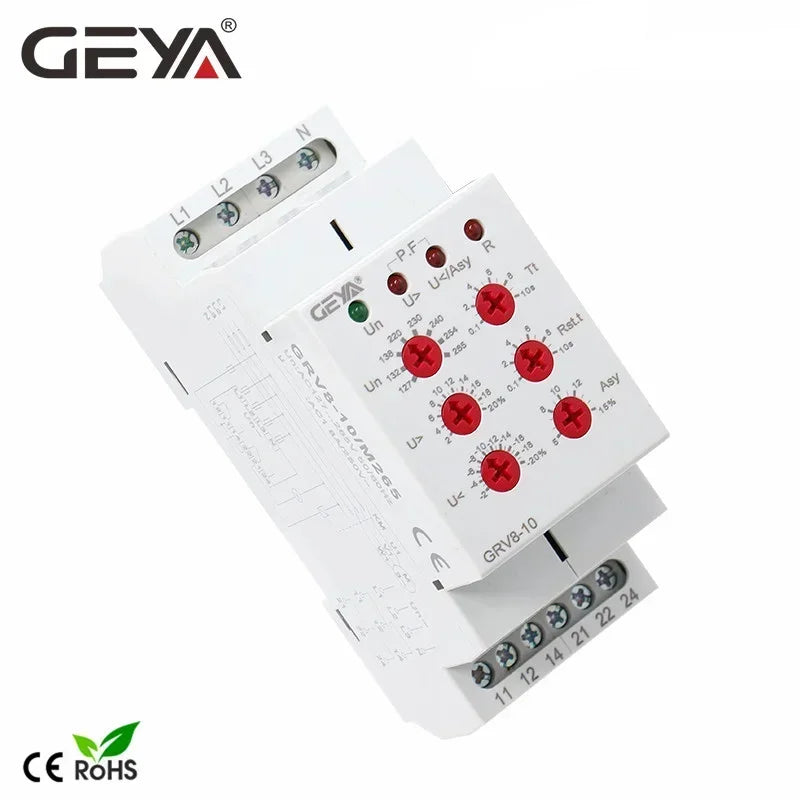

GRV8-10 M265: 8A, 2SPDT, 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)

General

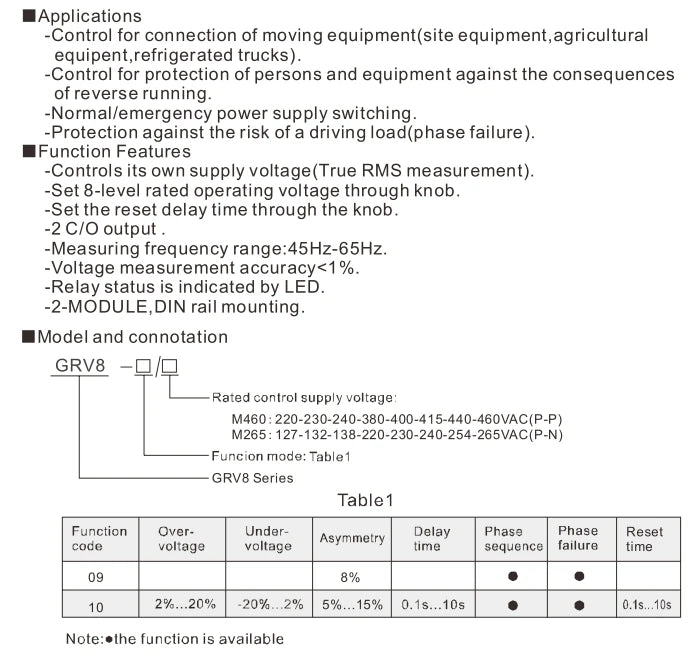

Applications
-Control for connection of moving equipment(site equipment,agricultural equipment,refrigerated trucks).
-Control for protection of persons and equipment against the consequences of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure).
Function Features
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
-2 C/O output 8A .
-Measuring frequency range:45Hz-65Hz.
- Voltage measurement accuracy<1%.
-Relay status is indicated by LED.

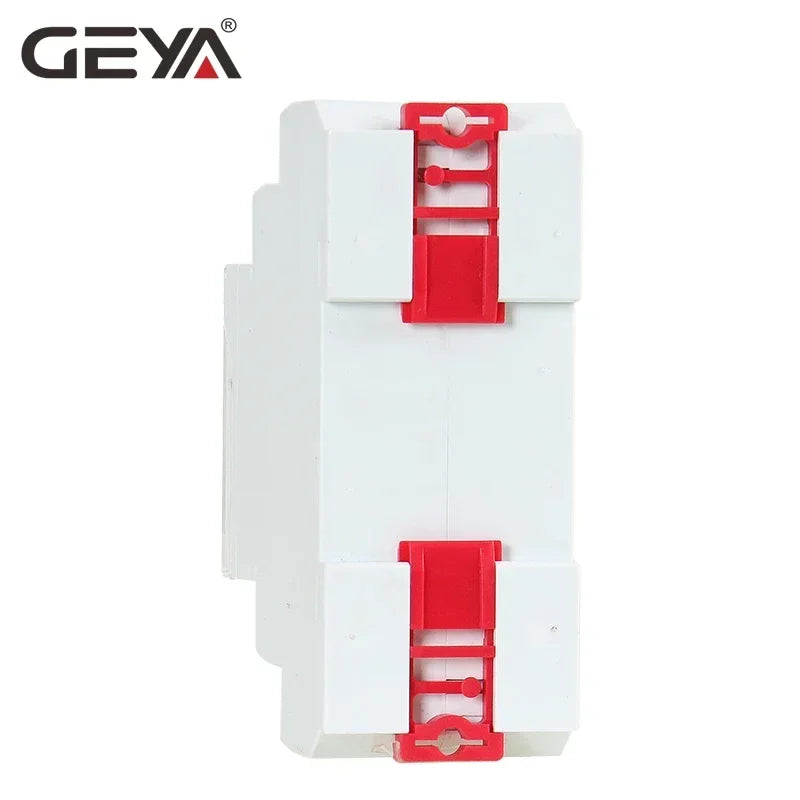

-2-MODULE,DIN rail mounting.
