SPECIFICATIONS

Brand Name: GEYA

Certificate: CE CB

Certification: CE

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Over Under Voltage, Delay time, Phase Sequence & Phase Failure, Reset

High-concerned chemical: none

Measuring Range: 101V-318V OR 176V-552V

Model No: GRV8-SN OR GRV8-SP

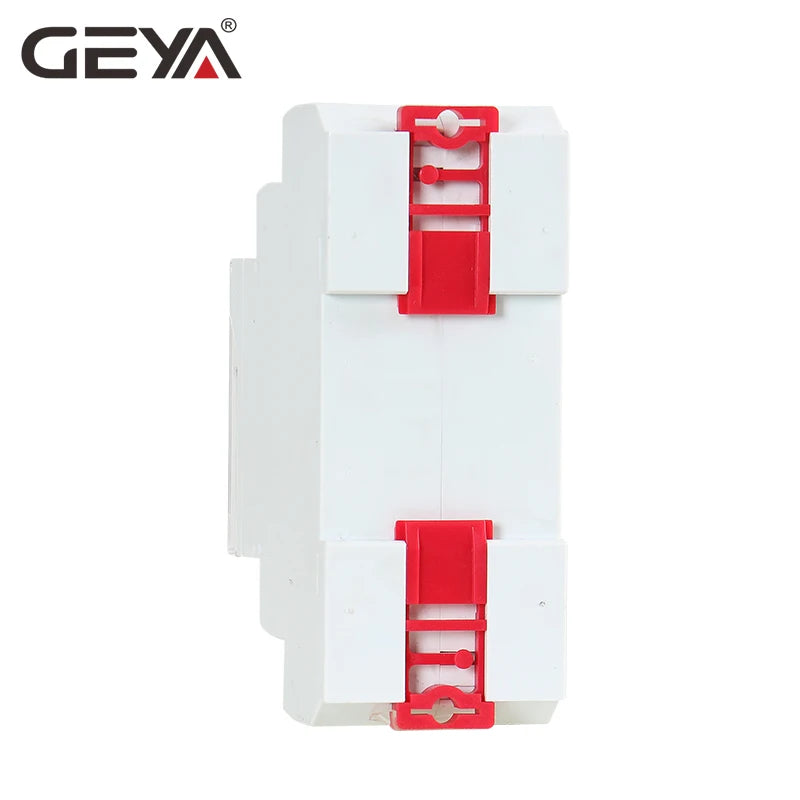

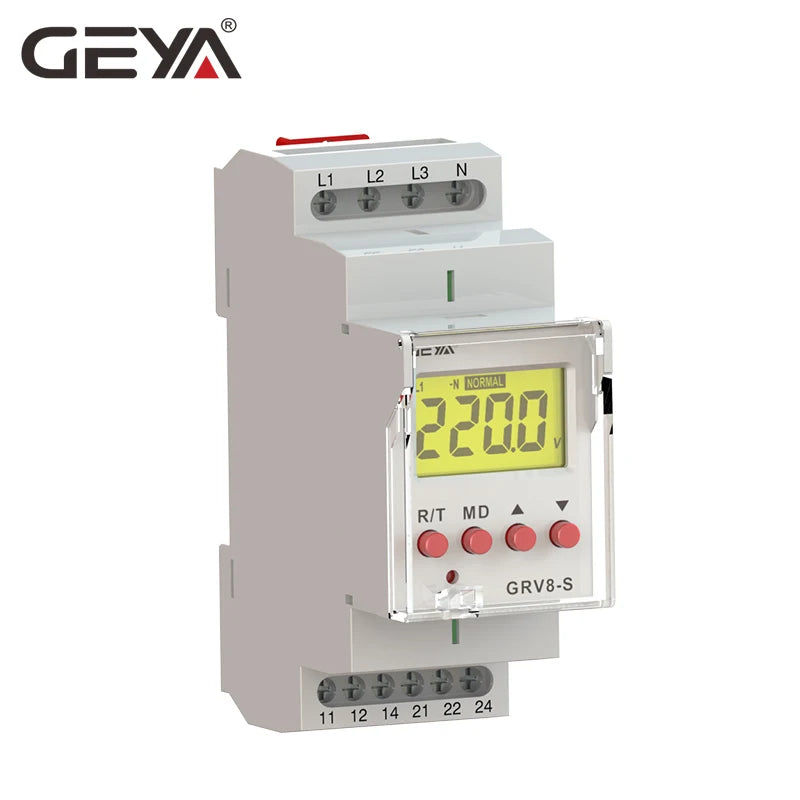

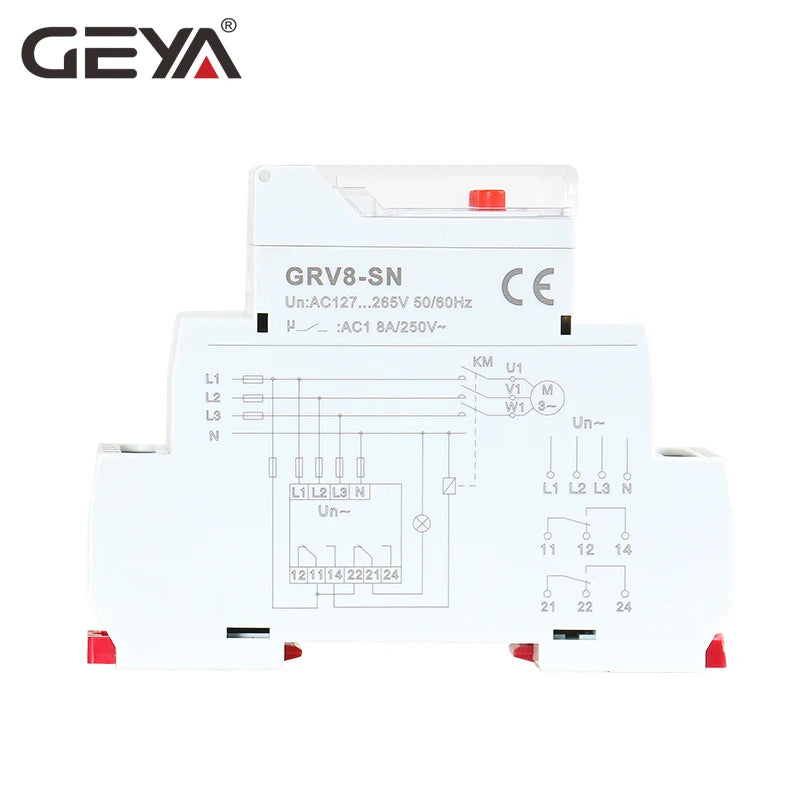

Model Number: GRV8-S Digital Display Voltage Relay

Origin: Mainland China

Output Contact: 2SPDT

Power Source: Ac

Product Name: GRV8-S Digital Display Voltage Relay

Protect Feature: Sealed

Rated Current: 8A

Rated Frequency: 50/60Hz

Supply Voltage: 125-300V OR 200-500V

Theory: Voltage relay

Use: Protective

Voltage: 240V

is_customized: Yes

Tips: This link is for digital display monitoring relay GRV8-SN/SP M265 OR M460, if you need other function, please click here, thanks!

GRV8-SN/SP Function: Over voltage, Undervoltage, Asymmetry, Delay Time, Phase Sequence,Start-reset delay time, Auto-reset

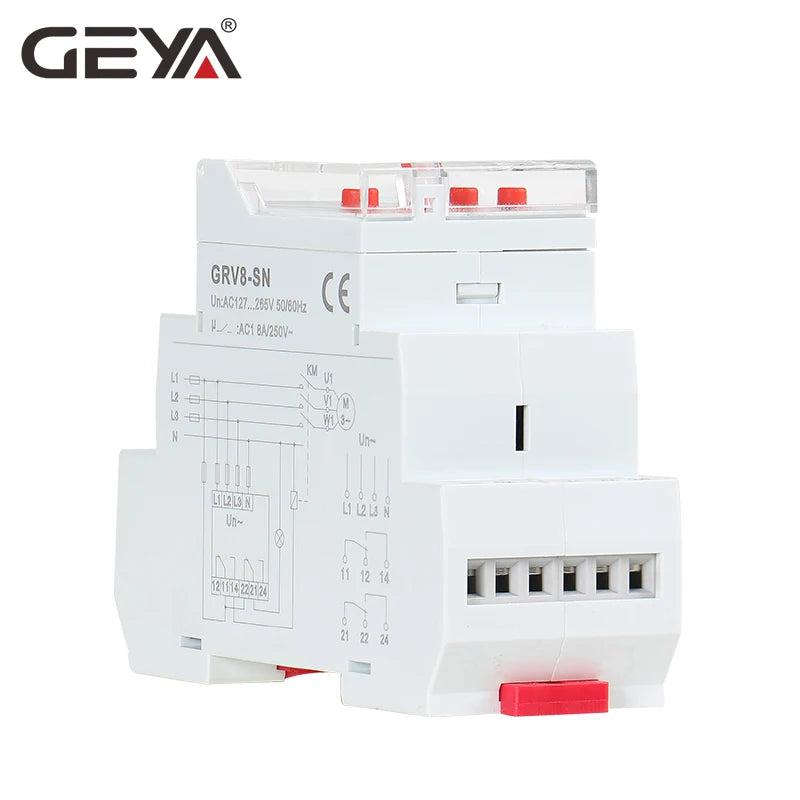

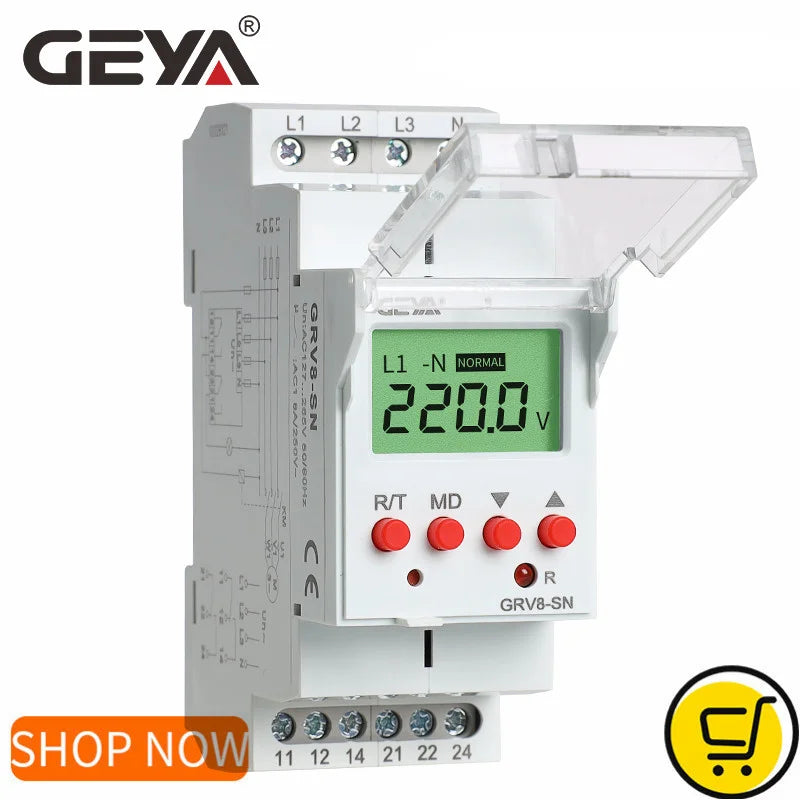

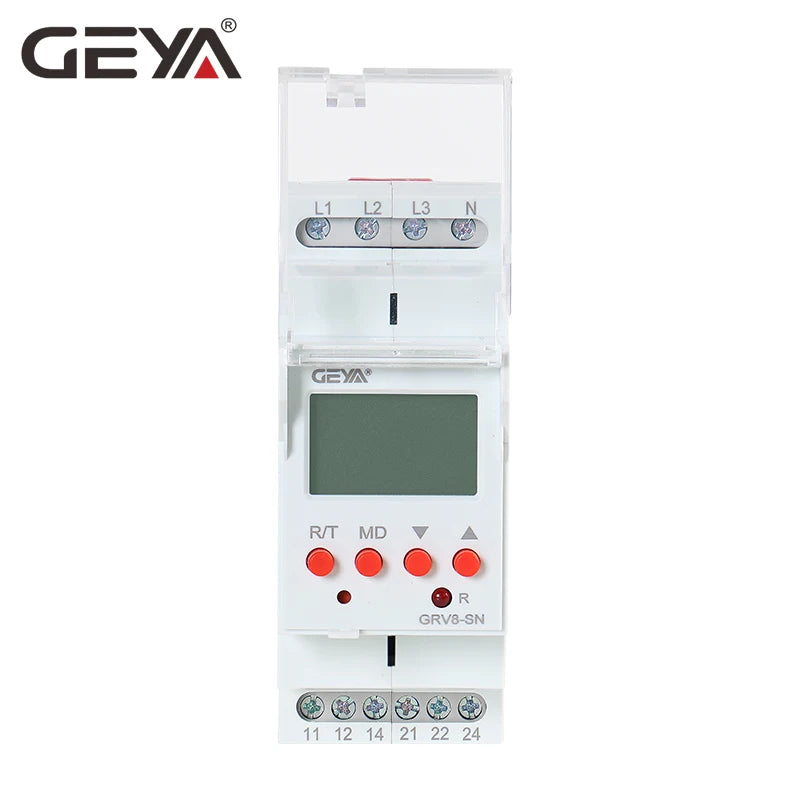

GRV8-SN M265: 8A, 1SPDT, 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)
GRV8-SP M460 : 8A, 2SPDT, 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)

If you need other model function of voltage relay, pls click below!
