SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CCC ROHS

Certification: CE,RoHS

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

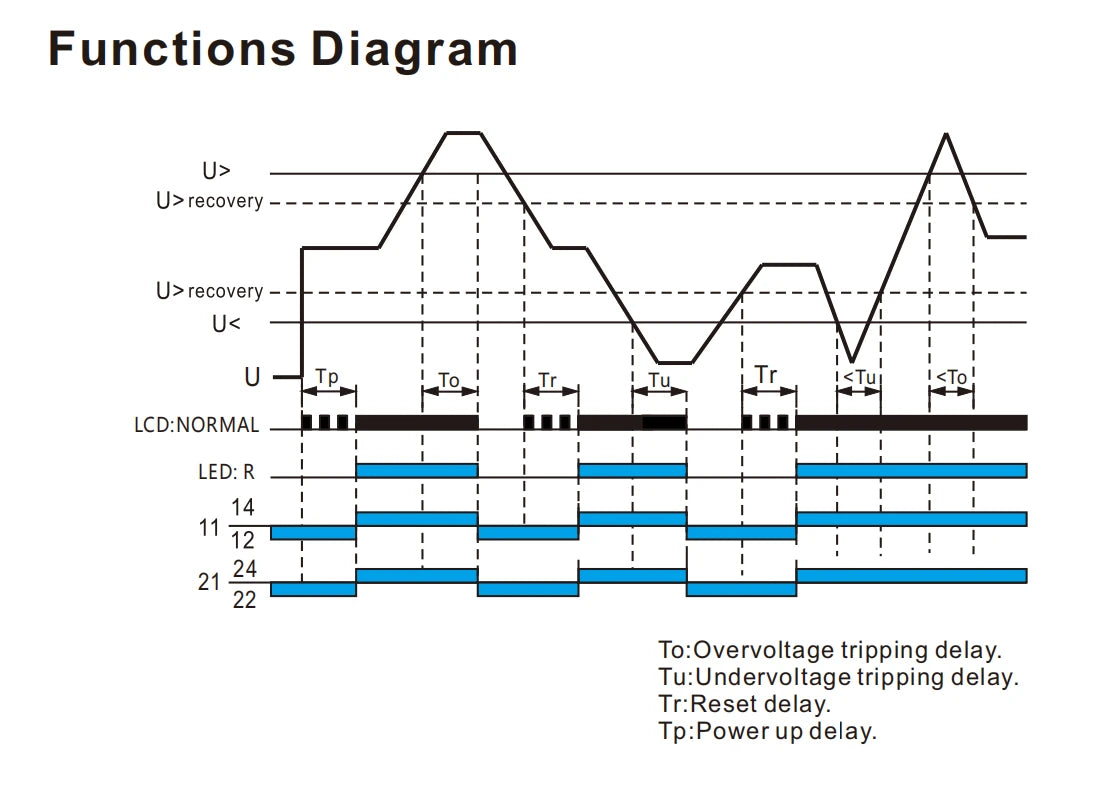

Function: Over Under Voltage, Delay time, Phase Sequence & Phase Failure, Reset

High-concerned chemical: none

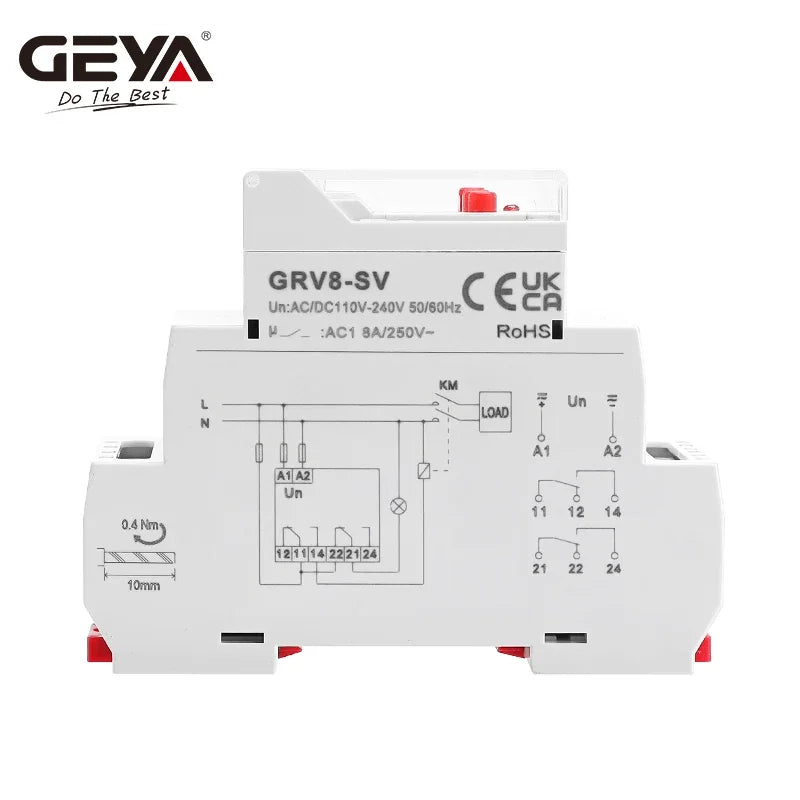

Model Number: GRV8-SV Digital Display Voltage Relay

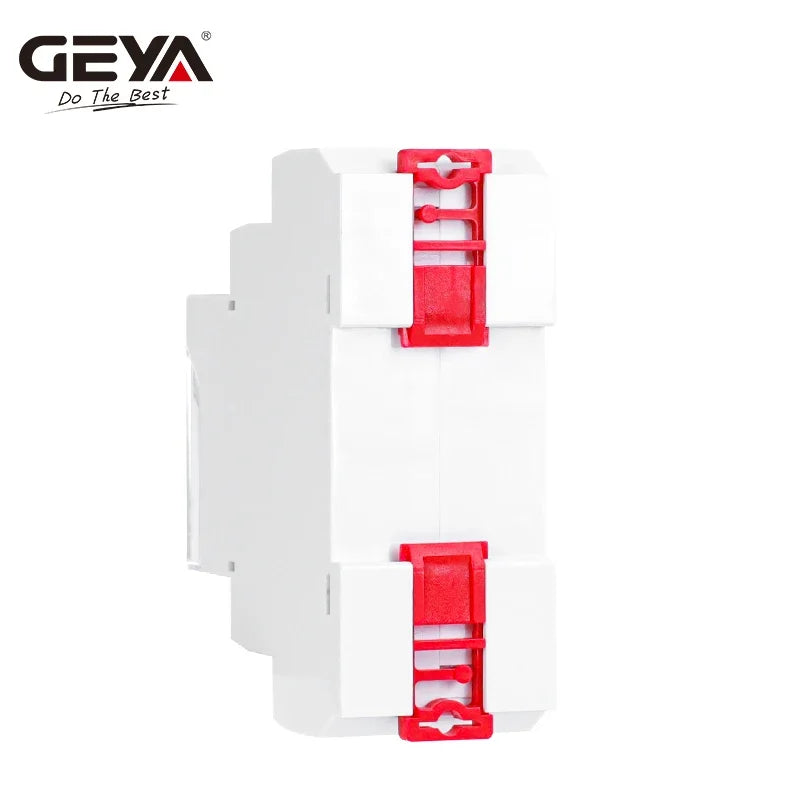

Mounting: Din Rail Type

Origin: Mainland China

Output Contact: 2SPDT

Power Source: Ac,Ac

Product Name: GRV8-SV Single Phase Voltage Relay

Protect Feature: Sealed

Rated Current: 8A

Rated Frequency: 50/60Hz

Theory: Voltage relay

Use: Protective

Voltage: 240V

We are Factory: Accept OEM ODM

is_customized: Yes



Tips: This link is for single phase LCD digital display monitoring relay GRV8-SV,  if you need 3phase GRV8-SN/SP, please click here, thanks!

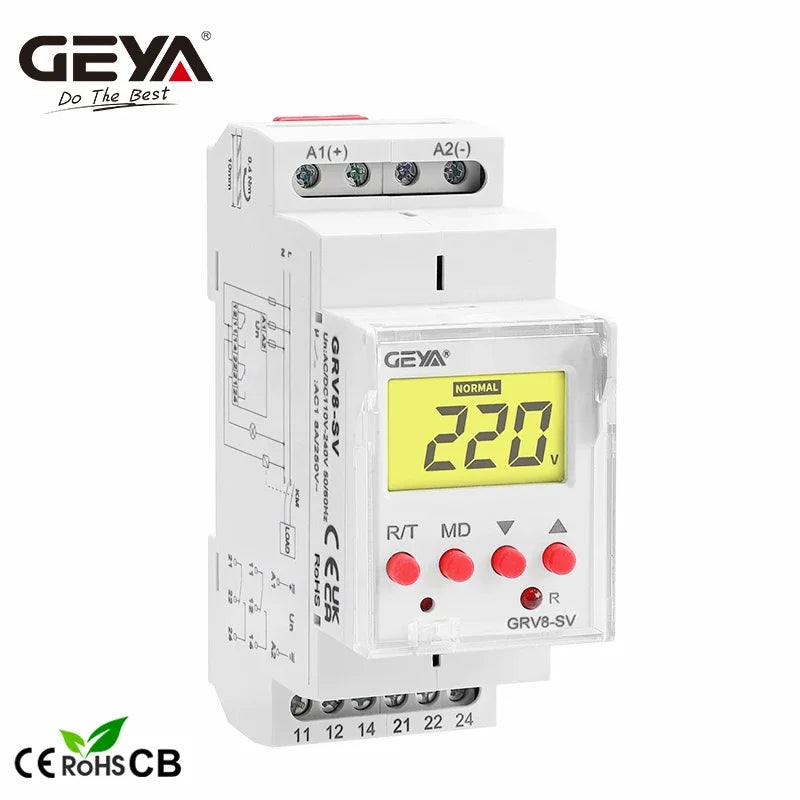

GEYA GRV8-SV Single Phase LCD Digital Display Voltage Relay 8A 2SPDT Overvoltage Undervoltage Protection Relay AC/DC110V~240V

■Applications

-Control for connection of moving equipment(site equipment,agricultural equipent,refrigerated trucks).

-Normal/emergency power supply switching.

■Function Features

-Controls its own supply voltage(True RMS measurement).

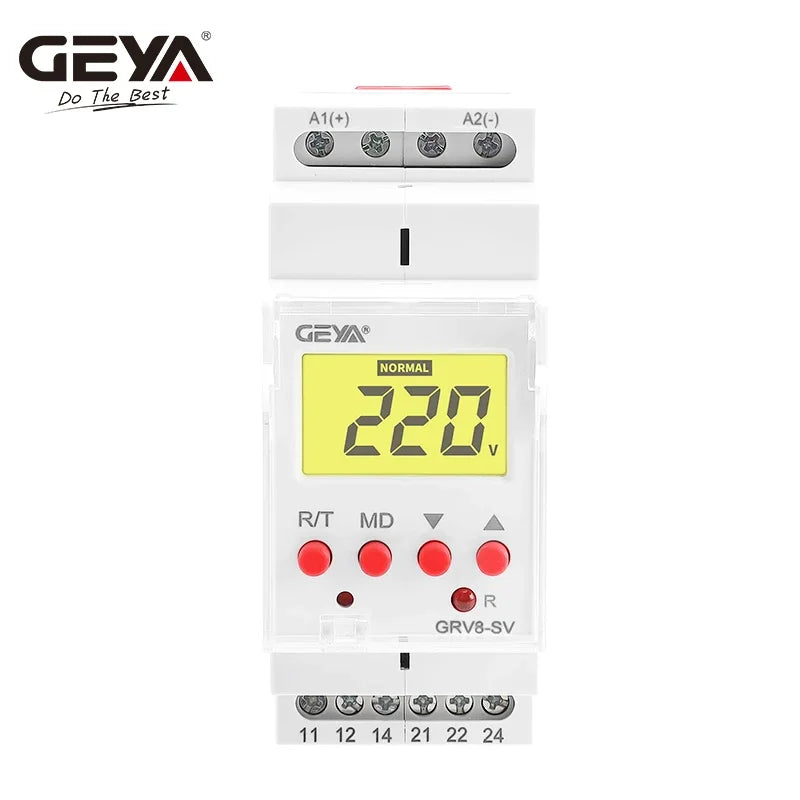

-LCD display.

- Measuring frequency range:45Hz-65Hz.

- Voltage measurement accuracy<1%.

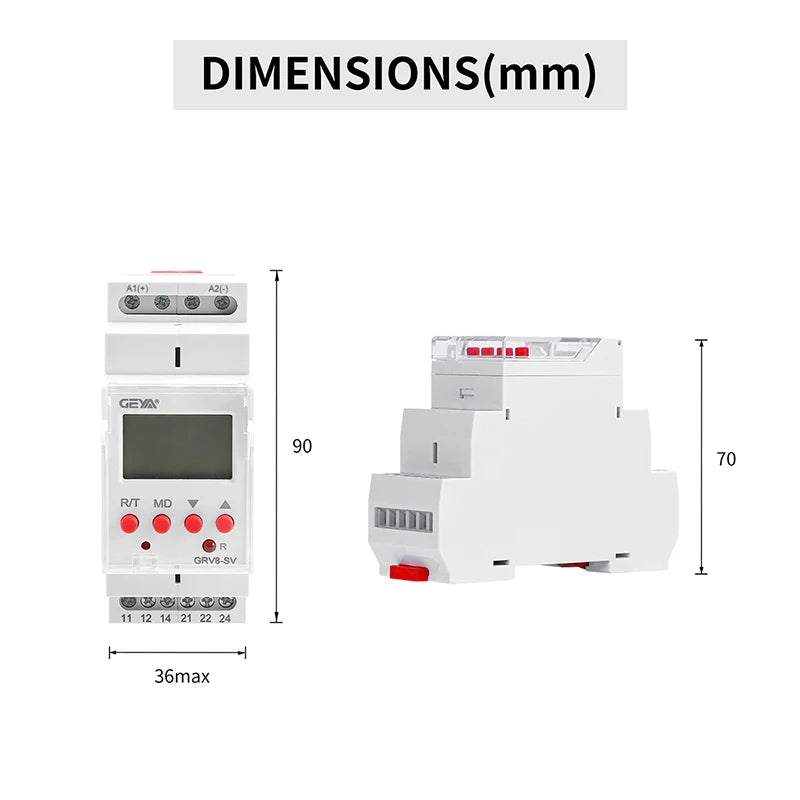

- 2-MODULE,DIN rail mounting.
