SPECIFICATIONS

Ambient Temperature: -25~+75

Brand Name: GEYA

Certification: CE

Contact Load: Low Power

Dielectric Strength: Input - output - floor more than2500VAC

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: DC control AC, AC control AC, DC control DC

High-concerned chemical: none

Load Current: 10A 25A 40A 60A 80A 100A 120A

Model Number: SSR with Radiator

Off Leakage Current: less than 5mA

On Voltage: less than 1.5V

On-off Time: less than 10ms

Origin: Mainland China

Power Source: DC

Product Name: SSR with Radiator Solid State Relay

Protect Feature: Sealed

Theory: Time Relay

Use: General Purpose

Voltage: 24V

is_customized: Yes

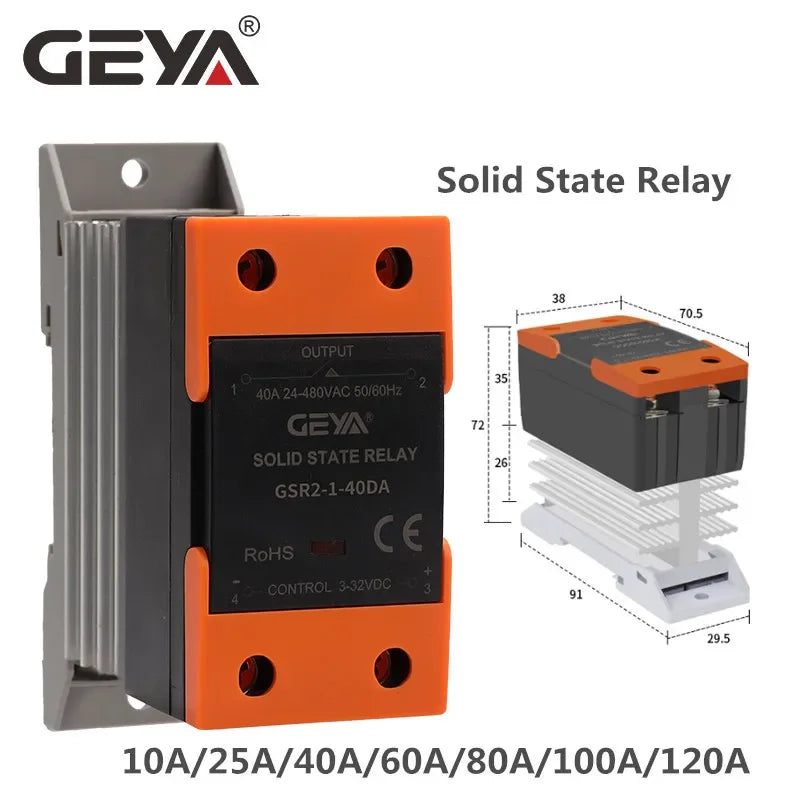

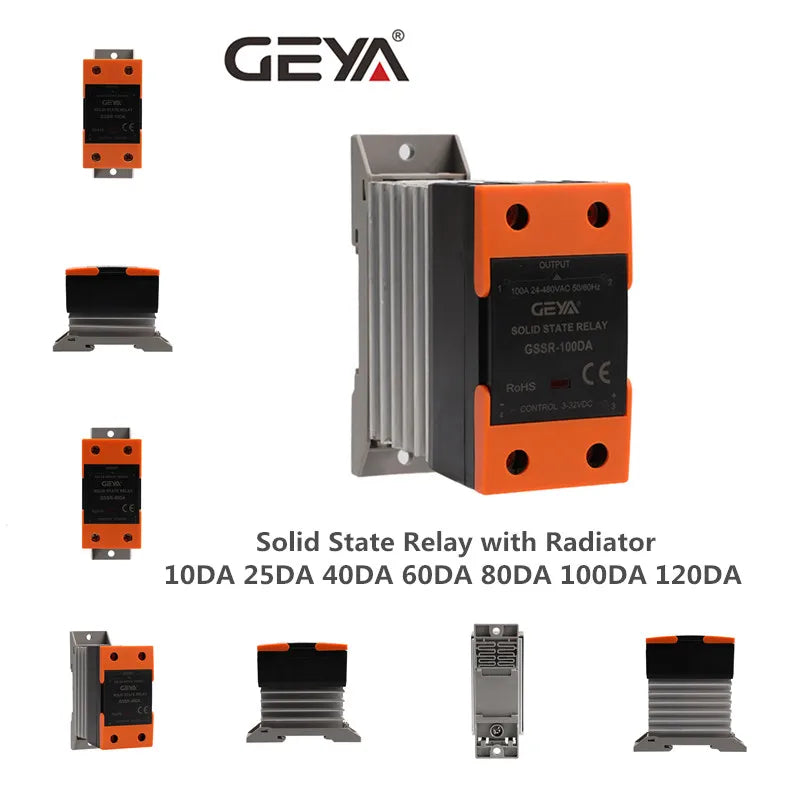

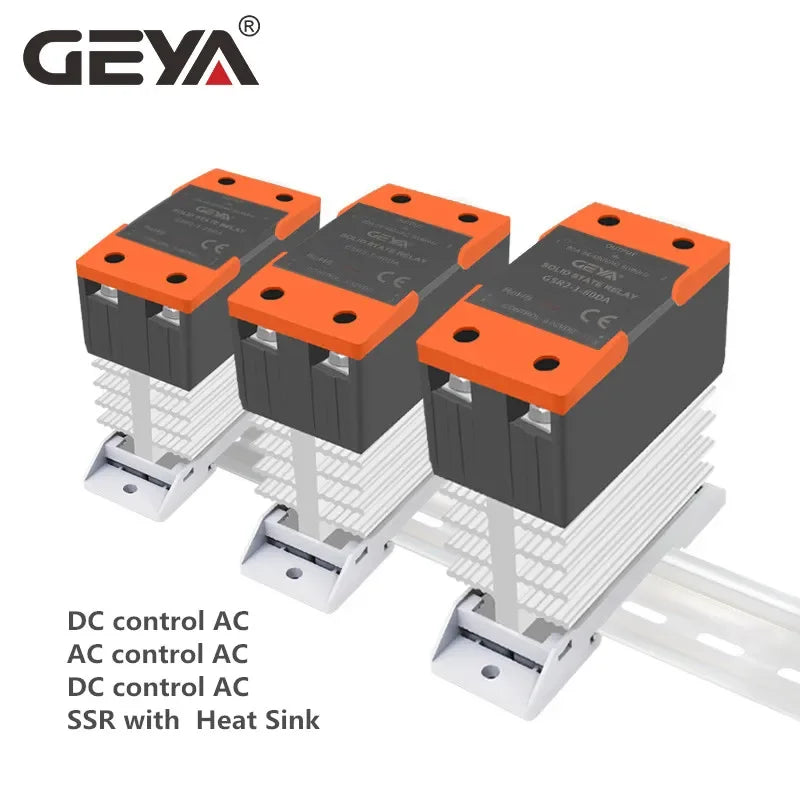

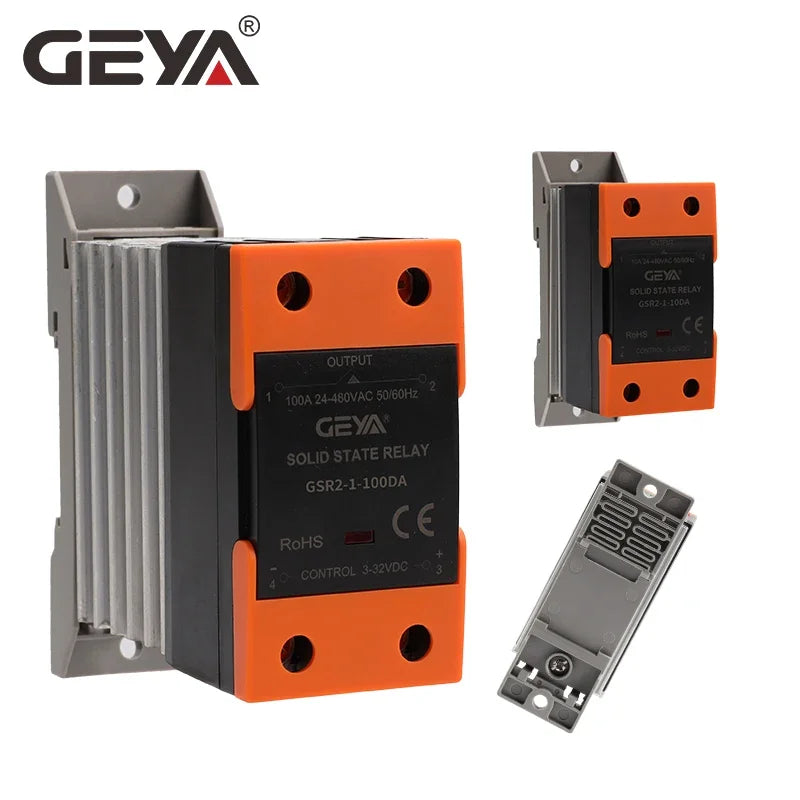

GEYA Solid State Relay with Radiator SSR 10DA 25DA 40DA DC Control AC Single Phase SSR Din Rail Mount Single Phase

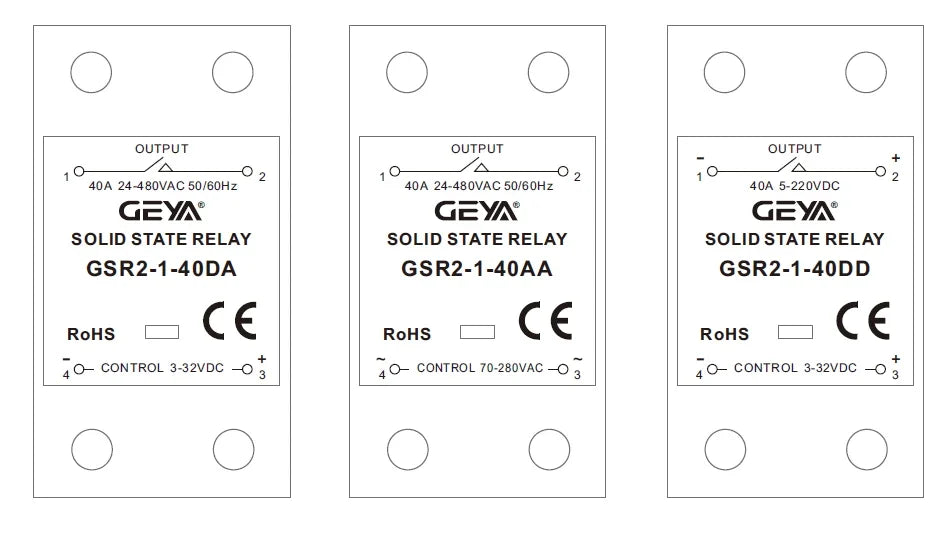

SSR-DA = DC TO AC
SSR-DD= DC TO DC
SSR-AA= AC TO AC

Technical Data

Model: GSR2-1 Single Phase
Control: DC control AC

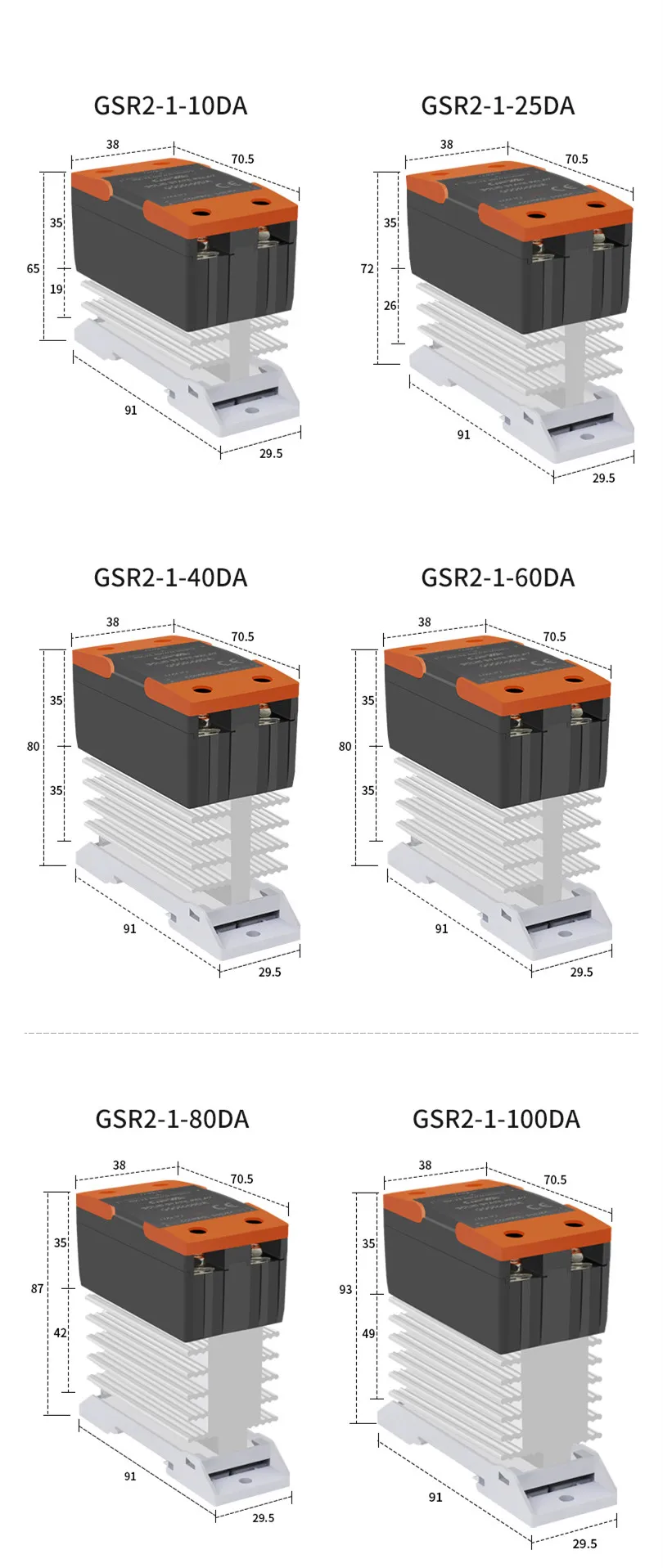

Load Current : 10A 25A 40A 60A 80A 100A 120A
Control Voltage: 3-32VDC
Load Voltage: 24-480VAC
Control Current: DC5mA-25mA
Must Operation Voltage: 2.8VDC
Must Release Voltage : 1.5VDC
Output Voltage: 24-480VAC
Peak Voltage: 800V
Operation Temperature : -20℃ to 75℃
Off-state leakage current: 10-40A -8mA, 60-1200A 2mA

Features

1.Built-in TVS to protect triac.
2.With LED indicator.
3.Zero-cross Or Random turn-on.The default is zero cross SSR.
4.Random turn-on needs to be customized.

Precautions

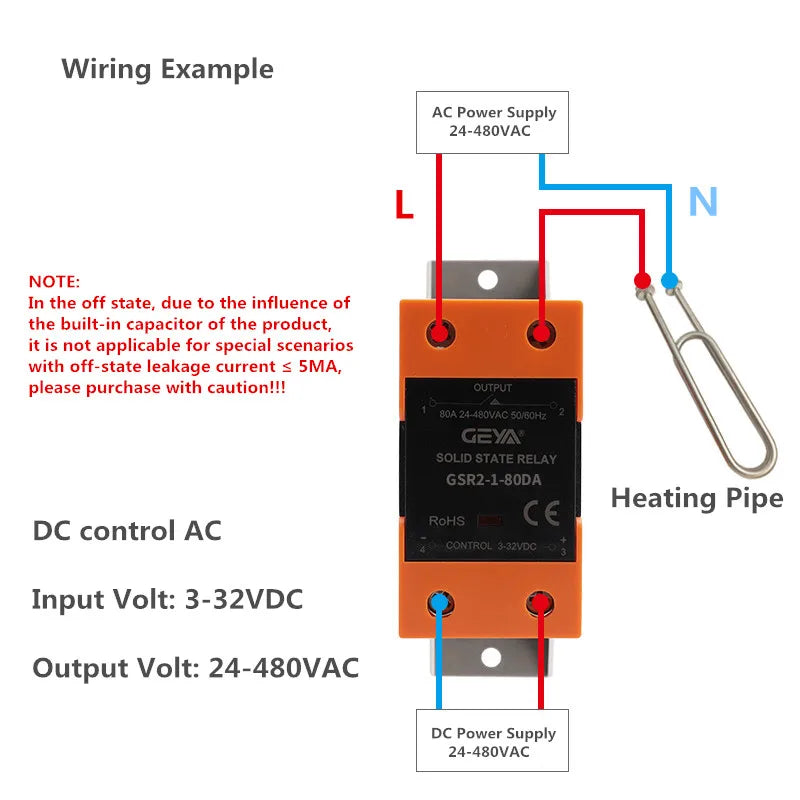

In the off state, due to the influence of the built-in capacitor of the product, it is not applicable for special scenarios with off-state leakage current ≤ 5MA, please purchase with caution!!!

1.When choosing a SSR,please notice the actual load current and working ambient temperature.

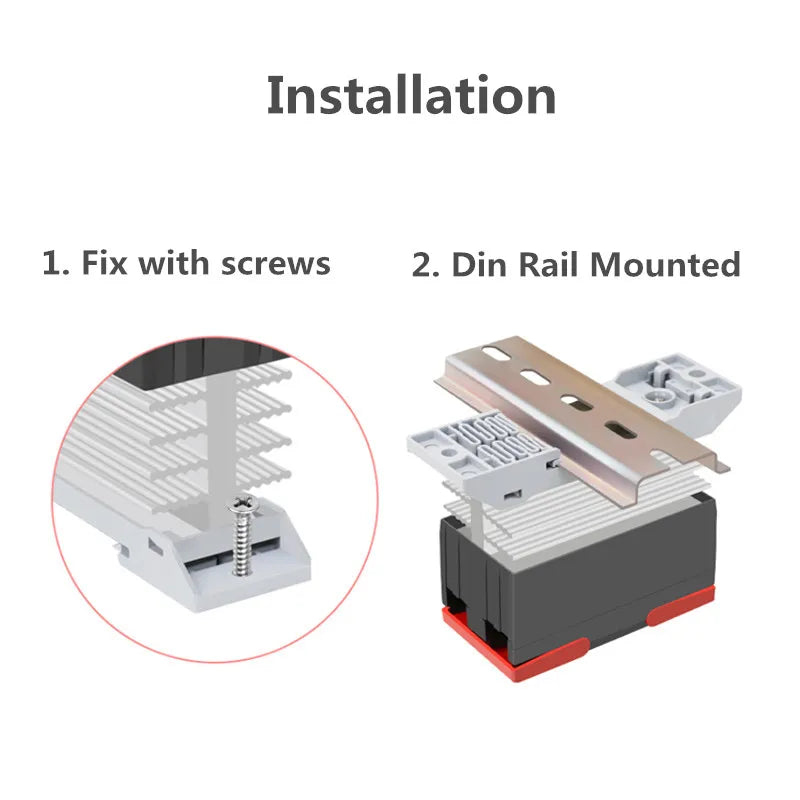

2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink.
3.Tighten the ssr terminal screws properly.
4.Please do not use the relay beyond the descriptions in the data sheet.
