SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Over-voltage & Under-voltage Protection

High-concerned chemical: none

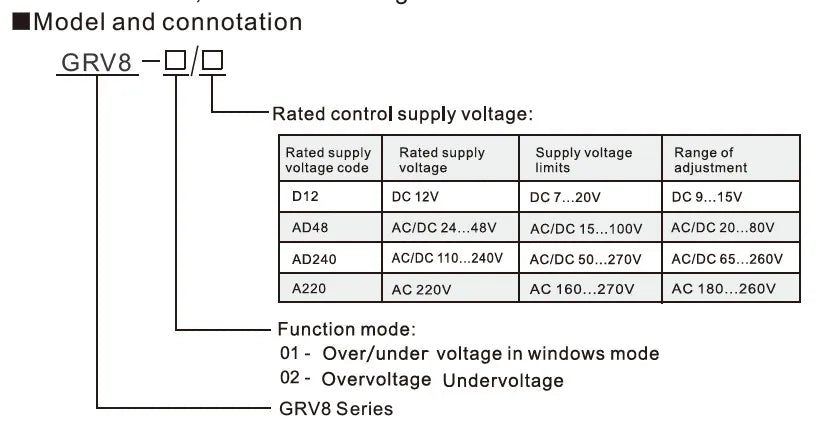

Model Number: GRV8-02 Voltage Relay

Origin: Mainland China

Output Contact: 1SPDT

Power Source: Ac,DC

Product Name: GRV8-0102 Single Phase Voltage Relay

Protect Feature: Sealed

Rated Current: 10A

Rated Frequency: 50/60Hz

Theory: Voltage relay

Time Delay: Adjustable 0.1s-10s, 10%

Use: Protective

Voltage: 48V,DC12V OR AC/DC24-28V, AC/DC110V-240V, AC220V

is_customized: Yes

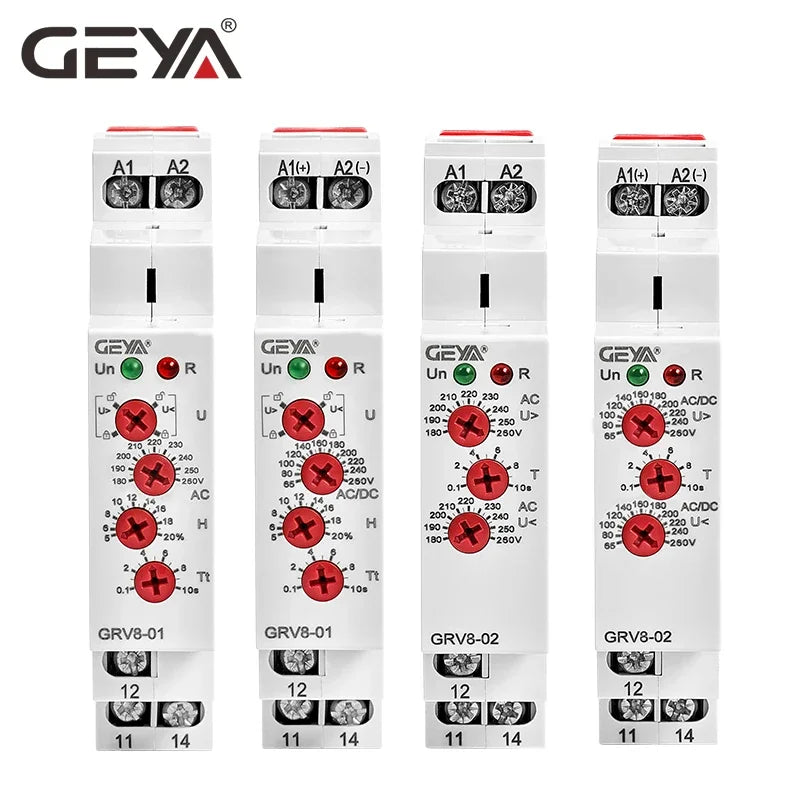

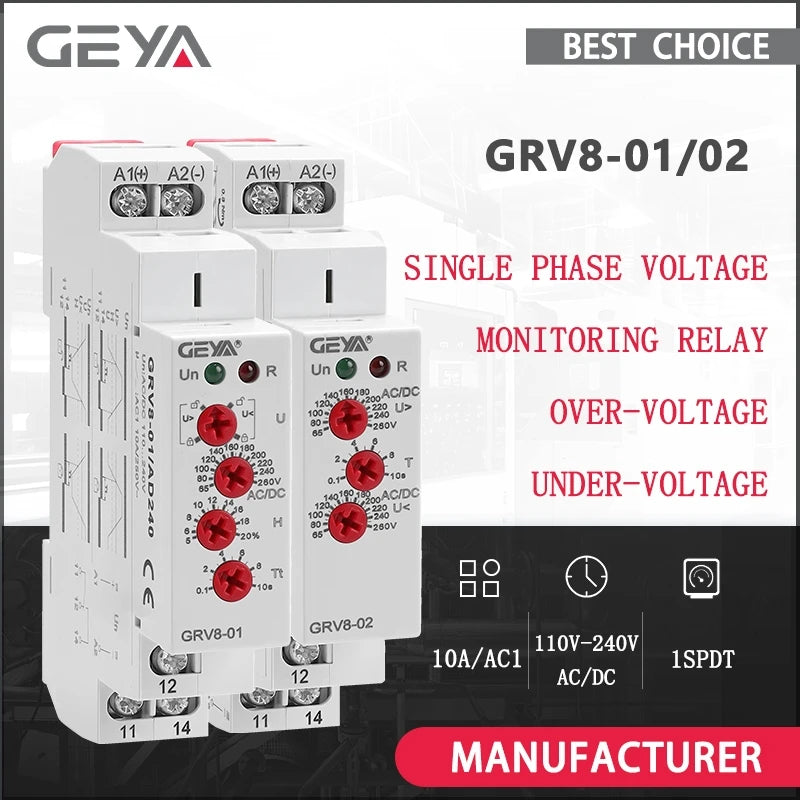

GEYA Voltage Monitoring Device Over-voltage and Under-voltage Protection Relay DC 12V 24V 48V 110V 220V 240V

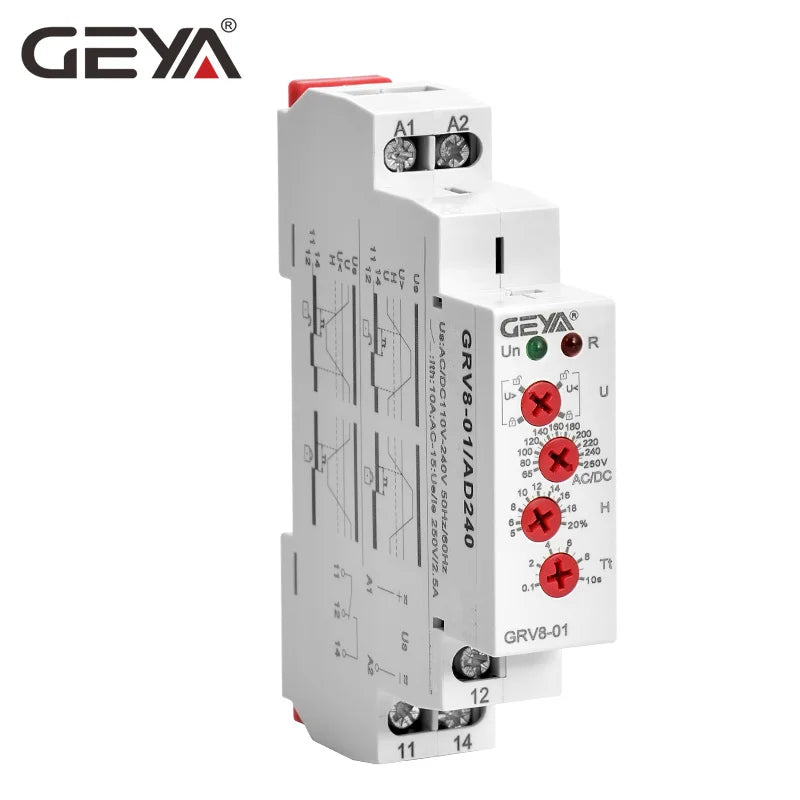

GRV8-01 Over or Under Voltgae Protect

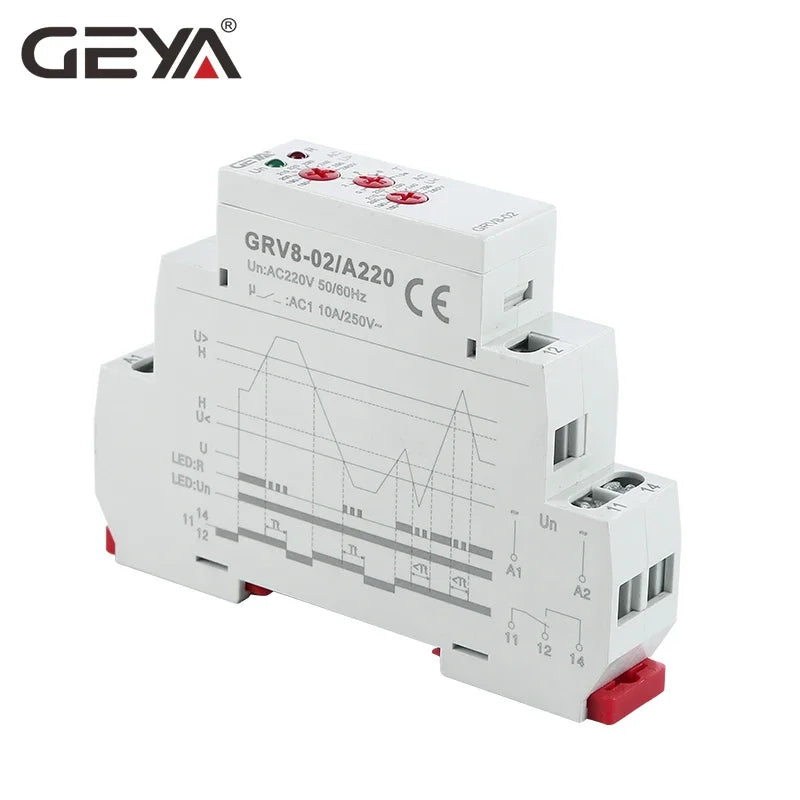

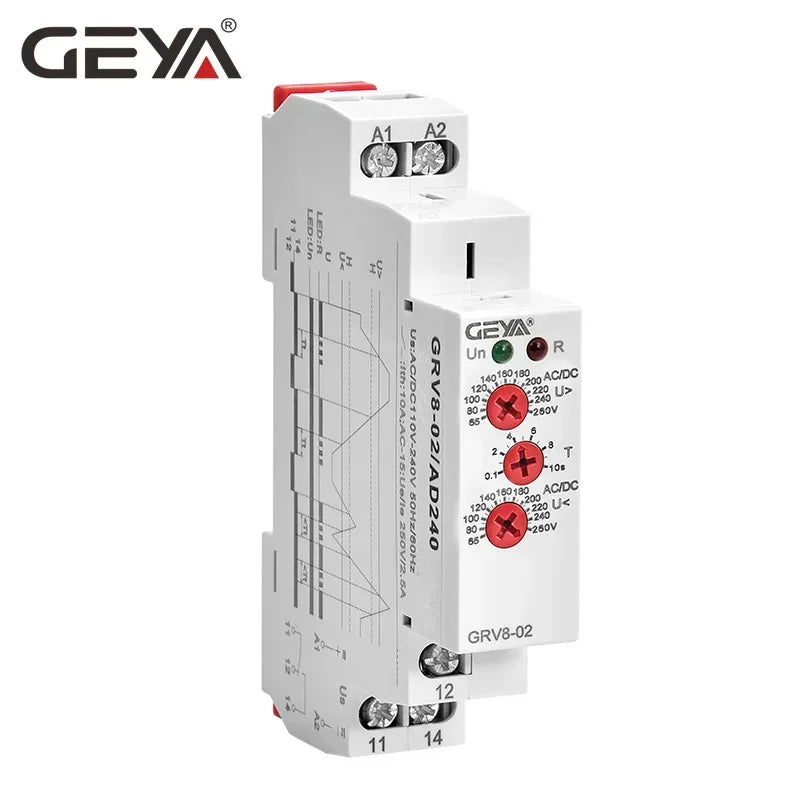

GRV8-02 Over and Under Voltage Protect

If you need other products, please visit GEYA Official Store, we are manufacturer!
General

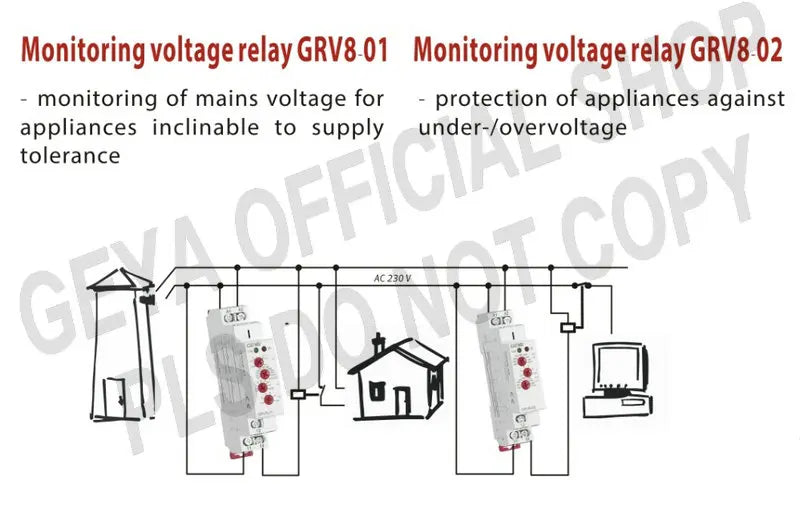

Applications
-Protect electrical equipment and motors from over-voltage or under-voltage.
-Normal/emergency power supply switching.

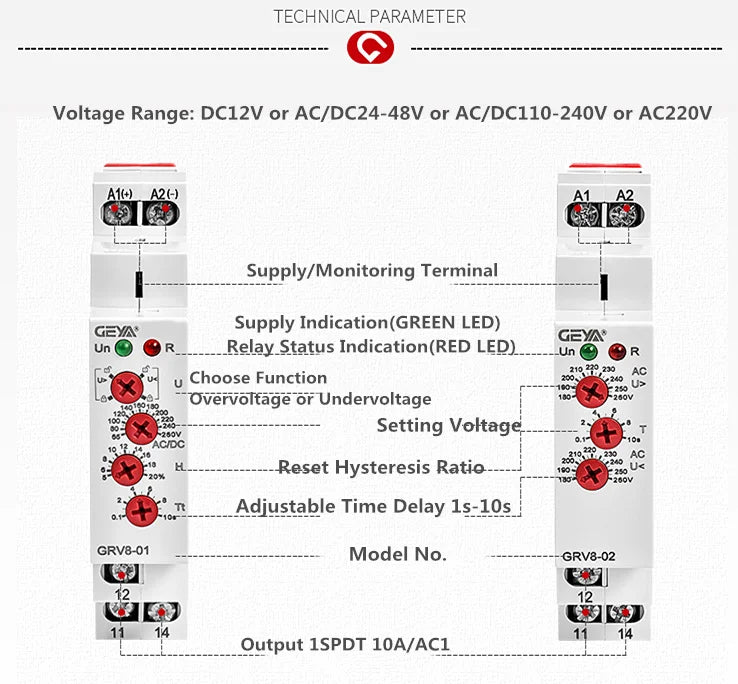

Function Features
- Controls its own supply voltage(True RMS measurement)
-.User may select operation mode through knob.
- Voltage measurement accuracy<1%.

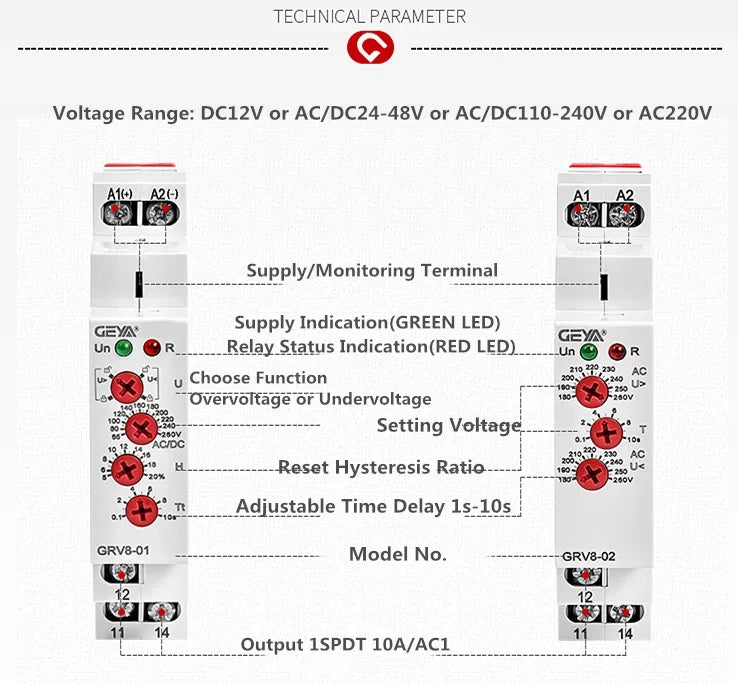

-Voltage Range AC/DC110-240V or  DC12V or AC/DC24-48V or AC220V
-Rated Current 10A/AC1 &1SPDT
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

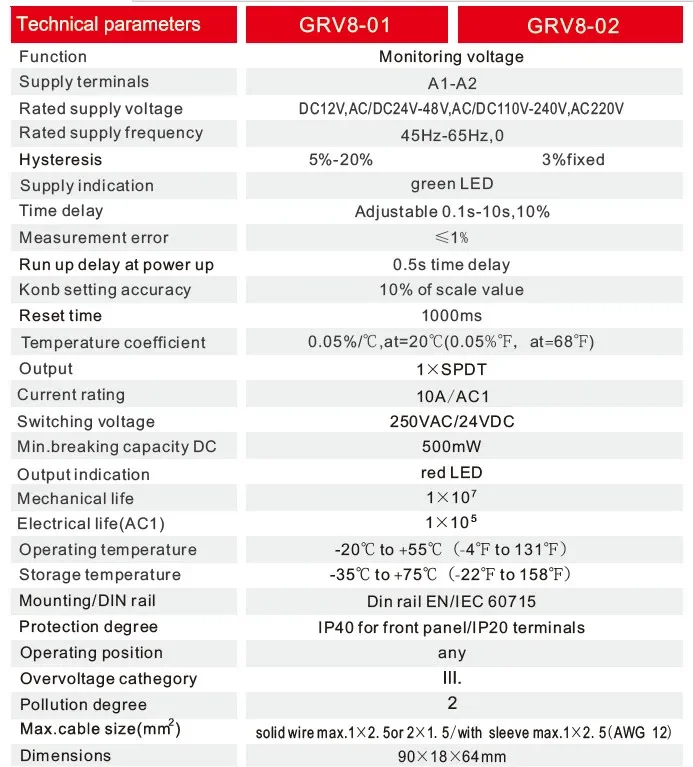

Technical Data
