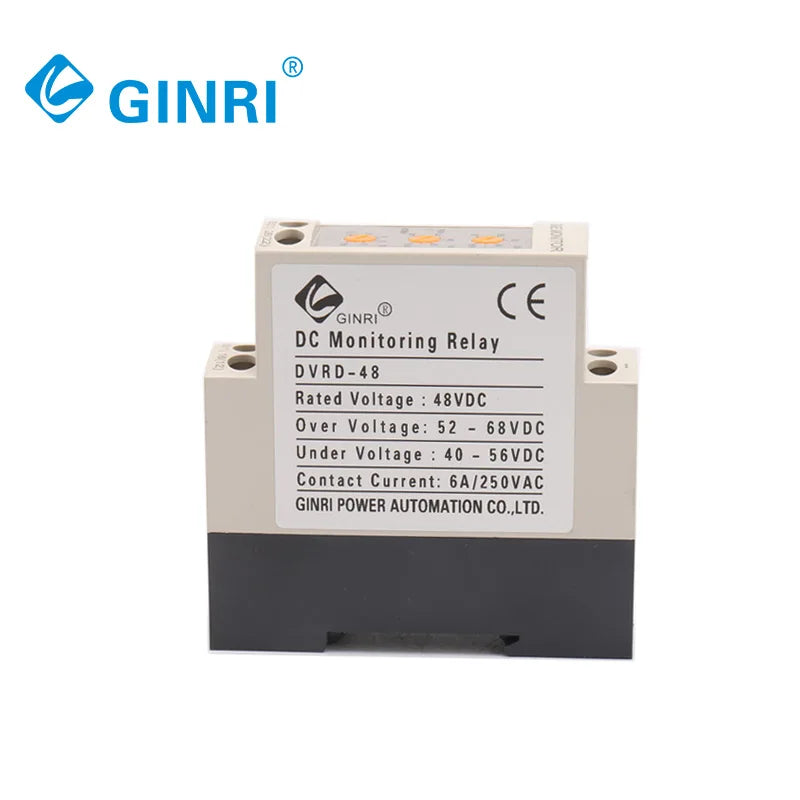

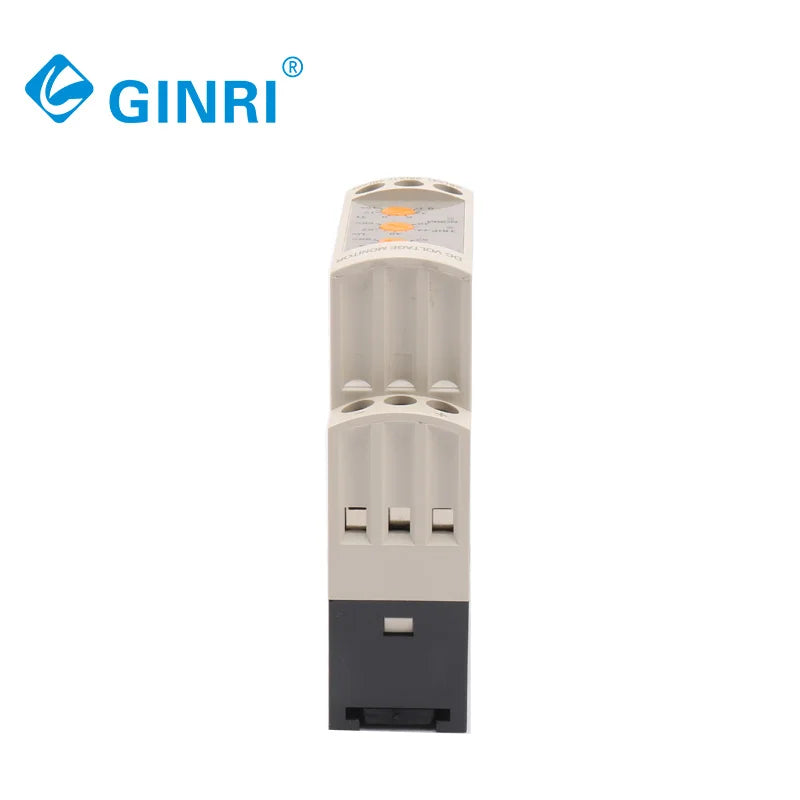

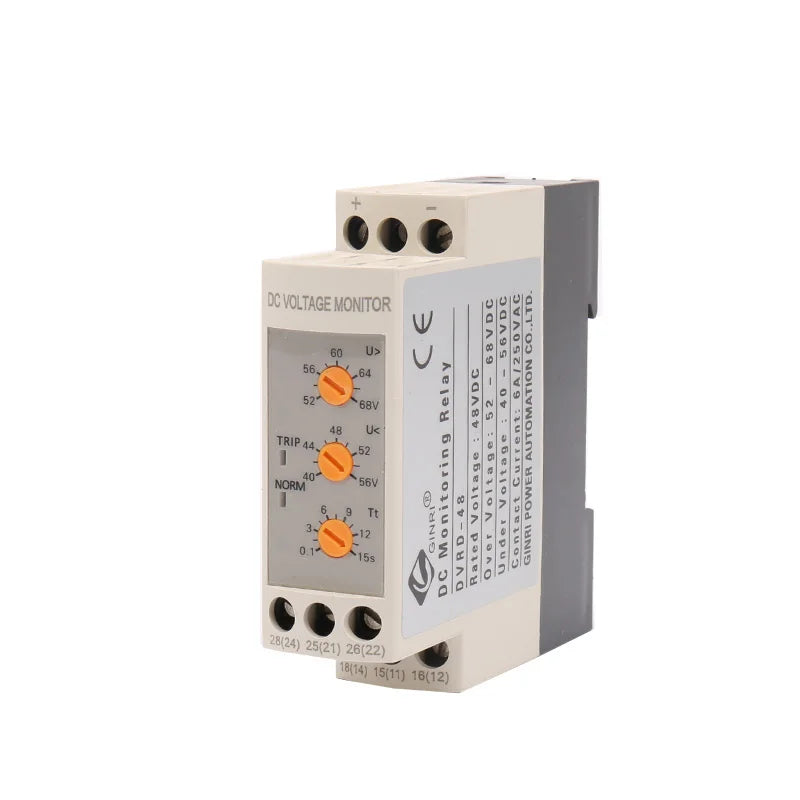

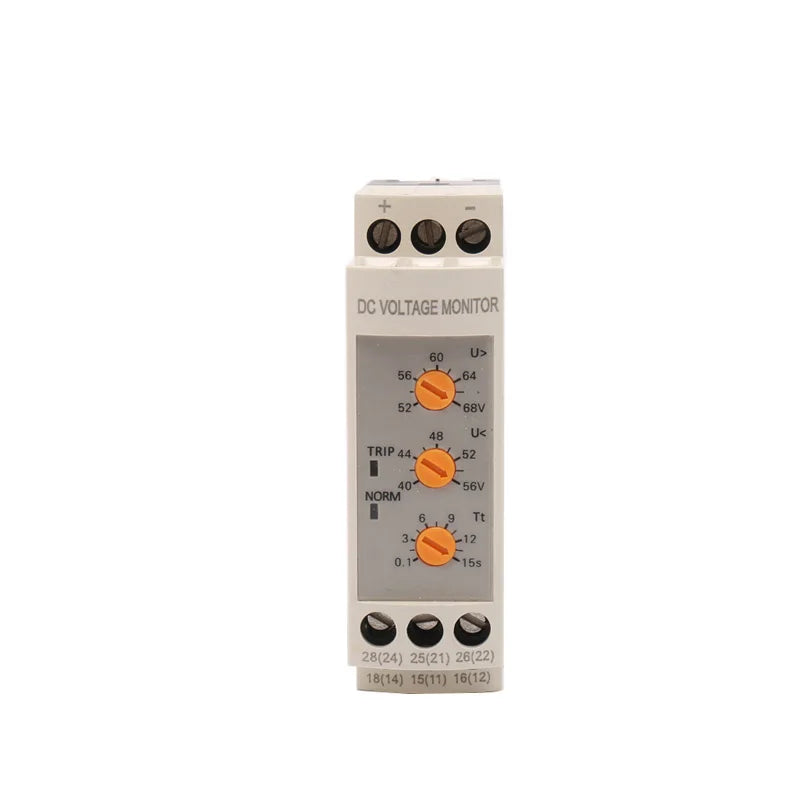

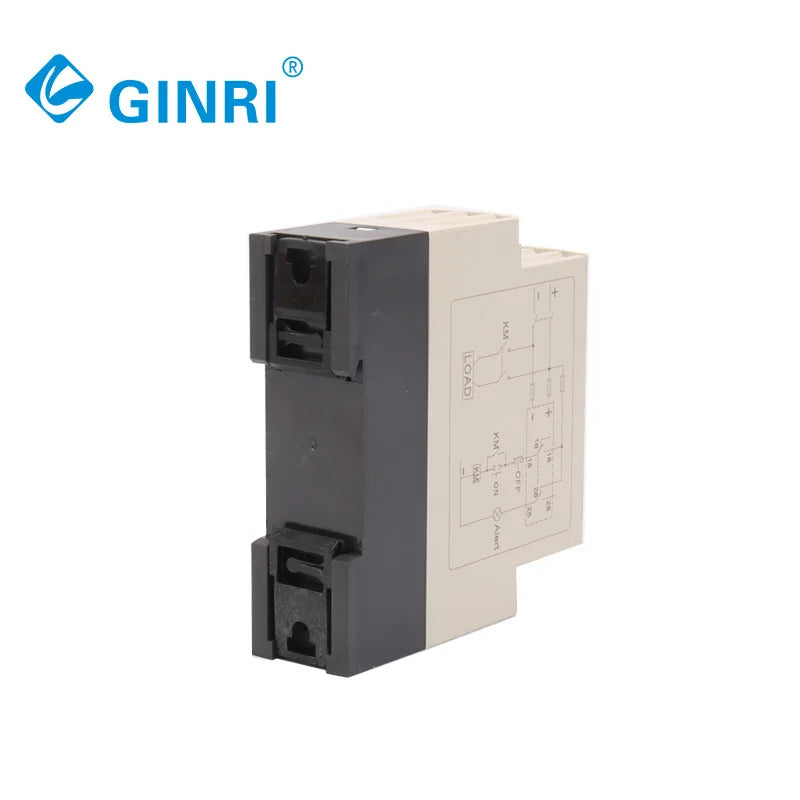

GINRI DVRD-48 Adjustable 48V DC Over and Under Voltage Monitoring Protection Relay Voltage Relay
48V / China Mainland
$63.09
Sale price
$63.09
Regular price
$0.00
Skip to product information
GINRI DVRD-48 Adjustable 48V DC Over and Under Voltage Monitoring Protection Relay Voltage Relay
$63.09
Sale price
$63.09
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: GINRI
Contact Load: Low Power
Contact capacity: 3A,250VAC
Dimension: 68x38x76mm
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Measuring circuit: DC circuit
Model Number: DVRD-48
Monitoring function: overvoltage,undervoltage
Mounting: Din rail
Origin: Mainland China
Power Source: DC,DC
Protect Feature: Sealed
Rated voltage: DC48V
Theory: Voltage relay
Use: Protective
Voltage: 48V
is_customized: Yes

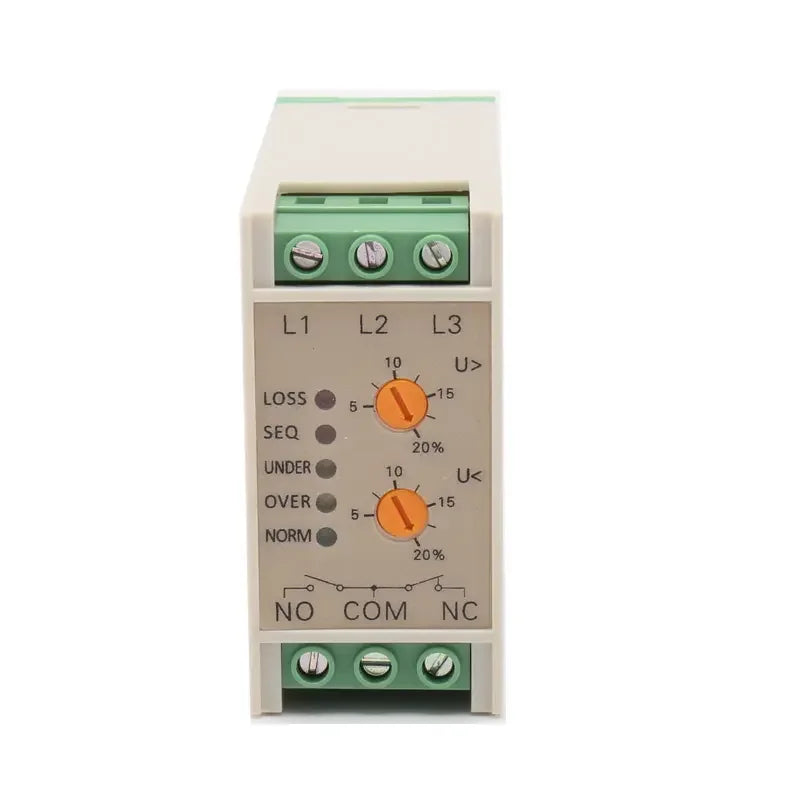

3-phase Voltage Relay

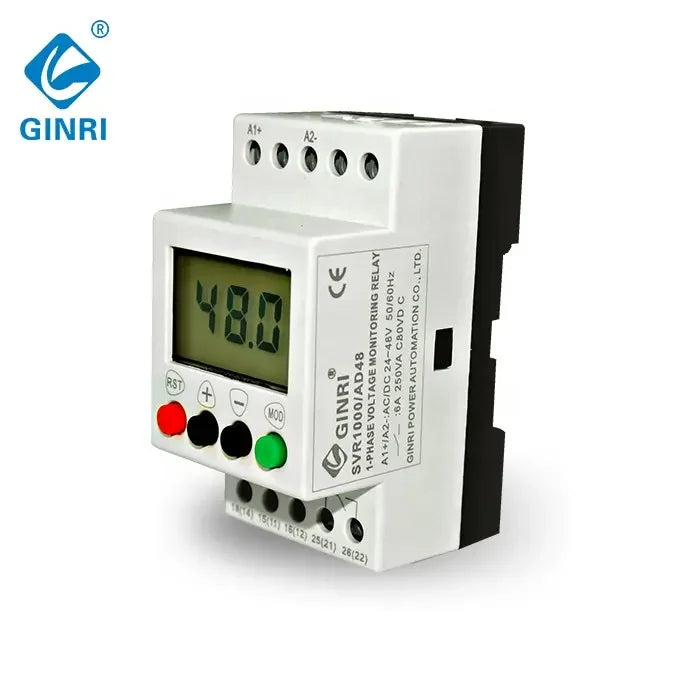

Single Phase Voltage Relay

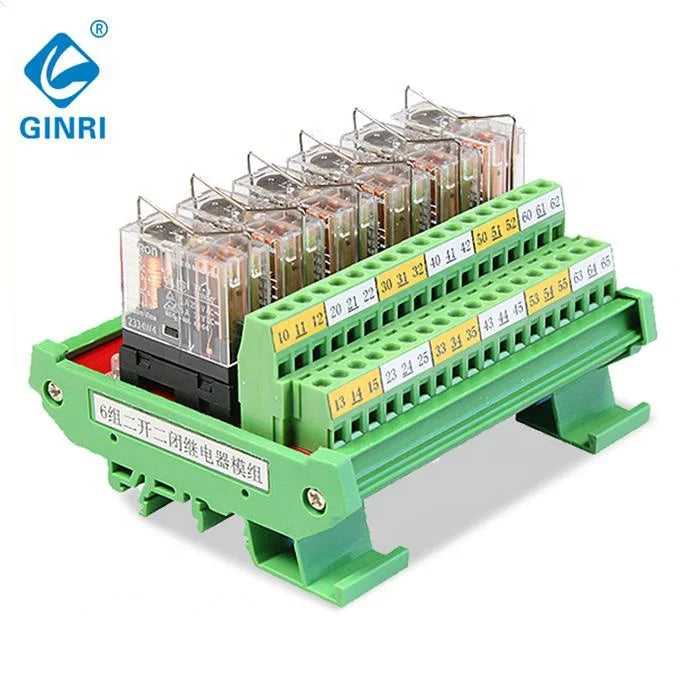

Relay Modules
Categories
Ginri Selection Guide

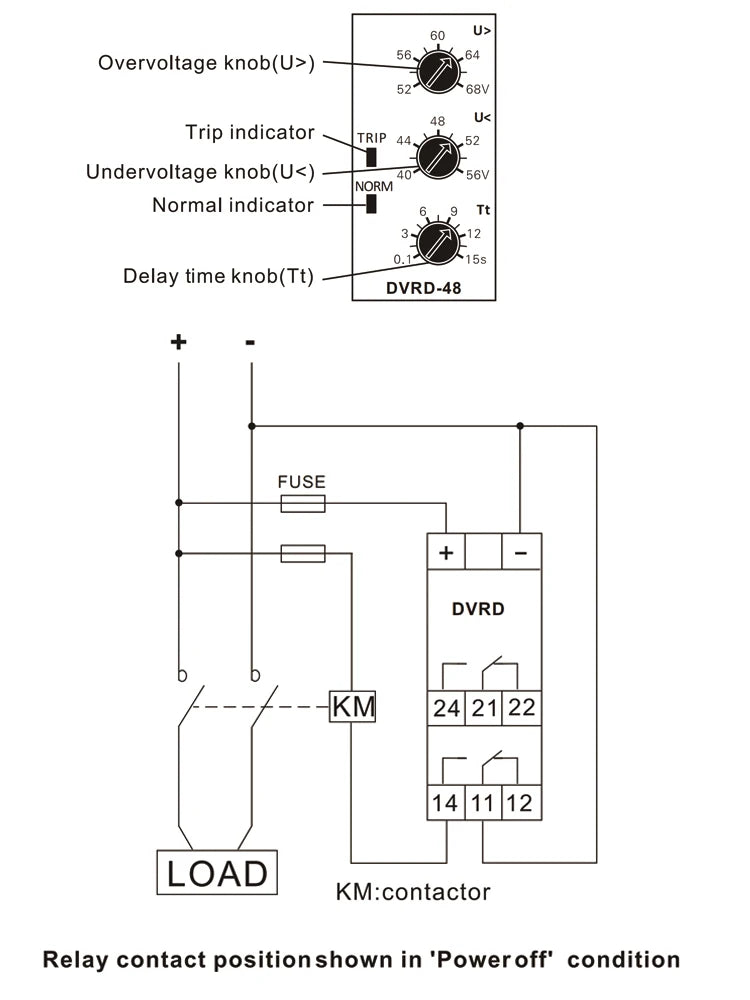

A wiring diagram gives information about the relative position and arrangement of devices and terminals on the devices, to help in building or servicing the device.

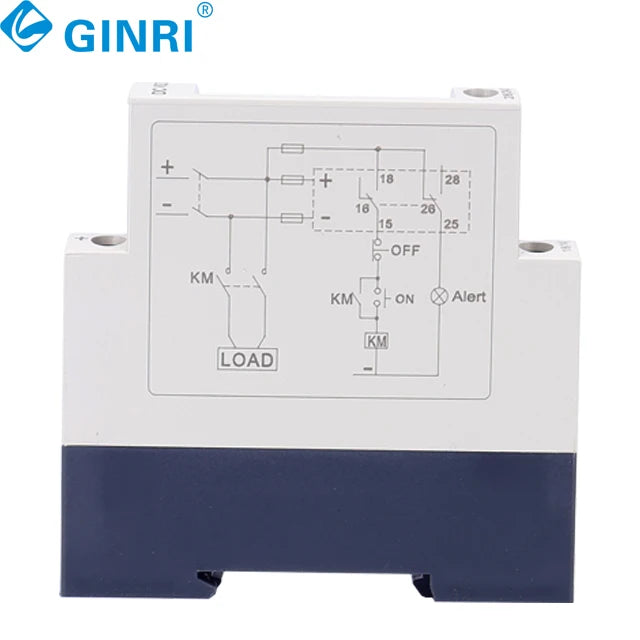

Wiring diagram
Functions
Functions
■ DC cabinet
■ Battery
■ Electric control system
■ Battery
■ Electric control system
Features
Features
■ Compact modular size■ DC circuit monitoring of over-voltage and under-voltage■ Adjustable over-voltage and under-voltage threshold■ Adjustable trip delay time■ Powered by the measuring circuit■ 2 C/O contacts■ 2 LEDs for status indication
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DC Over and Under Voltage Relay
Product Description
