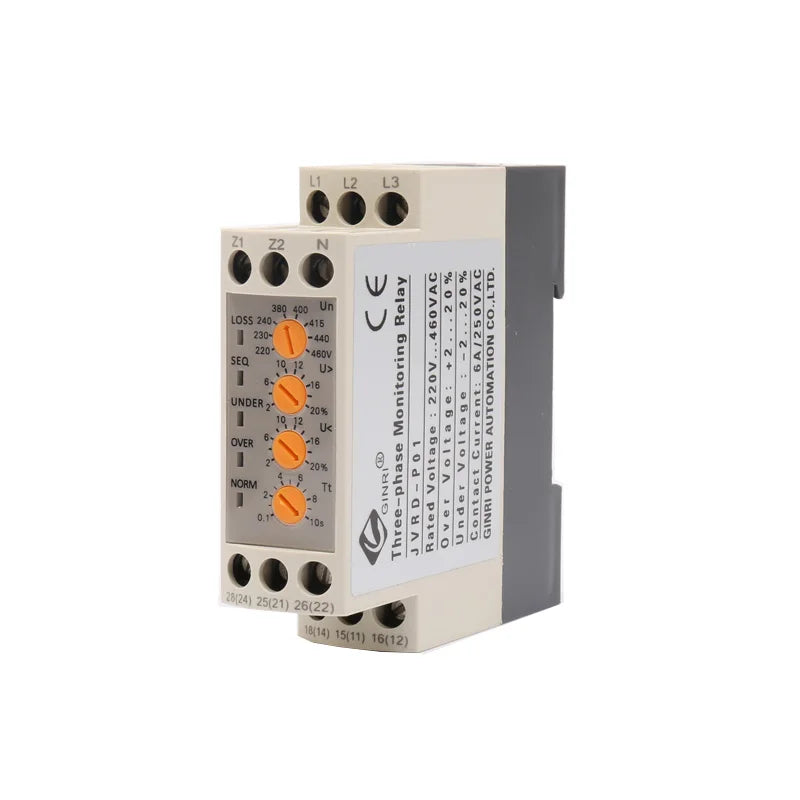

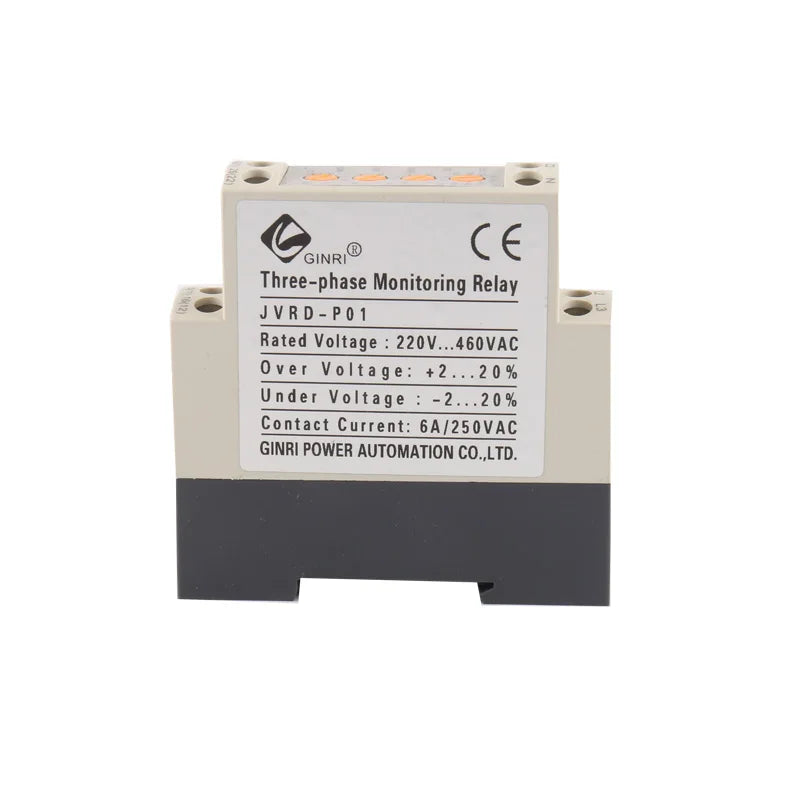

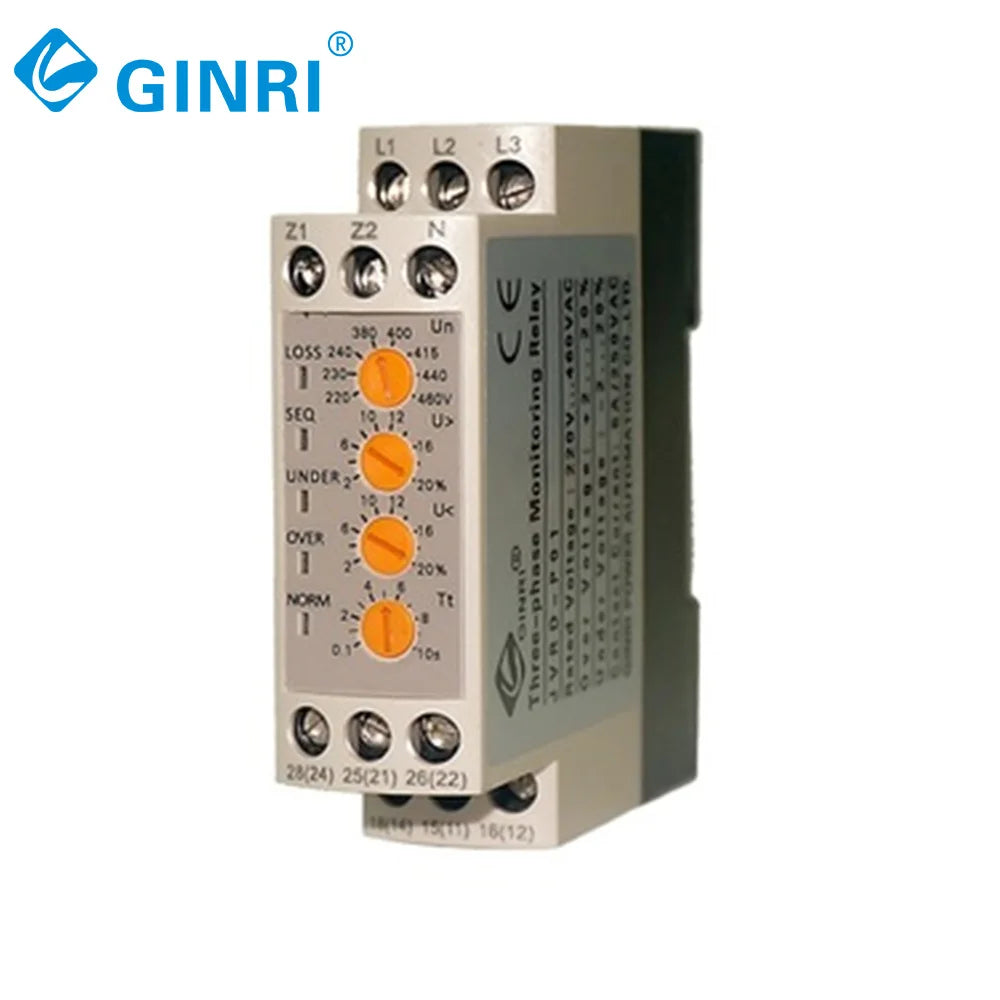

Ginri JVRD-P01 Three phase voltage monitoring relay switchable 8 level rated voltage 220-460V over&under voltage protector
$68.40
Sale price
$68.40
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: GINRI
Certification: CE
Contact Load: High Power
Contact capacity: 6A,250VAC
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none

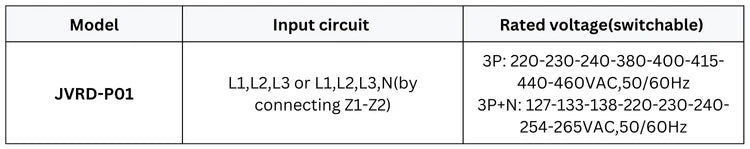

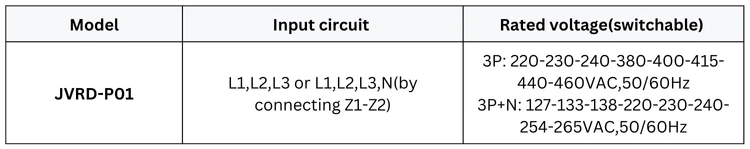

Input circuit = Measuring circuit: L1,L2,L3 or L1,L2,L3,N
Measurement error: 1%
Measuring range: 176-552V
Model Number: JVRD-P01
Origin: Mainland China
Output contacts: 2 C/O
Power Source: Ac
Protect Feature: Sealed
Rated voltage: 220-230-240-380-400-415-440 -460VAC
Theory: Voltage relay
Use: Protective
Voltage: 380V
is_customized: Yes
Product Description
Features
Features

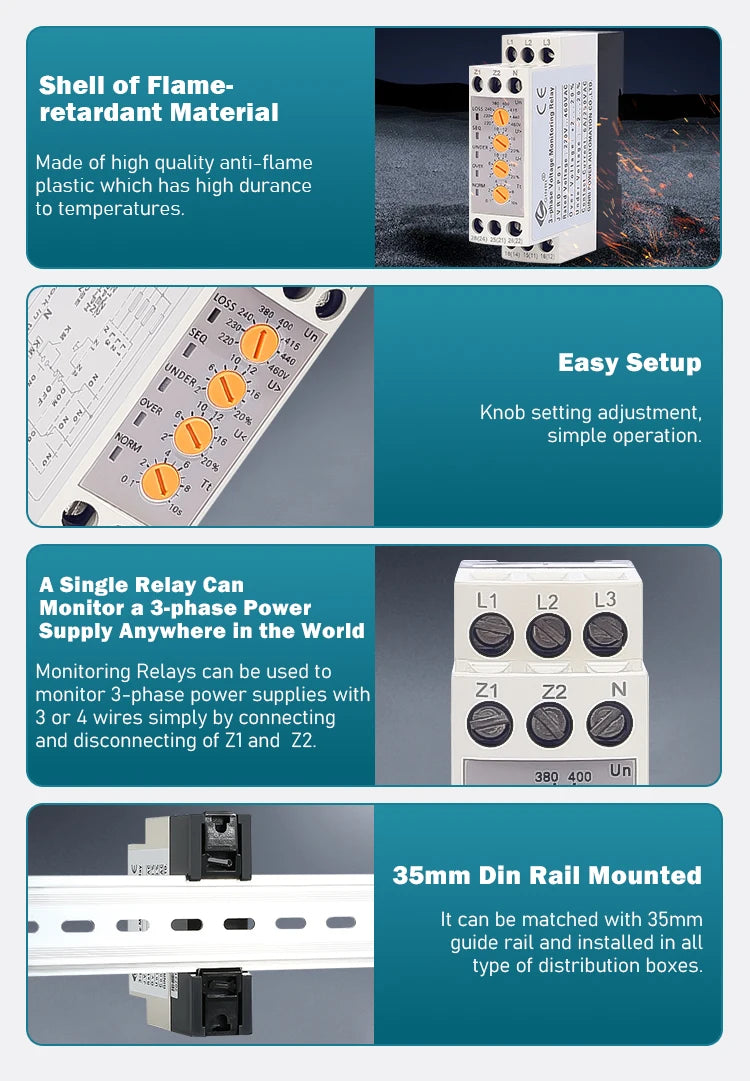

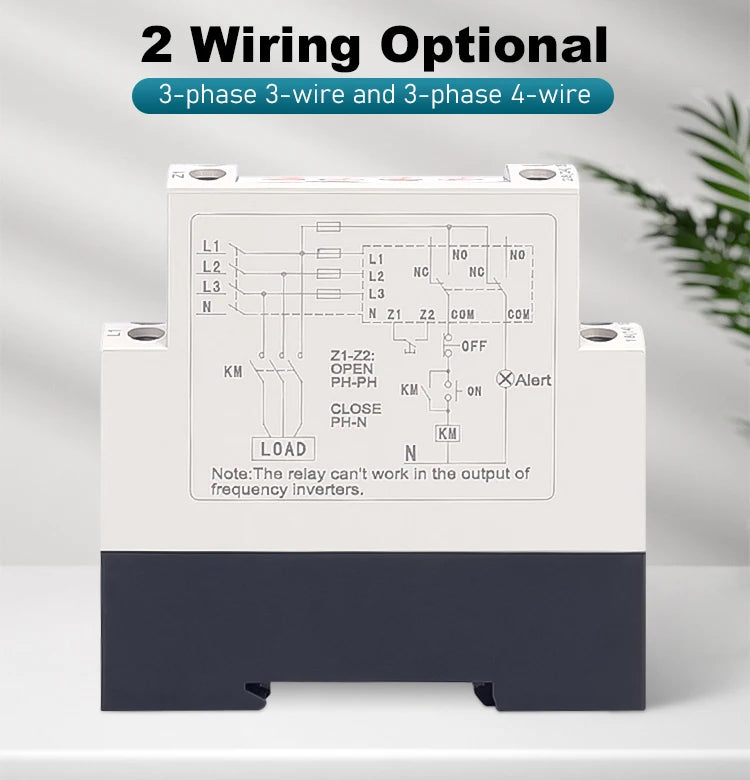

■Support 3-phase 3-wire or 3-phase 4-wire power supply

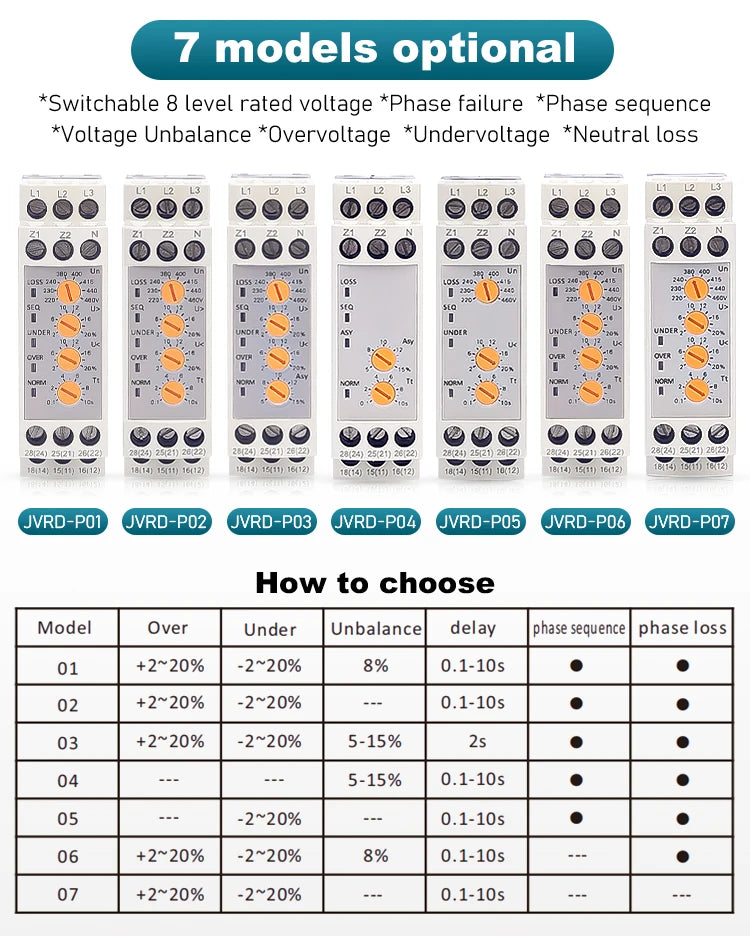

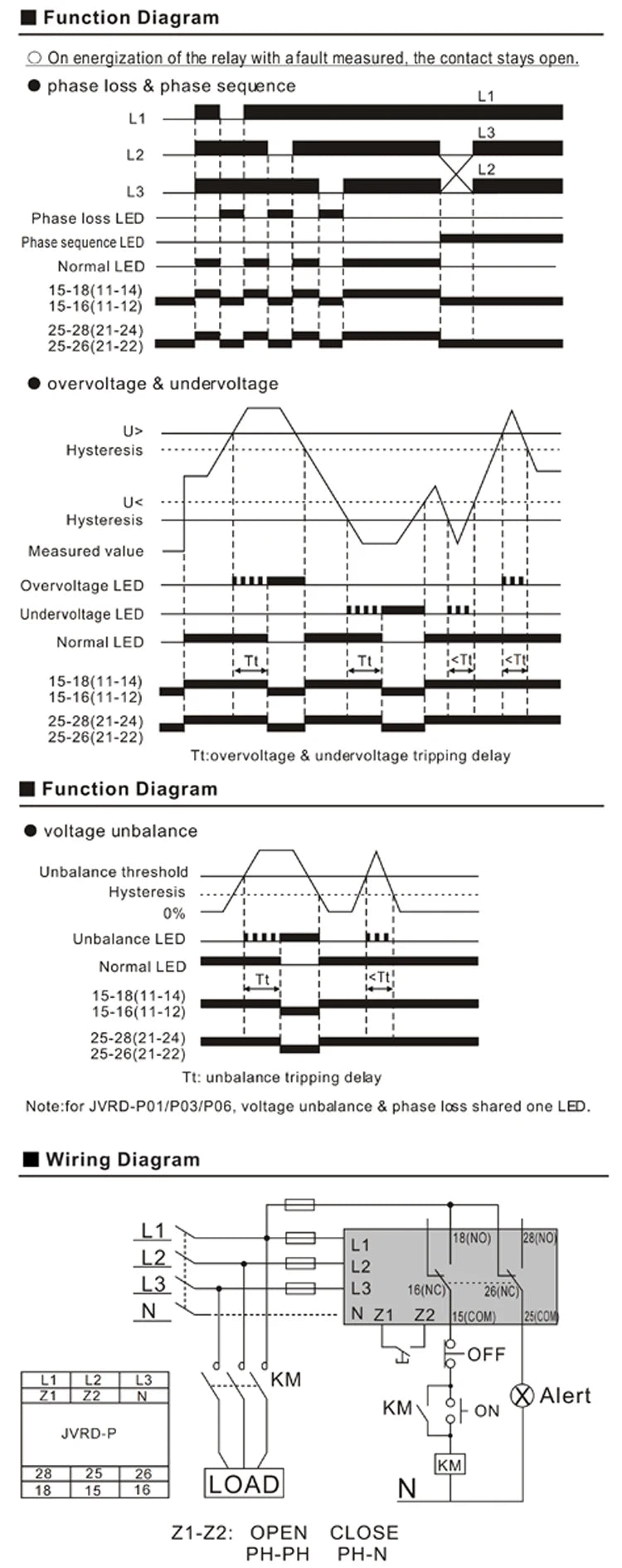

■Switchable 8 level rated voltage-Phase Loss(Failure)
■Phase Sequence (Reversal)
■Voltage Unbalance (Asymmetry)
■0vervoltage, Undervoltage
■Neutral loss
■3P:220-230-240-380-400-415-440-460VAC,50/60Hz
■3P+N:127-133-138-220-230-240-254-265VAC,50/60Hz
■2/CO
■6A, 250VAC
■Size: 79Hx23Wx79D
■Overvoltage, undervoltage protection for industrial and residential electrical equipment.
