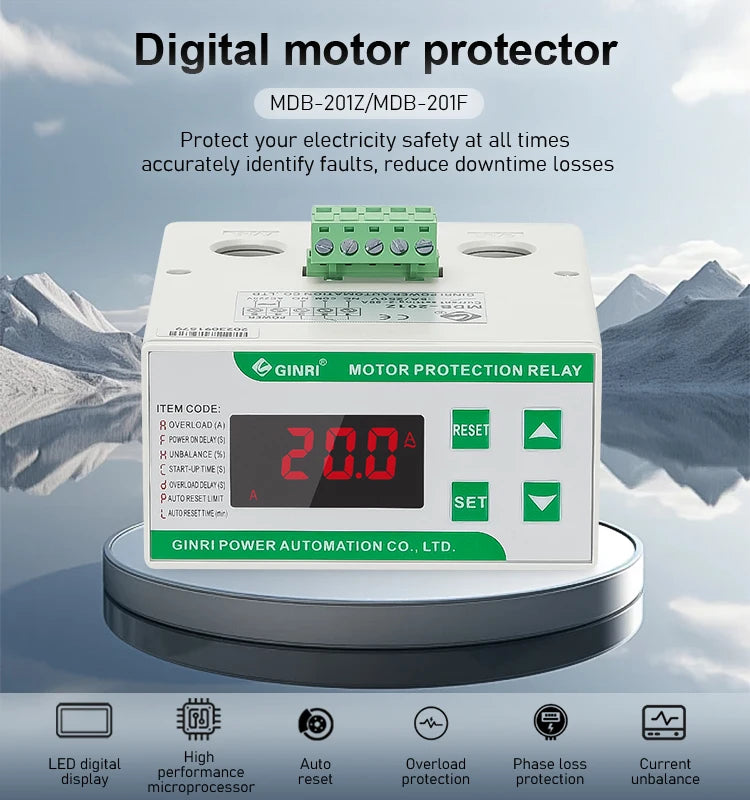

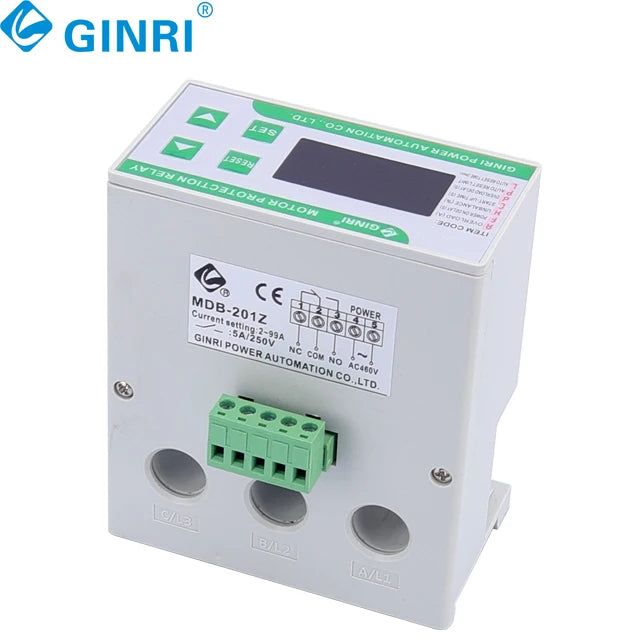

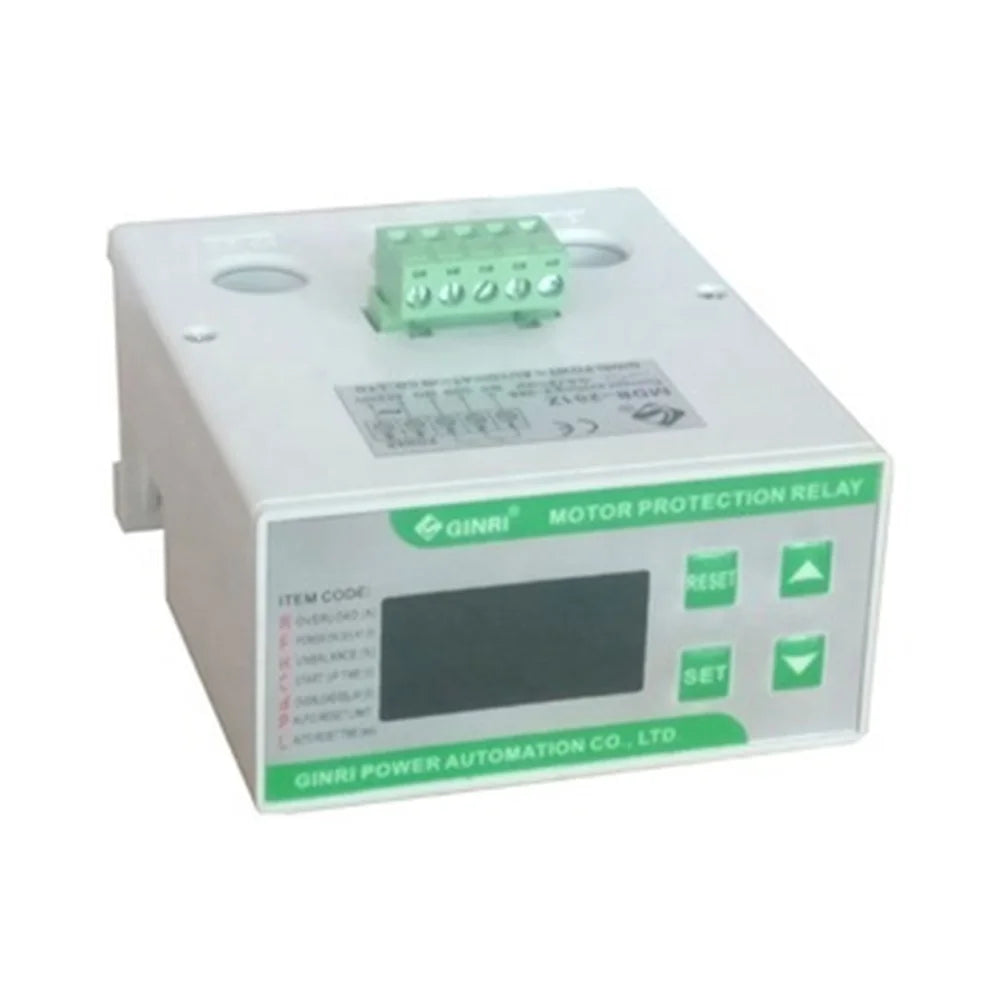

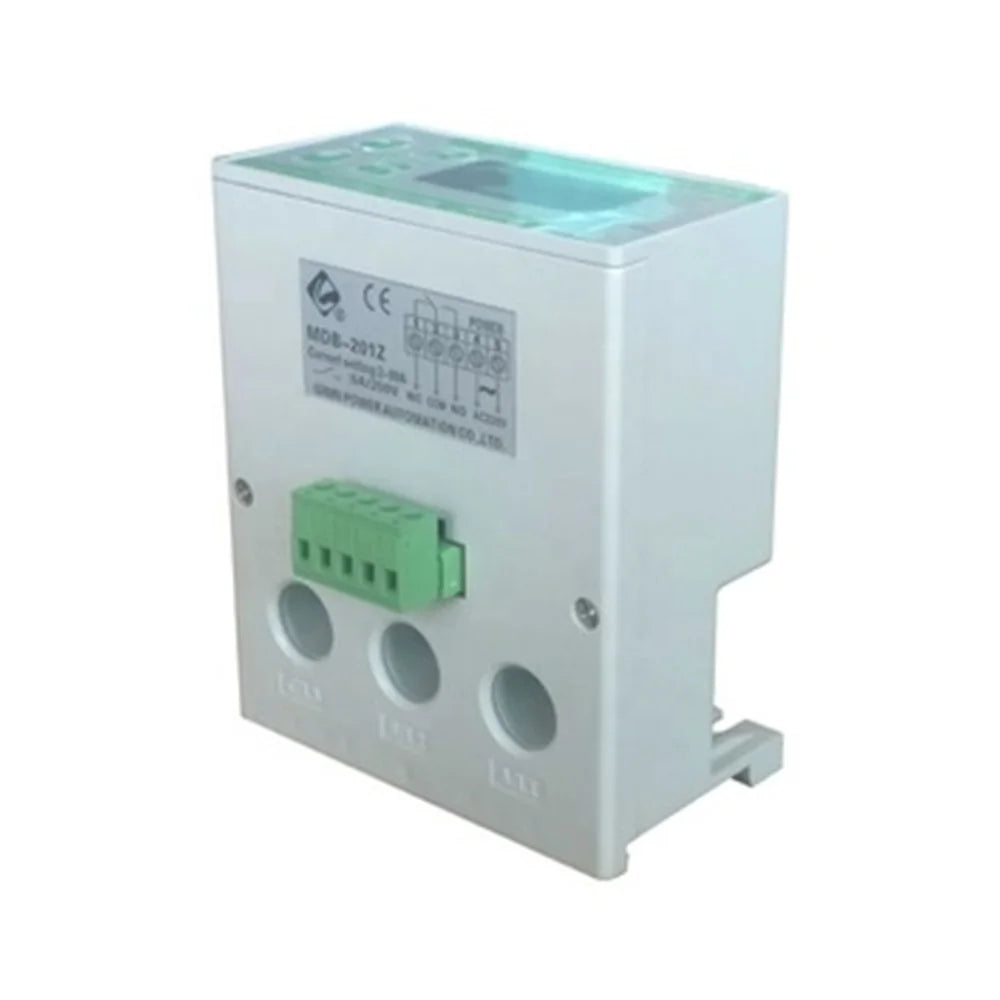

GINRI MDB-201Z Motor Overload Protection Device 2-99A Digital Electronic Protection Relay
AC380V integrative
$77.76
Sale price
$77.76
Regular price
$0.00
Skip to product information
GINRI MDB-201Z Motor Overload Protection Device 2-99A Digital Electronic Protection Relay
$77.76
Sale price
$77.76
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: GINRI
Certification: CE
Contact Load: High Power
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Measurement error: 2%
Model Number: MDB-201Z
Operating current range: 2-99A
Origin: Mainland China
Output type: 1 C/O
Power Source: Ac
Protect Feature: Sealed
Protective functions: Overload,phase loss, phase unbalance
Rated supply voltage: 220VAC,380VAC
Theory: Current Relay
Tripping time: 1-30s
Use: Protective
Voltage: 220V
is_customized: Yes
Product Description
Features
Features
■Compact modular size with integrative structure
■Built-in LED and keypad afford a precise,digital setting
■Three-phase monitoring of overcurrent, phase loss, phase unbalance
■Adjustable reset mode: automatic reset or manual reset
■Adjustable power-on delay
■1 C/O output contact
■Fault latch
■Adjustable reset mode: automatic reset or manual reset
■Adjustable power-on delay
■1 C/O output contact
■Fault latch

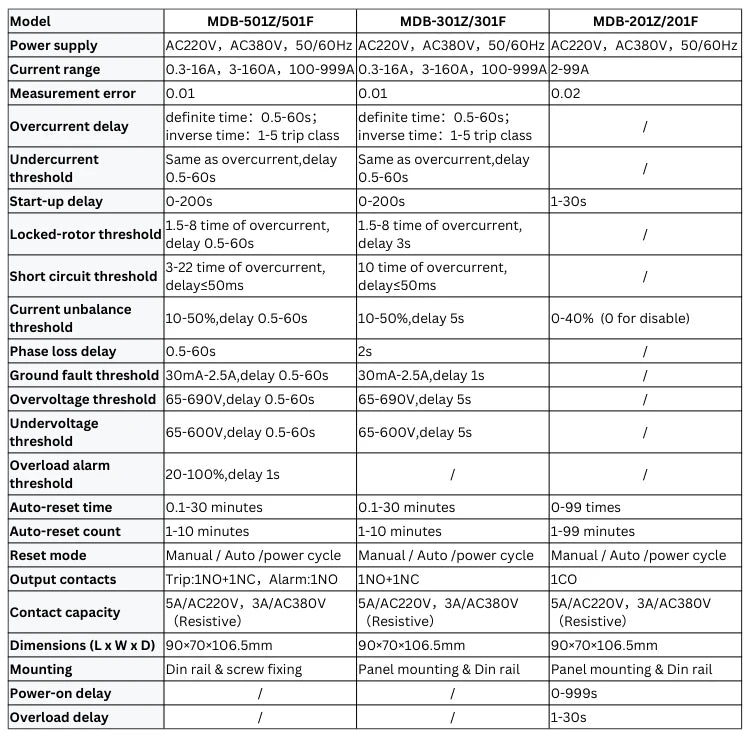

Ginri Selection Guide
