SPECIFICATIONS

Application: Smart Home System, garage door,electric door,shutter door

Brand Name: NONE

Certification: FCC

Circuit Type: 4-Way

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Frequency: 433mhz

Function: Smart Home Wireless Remote Control Switch

High-concerned chemical: none

IP level: IP21

Material: PC

Max current: 30A

Max. Current: 30 A

Max. Voltage: 24 V, 12V--72V

Model Number: GLK-DC-ZFZ-30A

Network: RF

Operating Temperature: -30 ~ +80, -30 ~ +80

Origin: Mainland China

Place of Origin: Guangdong, China

Power Source: DC

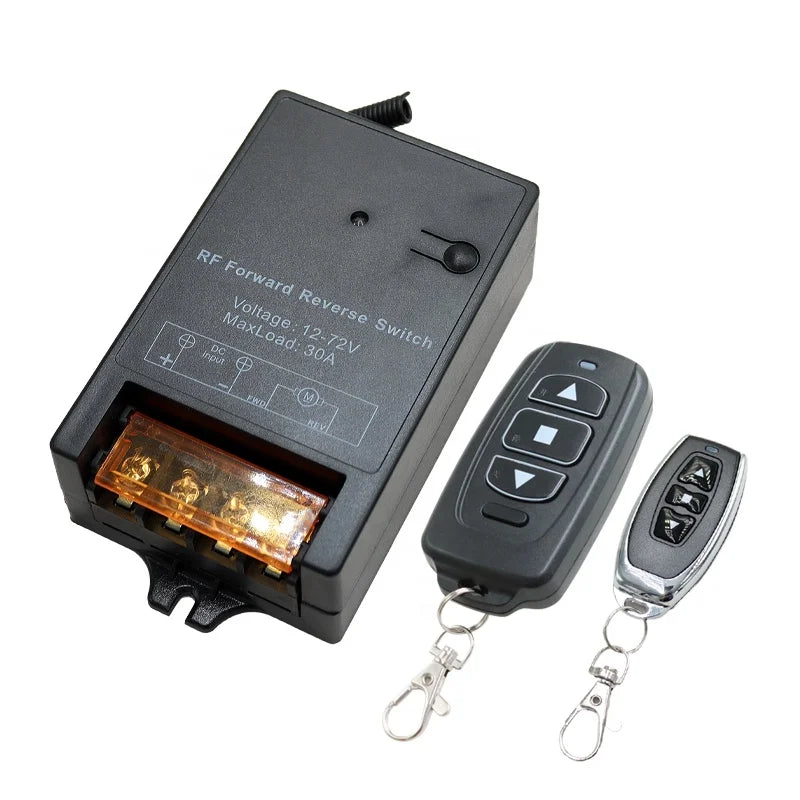

Product Name: Receiver Switch

Receiving Sensitivity: >97dbm

Voltage: DC 12V 24V 36v 48V 60V 72V

Whether The Smart: No



Specification

Warning/Disclaimer:
California Proposition 65 Consumer WarningView more
Product features:

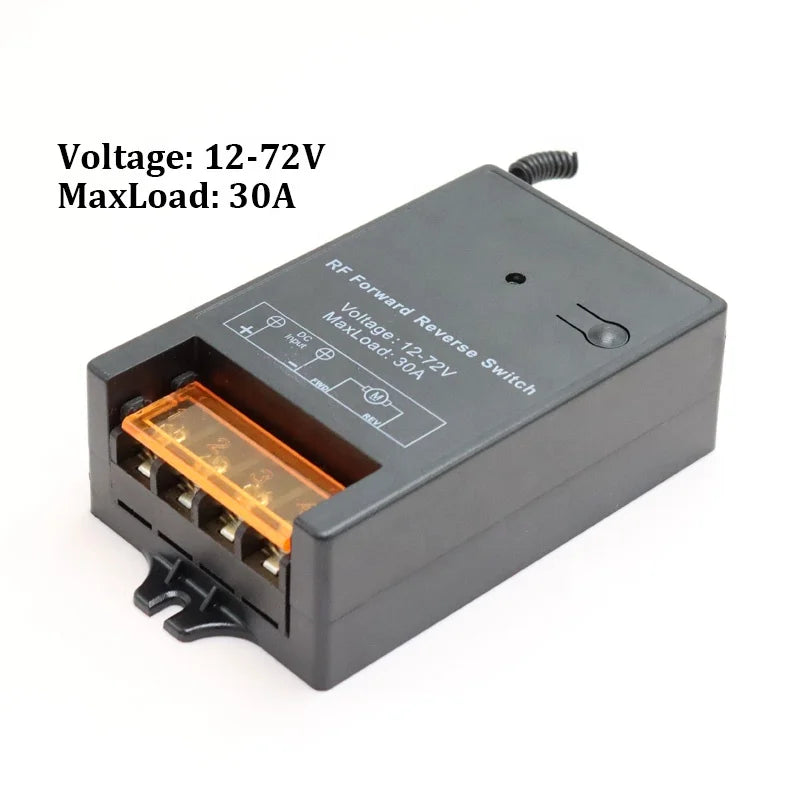

Wide voltage design: 12v remote control switch has a built-in 30 Amp relay, which is applicable in the range of 12v-72v DC
voltage;

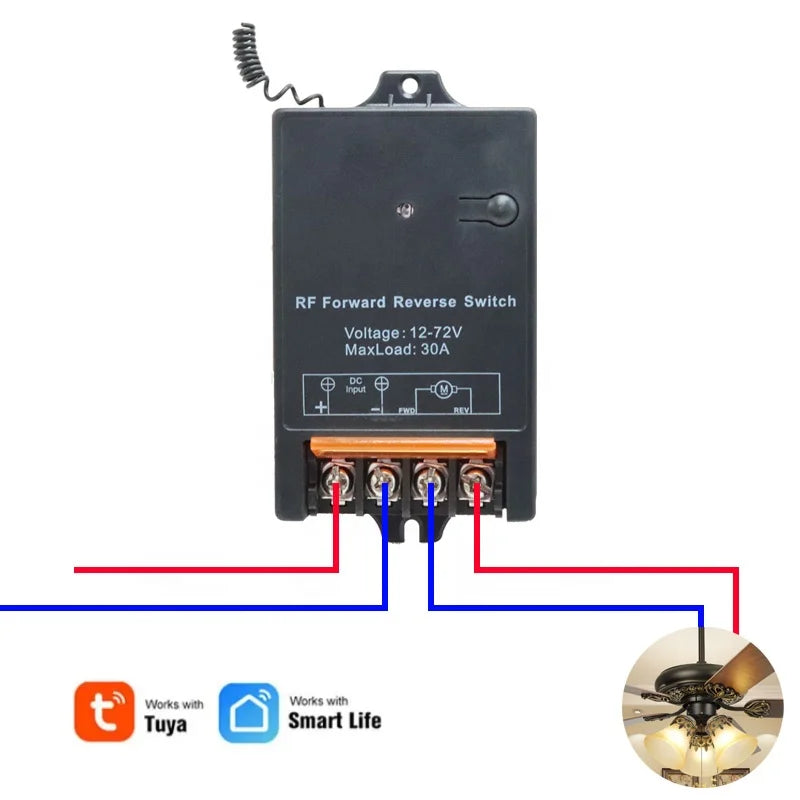

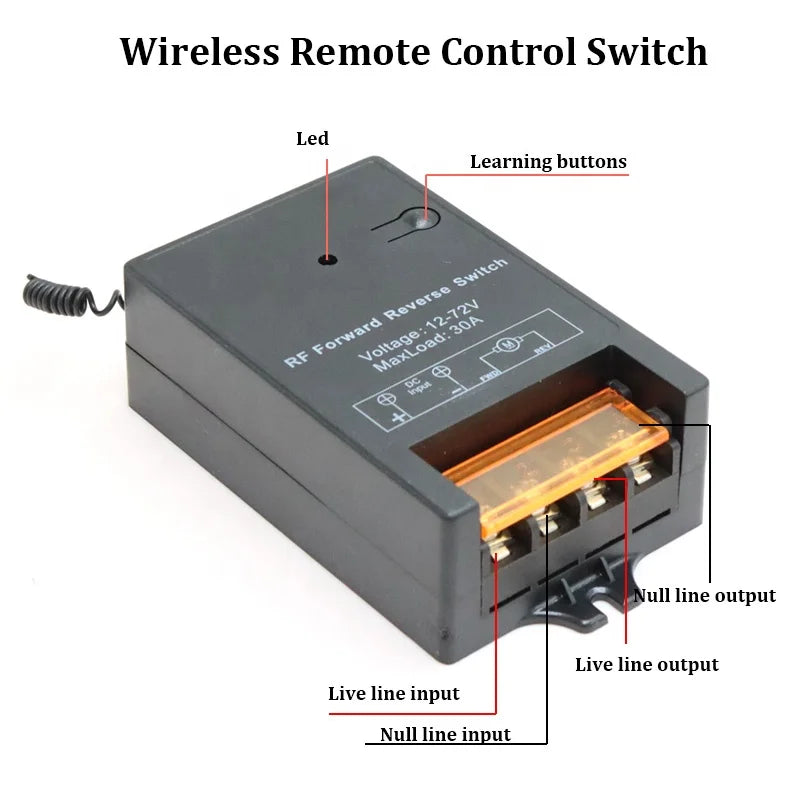

Easy installation: connect the input end of the receiver to the power supply and the output end to the load equipment, that
is,complete the installation;
Easy to control: there is no need for wiring, and the remote control panel can be pasted at any required position;
Programmable code: 12 volt remote control switch supports self-locking mode and instantaneous mode (factory setting is
self-locking mode); Work independently and do not interfere with each other;
Widely used: widely used in linear actuators, garage doors, traction winches, conveyors, electric awnings, electric
curtains,forward and backward motors and any applications with forward and reverse motion capabilities;

LP38ZW210

Product Name	forward reverse remote switch	Working Voltage	DC 12V 24V 36V 48V 60v 72v

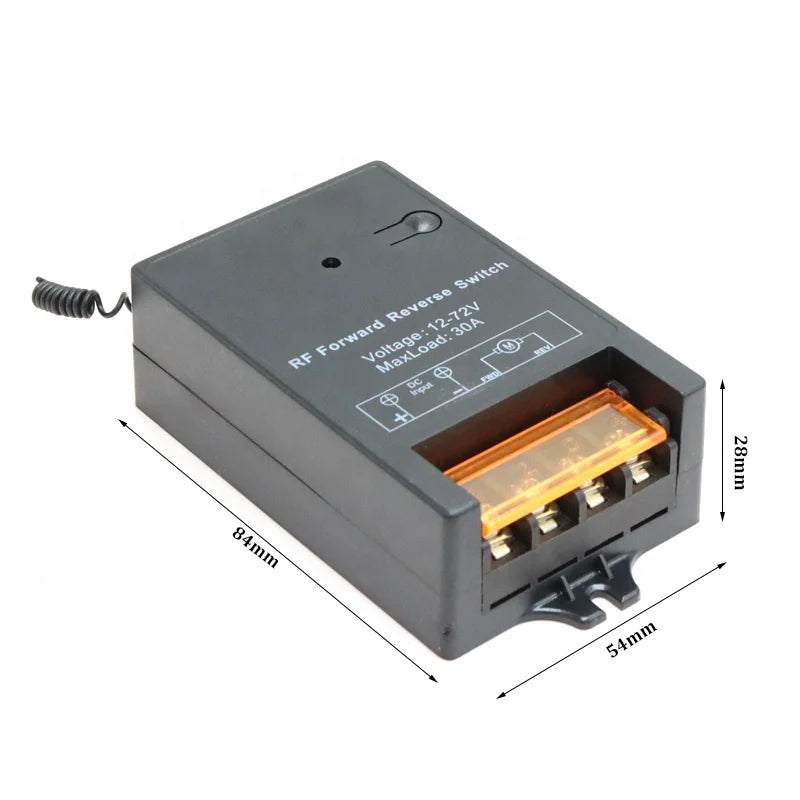

Product Size	28*54*84mm	Working Frequency	433.932 MHz
Emission Current	≤0.01 uA	Remote Distance	50m~100m

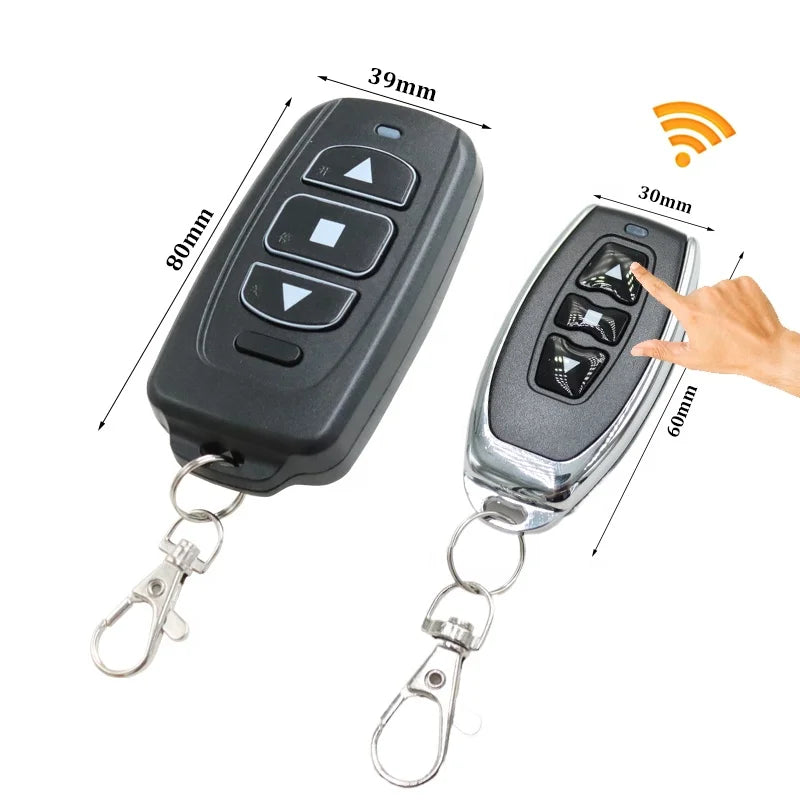

Remote Control Size	13*39*80mm	Remote Control Battery	23A 12V
Rated Current	30A
Working Mode	Interlocking Inching

voltage	12v	24v	36v	48v	60v	72v
Max. load power	350W	700W	1050W	1400W	1800w	2100w
