SPECIFICATIONS

AI Functions: Motion Detection

Alarm Type: telefon Alarm,FTP Photo,Email Photo

Brand Name: WGWK

Camera Stabilization: NONE

Certification: CE

Compression Standard: H.265,H.264,MJPEG

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 42mm*42mm

Flash: 256Mbit SPI Nor Flash

High Definition: 5.0 Megapixels

High-concerned chemical: none

Installation: Embedded

Internal Storage: None

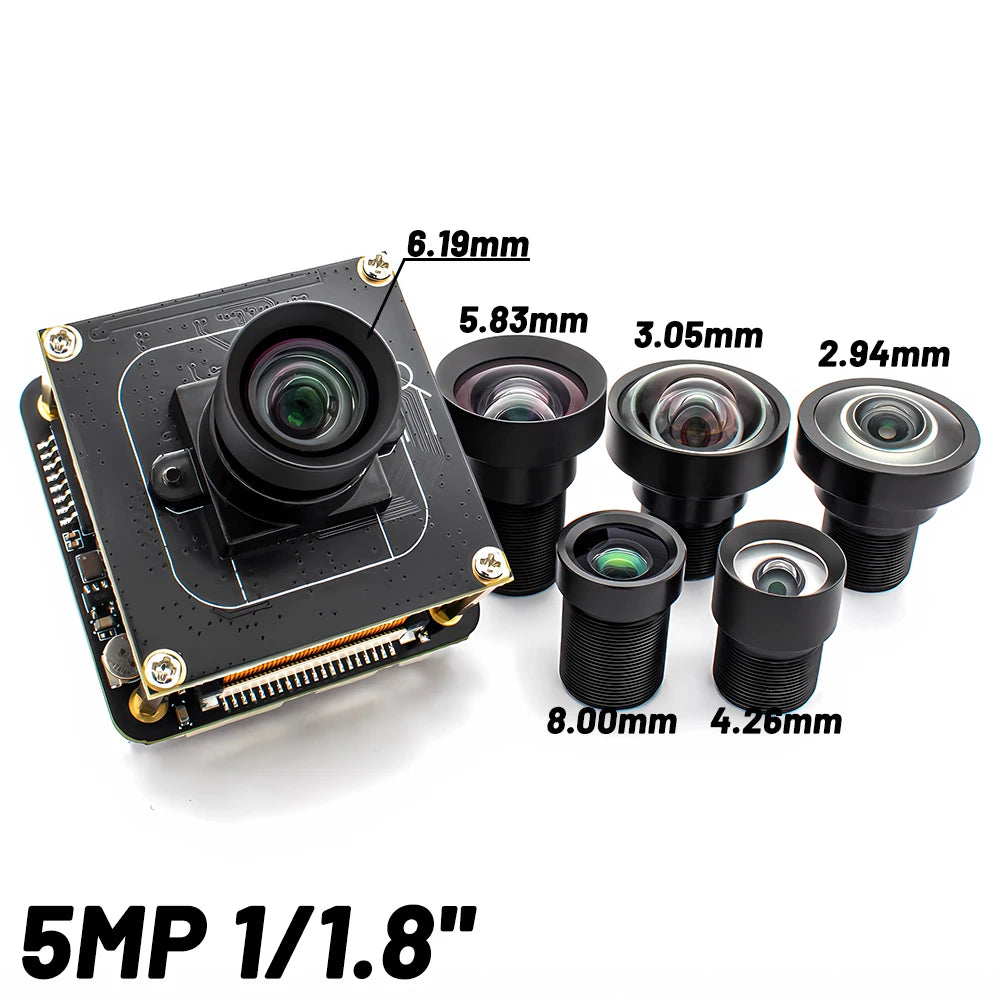

Lens (mm): 8mm

Lens Quantity: Single Lens

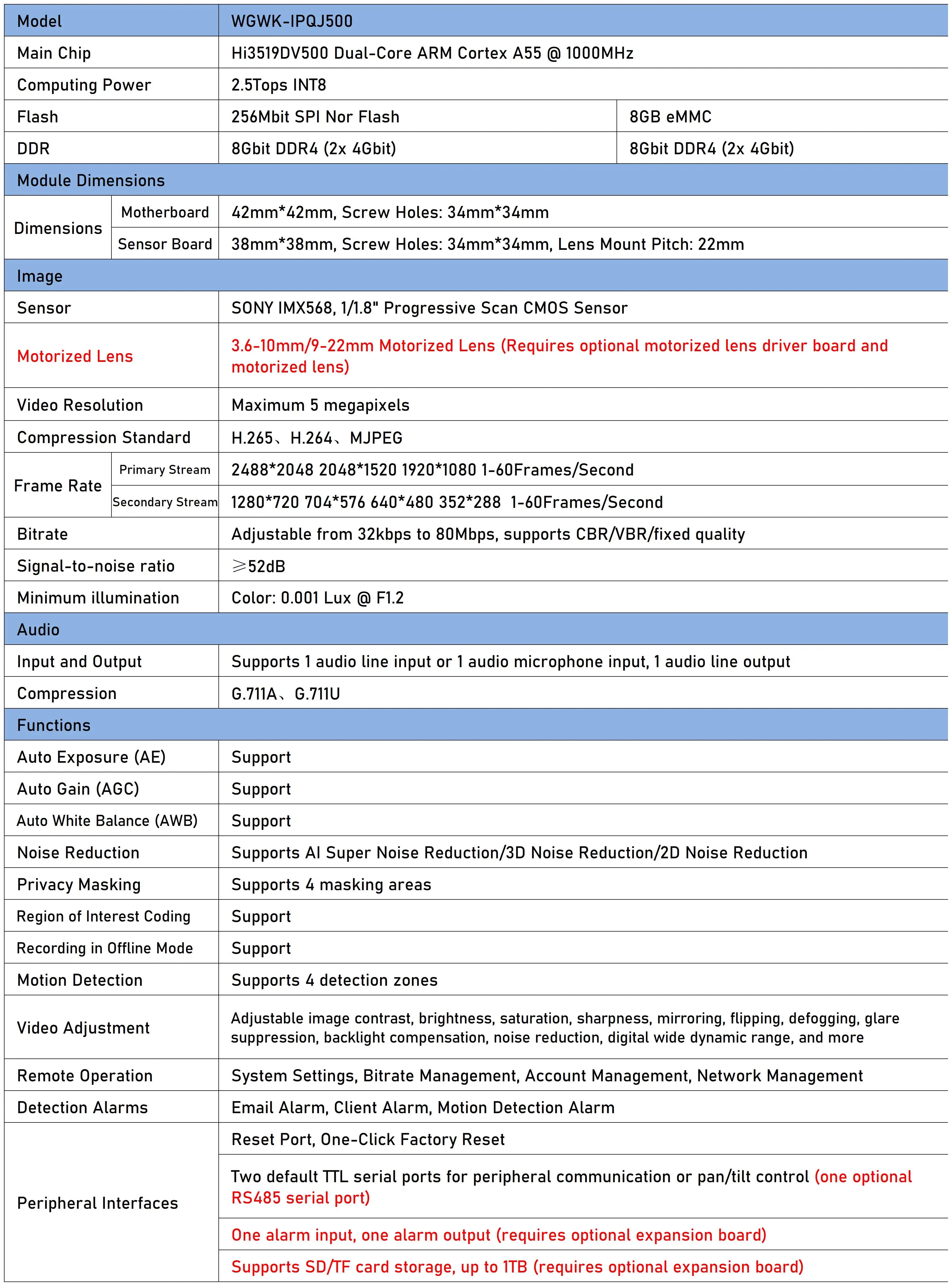

Main Chip: Hi3519DV500 Dual-Core ARM Cortex A55 @ 1000MHz

Megapixels: 5 MP

Minimum Illumination(Lux): 0.001 Lux @ F1.2

Model Number: WGWK-IPQJ500

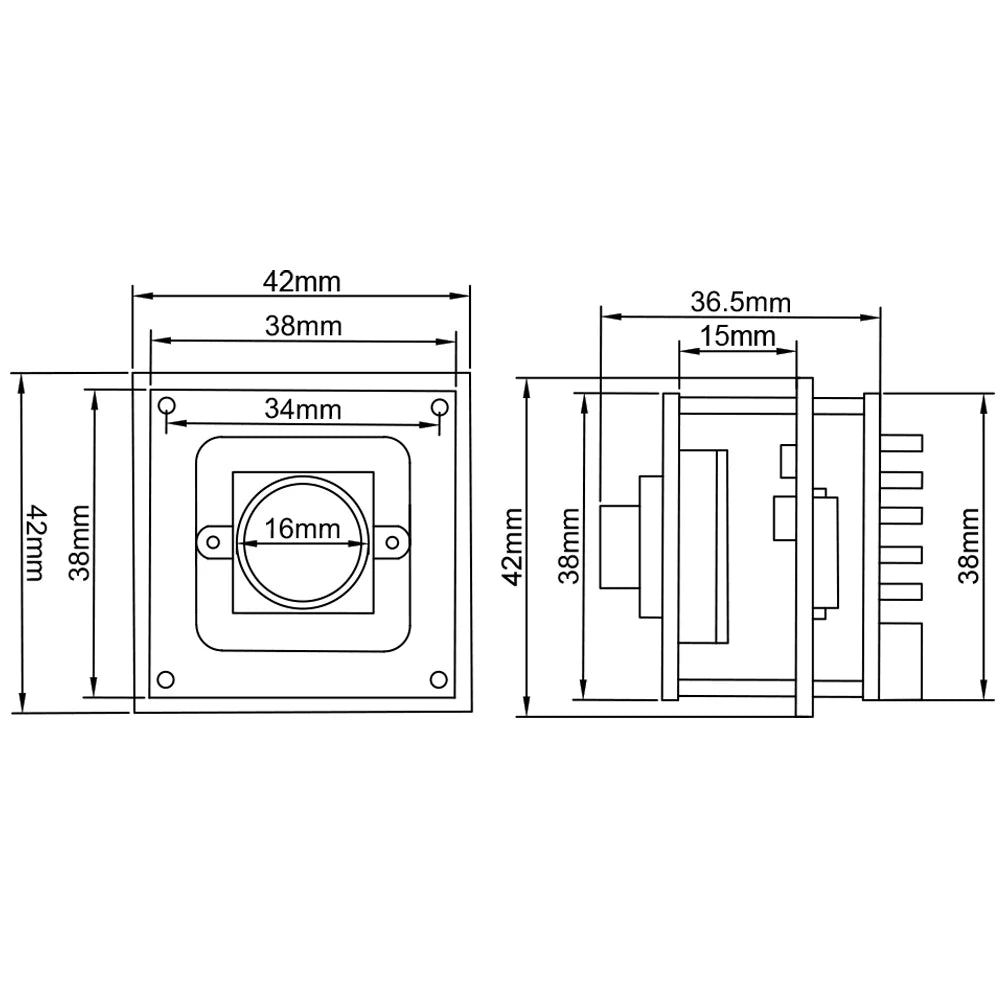

Motherboard: 42mm*42mm, Screw Holes: 34mm*34mm

Operating Temperature: -10°-60°

Origin: Mainland China

Power Source: With Poe

Power Supply: With Poe

Primary Stream: 2488*2048 2048*1520 1920*1080 1-60Frames/Second

Scene: Indoor

Secondary Stream: 1280*720 704*576 640*480 352*288 1-60Frames/Second

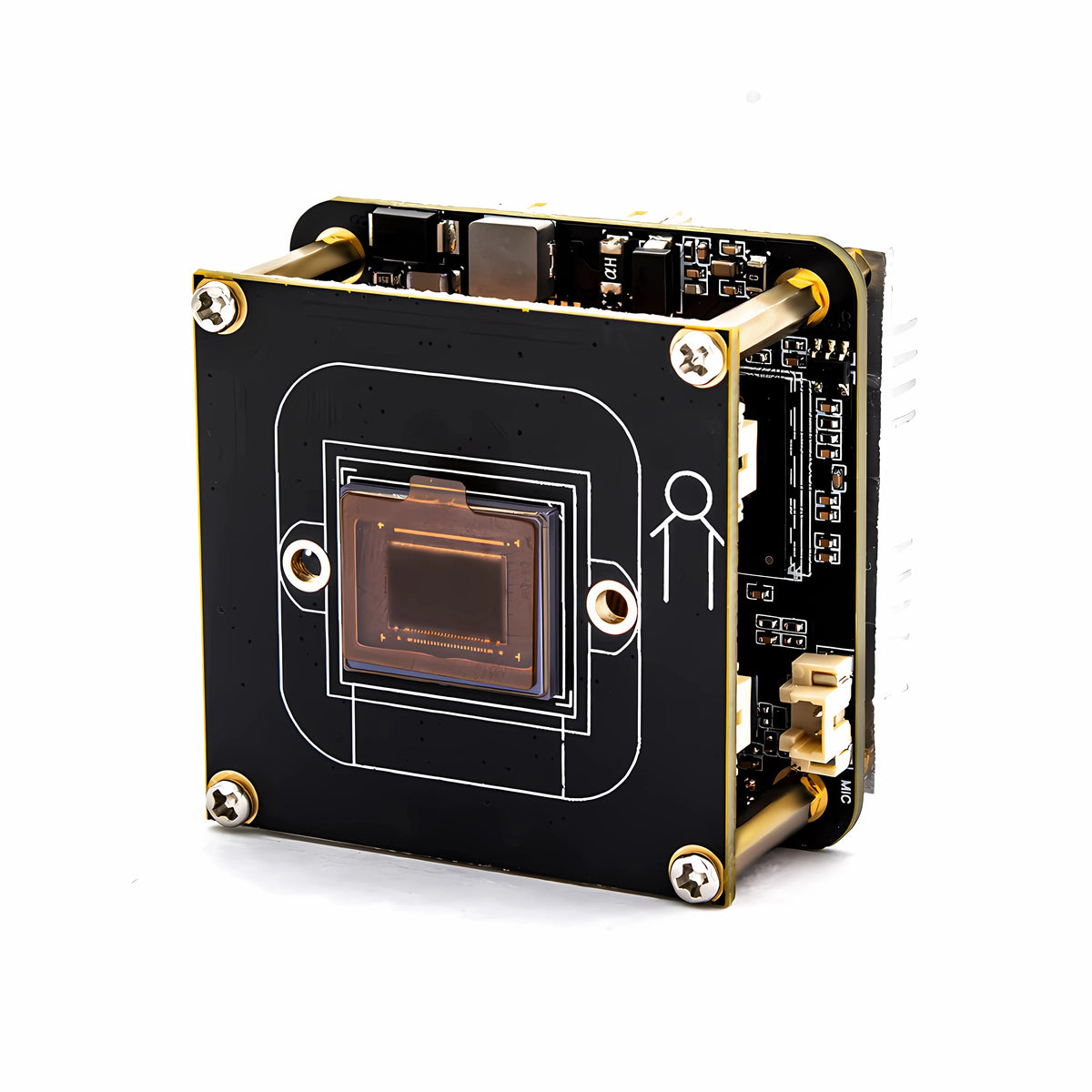

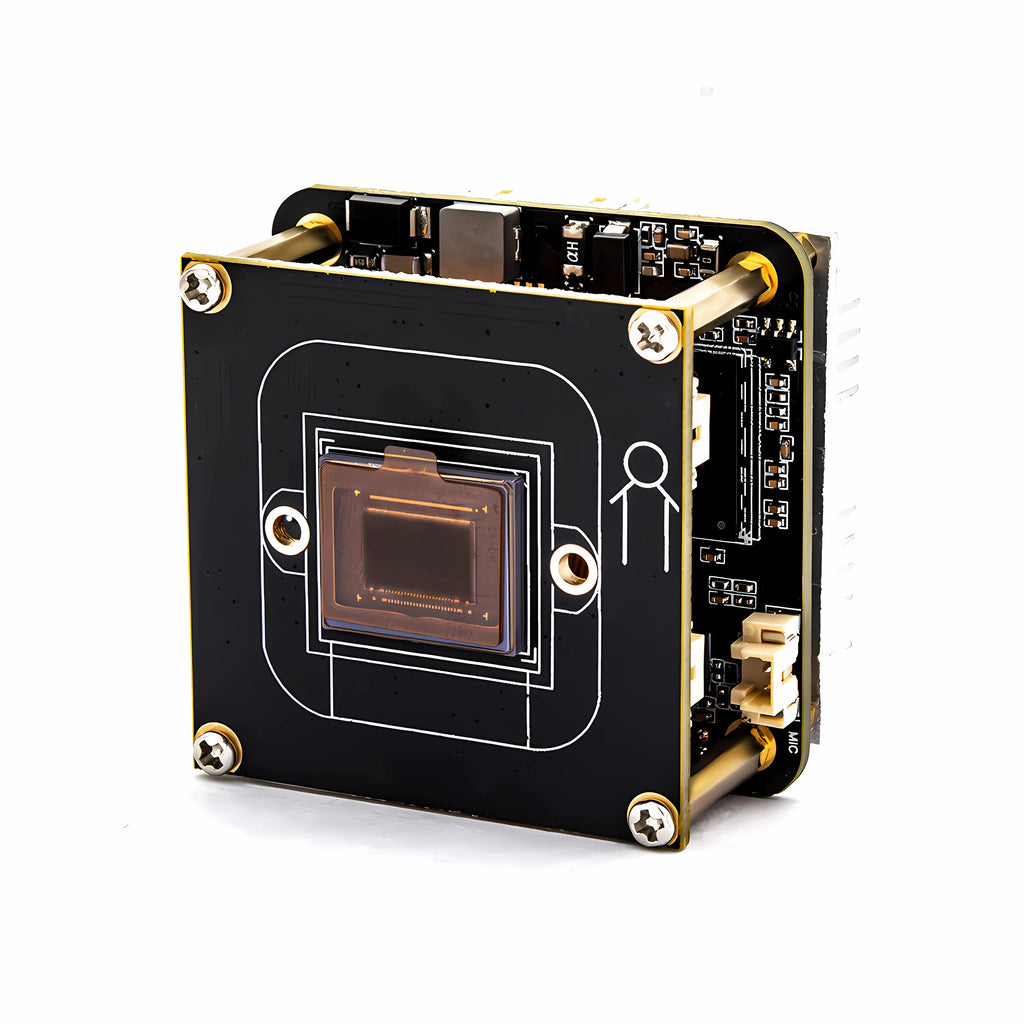

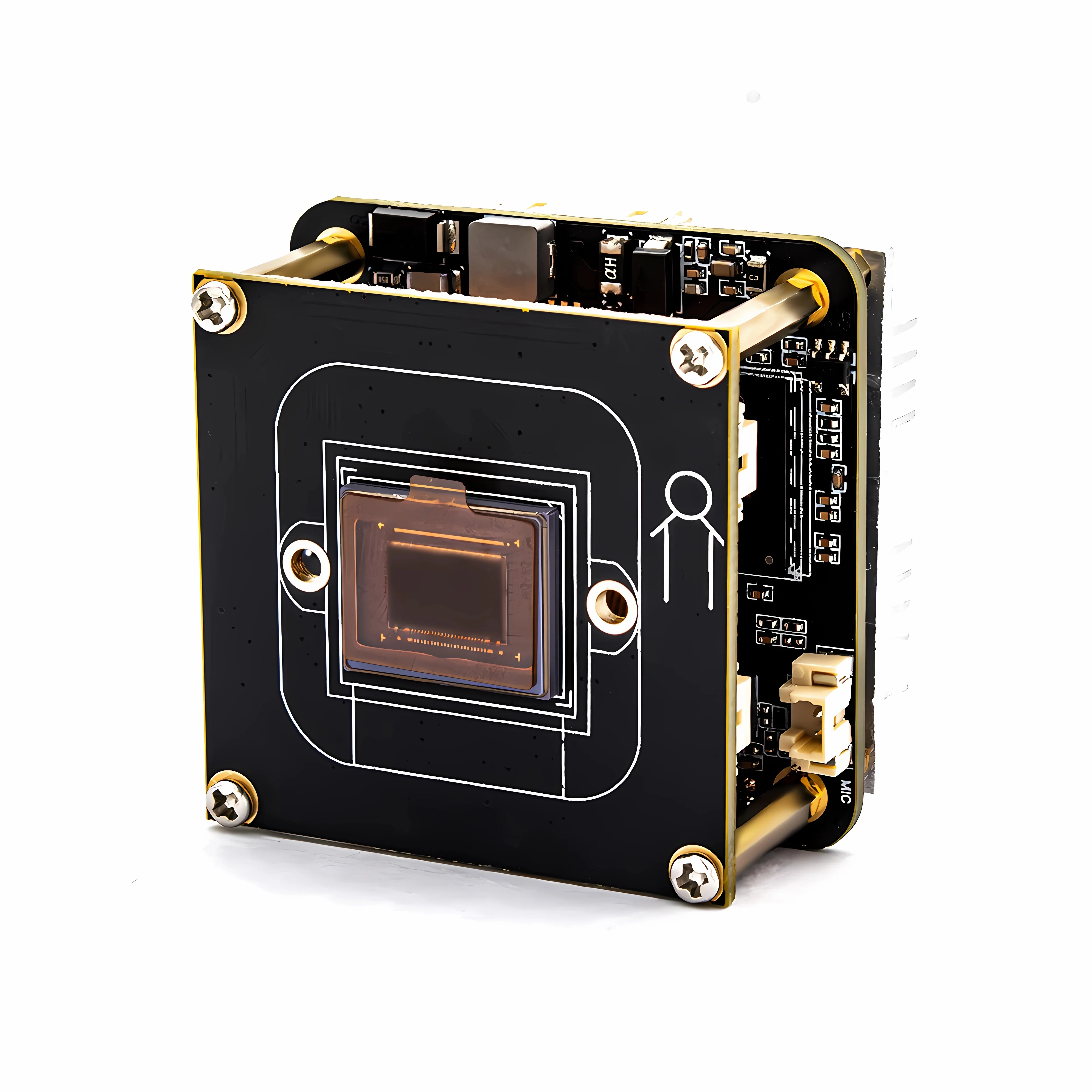

Sensor: CMOS,SONY IMX568, 1/1.8" Progressive Scan CMOS Sensor

Sensor Board: 38mm*38mm, Screw Holes: 34mm*34mm, Lens Mount Pitch: 22mm

Sensor Brand: Sony

Smart home platform: Other

Style: Mini Camera

Supported Mobile Systems: Windows Mobile,Android,iOS

Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003

TF Card: None

Video Compression Format: H.265

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: none

is_customized: Yes

Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.

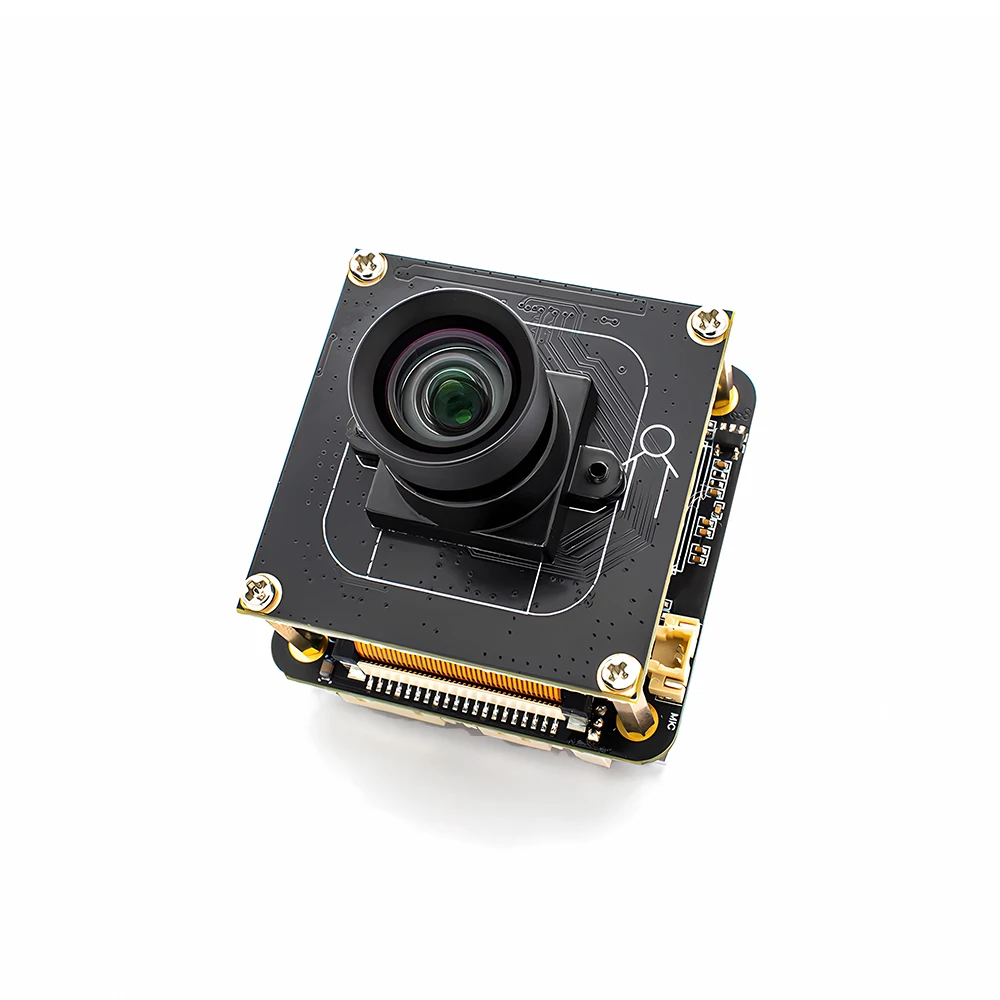

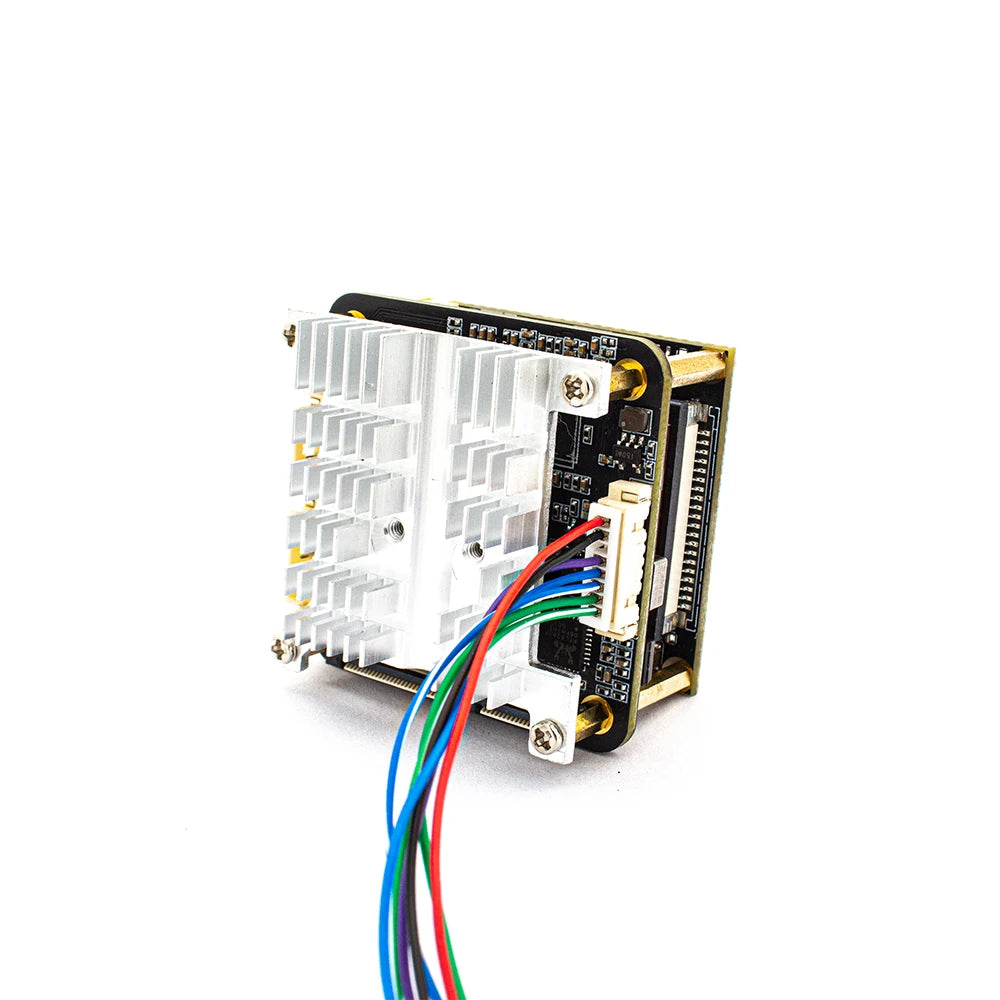

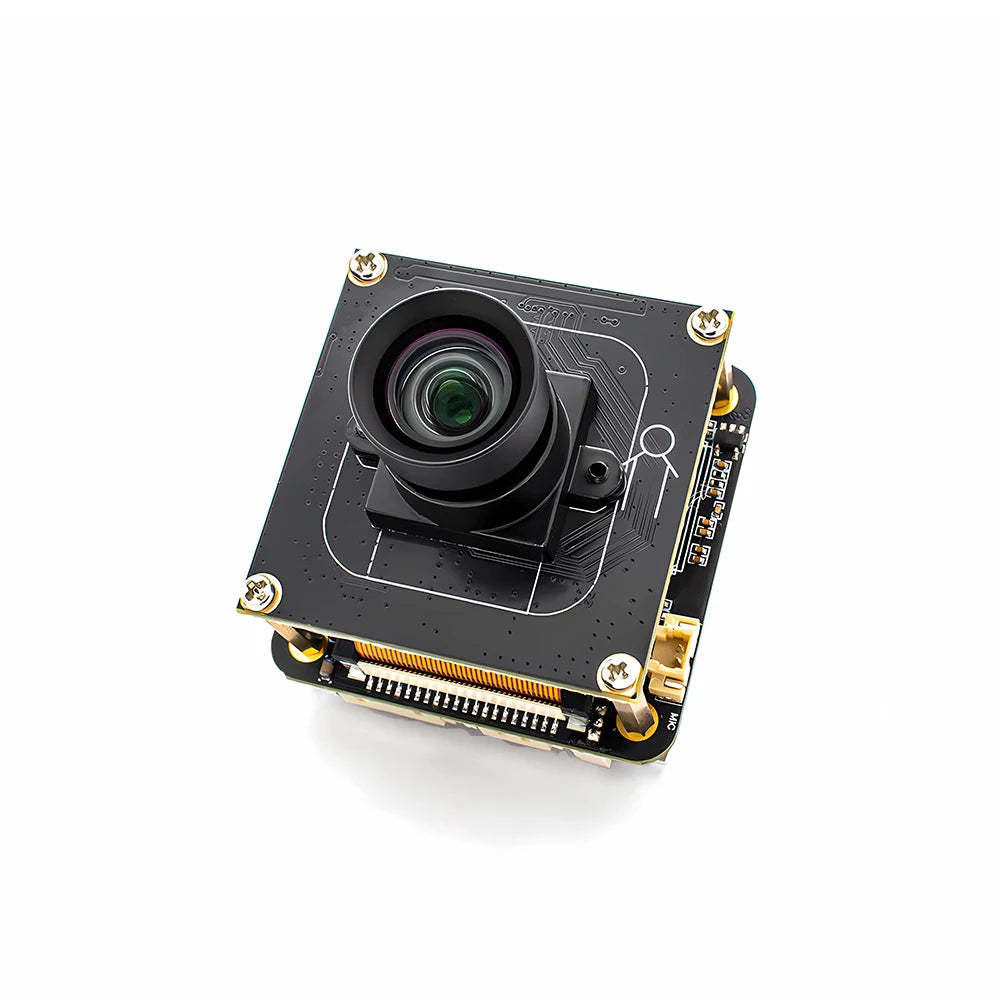

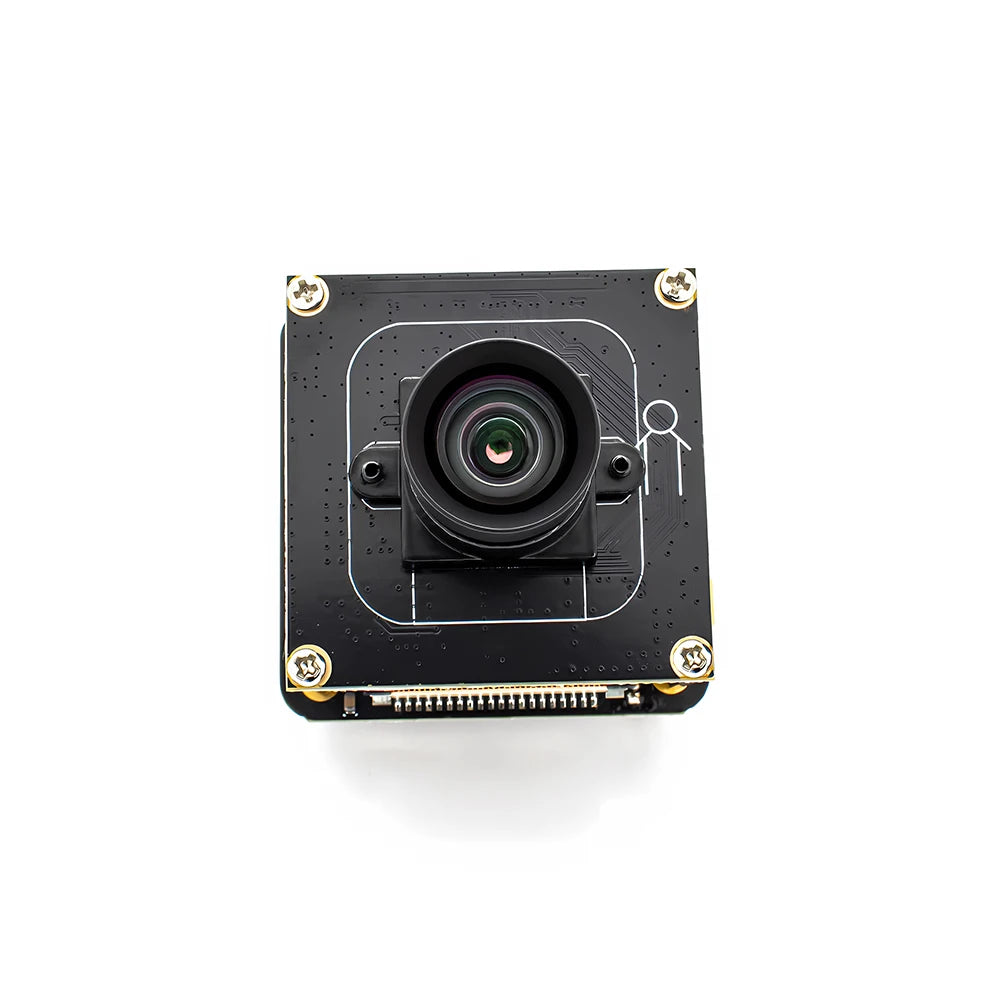

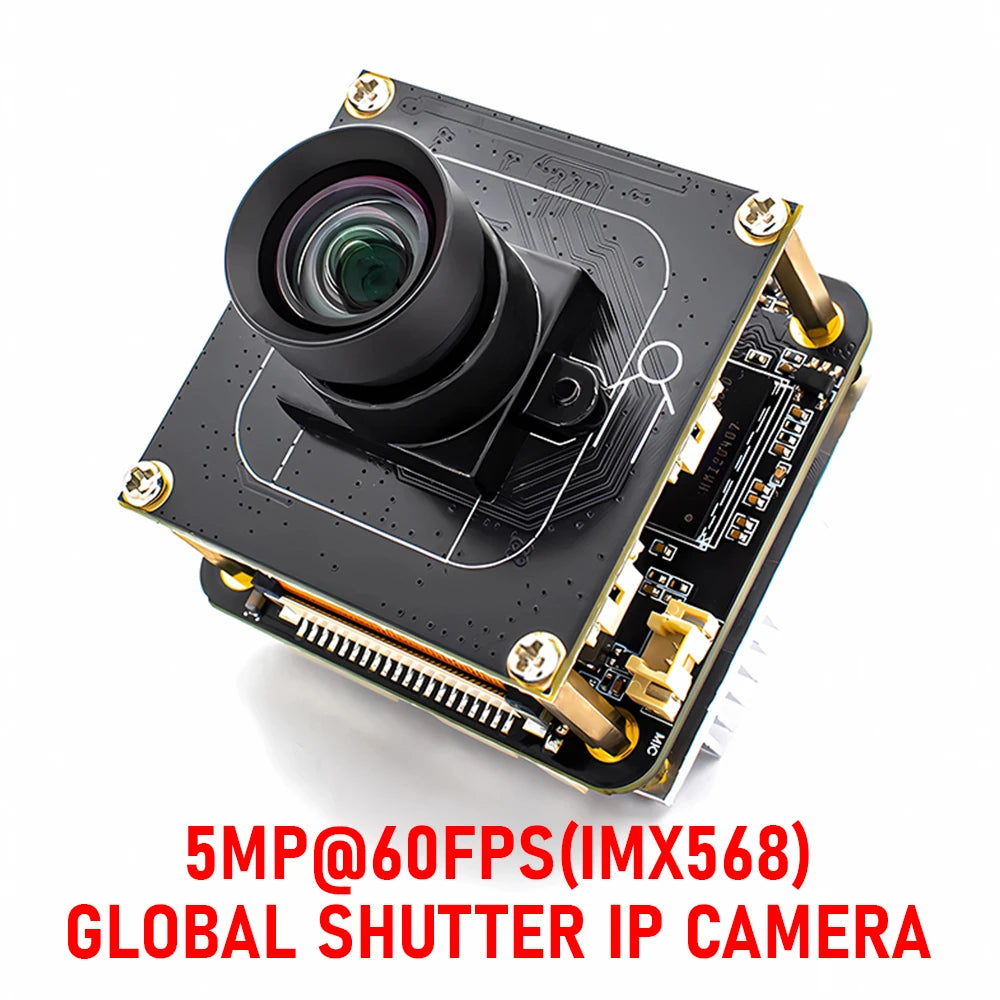

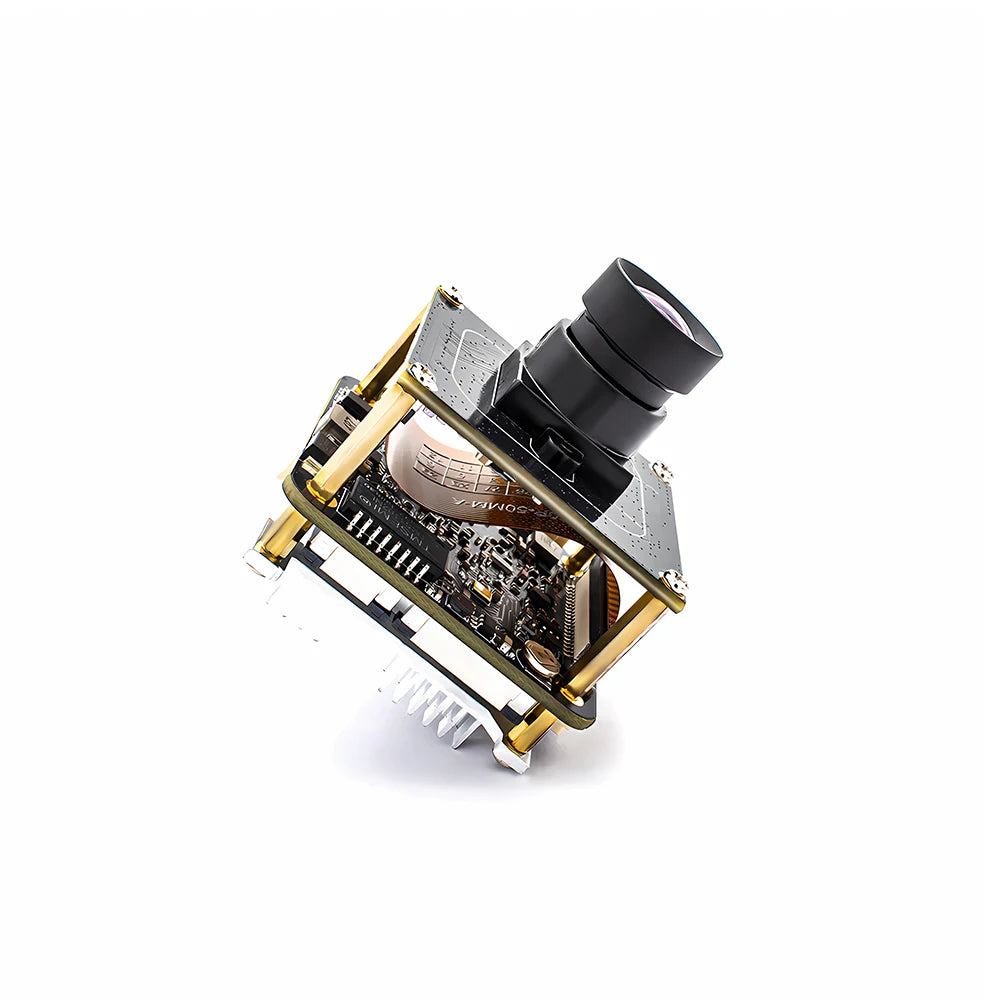

Global Shutter IP Camera Module IMX568 1/1.8" CMOS 2488*2048 60FPS Webcam Board High Speed Capture RTSP Onvif For Machine Vision

NOTE:

1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)
2.Due to manual measurement, please allow an error of 2-3mm.

Global Shutter vs. Rolling Shutter:

Global Shutter Cameras: Perfect for capturing high-speed motion with clarity, these cameras prevent issues like partial exposure, skew, and wobble, which are common with rolling shutter cameras. They are particularly effective for short exposure times (e.g., <500µs).

Rolling Shutter Cameras: Better suited for longer exposure times (e.g., >500µs), making them more suitable for different imaging scenarios.

Applications: The combination of high image quality, elevated frame rates, and good sensitivity makes global shutter cameras ideal for various applications, including:

• High-speed sports photography

• Industrial inspection

• Video applications

• Industrial automation

• Robotics

• Scientific imaging

• Augmented and virtual reality

• Gesture and eye tracking

• Depth and motion detection

• Video resolution: 2448*2048; Video compression standards: H.265/H.264/MJPEG;

• Integrated neural network acceleration engine, computing power up to 2.5 Tops INT8 (supports INT4/FP16);

• Dual-core ARM Cortex A55 @ 1000MHz processor; supports 32KB I-Cache, 32KB D-Cache, and 256KB L3 cache;

• Supports Neon acceleration and integrated FPU Processing unit;

• Built-in intelligent computing acceleration engine and binocular depth acceleration unit;

• DC auto-iris interface, supporting all commercially available auto-iris lenses (requires optional expansion board);

• CVBS interface, supporting analog video output (requires optional expansion board);

• USB 3.0/2.0 interface, supporting UVC protocol video output and H.265/H.264/MJPEG/NV12/NV21 encoding (requires optional expansion board);

• HDMI output, with a maximum resolution and frame rate of 1080p at 30 fps (requires optional expansion board);

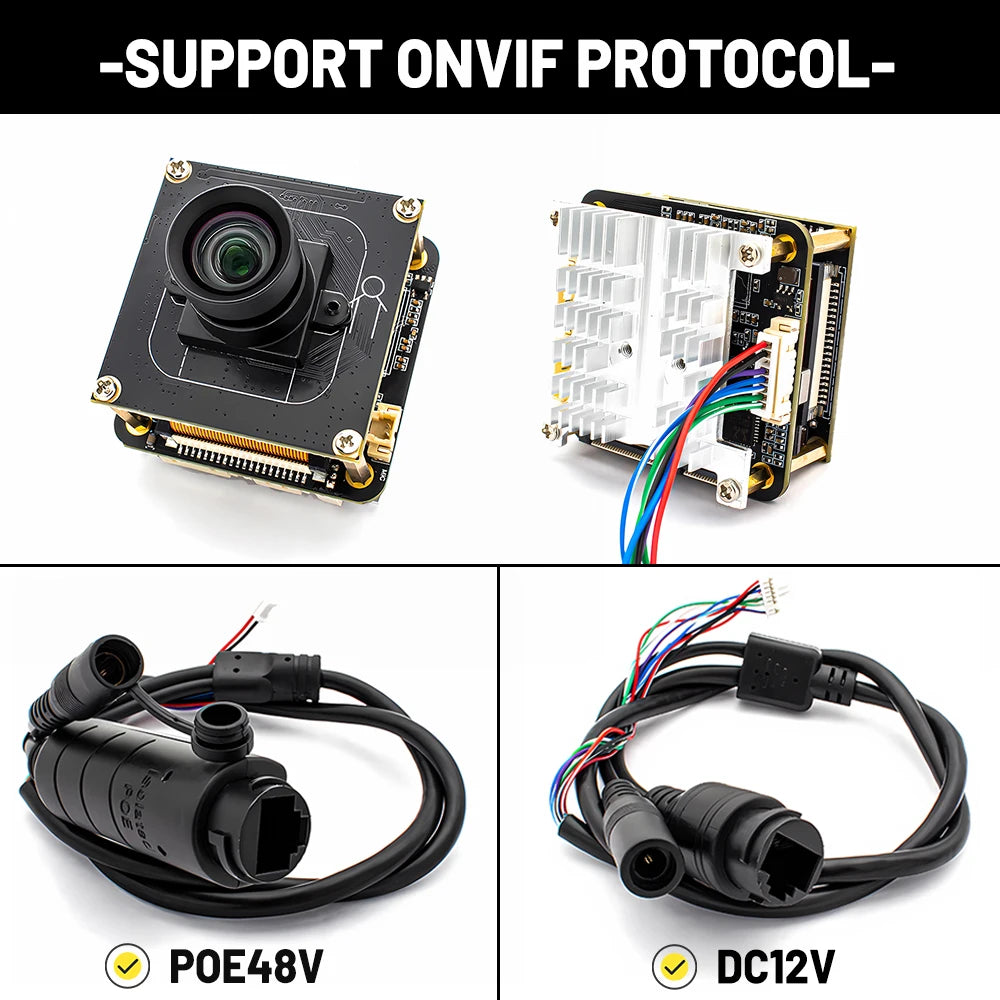

• Supports ONVIF protocol and national standard G2818 1 protocol;

• Dual streams, users can select a stream and adjust the resolution, frame rate, and video quality;

• Supports AI super noise reduction, 3D noise reduction, 2D noise reduction, image edge enhancement, defogging, dynamic contrast enhancement, and other processing functions;

• Supports fixed pattern noise (FPN) removal;

• Supports OSD character overlay and BMP image overlay, with adjustable overlay position;

• Supports bad pixel correction and lens shading correction;

• Supports motion detection/screen occlusion, with four configurable occlusion and detection zones;

• Supports remote real-time monitoring, network user management, and network time synchronization;

• Supports automatic restart after power outages/failures;

• Supports POE power supply (requires optional POE module);

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.About us:
