Global shutter Machine Vision MIPI CSI-2 Camera, MV-MIPI-IMX296M MV-MIPI-IMX287Mfor all Raspberry Pi and Jetson NX and Nano

Global shutter Machine Vision MIPI CSI-2 Camera, MV-MIPI-IMX296M MV-MIPI-IMX287Mfor all Raspberry Pi and Jetson NX and Nano

$320.76

$320.76 $0.00

Color MV-MIPI-IMX296M IMX296M ADP-MV1-V2 C-MOUNT03 IMX287M ADP-MV1-V2 MV-MIPI-IMX287M

Ships FromCN

Description

SPECIFICATIONS

Accessory Type: Camera Module

Battery Included: no

Brand Name: PixPlore

Compatible With: Raspberry Pi , Jetson Nano, NX

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Smart Cameras and Vision Hardware

If you want to access Raspberry Pi, jetson nano/nx, please make sure to choose ADP-MV1.

Brief

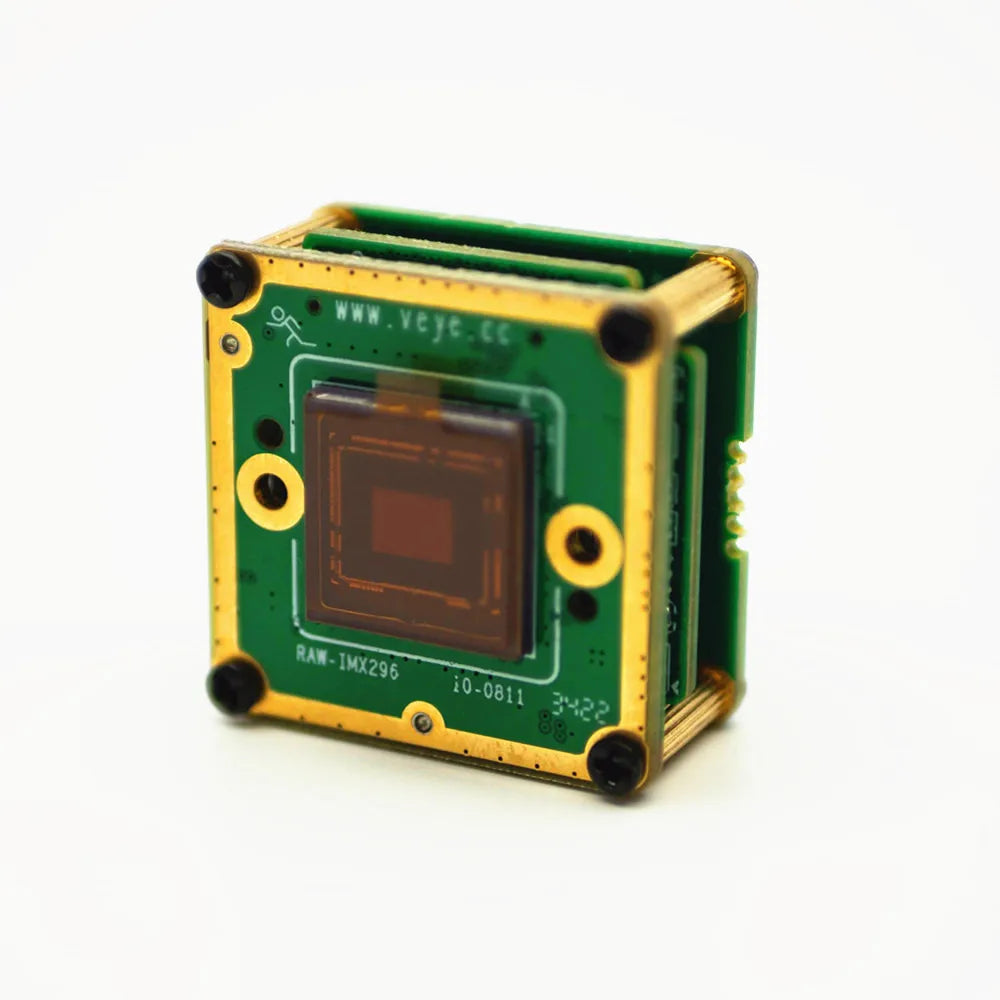

MV-MIPI-IMX296M is a 1.55M MONO industrial camera with MIPI interface.

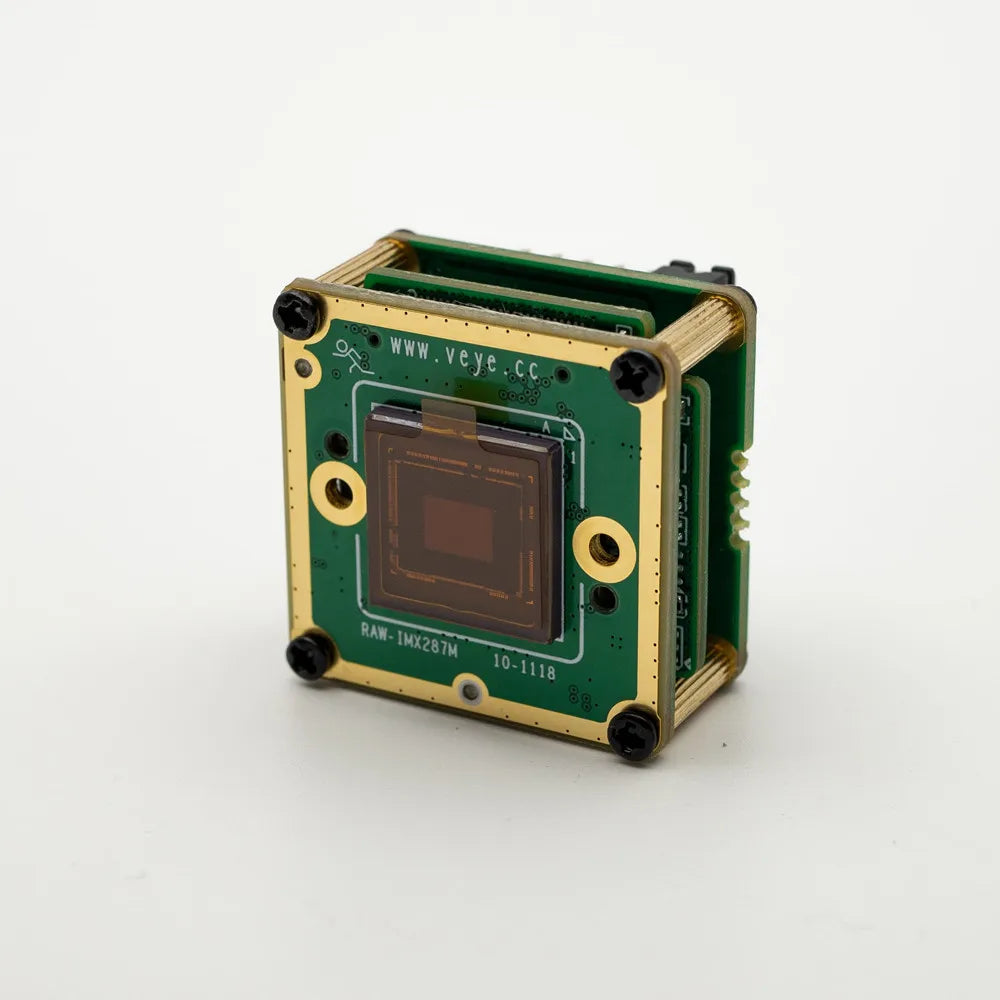

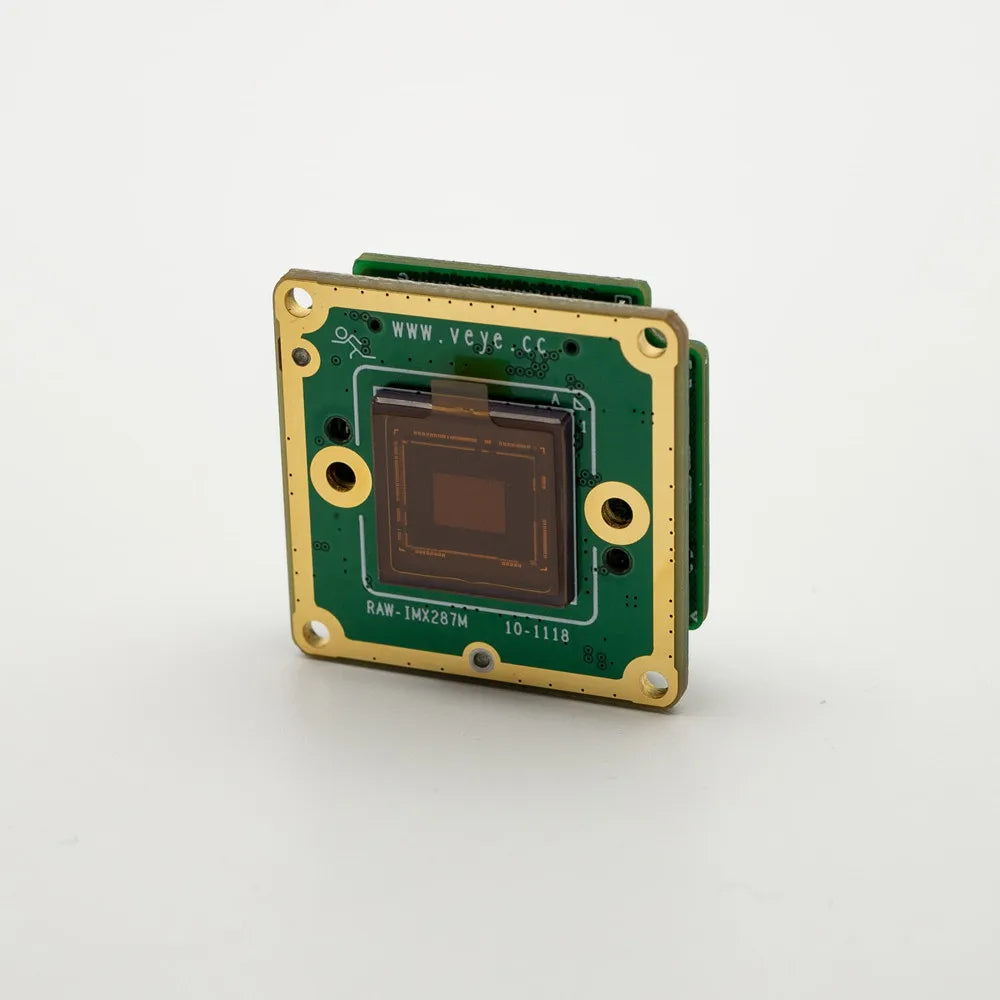

MV-MIPI-IMX287M is a 0.4M MONO industrial camera with MIPI interface.

This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component.

IMX296 Features

1/2.9'' 1.55M Pixel SONY IMX296LLR-C Pregius Global Shutter CMOS SENSOR
MIPI CSI-2 Interface
Mono-8、Mono-10 Data Format
Video streaming mode（Free Running）, Normal Trigger Mode, Pulse Trigger Mode
Hardware and Software trigger source
Support trigger frame number, interval, delay, trigger filter function
Strobe synchronization
ROI
USER Output
Flexible frame rate settings

IMX287 Features

1/2.9'' 0.4M Pixel SONY IMX287LLR-C Pregius Global Shutter CMOS SENSOR
MIPI CSI-2 Interface
Mono-8、Mono-10 and Mono-12 Data FormatData Format
Video streaming mode（Free Running）, Normal Trigger Mode, Pulse Trigger Mode
Hardware and Software trigger source
Support trigger frame number, interval, delay, trigger filter function
Strobe synchronization
ROI
USER Output
Flexible frame rate settings

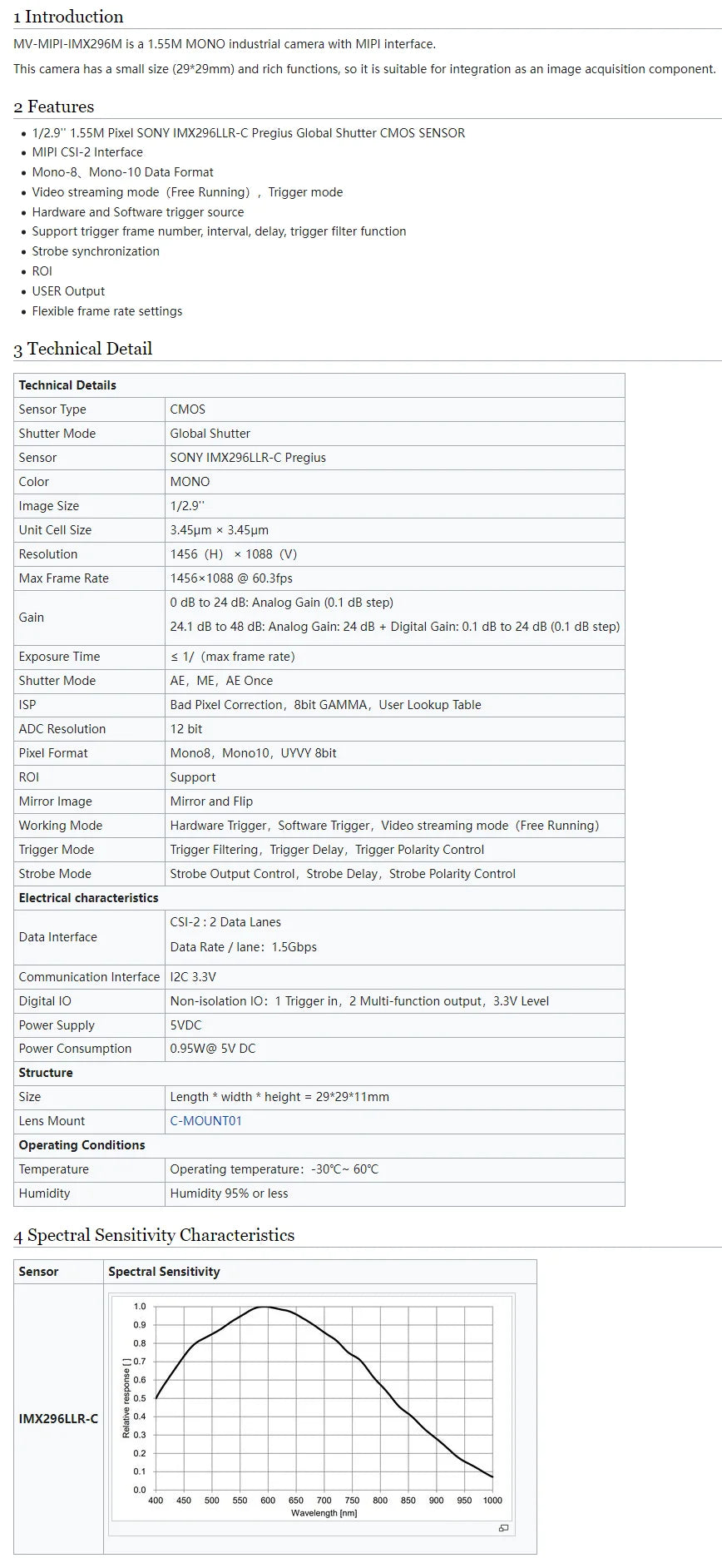

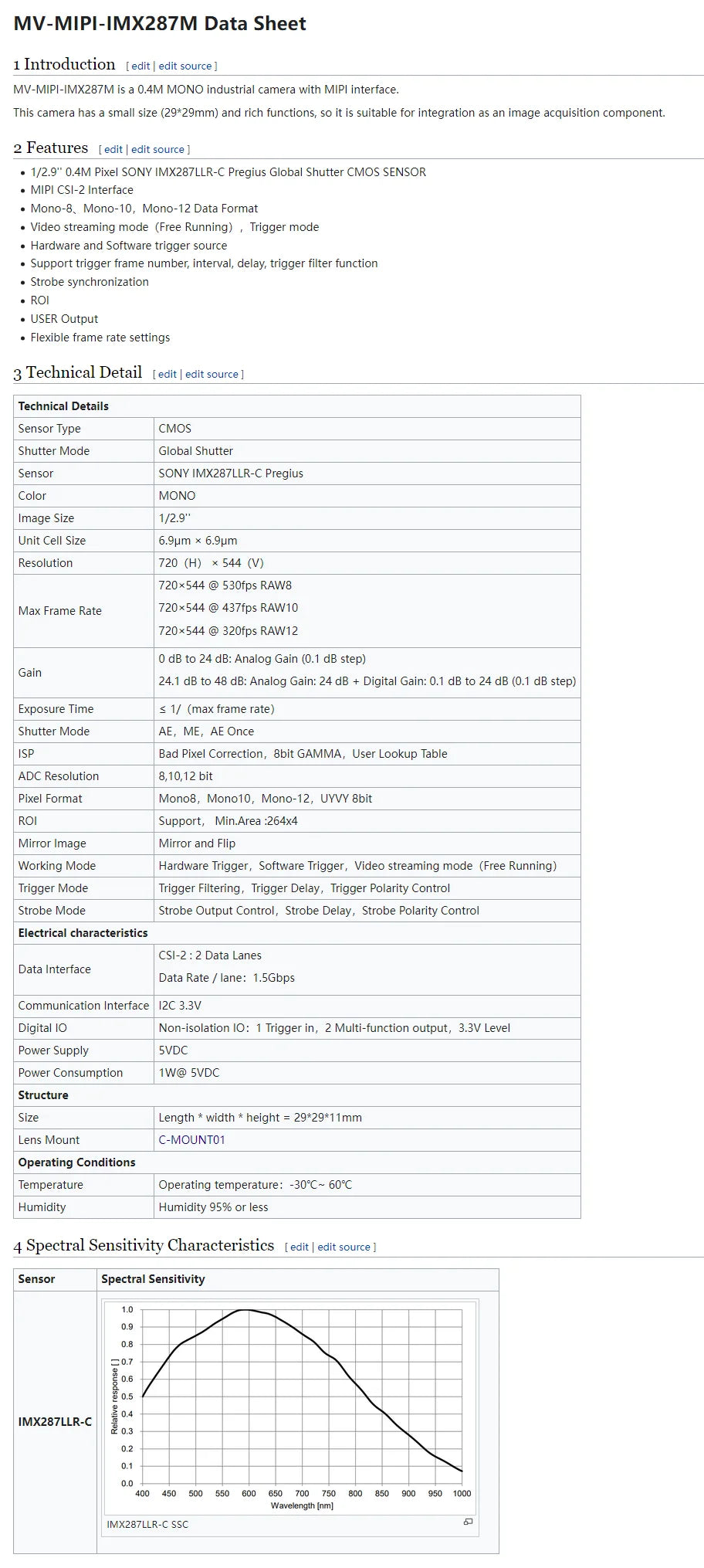

Thechnical Details

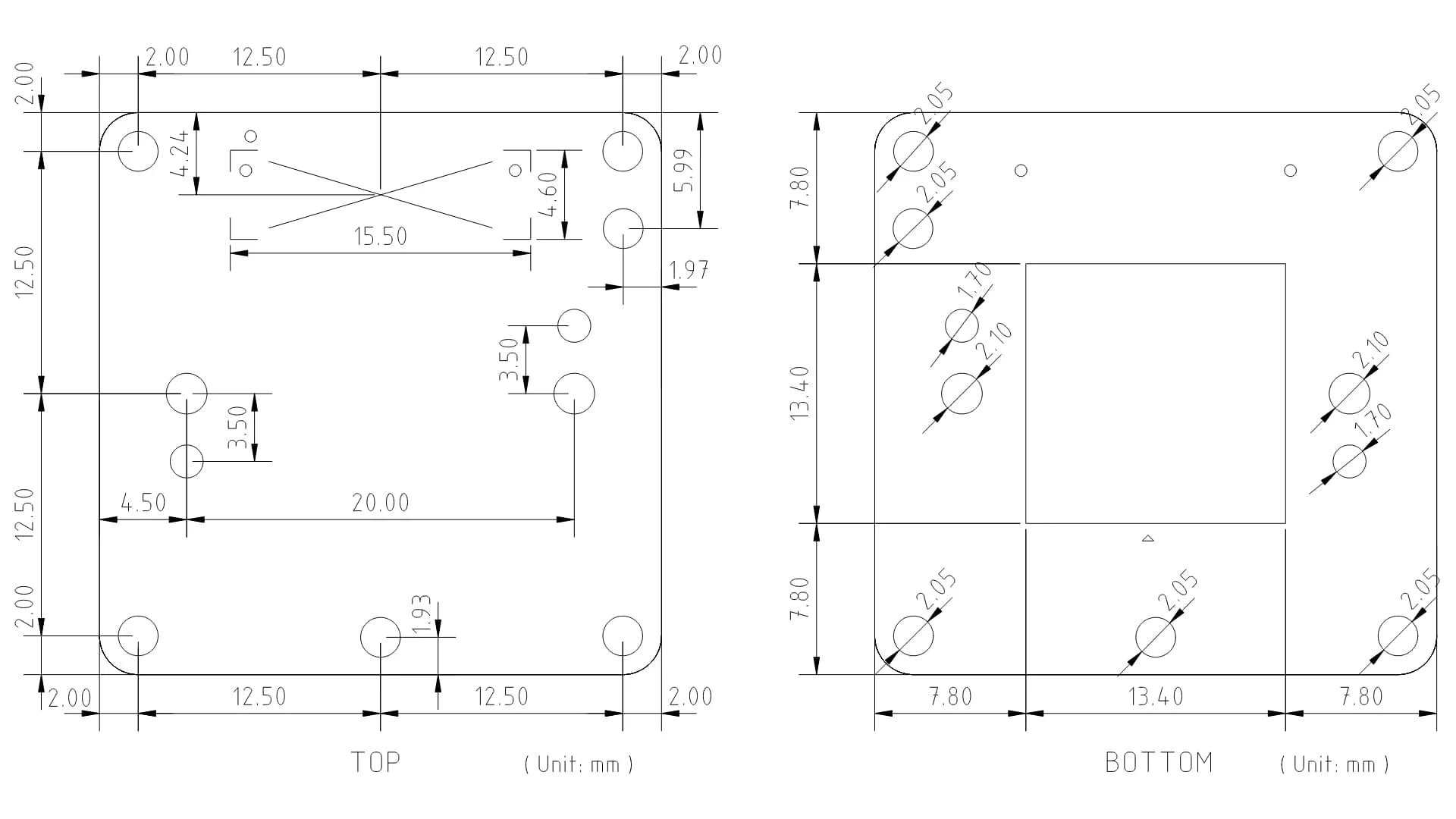

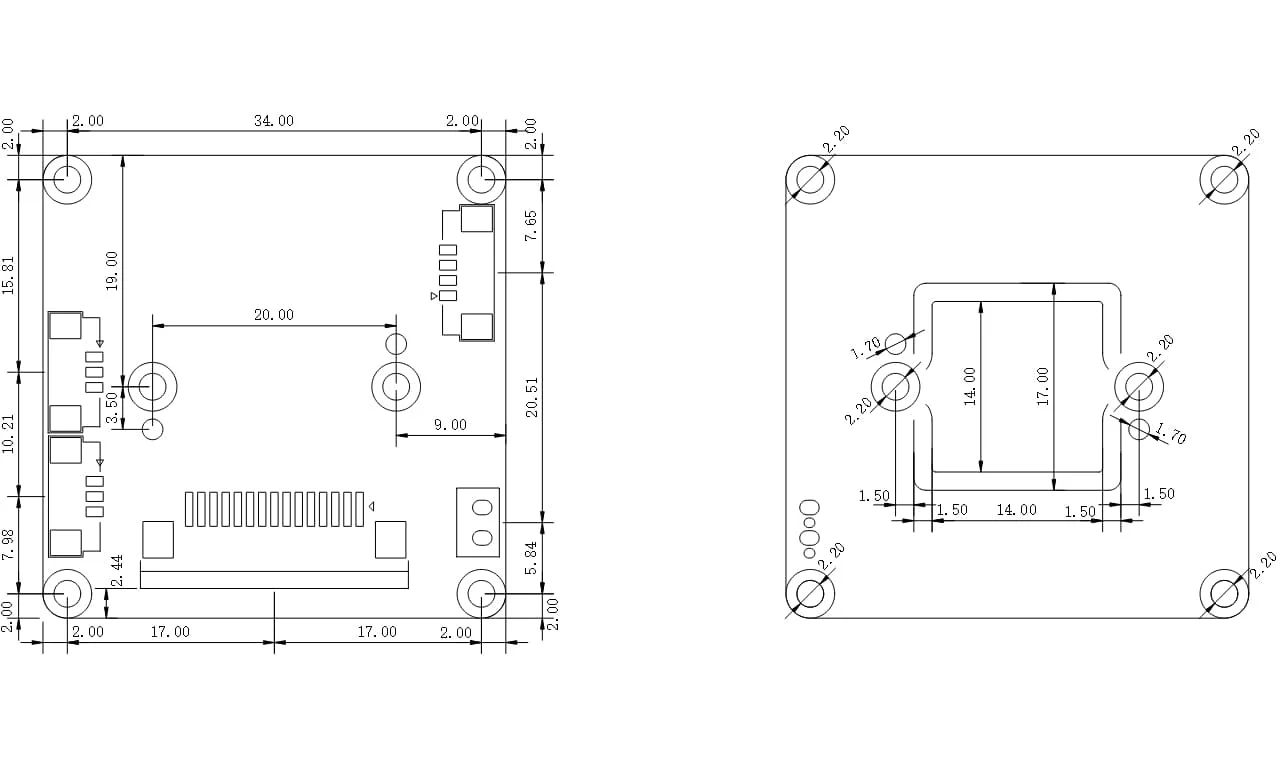

CAD drawing

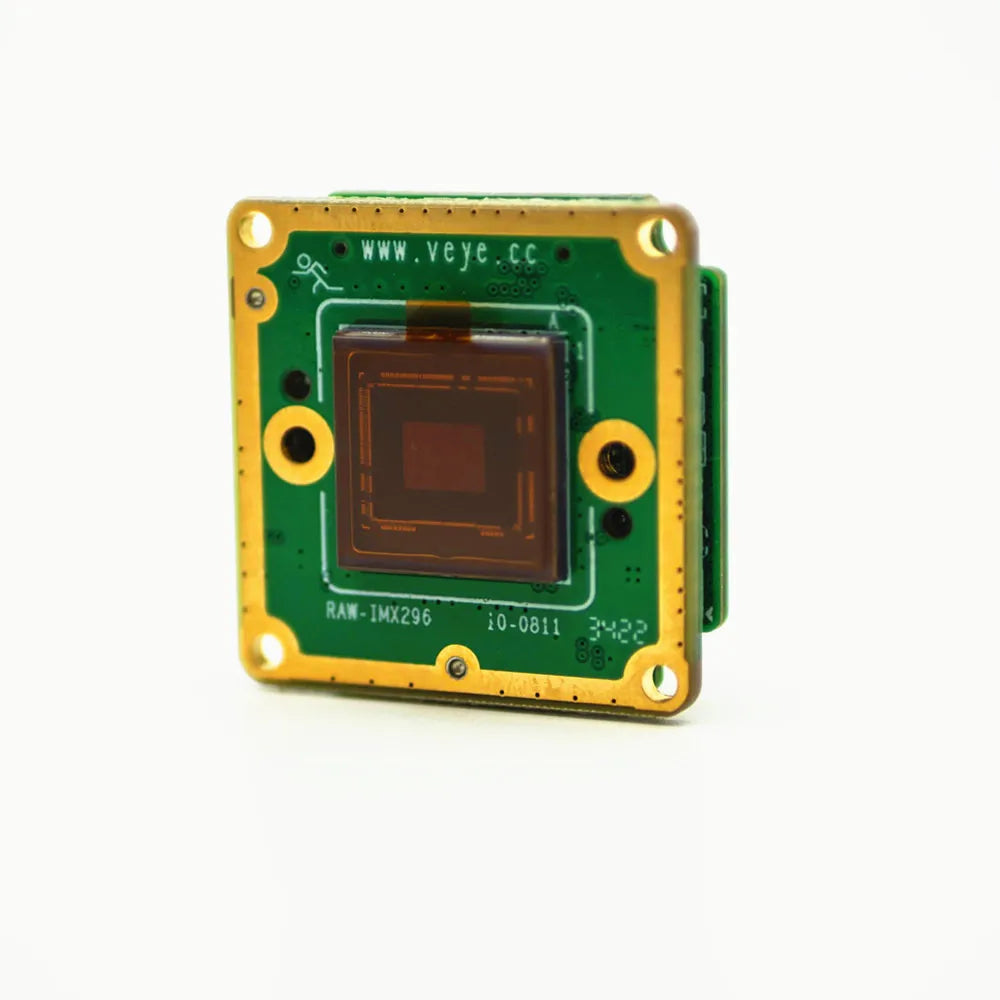

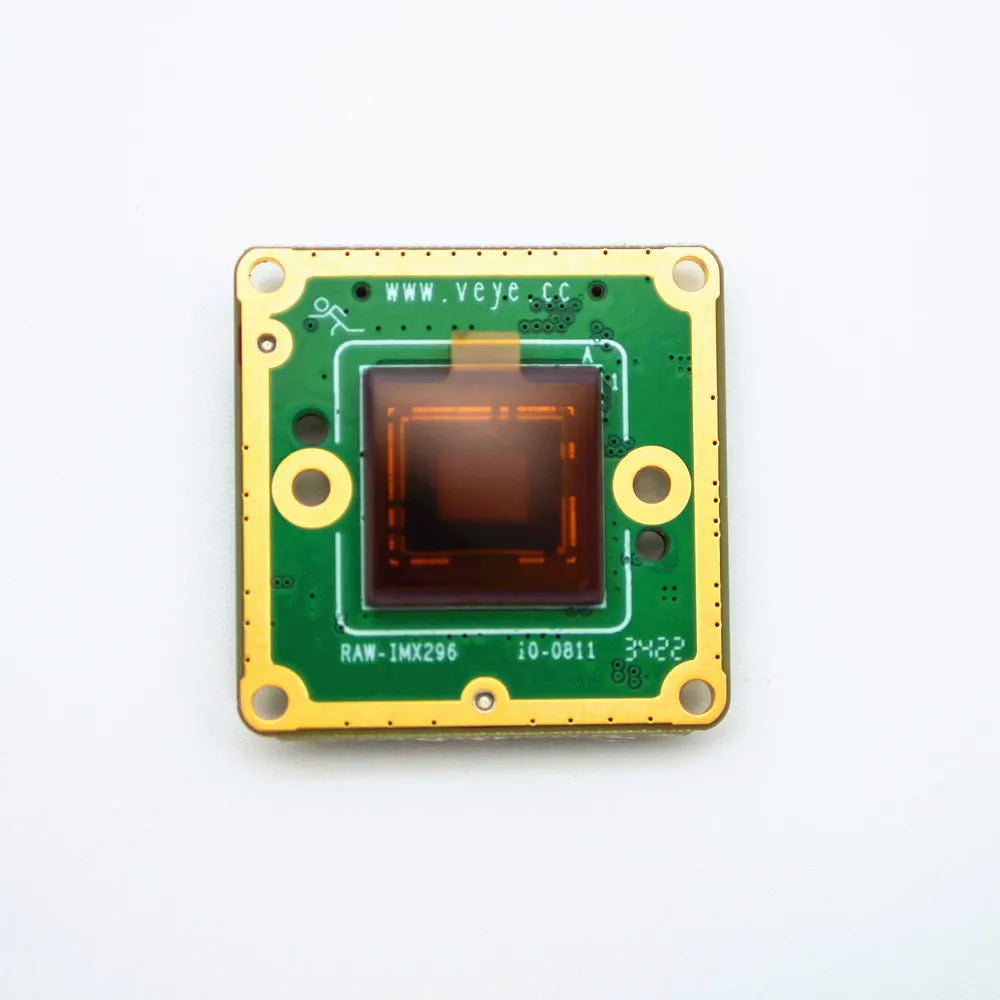

Sensor Board

Main Board

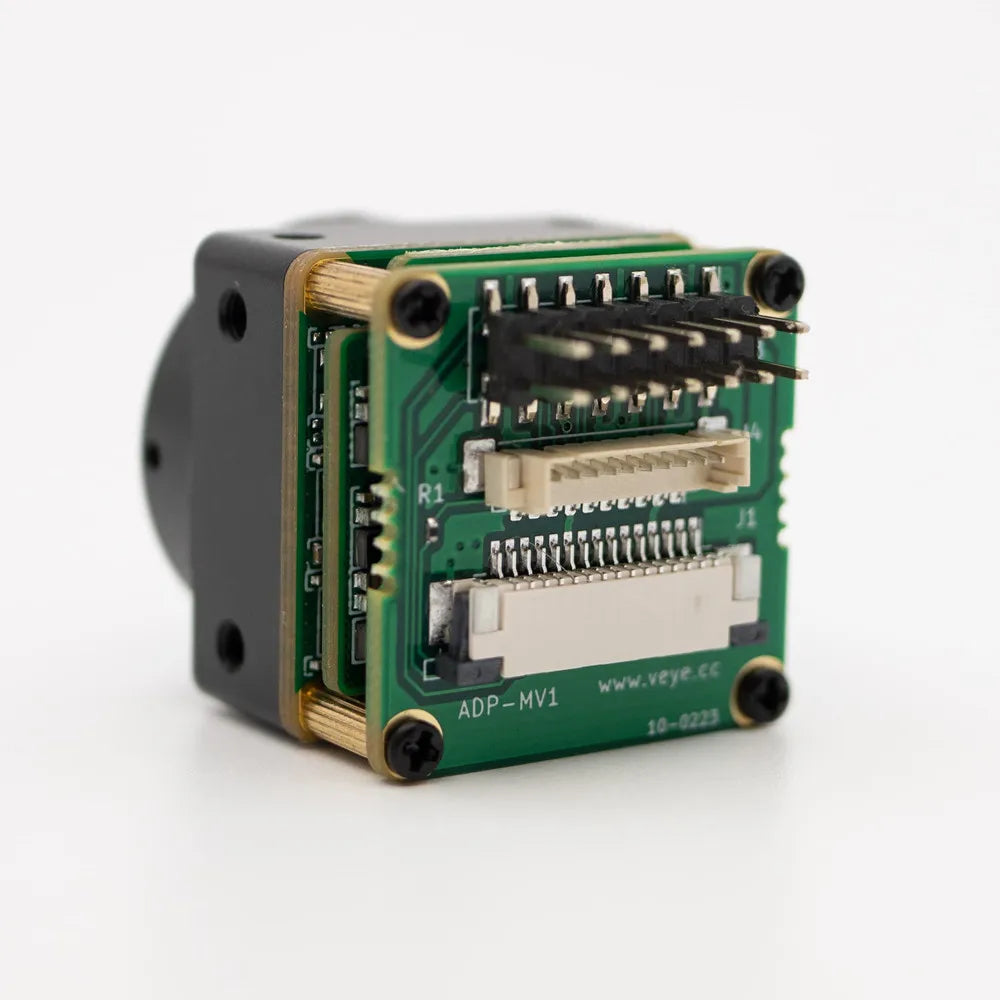

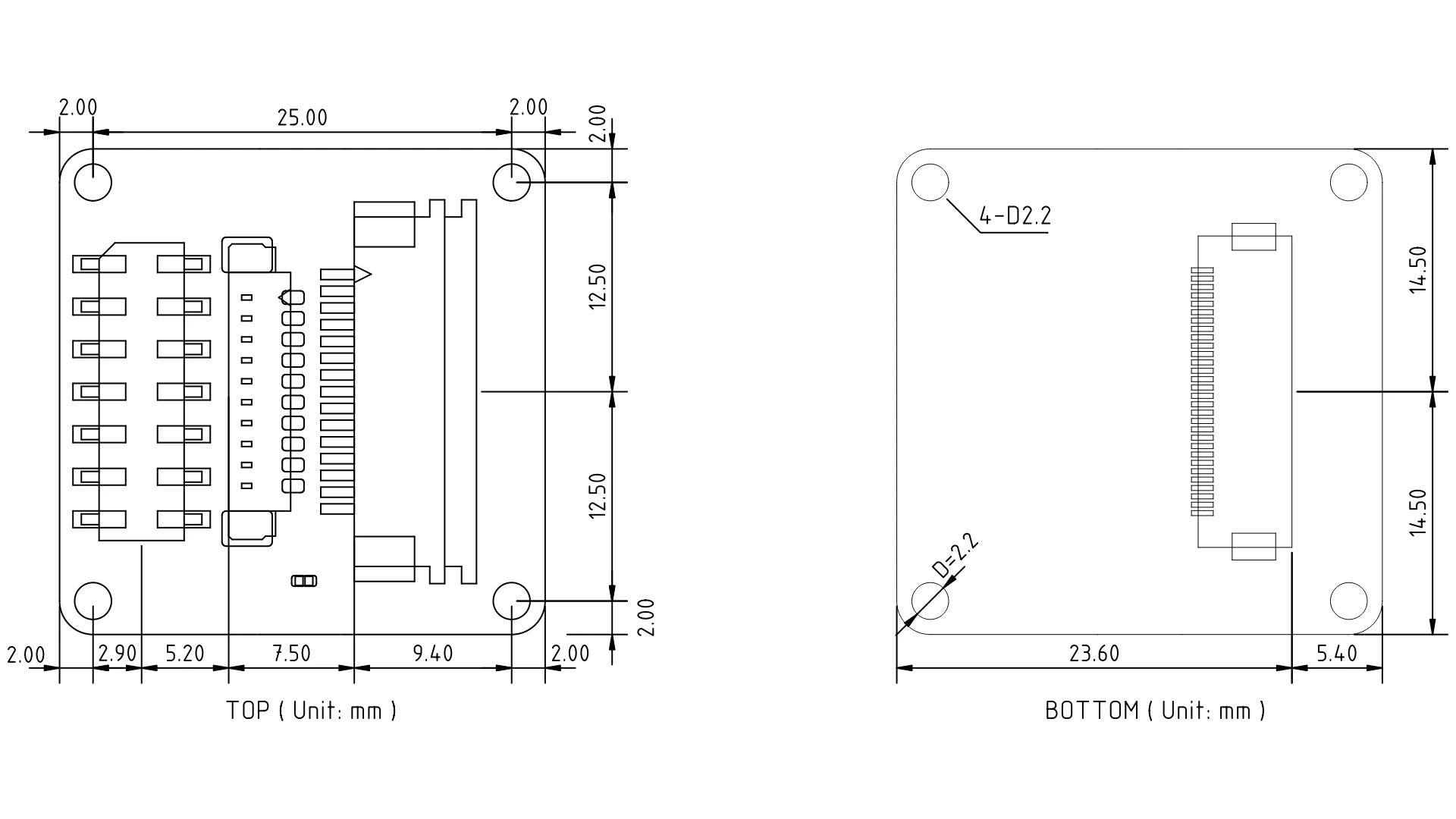

ADP-MV1 Board

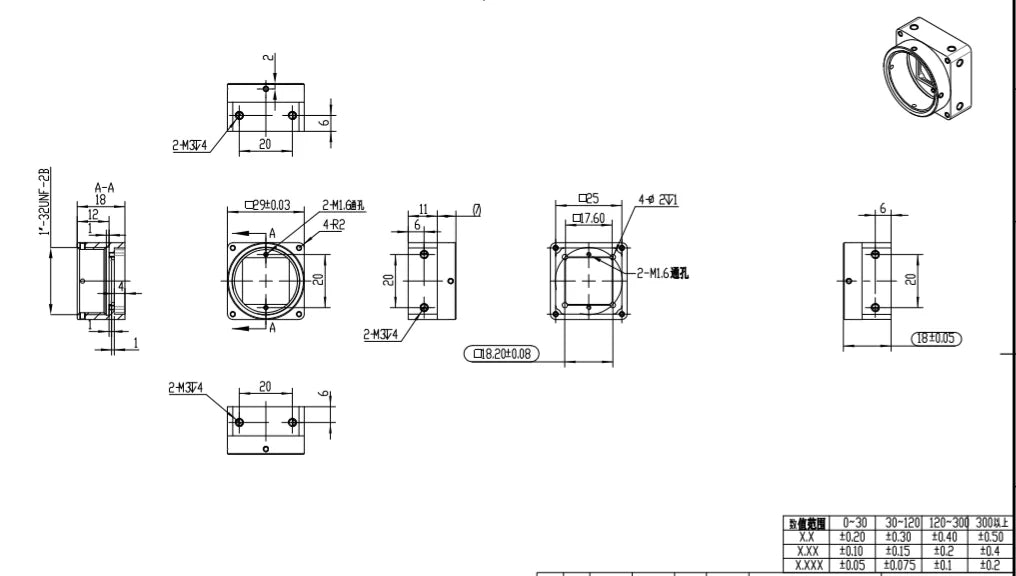

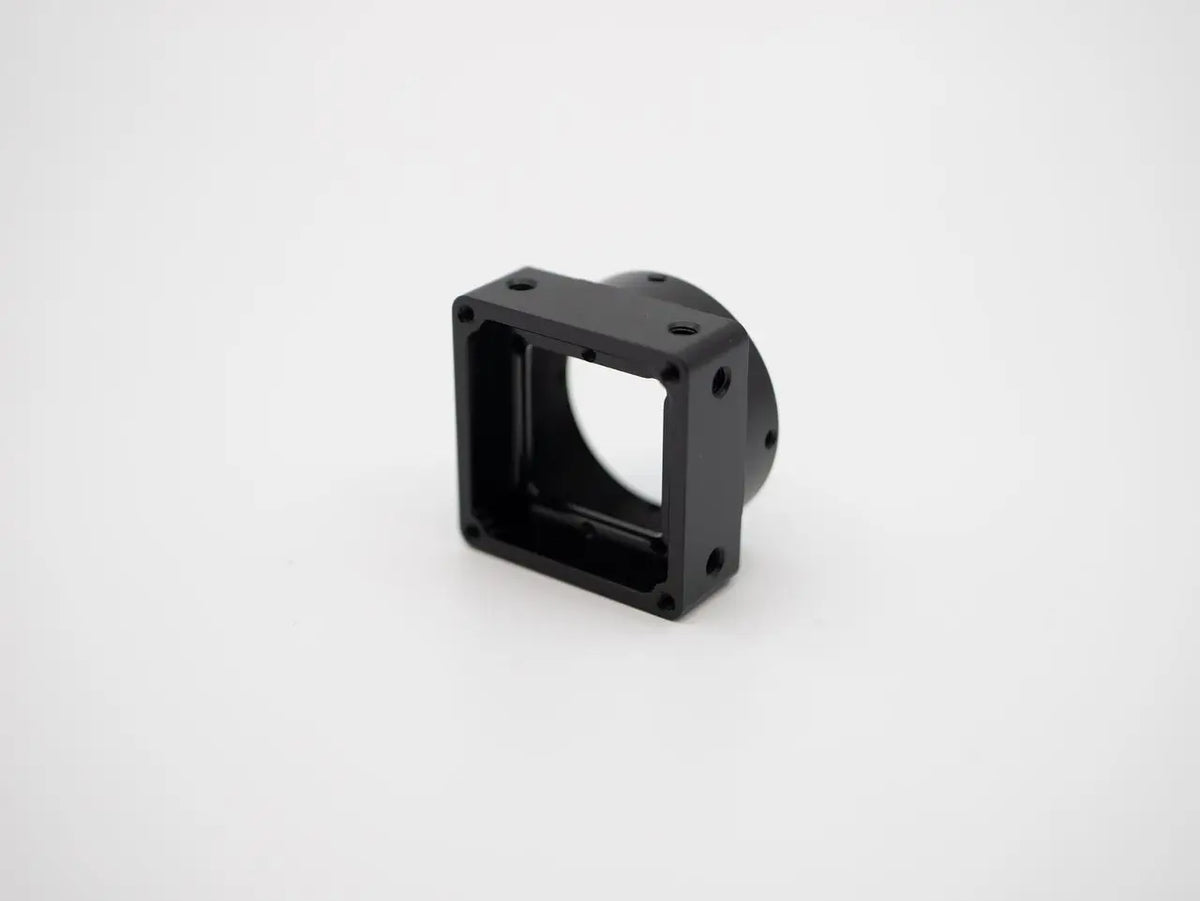

C-MOUNT01

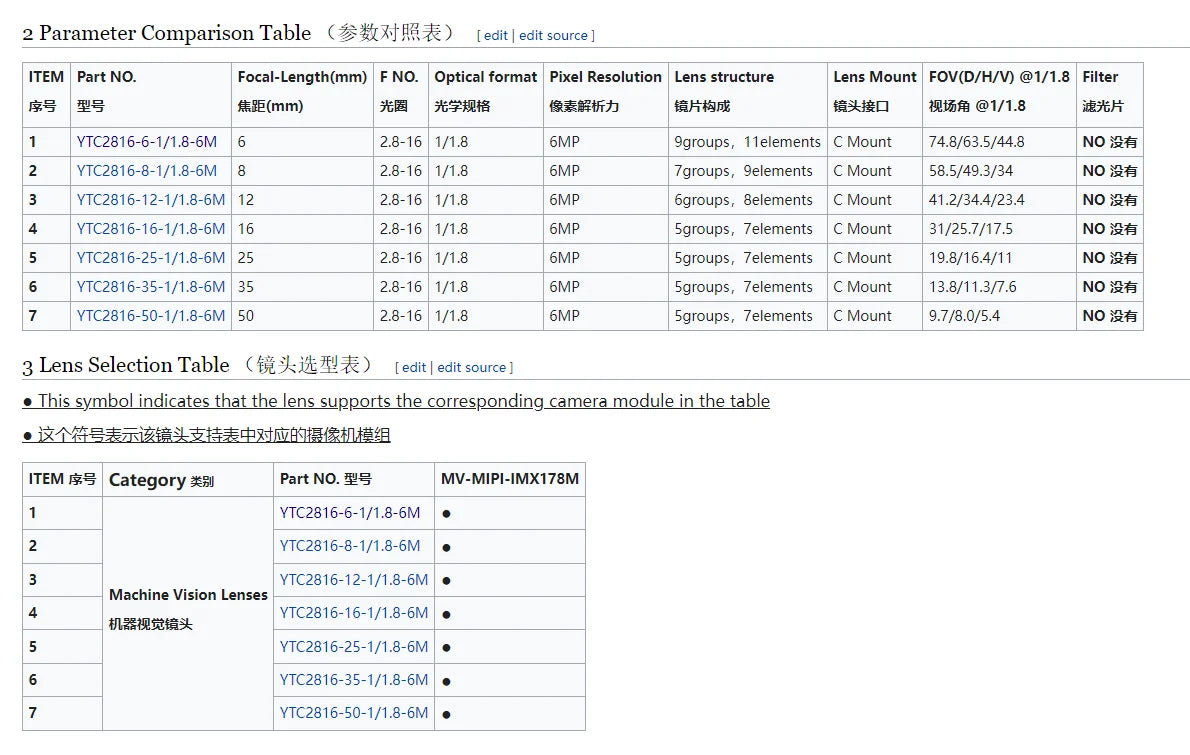

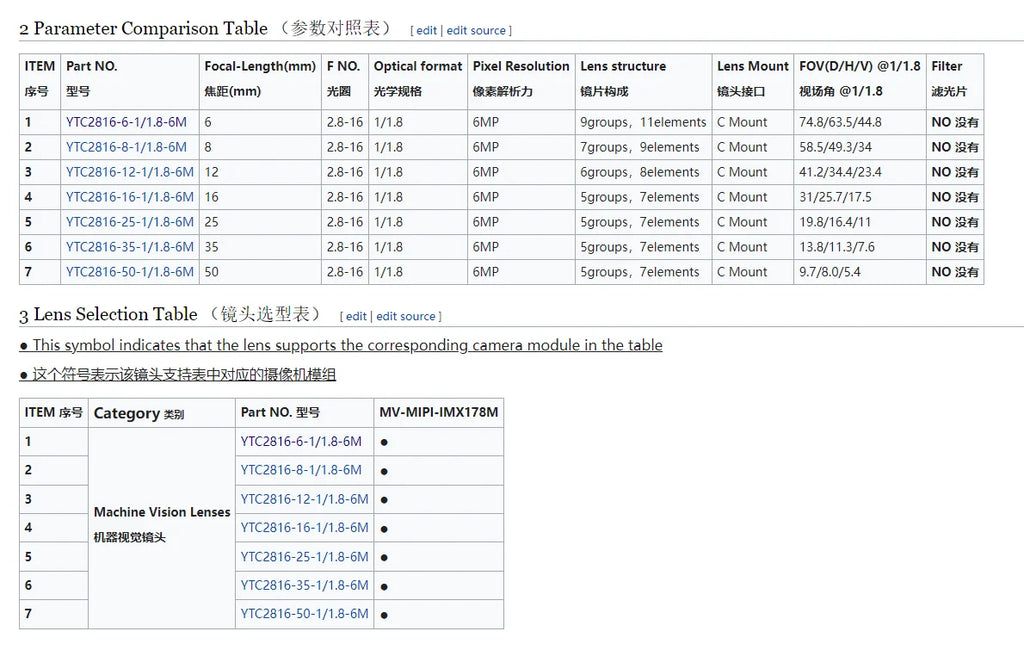

Lens select

http://wiki.veye.cc/index.php/Machine_Vision_Lenses

Important references links

+ wiki
http://wiki.veye.cc/index.php

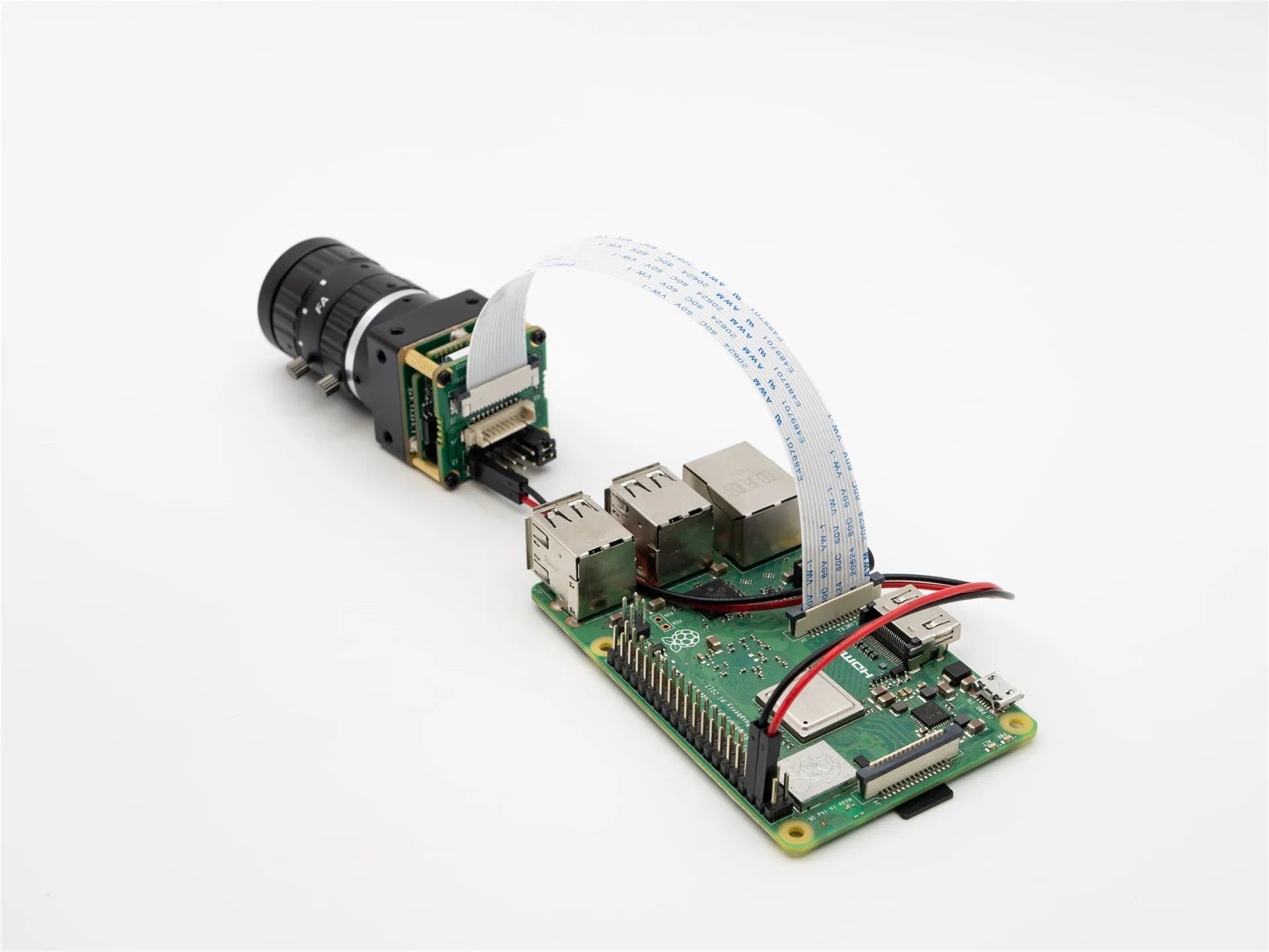

+ How to use MV series camera module on Raspberry Pi
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_rpi

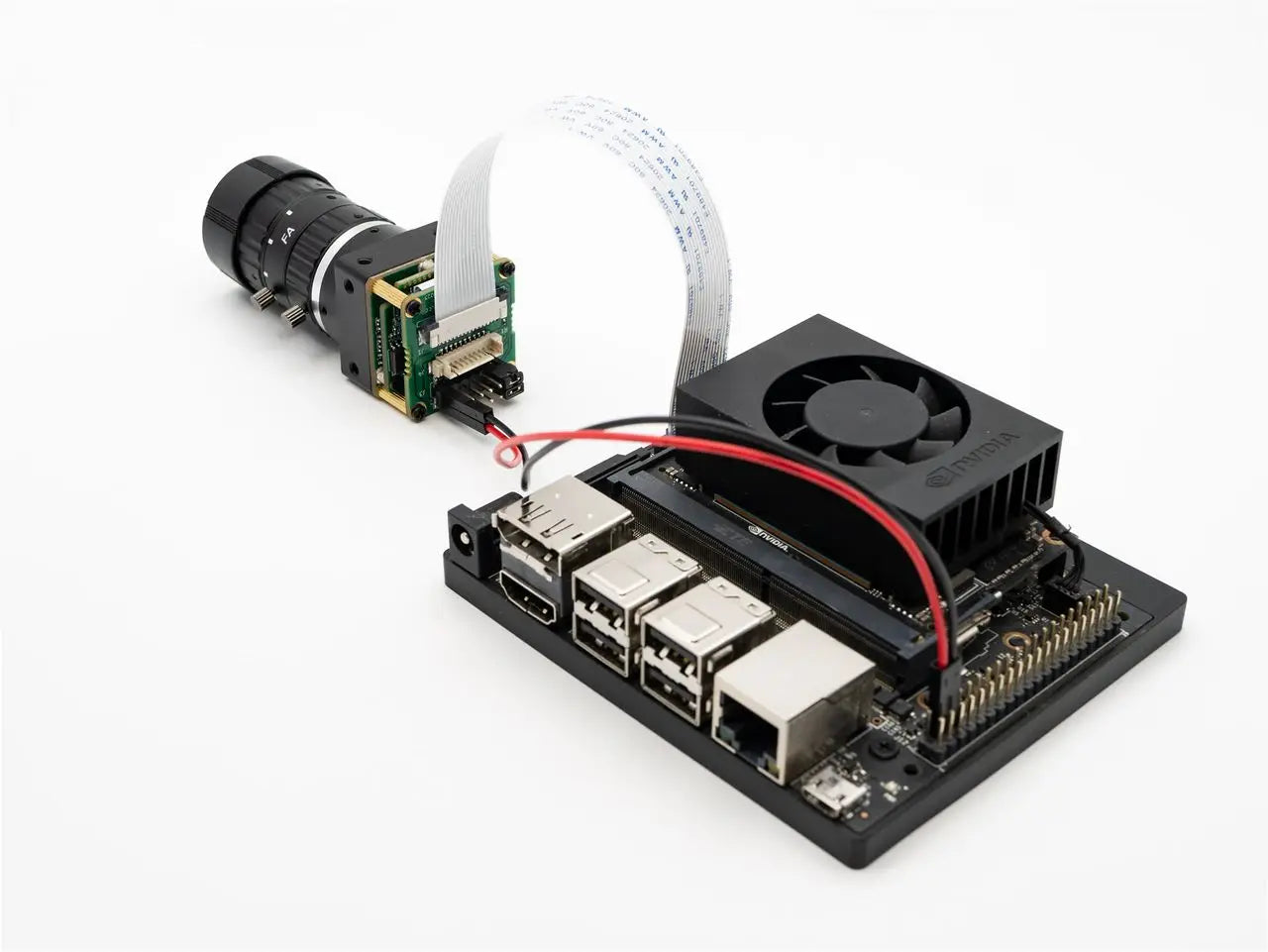

+ How to use MV series camera module on NVIDIA Jetson Platform
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_jetson

+ github
https://github.com/veyeimaging

+ website
www.veye.cc

+ Forum
http://forum.veye.cc

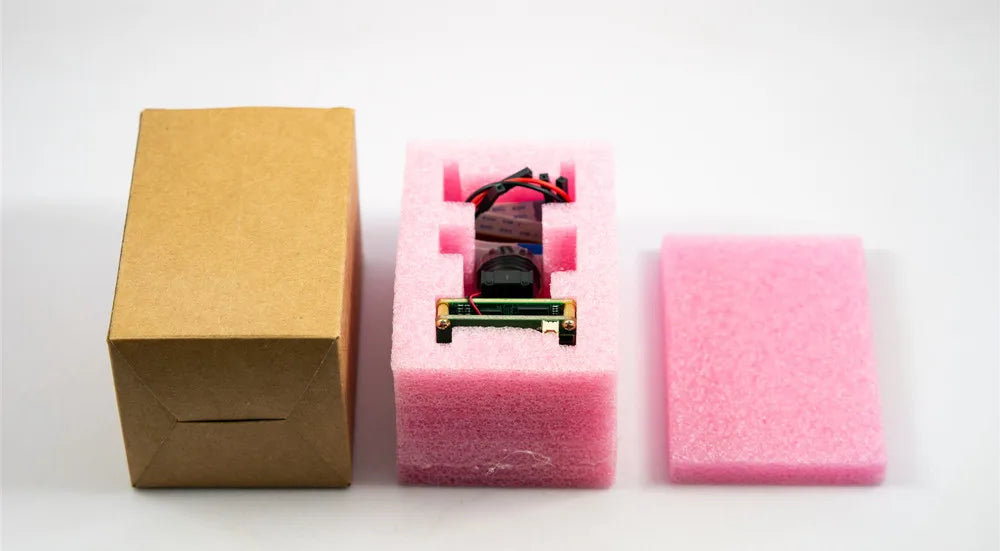

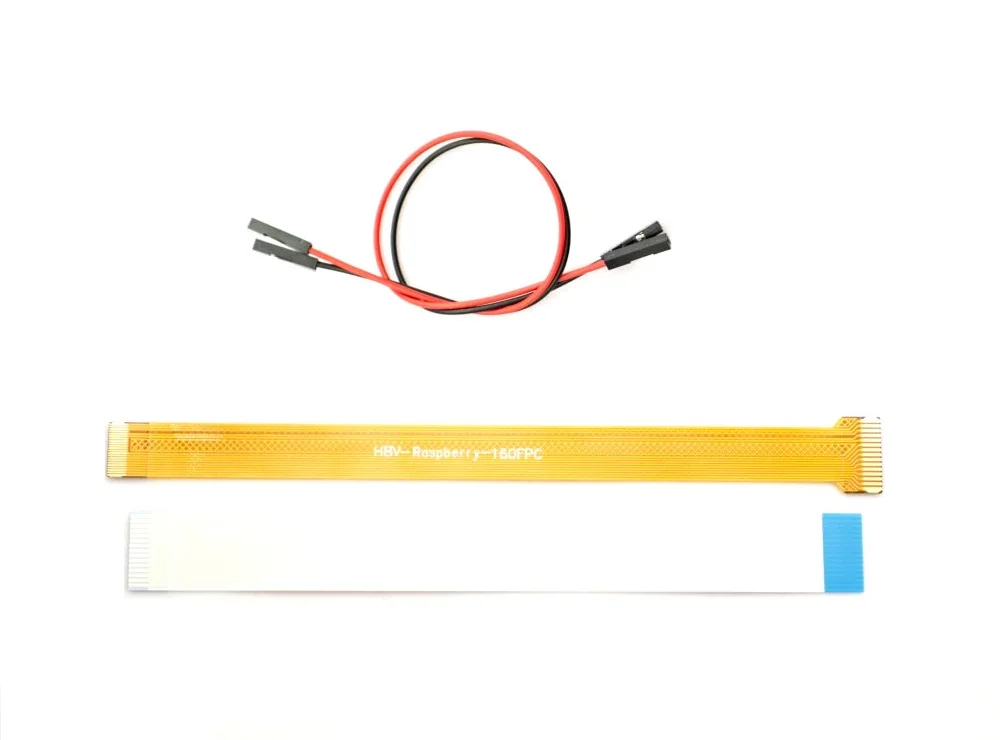

Packaging and accessories

We provide all the needed accessories and install them according to your purchase options and reliable packaging. Below is the schematic.
