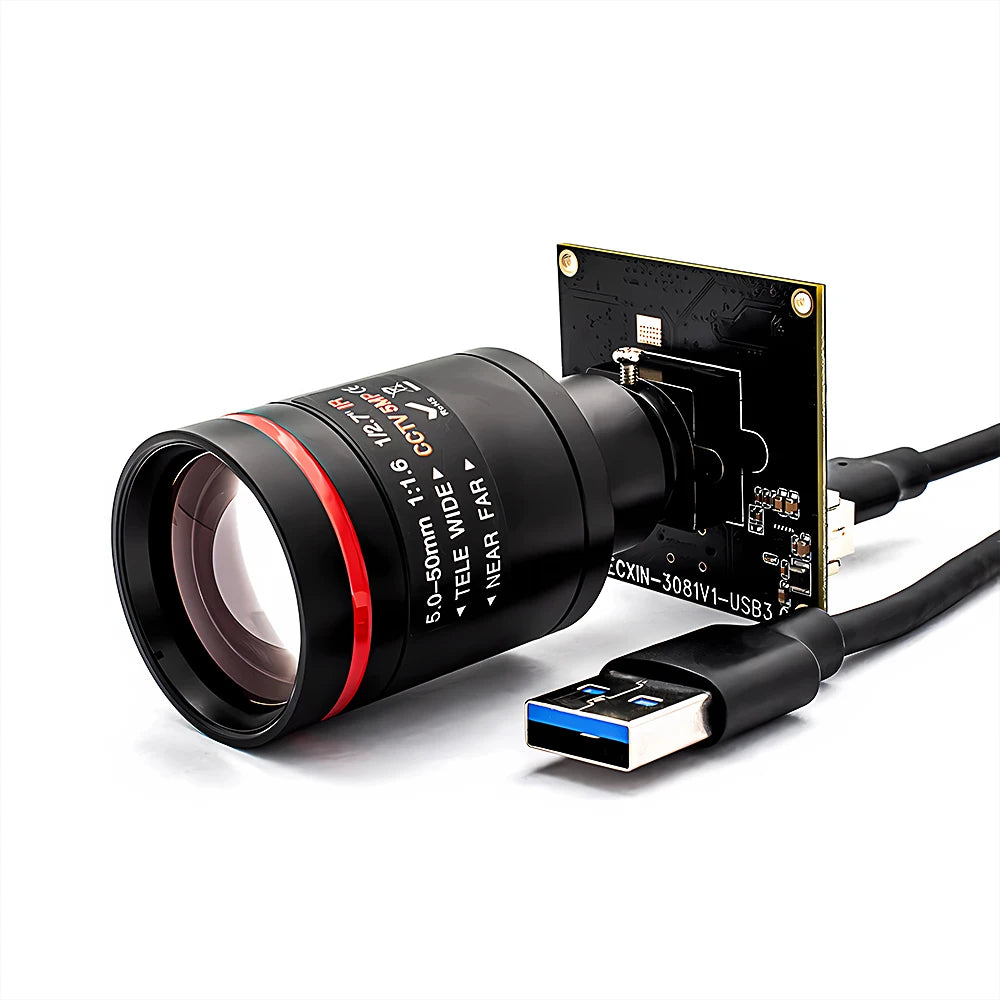

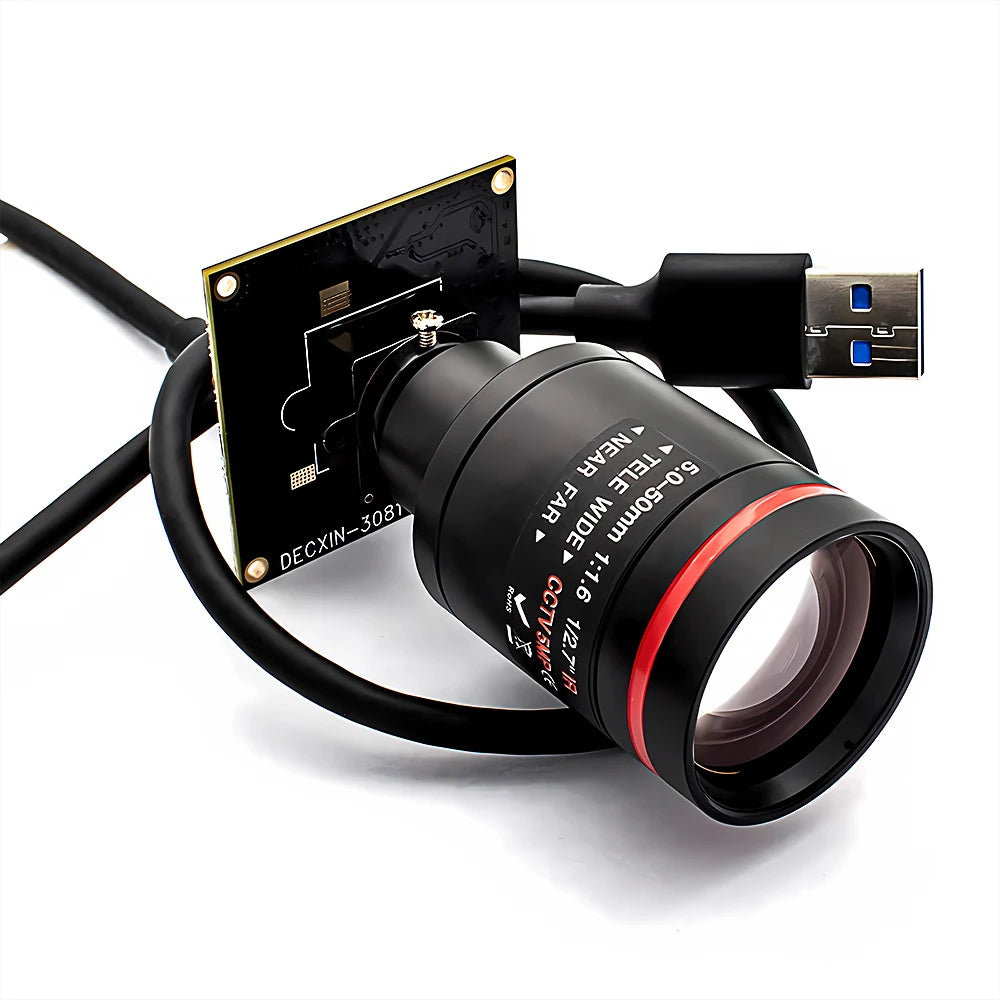

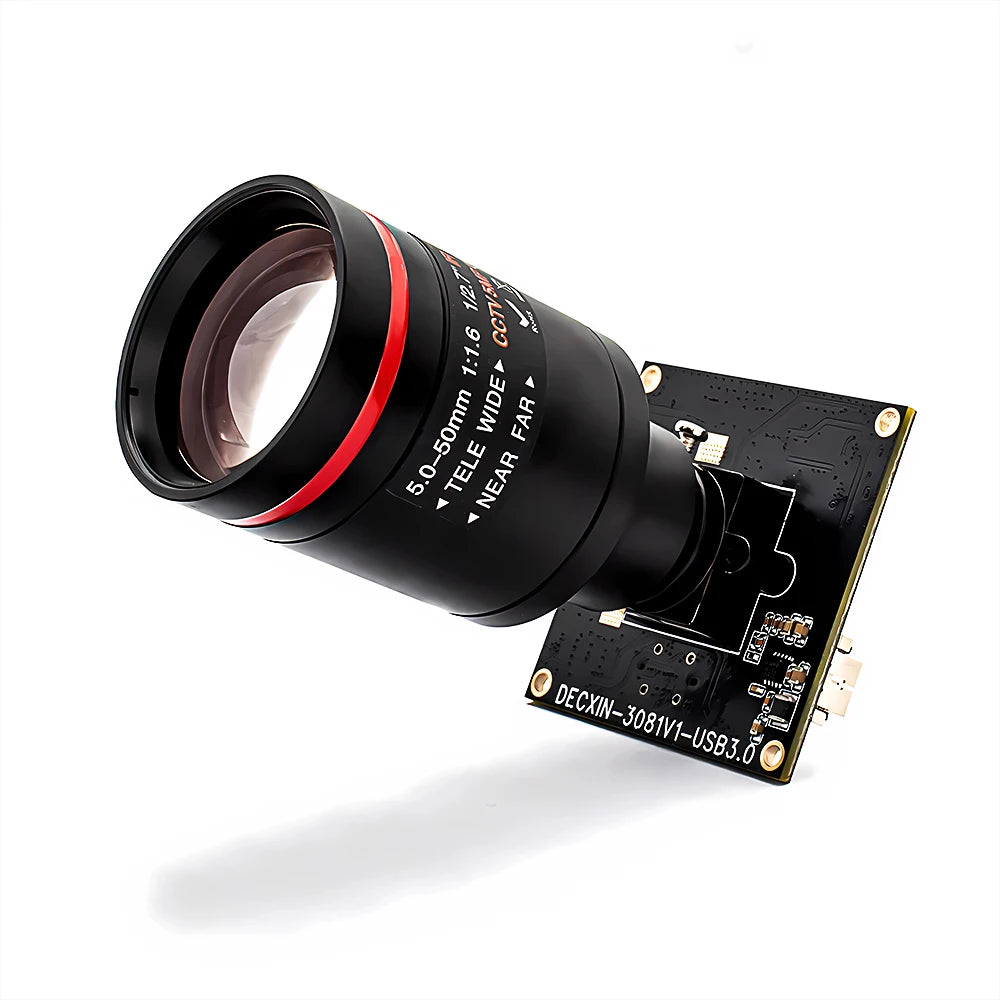

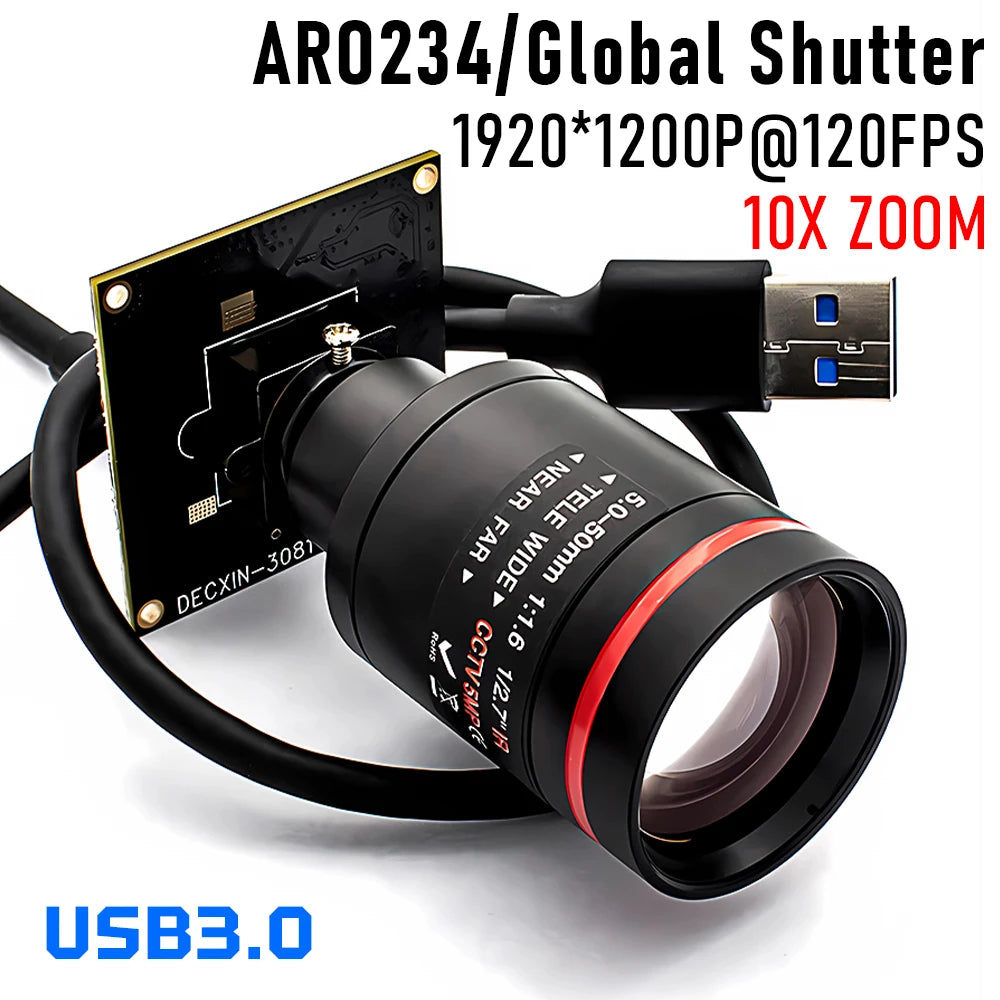

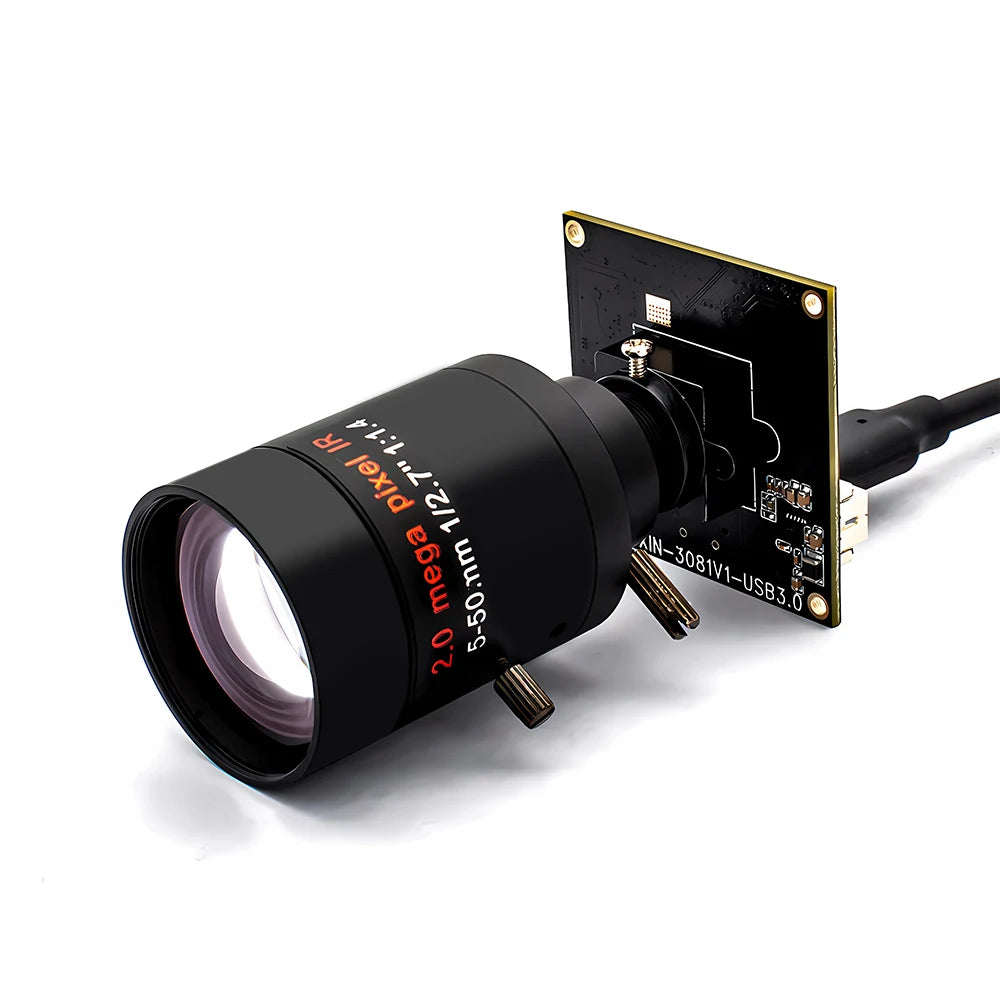

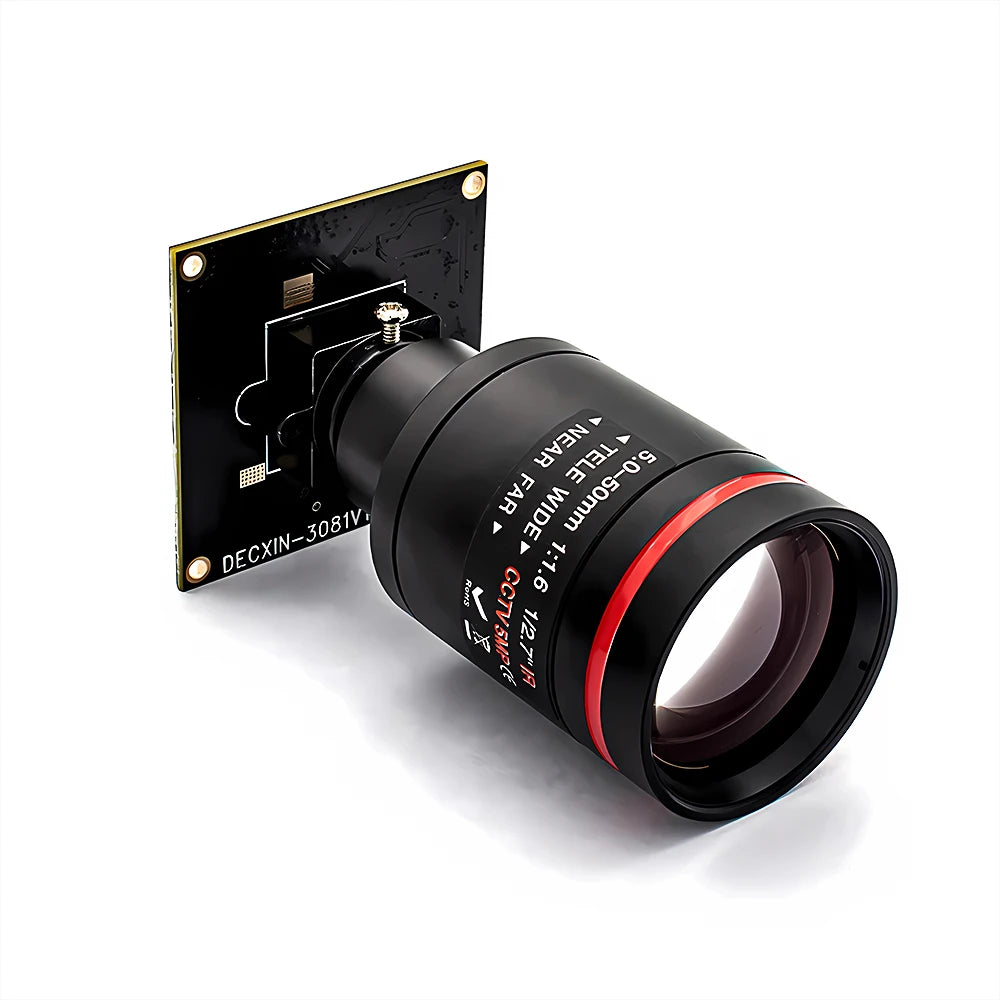

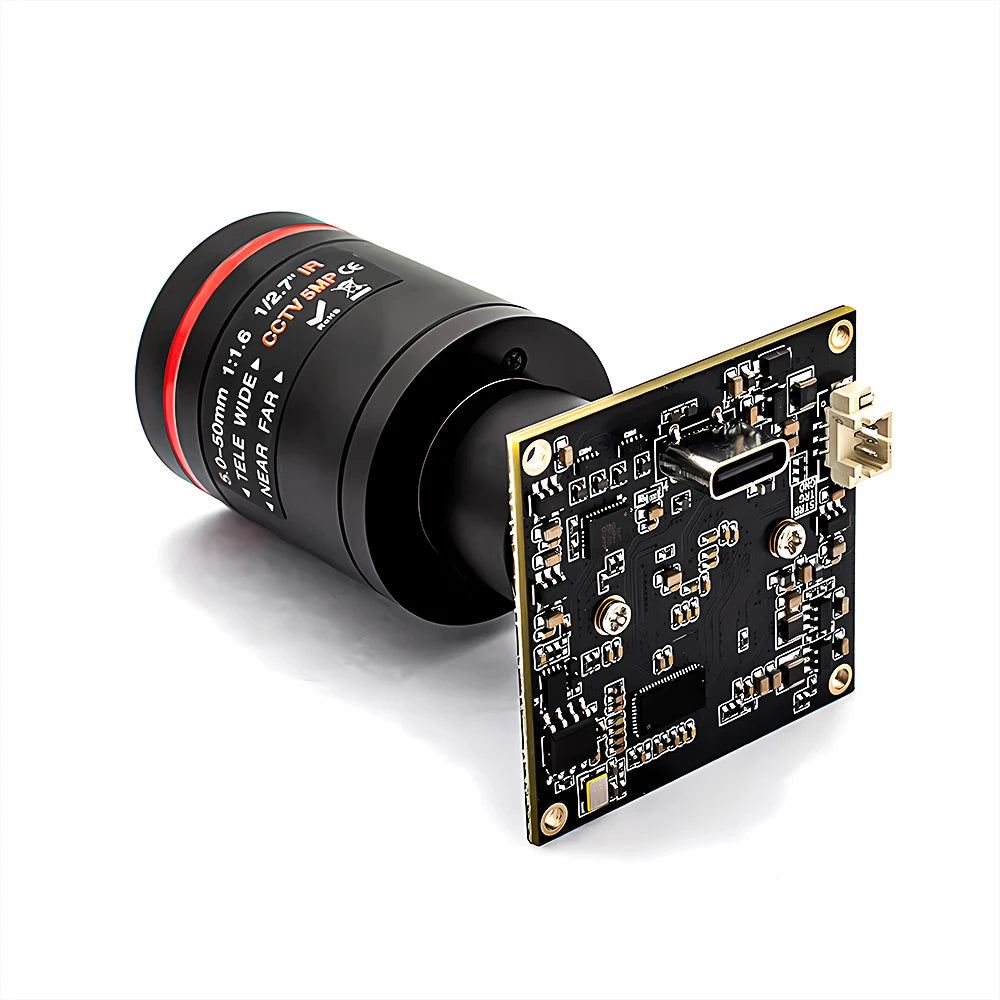

2.3MP 120FPS Global Shutter Aptina AR0234 Sensor Overview

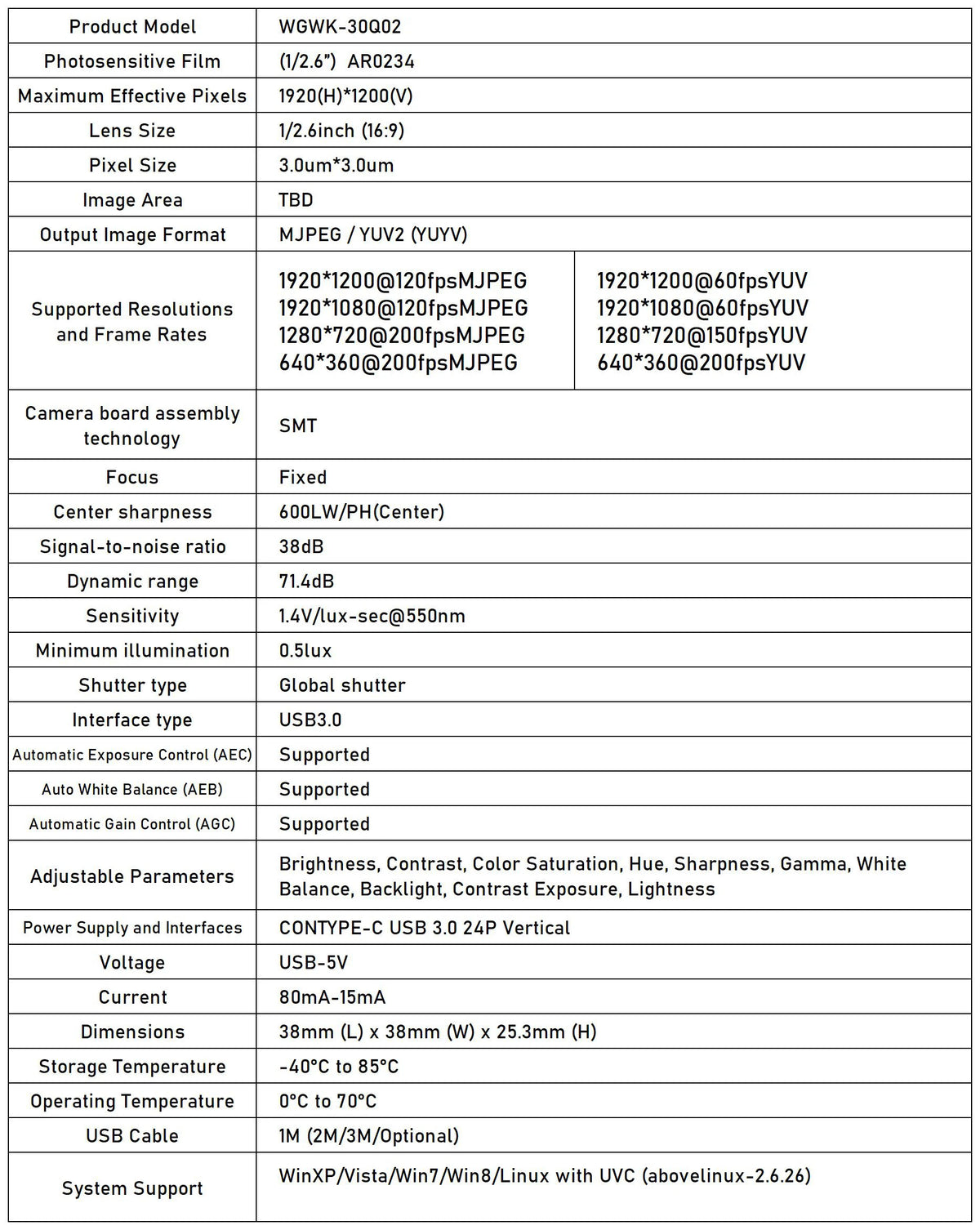

1. Sensor Specifications: The Aptina AR0234 is a 1920*1200P global shutter sensor (1/2.6”) designed for high-quality imaging.

2. Shutter Type: Featuring a global shutter, this camera excels at capturing high-speed moving subjects with crisp, sharp images. It effectively eliminates rolling artifacts, providing a more accurate and complete picture compared to rolling shutter cameras.

3. High Frame Rate: The camera supports high frame rates, delivering MJPEG video at 120fps in resolutions

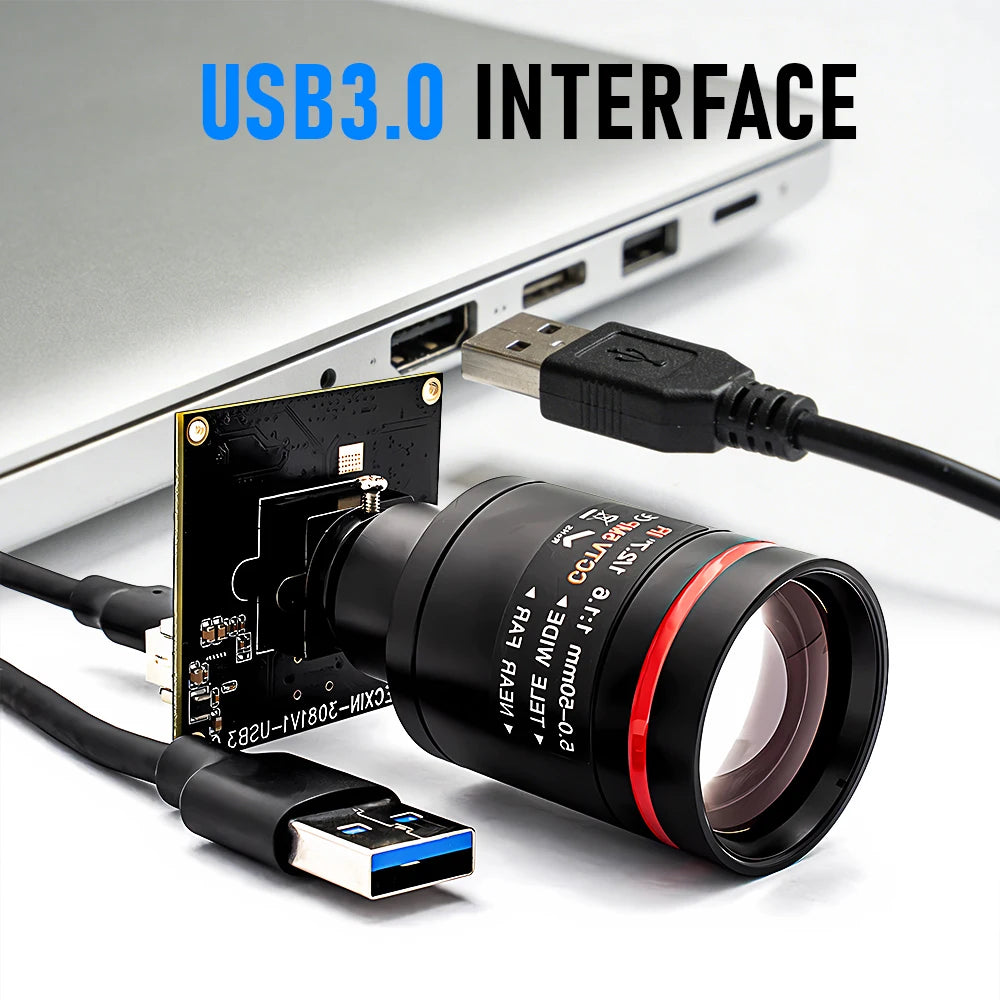

4. Plug & Play: This camera is UVC-compliant, allowing for easy connectivity. Simply plug it into a PC, laptop, Android device, or Raspberry Pi via USB3.0—no additional drivers required.

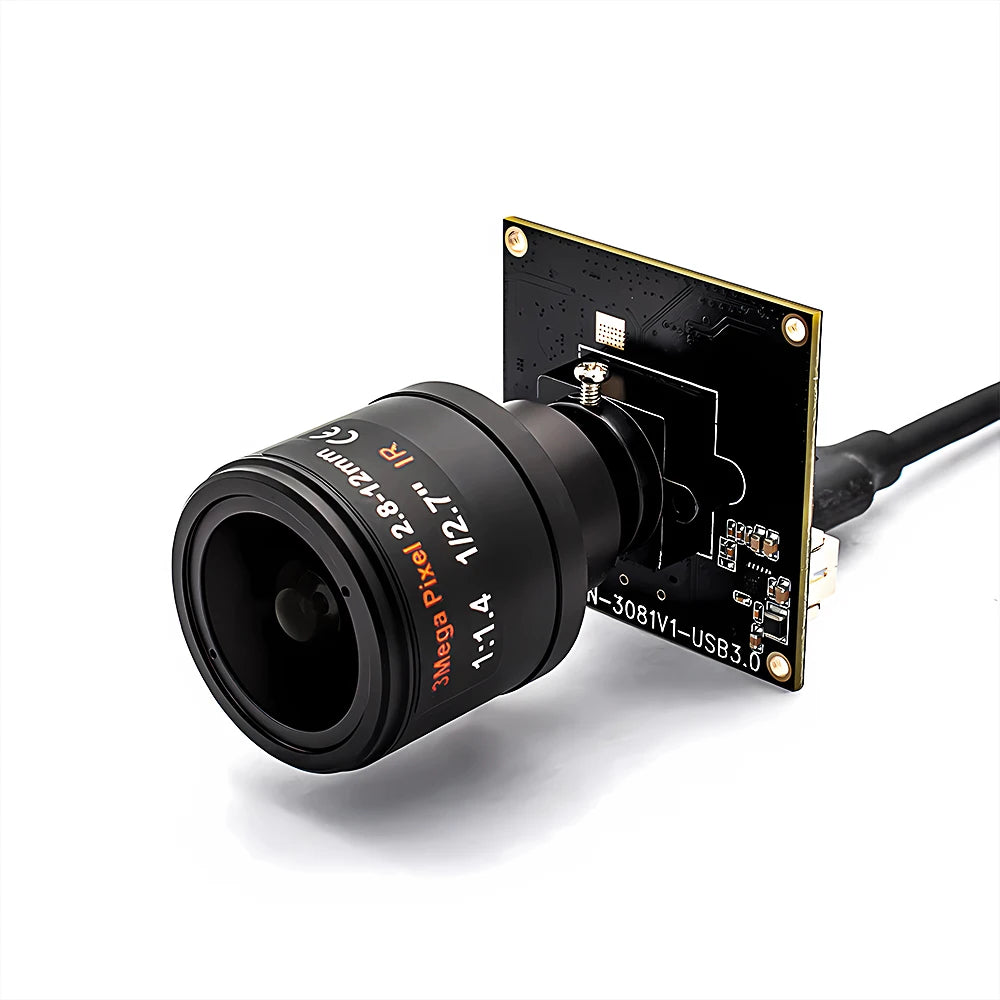

5. Lens Options: An optional fixed focus lens is available for enhanced versatility.

Global Shutter vs. Rolling Shutter:

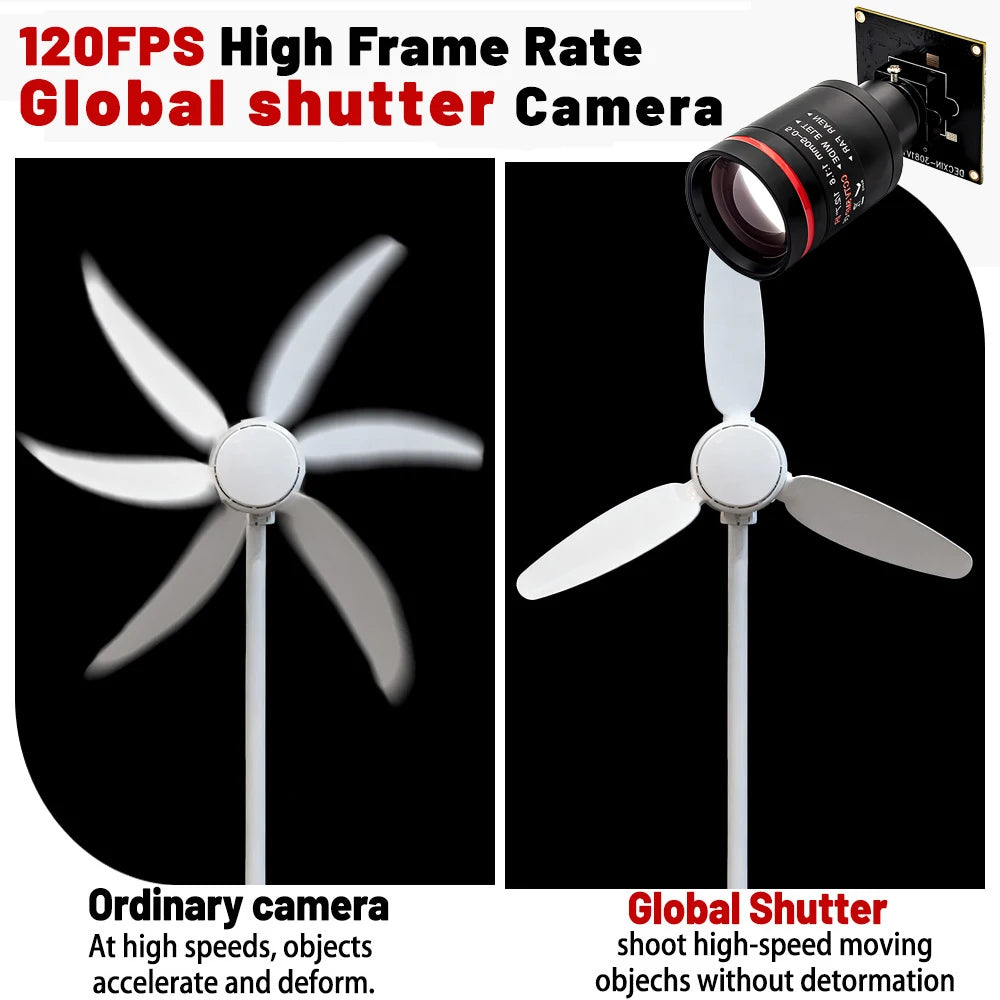

Global Shutter Cameras: Perfect for capturing high-speed motion with clarity, these cameras prevent issues like partial exposure, skew, and wobble, which are common with rolling shutter cameras. They are particularly effective for short exposure times (e.g., <500µs).

Rolling Shutter Cameras: Better suited for longer exposure times (e.g., >500µs), making them more suitable for different imaging scenarios.

Applications: The combination of high image quality, elevated frame rates, and good sensitivity makes global shutter cameras ideal for various applications, including:

• High-speed sports photography

• Industrial inspection

• Video applications

• Industrial automation

• Robotics

• Scientific imaging

• Augmented and virtual reality

• Gesture and eye tracking

• Depth and motion detection

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

Step 1: Install Computer USB Camera Software - amcap

https://drive.google.com/file/d/1ZpJSSVhLD2qGCQusnFoF1JI5uW6IqkBR/view?usp=sharing

（Contact customer service to agree to share this document.）

Step 2: Connect the computer using a USB cable.

Step 3: Adjust the focal length to achieve a clear image.
