GODIAG GT107 + GT105 II DSG Gearbox Data Read/Write Adapter ECU IMMO Kit for DQ250 DQ200 VL381 VL300 DQ500 DL501 For PCMFlash
Germany
$153.18
Sale price
$153.18
Regular price
$0.00
Skip to product information
GODIAG GT107 + GT105 II DSG Gearbox Data Read/Write Adapter ECU IMMO Kit for DQ250 DQ200 VL381 VL300 DQ500 DL501 For PCMFlash
$153.18
Sale price
$153.18
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: GODIAG
Electronic: No
External Testing Certification: ce
High-concerned chemical: none
Is Batteries Included: no
Item Height: 4
Item Length: 22
Item Type: Other
Item Weight: 0.5
Item Width: 11
Material: Best Quality
Measurement Accuracy: ±0.3%
Number of Items: 1
Origin: Mainland China
Voltage: 12V
Wireless Support: No

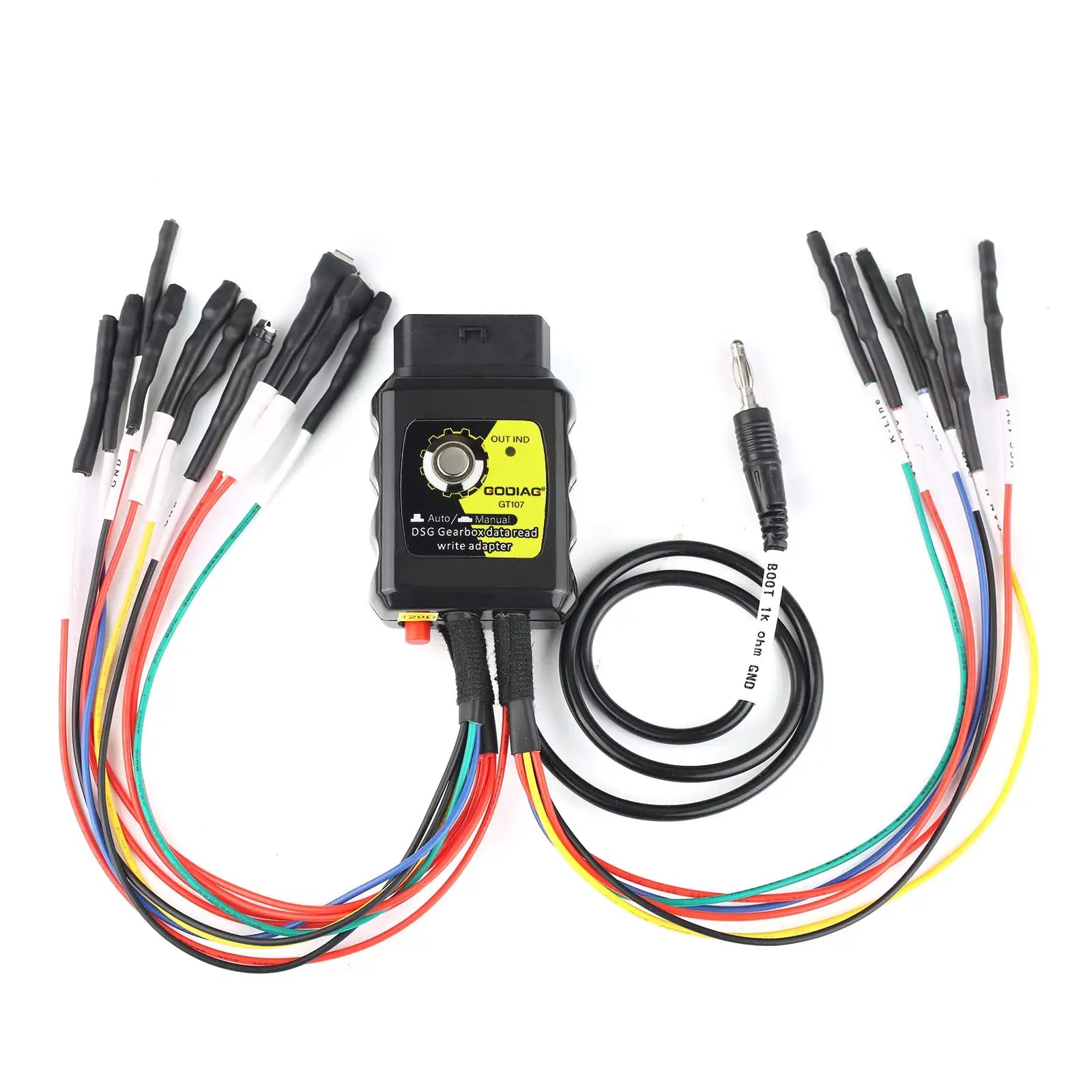

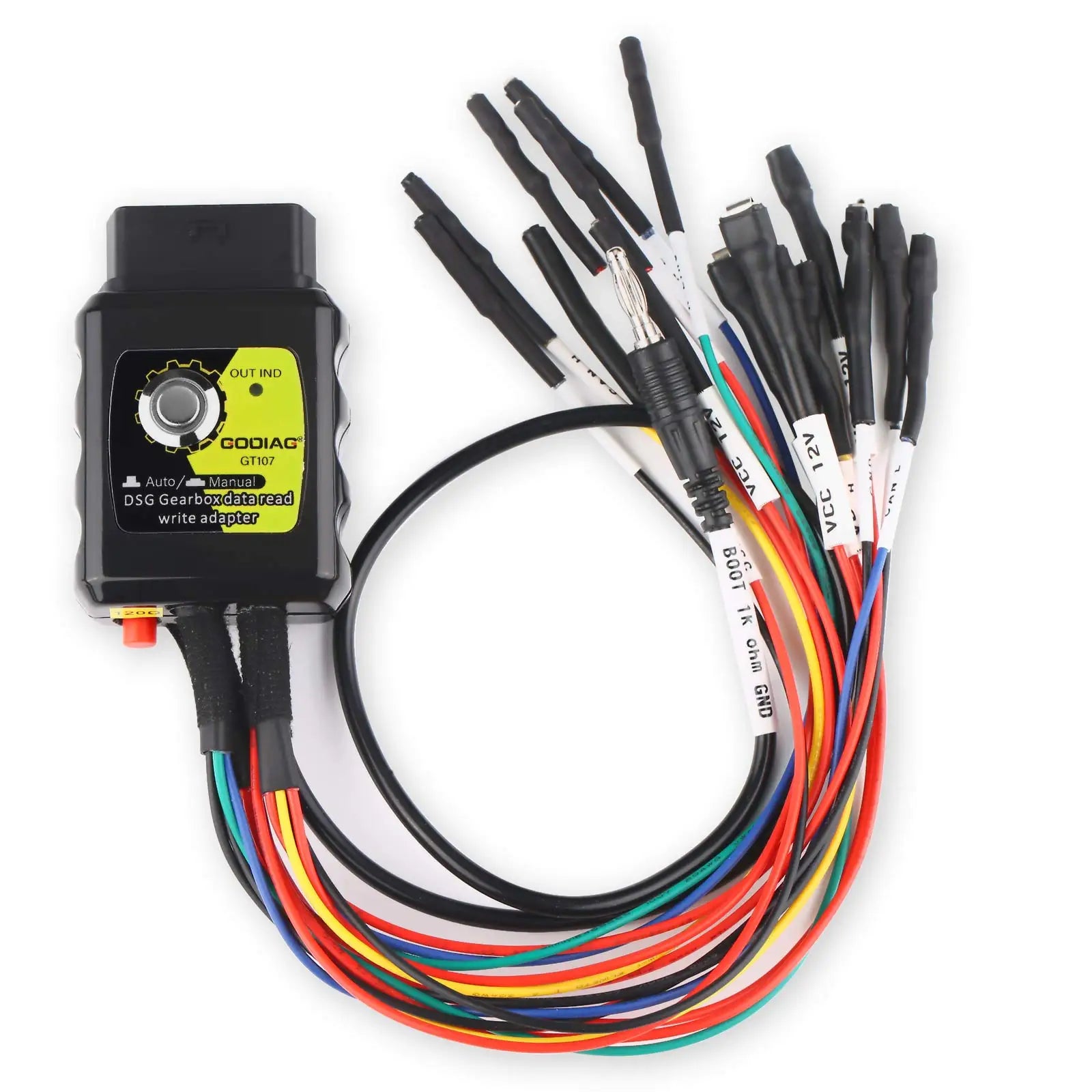

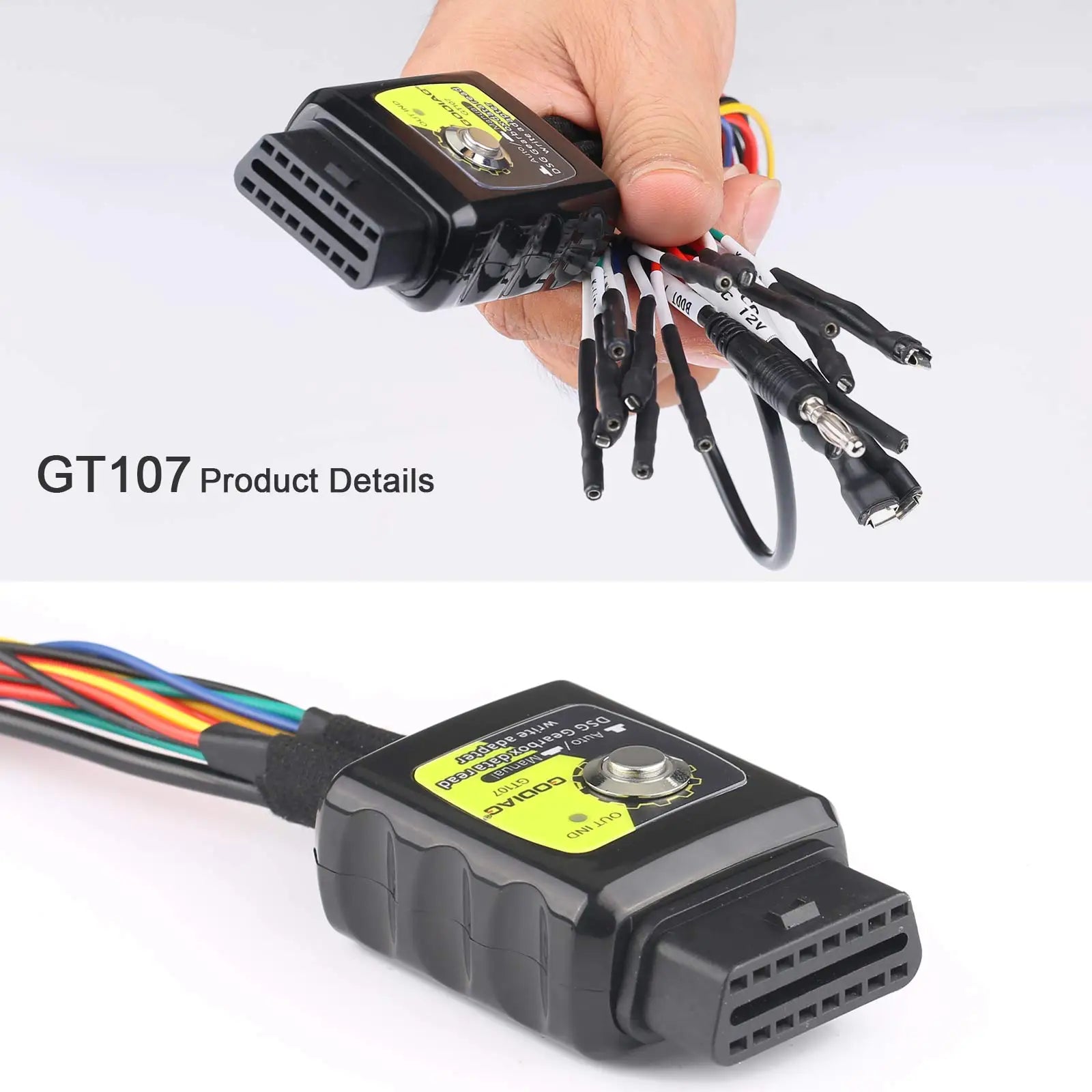

GODIAG GT107 ECU IMMO Kit is a DSG gearbox connection adapter. DSG Gearbox maintenance engineers can clone, diagnose and repair DSG Gearbox ECU and can also read, write and adjust data for DSG Gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.
This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose “Auto”, and for diagnosis you can choose ”Manual”. For other software kessv2, DQ200, DQ250, DQ500 you can also choose “Manual”.
Moreover, with the car battery power, the adapter can directly read and write DSG Gearbox data and you can clearly check the communication status during the data reading and writing process.
Connection Diagram & Operation:
Used with PCMtuner：
Easy Operation:
1. Connect GODIAG GT107 to the gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501.
2. Connect GODIAG ECU IMMO Prog AD and connect 12V 2A DC power supply.

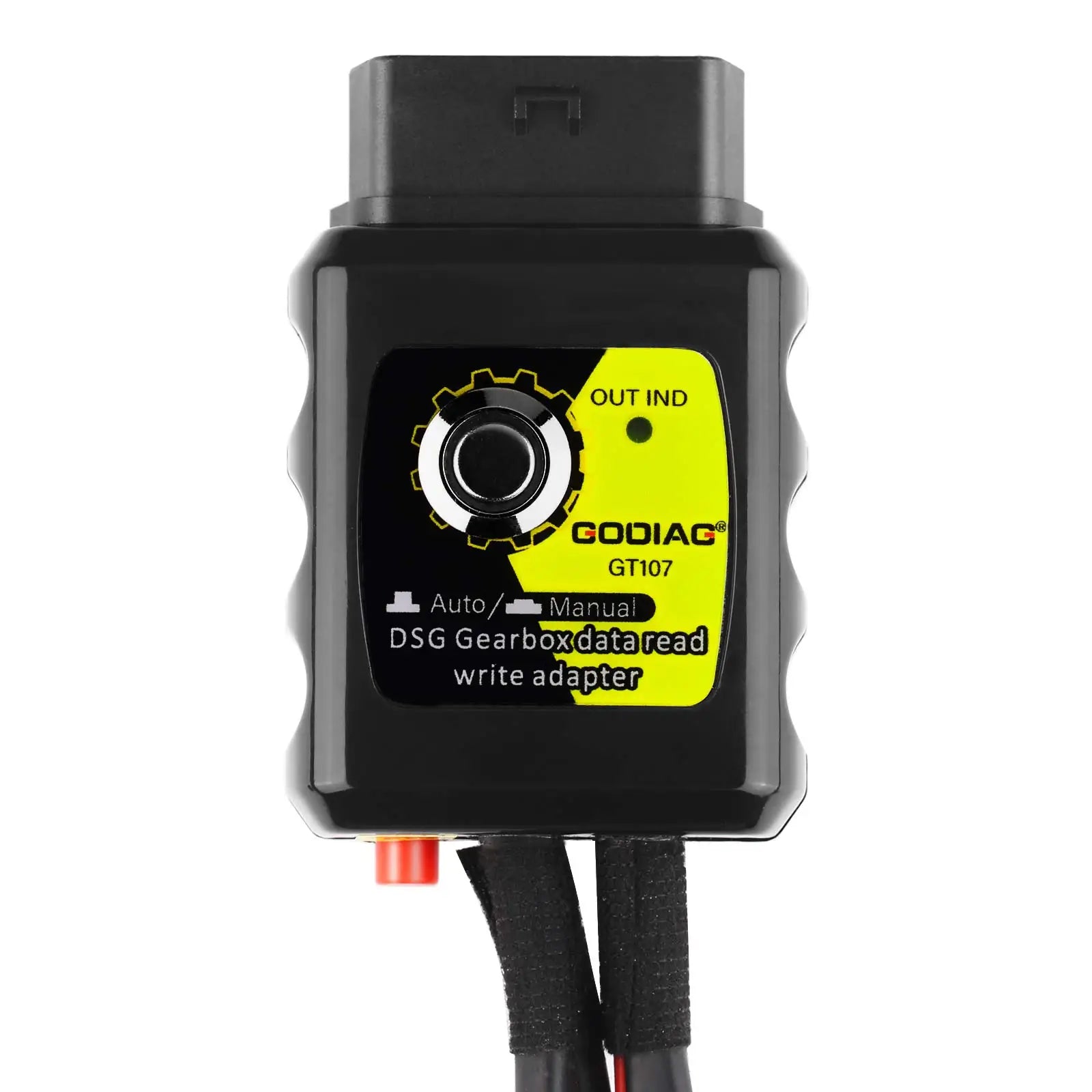

3. The GODIAG GT107 analog ignition switch is in “Auto” mode if it is not pressed, and it is in “Manual” mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading)
4. Connect PCMFlash, PCMTuner J2534passthru.
5. Connect the computer to open the software and select “Auto”.
Used on the Car:
Easy Operation:
1. Connect GODIAG GT107 to the gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501.
2. Connect the GODIAG ECU IMMO Prog AD and connect the vehicle battery.
3. The GODIAG GT107 analog ignition switch is in “Auto” mode if it is not pressed, and it is in “Manual” mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading).
4. Connect PCMFlash, PCMTuner J2534passthru.
5. Connect the computer to open the software and select “Auto”.
Used with KESSV DQ200, DQ250, DQ500:
Easy Operation:
1. Connect GODIAG GT107 to gearbox ECU DQ250, DQ200, DQ500.
2. Connect GODIAG ECU IMMO Prog AD and connect vehicle battery or 12v 3A power supply.
3. Connect kessv2 device, and press down the GT107’s switch to make it in “Manual” ignition mode.
4. Connect the computer to open the software.
Product Introduction of GODIAG GT105 II ECU IMMO Prog AD
Product Highlights：
A full-protocol ECU connection line for ECU programming power adjustment
OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
Standard OBD2 independent PIN4, PIN5.
Pure copper female seat supports repeated insertion and removal, and has a long service life.
Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.
The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
The DC connector has a resettable 7A fuse.
DC power interface, dedicated laboratory power connector.
Product Functions:
Vehicle voltage display
Car remote control battery CR2032 battery test
Car battery voltage alarm prompt(lower than 11V)
TOYOTA steering angle matching
Lamborghini ID48 key IMMO auxiliary activation
IMMO AD power adapter function. After 2016, for Ford all smart keys lost, GT105 II cooperates with VVDI equipment (OBDSTAR, AUTEL,) and other anti-theft matching equipment to program the keys.
All car keys lost matching---wake up the meter or wake up the anti-theft ECU. (Support VAG 4th and 5th generation anti-theft, Toyota ECU synchronization, auxiliary Mitsubishi all key lost matching or all lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)
VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device. (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)
On-site Maintenance
The GT105 II power adapter cable obtains 12V power from the car battery. (For programming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of BMW BENZ IMMO ECU, or other car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles. )
Provide 12V power supply for the key cutter (12V).
Standard OBD2 full protocol ECU programming line. (With MPPS, FGTech, Kess v2, etc., for ECU data reading and writing, ECU cloning, ECU tuning, etc.) (Note: OBD2 full protocol ECU programming line is purchased separately)
OBD Battery Replacement Tool
Realize the uninterruptible power supply during the battery replacement, so it can prevent data loss, key failure or re-matching caused by power interruption during the battery replacement.

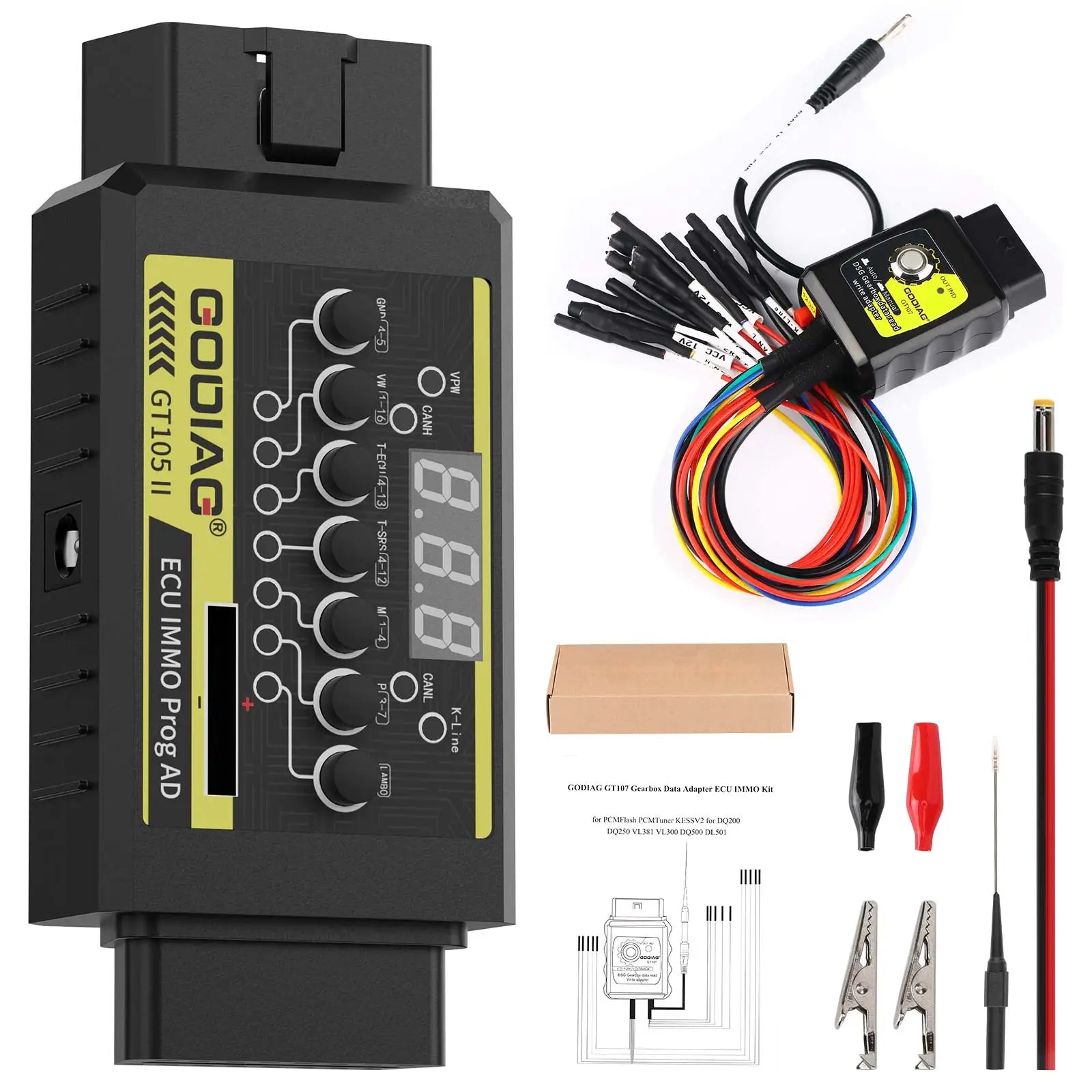

Package Includes:
1pc x GODIAG GT105 II ECU IMMO Prog AD
1pc x DSG Adapter
1pc x Power Cord with Battery Clip
1pc x Probe
