SPECIFICATIONS

Brand Name: OMDAZZ

Condition: New

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: 5V

Type: Module

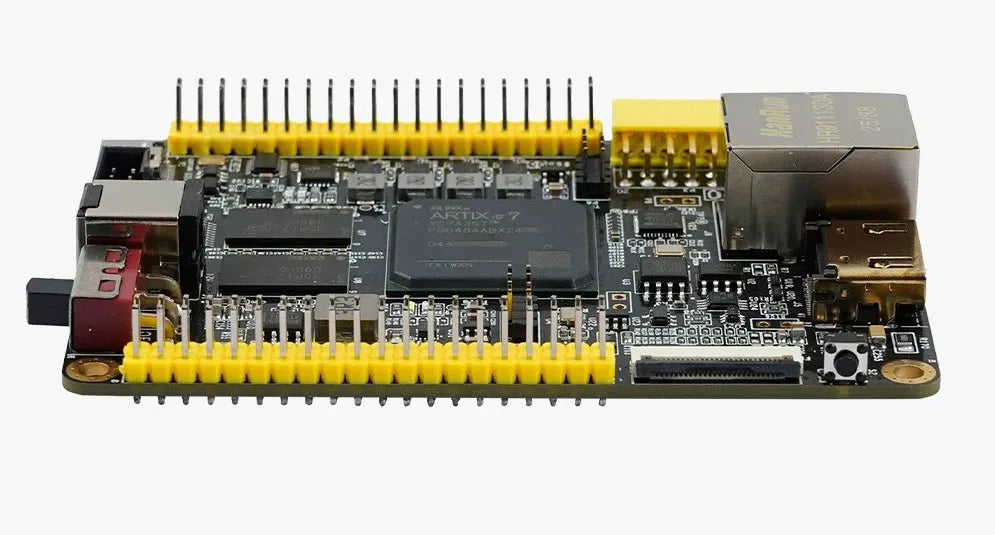

1. Core Specifications

FPGA Chip:
Equipped with Artix-7 series FPGA chips, including XC7A35T/XC7A50T/XC7A100T/XC7A200T-2FGG484 and GW5AT-LV138PG484 variants, to
meet diverse performance requirements.

GOWIN GW5AT‑138 FPGA, PG676A package, footprint compatible replacement for XC7A100T‑FGG676. 138240 LUT4, 298 DSP, 6120Kb BRAM, 8×12.5Gbps SerDes, built‑in MIPI D‑PHY. Industrial temperature‑40~85℃. Note: Ball‑grid compatible, not plug‑and‑play. Power circuit & constraint modification required.

Memory:
Built-in 1GB DDR3 RAM for smooth data processing and system operation.

Flash Storage: 128Mb QSPI FLASH, designed for FPGA program and configuration file storage.

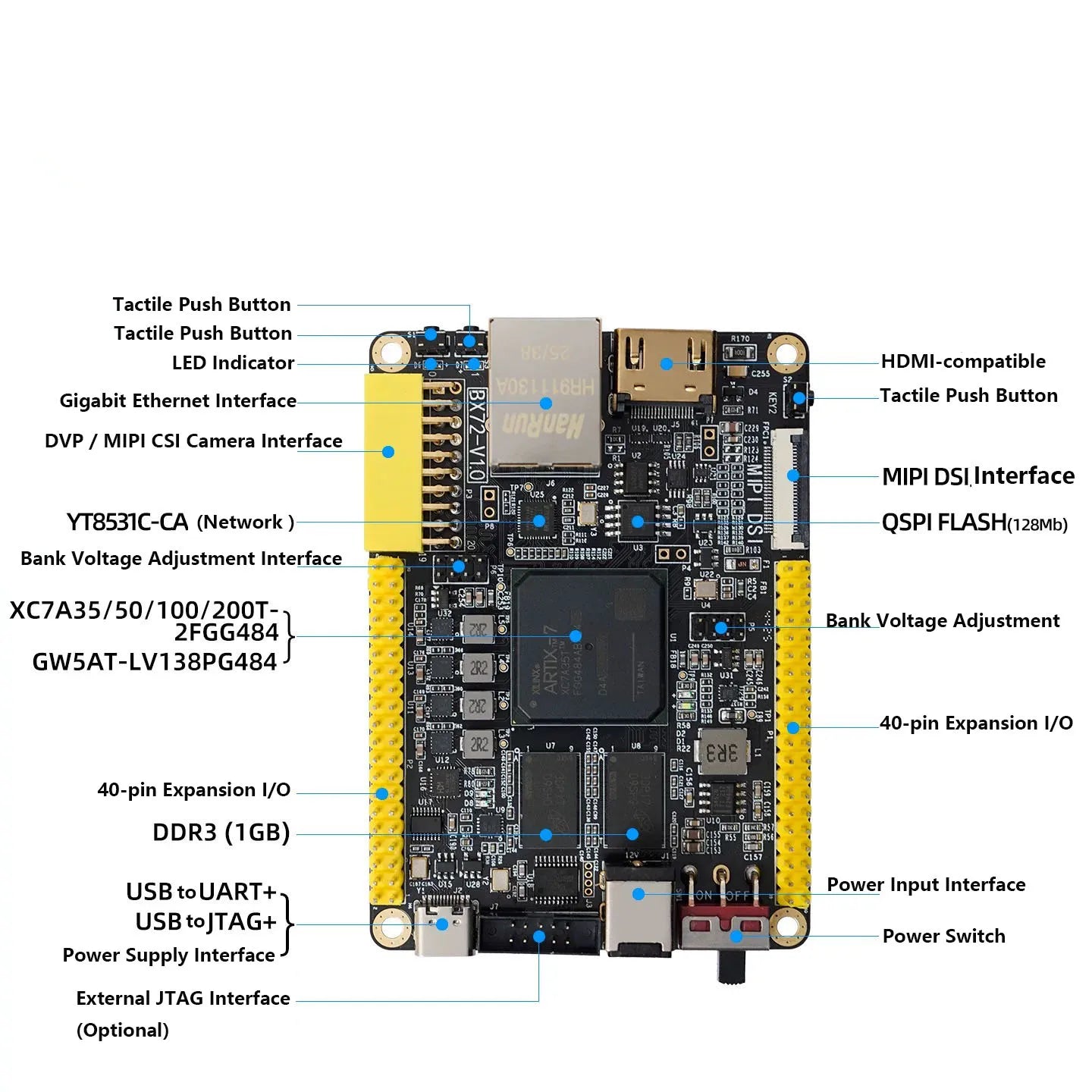

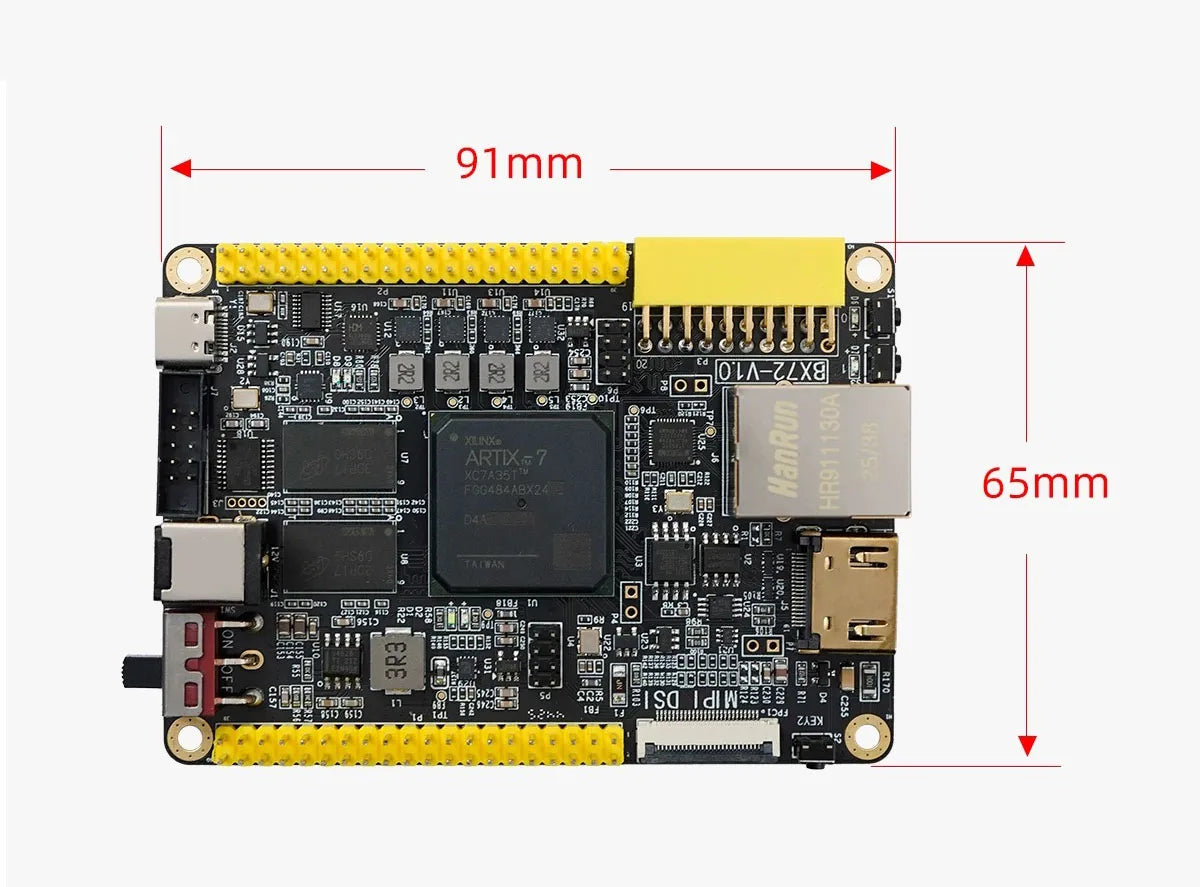

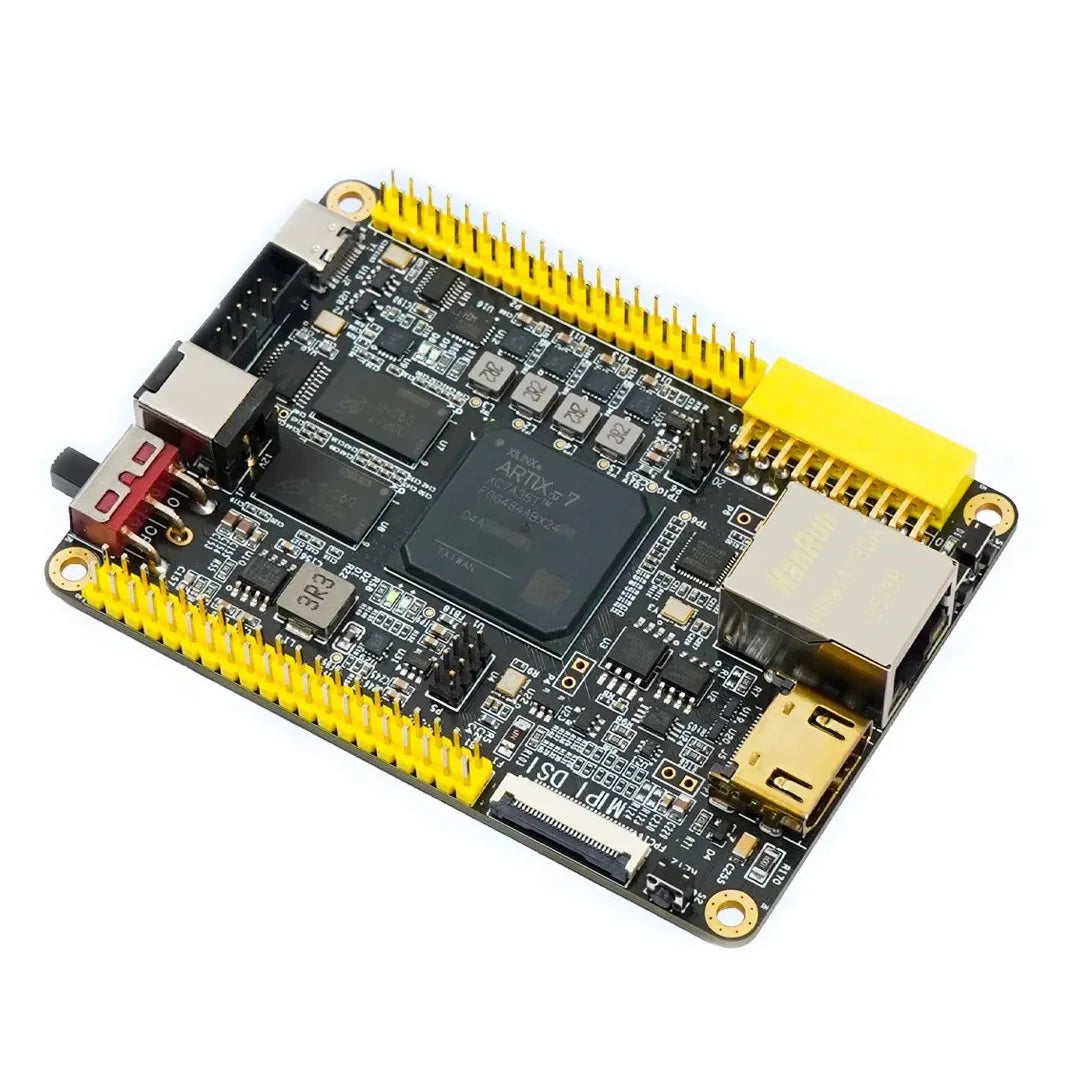

2. On-board Interfaces & Peripherals

Video & Display Interfaces

• HDMI Output: Directly supports video output for easy connection to display devices.

• MIPI DSI Display Interface: Compatible with MIPI DSI protocol displays, ideal for embedded visual applications.

• DVP/MIPI CSI Camera Interface: Supports both DVP and MIPI CSI cameras, enabling image acquisition and vision processing
  projects.

Network Interface

Gigabit Ethernet: Features a 10/100/1000Mbps Ethernet port with YT8531C-CA network chip, ensuring stable and
high-speed data transmission.

Debugging & Power Supply

• Multi-function USB Port: Combines USB-to-UART (serial communication), USB-to-JTAG (FPGA programming/debugging),
  and board power supply functions, simplifying development setup.

• External JTAG Interface: Optional independent JTAG port for flexible debugging without relying on the on-board
  USB function.

• Power Port & Switch: External power input with a dedicated on/off switch for convenient power control.

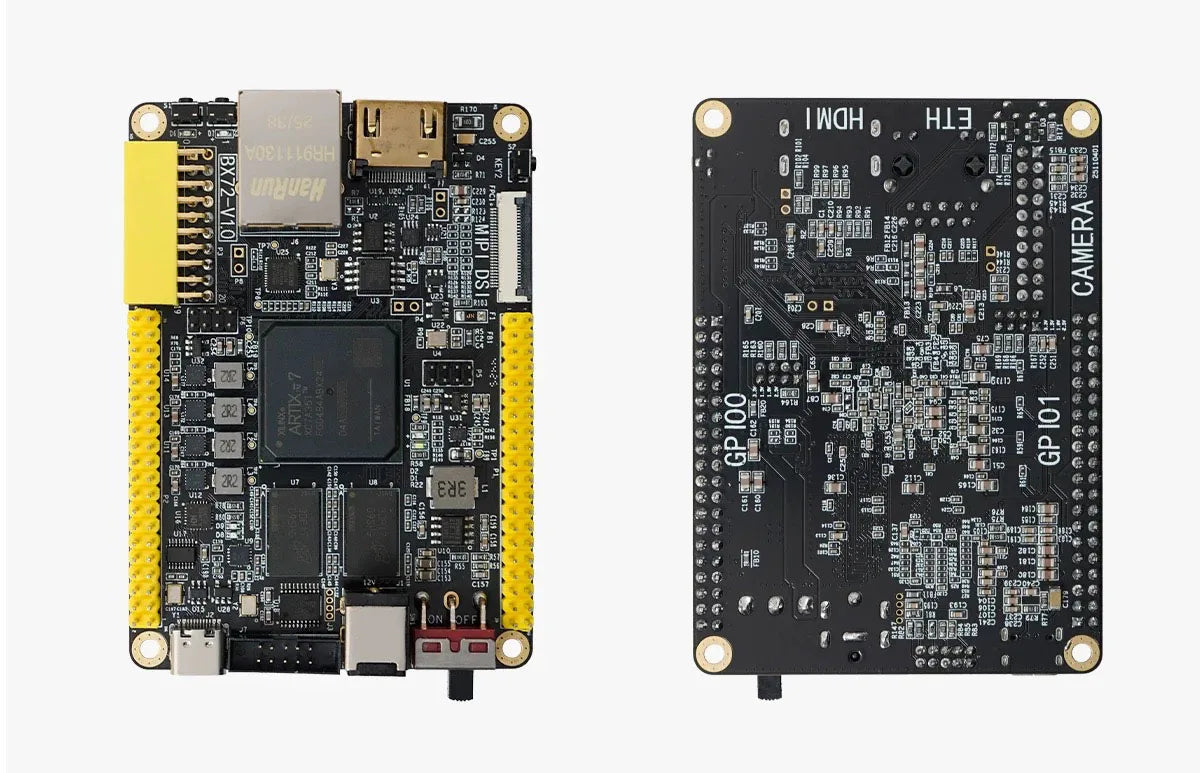

Expansion & User I/O

• Dual 40-pin Expansion Headers: Two sets of 40-pin GPIO headers for connecting external modules and expanding hardware
  functionality.

• Bank Voltage Adjustment Interface: Supports voltage adjustment for different FPGA I/O banks to match various peripheral
  voltage standards.

• User Buttons & LEDs: Multiple tactile push buttons and status LEDs for custom interaction, system reset, and
  debugging feedback.

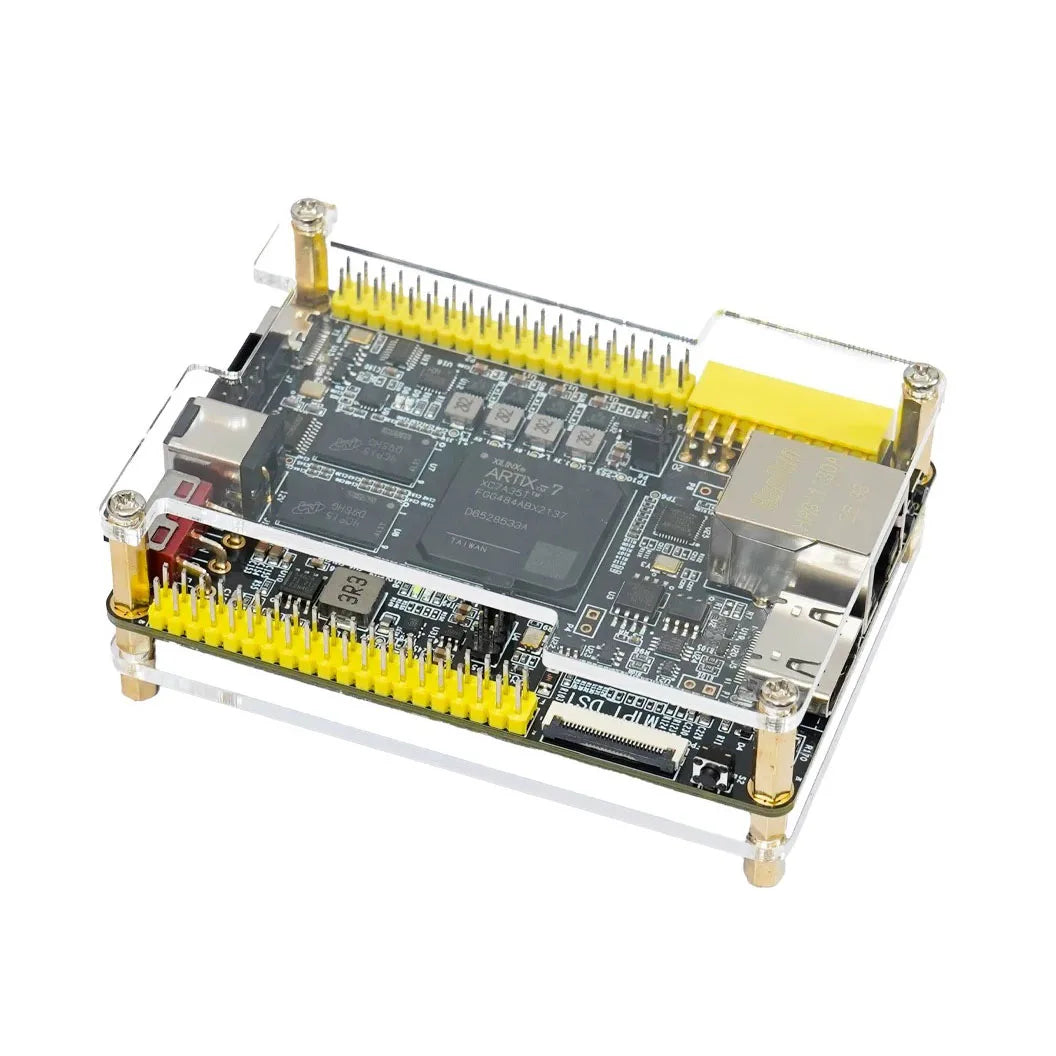

3. Design & Quality Features

Industrial-grade Components: Uses industrial-grade components, dedicated DDR VTT power supply, and sufficient
decoupling capacitors for enhanced system stability.

High-speed Signal Integrity: Implements high-speed impedance matching design to minimize signal interference and ensure
reliable performance of DDR3, Ethernet, and other high-speed interfaces.

-Reliable Manufacturing: Multi-stage production and testing processes, with components sourced from certified
suppliers to guarantee consistent product quality.
